Evikon PluraSens E2658-PID User manual

PluraSens®
Solvent Vapor Detector-Transmitter
E2658-PID
User Manual

E2658-PID Rev 12.03.2021
Table of contents
Acetone 4
Benzene 5
Ethanol 6
Ethyl acetate 7
Toluene 8
Xylene 9
Specifications 10
Product description 12
Safety requirements 12
PID (photoionization detector) technology 13
Operating conditions 13
Installation guidelines 13
Mounting dimensions 15
Sensor probe handling 16
Gas sensor replacement procedures 16
Electrical connections 17
Operation 19
Maintenance 19
Properties of VOC: ionization energy, the correction factor 20
Calibration and maintenance 29
Delivery set 33
Order code for E2658-PID options 33
Configuring 34
Return to default settings 34
2

E2658-PID Rev 12.03.2021
Modbus RTU Communication 35
RS485 communication interface 35
Communication parameters 35
Modbus holding registers 35
Warranty 40
Manufacturer contacts 40
3

E2658-PID Rev 12.03.2021
Acetone
A colorless organic solvent with a characteristic pungent odor that is volatile and
flammable with the chemical formula (CH3)2CO.
Synonyms/Trade Names: Dimethyl ketone, Ketone propane, 2-Propanone.
Chemical formula
(CH3)2CO
Molar weight
58
Relative gas density (to air)
2.0
Conversion*
1 ppm = 2.38 mg/m3
Boiling point
56.11 °C
Low explosive limit (LEL), % vol. in air
2.5
Upper explosive limit (UEL), % vol. in air
12.8
Odor
Characteristic pungent smell
Hazards
Highly flammable.
Slightly toxic in normal use. Irritant causing mild skin
irritation and moderate to severe eye irritation. At high
vapor concentrations, it may depress the CNS.
Exposure limits
8 hours
(2000/39/EC)
1900 mg/m3/ 500 ppm
NIOSH REL TWA
590 mg/m3/250 ppm
IDLH (NIOSH)
2500 ppm [10%LEL]
4

E2658-PID Rev 12.03.2021
Benzene
A colorless liquid with an aromatic odor that is highly flammable with the molecular
formula C6H6.
Synonyms/Trade Names: Benzol, Phenyl hydride.
Chemical formula
C6H6
Molar weight
78
Relative gas density (to air)
2.69
Conversion*
1 ppm = 3.19 mg/m3
Boiling point
80 °C
Low explosive limit (LEL), % vol. in air
1.2
Upper explosive limit (UEL), % vol. in air
7.8
Odor
Hyacinth-like odor
Hazards
Highly flammable.
Irritant. Carcinogen.
May cause dizziness; headache, nausea, staggering
gait; anorexia, lassitude.
Target organs: eyes, skin, respiratory system, blood,
central nervous system, bone marrow.
Exposure limits
(NIOSH REL)
Ca TWA
0.319 mg/m3/0.1 ppm
STEL
15 minutes
1 ppm
Ca IDLH
500 ppm
5

E2658-PID Rev 12.03.2021
Ethanol
A clear colorless liquid with a faintly sweet odor and pungent taste.
Synonyms/Trade Names: ethyl, alcohol.
Chemical formula
CH3CH2OH
Molar weight
46
Relative gas density (to air)
1,59
Conversion*
1 ppm = 1.89 mg/m3
Boiling point
78.37°C
Low explosive limit (LEL), % vol. in air
3 - 3.3
Upper explosive limit (UEL), % vol. in air
19
Odor
The characteristic smell of alcohol
Hazards
Highly flammable.
Gas/air mixtures are explosive.
Inhalation of vapors leads to cough, headache, fatigue,
and drowsiness. High concentrations may damage the
fetus. Repeated high exposure may affect the liver and
the nervous system.
Exposure limits
according to
Commission
Directive 2006/15/EC
TWA
8 hours
1210 mg/m3/ 1000 ppm
STEL
15 minutes
-
6

E2658-PID Rev 12.03.2021

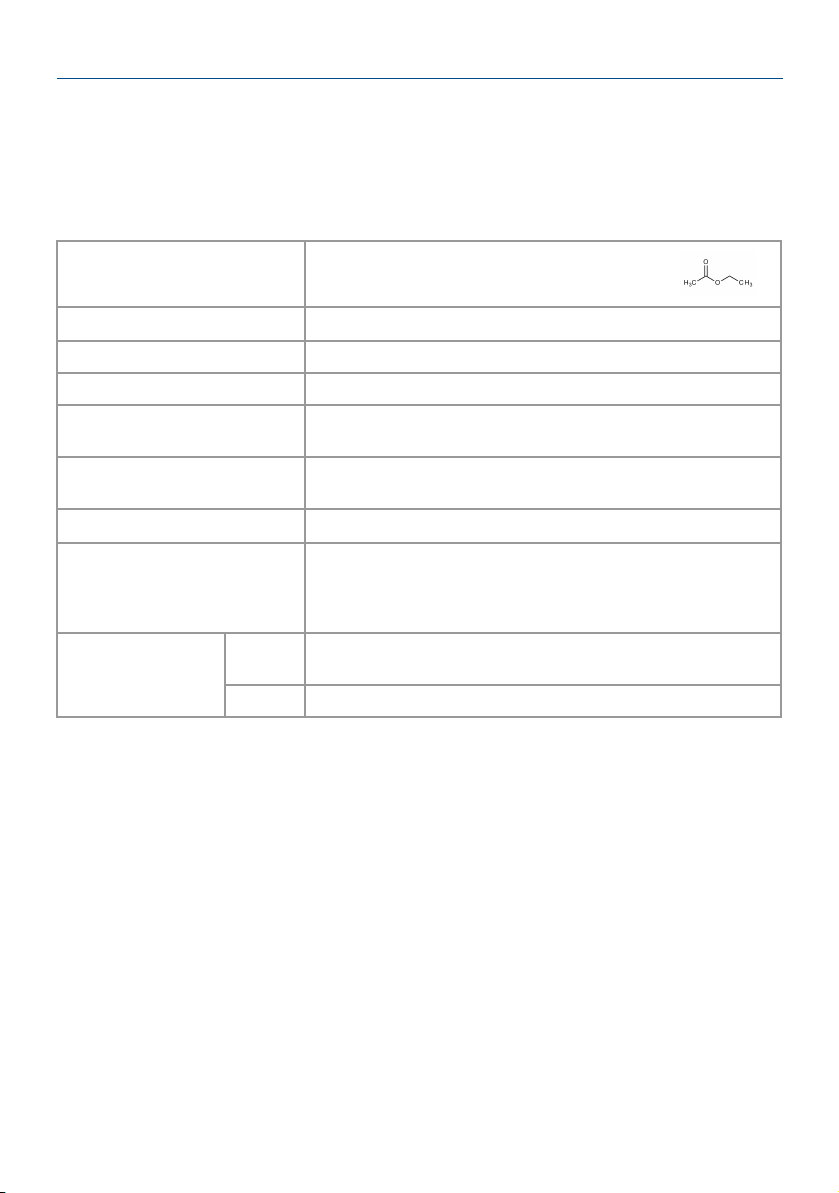

Ethyl acetate
A colorless organic compound with a sweet pear-like smell that is highly flammable.
Synonyms/Trade Names: ethyl ester, acetic ester, EA, EtOAc.
Chemical formula
C4H8O2
Molar weight
88
Conversion*
1 ppm = 3.60 mg/m3
Boiling point
77.1 °C
Low explosive limit (LEL), % vol.
in air
2
Upper explosive limit (UEL), %
vol. in air
11.5
Odor
Sweet “pear” smell
Hazards
Flammable.
Short-term exposure to high levels of ethyl acetate results first in
irritation of the eyes, nose, and throat, followed by headache,
nausea, vomiting, sleepiness, and unconsciousness.
Exposure limits
(NIOSH)
TWA
8 hours
1400 mg/m3/400 ppm
IDLH
2000 ppm [10%LEL]
7

E2658-PID Rev 12.03.2021

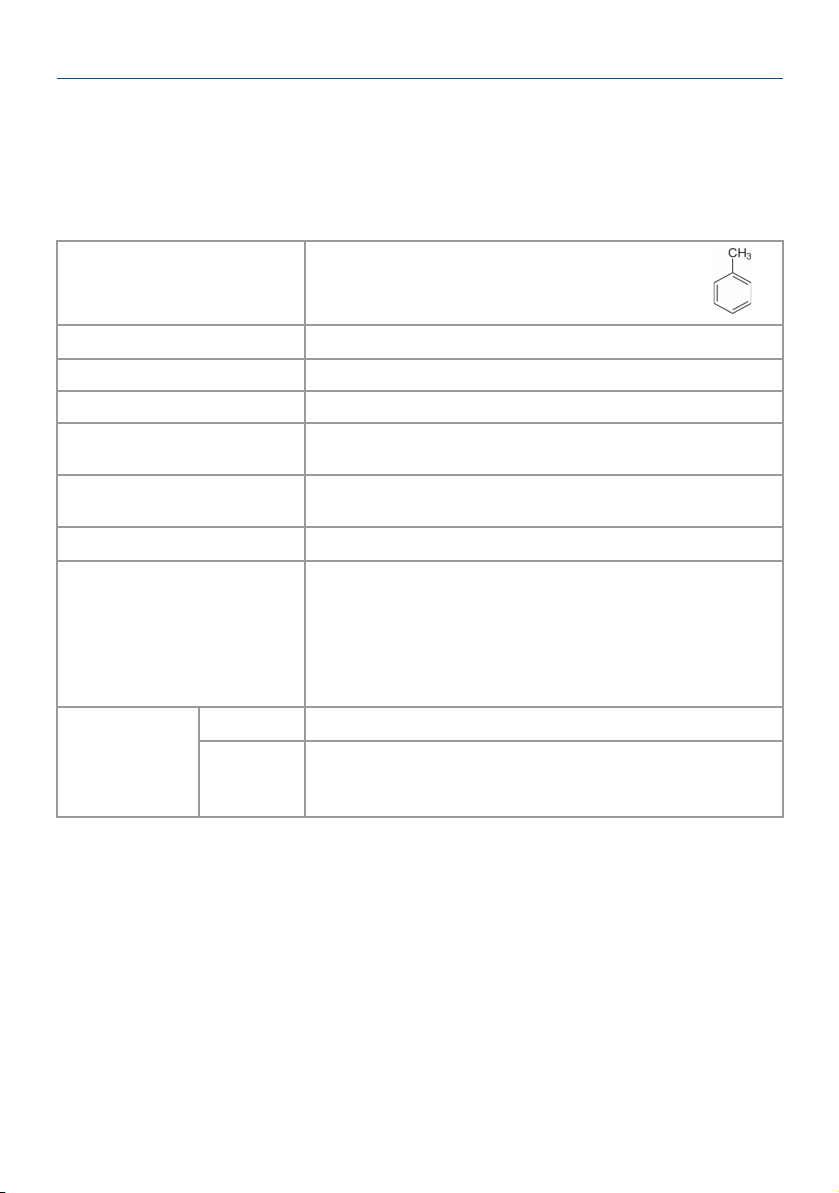

Toluene
A clear, colorless liquid with a sweet smell that is highly flammable.
Synonyms/Trade Names: methylbenzene, phenylmethane.
Chemical formula
C6H5CH3
Molar weight
92
Conversion*
1 ppm = 3.77 mg/m3
Boiling point
110.7°C
Low explosive limit (LEL), % vol.
in air
1.1 - 1.27
Upper explosive limit (UEL), %
vol. in air
6.75–7.1
Odor
Characteristic “chemical” smell
Hazards
Highly flammable.
Gas/air mixtures are explosive.
Inhalation possible effects: irritation eyes, nose; lassitude
(weakness, exhaustion), confusion, euphoria, dizziness,
headache; dilated pupils, lacrimation (discharge of tears); anxiety,
muscle fatigue, insomnia; paraesthesia; dermatitis; liver, kidney
damage
Exposure limits
according to
Commission
Directive
2006/15/EC
TWA
192 mg/mm3/ 50 ppm
STEL
384 mg/mm3/ 100 ppm
8

E2658-PID Rev 12.03.2021

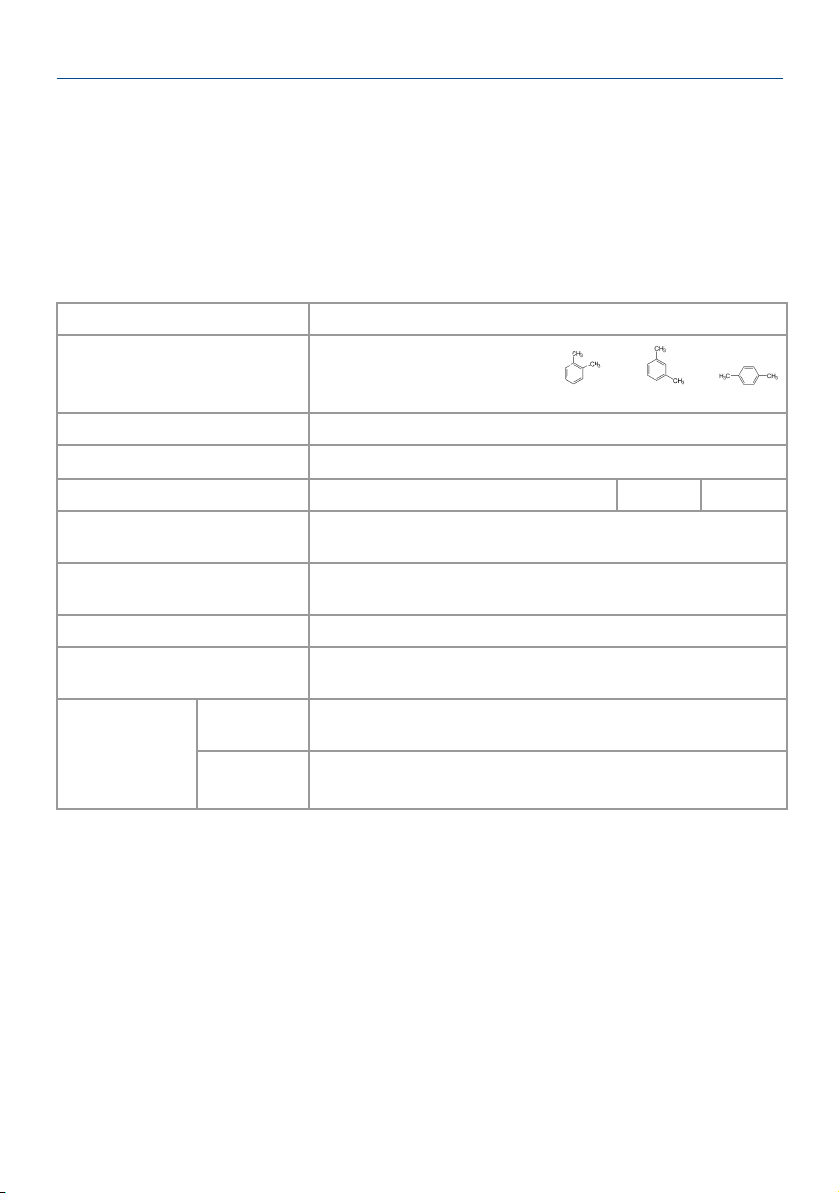

Xylene
A colorless, flammable liquid with a chemical smell. Xylenes are produced by the
methylation of toluene and benzene.
The term is used for any of three isomers of dimethylbenzene, or a combination thereof.
Synonyms/Trade Names: xylol, dimethylbenzene.
Chemical formula
C6H4(CH3)2
Isomers
ortho-xylene meta-xylene para-xylene
Molar weight
106
Conversion*
1 ppm = 4.34 mg/m3
Boiling point
144.4 °C
139 °C
138.35 °C
Low explosive limit (LEL), % vol.
in air
0.9 - 1.1
Upper explosive limit (UEL), % vol.
in air
6.0–7.0
Odor
Characteristic “chemical” smell
Hazards
Flammable.
Inhaling can cause dizziness, headache, drowsiness, and nausea.
Exposure limits
according to
Commission
Directive
2000/39/EC
TWA
8 hours
221 mg/mm3/ 50 ppm
STEL
15 minutes
442 mg/mm3/ 100 ppm
Conversion of ppm to mg/m3is calculated for 25°C and 1 atm.
9

E2658-PID Rev 12.03.2021
Specifications
Detected gases
VOCs with ionisation potential < 10.6 eV
Sampling method
Diffusion
Sensor type
Photoionization detector
Calibration
Isobutylene
Order code
E2638-PID-40
E2638-PID-200
Typical detection range
0...40 ppm (isobutylene)
0...200 ppm (isobutylene)
Resolution / digital unit
1 ppb
1 ppm
Response time T90
< 3 s
Sensor lifetime
5 years
Calibration interval
Monthly or more frequently depending on operating conditions
Signal update
Every 1 second
Power supply
11...30 VDC (default),
24 VAC or 90...265 VAC as options
Power consumption
< 2 VA
Analog outputs
2 × 4-20 mA / 0-10 V, user settable
Outputs assignment
OUT1 2 gas; OUT2 2 gas
Output scale width
> 10 × resolution
Recommended: 20-100% of the detection range
Load resistance
RL< (Us - 2 V) / 22 mA for 4-20 mA
RL> 250 kOhm for 0-10 V mode
Digital interface
RS485, Modbus RTU protocol; No galvanic isolation
Cable connections
Screwless spring-loaded terminals
Enclosure
Grey die-cast aluminum, wall mount, IP66
Cable gland
M25 for SWA cable or steel conduit Ø10...17 mm
Dimensions
H80 × W125 × D57 / H80 × W175 × D80 mm
Protection
Flameproof, ATEX: II 2 GD, Ex d IIC T4 Gb
ATEX Approvals
Enclosure:
ATEX / IECEx DEMKO 13 ATEX 1327771U
II 2 G Ex c IIC Gb II 2 D Ex tb IIIC Db IP66
Glands:
ATEX / IECEx II2G Ex e II IP68
IBExU08ATEX 1063 X Ex II 1D Ex tD A20 IP 6x Ex
10

E2658-PID Rev 12.03.2021
CE marking
According to 2014/30/EU and 2014/34/EU,
EN 61000-6-3:2020, EN 61326-1:2013 (EMC, Emissions)
EN 61000-6-1:2019, EN 61000-6-2:2019, EN 61326-2-1:2013 (EMC,
Immunity)
EN 60079-0:2018, EN 60079-1:2014, EN 60079-31:2014,
EN 60079-29-1:2016, EN 60079-29-2:2015, EN 60079-29-3:2014
Operating conditions
-40...+65 °C (best stability in the range 0...40°C);
< 95% RH non-condensing, 0,9...1,1 atm
Explosion-safe zones and ATEX Zones 2 and 22,
Avoid strong mechanical shock, vibrations, or EMI
Avoid exposure to corrosive gases or silicone-containing products
Relay option
Output relays
2 × SPST relays (closing contact),
250 VAC / 30 VDC, 5 A max
Alarm setpoints
Determined by user within 5-95% of the detection range
11

E2658-PID Rev 12.03.2021
Product description
E2658 is a series of flameproof gas detectors-transmitters intended for operation in safe
zones and ATEX Zones 2 and 22. E2658 series devices are based on PluraSens®
multifunctional platform and provide all its features. The instruments utilize gas sensors of
various types with excellent repeatability, stability, and long lifetime.
E2658 series provides two independent analog outputs OUT1 and OUT2, user-selectable to
4-20 mA or 0-10 V, proportional to gas concentrations. RS485 Modbus RTU digital
communication interface allows easy instrument configuration and integration into various
automation systems.
The following features are available as an option:
●Two relays RE1 and RE2 with closing contacts. Relay outputs can be used to
switch alarm sirens, ventilation fans, shut-off valves, or other actuators,
●24 VAC or 230 VAC as options for power supply.
The version of your detector is marked on the package. If the symbol ⚠ is marked on the
equipment, consult the documentation for further information.
Safety requirements
Misuse will impair the protection of the product. Always adhere to the safety provisions
applicable in the country of use.
Do not perform any maintenance operation with the power on. Do not let water or foreign
objects inside the device.
Removal of the PCB from the enclosure voids the warranty. Do not touch the electronic
components directly, as they are sensitive to static electricity.
Connection diagrams can be found in the electrical connections section. The device might
not perform correctly or be damaged if the wrong power supply is connected.
It is crucial to tighten properly all the thread connections (screws, cable glands). Use ATEX
certified armored cables or cable conduits that are rated for use in the desired
environment.
A disconnecting device that is marked as such and easily accessible should be included in
the installation of this product.
The device should be properly earthed.
12

E2658-PID Rev 12.03.2021
PID (photoionization detector) technology
The gas under investigation diffuses into the sensor’s testing cell, equipped with a source
of high energy UV light (10.6 eV Krypton lamp) and electrodes. Exposed to UV light, organic
molecules decompose to form ions, which are attracted by the electrodes. The measured
resulting current is proportional to the VOC concentration.
Operating conditions
The device should be used in a basic electromagnetic environment, where the latter is
defined in EN 61326-1. Avoid strong mechanical shock and vibrations. Although E2658
series devices are suitable for use in the presence of flammable dust, special precautions
should be taken when operating in a dusty environment. Dust may block the porous filter of
the sensor and compromise the results of the measurement. The detector should be
inspected regularly if used in a dusty atmosphere. Keep the instrument away from direct
sunlight. A sudden temperature or humidity change might affect the sensitivity of the
sensor. Make sure that installation and maintenance are performed in an explosion safe
atmosphere.
Installation guidelines
Before proceeding with the installation it is mandatory to read the Safety requirements
section and make sure to comply with all listed instructions. Installation standards EN
60079-29-2 and EN 45544-4 are also recommended for further instructions and related
information about the installation. During the installation of the detector-transmitter the
following points must be considered:
●Application (air quality control or leakage detection.)
●Properties of the space under investigation (room geometry, direction, and
velocity of airflows, etc.),
●Solvent vapors are heavier than air, so the gas detector-transmitter should be
placed near the floor or potential leakage or formation source.
●The device should be accessible for maintenance and repair.
The aforementioned conditions above will affect the coverage area of the device. however,
the coverage area for a detector-transmitter is usually between 2.5 to 5 meters radius.
For early leakage detection install the sensor as close as possible to the potential leakage
sources (flanges, valves, pressure reducers, pumps, etc.), taking into consideration other
points listed above.
For general area monitoring without definite leakage sources, the detectors should be
distributed evenly in the room.
13

E2658-PID Rev 12.03.2021
For personal safety control, the detectors are installed in the breathing zone (at the height
of the head of people or animals). The recommended sensor position is vertical, pointing
downwards.
The device is fixed on the wall using two fixing holes located outside the sealed area of the
device (see dimensional drawing). Unscrew four lid screws and detach the lid from the
detector. Fix the detector on the wall and earth the enclosure using an earthing terminal on
the side of the device.
NOTE! Never perform installation or maintenance in an explosive atmosphere!
14

E2658-PID Rev 12.03.2021

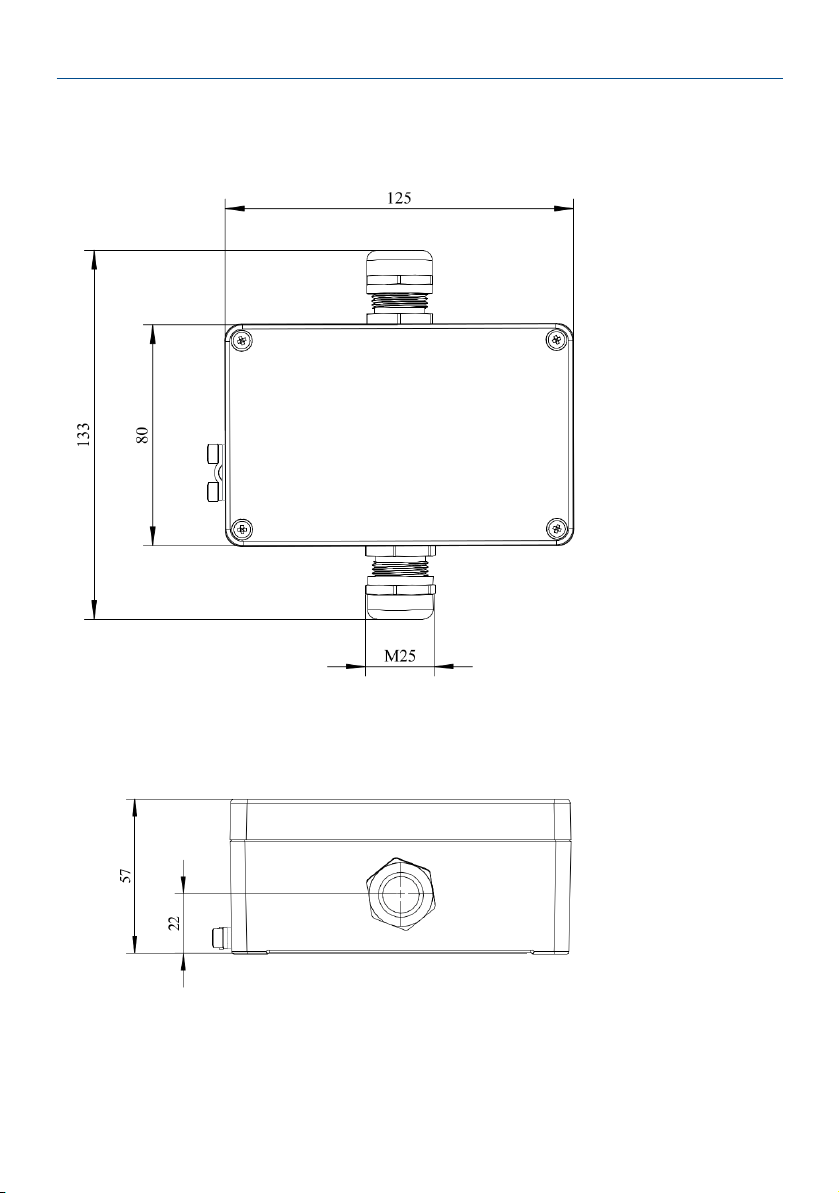

Mounting dimensions
Front view
Bottom view
15

E2658-PID Rev 12.03.2021
Sensor probe handling
The sensor probes of all types are equipped with a hydrophobic microporous PTFE filter to
protect the sensor from dust, dirt, and water drops. The filter should be replaced if it gets
strongly contaminated. To replace the PTFE filter, unscrew the sensor head cap and
remove the old filter. Place a new filter into the cap and tighten it again.
NOTE! Never stab or press the filter near its center where the sensor is located since this
may damage the sensor. Do not remove the filter as it may cause the device to show
incorrect values and/or break the sensor.
The recommended orientation of the sensor probe is vertical with the sensor tip pointing
downwards. This prevents the possible accumulation of condensed water on the sensor
protection filter.
Gas sensor replacement procedures
1. Remove the sensor head cap from the device,
2. Remove the PTFE filter (if it is not removed within the cap),
3. Remove the O-ring rubber,
4. Detach the PID sensor from the device,
5. Insert the new PID sensor inside,
6. Put back the O-ring rubber, PTFE filter, and the head cap, respectively.
16

E2658-PID Rev 12.03.2021
Electrical connections
Unscrew four lid screws and detach the lid from the device. Use the M25 cable gland to let
in the cables of the power supply and of the external devices. Without turning on the power,
plug the power cable, and connect the analog/relay outputs and/or digital interface
terminals to the necessary devices according to the relevant connection diagram.
Version with PSU and relays Version with PSU and without relays
Version without PSU and with relays Version without PSU and relays
17

E2658-PID Rev 12.03.2021
The screwless quick connect spring terminals on the E2658 series devices are suitable for
a wide range of wires with cross-section 0,5...1,5 mm2. We recommend to strip the wire end
by 8...9 mm and use the wire end sleeves.
To connect the wire, insert the wire end into the terminal hole. To disconnect, push the
spring-loaded terminal lever, pull the wire out, and release the lever.
Use a twisted-pair cable, e.g. LiYY TP 2×2×0.5 mm2or CAT 5, to connect the device to the
RS485 network. A and B on the device represent DATA+ and DATA- respectively, polarity
must be respected when connecting to an external RS485 network.
Both analog outputs can be independently changed between 4-20 mA and 0-10 V type
using jumpers J1 (OUT1) and J2 (OUT2). By closing pins on a specific jumper the related
output is 0-10 V, with an open jumper the output is 4-20 mA. Power restart is required after
changing the position of the jumpers.
NOTE! The outputs are not galvanically isolated from the external power supply and share
a common 0V. Allowed load resistance limits are stated in the Specifications table. To
power the instrument from an external power source, connect terminals 0V and +U to the
source. If the integrated mains power supply module is used, connect terminals L and N to
the mains.
NOTE! Actuator short-circuits should be avoided, to protect the instrument relays using
external fuses or safety switches.
18

E2658-PID Rev 12.03.2021
Operation
Turn on the power. The instrument warm-up time takes ≤1 minute after switching on and
the final sensor stabilization time to maximum accuracy takes <5 minutes. The operating
status is indicated by the LED on the PCB of the device. The control LED (red) response to
different processes is presented in the following table:
Mode
LED mode
During calibration mode or sensor heating
period (if activated)
0.5 Hz (50% on, 50% off)
Relay 1 turned on
Blinking 1 Hz (50% on, 50% off)
Relay 2 turned on
Blinking 2 Hz (50% on, 50% off)
During the Modbus communication cycle
Short on-off pulses
Normal operating/measurement
Continuously on or off
Make sure that the detector-transmitter is properly mounted, the external devices
connected, the power LED (green) on, and the control LED (red) is constantly lit. Place the
lid back and fix it with the screws. Make certain that the cable gland and the screws fixing
the front lid are properly tightened to ensure the conformity to IP66 protection class and
ATEX requirements. Make certain that the device is properly earthed. The device is ready to
use.
Maintenance
Do not perform any maintenance operation with the power on.
Clean the device with a soft damp cloth. Do not use any abrasive cleaning agents. Do not
immerse the device in water or any cleaning media.
19

E2658-PID Rev 12.03.2021
Properties of VOC: ionization energy, the correction factor
Sensors used in E2658-PID are calibrated using isobutylene, but the PID is a broadband
VOC detector, with a sensitivity that differs for each VOC. If you know what VOC you are
measuring, then the table below will allow you to calculate the concentration for your
specific VOC. Only the most common substances are listed in the table, if you can’t find
your compound of concern, please contact us.
NOTE! These are approximate values, so for the best accuracy, you should calibrate with
the relevant VOC.
The table includes the following columns:
1. The most common name for the VOC or other substances,
2. CAS No; You can find the VOC using the CAS No,
3. Brutto-formula,
4. Ionization energy (IE), (eV)
5. Relative Response/ Correction Factor (CF), Also called the Response Factor (RF).
Multiply the displayed concentration by the Relative Response/CF/RF to calculate
the actual concentration of the VOC.
6. Minimum Detection Level (MDL) Also called Minimum Detectable Quantity (MDQ).
The typical lowest concentration that can be detected. The sensor used in
E2658-PID-40 has greater sensitivity than that in E2658-PID-200, so the MDL for
the E2658-PID-40 will be much less than the MDL for the E2658-PID-200.
The Relative Response/CF/RF is measured in dry air; high humidity will reduce this factor
by 30% to 50%, so the CF/RF should be increased in high humidities. Relative sensitivity is
the inverse of the correction factor, specifying the percent response of the VOC, relative to
isobutylene. If less than 100%, then the VOC is less responsive than isobutylene; if the
relative sensitivity is greater than 100%, then the VOC is more responsive than isobutylene.
Relative sensitivity (%) is specified in the same way as cross-sensitivity for toxic gas
sensors.
VOC response
The PID can not measure all VOCs or gases, two types of VOCs are not measured:
NR: No response. The lamp does not ionize the VOC and the VOC cannot be measured.
NV: The vapor pressure of the VOC at 20°C is less than a few ppm, so this Semi-Volatile
Organic Compound (SVOC) cannot be measured.
NA: Not available
20
