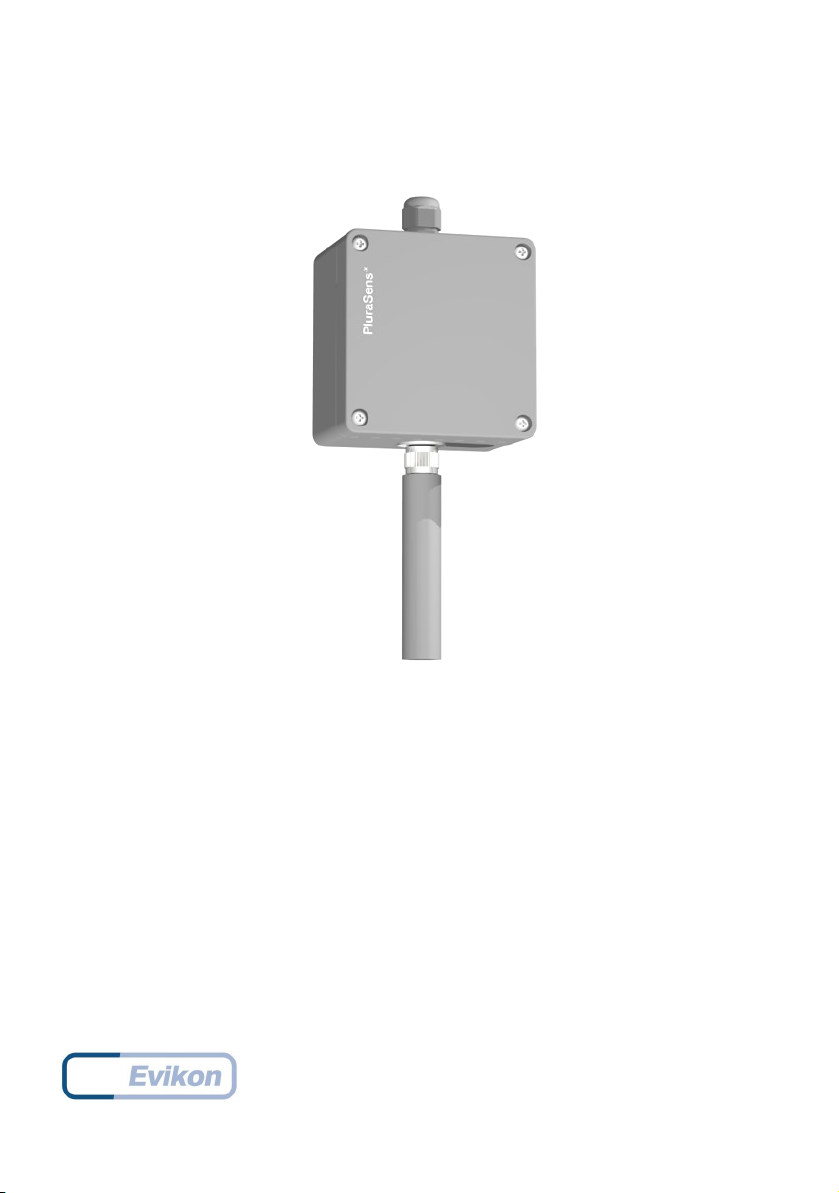

PluraSens®
Humidity & Temperature Transmitter
E2218
User Manual

E2218 Rev 14.05.2021
Table of contents
Specifications 3
Product description 5
Safety requirements 5
Operating conditions 5
Installation and connections 6
Sensor probe handling 9
Delivery set 9
Order code for E2218 options 10
Emergency mode 11
Return to default settings 11
Modbus RTU Communication 12
Communication parameters 13
Modbus holding registers 13
Warranty 17
Manufacturer contacts 17
2

E2218 Rev 14.05.2021
Specifications
Sensors
Digital combined RH and T sensor
Measurement range
0...100 % RH
40...+85 °C or -40...+125 °C (with HT-RP16-H probe)
Resolution
0,1 %RH
0,1 °C
Accuracy
±2,5 % RH / ±0,3 °C
±1,8 % RH / ±0,3 °C on request
Self-diagnostics
Full functionality check at start-up
Warm-up time
≤ 1 s
Response time
~15 seconds
Power supply (Us)
11...30 VDC (nominal 24 VDC) or 24 VAC ±10%
Power consumption
< 1,5 VA
Analog outputs
2 × 4-20 mA / 0-10 V, user settable,
Freely configurable scales
Load resistance
RL< (Us - 2 V) / 22 mA for 4-20 mA
RL> 250 kOhm for 0-10 V mode
Digital interface
RS485, Modbus RTU protocol
no galvanic isolation
Cable connections
Screwless spring loaded terminals
Probe connector
Round industrial M12, IP68
Standard probe
HT-RP16: grey painted aluminium body Ø16 × L90 mm,
IP54 protection, 0...100% RH, -40...+85°C
Probe extension cables
RPEC-2: PVC-insulated, M12 plug and socket, 2.5 m
RPEC-5: PVC-insulated, M12 plug and socket, 5.0 m
Enclosure
Grey ABS, wall mount, protection class IP65
Dimensions
H82 × W80 × D55 mm
Weight
<450 g
Operating environment
Residential and office indoor spaces
Operating conditions
-40...+85 °C, 0...100 %RH without aggressive gases (for main unit)
CE marking
According to 2014/30/EU:
EN 61000-6-3:2020, EN 61326-1:2013(EMC, emissions)
EN 61000-6-1:2019, EN 61000-6-2:2019(EMC, Immunity)
3

E2218 Rev 14.05.2021
Probe options
Standard probe
HT-RP16: grey painted aluminium body Ø16 × L90 mm,
IP54 protection, 0...100% RH, -40...+85°C
Micro probe
HT-RP04:
stainless steel body Ø4 ×50 mm, IP54 protection, 0...100% RH, -40...+85 °C
attached PVC-insulated cable 2 or 5 m
Heavy duty probe
HT-RP16-H:
black painted aluminium body Ø16 × L90 mm,
IP54 protection, 0...100% RH, -40...+125°C
attached PTFE-insulated cable 2 or 5 m
4

E2218 Rev 14.05.2021
Product description
Humidity and temperature transmitter E2218 is a member of the new PluraSens® family of
multifunctional measurement instruments. The transmitter is intended for measurement of
relative humidity and temperature in air and non-aggressive gases with high accuracy and
stability. Absolute humidity and dew point values can be found as well.
The instrument utilises digital fully calibrated and temperature compensated combined
relative humidity and temperature sensors with excellent repeatability and stability. Thanks
to the digital interface the sensor probes are detachable and fully interchangeable. The
range of probes for different applications may be attached to the main unit using standard
water- and dustproof M12 connectors.
Two freely configurable 4-20 mA or 0-10 V analog outputs can be used to connect the
transmitter to secondary instruments. Each output can be independently assigned either to
temperature, relative humidity or dew point channel. RS485 interface with
industry-standard Modbus RTU protocol allows direct Fieldbus networking of the
transmitter.
Safety requirements
Always adhere to the safety provisions applicable in the country of use.
Do not perform any maintenance operation with the power on. Do not let water or foreign
objects inside the device.
Operating conditions
The device should be used in explosion-safe (non ATEX -rated) indoor areas, without
aggressive gases in the atmosphere. Allowed conditions are:
– Temperature in the range of -40...+85 °C;
– Relative humidity in the range of 0...100%;
– Atmospheric pressure in the range of 84...106,7 kPa.
5

E2218 Rev 14.05.2021
Installation and connections
Connect the sensor probe to the device main unit directly or via connecting cable.
Mark and drill four mounting holes on the wall at the chosen mounting place (see
dimensional drawing).
Unscrew four lid screws and detach the lid from the instrument. Fix the transmitter through
mounting holes by screws.
Plug the power cable and connect the analog outputs and/or digital interface terminals to
the relevant devices according to the connection diagram and table.
6

E2218 Rev 14.05.2021
PCB without PSU and relays
Jumpers
J1
OUT1 type (open: 4-20 mA; closed 0-10 V)
J2
OUT2 type (open: 4-20 mA; closed 0-10 V)
X6
Reset Modbus network parameters to default
X4 terminals
OUT1
4-20 mA / 0-10 V output
OUT2
4-20 mA / 0-10 V output
0V
0 V / 24 VAC Neutral (optional)
A
RS485 A / Data +
B
RS485 B / Data -
+U
+24 VDC / 24 VAC Phase (optional)
7

E2218 Rev 14.05.2021
Make certain that the cable gland is properly tightened to ensure the conformity to IP65
protection class.
The screwless quick connect spring terminals on the E2218 are suitable for a wide range
of wires with cross-section 0,2...1,5 mm2. The recommended wire stripping length is 8...9
mm. Push the spring loaded terminal lever, insert the wire end into the terminal hole and
release the lever.
Use twisted pair cable, e.g. LiYY TP 2×2×0,5 mm2 or CAT 5, to connect the device to the
RS485 network. Use one pair for A and B wires and the second pair for common 0V and
power +U wires. to connect the transmitter to the Fieldbus network.polarity must be
respected when connecting to an external RS485 network.
Overall length of all connections via RS485 interface should not exceed 1200 m.
Place the lid back and tighten it with the four screws.
Both analog outputs can be independently changed between 4-20 mA and 0-10 V type
using jumpers J1 (OUT1) and J2 (OUT2). By closing pins on a specific jumper the related
output is 0-10 V, with an open jumper the output is 4-20 mA. Power restart is required after
changing the position of the jumpers.
By default the output OUT1 is assigned to relative humidity with default scale 0-100 %RH.
By default the output OUT2 is assigned to temperature with default scale 0-100 °C.
The output assignments and scales can be changed by Modbus commands.
8

E2218 Rev 14.05.2021
Sensor probe handling
The sensor probes HT-RP16 and HT-RP16H are equipped with a hydrophobic microporous
PTFE filter to protect the sensor from dust, dirt and water drops. The round filter is
snap-fitted and may be replaced if it gets strongly contaminated.
To replace the PTFE filter, carefully hook the filter near it’s edge with a small flat
screwdriver and pull it off. Place a new filter onto the sensor opening and press it to snap
into the groove.
Note! Never stab or press the filter near its center where the sensor is located, as this may
damage the sensor. Do not remove the filter as it may cause the device to show incorrect
values and/or break the sensor.
The recommended orientation of the sensor probe is vertical with the sensor tip pointing
downwards. This prevents possible accumulation of condensed water on the sensor
protection filter. The horizontal orientation is also suitable. Avoid upward position of the
sensor tip.
After replacing the sensor probe check if the M12 connector is securely tightened to
ensure appropriate electrical contact and protection.
9

E2218 Rev 14.05.2021
Delivery set
●Humidity and temperature transmitter E2218
●Set of mounting accessories (4 screws with plastic dowels)
Order code for E2218 options
E2218 options
Order code
With attached probe, -40...+85 °C
E2218-RP16
Duct mount, with stem Ø15×L200 mm, -40...+85 °C
E2218-DM
With remote probe, PVC cable 2,5 m, -40...+85 °C
E2218-RP16-2
With remote probe, PVC cable 5,0 m, -40...+85 °C
E2218-RP16-5
With micro remote probe Ø4×50 mm, 2,5 m PVC cable,
-40...+85 °C
E2218-RP04-2
With micro remote probe Ø4×50 mm, 5,0 m PVC cable,
-40...+85 °C
E2218-RP04-5
With remote probe, fluoroplast cable 2,5 m, -40...+125 °C
E2218-RP16H-2
With remote probe, fluoroplast cable 5,0 m, -40...+125 °C
E2218-RP16H-5
High accuracy ±1,8 %RH
E2218-A
10

E2218 Rev 14.05.2021
Emergency mode
The current outputs of the transmitter may be programmed via Modbus commands
(register 255) to signal if the connection with the sensor is lost. The signal may be set to
3.8 mA or 21.5 mA.
Return to default settings
To reset the device’s Slave ID, baud rate and stop bit number to factory settings, proceed as
follows:
1. De-energize the device
2. Connect the X6 jumper
3. Turn on the device
4. De-energize the device
5. Disconnect the X6 jumper
6. Turn on the device
11

E2218 Rev 14.05.2021
Modbus RTU Communication
Modbus main holding registers (00xxx or 40xxx): 0-based, decimal
Reg
RW
Description
1
R
hardware version
2
R
software version
3
R
product serial number
4
RW
Slave ID [1...247], default 1
5
RW
baud rate, default 9600
6
RW
response delay [1...255] ms, default 10
7
RW
stop bits , parity bit [1,2,3,4], default 1
17
RW
write ‘42330’ to restart
168
RW
integrating time constant [0...32000] s
201
RW
OUT1 parameter, 0:none, 1:T, 2:RH
202
RW
OUT2 parameter, 0:none, 1:T, 2:RH
258
R
temperature, °C×100, signed integer
259
R
humidity, %RH×100, integer
261
RW
OUT1 out 0%, [±1000] °C / %RH
262
RW
OUT1 out 100%, [±1000] °C / %RH
263
RW
OUT2 out 0%, [±1000] °C / %RH
264
RW
OUT2 out 100%, [±1000] °C / %RH
Note! New Slave ID, baud rate and stop bits values apply after restart
Supported Modbus functions: 03 - read multiple registers, 06 - write single register
12

E2218 Rev 14.05.2021
Communication parameters
Parameter
Permitted values
Default
Supported baud rates
1200, 2400, 4800, 9600, 19200, 38400, 57600
9600
Data bits
8
8
Parity
none / odd / even
none
Stop bits
1, 2
1
Protocol
Modbus RTU
Modbus functions
03 - Read multiple registers
06 - Write a single register
Error codes
01 – Illegal function
02 – Illegal data address
03 – Illegal data value
04 – Slave device failure
(details of last error 04 can be read from register 0x0008)
Modbus holding registers
Registers Reg are shown in hexadecimal 0-based format.
Modbus holding register numbers MHR are shown in decimal 1-based format, and may be
addressed either from 00001 or 40001 base.
Reg
(hex)
MHR (dec)
RW
Description
Supported values (dec)
Default
0x0001
(4)0002
R
Hardware version
2228
0x0002
(4)0003
R
Software version
-
0x0003
(4)0004
R
Product serial number
1...65535
-
0x0004
(4)0005
RW
Slave ID (net address) *
1...247 **
1
0x0005
(4)0006
RW
Baud Rate *
1200, 2400, 4800, 9600, 19200,
38400, 57600
9600
0x0006
(4)0007
RW
Response delay, ms
1...255
10
0x0007
(4)0008
RW
Stop bits, parity bit *
1 no parity bit, 1 stop bit
(default after factory reset)
2 no parity bit, 2 stop bits
3 odd parity, 1 stop bit
4 even parity, 1 stop bit
1
13

E2218 Rev 14.05.2021
NOTE: 3 and 4 are available
starting from the Software
version 0x214 (dec. 532)
0x0008
(4)0009
R
Last error code
1...255
0
0x0011
(4)0018
RW
Restarts counter
write ‘42330’ to restart the
device
-
0x00A2
(4)0163
RW
Zero adjustment for
temperature data, °C × 100
-32000...+32000
(-320.00...+320.00 °C)
0
0x00A3
(4)0164
RW
Slope adjustment for
temperature data, % ×
1000
-32000...+32000
(-32.000...+32.000 %)
0
0x00A4
(4)0165
RW
Change rate limit for
temperature data, °C × 100
/ s
1...32000 (0.01...320.00 °C/s),
0 = no limit
0
0x00A5
(4)0166
RW
Zero adjustment for
humidity data, %RH × 100
-32000...+32000
(-320.00...+320.00 % RH)
0
0x00A6
(4)0167
RW
Slope adjustment for
humidity data, % × 1000
-32000...+32000
(-32.000...+32.000 %)
0
0x00A7
(4)0168
RW
Change rate limit for
humidity data, %RH × 100
/ s
1...32000 (0.01...320.00 %
RH/s), 0 = no limit
0
0x00A8
(4)0169
RW
Integrating filter time
constant for all channels, s
1...32000 (seconds), 0 = no
filter
0
Reg
(hex)
MHR (dec)
RW
Description
Supported values (dec)
Default
0x00C9
(4)0202
RW
Parameter tied to analog
output 1
0 - none
1 - temperature
2 - humidity
3 - dewpoint
4 - absolute humidity
9 - forced Modbus control,
value set in MHR (4)0204
2
0x00CA
(4)0203
RW
Parameter tied to analog
output 2
0 - none
1 - temperature
2 - humidity
3 - dewpoint
4 - absolute humidity
1
14

E2218 Rev 14.05.2021
9 - forced Modbus control,
value set in MHR (4)0205
0x00CB
(4)0204
RW
Forced value for analog
output 1***
0...1000 (0.0%...100.0% of
output scale)
0
0x00CC
(4)0205
RW
Forced value for analog
output 2***
0...1000 (0.0%...100.0% of
output scale)
0
0x00FF
(4)0256
RW
Sensor and analog outputs
status
bit [0] = 0 / 1 - sensor present /
absent, read-only!
bit [1] = 0 / 1 - analog outputs
deactivated / activated
bit[2]= 0/1 - if the sensor is
absent, turn signaling off/on at
analog output 1,
bit[3]=0/1 - if the sensor is
absent, turn on signaling with
low current/high current on
analog output1; if bit[2]=0, this
bit will be ignored,
bit[4]=0/1 -if the sensor is
absent, turn signaling off/on at
analog output 2
bit[5]=0/1 - in case of sensor
absent, turn on signaling with
low current/high current at
analog output2; if bit[4]=0, this
bit will be ignored,
bit[6]=0/1 - output 1:
current/voltage output,
read-only!
bit[7]=0/1 - output 2:
current/voltage output,
read-only!
bit[8]=0/1 - LED
deactivated/activated,
bit[9]=0/1 - buzzer
deactivated/activated,
bit[10]=0/1 - LED on/off
(normal measurement)
Notes: LED/buzzer
signalization (if activated):
in case of detectable sensor
absence or malfunction -
0.5Hz (90% off, 10% on) light
and/or sound signal;
in case of Modbus response
the light signal is modulated
with short on-off pulses, even
single Modbus cycle is visible;
15

E2218 Rev 14.05.2021
normal operating -
continuously on/off depending
of bit[10]
0x0102
(4)0259
R
Measured temperature,
°C×100
signed integer, -4000...+12500
(-40.00...+125.00 °C)
-
0x0103
(4)0260
R
Measured humidity,
%RH×100
integer, 0...+10000
(0.00...100.00 %RH)
-
0x0104
(4)0261
R
Calculated dewpoint,
°C×100
signed integer, -8000...+10000
(-80.00...+100.,00 °C)
-
0x0105
(4)0262
RW
0% value for analog
output 1, °C / % RH / g/m3
signed integer, -1000...+1000
(-1000...+1000 °C/%RH)
0
0x0106
(4)0263
RW
100% value for analog
output 1, °C / % RH / g/m3
signed integer, -1000...+1000
(-1000...+1000 °C/%RH)
100
0x0107
(4)0264
RW
0% value for analog
output 2, °C / % RH / g/m3
signed integer, -1000...+1000
(-1000...+1000 °C/%RH)
0
0x0108
(4)0265
RW
100% value for analog
output 2, °C / % RH / g/m3
signed integer, -1000...+1000
(-1000...+1000 °C/%RH)
100
0x0119
(4)0282
R
Calculated absolute
humidity, g/m3×100
0...+32767 (0...327.67 g/m3)
-
* – The new value is applied after restart.
** – Broadcast slave ID 0 can be used to assign a new ID to the instrument with an
unknown ID. When addressing by ID 0 the device shall be the only Modbus instrument in
the network. The device will not respond to the Master command when addressed by ID 0.
*** – This value is dynamic and not kept in EEPROM after a restart.
16

E2218 Rev 14.05.2021
Warranty
This product is warranted to be free from defects in material and workmanship for a period
of one year from the date of the original sale. During this warranty period, the Manufacturer
will, at its option, either repair or replace a product that proves to be defective. This
warranty is void if the product has been operated in conditions outside ranges specified by
the Manufacturer or damaged by customer error or negligence or if there has been an
unauthorized modification.
Manufacturer contacts
Evikon MCI OÜ
Teaduspargi 7/9, Tartu
50411 Estonia
[email protected]
www.evikon.eu
17
