Evikon PluraSens E2660-CO-NO User manual

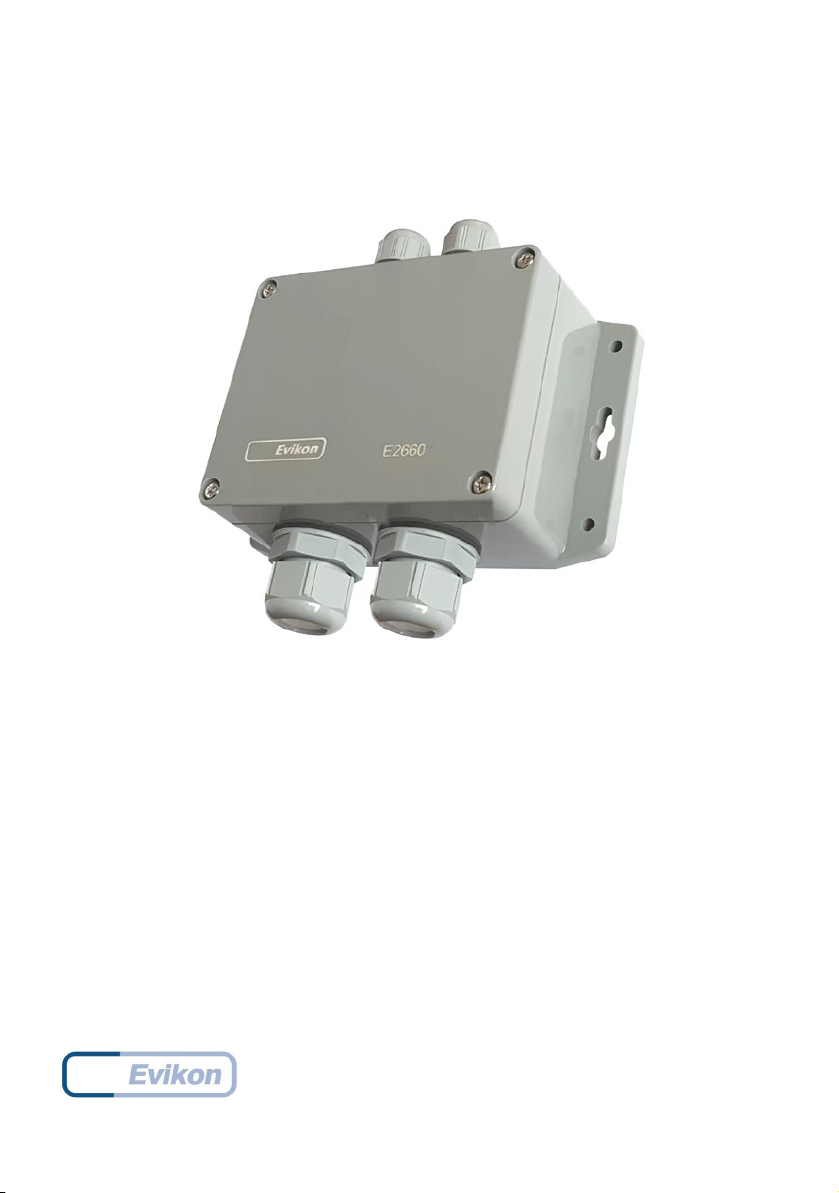

PluraSens®
Dual Gas Detector-Transmitter
E2660-CO-NO
User Manual

E2660-CO-NO Rev 29.06.2021
Table of contents
Carbon Monoxide 3
Nitric oxide 4
Specifications 5
Product description 7
Safety requirements 7
Operating conditions 8
Installation guidelines 8
Mounting dimensions 9
Sensor probe handling 10
Gas sensor replacement procedures 10
Electrical connections 11
Correct and incorrect cabling for 24 VAC 13
Operation 14
Maintenance 14
Calibration 14
Delivery set 15
Order code for E2660-CO-NO options 15
Configuring 16
Return to default settings 16
Modbus RTU Communication 17
RS485 communication interface 17
Communication parameters 17
Modbus holding registers 17
Warranty 22
Manufacturer contacts 22
2

E2660-CO-NO Rev 29.06.2021
Carbon Monoxide
Carbon Monoxide is a colorless, odorless, and tasteless gas that is highly toxic.
Synonyms: Carbonous oxide, Carbon (II) oxide, Flue gas, Monoxide.
Chemical formula
CO
Molar weight
28
Relative gas density (to air)
0.97
Conversion
1 ppm = 1.15 mg/m3
Boiling point
−191.5 °C
Low explosive limit (LEL), % vol. in air
12.5
Upper explosive limit (UEL), % vol. in air
74
Odor
Odorless
Hazards
Highly toxic. Mild poisoning causes lightheadedness,
confusion, headache, dizziness, and flu-like effects.
Larger exposures can lead to toxicity of the CNS and
heart, and death. After acute poisoning, long-term
problems may occur. CO also has negative effects on a
baby if exposed during pregnancy. Chronic exposure to
low levels can lead to depression, confusion, and
memory loss.
Exposure limits
(NIOSH)
TWA
40 mg/m3/35 ppm
IDLH
1380 mg/m3/1200 ppm
Conversion of ppm to mg/m3is calculated for 25°C and 1 atm.
3

E2660-CO-NO Rev 29.06.2021
Nitric oxide
A colorless toxic gas, relatively insoluble in water. When exposed to oxygen (including air),
nitric oxide is converted into nitrogen dioxide.
Chemical formula
NO
Molar weight
30
Relative gas density (to air)
1.03
Conversion
1 ppm = 1.23 mg/m3
Boiling point
-152 °C
Flammability
Nonflammable, but accelerates the burning of
combustible materials.
Odor
Pure NO is odorless, but in the air, it oxidizes to NO2
which has a pungent odor
Hazards
Irritates respiratory tract and eyes, at high concentrations
may cause lung edema and death.
Exposure limits
(Directive
91/322/EEC)
TWA
30 mg/m3/25 ppm
IDLH (NIOSH)
123 mg/m3/100 ppm
Conversion of ppm to mg/m3is calculated for 25°C and 1 atm.
4

E2660-CO-NO Rev 29.06.2021
Specifications
Sampling method
Diffusion
Detected gas
CO
NO
Sensor type
Electrochemical cell
Electrochemical cell
Sensor lifetime
> 10 years
> 12 months
Calibration interval
12 months
6 months
Typical detection range
0...300 ppm
0...1000 ppm
0...250 ppm
Max. overload
2000 ppm
1000 ppm
Response time T90
< 30s
<40 s
Resolution / digital unit
1 ppm
1 ppm
Outputs assignment
OUT1: CO
OUT2: NO
Operating temperature
-20...+50 °C
-30...50 °C
Outputs scale
20-100% of the range;
> 10 × resolution in any case
Operating conditions
15...90 %RH, atmospheric pressure ±10% non-ATEX-rated areas,
Non-aggressive atmosphere
Cross-sensitivity
Acetylene, ethylene, H2, NO
H2S, NO2
Signal update
Every 1 second
Power supply
11...30 VDC (default),
24 VAC or 90...265 VAC as options
Power consumption
< 2 VA
Analog outputs
2 × 4-20 mA / 0-10 V, user settable
Load resistance
RL< (Us - 2 V) / 22 mA for 4-20 mA
RL> 250 kOhm for 0-10 V mode
Digital interface
RS485, Modbus RTU protocol
No galvanic isolation
Cable connections
Screwless spring-loaded terminals
Enclosure
Grey ABS, wall mount, protection class IP65
Dimensions
H90 × W145× D55 mm
5

E2660-CO-NO Rev 29.06.2021
CE marking
According to 2014/30/EU and 2014/35/EU, EN 50491-4-1:2012
EN 61000-6-3:2020, EN 61326-1:2013(EMC, emissions)
EN 61000-6-1:2019, EN 61000-6-2:2019(EMC, Immunity)
EN 60079-29-1:2016, EN 60079-29-2:2015 and EN 60079-29-3:2014
Relay option
Output relays
2 × SPST relays (closing contact),
250 VAC / 30 VDC, 5 A max
Alarm set-points
RE1: set 25 ppm
release 20 ppm
RE2: set 10 ppm
release 8 ppm
Other options
Remote probe
Protection IP65, default cable length 3.0 m;
max height 80 mm, max diameter 65 mm
6

E2660-CO-NO Rev 29.06.2021
Product description
Dual Gas Detector-Transmitter E2660-CO-NO belongs to the PluraSens® family of
multifunctional measurement instruments. The device is intended for simultaneous
detection of carbon monoxide and nitrogen dioxide. It is a convenient solution for
underground parking. The instrument utilizes electrochemical gas sensors with excellent
repeatability, stability, and long lifetime.
Two analog outputs and RS485 digital interface with industry-standard Modbus RTU
protocol can be used to connect the device to safety or building automation systems.
The following features are available as an option:
●Two relays RE1 and RE2 with closing contacts. Relay outputs can be used to
switch alarm sirens, ventilation fans, shut-off valves, or other actuators,
●24 VAC or 230 VAC as options for power supply module,
●Remote probe.
The version of your detector is marked on the package. If the symbol ⚠ is marked on the
equipment, consult the documentation for further information.
Safety requirements
Misuse will impair the protection of the product. Always adhere to the safety provisions
applicable in the country of use.
Do not perform any maintenance operation with the power on. Do not let water or foreign
objects inside the device.
Removal of the PCB from the enclosure voids the warranty. Do not touch the electronic
components directly, as they are sensitive to static electricity.
Connection diagrams can be found in the electrical connections section. The device might
not perform correctly or be damaged if the wrong power supply is connected.
External circuits connected to the equipment should have sufficient insulation rating
according to the environmental conditions and equipment power.
A disconnecting device that is marked as such and easily accessible should be included in
the installation of this product.
7

E2660-CO-NO Rev 29.06.2021
Operating conditions
The device should be used both in a non-hazardous area at the atmospheric pressure and
relative humidity in the range 15...90%, and in a basic electromagnetic environment, where
the latter is defined in EN 61326-1. Avoid strong mechanical shock and vibrations. Avoid
corrosive atmosphere and areas highly contaminated with dust, oil mist, etc. Keep the
instrument away from direct sunlight. A sudden temperature or humidity change might
affect the sensitivity of the sensor.
Installation guidelines
Before proceeding with the installation it is mandatory to read the Safety requirements
section and make sure to comply with all listed instructions. Installation standards EN
60079-29-2 and EN 45544-4 are also recommended for further instructions and related
information about the installation. During the installation of the transmitter the following
points must be considered:
●Application (the instrument is intended for leakage control.)
●Properties of the space under investigation (room geometry, direction, and
velocity of airflows, etc.),
●Carbon monoxide has practically the same density as air. Nitric oxide has
practically the same density as air. As it is easily oxidized to form nitrogen dioxide,
the sensor should be placed as close as possible to the gas source.
●The device should be accessible for maintenance and repair.
The aforementioned conditions above will affect the coverage area of the device. However,
the coverage area for a detector-transmitter is usually between 2.5 to 5 meters radius.
For early leakage detection, install the sensor as close as possible to the potential leakage
sources (flanges, valves, pressure reducers, pumps, etc.), taking into consideration other
points listed above.
Do not locate the detector close to ventilation openings and strong air currents. Avoid the
areas without air circulation (corners, niches) as well.
For general area monitoring without definite leakage sources, the detectors should be
distributed evenly in the room.
For personal safety control, the detectors are installed in the breathing zone (at the height
of the head of people or animals). The recommended sensor position is vertical, pointing
downwards.
For installing the device, attach the device to the wall using provided screws through the
side mounting holes or key slots (see mountains dimensions).
8

E2660-CO-NO Rev 29.06.2021

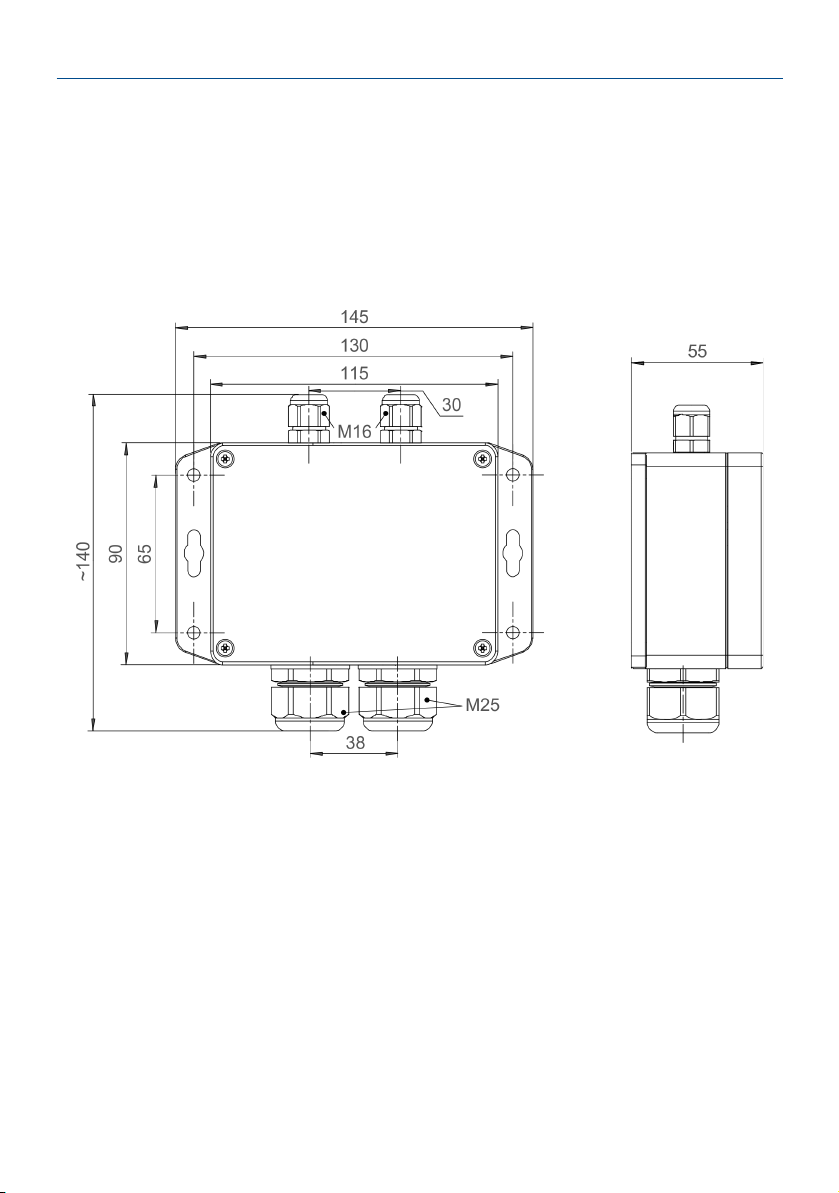

Mounting dimensions
9

E2660-CO-NO Rev 29.06.2021
Sensor probe handling
The E2660 series devices are available with a remote probe. The remote probe is
connected to the main unit with a shielded cable. The default connection cable length is 3
m.

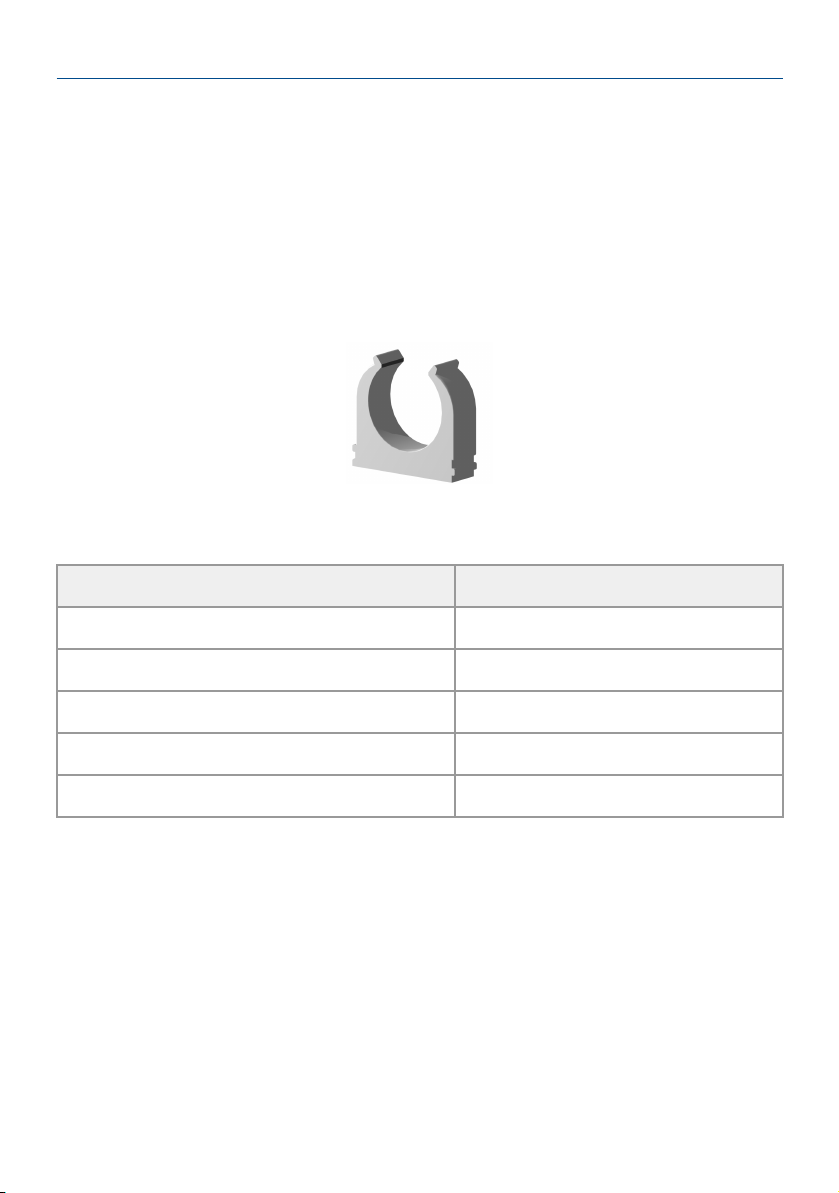

A)Wall mount remote probe with fixing clamp (default version),
B)Remote probe with rubber flange and three self-tapping screws (on request)
The sensor probes of all types are equipped with a hydrophobic microporous PTFE filter to
protect the sensor from dust, dirt, and water drops. The filter should be replaced if it gets
strongly contaminated. To replace the PTFE filter, unscrew the M25 nut and remove the old
filter. Place a new filter into the nut and tighten it again.
NOTE! Never stab or press the filter near its center where the sensor is located since this
may damage the sensor. Do not remove the filter as it may cause the device to show
incorrect values and/or break the sensor..
The recommended orientation of the sensor probe is vertical with the sensor tip pointing
downwards. This prevents the possible accumulation of condensed water on the sensor
protection filter.
Gas sensor replacement procedures
1. Remove the sensor head cap from the device (or the remote probe),
2. Remove the PTFE filter (if it is not removed within the cap),
3. Remove the O-ring rubber,
4. Detach the electrochemical sensor from the device,
5. Insert the new electrochemical sensor inside,
6. Put back the O-ring rubber, PTFE filter, and the head cap, respectively.
10

E2660-CO-NO Rev 29.06.2021
Electrical connections
Unscrew four lid screws and detach the lid from the device. Use the M16 cable gland to let
in cables of the power supply and of the external devices. Attach the power cable to the
device without turning it on. Using the connection diagram below, connect the analog
outputs and digital interface terminals to the relevant devices according to your tasks.

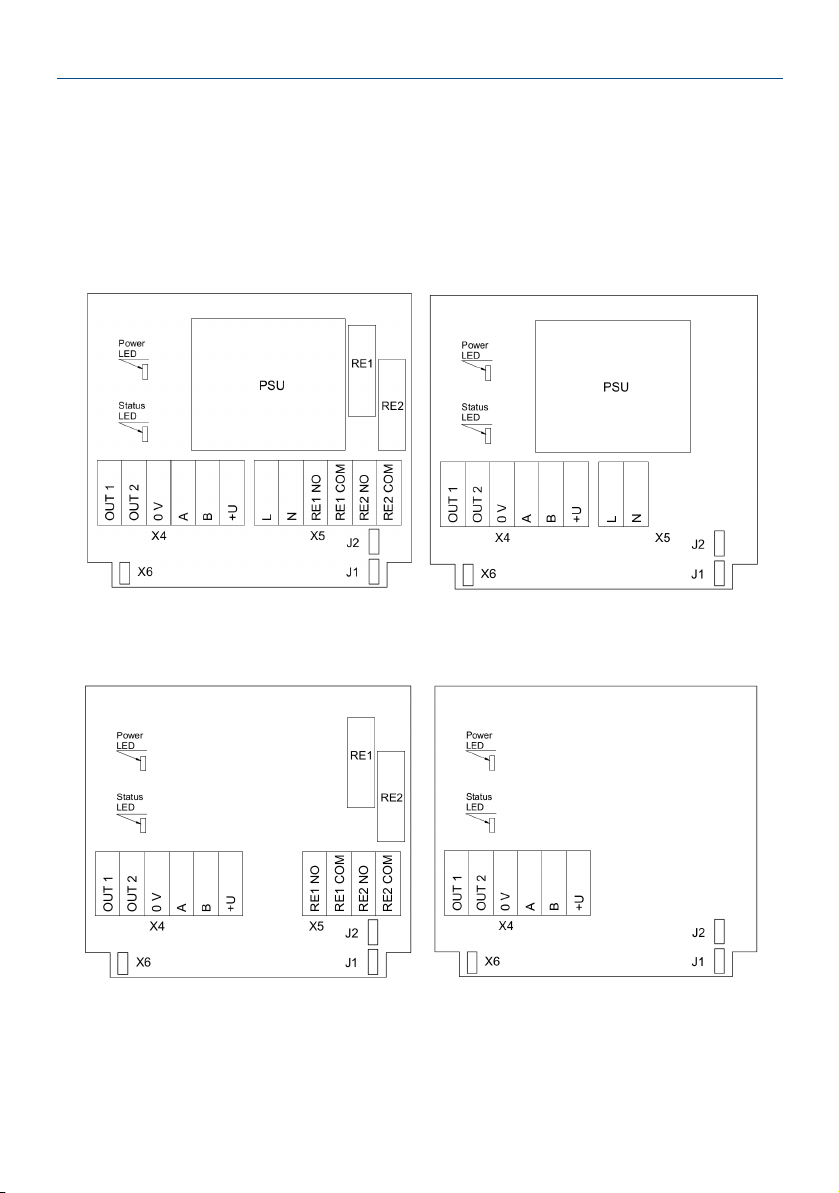

Version with PSU and relays Version with PSU and without relays
Version without PSU and with relays Version without PSU and relays
11

E2660-CO-NO Rev 29.06.2021
Jumpers
J1
OUT1 type (open: 4-20 mA; closed 0-10 V)
J2
OUT2 type (open: 4-20 mA; closed 0-10 V)
X6
Reset Modbus network parameters to default
X4 terminals
OUT1
4-20 mA / 0-10 V output
OUT2
4-20 mA / 0-10 V output
0V
0 V / 24 VAC Neutral (optional)
A
RS485 A / Data +
B
RS485 B / Data -
+U
+24 VDC / 24 VAC Phase (optional)
X5 terminals (optional)
L
90…265 VAC Phase
N
90…265 VAC Neutral
RE1 NO
Relay 1, normally open terminal
RE1 COM
Relay 1, common terminal
RE2 NO
Relay 2, normally open terminal
RE2 COM
Relay 2, common terminal
The screwless quick connect spring terminals on the E2660 series devices are suitable for
a wide range of wires with a cross-section of 0.2...1.5 mm2. We recommend striping the
wire end by 8...9 mm and using wire end sleeves.
To connect the wire, insert the wire end into the terminal hole. To disconnect, push the
spring-loaded terminal lever, pull the wire out, and release the lever.
Use a twisted-pair cable, e.g. LiYY TP 2×2×0.5 mm2or CAT 5, to connect the device to the
RS485 network. A and B on the device represent DATA+ and DATA- respectively, polarity
must be respected when connecting to an external RS485 network. The overall length of all
connections via the RS485 interface should not exceed 1200 m.
Both analog outputs can be independently changed between 4-20 mA and 0-10 V type
using jumpers J1 (OUT1) and J2 (OUT2). By closing pins on a specific jumper the related
output is 0-10 V, with an open jumper the output is 4-20 mA. Power restart is required after
changing the position of the jumpers.
12

E2660-CO-NO Rev 29.06.2021
The relays RE1 and RE2 are assigned to CO and NO concentration, respectively.
NOTE! The outputs are not galvanically isolated from the external power supply and share
a common 0V. Allowed load resistance limits are stated in the Specifications table. To
power the instrument from an external power source, connect terminals 0V and +U to the
source. If the integrated mains power supply module is used, connect terminals L and N to
the mains.
NOTE! Actuator short-circuits should be avoided, to protect the instrument relays using
external fuses or safety switches.
Correct and incorrect cabling for 24 VAC
13

E2660-CO-NO Rev 29.06.2021
Operation
Turn on the power. The instrument warm-up time takes about 30 minutes after switching
on and the final sensor stabilization time to maximum accuracy takes about 12 hours. The
operating status is indicated by the LED on the PCB of the device. The control LED (red)
response to different processes is presented in the following table:
Mode
LED mode
During calibration mode or sensor heating
period (if activated)
0.5 Hz (50% on, 50% off)
Relay 1 turned on
Blinking 1 Hz (50% on, 50% off)
Relay 2 turned on
Blinking 2 Hz (50% on, 50% off)
During the Modbus communication cycle
Short on-off pulses
Normal operating/measurement
Continuously on or off
Make sure that the transmitter is properly mounted, the external devices connected, the
power LED (green) on, and the control LED (red) is constantly lit. Make certain that the
cable glands are properly tightened to ensure the conformity to IP65 protection class.
Place the lid back and fix it with the screws. The device is ready to use. It is recommended
to keep the device powered constantly, except for periods of maintenance and calibration,
replacement, etc.
Maintenance
Do not perform any maintenance operation with the power on.
Clean the device with a soft damp cloth. Do not use any abrasive cleaning agents. Do not
immerse the device in water or any cleaning media.
Calibration
E2660-CO-NO detector-transmitter devices have been calibrated by the Manufacturer with
standard gas mixtures before delivery. Provided that the device is used under moderate
conditions, electrochemical gas sensors require field recalibration every 6 months. Please
contact your dealer for more information.
14

E2660-CO-NO Rev 29.06.2021
Delivery set
●Detector-transmitter E2660-CO-NO
●Mounting accessories:
○4 screws with plastic dowels
○Fixing clamp for remote probe versions
Order code for E2660-CO-NO options
E2660 options
Order code
Remote probe, 3 m cable
E2660-CO-NO-RP33-3
Remote probe, 10 m cable
E2660-CO-NO-RP33-10
Integrated 90...265 V mains power supply module
E2660-CO-NO-230
Integrated 24 VAC power supply module
E2660-CO-NO-24VAC
Two SPST relays
E2660-CO-NO-R
15

E2660-CO-NO Rev 29.06.2021
Configuring
A standard configuration kit includes a USB-RS485 converter, fixed flow regulator, gas
tubing with applicators, and a software pack. Please contact your Seller for more
information.
Detectors- transmitters E2660 share all functionalities of the PluraSens® multifunctional
platform. The features and options include:
●Digital output change rate-limiting filter
●Digital integrating (averaging) filter
●Free assignment of each analog output to the chosen parameter
●Flexible setting of analog output scales for each output
●Output zero and slope adjustment for calibration
●Free assignment of each of two relays to the chosen parameter
●Several relay control logic modes
●Switch delays and minimum on/off state durations for each relay
The output scales can be changed by Modbus commands by using the configuration
software and the standard kit (see Modbus RTU Communication).
Return to default settings
To reset the device’s Slave ID, baud rate, and stop bit numbers to factory settings, proceed
as follows:
1. De-energize the device
2. Connect the X6 jumper
3. Turn on the device
4. De-energize the device
5. Disconnect the X6 jumper
6. Turn on the device
16

E2660-CO-NO Rev 29.06.2021
Modbus RTU Communication
RS485 communication interface
Databits: 8
Parity: none / odd / even
Stop bits: 1 or 2
Protocol: Modbus RTU
Supported Modbus functions:
03 – Read multiple registers
06 – Write a single register
Communication parameters
Parameter
Permitted values
Default
Supported baud rates
1200, 2400, 4800, 9600, 19200, 38400, 57600
9600
Data bits
8
8
Parity
none / odd / even
none
Stop bits
1, 2
1
Protocol
Modbus RTU
Modbus functions
03 - Read multiple registers
06 - Write a single register
Error codes
01 – Illegal function
02 – Illegal data address
03 – Illegal data value
04 – Slave device failure
(details of last error 04 can be read from register 0x0008)
Modbus holding registers
Register addresses are shown 0-based, Addr in hexadecimal, Reg in decimal format.
Modbus holding register numbers MHR are shown in the decimal 1-based format and may
be addressed either from 00001 or 40001 base.
Addr
Reg / MHR
RW
Description
Supported values (dec)
Default
0x0001
1 / 40002
R
Hardware version
-
0x0002
2 / 40003
R
Software version
-
0x0003
3 / 40004
R
Product serial number
1...65535
-
0x0004
4 / 40005
RW
Slave ID (net address) *
1...247 **
1
0x0005
5 / 40006
RW
Baud rate *
1200, 2400, 4800, 9600,
19200, 38400, 57600
9600
17

E2660-CO-NO Rev 29.06.2021
0x0006
6 / 40007
RW
Response delay, ms
10...255
10
0x0007
7 / 40008
RW
Stop bits, parity bit *
1 – No parity bit, 1 stop bit
(default after factory reset)
2 – No parity bit, 2 stop bits
3 – Odd parity, 1 stop bit
4 – Even parity, 1 stop bit
NOTE: 3 and 4 are available
starting from the Software
version 0x204 (dec. 516)
1
0x0008
8 /40009
R
Last error code
1...255
-
0x0011
17 / 40018
RW
Technological:
age of last data in seconds
(read) / restart (write)
0...65535 s (read),
writing 42330 restarts the
instrument
-
0x00A5
165 / 40166
RW
Zero adjustments for gas
data, ADC
-32000...+32000 ADC units
0
0x00A6
166 / 40167
RW
Slope adjustment for gas
data
1...65535
512
0x00A7
167 / 40168
RW
The change rate limit for
gas data, ppm gas unit/s
1...32000, 0 - no limit
0
0x00A8
168 / 40169
RW
Integrating filter time
constant, s
1...32000 (seconds),
0 - no filter
0
Addr
Reg / MHR
RW
Description
Supported values (dec)
Default
0x00C9
201 / 40202
RW
Parameter tied to analog
output 1
0 – None
2 – 1st Gas concentration
3 – 2nd Gas concentration
9 – Forced Modbus control,
value set in MHR / 40204
2
0x00CA
202 / 40203
RW
Parameter tied to analog
output 2
0 – None
2 – 1st Gas concentration
3 – 2nd Gas concentration
9 – Forced Modbus control,
value set in MHR / 40205
3
0x00CB
203 / 40204
RW
Forced value for analog
output 1***
0...1000
(0.0%...100.0% of output
scale)
0
0x00CC
204 / 40205
RW
Forced value for analog
output 2***
0...1000
(0.0%...100.0% of output
scale)
0
0x00D3
211 / 40212
RW
Parameter tied to relay
0 –none
2
18

E2660-CO-NO Rev 29.06.2021
RE1
2 – 1st Gas concentration
3 – 2nd Gas concentration
9 – control by Modbus control,
state set in MHR / 40214
0x00D4
212 / 40213
RW
Parameter tied to relay
RE2
0 – none
2 – 1st Gas concentration
3 – 2nd Gas concentration
9- – control by Modbus
control, state set in MHR /
40215
3
0x00D5
213 / 40214
RW
Forced state for relay
RE1***
0 –off, 1 – on
0
0x00D6
214/ 40215
RW
Forced state for relay
RE2***
0 – off, 1 – on
0
0x00D7
215 / 40216
RW
Switching delay for relay
RE1
0...1000 (s)
0
0x00D8
216 / 40217
RW
Switching delay for relay
RE2
0...1000 (s)
0
0x00D9
217 / 40218
RW
Minimal on/off time for
relay RE1
0...1000 (s)
0
0x00DA
218 / 40219
RW
Minimal on/off time for
relay RE2
0...1000 (s)
0
Addr
Reg /
MHR
RW
Description
Supported values (dec)
Default
0x00DB
219 /
40220
RW
Control
logic for
relay RE1
0 – none
1 – relay on at high values
2 – relay on at low values
3 – relay on at values within the range
4 – relay on for the values out of the range
0
19

E2660-CO-NO Rev 29.06.2021
0x00DC
220 /
40221
RW
Control
logic for
relay RE2
0 – none
1 – relay on at high values
2 – relay on at low values
3 – relay on at values within the range
4 – relay on for the values out of the range
0
0x00DD
221 /
40222
RW
LOW
setpoint for
relay RE1
0...65535 (gas units)
see
Specifications
0x00DE
222 /
40223
RW
HIGH
setpoint for
relay RE1
0...65535 (gas units)
see
Specifications
0x00DF
223 /
40224
RW
LOW
setpoint for
relay RE2
0...65535 (gas units)
see
Specifications
0x00E0
224 /
40225
RW
HIGH
setpoint for
relay RE2
0...65535 (gas units)
see
Specifications
Addr
Reg /
MHR
RW
Description
Supported values (dec)
Default
0x00FF
255 /
40256
RW
Sensor, analog
outputs, LED and
buzzer status
bit[0]=0/1 – sensor
present/absent, read-only!
bit[1]=0/1 – analog outputs
deactivated/activated,
bit[2]= 0/1 – in case the sensor is
absent, turn signaling off/on
analog output1,
bit[3]=0/1 – in case the sensor is
absent, turn on signaling with low
current/high current on analog
output1; if bit[2]==0 this bit will be
ignored,
bit[4]=0/1 – in case of sensor
absent, turn signaling off/on
analog output2
bit[5]=0/1 – in case of sensor
absent, turn on signaling with low
current/high current on analog
output2; if bit[4]==0 this bit will be
ignored,
user
defined
20
