CONTENTS
2
APP SETUP................................................................................3
USING THE E-SMART CLOUD APP.............................................5
RETRO-FITTING THE REMOTE..................................................9
USING THE REMOTE CONTROL...............................................10
LOGGUIDANCE........................................................................11
TROUBLESHOOTING................................................................15
In order for your fire to connect to the app, your internet router and smart
device should meet the following minimum requirements;
Wi-Fi Router
• Compatible with IEEE 802.11n/g/b
• WPA2 encryption
• Radio frequency: 2.4GHz band
• Wireless auto channel: auto search for wireless LAN radio channel free of
interference
• Support for the User Datagram Protocol (UDP)
• The minimum distance from your internet router to the fire should be 70cm
Smart Device
• IOS 8.0 or Android 4.4
MINIMUM REQUIREMENTS
EVONIC - 147a - QUICK SETUP ISSUE TEMPLATEEVONIC - 147a - QUICK SETUP ISSUE TEMPLATE
BUILT-INS - ISSUE 2BUILT-INS - ISSUE 2

3
APP SETUP
To begin using the app you first need to pair your applianceTo begin using the app you first need to pair your appliance
to the app, we have created a video on our Youtube channelto the app, we have created a video on our Youtube channel
to guide you through the process of pairing your applianceto guide you through the process of pairing your appliance
to your smart phone or tablet. Scan the QR code to beto your smart phone or tablet. Scan the QR code to be
taken to the video and get started. Alternatively follow thetaken to the video and get started. Alternatively follow the
step-by-step guide below.step-by-step guide below.
Make sure that your fire is
plugged in and the switch is
on. Then turn on your fire by
pressing the rocker switch
to the ‘ON’ position.
1 2
Download the E-Smart
Cloud app from the Apple
Store, or Google Play Store.
3 4
Open the Settings panel on
your device and connect to the
fire’s wireless connection. The
name of the fire’s WiFi will vary
depending on the model.
Open the E-Smart app.
Your Fire
EVONIC - 147a - QUICK SETUP ISSUE TEMPLATEEVONIC - 147a - QUICK SETUP ISSUE TEMPLATE
BUILT-INS - ISSUE 2BUILT-INS - ISSUE 2

4
Open the settings panel on the
app’s Home Screen.
5 6
Scroll down to the ‘IoT Registration’
section and fill in your email address
and create a password. Press ‘Save’.
Then select the grey WiFi button.
Save
Settings
7
Select your router from the drop
down box, and enter your router’s
password. Press the eye icon to
double check for mistakes. Press
‘Save and Connect’.
Only select Static IP if advised by
an IT professional.
8
The pairing process between your
device, the fire, and your router will
now take place. This may take a few
minutes, and when the app shows
‘Redirect’ you may see the lighting on
your fire change colour. This is
completely normal.
Deselect
static IP
Eye
icon
EVONIC - 147a - QUICK SETUP ISSUE TEMPLATEEVONIC - 147a - QUICK SETUP ISSUE TEMPLATE
BUILT-INS - ISSUE 3BUILT-INS - ISSUE 3

5
USING THE E-SMART CLOUD APP
HOME PAGE
On the Home Page of the E-Smart Cloud App you can see the name of your
fire, the chosen temperature, and the actual temperature.
On the left hand side you can select the timer, shop, and app settings. On the
right hand side you can turn the lights in the fire on and off, and also turn the
heater on and off.
To enter the Control Overview either select the light bulb icon on the top left
or the central temperature box.
Timer settings
Shop
Settings
Fire settings
Press to turn
the lights in
the fire on
Press to turn
the heater on
EVONIC - 147a - QUICK SETUP ISSUE TEMPLATEEVONIC - 147a - QUICK SETUP ISSUE TEMPLATE
BUILT-INS - ISSUE 3BUILT-INS - ISSUE 3

6
CONTROL OVERVIEW
To adjust the desired temperature of your fire ensure that the heater is selected on theTo adjust the desired temperature of your fire ensure that the heater is selected on the
Home Page in the previous step. Then press, hold, and rotate the temperature dial toHome Page in the previous step. Then press, hold, and rotate the temperature dial to
set the temperature.set the temperature.
The animation drop down allows you to choose the flame effect for your fire, moreThe animation drop down allows you to choose the flame effect for your fire, more
flame effects are available to download from our shop on the Home Page.flame effects are available to download from our shop on the Home Page.
The ‘Feature lights’ button will activate the over fuel-bed lights, if you have a modelThe ‘Feature lights’ button will activate the over fuel-bed lights, if you have a model
with tile wings then this button will also turn on the side down-lighters.with tile wings then this button will also turn on the side down-lighters.
By clicking on lighting settings you can adjust the flame brightness by pressing, hold-By clicking on lighting settings you can adjust the flame brightness by pressing, hold-
ing, and sliding the tab at the bottom of the screen. Slide left to lower the brightness,ing, and sliding the tab at the bottom of the screen. Slide left to lower the brightness,
and right to increase the brightness. You can adjust the fuel bed brightness in theand right to increase the brightness. You can adjust the fuel bed brightness in the
same way with the lower tab slider.same way with the lower tab slider.
To change the speed of the LED flame effect single press the speed setting option, andTo change the speed of the LED flame effect single press the speed setting option, and
slide the top dial left to slow it down, and right to increase the speed. Likewise with theslide the top dial left to slow it down, and right to increase the speed. Likewise with the
fuel bed speed, slide the lower tab left to slow it down and right to increase it.fuel bed speed, slide the lower tab left to slow it down and right to increase it.
Temperature
dial
Desired
temperature
Lighting
settings
Speed
settings
Animation
settings
Feature lighting
Flame adjustor
Fuel bed adjustor
EVONIC - 147a- QUICK SETUP ISSUE TEMPLATEEVONIC - 147a- QUICK SETUP ISSUE TEMPLATE
BUILT-INS - ISSUE 3BUILT-INS - ISSUE 3

7
PROGRAMMING THE TIMER
Single press the clock icon on theSingle press the clock icon on the
Home Page to begin programming theHome Page to begin programming the
Timer.Timer.
1 2
Input your desired time in the TimeInput your desired time in the Time
box, select the action (Fire On/Off/,box, select the action (Fire On/Off/,
Heater On/Off) you want. DeselectHeater On/Off) you want. Deselect
the day/s you don’t want it to applythe day/s you don’t want it to apply
to, and press the Save button.to, and press the Save button.
3
The above screen will now show yourThe above screen will now show your
set timer. To delete the timer press theset timer. To delete the timer press the
bin icon. To add an additional timerbin icon. To add an additional timer
scroll down and repeat the process.scroll down and repeat the process.
Press the Back button to return to thePress the Back button to return to the
Home Page.Home Page.
Timer
settings
Desired time
Action
Day selection
Save button
Back
Delete
EVONIC - 147a - QUICK SETUP ISSUE TEMPLATEEVONIC - 147a - QUICK SETUP ISSUE TEMPLATE
BUILT-INS - ISSUE 3BUILT-INS - ISSUE 3

UPDATING YOUR FIRE
Update
Update your fire by clicking on the triangular icon.
Do not turn your fire off until it is complete
It may take up to 10 minutes to update.
8
LOGGING OUT
To log out of your account, single press the exit icon in the top right handTo log out of your account, single press the exit icon in the top right hand
corner of the Home Page.corner of the Home Page.
Please note that you should not need to log out of the app; once logged in youPlease note that you should not need to log out of the app; once logged in you
can stay logged in for quick and easy operation of your fire.can stay logged in for quick and easy operation of your fire.
Log out
EVONIC - 147a - QUICK SETUP ISSUE TEMPLATEEVONIC - 147a - QUICK SETUP ISSUE TEMPLATE
BUILT-INS - ISSUE 3BUILT-INS - ISSUE 3

9
RETROFITTING THE REMOTE CONTROL
In order to retro-fit your remote, please ensure you follow these steps
BEFORE you attempt to use the remote control system.
1 2
3 4
To begin the retro-fit of the remoteTo begin the retro-fit of the remote
control, press the ‘update’ icon oncontrol, press the ‘update’ icon on
the e-smart cloud app home screen.the e-smart cloud app home screen.
Once the fire has updated, select theOnce the fire has updated, select the
settings icon on the home screen.settings icon on the home screen.
Once the settings panel is open,Once the settings panel is open,
click ‘other options’.click ‘other options’.
Scroll down to the section thatScroll down to the section that
states ‘allow remote controlstates ‘allow remote control
(universal)’.(universal)’. Make sure this isMake sure this is
highlighted.highlighted. Press save.Press save.
5 6
Press save. You will then hear anPress save. You will then hear an
audible beep to notify you of theaudible beep to notify you of the
pairing.pairing.
Turn your fire OFF, then back ON.Turn your fire OFF, then back ON.
EVONIC - 147a - QUICK SETUP ISSUE TEMPLATEEVONIC - 147a - QUICK SETUP ISSUE TEMPLATE
BUILT-INS - ISSUE 3BUILT-INS - ISSUE 3

USING THE REMOTE
With the remote control the heater is pre-set to 28°, if you would like to adjustWith the remote control the heater is pre-set to 28°, if you would like to adjust
the temperature you need to do this through the app.the temperature you need to do this through the app.
The brightness button adjusts the brightness of the fire by 0%, 25%, 50%, andThe brightness button adjusts the brightness of the fire by 0%, 25%, 50%, and
100%.100%.
10
Top Left - Turn your fire ON
and OFF
Top Right - Turn your
feature lights ON and OFF
Middle Left - Turn your
heater ON
Middle Right - Turn your
heater OFF
Bottom Left - Change the
flame animation
Bottom Left - Adjust the
brightness.
EVONIC - 147a - QUICK SETUP ISSUE TEMPLATEEVONIC - 147a - QUICK SETUP ISSUE TEMPLATE
BUILT-INS - ISSUE 3BUILT-INS - ISSUE 3

LOG GUIDANCELOG GUIDANCE
11
EVONIC - 147 a- QUICK SETUP ISSUE TEMPLATEEVONIC - 147 a- QUICK SETUP ISSUE TEMPLATE
BUILT-INS - ISSUE 3BUILT-INS - ISSUE 3

12
LOG LAYOUTS
When you have your appliance installed you can set up your log set/s. If your
model comes with Chippings, Glass Stones and/or Vermiculite lay this on
the fuel bed first, then continue with laying out your logs. There is no right or
wrong way to arrange your logs, the following images are an example of how
you could lay them out.
1 x Small Woodland / Silver Birch Halo
500
3 x Twig Log Set Woodland / Silver
Birch Halo 1500 SL
2 x Twig Log Set Woodland / Silver
Birch Halo 1250/1000 SL / Halo 650 /
Halo 750
1 x Twig Log Set Woodland /
Silver Birch + 1 x Small Log Set Halo
600/700 SL
2 x Small
Woodland /
Silver Birch
E800T /
Halo 800
1 x Large
Woodland /
Silver Birch
Halo 1030 /
E1030
EVONIC - 147a - QUICK SETUP ISSUE TEMPLATEEVONIC - 147a - QUICK SETUP ISSUE TEMPLATE
BUILT-INS - ISSUE 3BUILT-INS - ISSUE 3

13
2 x Large Woodland / Silver Birch Halo 1500 / E1500
/ Halo 1250 / E1250
3 x Large Woodland / Silver Birch Halo 1800 / E1800
4 x Large Woodland / Silver Birch Halo 2400
EVONIC - 147a - QUICK SETUP ISSUE TEMPLATEEVONIC - 147a - QUICK SETUP ISSUE TEMPLATE
BUILT-INS - ISSUE 3BUILT-INS - ISSUE 3

14
TROUBLESHOOTINGTROUBLESHOOTING
EVONIC - 147a - QUICK SETUP ISSUE TEMPLATEEVONIC - 147a - QUICK SETUP ISSUE TEMPLATE
BUILT-INS - ISSUE 3BUILT-INS - ISSUE 3

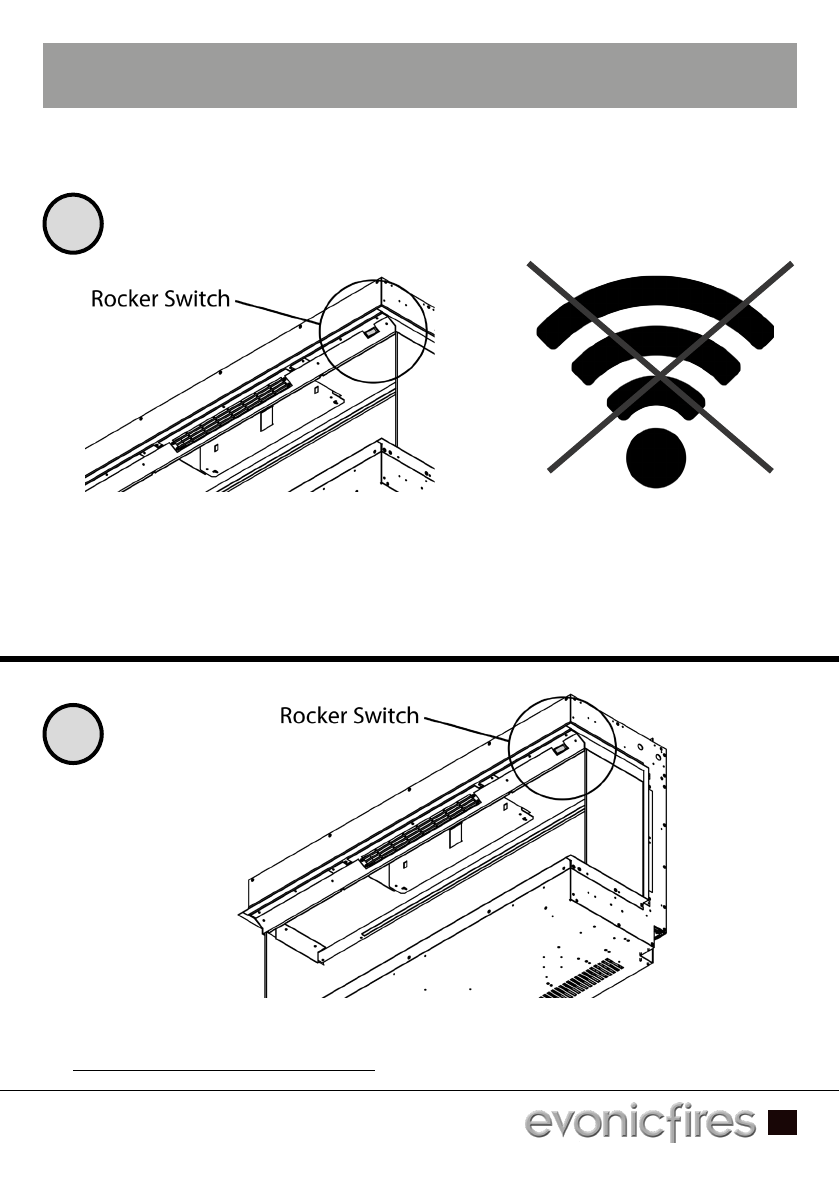

PROBLEMS CONNECTING
If you are having problems connecting your fire with your device and router
please try the following steps to fix the issue.
1
2
•• Switch your fire OFFSwitch your fire OFF •• Switch your internet router OFFSwitch your internet router OFF
•• Switch your fire ONSwitch your fire ON
(Keep the router switched OFF)(Keep the router switched OFF)
15
EVONIC - 147a - QUICK SETUP ISSUE TEMPLATEEVONIC - 147a - QUICK SETUP ISSUE TEMPLATE
BUILT-INS - ISSUE 3BUILT-INS - ISSUE 3

16
3 4
56
•• Go to the WiFi settings on yourGo to the WiFi settings on your
phone or device.phone or device.
•• Find and select your product/fireFind and select your product/fire
•• Go to the E-Smart app and clickGo to the E-Smart app and click
‘Settings’‘Settings’
•• In ‘Device name’ rename your fire.In ‘Device name’ rename your fire.
(Be sure not to use numbers or(Be sure not to use numbers or
spaces when renaming your fire)spaces when renaming your fire)
Device name
•• In the Settings menu scroll downIn the Settings menu scroll down
to the IoT Registration and checkto the IoT Registration and check
that your email and password arethat your email and password are
correct. You can click the eye icon tocorrect. You can click the eye icon to
help you see any mistakes.help you see any mistakes.
•• Click SaveClick Save
Eye Icon
Your Fire
Settings
EVONIC - 147a - QUICK SETUP ISSUE TEMPLATEEVONIC - 147a - QUICK SETUP ISSUE TEMPLATE
BUILT-INS - ISSUE 3BUILT-INS - ISSUE 3

7
8
•• Click on the grey WiFi buttonClick on the grey WiFi button
•• Check that the name of yourCheck that the name of your
WiFi and the WiFi passwordWiFi and the WiFi password
are correct, you can click theare correct, you can click the
eye icon to help you see anyeye icon to help you see any
mistakes. Only the followingmistakes. Only the following
symbols can be used in your WiFisymbols can be used in your WiFi
password;password;
- numbers 0 to 9- numbers 0 to 9
- lower case letters a to z- lower case letters a to z
- upper case letters A to Z- upper case letters A to Z
- ! . , ? + - @ _- ! . , ? + - @ _
•• Make sure that ‘Set Static IP’ isMake sure that ‘Set Static IP’ is
NOT selected.NOT selected.
•• Click ‘Save and Connect’.Click ‘Save and Connect’.
17
Deselect
static IP
Eye
icon
EVONIC - 147a - QUICK SETUP ISSUE TEMPLATEEVONIC - 147a - QUICK SETUP ISSUE TEMPLATE
BUILT-INS - ISSUE 3BUILT-INS - ISSUE 3

910
11
•• Wait 2 minutes...Wait 2 minutes...
(If it doesn’t appear to be connecting(If it doesn’t appear to be connecting
then close the app and then continuethen close the app and then continue
with step 10)with step 10)
Switch your fire OFF
•• Switch your internet router ONSwitch your internet router ON
•• Switch your fire ONSwitch your fire ON
•• You can now use the E-SmartYou can now use the E-Smart
Cloud App as normal, pleaseCloud App as normal, please
see page 6.see page 6.
If the fire still does not connect, then please repeat the process. After repeatingIf the fire still does not connect, then please repeat the process. After repeating
the process if you still cannot connect then please call our service departmentthe process if you still cannot connect then please call our service department
onon 01789 26386801789 263868 oror [e-mail]@evonicfires.co.uk..
18
2:00
Switch your fire ON
EVONIC - 147a - QUICK SETUP ISSUE TEMPLATEEVONIC - 147a - QUICK SETUP ISSUE TEMPLATE
BUILT-INS - ISSUE 3BUILT-INS - ISSUE 3

RESETTING YOUR FIRE
If you have entered a wrong email or password during the set-up process, then
you may need to reset your fire to factory settings. To do this your fire must be
updated to the latest version, you can do this by following the instructions on
page 15.
Once your fire is fully updated you can reset it by turning it off and on at the
rocker switch 5 times. Be sure to allow 1 second between each click. There
will be an audible beep after this has been done, you can then continue with
the set up process on page 4.
19
EVONIC - 147a - QUICK SETUP ISSUE TEMPLATEEVONIC - 147a - QUICK SETUP ISSUE TEMPLATE
BUILT-INS - ISSUE 3BUILT-INS - ISSUE 3
BUILT-IN INSTRUCTION GUIDE
BUILT-IN SPECIFICATION GUIDE

20
EVONIC - 147a - QUICK SETUP ISSUE TEMPLATEEVONIC - 147a - QUICK SETUP ISSUE TEMPLATE
BUILT-INS - ISSUE 3BUILT-INS - ISSUE 3
CK Fires Ltd / Evonic Fires
1, Evonic House, Clifford Park, Clifford Lane,
Stratford-on-Avon, CV37 8HW
Tel: [phone] Fax: [phone]
Email: [e-mail]
www.evonicfires.co.uk
Follow us on:
Instagram | Facebook | Twitter | LinkedIn
@evonicfires
