EVS Synapse HXT150 Instruction sheet

INSTALLATION &
CONFIGURATION
MANUAL
HXT150
DUAL 3GB/S, HD AND SD INPUT,
FRAME SYNCHRONIZER,
UP/DOWN/CROSS CONVERTER,
EMBEDDER AND DE-EMBEDDER

INSTALLATION AND C ONFIGURATION MANUAL
HXT150
Copyright
EVS Broadcast Equipment S.A. – Copyright © 2001 – 2021. All rights reserved.
Disclaimer
The information in this manual is furnished for informational use only and subject to change
without notice. While every effort has been made to ensure that the information contained in
this user manual is accurate, up-to-date and reliable, EVS Broadcast Equipment cannot be held
responsible for inaccuracies or errors that may appear in this publication.
Improvement Requests
Your comments will help us improve the quality of the user documentation. Do not hesitate to
send improvement requests, or report any error or inaccuracy on this user manual by e-mail to
[email protected].
Regional Contacts
The address and phone number of the EVS headquarters are usually mentioned in the Help >
About menu in the user interface.
You will find the full list of addresses and phone numbers of local offices either at the end of this
user manual (for manuals on hardware products) or on the EVS website on the following page:
http://www.evs.com/contacts.
User Manuals on EVS Website
The latest version of Media Infrastructure manuals are available at: https://mi-sftp.evs.com/
The user manuals for other EVS products can be found at the EVS download center, on the
following webpage: https://www.evs.com/en/download-area.

EVS Broadcast E
q
ui
p
ment SA
1
WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRICAL SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE
●ALWAYS disconnect your entire system from the AC mains before cleaning any component. The
product frame (SFR18 or SFR04) must be terminated with three-conductor AC mains power cord that
includes an earth ground connection. To prevent shock hazard, all three connections must always be
used.
●NEVER use flammable or combustible chemicals for cleaning components.
●NEVER operate this product if any cover is removed.
●NEVER wet the inside of this product with any liquid.
●NEVER pour or spill liquids directly onto this unit.
●NEVER block airflow through ventilation slots.
●NEVER bypass any fuse.
●NEVER replace any fuse with a value or type other than those specified.
●NEVER attempt to repair this product. If a problem occurs, contact your local EVS distributor.
●NEVER expose this product to extremely high or low temperatures.
●NEVER operate this product in an explosive atmosphere.
Warranty: EVS warrants their products according to the warranty policy as described in the general
terms. That means that EVS Broadcast Equipment SA can only warrant the products as long as the
serial numbers are not removed.
Copyright © 2001 – 2021 EVS Broadcast Equipment SA
Date created: 19-10-2016
Date last revised: 19-10-2016
EVS, the EVS logo and Synapse are trademarks of EVS Broadcast Equipment SA
This product complies with the requirements of the product family standards for audio, video, audio-
visual entertainment lighting control apparatus for professional use as mentioned below.
EN60950
EN55103-1: 1996
EN55103-2: 1996
Safety
Emission
Immunity
EVS Broadcast Equipment
HXT150
Tested To Comply
With FCC
Standards
FOR HOME OR
OFFICE USE
This device complies with part 15 of the FCC Rules
Operation is subject to the following two conditions:
(1) This device may cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.

INSTALLATION AND C ONFIGURATION MANUAL
HXT150
2
Introduction to Synapse 6
An Introduction to Synapse 6
Local Control Panel 6
Remote Control Capabilities 6
Unpacking and Placement 7
Unpacking 7
Placing the card 7
A Quick Start 8
When Powering-up 8
Changing settings and parameters 8
Front Panel Control 8
Example of changing parameters using front panel control 9
EVS Cortex Software 10
Menu Structure Example 10
The HXT150 Card 11
Introduction 11
Features 11
Conversion capabilities 12
Applications 12
Block schematic 13
Important notice 13
Settings Menu 14
Introduction 14
IO-Ctrl 14
IO_Prst_Act 14
IO_Prst_Edit 14
#Inp_Sel 14
#Out-FrmtA 15
#F-delayA 15
#V-delayA 15
#H-delayA 15
#Out-FrmtB 15
#F-delayB 16
#V-delayB 16
#H-delayA 16
#LowPassFiltA 16
#LowPassFiltB 17
#OP47-Demb_Ln 17
Delay-Status 18
Lock-Mode 18
Ref-Type 18
PrstEditView 18
PatternSpeed 18
SD-AR-Det 18
NoWSS/VI_prstA 18
NoWSS/VI_prstB 19
Input_Loss_A 19
ATC_TYPE_SEL 19
TC_Detect 19
Up_CtrlA 19
Up_Prst_actA 19
UP_Prst_editA 19
#Up_ArcA 20
#Up_H-scaleA 20
#Up_V-scaleA 20
#Up_H-EnhA 20
#Up_ColorConvA 20
Up_CtrlB 21
Up_Prst_actB 21
UP_Prst_editB 21
#Up_ArcB 21
#Up_H-scaleB 21
#Up_V-scaleB 21
#Up_H-EnhB 21
#Up_ColorConvB 21

EVS Broadcast E
q
ui
p
ment SA
3
Dn_CtrlA 22
Dn_Prst_actA 22
Dn_Prst_editA 22
#Dn_ArcA 22
#Dn_H-scaleA 23
#Dn_V-scaleA 23
#Dn_H-EnhA 23
#Dn_ColorConvA 23
Dn_CtrlB 23
Dn_Prst_actB 23
Dn_Prst_editB 23
#Dn_ArcB 23
#Dn_H-scaleB 24
#Dn_V-scaleB 24
#Dn_H-EnhB 24
#Dn_ColorConvB 24
Cr_CtrlA 24
Cr_Prst_actA 24
Cr_Prst_editA 24
#Cr_ArcA 25
#Cr_H-scaleA 25
#Cr_V-scaleA 25
#Cr_H-EnhA 25
Cr_CtrlB 26
Cr_Prst_actB 26
Cr_Prst_editB 26
#Cr_ArcB 26
#Cr_H-scaleB 26
#Cr_V-scaleB 26
#Cr_H-EnhB 26
Tr_CtrlA 27
Tr_Prst_ActA 27
Tr_Prst_EditA 27
#Tr_ArcA 27
#Tr_H-scaleA 27
#Tr_V-scaleA 27
#Tr_H-EnhA 28
Tr_CtrlB 28
Tr_Prst_ActB 28
Tr_Prst_EditB 28
#Tr_ArcB 28
#Tr_H-scaleB 28
#Tr_V-scaleB 28
#Tr_H-EnhB 28
S2010EmbA-Mode 29
S2010EmbA-Line 29
S2010EmbB-Mode 29
S2010EmbB-Line 29
WST_Ln_Ctrl 29
WST_Ln_F1_A 29
WST_Ln_F2_A 30
WST_Ln_F1_B 30
WST_Ln_F2_B 30
Timecode-ins 30
VITC_Ln_In 30
VITC_Ln_Ctrl 30
VITC_Ln_625 30
VITC_Ln_525 30
VITC_Ln_Dup 30
Ins_CtrlA 31
Ins_Prst_ActA 31
Ins_Prst_EditA 31
#VI-InsertA 31
#VI-DataA 31
#WSS-InsertA 31
#WSS-StndA 31
#WSS-ExtndA 31
S2016-Line 32
#S2016-InsertA 32
#S2016-AspectA 32
#S2016-DataA 32

INSTALLATION AND C ONFIGURATION MANUAL
HXT150
4
#OP47-SDP-Emb_A 32
#CC_Ena_A 32
Ins_CtrlB 32
Ins_Prst_ActB 32
Ins_Prst_EditB 32
#VI-InsertB 32
#VI-DataB 33
#WSS-InsertB 33
#WSS-StndB 33
#WSS-ExtndB 33
#S2016-InsertB 33
#S2016-AspectB 33
#S2016-DataB 33
#OP47-SDP-Emb_B 33
#CC_Ena_B 33
GainA 34
R-GainA 34
G-GainA 34
B-GainA 34
GainB 34
R-GainB 34
G-GainB 34
B-GainB 34
BlackA 34
R-BlackA 34
G-BlackA 34
B-BlackA 35
BlackB 35
R-BlackB 35
G-BlackB 35
B-BlackB 35
Audio-Phase 35
Audio_Ctrl 35
Audio_Prst_act 36
Audio_Prst_Edit 36
#Direct-Audio 36
#EmbA_Grp 36
#EmbB_Grp 36
#EmbC_Grp 36
#EmbD_Grp 37
GPI-Ctrl 37
GPI_1 ~ GPI_5 37
IP_Conf0 37
mIP0 37
mNM0 37
mGW0 38
NetwPrefix0 38
Status Menu 39
Introduction 39
Active 39
sInp1 39
sInp1_VI 39
sInp1_WSS-Stnd 40
sInp1_WSS-Extd 40
sInp1_S2016 41
sInp1_CRC_EDH 41
SDI1S2010Stat 41
SDI1S2010lineSt 41
sInp2 41
sInp2_VI 41
sInp2_WSS-Stnd 41
sInp2_WSS-Extnd 41
sInp2_S2016 41
sInp2_CRC_EDH 42
IODelayA 42
IODelayB 42
FunctionA 42
FunctionB 42

EVS Broadcast E
q
ui
p
ment SA
5
Ref 42
GPI 42
GPIA 42
GPIB 42
GPIC 42
OP47-Det-A 42
OP47-Det-B 42
WST-Det-A 42
WST-Det-B 42
CC_Det_A 43
CC_Det_B 43
IP_Addr0 43
MAC0 43
IP0 43
NM0 43
GW0 43
Events Menu 44
Introduction 44
What is the Goal of an event? 44
Events 44
Announcements 44
Input_A 44
Input_B 44
Ref-Status 44
What information is available in an event? 44
The Message String 45
The Tag 45
Defining Tags 45
The Priority 45
The Address 45
LED Indication 46
Error LED 46
Input_A LED 46
Input_B LED 46
ANC Data LED 46
Reference LED 46
Data Error LED 46
Connection LED 46
Error LED 46
Block Schematic 47
Connector Panels 48
GPI pinning 48
Appendix 1 49
GPI’s explained 49
GPI pools 49
binary mode or priority mode 49
Example 1 49
Example 2 50
Example 3 51
Appendix 2 52
Quad speed ADD-ON bus 52
Scope 52
Features 52
Example 53
Multiplexing 54
GNU Public License version 2 56

INSTALLATION AND C ONFIGURATION MANUAL
HXT150
6
1 Introduction to Synapse
An Introduction to
Synapse Synapse is a modular system designed for the broadcast industry. High
density, intuitive operation and high quality processing are key
features of this system. Synapse offers a full range of converters and
processing modules. Please visit the EVS Broadcast Equipment SA
Website at http://www.evs.com to obtain the latest information on our
new products and updates.
Local Control Panel The local control panel gives access to all adjustable parameters and
provides status information for any of the cards in the Synapse frame,
including the Synapse rack controller. The local control panel is also
used to back-up and restore card settings. Please refer to the RRC,
ERC, RRS or ERS manuals for a detailed description of the local
control panel, the way to set-up remote control over IP and for frame
related settin
g
s and status information.
Remote Control
Capabilities The remote control options are explained in the rack controller (RRC,
RRS, ERC or ERS) manual. The method of connecting to a computer
usin
g
Ethernet is also described in these manuals.
! CHECK-OUT: “EVS CORTEX” SOFTWARE WILL
INCREASE SYSTEM FLEXIBILITY OF ONE OR MORE
SYNAPSE FRAMES
Although not required to use Cortex with a Synapse frame, you are
strongly advised to use a remote personal computer or laptop PC with
EVS Cortex installed, as this increases the ease of use and
understandin
g
of the modules.

EVS Broadcast E
q
ui
p
ment SA
7
2 Unpacking and Placement
Unpacking The EVS Synapse card must be unpacked in an anti-static
environment. Care must be taken NOT to touch components on the
card – always handle the card carefully by the edges. The card must be
stored and shipped in anti-static packaging. Ensuring that these
precautions are followed will prevent premature failure from
components mounted on the board.
Placing the card The Synapse card can be placed vertically in an SFR18 frame or
horizontally in an SFR04 and SFR08 frame. Locate the two guide slots
to be used, slide in the mounted circuit board, and push it firmly to
locate the connectors.
Correct insertion of card is essential as a card that is not located
properl
y
ma
y
show valid indicators, but does not function correctl
y
.
NOTE: On power up all LED’s will light for a few seconds, this is
the time it takes to i
n
itialise the card.
NOTE: Please check appendix 1
b
efore connectin
g
an
y
backpanel!

INSTALLATION AND C ONFIGURATION MANUAL
HXT150
8
3 A Quick Start
When Powering-up On powering up the Synapse frame, the card set will use basic data
and default initialisation settings. All LED’s will light during this
process. After initialisation, several LED’s will remain lit – the exact
number and configuration is dependant upon the number of inputs
connected and the status of the inputs.
Changing settings
and parameters The front panel controls or the Synapse Cortex can be used to change
settings. An overview of the settings can be found in chapter 5, 6 and
7 of this manual.
Front Panel Control Front Panel Display and Cursor
Settings are displayed and changed as follows;
Use the cursor ‘arrows’ on the front panel to select the menu and
parameter to be displayed and/or changed.
P
r
ess ►To
g
o forward throu
g
h the menu structure.
Press ◄To
g
o back throu
g
h the menu structure.
Press ▲To move up within a menu or increase the value of
a parameter.
Press ▼To move down through a menu or decrease the
value of a parameter.
NOTE: Whilst editing a setting, pressing ►twice will reset the value
to its default.
[No Alarms]

EVS Broadcast E
q
ui
p
ment SA
9
Example of changing
parameters using
front panel control
With the display as shown below
Pressing the ►selects the SFS10 in frame slot 01.
The display changes to indicate that the SFS10 has been selected. In
this example the Settings menu item is indicated.
Pressing the ►selects the menu item shown, in this example
Settings.
(Pressing ▲or ▼will change to a different menu eg Status,
Events).
The display changes to indicate that the SFS10 Settings menu item
SDI-Format has been selected and shows that it current setting is
Auto.
Pressing the ►selects the settings item shown, in this example SDI-
Format.
(Pressing ▲or ▼will change to a different setting, eg Mode, H-
Delay).
The display changes to indicate that the SFS10 Edit Setting menu
item SDI-Format has been selected.
To edit the setting of the menu item press ▲or ▼.
All menu items can be monitored and/or changed in this way.
Chan
g
in
g
a settin
g
has an immediate effect.
RRC18 [Select Card]
>S01=SFS10
SFS10 [Select Menu]
>Settings
SFS10 [Settings]
>SDI-Format=Auto
SFS10 Edit Setting]
SDI-Format>Auto

INSTALLATION AND C ONFIGURATION MANUAL
HXT150
10
EVS Cortex Software EVS Cortex can be used to change the settings of Synapse modules
from a PC, either locally or remotely. The software enables
communication based on TCP/IP between the Setup PC and Synapse
frames/modules.
Each Synapse frame is addressed through its rack controller’s unique
IP address, giving access to each module, its menus and adjustment
items. EVS Cortex has access to data contained within the Synapse
module and displays it on a GUI. The software has an intuitive
structure following that of the module that it is controlling.
For operation of EVS Cortex, please refer to the Cortex help files.
Menu Structure
Example
Slot Module Item Paramete
r
Settin
g
▲
▲
S02 Identit
y
▲▲
S01 SFS10 ►Set-
tings
►Standard_dig ►Auto
▼▼▼▼
S00 RRC18 Status Mode 625
▼▼▼
Events Ref-Input 525
▼
H-Delay
▼
▼
NOTE: Further information about Front Panel Control and Synapse
Cortex can be obtained from the RRC and RRS operational manuals
and the Cortex help files.

EVS Broadcast E
q
ui
p
ment SA
11
4 The HXT150 Card
Introduction The HXT150 dual output up/down/cross converter is a transmission
tool optimized to have a second channel running on a medium long
offset delay that will improve statistical multiplexing efficiency.
One application is that the SD output in both anamorphic and letterbox
formats run on the same multiplexer and because of the SD 5 seconds
offset delay will help with multiplexing
Features
HD, SD SDI input (auto selecting)
Low latency conversion process
HD outputs
SD outputs (simultaneous anamorphic widescreen and pan-scan)
Up-conversion from SD, 720p or 1080i (equal frame-rate)
Down conversion
Cross conversion 720p to 1080i and vice versa
Dual input backup function
Automatic by input carrier detection
Manual by direct control (ACP)
GPI
2 Frame synchronizers for the HD and SD domain with individual output
timing control, One with an additional offset delay.
Color correction in HD and SD domain (RGB and total gain, RGB and
total black)
H+V sharpness control in SD domain for crisp down converted picture
quality
4 GPI inputs for ARC and Shuffle triggers
Transparent for 16 channels of embedded audio both HD and SD path
Quad speed audio bus OUT compatible
De-embedding to Synapse bus with transparent input to output handling
Video proc-amp (Y and C control)
Hue control
Compatible with:
270 Mbit/s (SMPTE 259M) 50 and 59.94Hz
1485 Mbit/s (SMPTE 292M) 50 and 59.94Hz
AFD insertion in HD domain
AFD, WSS, WSS-ext and VI insertion in SD domain
I/O Delay measurement for both output domain
Reporting of chosen input
CRC status information for both inputs
Locks to Bi-level, Tri-level syncs and SDI input
OP47 to WST cross conversion and vice versa
Timecode cross conversion
CC-608 to CC-708 conversion and vice versa
6 Line Vertical Ancillary Blanking transparency in transparent mode
Full control and status monitoring through the front panel of the
SFR04/SFR08/SFR18 frame and the Ethernet port (ACP)
16 channel embedder in both HD and SD domain
Optional 2 fiber inputs (replacing 2 SDI inputs) or 2 fiber outputs
(replacing 2 SDI outputs) on I/O panel

INSTALLATION AND C ONFIGURATION MANUAL
HXT150
12
Conversion
capabilities
Output
CONVERSION
1080i59.94
1080i50
720p59.94
720p50
720p23.98
480i59.94(525)
576i50(625)
SDI Input
1080i59.94 x x x x
1080i50 x x x
720p59.94 x x x
720p50 x x x
720p23.98 x x x x
480i59.94(525) x x x x
576i50(625) x x x
Applications OB van output card with 16 channel embedding (in combination
with 2 x DIO48)
2x1 HD protection switch with SD monitoring output
Dual domain (HD & SD) production down converter with
individual timin
g
ad
j
ustment

EVS Broadcast E
q
ui
p
ment SA
13
Block schematic
HXT150 [QUAD SPEED AUIO BUS]
LOW LATENCY
UP -D OW N-C RO SS
CONVERSION
- ARC -
- VIDEO BYPASS -
FRAME
SYNC
+
OFFSET
DELAY
COLOR
CORR.
3Gb/s, HD, SD OUT A2
3Gb/s, HD, SD OUT B2
LOW LATENCY
UP -D OW N-C RO SS
CONVERSION
- ARC -
- VIDEO BYPASS -
WSS-V I-S201 6
DETE CTION
4 GROUP
EMBE D
COLOR
CORR.
4 GROUP
EMBE D
EQ
EQ
AFD
S201 6
WSS
VI
AFD
S201 6
WSS
VI
INT ER NAL SY NAP S E BU S
REFERENCE
INPUTS 12
PLL
16 CHANNEL
DE-
EMBE DDING
GPI
INPUT
SELECT
QUAD SPEED
MULTIPLEXING
AUDI O BUS
32CH
OUT
TDM
MUX
TO ADD -ON
AUDIO
V-FADE
&
DELAY
TRACK
ANC
INS
ANC
INS
OFFSET
DELAY
RACK
CONTROLLER
µP [L INUX]
AUDIO
V-FADE
&
DELAY
TRACK
FRAME
SYNC
+
OFFSET
DELAY
WST
DE-
EMBE DDING
Important notice Historically, closed captions were transmitted in NTSC line 21
according to EIA-608. This allows two caption data bytes per field to
be transmitted. With the introduction of HD and DTV a new Closed
Caption specification was made, EIA-708. This allows sending more
data per field, for extended language, color support, PMT and EIT and
timecode data.
The new DTV caption format cannot be translated back to EIA-608.
However the EIA-708 may include EIA-608 data as "NTSC closed
captions" for compatibility with old decoders.
This card only de-embeds the NTSC closed captions, not the DTV
closed captions. It will not function with a DTV-only 708 closed
caption source.

INSTALLATION AND C ONFIGURATION MANUAL
HXT150
14
5 Settings Menu
Introduction The settings menu displays the current state of each HXT150 setting
and allows you to change or adjust it. Settings can be changed using
the front panel of the Synapse frame (SFR18, SFR08 or SFR04) or
with Cortex. Also the SCP08 control can be used. Please refer to
chapter 3 for information on the Synapse front panel control and
Cortex.
Note: All items preceded with a #-si
g
n are p
a
rt of the presets.
SYSTEM SETTINGS
IO-Ctrl This card has separate presets for the input and output settings under
the ‘SYSTEM SETTINGS’ header. With this item you select how
the IO presets are controlled: Manually (manual) or via GPI-
triggers (GPI, GPI-A,GPI-B or GPI-C). By default it is set to
Manual.
IO_Prst_Act With this item you can manually change the currently active IO
settings. Can be any preset between 1 and 8. By default it is set to 1.
All menu settings that are preceded with a ‘#‘-prefix under the
‘SYSTEM SETTINGS’ header are part of the preset.
IO_Prst_Edit Here you can select which of the 8 selectable IO settings presets you
want to edit. Changing this will not change the active preset, unless
the currently active preset is the same you are going to edit. All
menu settings that are preceded with a ‘#‘-prefix under the
‘SYSTEM SETTINGS’ header are part of the preset.
#Inp_Sel With this item you can select which input you want to use. Can be
SDI-1 (SDI input 1) or SDI-2 (SDI input 2). You can also choose
a Zoneplate or Colorbar as input. Set to auto will
automatically detect which SDI input holds a valid input. If both
inputs have a correct input, SDI-1 will be chosen. The default for
this setting is SDI-1.

EVS Broadcast E
q
ui
p
ment SA
15
#Out-FrmtA With Out-FrmtA you can set what the output should be for
outputs A1 and A2. Possible settings are:
1080i60 (default), 1080i50
1080p24
1080psf24
720p60, 720p50
SD525, SD625
#F-delayA F-DelayA sets the amount of delayed Frames for outputs A1 and
A2. The available range is from 0 to 250 fields (dependant on the
I/O). Default is 0F.
#V-delayA V-DelayA setting allows adjustment of the vertical phase of the
output signal for outputs A1 and A2 with respect to the selected
reference input.
The V-Delay setting gives a delay in addition to the reference
timing. For example: if the V-Delay is set to 10 TV HD lines, the
output signal will be delayed by reference timing + 10 TV HD lines.
The signal is delayed (advanced) with respect to the phase of the
reference signal. The available range is from 0 to a maximum of
1125 lines (dependant on I/O format). The default setting is 0ln.
#H-delayA The H-DelayA setting allows adjustment of the Horizontal phase
of the output signal for outputs A1 and A2 with respect to the
selected reference input.
The H-Delay setting gives a delay in addition to the reference
timing. For example: if the H-Delay is set to 10 pixels, the output
signal will be delayed by reference timing + 10 pixels. The signal is
delayed (advanced) with respect to the phase of the reference signal.
The available range is from 0 to a maximum of 5124 pixels
(dependant on I/O format). The default setting is 0px.
#Out-FrmtB With Out-FrmtB you can set what the output should be for
outputs B1 and B2. Possible settings are:
1080i60 (default), 1080i50
1080p24
1080psf24
720p60, 720p50
SD525, SD625

INSTALLATION AND C ONFIGURATION MANUAL
HXT150
16
#F-delayB F-DelayB sets the amount of delayed Frames for outputs B1 and
B2. The available range is from 0 to 250 fields (dependant on the
I/O). Default is 0F.
#V-delayB V-DelayB setting allows adjustment of the vertical phase of the
output signal for outputs B1 and B2 with respect to the selected
reference input.
The V-Delay setting gives a delay in addition to the reference
timing. For example: if the V-Delay is set to 10 TV HD lines, the
output signal will be delayed by reference timing + 10 TV HD lines.
The signal is delayed (advanced) with respect to the phase of the
reference signal. The available range is from 0 to a maximum of
1125 lines (dependant on I/O format). The default setting is 0ln.
#H-delayA The H-DelayB setting allows adjustment of the Horizontal phase
of the output signal for outputs A1 and A2 with respect to the
selected reference input.
The H-Delay setting gives a delay in addition to the reference
timing. For example: if the H-Delay is set to 10 pixels, the output
signal will be delayed by reference timing + 10 pixels. The signal is
delayed (advanced) with respect to the phase of the reference signal.
The available range is from 0 to a maximum of 5124 pixels
(dependant on I/O format). The default setting is 0px.
#LowPassFiltA Here you can set the horizontal and vertical video low-pass filter for
channel A. These are the possible settings:

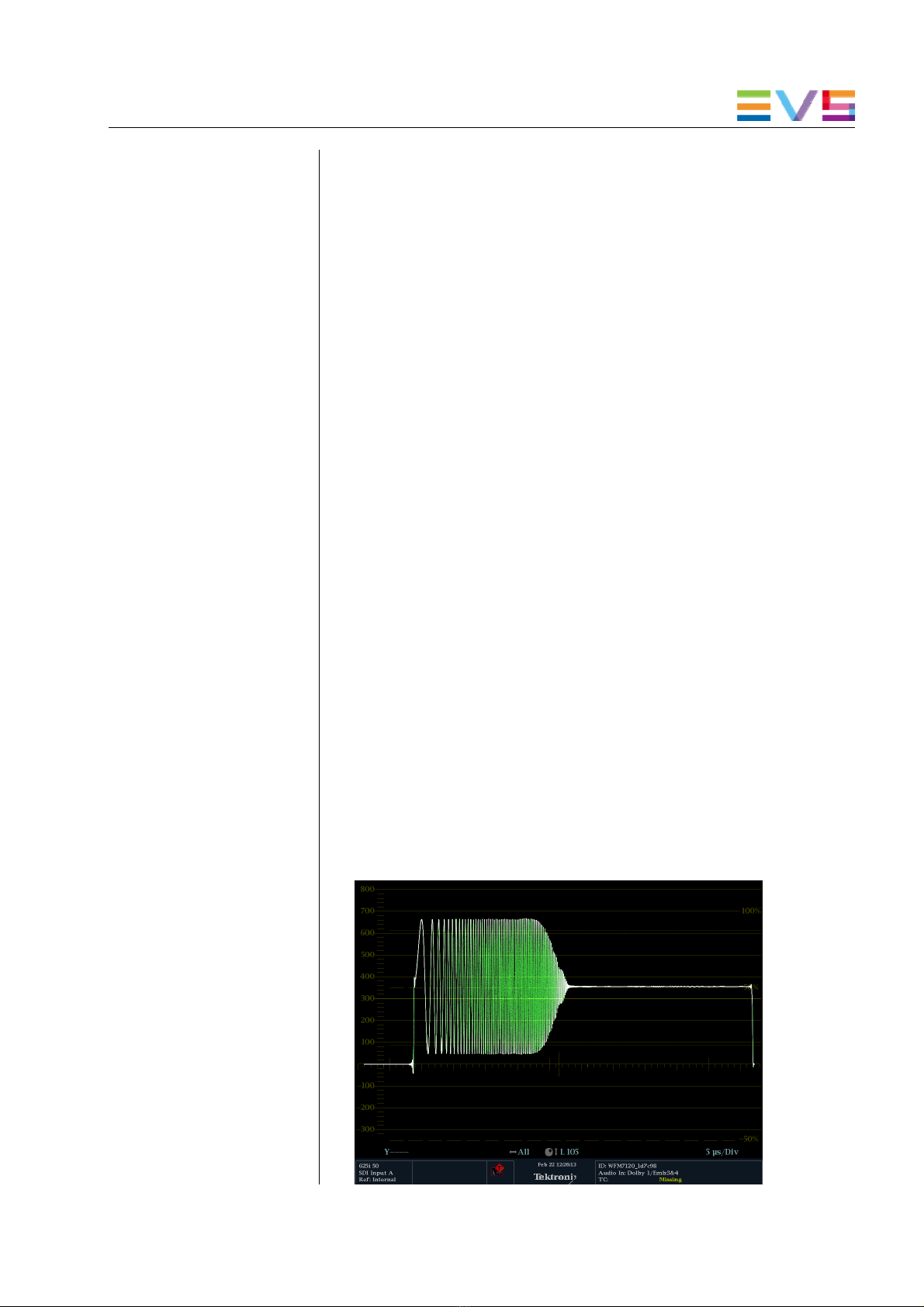

■Off: the normal broadband filters will be used when the card is
converting. A 64 taps brick wall type horizontal filter:

EVS Broadcast E
q
ui
p
ment SA
17
■H_only: a less steep filter with no aliasing Y and soft for C for
less ringing effects:
■V_only: vertical filters will be active which “soften” the image
and prevents “ring”-effects in down converted content.
■H_And_V: same horizontal filter as described under H_Only
will be active, together with the vertical filters described under
V_only.
■H2_Only: less steep filter with aliasing and soft for C for less
ringing, more sharpness but with aliasing:
■H2_And_V: same horizontal filter as described under H2_Only
will be active, together with the vertical filters described under
V_only.
This setting is only for channel A. Default is off.
Note: This onl
y
wor
k
s when down-converting.
#LowPassFiltB This sets the horizontal and vertical low-pass filter for channel B.
Refer to #LowPassFilt_A for an explanation of the possible
settin
g
s.
#OP47-Demb_Ln With this setting you select the line which the OP47 de-embedder
de-embeds. Can be line 7 till line 20. Setting this to first will
select the first OP47 packet (per field) when it comes b
y
and i
g
nores

INSTALLATION AND C ONFIGURATION MANUAL
HXT150
18
all following packets. First is default for this setting.
Delay-Status It is possible to display (in the status menu IODelay) the
processing time of the card in the status menu. This setting allows
you to switch this function ON or OFF. Default setting is OFF
Lock-Mode Lock-Mode determines whether the card is locked to his input
(input 1), to the reference (Ref1 or Ref2) or freerun (not
locked). By default it is set to Ref1. Can also be set to RefAuto.
When set to RefAuto the card chooses ref1 as its source.
Whenever ref1 fails, it will switch to ref 2 (only for SFR08 and
SFR18 frames and only when ref2 offers the same ref format as ref
1). When ref 1 is back up again, it will only automatically switch
b
ack to ref 1 when ref 2 fails.
Ref-Type Sets the type of incoming reference. Can be either Bi-Level or Tri-
Level. Default is Bi-Level.
PrstEditView With this setting set to Follow Active, the edit preset settings
(like for instance UP_Prst_editA and UP_Prst_editB) will
follow the active preset when the active preset is changed. This to
avoid confusion when changing the active. Set to Independent
the edit preset will not automatically follow active preset changes.
By default, set to Follow Active.
PatternSpeed Sets the speed of the test-pattern (see settings Inp_SelA and
Inp_SelB) animation between 0 (still) and 15 (fast). Default is 1.
SD-AR-Det This card can switch between presets on the changes of the aspect
ratio. Aspect ratio information can be taken out of the VI (video
index), WSS (widescreen signaling) or WSS-extended (extended
form of widescreen signaling). With this setting you can select
which of the above protocols should be used to detect aspect ratio
changes. By default, it is set to VI.
NoWSS/VI_prstA With this setting you can set to which preset the card should jump
outputs A1 and A2, when no WSS or VI information is found. Can
be any preset between 1and 16 or Hold (holds current active
preset). By default it is set to Hold.
