eXact Chlorine Plus User manual

Index:
Parameter Page MENU
Free Chlorine (DPD-1) 4 CL1
Combined Chlorine (DPD-3) 5 CL1
Total Chlorine (DPD-4) 6 CL1
Bromine (DPD-1) 6 bR2
Ozone (DPD-4) 7 O3
Chlorine Dioxide (DPD-1) 7 Cd4
Peracetic Acid (PAA) 8 PA5
Hydrogen Peroxide (as H
2
O
2
) 8 HP6
pH 9 PH7
Total Chlorine High 9 HR8
6SHFL¿FDWLRQV 
About Your Photometer 3
Tips for Best Accuracy 10
Reorder Information 10
Battery Installation 11
Warranty (2 year) 11
USEPA Compliance 2, 12
Ready Snap Value 10
Kit Components 12
Revision 05/31/17
486696-PLUSK Kit
Visit sensafe.com/chlorineplus for updated product
information and new tests.
©2017 Industrial Test Systems, Inc. • EXACT
®
is a registered trademark of Industrial Test Systems, Inc., Rock Hill, SC USA
Advanced Photometer System
Manufactured By: Industrial Test Systems, Inc.
1875 Langston Street, Rock Hill, SC 29730 USA
Phone: [phone] - INSIDE THE U.S.
1-803-329-9712 - OUTSIDE THE U.S.
Fax: [phone]
[email protected]
WWW.SENSAFE.COM
www.poolcheckonline.com
anufactured By:
Industrial Test Systems, In
7
5L
t
S
t
t
R
k
Hil
l
SC
297
30
US
The eXact
®
Chlorine Plus Photometer and Advanced
System have been designed for use with the eXact
®
Strip Micro reagent delivery system.
Chlorine Plus is manufactured and tested in an ISO 9001 Facility
IDEAL FOR DRINKING WATER, POOLS, SPAS,
ENVIRONMENTAL, FOOD & BEVERAGE
WATER QUALITY TESTING
Use in accordance with U.S. Patent No. 7,333,194, U.S. Patent No. 7,491,546,
South African Patent No. 2007/0628, Euro Pat No. 1,725,864 DE FR UK

2
eXact
®
Chlorine Plus Photometer
e
X
a
c
t
F
E
D
C
B
A
G
H
+
–

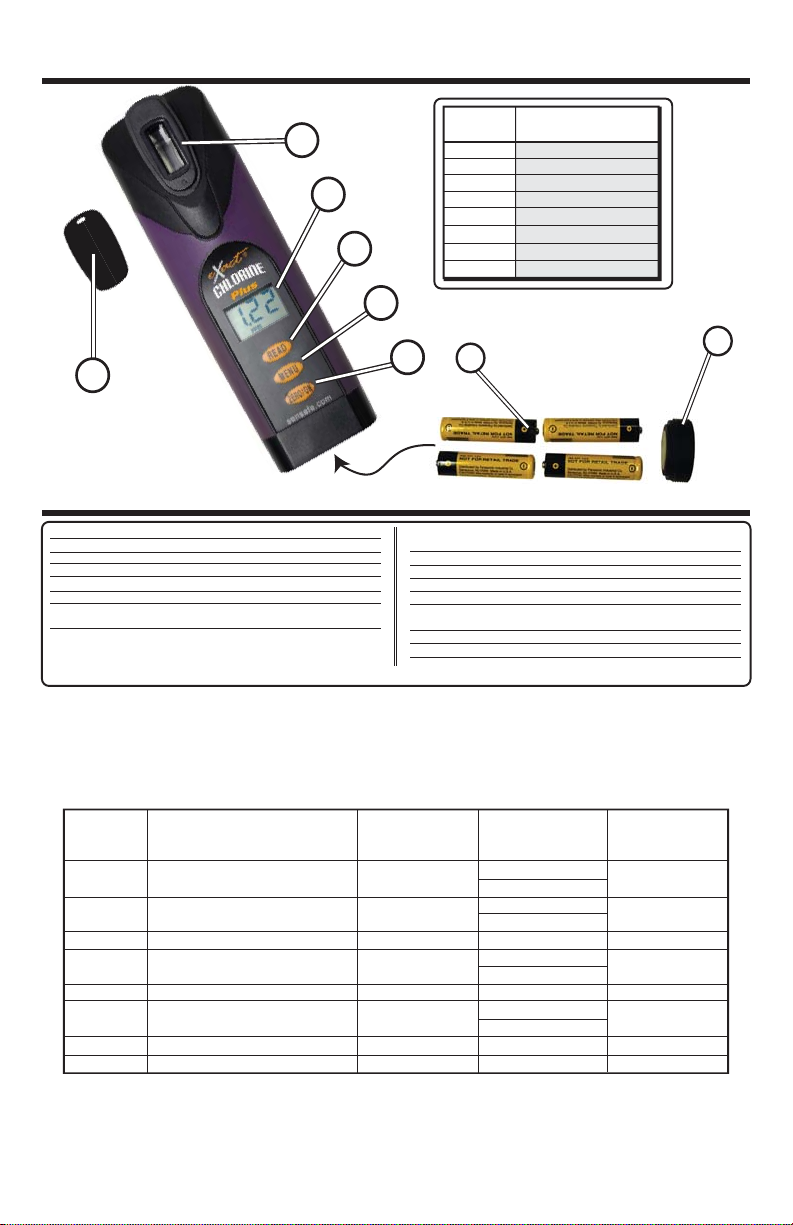

ITEM PICTURED
LETTER COMPONENT NAME
AMixing Cap
BCell (Built-in Plastic, 4 ml)
CLCD Display
DREAD Button
EMENU Button
FZERO/ON Button
GBattery Cover with loop for lanyard
HAAA Batteries (x4) (Not Included)
(Used for tests
performed in outdoor
light conditions)
eXact®&KORULQH3OXV0HWHU6SHFLÀFDWLRQV
Measurement Method: Photometric
Light Source: Light Emitting Diode (LED)
Wavelength: 525 nm
Transmission Range: 100 - 0.00 %T
Photometric Precision: +/- 0.1/0.01 %T
Automatic Range Selection: 6HH6SHFL¿FDWLRQVEHORZ
Display: 3-digit customized liquid crystal display
with annunciators
CELL Pathlength: 20mm
Cell Chamber: Custom-molded, proprietary, PET plastic
  IXVHGLQWRFKDPEHUQRQUHPRYDEOH
Sample Required: 4 ml (0.13 oz)
Operating Temperature Range: 0 - 50°C (32° - 122°F)
Power Supply: $$$DONDOLQHEDWWHULHV1RW,QFOXGHG
Battery Life: !WHVWVZLWKDONDOLQHEDWWHULHV
Electromagnetic Compliance: (PLWWHG,QWHUIHUHQFH(1
(EMC)  ,PPXQLW\WR,QWHUIHUHQFH(1
Waterproof Rating: ([FHHGV,3
Weight:  ,QVWUXPHQWJR]
Dimensions:  ,QVWUXPHQW:['[+FP
  [[LQ
eXact® Chlorine Plus KDVEHHQGHVLJQHGWRRIIHUWKHXVHUDPRUH³*UHHQ´DQGFRVWHIIHFWLYHDOWHUQDWLYHWRWHVWLQJ
,QVWHDGRIXVLQJDPOZDWHUVDPSOHeXact® Chlorine Plus XVHVDPOZDWHUVDPSOHZKLFKXVHVXSWROHVV
FKHPLFDOSHUWHVW7KHDFFXUDF\RIWKHPHWHULVPDLQWDLQHGE\GHVLJQLQJWKHSKRWRFHOOZLWKDPPSDWKOHQJWK
We offer a “Green” Alternative
eXact®Chlorine Plus Specifications
1
3HUIRUPDQFHYHULÀHGZLWKYDULRXVZDWHUVDPSOHVZLWKRSWLPDOZDWHU
WHPSHUDWXUHVDW²&²)
2SWLPDOZDWHUWHPSHUDWXUHIRU7RWDO&KORULQH+LJKWHVWLVÝ&Ý)

9DOXHSURYLGHGUHSUHVHQWVEHVWSRVVLEOHDFFXUDF\XQGHUODERUDWRU\FRQGLWLRQV
EXWPD\YDU\WKURXJKRXWWKHGHWHFWLRQUDQJH
5
CL1
bR2
O3
Cd4
PA5
HP6
PH7
HR8
Free Chlorine (DPD-1) &
Total Chlorine (DPD-3)
Bromine
Ozone
Chlorine Dioxide
Peracetic Acid
Hydrogen Peroxide
pH
Total Chlorine High
SSP
SSP
SSP
SSP
SSP
SSP
S+
SSP






S+

 SSP
 SSP
 SSP
 SSP


SSP
 SSP
1

SSP
1 SSP

1
Menu Tests for
1
Range Resolution
BEST
2
ACCURACY (%)

3
About Your eXact
®
Chlorine Plus Instrument
In order to save power, the meter is designed to turn off after 3 minutes (timed from the last button pressed).
Should the meter turn off in the middle of a test, the last stored zero in the meter will remain valid when the
meter is turned on again. Also, the test result is stored in memory for easy retrieval.
The eXact
®
Chlorine Plus meter is controlled by three buttons:
1. ZERO/ON:KHQ¿UVWSUHVVHGWKLVEXWWRQWXUQVWKHPHWHURQ:KHQWKHPHWHULVRQDQGWKLVEXWWRQLV
pressed, it zeroes the sample in the cell. Once the meter is zeroed, this zero value applies to all parameters
and is stored and retained even when meter turns off. However, it is recommended that each new water
sample analyzed is zeroed before testing, to maximize sensitivity and accuracy.
2. MENU: With each press, the MENU button advances through the tests in the following sequence: CL1,
bR2, O3, Cd4, PA5, HP6, PH7, HR8. Each test menu can store up to 20 results. To retrieve the stored
results, go to the desired test using the MENU key. When the desired test is displayed, press and hold
down the MENU key. Continue holding down the MENU key to scroll the stored results for that test, starting
with the most recent result. The meter will display, from memory, the last 20 readings in sequence beginning
with -20, which is the latest result, followed by -19, which is the 2
nd
ODWHVWUHVXOWHWFDQG¿QDOO\ZKLFKLV
the oldest result retained. Only the last 20 readings are stored in each menu. This meter is able to store 160
results in memory (20 in each menu).
3. READ: When pressed once, this button starts the timer for the parameter being tested. When pressed a
second time the meter exits the timer and immediately prepares to colorimetrically measure the sample, and
simultaneously stores the measurement in memory.
If the parameter being measured is below or above the detection range, the display will show “LO” (Under
Range) or “HI´2YHU5DQJHUHVSHFWLYHO\7KLVIHDWXUHLVPHQXVSHFL¿FDQGGRHVQRWDSSO\WRDOOSDUDPHWHUV
AWWA
4500-Cl G eXact
®
DPD-1
Anhydrous DPD sulfate
Anhydrous Na2HPO4
Anhydrous KH2PO4Na2
EDTA
1.5%
33.4%
64.0%
1.1%
1.5%
33.4%
64.0%
1.1%
Component
(Free Chlorine)
About The Accuracy / Calibration Of The Chlorine Plus System
$OOWHVWVKDYHEHHQFDOLEUDWHGXVLQJFHUWL¿HGUHIHUHQFHVWDQGDUGVDQGVWDQGDUGDQDO\WLFDO
spectrophotometric methods. The algorithm in the software of the eXact
®
Chlorine Plus Systems mirrors
the AWWA, US EPA , DIN, and ISO reference test methods for chlorine. Studies show that the eXact
®
Chlorine Plus System, with the eXact
®
Strip Micro CL (DPD-1), repeatedly agrees with an EPACompliant
reference method greater than 99% (R2= 0.9989, 0 - 6.0 ppm - see page 12). The eXact
®
Chlorine Plus
Advanced Photometric System has been factory calibrated for your convenience. You can expect the
¿[HGFDOLEUDWLRQVLQWKHPHWHUWREHYDOLGIRUWKHOLIHRIWKHPHWHUEHFDXVHRIWKHTXDOLW\/RQJ/LIH/('
the photo cell, and the software as written into the meter. This is why the meter comes with a 2-Year
:DUUDQW\)RUYHUL¿FDWLRQRISKRWRPHWHUFDOLEUDWLRQWKH5HDG\6QDS
®
&DOLEUDWLRQ9HUL¿FDWLRQ6WDQGDUG
(part #490903) is available for purchase (see page 10).
&RPSOLDQFH9HULÀFDWLRQIRU)UHHDQG7RWDO&KORULQH7HVWLQJ
This DPD test system is accepted by most health departments because this test is USEPA (DIN
Standard 38 408 G4, ISO 7393/2) accepted for testing requirements for Free and Total Chlorine. The
Chlorine Plus meter uses a wavelength of 525nm; and the compliance requirement is that the
colorimeter wavelength is between 490 and 530nm. The eXact
®
Strip Micro CL (DPD-1) uses the same
UHDJHQWVDQGSURSRUWLRQVDQGWKHUHVXOWLQJVROXWLRQS+LVPDLQWDLQHGEHWZHHQDQGDVVSHFL¿HG
by AWWA (American Water Works Association) method 4500-Cl G. It should be understood that the
USEPA does not "approve" commercial DPD delivery systems such as reagent powder pillows, tablets,
dispensers, or eXact
®
Strip DPD delivery devices. The eXact
®
Strip Micro CL (DPD-1) for Free
Chlorine, and the eXact
®
Strip Micro CL (DPD-3) or the eXact
®
Strip Micro CL (DPD-4) for Total
Chlorine meet your reportable testing requirements because the eXact
®
Strip Micro CL delivers the
same chemicals in identical proportions (see table below); therefore, the system is compliant. Likewise,
AWWA proportions are followed as required for Total Chlorine measurements using Potassium Iodide.

4
DPD-1 Free Chlorine Test Procedure
NOTE: N,N-diethyl-p-phenylenediamine (DPD) also reacts to form a magenta color with Ozone, Total Chlorine,
Permanganate, Iodine, and other oxidizers.
DO NOT discard the sample from the Free Chlorine test if you are planning to run eXact
®
Strip Micro DPD-3 (Total Chlorine) Procedure. Move directly to steps 8-10 on page 7.
Otherwise, rinse the cell immediately.
Remove one (1) eXact
®
Strip Micro CL (DPD-1), Part No.
486637 from the bottle before beginning the test.
Set the strip in a dry, convenient place and recap the
bottle immediately.
REMOVE STRIP
Press the ZERO/ON button to power the meter on; the display
will show all annunciators, then the current MENU selection,
followed by the last reading.
TURN METER ON
Dip the eXact
®
Strip Micro CL (DPD-1), Part No. 486637
into the CELL and immediately press READ. This starts the
20 SECOND countdown timer. During this time move the strip
in a gentle back and forth motion (approx. 2 strokes/Sec).
Remove and discard the strip after “1” on the display
disappears.*
DIP STRIP AND PRESS “READ”
Press the ZERO/ON button. The cursor will move across the
display followed by 0.00 PPM. Sample is ready for testing.
ZERO METER*
Rinse the CELL at least 3 times with the water sample you will
be testing - rinsing minimizes the potential for cross-
contamination from a previous test. Finally, fill cell to capacity
with the water sample.
RINSE AND FILL CELL WITH SAMPLE
Press and re-press the MENU button until the display shows
the parameter CL1.
SELECT TEST: CL1
CL1
1
2
6
7The cursor will move across the display
while the meter
prepares to measure the sample. Record result displayed
(this result is automatically stored in CL1 Menu).
RECORD RESULT DISPLAYED
5
4
3
CL
*NOTE: When testing outdoors (sunlight), for best accuracy, use the Mixing Cap/Cell Cover when Zeroing and Reading the sample.

5
This procedure is only valid when run as a continuation of the
eXact
®
Strip Micro CL (DPD-1) Test Procedure on page 4.
DPD-3 Combined Chlorine Test Procedure
CL1 CL
eXact
®
Strip Micro CL (DPD-1/DPD-3/DPD-4) Interferences (part nos. 486637/486638/486670)
Interfering Substance
Acidity
Alkalinity
Bromine & Bromamines, Br
2
Chlorine Dioxide, ClO
2
Copper, Cu
+2
Iodine, I
2
Manganese, oxidized (Mn
+4
, Mn
+7
)
or Chromium, oxidized (Cr
+6
)
Monochloramines (NH
2
Cl)
(applies to DPD-1 only)
Ozone, O
3
Peroxides
pH
Interfering Levels & Treatments
If sample has acidity above 150mg/L CaCO
3
test may not develop
full color. Neutralize to pH 6.0 to 7.0 with 0.5N Sodium hydroxide.
If sample has alkalinity above 200mg/L CaCO
3
test may not develop
full color. Neutralize to pH 6.0 to 7.0 with 0.5N Sulfuric acid.
Color similar to free chlorine reaction at all levels.
Color similar to free chlorine reaction at all levels.
Color development is reduced above 10 ppm (mg/L).
Color similar to free chlorine reaction at all levels.
See AWWA procedure 4500-CL F, 1(d) for removal of interferences.
Monochloramine interferences are known to occur in free chlorine
DPD methods. This interference is dependent on temperature and
monochloramine concentration.
Color similar to free chlorine reaction at all levels.
Interference is possible.
Typical pH samples of potable water with a pH of 6.0 to 9.0 are
OK. If outside this range adjust to pH 6.0 to 7.0 using acid
(0.5N Sulfuric acid) or base (0.5N Sodium hydroxide).
CL1: Chlorine and Iodine react with N,N-diethyl-p-phenylenediamine as it is released from the strip to
form a magenta color, directly proportional to the Chlorine concentration. (Ozone, Bromine, and
Permanganate also form the same color)
8Remove one (1) eXact
®
Strip Micro CL (DPD-3), Part No. 486638 from the bottle before
beginning the test. Set the strip in a dry, convenient place and recap the bottle immediately.
REMOVE STRIP
9
Dip the eXact
®
Strip Micro CL (DPD-3) into the CELL and immediately press READ. This
starts the 20 SECOND countdown timer. During this time move the strip in a gentle back
and forth motion (approx. 2 strokes/sec). Remove and discard the strip when “1” on the
display disappears. The cursor will move across the display while the meter prepares to
measure the sample. This result is automatically stored in CL1 (NOTE: The Iodide added with
DPD-3 will, in the presence of Combined Chlorine or Chloramines, convert into Iodine).
DIP STRIP AND PRESS “READ”
10 PRESS READ AGAIN
Press READ again and the meter will count down and display the next reading. If this
reading matches the previous result, then record this as the Total Chlorine result. This value
is automatically stored in CL1. After testing is completed, rinse cell immediately. Record the
Total Chlorine as the highest value the meter displayed.
*NOTE: Standard Method (4500-Cl G, procedure for total chlorine) requires the reading to
be made after 2 minutes from the time the KI is added. For compliance testing, you must
time the two minutes and then make your measurement. NOTE: From testing in our lab,
water samples above 70°F (20°C), generally, reach a stabilized reading quicker then 2 minutes.

6
Bromine DPD-1 Test Procedure
1Remove one (1) eXact
®
Strip Micro bR (DPD-1), Part No. 486636 from the bottle before
beginning the test. Set the strip in a dry, convenient place and recap the bottle immediately.
REMOVE STRIP
6
Dip the eXact
®
Strip Micro bR (DPD-1), Part No. 486636 into the CELL and immediately press
READ. This starts the 20 SECOND countdown timer. During this time move the strip in a gentle
back and forth motion (approx. 2 strokes/sec). Remove and discard the strip after “1” on the
display disappears*. The cursor will move across the display while the meter prepares to
measure the sample. Record result displayed (this result is stored in bR2 memory). After
testing is completed, rinse cell immediately.
DIP STRIP AND PRESS “READ”
5Press the ZERO/ON button. The cursor will move across the display, followed by 0.00 PPM.
The sample is ready for testing.
ZERO METER*
2Press the ZERO/ON button to power the meter on; the display will show all annunciators, then
the current MENU selection, followed by the last reading.
TURN METER ON
3Press and re-press the MENU button until the display shows the parameter bR2.
SELECT TEST: bR2
4Rinse the CELL at least 3 times with the water sample you will be testing - rinsing minimizes
WKHSRWHQWLDOIRUFURVVFRQWDPLQDWLRQIURPDSUHYLRXVWHVW)LQDOO\¿OOFHOOWRFDSDFLW\ZLWK
the water sample.
FILL METER WITH SAMPLE
bR2
CL
CL1
6
Dip the eXact
®
Strip Micro CL (DPD-4), Part No. 486670 into the CELL and immediately press READ.
This starts the 20 SECOND countdown timer. During this time move the strip in a gentle back and forth
motion (approx. 2 strokes/sec). Remove and discard the strip after “1” on the display disappears*.
The cursor will move across the display while the meter prepares to measure the sample. Record result
displayed (this result is automatically stored in CL1).
DIP STRIP AND PRESS “READ”
5Press the ZERO/ON button.
The cursor will move across the display, followed by 0.00 PPM.
Sample is ready for testing.
ZERO METER*
7
Press READ again and the meter will count down and display the next Total Chlorine result. If this
reading matches the previous result, then record this as Total Chlorine value (this result is stored
in CL1). After testing is completed, rinse cell immediately. Record the Total Chlorine as the highest
value the meter displayed.
PRESS READ AGAIN
4Rinse the CELL at least 3 times with the water sample you will be testing - rinsing
PLQLPL]HVWKHSRWHQWLDOIRUFURVVFRQWDPLQDWLRQIURPDSUHYLRXVWHVW)LQDOO\¿OOFHOOWR
capacity with the water sample.
FILL METER WITH SAMPLE
3Press and re-press the MENU button until the display shows the parameter CL1.
SELECT TEST: CL1
2Press the ZERO/ON button to power the meter on; the display will show all annunciators,
then the current MENU selection, followed by the last reading.
TURN METER ON
1Remove one (1) eXact
®
Strip Micro CL (DPD-4), Part No. 486670 from the bottle before
beginning the test. Set the strip in a dry, convenient place and recap the bottle immediately.
REMOVE STRIP
DPD-4 (Total Chlorine) Test Procedure
*NOTE: When testing outdoors (sunlight), for best accuracy, use the Mixing Cap/Cell Cover when Zeroing and Reading the sample.

7
Cd4
6DIP STRIP
About 4 seconds after the meter auto-zeroes, “20” will appear on the display. Immediately dip the
eXact
®
Strip Micro Cd (DPD-1), Part No. 486633 into the CELL. During this “20” SECOND
countdown timer, move the strip in a gentle back and forth motion (approx 2 strokes/sec).
Remove and discard the strip after “1” on the display disappears*. The meter will begin
counting up for 100 seconds, at the end of which,
the cursor will move across the display while
the meter prepares to measure the sample. Record result displayed (this result is automatically
stored in Cd4). After testing is completed, rinse cell immediately.
5
Dip the eXact Strip Micro Glycine, Part No. 484014 into the CELL and immediately press READ.
This starts the 20 SECOND countdown timer. During this time move the strip in a gentle back and
forth motion (approx 2 strokes/sec). Remove and discard the strip after “1” on the display
disappears. T he meter will auto-zero. Get ready to dip eXact
®
Strip Micro Cd (DPD-1) strip.
DIP STRIP AND PRESS “READ”
4Rinse the CELL at least 3 times with the water sample you will be testing - rinsing minimizes
WKHSRWHQWLDOIRUFURVVFRQWDPLQDWLRQIURPDSUHYLRXVWHVW)LQDOO\¿OOFHOOWRFDSDFLW\ZLWK
the water sample.
FILL METER WITH SAMPLE
3Press and re-press the MENU button until the display shows the parameter Cd4.
SELECT TEST: Cd4
2Press the ZERO/ON button to power the meter on; the display will show all annunciators,
then the current MENU selection, followed by the last reading.
TURN METER ON
1Remove one (1)
eXact Strip Micro Glycine, Part No. 484014 and one (1) eXact
®
Strip Micro
Cd (DPD-1), Part No. 486633 from the bottle before beginning the test. Set the strips in a dry,
convenient place and recap the bottle immediately.
REMOVE STRIP
Chlorine Dioxide Test Procedure
1Remove one (1) eXact
®
Strip Micro O
3
(DPD-4) , Part No. 486634 from the bottle before
beginning the test. Set the strip in a dry, convenient place and recap the bottle immediately.
REMOVE STRIP
6DIP STRIP AND PRESS “READ”
Dip the eXact
®
Strip Micro O
3
(DPD-4), Part No. 486634 into the CELL and immediately press
READ. This starts the 20 SECOND countdown timer. During this time move the strip in a
gentle back and forth motion (approx 2 strokes/sec). Remove and discard the strip after “1”
on the display disappears*. The cursor will move across the display while the meter prepares
to measure the sample. Record result displayed (this result is automatically stored in O3). After
testing is completed, rinse cell immediately.
5Press the ZERO/ON button. The cursor will move across the display, followed by 0.00 PPM.
The sample is ready for testing.
ZERO METER*
2Press the ZERO/ON button to power the meter on; the display will show all annunciators, then
the current MENU selection, followed by the last reading.
TURN METER ON
3Press and re-press the MENU button until the display shows the parameter O3.
SELECT TEST: O3
4Rinse the CELL at least 3 times with the water sample you will be testing - rinsing minimizes
WKHSRWHQWLDOIRUFURVVFRQWDPLQDWLRQIURPDSUHYLRXVWHVW)LQDOO\¿OOFHOOWRFDSDFLW\ZLWK
the water sample.
FILL METER WITH SAMPLE
Ozone Test Procedure
o3
O3
*NOTE: When testing outdoors (sunlight), for best accuracy, use the Mixing Cap/Cell Cover when Zeroing and Reading the sample.

8
Hydrogen Peroxide Test Procedure
1Remove one (1) eXact
®
Strip Micro HP, Part No. 486648 from the bottle before
beginning the test. Set the strip in a dry, convenient place and recap the bottle immediately.
REMOVE STRIP
6
Dip the eXact
®
Strip Micro HP, Part No. 486648 into the CELL and immediately press
READ. This starts the 20 SECOND countdown timer. During this time move the strip in a gentle
back and forth motion (approx. 2 strokes/sec). Remove and discard the strip after “1” on the
display disappears. The meter will begin counting up for 100 seconds, at the end of which, the
cursor will move across the display while the meter prepares to measure the sample. Record
result displayed (this result is automatically stored in HP6). After testing is completed, rinse cell
immediately.
DIP STRIP - (read carefully and follow procedure closely)
5Press the ZERO/ON button. The cursor will move across the display, followed by 0.00 PPM.
The sample is ready for testing.
ZERO METER
2Press the ZERO/ON button to power the meter on; the display will show all annunciators, then
the current MENU selection, followed by the last reading.
TURN METER ON
3Press and re-press the MENU button until the display shows the parameter HP6.
SELECT TEST: HP6
4Rinse the CELL at least 3 times with the water sample you will be testing - rinsing minimizes
WKHSRWHQWLDOIRUFURVVFRQWDPLQDWLRQIURPDSUHYLRXVWHVW)LQDOO\¿OOFHOOWRFDSDFLW\ZLWK
the water sample.
FILL METER WITH SAMPLE
HP
HP6
PA
PA5
6
Dip the eXact® Strip Micro PA, Part No. 486675 into the CELL and immediately press
READ. This starts the 20 SECOND countdown timer. During this time move the strip in a gentle
back and forth motion (approx. 2 strokes/sec). Remove and discard the strip after “1” on the
display disappears. The cursor will move across the display while the meter prepares to measure
the sample. Record result displayed (this result is automatically stored in PA5). After testing, rinse
cell immediately.
DIP STRIP AND PRESS “READ”
5Press the ZERO/ON button.
The cursor will move across the display, followed by 0.00 PPM.
Sample is ready for testing.
ZERO METER
4Rinse the CELL at least 3 times with the water sample you will be testing - rinsing minimizes
WKHSRWHQWLDOIRUFURVVFRQWDPLQDWLRQIURPDSUHYLRXVWHVW)LQDOO\¿OOFHOOWRFDSDFLW\ZLWK
the water sample.
FILL METER WITH SAMPLE
3Press and re-press the MENU button until the display shows the parameter PA5.
SELECT TEST: PA5
2Press the ZERO/ON button to power the meter on; the display will show all annunciators,
then the current MENU selection, followed by the last reading.
TURN METER ON
1Remove one (1) eXact
®
Strip Micro PA, Part No. 486675 from the bottle before
beginning the test. Set the strip in a dry, convenient place and recap the bottle immediately.
REMOVE STRIP
Peracetic Acid Test Procedure
*NOTE: When testing outdoors (sunlight), for best accuracy, use the Mixing Cap/Cell Cover when Zeroing and Reading the sample.

6
Dip the eXact
®
Strip Micro CLH, Part No. 486672 into the CELL and immediately press READ.
This starts the 20 SECOND countdown timer. During this time move the strip in a gentle back
and forth motion (approx. 2 strokes/sec). Remove and discard the strip after “1” on the display
disappears. The meter will begin counting up for 120 seconds, at the end of which, the cursor will
move across the display while the meter prepares to measure the sample. Record result displayed
(this result is automatically stored in HR8). After testing is completed, rinse cell immediately.
*NOTE: 8VHDVHFRQGGLSWLPHLIZDWHUWHPSHUDWXUHLVDERYHÛ&)
DIP STRIP - (read carefully and follow procedure closely)
5Press the ZERO/ON button. The cursor will move across the display, followed by 0.00 PPM.
The sample is ready for testing.
ZERO METER
2Press the ZERO/ON button to power the meter on; the display will show all annunciators, then
the current MENU selection, followed by the last reading.
TURN METER ON
3Press and re-press the MENU button until the display shows the parameter HR8.
SELECT TEST: HR8
4Rinse the CELL at least 3 times with the water sample you will be testing - rinsing minimizes
WKHSRWHQWLDOIRUFURVVFRQWDPLQDWLRQIURPDSUHYLRXVWHVW)LQDOO\¿OOFHOOWRFDSDFLW\ZLWK
the water sample.
FILL METER WITH SAMPLE
9
Total Chlorine High Test Procedure
CLH
HR8
1Remove one (1) eXact
®
Strip Micro CLH, Part No. 486672 from the bottle before
beginning the test. Set the strip in a dry, convenient place and recap the bottle immediately.
REMOVE STRIP
1Remove one (1) eXact
®
Strip Micro PH, Part No. 486639 from the bottle before
beginning the test. Set the strip in a dry, convenient place and recap the bottle immediately.
REMOVE STRIP
6
Dip the eXact
®
Strip Micro PH, Part No. 486639 into the CELL and immediately press READ.
This starts the 20 SECOND countdown timer. During this time move the strip in a gentle back
and forth motion (approx. 2 strokes/sec). Remove and discard the strip after “1” on the display
disappears. The cursor will move across the display while the meter prepares to measure the
sample. Record result displayed (this result is automatically stored in PH7).
After testing is
completed, rinse cell immediately.
DIP STRIP AND PRESS “READ”
5Press the ZERO/ON button. The cursor will move across the display, followed by 0.00 pH.
The sample is ready for testing.
ZERO METER
2Press the ZERO/ON button to power the meter on; the display will show all annunciators, then
the current MENU selection, followed by the last reading.
TURN METER ON
3
Press and re-press the MENU button until the display shows the parameter PH7.
SELECT TEST: PH7
4Rinse the CELL at least 3 times with the water sample you will be testing - rinsing minimizes
WKHSRWHQWLDOIRUFURVVFRQWDPLQDWLRQIURPDSUHYLRXVWHVW)LQDOO\¿OOFHOOWRFDSDFLW\ZLWK
the water sample.
FILL METER WITH SAMPLE
pH Test Procedure
PH
PH7
NOTE: This test is good for all water temperatures 0°C - 40°C (32°F - 104°F).
*NOTE: When testing outdoors (sunlight), for best accuracy, use the Mixing Cap/Cell Cover when Zeroing and Reading the sample.

10
Become familiar with the meter and the different tests by reading the instructions carefully.
The Free Chlorine, Combined Chlorine, and Total Chlorine reagents are compliant for meeting
USEPA (4500-Cl G); ISO 7393/2; and German DIN 38408 G4-2 requirements.
Observe the dip time (as required for the test) for accurate results.
7HVWLPPHGLDWHO\DIWHU¿OOLQJWKHCELL with water sample when testing for oxidizers.
Be sure the CELL LV¿OOHGWRFDSDFLW\PO
Rinse the CELL with clean water immediately after completing the test. (DPD will stain the CELL
wall if allowed to remain in the CELL)
Just before testing, rinse the sample CELL with the sample water several times to get a
representative sample. (Use deionized or distilled water for rinsing if you have a limited amount of
sample).
Store the meter and all test materials out of direct sunlight and away from chemical storage areas.
Minimize exposure of meter and test reagents to heat above 32°C (90°F).
Dry the outside of the meter when testing is complete or before storage of the meter.
When running a DPD-1 Free Chlorine test AFTER a Total Chlorine DPD-3, a Total Chlorine DPD-4,
or a HR Free Chlorine test, rinsing is very important to remove residual KI, which may interfere.
Each eXact
®
Strip Micro is valid for ONLY one test. Discard strip after single use in regular refuse
that is inaccessible to children and pets.
Each bottle of eXact
®
Strip Micro contains, at minimum, the quantity of strips notated on the bottle.
'XHWRWKHVWULSVOLWWLQJSURFHVV\RXPD\¿QGRQHRUWZRH[WUDVWULSVWKDWDUHQRWLFHDEO\VPDOOHURU
larger in width than the normal strips in the bottle. These should be discarded. Using these strips
may give incorrect results.
The eXact
®
Chlorine Plus Meter is not compatible for use with DPD-1, DPD-3, and DPD-4 powder
pillows, tablets, or liquids available from other manufacturers. Accurate results can only be
guaranteed by using genuine eXact
®
Micro strips or reagents (reorder information below).
Our lab testing with the Chlorine Plus meter has shown that zeroing and measuring of the sample
normally does not require any cell cover for accurate results, except in sunlight. To obtain optimal
accuracy when testing with the meter outdoors (sunlight), use the Mixing Cap/Cell Cover when
zeroing and reading the sample.
Remove batteries when meter is not used for more than a month (Warranty Requirement).
eXact
®
Chlorine Plus Tips For Best Accuracy
eXact®Strip Chlorine Plus Reagent Reorder Information
N/A
N/A
0.05 - 13 ppm
0.04 - 7 ppm
0.05 - 11 ppm
0.05 - 11 ppm
1.2 - 250 ppm
0.04 - 100 ppm
0.01 - 1.5 ppm
2.4 - 300 ppm
6.4 - 8.4 pH
N/A
DESIRED VALUE
1.52 ppm
PARAMETER
No. PART NO. # OF TESTS DETECTION RANGE CHEMISTRY
eXact
®
6WULS0LFURP/5HDJHQW6SHFLÀFDWLRQV)RUXVHZLWKH;DFW
®
&KORULQH3OXV3DUWQR3/86
eXact
®
Micro Carrying Case w/ foam
Mini Dilution Kit II
Bromine (DPD-1)
Chlorine Dioxide (DPD-1)
Chlorine, Free (DPD-1)
Chlorine, Combined (DPD-3)
Chlorine, Total High
Hydrogen Peroxide
Ozone (DPD-4)
Peracetic Acid (PAA)
pH
Glycine (used for Chlorine Dioxide)
PRODUCT
Ready Snap™ 3
1
2
3
4
5
6
7
8
9
10
486001
487202
486636
486633
486637
486638
486672
486648
486634
486675
486639
484014
PART NO.
480903
N/A
N/A
100
100
100
100
50
50
100
100
100
50
# OF TESTS
10
N/A
N/A
DPD
DPD
DPD
DPD
KI + Buffer
DPD + Kl
DPD + KI
Phenol Red
Glycine
ACCEPTABLE VALUE
1.46 – 1.59 ppm
If your required procedure is not listed in this manual, please see the back page for our contact information.
NOTE: Because most of our products are test strips or use reagents that have little or no hazard in the quantity sold, MSDS sheets are not supplied with the test kit.
To ensure optimal performance, store your eXact
®
kit in a cool, dry place away from excess heat
(below 90°F / 32°C), moisture, and oxidizers such as Chlorine and Bromine.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.

11
The following are some common messages that may be displayed, including error messages. If an
error message other than those listed below is displayed, please contact technical support in the USA
at [phone] (ext. 0).
eXact
®
Chlorine Plus Meter Messages
LCD Message
HI
LO
LO
ER
Description
In READ mode: test sample concentration is above
WKHPHDVXUHPHQWUDQJHWHVWVSHFL¿F
In READ mode: test sample concentration is below
WKHPHDVXUHPHQWUDQJHWHVWVSHFL¿F
In ZERO mode: sample absorbance (due to a
cloudy or colored sample or a dirty cell) is too high
to zero, the meter will read “LO”.
Excessive stray light detected. Normally this
does not occur, even when testing in sunlight.
Low battery indication.
Corrective Action
Dilute and retest. Dilution Kit available
(Part Number 487200).
Sample value is below measurement
range.
'LOXWHVDPSOH¿OWHUVDPSOHRUFOHDQFHOO2QHRI
these options should remedy the problem.
Place the LIGHT BLOCKING CAP over the CELL
for zeroing and for reading result. Moving
WRDVKDGHGDUHDFDQDOVR¿[WKLVSUREOHP
Replace the batteries.
About The Built-In Cell
The built-in CELLLVWUDQVSDUHQWSODVWLFDQGZKHQ¿OOHGWRWKHWRSFRQWDLQVPO7KHVWXUG\CELL design
will last for over 20,000 readings. Scratches on the CELL will not interfere or compromise the accuracy of
WKHUHDGLQJVEHFDXVHRILWV¿[HGSRVLWLRQ)RUEHVWDFFXUDF\ULQVHFHOOZLWKFOHDQZDWHULPPHGLDWHO\DIWHU
a test is completed. Do not use solvents, such as acetone, to clean the cell. When the CELL becomes
stained or cloudy from repeated testing, or when the meter does not blank when you press the ZERO/ON
button, the cell needs to be cleaned. Clean as follows)LOOFHOOZLWKFOHDQZDWHUDQGPRYHWKHCell
cleaning brush up-and-down and back-and-forth along the walls of the cell. Afterwards, rinse the cell and
the meter is ready for use again. Cleaning the cell regularly is especially recommended after you run a
test that is using turbidity or precipitation chemistry for analysis (contact technical support for details).
eXact
®
Photometer 2-Year Limited Warranty
Registration of your eXact
®
photometer must be received within 30 days from date of purchase to
activate the warranty. The eXact
®
photometer is warranted to be free from defects in materials and
workmanship for a period of two (2) years from the date of purchase by the customer. ITS will repair or
replace any part of the product which is deemed to be faulty or otherwise defective. The non-transferable
warranty does not cover product damage caused by abuse (such as crushing a tablet in the cell) or
improper use. If the meter is faulty or otherwise defective contact ITS by phone [phone] Ext. 0)
or email ([email protected]) to describe the problem and obtain a return authorization form before
returning the photometer to ITS. Damage caused by improper packing of the photometer for return
shipment to ITS will not be covered by the warranty. Customer is responsible for shipping charges to
ITS. ITS pays postage when photometer is returned to customer. A maximum processing fee of $75 will
be charged for repair or replacement of non-registered photometers and damages not covered by this
warranty. Registration is available over the phone [phone] Ext. 0) or online at
KWWSZZZVHQVDIHFRPPLFURZDUUDQW\3HUVRQDOGDWDLVNHSWFRQ¿GHQWLDO
1. Unscrew the O-ring sealed battery cover counter-clockwise. Use proper sized pliers if necessary.
Do not disturb the sealing O-ring. Batteries are not included.
2. Remove the used batteries and install 4 new AAA batteries following the diagram for
correct polarity (see diagram). We recommend high qualityAAA alkaline batteries be used.
4. Replace the battery cover. Be sure to tighten the cover securely. Do not over tighten. This is
necessary for meter to be waterproof.
5. Dispose of the used batteries in accordance with your
local regulations.
3UHVV=(5221EXWWRQWRFRQ¿UPWKHPHWHUWXUQVRQ
The meter is now ready for operation.
7. Meter will not work if battery orientation is incorrect.
To Install/Replace “AAA” Batteries:
TOP VIEW

12
For US Inquiries and Re-Orders:
Industrial Test Systems, Inc.
1875 Langston Street,
Rock Hill, SC 29730 USA
Phone: [phone] - INSIDE THE U.S.
1-803-329-9712 - OUTSIDE THE U.S.
Fax: [phone]
[email protected]
WWW.SENSAFE.COM
www.poolcheckonline.com
For European & Middle East Inquiries and Re-Orders:
ITS Europe, LTD
The UK Centre for Homeland Security
Building 7, Chilmark
Salisbury, Wiltshire SP3 5DU, United Kingdom
Tel: [phone] Fax: [phone]
[email protected]
WWW.ITSEUROPE.CO.UK
www.poolcheckonline.com
Free Chlorine results are compared using the eXact
®
Strip Micro CL (DPD-1) with the eXact
®
Chlorine Plus Meter in
Menu CL1 and Hach
®
DR890 Colorimeter in Program 9 and Program 12 using Hach
®
powder pillows.
(486696-PLUSK)
Kit Includes:
1 eXact®Chlorine Plus Meter
(486696-PLUS)
25 tests of eXact®Strip Micro CL (DPD-1)
(486637-25)
25 tests of eXact®Strip Micro bR (DPD-1)
(486636-25)
25 tests of eXact®Strip Micro O3(DPD-4)
(486634-25)
25 tests of eXact®Strip Micro Cd (DPD-1)
(486633-25)
25 tests of eXact®Strip Micro PA
(486675-25)
25 tests of eXact®Strip Micro HP
(486648-25)
50 tests of eXact®Strip Micro Glycine
(484014)
25 tests of eXact®Strip Micro CLH
(486672-25)
25 tests of eXact®Strip Micro PH
(486639-25)
Mini Dilution Kit II
(487202)
1 Mixing Cap
1 Cell Cleaning Brush
This Instruction Booklet
Plastic Carrying Case
The eXact®Chlorine Plus Kit
Contact Information

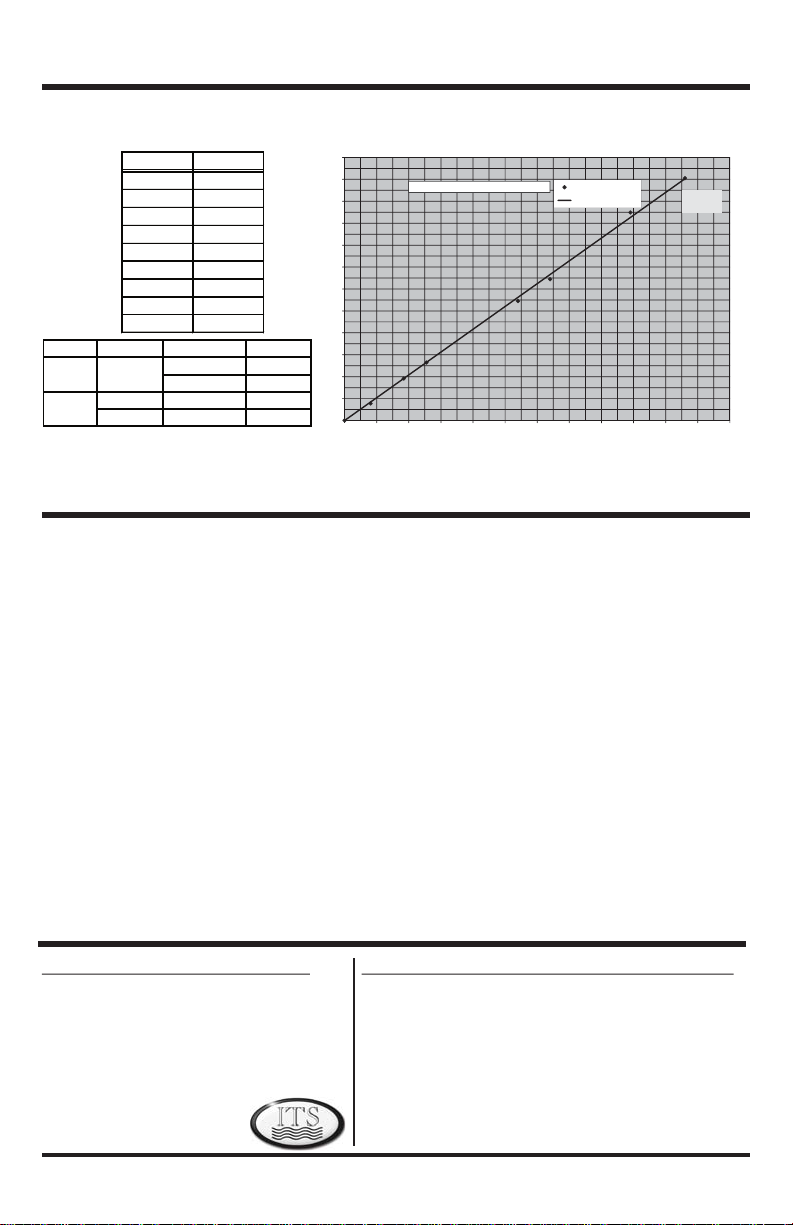

eXact®Strip Micro DPD-1 Accuracy
y = 1.0402x
R
2
= 0.9989
0.0
0.5
1.0
1.5
2.0
2.5
3.0
3.5
4.0
4.5
5.0
5.5
6.0
0.00.51.01.52.02.53.03.54.04.55.05.56.0
Hach Free Chlorine, ppm
ITS Free Chlorine, ppm
Hach vs ITS
Linear (Hach vs ITS)
DPD Free Chlorine study January 21, 2011
DR890 Clorine Plus
0.00 0
0.41 0.39
0.92 0.96
0.79 0.73
1.28 1.32
2.70 2.73
3.20 3.22
4.45 4.75
5.30 5.53
Meter Menu Range (PPM) Resolution
Chlorine
Plus CL1 0 to 5.99 0.01
6.0 to 11.0 0.1
DR890
Program 9 0.00 to 2.20 0.01
Program 12 0.0 to 11.0 0.1
Hach
®
is a registered trademark of Danaher Corporation
