Excell YSW-5E User manual

User Manual
Waterproof Weighing Scale
YSW-5E
© Excell Precision Limited 2015. All rights reserved Worldwide.
The information contained herein is the property of Excell Precision Limited and is
supplied without liability for errors or omissions. No part may be reproduced or used
except as authorised by contract or other written permission. The copyright and the
foregoing restriction on reproduction and use extend to all media in which the
information may be embodied.

1
EXCELL PRECISION CO., LTD.
ZSME300000255
02005324
Table of Content
Instruction for Use................................................................................................................2
Preparing to Use the Scale ..................................................................................................3
Chapter 1 Introduction .........................................................................................................5
1-1 Features and Specifications ...................................................................................5
1-2 Power Supply .........................................................................................................6
1-3 Display and Keypad Introduction ............................................................................6
1-4 Self-Test Mode........................................................................................................8
1-5 Error Messages ......................................................................................................9
1-6 Weight Unit .............................................................................................................9
Chapter 2 External Function Setting ..................................................................................10
2-1 General Function Setting ............................................................ 11
2-1-1 Power Saving Function Setting .........................................12
2-1-2 Automatic Power-off Timer Setting ....................................13
2-1-3 Hi/Lo/OK Function Setting .................................................14
2-1-4 Restore to the Default Setting ...........................................15
2-1-5 Noise Filter Setting ............................................................16
2-2 Weight Calibration ...........................................................................17
Appendix1 7-Segment Display Characters ........................................................................18

2
EXCELL PRECISION CO., LTD.
ZSME300000255
02005324
Thank for your purchasing of our EXCELL
Weighing Scale. To guide you to use our product
correctly, please read this Manual carefully to
extend the life of machine and to avoid error.
Instruction for Use
1) Please keep the scale in a cool dry place. Do not store it at high temperature.
2) Avoid objects impacting with the scale. Do not drop loads onto the scale or subject the
weigh pan to any strong shock loads.
3) The load placed on the weigh pan must not exceed the maximum weighing capacity of
the scale.
4) If the scale is not going to be used for some time, please clean it and store it in a plastic
bag in dry conditions. A desiccant sachet may be included to prevent any moisture
build up.
5)
6)
If you want, you can use
the four screws to lock the
platter so that it will be
more firm. When you
lock ,please follow the
order “1→2→3→4”
1
2
3
4
Please do not use
your hand and sharp
things to touch the
waterproof film, in
order to protect the
scale.

3
EXCELL PRECISION CO., LTD.
ZSME300000255
02005324
7)
Preparing to Use the Scale
1. Adjust the four levelling feet (if fitted) to set the scale pan level using the spirit level
bubble located at the front of the scale.
2. Avoid operating the scale in direct sunlight or drafts of any kind.
3. If possible avoid connecting the scale to ac power outlet sockets which are adjacent to
other appliances to minimise the possibility of interference affecting the performance of
the scale.
4. Remove any weight that might be on the weigh pan before the scale is switched on and
avoid leaving weight on the pan for long periods of time.
5. All goods weighed should be placed in the centre of the weigh pan for accurate
weighing. The overall dimensions of the goods being weighed should not exceed the
dimension of the weigh pan.
6. We suggest to warm up the scale for 15~20 minutes before operation to ensure best
accuracy.
7. Please note when the symbol keeps flashing on the screen, the batteries need
to be replaced.
8. Introduction of Storage Battery
Please push the clip to
take off the dust cover to
clean

4
EXCELL PRECISION CO., LTD.
ZSME300000255
02005324
No burning Caution Corrosion
Due to the storage battery adopt the advanced free-maintaining technique, customers
need not to replenish electrolyte.
The scale should be recharged every 3 months to prevent failure of the internal
rechargeable battery.
1. The battery should be charged for 8~10 hours.
2. The temperature of battery should below 45℃.
Maintaining
1. Please do not discharge with over-current when using the battery. Please charge the
battery after discharging current.
2. Please take down the battery when the scale is not used for a long time or break the
connection of cathode.
3. Do not short the battery terminals to check whether there is current. Please check
whether the connection point is firm to guarantee good connection.
4. The battery should be replaced by specialized person. No reverse-battery or the
product will be damaged.
a) Anode of battery should be connected with Anode of product battery（usually red
cable）
b) Cathode of battery should be connected with Cathode of product battery (usually
brown cable or black cable)
c) See the picture following
Safety warnings
1. The electrolyte of battery is caustic which causes metal, cotton, etc to corrode.
2. The hydrogen will be resolved when using or charging the battery and it will cause
explosion when approaches fire.
Brown cable(or black cable)
connected with Anode of
battery
Red cable connected with
Cathode of battery
Warning explosion Children faraway

5
EXCELL PRECISION CO., LTD.
ZSME300000255
02005324
Chapter 1 Introduction
1-1 Features and Specifications
Features
Sealed waterproof silica gel strip blocks water from infiltrating into the scale.
Surrounded by waterproof grade sheeting to ensure the water free.
1/3,000~1/6,000 display resolution available.
Aluminum frames coated with anti-corrosion treatment for longer lifespan.
LED or LCD display model available.
Stainless steel made feet and platter for anti-rust.
High speed of 24bits AD fast reacts and shortens the weighing operation duration.
Selectable units: Kilogram (kg), gram (g), ounce (oz), and pound (lb) weighing units
available.
Built-in rechargeable battery can be easily replaced.
Vertical placement design battery prevents from electrolyte leakage, and makes more
safety and durable.
Low power indication and auto power off.
Well-designed protection point for transportation.
Securable platter with screws at users' needs.
Options: Double-sided display.
Specifications
Model Capacity Division Resolution
YSW-3 3kg 0.5g
1g
1/6000
1/3,000
YSW-6 6kg 1g
2g
1/6000
1/3,000
YSW-15 15kg 2g
5g
1/7500
1/3,000
YSW-30 30Kg 5g
10g
1/6000
1/3,000
Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
Dimensions: 250.4 x 144 x 313 mm ( W x H x D)
Weight of the scale: Around 3kg
144m
313mm
250.4m

6
EXCELL PRECISION CO., LTD.
ZSME300000255
02005324
1-2 Power Supply
Power Supply Selection
1. 6V / 4Ah、6V / 7Ah storage battery
2. AC 110V~240V (±10％) adapter
Power Consumption
25 mA (system + L/C + front display；power saving mode)
35 mA (system + L/C + front and back display；power saving mode)
55 mA (system + L/C + front display)
70 mA (system + L/C + double display)
Low Battery Warning
Please note when the ( ) symbol keeps flashing on the display, the batteries should
be changed.
The scale will turn off automatically after 1~2 hours, when the low battery warning
symbol shows up. The scale must be fully charged, before operating again.
Low battery shift voltage ≒5.3V DC
1-3 Display and Keypad Introduction
Icon Introduction
Æ0Å：Zero point indication
STABLE ：stable indication
GROSS ：gross weight indication
：Low battery indication. When this symbol is flashing replace the batteries.
L1.L2 ：Units indication
HI ：The weight on weigh pan is greater than the high limit
LO ：The weight on weigh pan is lower than the check value
Keyboard Function
OFF: power off
ON/ZERO: This key possesses two functions: Power On and Zero function.
n When the scale is off, press the ON/ZERO key, the scale will switch on.
oWhen the scale is on, the ON/ZERO key has zero function.
HI
LO
L2
STABLE GROSS
Æ
0
Å
L1
Units indication
L1 L2 Units
○ ● kg
○ ○ g
● ○ lb / viss

7
EXCELL PRECISION CO., LTD.
ZSME300000255
02005324
When the weigh pan is empty (free of load) and the display is not showing zero,
press the ON/ZERO key to zero the scale. At zero, the “Æ0Å” indication is on.
UNITS : switching units
Press the UNITS key to switch weight units, the icons or arrows will indicate the
active units as appropriate. The units available are dependent on the exact scale
model.
After power off, the scale will memorize the active units. When the scale is
powered on again, it displays the previously active units.
TARE: tare / pre-tare key
The tare function will not operate during the following conditions:
When the scale powers on, the weight is still below zero after a container is placed
on the weigh pan. Or the tare value is over the full scale capacity.
Tare function
(1) Put a container on the weigh pan and after the weight is stable, press the TARE
key to zero the weight of the container. The screen displays the “Æ0Å” “STABLE”
icon.
(2) Put the goods in the container, the screen displays the net weight value of the
goods.
(3) Remove the full container; the screen displays the negative weight value of the
container. At this time pressing the TARE key again will cancel the tare and the
scale reverts back to zero. The screen displays the “Æ0Å” “STABLE” icon.
The tare function can be operated continually to the full weighing capacity of the
scale.
Continual tare operation is adding or removing tare objects on weigh pan and
pressing the TARE key each time.
NET | GROSS: switch NET or GROSS key
NET/GROSS key is only used in Tare mode.
In the Tare mode, the screen displays the “Net” icon,
In tare mode, when the GROSS icon is on, the weight value on the display is the
total amount of the tare value. When the GROSS icon is off, the weight value on
the display is the net value. press the NET/GROSS key to switch between the “Net
value” and the “Gross value”.
At the Gross status, only OFF and NET/GROSS keys are functional.

8
EXCELL PRECISION CO., LTD.
ZSME300000255
02005324
Press UNITS key
Press UNITS key
Press UNITS key
Press UNITS key
1-4 Self-Test Mode
Set the switch SWA1 on the bottom of machine to the LOCK position.When the scale
count down, press NET/GROSS and ON/ZERO key together, Wait till display shows
to enter “Self-Test Mode”.
INTERNAL VALUE MODE ( must hook up Load Cell to test)
cPress TARE to enter, and the display shows internal value
dPlease check whether the internal value has changed obviously with weight changing.
ePlease check the backlight.
fPress ON/ZERO key to back to the last screen , the display shows
KEYPAD TEST MODE
cPress TARE to enter, display shows
Keypad’s internal code: TARE key= 07 、 UNITS key= 06、 NET/GROSS key=05
dPress ON/ZERO key to back to the last screen , the display shows
FIRMWARE VERSION DISPLAY MODE
cPress TARE to enter, display shows the firmware version ,
dPress TARE key again, the display shows maintenance number for 2 secs
ePress ON/ZERO key to back to the last screen, display shows
BACK TO THE LAST SCREEN
Press TARE key to exit self-test mode, the scale will restart automatically.
Press ON/ZERO key
Press ON/ZERO key
Press ON/ZERO key
Press ON/ZERO key

9
EXCELL PRECISION CO., LTD.
ZSME300000255
02005324
1-5 Error Messages
⇒Unable to read the EEPROM
The EEPROM is not mounted yet, or the circuit near EEPROM is broken.
⇒
Initial zero is higher than the zero range when switching the scale on.
(approval models)
⇒
Initial zero is lower than the zero range when switching the scale on.
(approval models)
⇒Internal value is below Zero.
⇒
A/D IC malfunction (cannot read A/D value). The load cell may not be
connected to the scale correctly.
⇒The weight of the object is over 9 divisions of the maximum capacity.
⇒A/D IC value is over the maximum range.
⇒Weight is lower than -1/6 full scale.
1-6 Weight Unit
(kg) 1 g = 0.001 kg
(g) 1 g = 1 g
(lb) 1 g = 0.002204623 lb
(lb/oz) 1 g = 0.03527396 oz
(oz) 1 g = 0.03527396 oz
(GN) 1 g = 15.432358 GN
(viss) 1 g = 0.000612viss
(ct) 1 g = 5 ct

10
EXCELL PRECISION CO., LTD.
ZSME300000255
02005324
Chapter 2 External Function Setting
In the weighing mode, press the NET/GROSS and ON/ZERO keys at the same time to
enter the External Function setting mode. The LCD shows .
Press UNITS key
Press ON/ZERO key
Press UNITS key
Press UNITS key
Press UNITS key
Press ON/ZERO key
Press ON/ZERO key
Press ON/ZERO key
⇒General Function setting mode
⇒External Weight Calibration
⇒Function Reserved
⇒Exit the Advanced Function setting mode
Refer to the following sections for the detailed operation
procedures of each function setting.

11
EXCELL PRECISION CO., LTD.
ZSME300000255
02005324
2-1 General Function Setting
There are 7 functions in general function setting mode from to .
Workflow of the General Function setting:
Press TARE key
Use the keys to select
the function
Key in “00” and press
TARE key to return to
the Advanced function
setting menu
ON/ZERO key ⇒Upward key (from 0 to 9)
UNITS key ⇒Downward key (from 9 to 0)
TARE key ⇒Move the cursor to right
NET/GROSS key ⇒Move the cursor to left.
ACTIONS DISPLAY NOTE
⇒Return to the Advanced Function Setting Mode Menu
⇒Power saving Function Settings
⇒Automatic Power-off Timer Settings
⇒Hi/Lo/OK Settings
⇒Restore the Default Settings
⇒Noise Filter Settings
⇒Function Reserved
⇒Function Reserved
Refer to the following sections for detailed operation procedures of
each setting.

12
EXCELL PRECISION CO., LTD.
ZSME300000255
02005324
2-1-1 Power Saving Function Setting
Select in the General Function setting mode to change power
saving function setting.
The displays shows the last status
Default setting = off
Power saving function
When the weight is over 10d, the display shows normal. If you press the key,
the display still shows normal. When the scale returns to zero or you do not
pressing any key, it will enter into power saving mode after 10 seconds.
Press TARE key
Use ON/ZERO or UNITS
key to select function “on”
or “off
Press TARE key
ACTIONS DISPLAY NOTE
Key in the parameter “00”
Press TARE key
to complete the
general setting
p
rocedures
Power Saving Function Setting
Use ON/ZERO or UNITS key to select
On = power saving on
Off = power saving off
ON/ZERO key ⇒Upward key (from 0 to 9)
UNITS key ⇒Downward key (from 9 to 0)
TARE key ⇒Move the cursor to right
NET/GROSS key ⇒Move the cursor to left.

13
EXCELL PRECISION CO., LTD.
ZSME300000255
02005324
Automatic power-off timer setting
Use ON/ZERO or UNITS key to key in
parameter
0 ⇒No auto power-off
1 ⇒When the scale is idle for 1
minute, the scale
automatically switches off
2 ⇒When the scale is idle for 2
minutes, the scale
automatically switches off
9 ⇒When the scale is idle for 9
minutes, the scale
automatically switches off

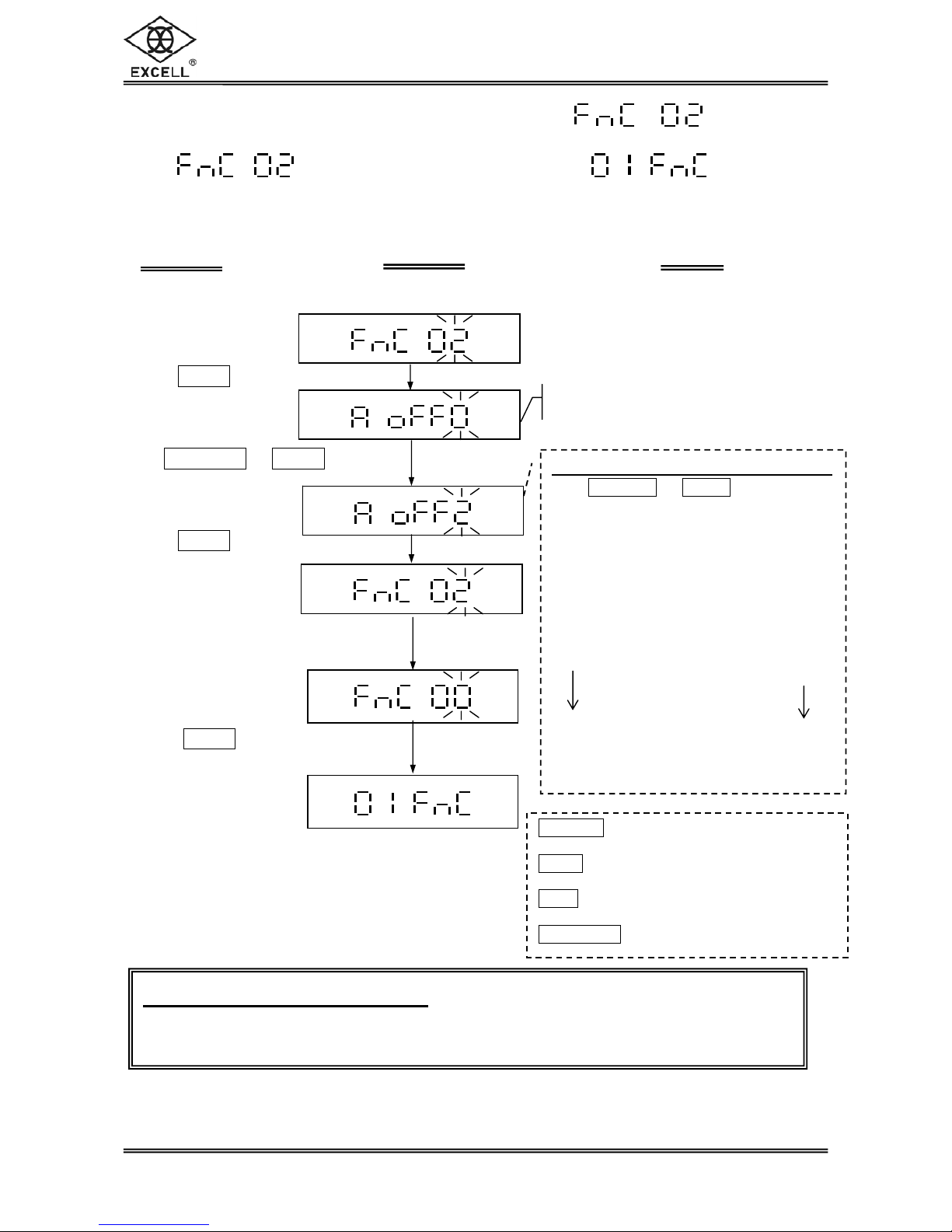

2-1-2 Automatic Power-off Timer Setting
Select in the General Function setting mode to change the
automatic power-off timer setting.
LED displays the last status
Automatic power-off function
When the weight on weigh pan is less than 10d or keeps idle for the set time, the
scale will automatically switch off.
Press TARE key
Use ON/ZERO or UNITS
key to key in parameter
Press TARE key
ACTIONS DISPLAY NOTE
ON/ZERO key ⇒Upward key (from 0 to 9)
UNITS key ⇒Downward key (from 9 to 0)
TARE key ⇒Move the cursor to right
NET/GROSS key ⇒Move the cursor to left.
Key in the parameter “00”
Press TARE key
to complete the
general setting
p
rocedures

14
EXCELL PRECISION CO., LTD.
ZSME300000255
02005324
2-1-3 Hi/Lo/OK Function Setting
Select in the General Function setting mode to set the
Hi/Lo/OK function. This function is available in all unit modes. In one specific unit mode,
enter to set the Hi/Lo/OK values.
When the high limit and low limit are both set as “0”, the Hi/Lo/OK function is disabled.
ACTIONS DISPLAY NOTE
LED displays the last status
Press TARE key
Key in the desired high
limit value
Press TARE key
Key in the desired low limit
value
Press
TARE key
Key in the parameter
setting for alarm
Press
TARE key
LED displays the last status
LED displays the last status
.
.
.
.
Alarm setting
(a) (b) (c)
The definition of a, b, c positions:
(a) ⇒1 = beep sound on
0 = beep sound off
(b) ⇒1 = beep sound on when stable
0 = beep sound on when unstable
(c) ⇒1 = beep sound on when the weight is
between high and low limits
0 = beep sound on when the weight is not
between high and low limits and
higher than 10d
ON/ZERO key ⇒Upward key (from 0 to 9)
UNITS key ⇒Downward key (from 9 to 0)
TARE key ⇒Move the cursor to right
NET/GROSS key ⇒Move the cursor to left.
Key in the parameter and then press TARE key to go back to the
Advanced function setting menu

15
EXCELL PRECISION CO., LTD.
ZSME300000255
02005324
2-1-4 Restore to the Default Setting
Select in the General Function setting mode to restore to
the default setting.
The default setting includes the following:
1) External weight calibration
2) HI/LO/OK setting value
3) Noise filter setting (External)
setting is not available for OIML, NTEP and Sri Lanka approved models.
ACTIONS DISPLAY NOTE
⇒Return (Cancel the
restoration)
⇒Restore to the default
setting
Press TARE key
Use
ON/ZERO or UNITS
keys to select “return” or
“format”
Press TARE key
ON/ZERO key ⇒Upward key (from 0 to 9)
UNITS key ⇒Downward key (from 9 to 0)
TARE key ⇒Move the cursor to right
NET/GROSS key ⇒Move the cursor to left.
Key in the parameter “00”
Press TARE key
to complete the
general setting
p
rocedures

16
EXCELL PRECISION CO., LTD.
ZSME300000255
02005324
2-1-5 Noise Filter Setting
Select in the General Function setting mode to set the
noise filter setting.
Returning to the zero point setting
Use ON/ZERO or UNITS key to key in the
parameters or zero point
Default setting = 0
0 ⇒No skip 5 ⇒skip 5d
1 ⇒skip 1d 6 ⇒skip 6d
2 ⇒skip 2d 7 ⇒skip 7d
3 ⇒skip 3d 8 ⇒skip 8d
4 ⇒skip 4d 9 ⇒skip 9d
When the weight on the scale is over
1/3 full capacity, the function is on.
Digital switch & Stabilization range
setting
LED displays the last parameter setting
Filter parameter setting
LED displays the last parameter setting
Filter parameter setting
Use ON/ZERO or UNITS keys to key
in the parameters. Default setting = 5
Parameter 0 ~ 9, the larger the number,
the faster the filter response. Fast
response can lead to weight instability.
Digital switch & Stabilization range setting
Use ON/ZERO or UNITS keys to key in the
parameters.
Default setting = 0
Parameter 0 ~ 9, the larger the number
the more stable the weight.
ACTIONS DISPLAY NOTE
Press TARE key
Use ON/ZERO or UNITS
key to key in the
parameters
Press TARE key
Use ON/ZERO or UNITS
key to key in the
parameters
Press TARE key
Use
ON/ZERO or UNITS
key to key in the
parameters
Press TARE key
Returning to zero point setting
LED displays the last status
Key in the parameter and then press TARE key to go back to the
Advanced function setting menu
setting is not available for OIML, NTEP and Sri Lanka approved
models.

17
EXCELL PRECISION CO., LTD.
ZSME300000255
02005324
2-2 Weight Calibration
In the weighing mode, press the NET/GROSS and ON/ZERO keys at the same time to
enter the External Function setting mode. The LED shows and uses the
NET/GROSS or UNITS key to select to enter the weight calibration mode.
For approved models, is disabled.
Weight calibration conditions:
The calibration weight value placed on the weight pan must be over e100, and the
standard deviation of the weight must be within 10%.
The LED displays the calibration
weight value (the maximum capacity
of 1st unit) and the unit. The digit on
the right side keeps flashing.
The scale is calculating the internal
value of the zero point. After
stabilization, the LED shows the
calibration weight value.
Press TARE key
When the digit on the right
flashes, ensure that the
weigh pan is empty. Then
Press the TARE
key.
After stabilization
Place the displayed weight
on the weigh pan. Press the
TARE key. The scale
calculates the full capacity
internal value and after
stabilization, the buzzer
beeps 3 times. Remove the
weight from the weigh pan
and the procedure
is completed.
.
.
ACTIONS DISPLAY NOTE
ON/ZERO key ⇒Upward key (from 0 to 9)
UNITS key ⇒Downward key (from 9 to 0)
TARE key ⇒Move the cursor to right
NET/GROSS key ⇒Move the cursor to left.

18
EXCELL PRECISION CO., LTD.
ZSME300000255
02005324
Appendix1 7-Segment Display Characters
Digit 7-segments
letter Alphabet 7-segments letter Alphabet 7-segments letter
0 A N
1 B O
2 C P
3 D Q
4 E R
5 F S
6 G T
7 H U
8 I V
9 J W
K X
L Y
M Z
