Exmark Lazer Z HP Manual

Page 1 of 4
109-2027 Rev. A
Loose Parts
Note: Use the chart below to verify that all parts have been shipped.
Part # Description Qty Use
323-6
98-5975
3290-357
Cap Screw, Hex 3/8-16 x 1
Washer, Belleville
Nut, Hex Flange 3/8-16
8
8
8 Installing the Rollover Protection System (Roll Bar)
103-1309 Warranty Registration Form 1 Fill out and return to Exmark
109-0936
109-0034 Literature Pack (Kawasaki) Literature Pack (Kohler) 1 Contains unit specific material
103-2106 Keys 1 Unit ignition
106-7022 Tube, Oil Drain 1 Kawasaki only; Draining engine oil
109-0036
109-0035
103-9143
Manual, Operator’s
Manual, Parts
DVD, Exmark Safety Video
1
1
1 Read and view before operating machine
1-809066 Tie, Plastic (5/16” x 24”) 1 Kohler only; To secure Engine Oil Drain Hose to Roll Bar
1-850285
106-8294 Manual, Engine Operator’s Manual, Engine Operator’s 1 1 For units with Kohler engines only For units with Kawasaki engines only
32128-20 Nut, 5/16-18 Whizlock 4 To fasten seat tracks to unit seat frame
Installing the Rollover Protection
System (Roll Bar)
1. Remove sides and top of crate from the base.
2. Remove roll bar components from the crate.
3. Remove roll bar tubes from sides of crate.
4. Remove the two brackets used to mount the
bottom of the upper roll bar tube to the crate.
5. Remove the 1/2-13 x 3 1/4 capscrews and 1/2-13
hex flange lock nuts from the two brackets at
each end of the upper roll bar tube and retain for
later use (Fig. 1).
6. Remove the (4) 1/4” lag screws holding the
wheel hub brackets to the crate bottom and
discard.
7. Raise the rear of the unit approximately 10-12”
and support it with jack stands or equivalent
support.
CAUTION
POTENTIAL HAZARD
♦Raising the rear of the unit for assembly relying
solely on mechanical or hydraulic jacks could
be dangerous.
WHAT CAN HAPPEN
♦The mechanical or hydraulic jacks may not be
enough support or may malfunction allowing
the unit to fall, which could cause injury.
HOW TO AVOID THE HAZARD
♦DO NOT rely solely on mechanical or hydraulic
jacks for support. Use adequate jack stands or
equivalent support.
8. Locate the left and right lower roll bar tubes.
9. Align lower roll bar tubes along rear engine frame
(Fig. 2).
LAZER Z
®
HP
SETUP INSTRUCTIONS
Figure 1
For Serial Nos. 600,000 and Highe
r

Page 2 of 4
109-2027 Rev. A
Figure 2
Figure 3
10. LOOSELY install lower roll bar hardware (four 3/8-
16 x 1 capscrews, four spring disk washers and
four 3/8-16 whizlock nuts) to the tubes on each
side. (Fig. 2).
Note: Be sure the spring disk washer cone is
installed towards the head of the capscrew.
11. For units with Kohler engines, secure oil drain
hose assembly to left-hand lower roll bar bracket
with 24” long plastic tie supplied (Fig 2). Clip off
excess tie.
12. Locate the latch pin assemblies (pin and hairpin
connected with a lanyard).
13. Insert a 1/2-13 x 3 1/4 capscrew (removed in step
5) into the bent tab washer on the lanyard of each
pin assembly (Fig. 3).
Note: Make sure the bent tab in the washer is
towards the head of the bolt.
14. Lightly oil the inside surfaces of the ear-shaped
plates at the upper end of the lower roll bar tubes
(Fig. 3).
15. Locate the upper u-shaped section of the roll
bar. Install the upper roll bar section using the
two 1/2-13 x 3 1/4 capscrews and two 1/2-13
hex flange lock nuts (removed in step 5). Do
not over tighten. Make sure upper roll bar can
pivot freely.
Notes:
•Make sure the capscrew and nuts are
installed with the nut to the inside of the roll
bar.
•Make sure the tab on the lanyard washer is
installed as shown and points toward the
front of the unit.
16. Raise the roll bar into the upright position and
secure with the latch pin assemblies on each
side. Install latch pin from outer surface of roll
bar assembly and secure with the hairpin to the
inside.
17. Torque all lower roll bar hardware attached to
the machine frame to 30 ft-lbs. (41-47 N-m).
18. Tighten the front knobs against the upper roll
bar ends.
Installing the Drive Wheels
1. Remove the 1/2-20 drive wheel nuts (installed
on studs of drive motors; See Fig. 2) and retain
for wheel mounting. Remove and discard
shipping brackets mounted on wheel hubs.
2. Mount drive wheels with the valve stem to the
outside of the unit. Secure using four (4) 1/2-20
wheel nuts removed in step 1.
3. Torque to 95 ft-lbs (128 NxM).
Checking Tire Pressure
1. Check the tire pressure in the drive tires. Proper
inflation for drive tires is 13 psi (90 kPa).
2. Adjust if necessary.
Servicing the Battery
The machine is shipped with a filled lead
acid battery.
1. Unhook seat latch and tilt seat up to gain access
to the battery.
WARNING:
Battery posts, terminals, and related
accessories contain lead compounds, chemicals
known to the State of California to cause cancer and
reproductive harm. Wash hands after handling.
FOR KOHLER UNITS,
SECURE OIL DRAIN
HOSE IN THIS AREA

Page 3 of 4
109-2027 Rev. A
Figure 5
DANGER
POTENTIAL HAZARD
♦Charging the battery may produce explosive
gasses
WHAT CAN HAPPEN
♦Battery gasses can explode causing serious
injury.
HOW TO AVOID THE HAZARD
♦Keep sparks, flames, or cigarettes away from
battery.
♦Ventilate when charging or using battery in an
enclosed space.
♦Make sure venting path of battery is always
open once battery is filled with acid.
2. Check the voltage of the battery with a digital
voltmeter. Locate the voltage reading of the
battery in the table below and charge the battery
for the recommended time interval to bring the
charge up to a full charge of 12.6 volts or greater.
IMPORTANT: Make sure the negative battery
cables are disconnected and the battery charger
used for charging the battery has an output of 16
volts and 7 amps or less to avoid damaging the
battery (see chart below for recommended charger
settings).
Voltage
Reading Percent Charge
Maximum
Charger
Settings
Charging
Interval
12.6 or greater 100% 16 volts /
7 amps No Charging Required
12.4 – 12.6 75 – 100% 16 volts /
7 amps 30 Minutes
12.2 – 12.4 50 – 75% 16 volts /
7 amps 1 Hour
12.0 – 12.2 25 – 50% 14.4 volts /
4 amps 2 Hours
11.7 – 12.0 0 – 25% 14.4 volts /
4 amps 3 Hours
11.7 or less 0% 14.4 volts /
2 amps 6 Hours or More
CAUTION
POTENTIAL HAZARD
♦If the ignition is in the “ON” position there is
potential for sparks and engagement of
components.
WHAT CAN HAPPEN
♦Sparks could cause an explosion or moving
parts could accidentally engage causing
personal injury.
HOW TO AVOID THE HAZARD
♦Be sure ignition switch is in the “OFF” position
before charging the battery.
3. Connect the negative battery cables.
NOTE: If the positive cable is also disconnected,
connect the positive (red) cable to the positive
battery terminal first, then the negative (black)
cable and green/white wire to the negative
battery terminal. Slip insulator boot over the
positive terminal.
NOTE: If time does not permit charging the
battery, or if charging equipment is not available,
connect the negative battery cables and run the
vehicle continuously for 20 to 30 minutes to
sufficiently charge the battery.
Installing the Seat
1. Remove seat assembly from the crate.
2. Locate the four 5/16-18 whizlock nuts packaged
with the roll bar hardware.
3. See Figure 5. Align the seat track studs on the
bottom of the seat with the holes in the seat
frame. Place seat on top of the frame and
secure with the four 5/16-18 whizlock nuts
located in step 2.

Page 4 of 4
109-2027 Rev. A
Figure 6
Figure 7

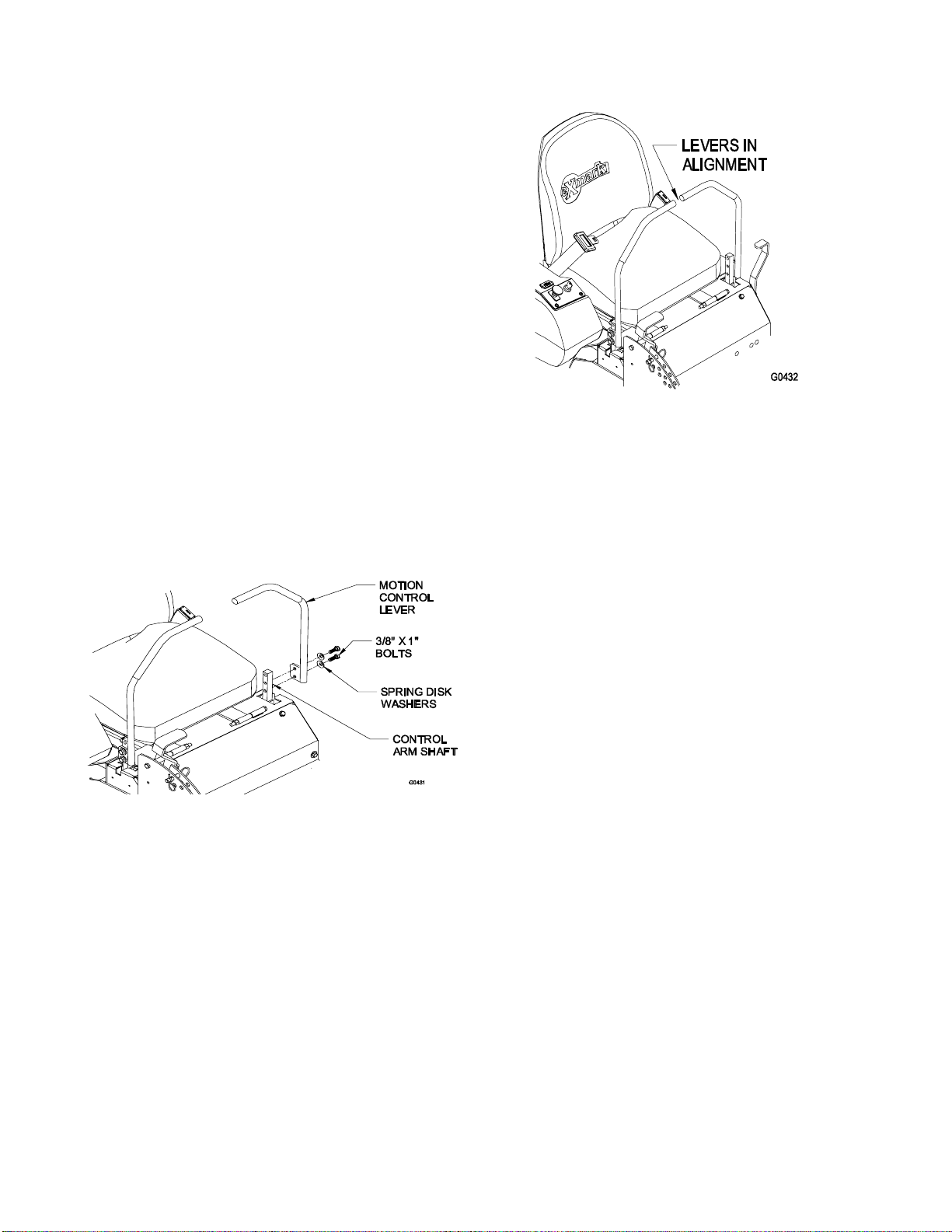

Installing the Motion Control Levers
1. Loosen and remove the two (2) 3/8” x 1” bolts
and spring disc washers which attach the motion
control levers to the control arm shafts for
shipping and the two (2) 3/8” x 1” bolts and spring
disc washers which are screwed into the control
arm shafts.
2. Install the left motion control lever onto the
control arm shaft on the left side of the console
(Fig. 6).
3. Place the lever (with the mounting plate towards
the rear) on the outside of the control arm shaft
and secure with the bolts and washers removed
in step 1.
4. Position the lever so the bolts are in the center of
the slots on the lever mounting plate and tighten
until snug.
5. Repeat on opposite side of unit.
NOTE: There are two lever height options
available. Place the levers in the top two holes to
increase height of the levers, or in the bottom two
holes to decrease the height of the levers.
6. Align the levers front/rear position. With the
levers in the neutral position, loosen the
hardware and adjust the levers sliding and/or
lilting the lever(s) forward or backward until
properly aligned and tighten hardware (Fig. 7).
7. If the ends of the levers hit against each other,
while in the drive position (levers rotated in as far
as possible), make adjustments by moving the
levers outwards to the neutral lock position and
carefully bending them outward. Move them
back to the drive position and check for
clearance. Repeat if necessary.
Positioning the Discharge Chute
1. Loosen two (2) 5/16” nyloc nuts attaching
discharge chute. Lower the discharge chute into
position. Retighten nyloc nuts until chute is
snug but can pivot freely.
Servicing the Engine
Refer to Engine Owner’s Manual.
Servicing the Hydraulic Oil
The machine is shipped with hydraulic oil in the
reservoir.
1. Run the machine for approximately 15 minutes
to allow any extra air to purge out of the
hydraulic system.
2. Check hydraulic reservoir and if necessary fill
the reservoir to the appropriate level with Mobil 1
15W-50 synthetic motor oil.
3. Replace hydraulic reservoir cap and tighten until
snug. Do not overtighten.
NOTE: The baffle is labeled “HOT” and “COLD”.
The oil level varies with the temperature of the oil.
The “HOT” level shows the level of oil when it is at
225°F (107°C). The “COLD” level shows the level of
the oil when it is at 75°F (24°C). Fill to the
appropriate level depending upon the temperature of
the oil. For example: If the oil is about 150° F
(65°C). Fill to halfway between the “HOT” and
“COLD” levels. If the oil is at room temperature
(about 75° F (24°C)), fill only to the “COLD” level.
