Extraflame DELIZIA User manual

Stufe a Pellet
PELLET STOVES
User manual
DELIZIA
Read the instructions carefully before installation, use and maintenance.
The instruction book is an integral part of the product.

2

3
Congratulations! You are now the owner of an Extraame stove!
The Extraame pellet stove is an ideal heating solution. It utilises the most advanced technology and is
manufactured to the highest standards with a contemporary design, allowing you to enjoy the ambience
and warmth of a natural ame in complete safety.
This manual tells you how to use your stove correctly. Please read the entire manual carefully before using
your stove.
IMPORTANT
Make sure that the dealer completes the following box with the details of the authorised specialist who
will help you if you have any problems in using your new pellet stove.
AUTHORISED SPECIALIST
COMPANY __________________________________________________________________
Full name __________________________________________________________________
Address ______________________________________________ No. __________________
Postal Code ____________ City __________________ County. ______________________
TEL. ________________________________ FAX __________________________________
All Extraame products are manufactured according to the following directives:
89/106 CEE (Construction Products)
89/366 CEE (EMC Directive)
2004/108 CE (EMC Directive)
2006/95 CE (Low Voltage Directive)
And the following standards:
EN 14785
EN 60335-1
EN 60335-2-102
EN 61000-3-2
EN 61000-3-3
EN 50366
EN 55014-1
EN 55014-2

4

5
Index
WARNINGS AND SAFETY DEVICES.......................................................................................................... 7
Chapter 2
WHAT ARE PELLETS?................................................................................................................................. 8
PELLET STORAGE.....................................................................................................................................................................8
PELLET LOAD.............................................................................................................................................................................8
Chapter 3
SAFETY DEVICES....................................................................................................................................... 9
WARM AIR BLOWER BREAKDOWN ...................................................................................................................................9
FUME EXHAUSTER BREAKDOWN......................................................................................................................................9
PELLET FEED MOTOR BREAKDOWN ................................................................................................................................9
IGNITION FAILURE ...................................................................................................................................................................9
TEMPORARY POWER FAILURE............................................................................................................................................9
ELECTRICAL SAFETY...............................................................................................................................................................9
EXHAUST FUME SAFETY ......................................................................................................................................................9
PELLET OVERHEATING SAFETY .........................................................................................................................................9
Chapter 4
ASSEMBLY AND INSTALLATION INSTRUCTIONS................................................................................. 10
GLOSSARY ............................................................................................................................................................................... 10
INSTALLATION........................................................................................................................................................................ 11
ADMISSIBLE INSTALLATIONS.................................................................................................................................... 11
PROHIBITED INSTALLATIONS.................................................................................................................................... 11
CONNECTION TO THE EXHAUST VENTING SYSTEM ............................................................................................... 12
EXHAUST CHANNEL OR PIPE .................................................................................................................................... 12
CHIMNEY OR SINGLE FLUE ........................................................................................................................................ 13
CONNECTION TO THE FLUE AND COMBUSTION PRODUCT EXHAUST VENTING................................ 15

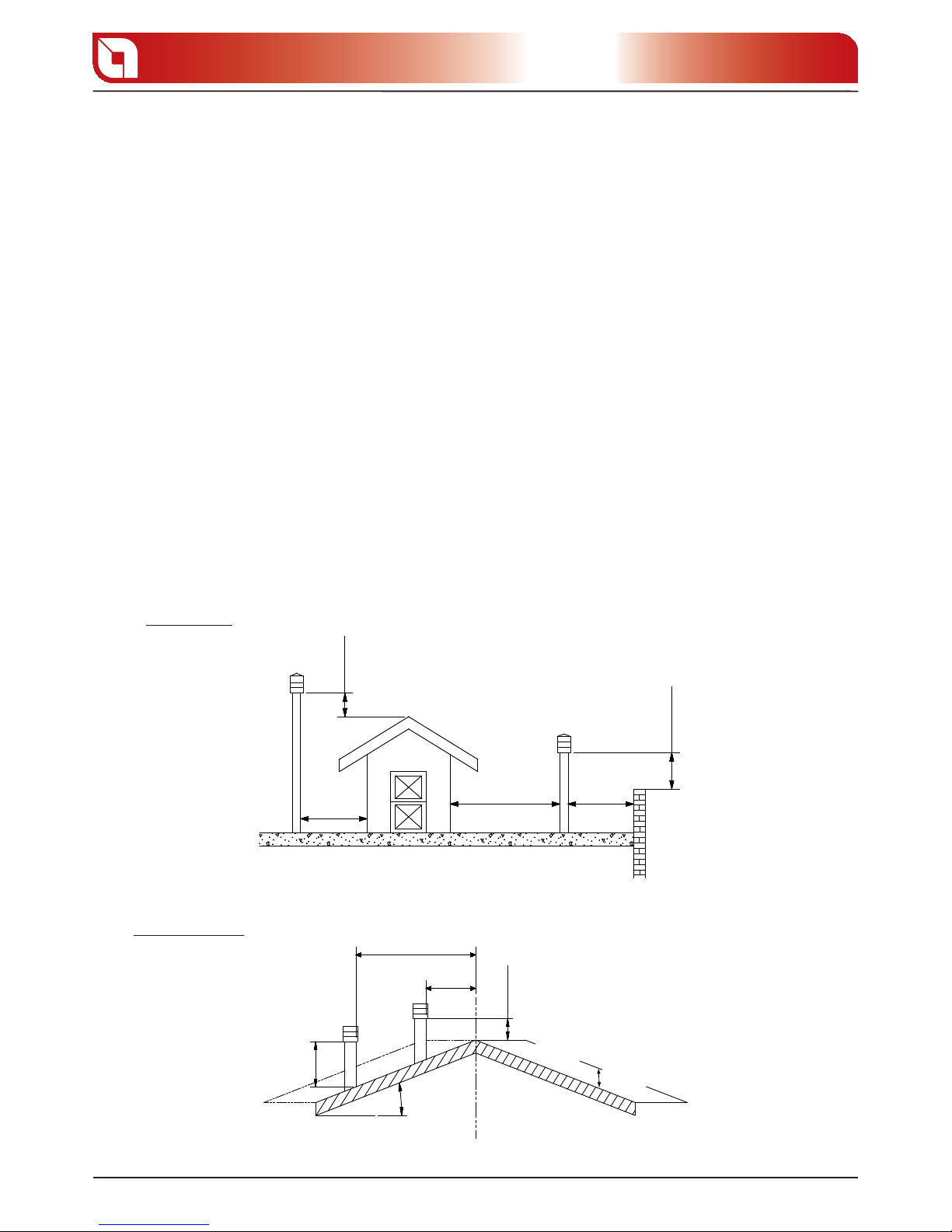

CHIMNEY CAP ................................................................................................................................................................. 15
CONNECTION TO EXTERNAL AIR INTAKES................................................................................................................. 16
INSULATION, TRIMS, FACINGS, AND SAFETY PRECAUTIONS.............................................................................. 16
NATIONAL, REGIONAL, PROVINCIAL AND MUNICIPAL LAWS............................................................................ 16
Chapter 5
PRODUCT FUNCTIONALITY................................................................................................................... 17

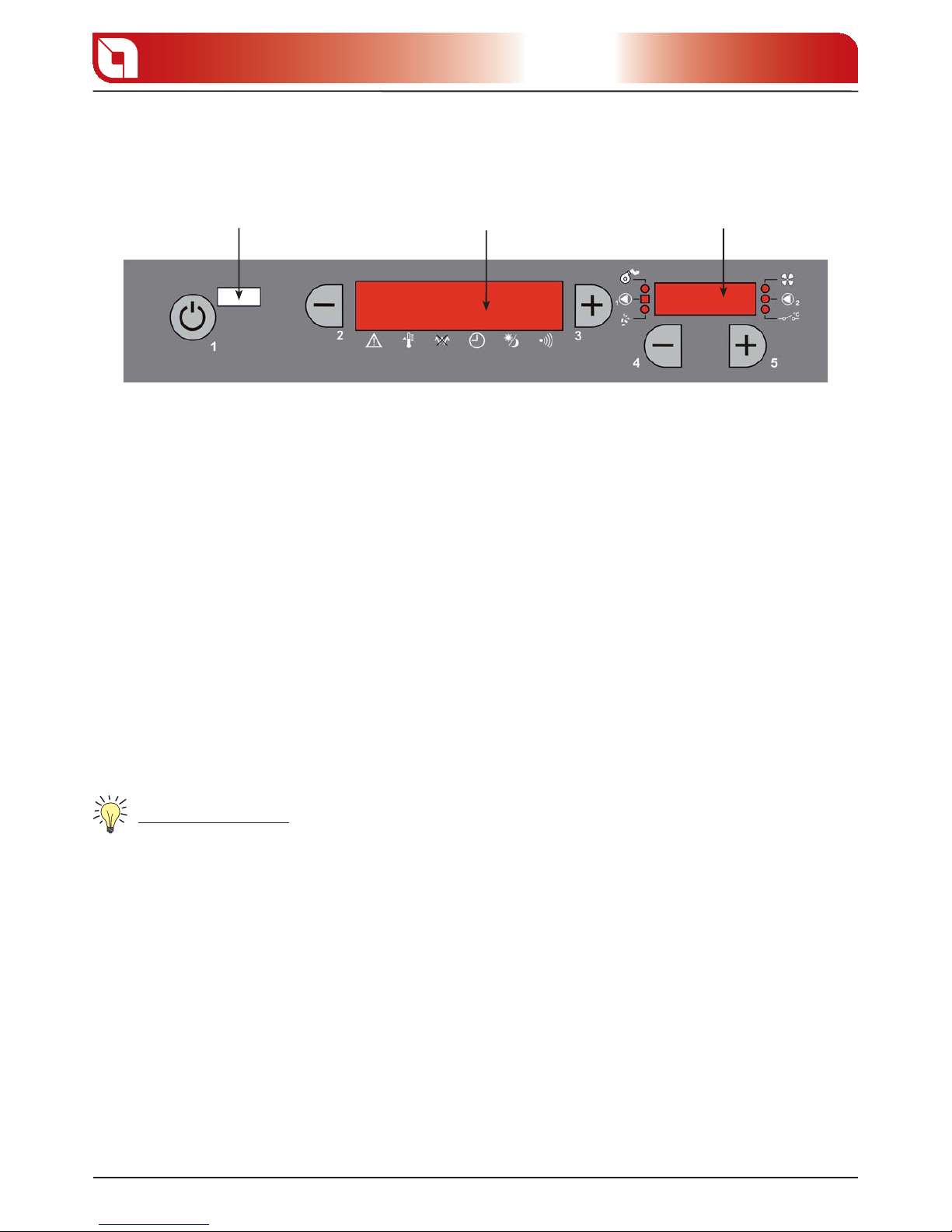

CONTROL BOARD................................................................................................................................................................. 17
LANGUAGE SELECTION...................................................................................................................................................... 17
CURRENT DATE AND TIME ADJUSTMENT................................................................................................................... 18
BASIC INSTRUCTIONS......................................................................................................................................................... 18
IGNITION ........................................................................................................................................................................... 19
STOVE FUNCTIONING......................................................................................................................................................... 19
NORMAL FUNCTIONING............................................................................................................................................. 19
SWITCHOFF..................................................................................................................................................................... 20
Chapter 6
REMOTE CONTROL.................................................................................................................................. 21
Chapter 7
ROOM THERMOSTAT .............................................................................................................................. 22
DIGITAL THERMOSTAT AS PER STANDARD.............................................................................................................. 22

6
MECHANICAL THERMOSTAT OPTIONAL .................................................................................................................. 22
MECHANICAL THERMOSTAT INSTALLATION OPTIONAL ............................................................................ 22
MECHANICAL THERMOSTAT FUNCTIONING...................................................................................................... 22
MECHANICALTHERMOSTAT FUNCTIONING IN STDBY MODE TO ALSO BE USED FOR TELEPHONIC
ACTUATOR....................................................................................................................................................................... 23
Chapter 8
USER PARAMETERS ................................................................................................................................24
OVEN FUNCTIONING MODES.......................................................................................................................................... 24
PELLET OVEN MODE.................................................................................................................................................................
...................................................................................................................................................................................................... 25
NORMAL FUNCTIONING NO TIMER ........................................................................................................................... 25
TIMED FUNCTIONING WITH TIMER............................................................................................................................ 25
ELECTRIC OVEN MODES .........................................................................................................................................................
...................................................................................................................................................................................................... 25
NORMAL FUNCTIONING NO TIMER ........................................................................................................................... 26
TIMED FUNCTIONING WITH TIMER............................................................................................................................ 26
WEEKLY PROGRAMMER ..................................................................................................................................................... 26
DAYNIGHT TEMPERATURE FUNCTION ....................................................................................................................... 29
PELLET FEED ADJUSTMENT ............................................................................................................................................. 30
Chapter 9
CLEANING ................................................................................................................................................32
CONNECTION TO THE FLUE.............................................................................................................................................. 33
Chapter 10
POT DIVIDER............................................................................................................................................ 34
Chapter 11
PRODUCT DISPLAY TABLES ................................................................................................................... 35
Chapter 12
WARRANT ................................................................................................................................................ 39

WARNINGS AND SAFETY DEVICES 7
The stoves produced by our establishment are built with
attention to the individual components in a way to protect
both the user and the installer from any accidents. It is
therefore recommended that after any intervention on the
product, authorised sta pay particular attention to the
electric connections, especially the stripped parts of the
wires.These must not escape from the terminal board in any
situation, thus preventing possible contact with the live parts
of the wire.
Installation must be carried out by authorised sta, who
must provide the buyer with a declaration of conformity
for the system and will assume full responsibility for nal
installationand asaconsequencethe correct functioning
of the installed product. It is necessary to bear in mind all
laws and national, regional, provincial and town council
Standards present in the country the appliance has been
installed.
Extraame S.p.A. cannot be held responsible for the
failure to comply with such precautions.
The instruction manual is an integral part of the product:
make sure that it always accompanies the appliance, even
if transferred to other owners or user or is transferred to
another place. If it is damaged or lost, request another copy
from the area technician.
This stove must be destined for the use for which it has been
expressly realised. The manufacturer is exempt from any
liability, contractual and extracontractual, for injury/damage
caused to persons/animals and objects, due to installation,
adjustment and maintenance errors and improper use.
After the packaging has been removed, check the integrity
and completeness of the contents. If this does not comply,
contact the dealer where the appliance was purchased.
All electric components that make up the stove must be
replacedwithoriginalsparepartsexclusivelybyanauthorised
after-sales centre, thus guaranteeing correct functioning.
The stove must be serviced at least once a year,
programming it in advance with the technical after-sales
service.
Nota bene: In case of thermo product or boiler, the
product or system venting is not covered by the
warranty.
For safety reasons, remember that:
The stove must not be used by children or unassisted
disabled persons.
Do not touch the stove when you are barefoot or when
parts of the body are wet or humid.
The safety and adjustment devices must not be
modied without the authorisation or indications of the
manufacturer.
Do not pull, disconnect, twist electric cables leaving the
stove, even if disconnected from the electric power supply
mains.
Do not close or reduce the dimensions of
the airing vents in the place of installation.
The airing vents are indispensable for correct combustion.
Do not leave the packaging elements within reach of
children or unassisted disabled persons.
The hearth door must always be closed during normal
functioning of the product.
Avoid direct contact with parts of the appliance that
tend to heat up during functioning.
Check for the presence of any obstructions before
switchingthe applianceon following aprolongedstandstill
period.
The stove has been designed to function in
any climatic condition (also critical). In particularly
adverse conditions (strong wind, freezing) safety
systems may intervene that switch the stove o.
If this occurs, contact the technical after-sales service and
always disable the safety system.
If the ue should catch re, be equipped with suitable
systems for suocating the ames or request help from the
re service.
MAJOLICAS
The company have chosen majolica tiles, which are the
result of high-quality artisan work and therefore the
majolica may present crackles, speckles, and shadings.
These characteristics certify their precious origin.
Enamel and majolica, due to their dierent coecient
of dilatation, produce microcrackles, which show their
authentic feature.
For the cleaning of the majolica we suggest you use a soft
and dry cloth; if you use a detergent or liquid, the latter
might soak in and make the crackles more visible.
WARNINGS AND SAFETY DEVICES

8
Chapter 2
WHAT ARE PELLETS?
Chapter 2
WHAT ARE PELLETS?
Pellets are made by applying very high pressure to sawdust; i.e. the residue of raw timber (without paint)
produced by sawmills, carpentry works and other activities involved in processing wood.
This type of fuel is completely environmentally friendly, as no binders of any kind are used to keep it
compact. In fact, the compactness of the pellets over time is guaranteed by lignin, a natural substance
found in the wood itself.
As well as being an environmentally friendly fuel, since wood residues are exploited to the maximum,
pellets also have technical advantages.
The density of the pellet is 650kg/m3 and the water content is 8% of its weight. For this reason, pellets do
not need to be seasoned to obtain a sucient heating yield.
Pellets used must be compliant with norms:
Ö-Norm M 7135
DIN plus 51731
UNI CEN/TS 14961
Extraame recommends using 6 mm pellets.
WARNINGS!!!
THE USE OF OUT OF DATE PELLETS OR ANY OTHER MATERIAL, DAMAGES YOUR STOVES’
FUNCTIONS AND CAN DETERMINE THE END OFTHEWARRANTY ANDTHE PRODUCER’S ANNEXED
RESPONSIBILITY.
PELLET STORAGE
To guarantee problem-free combustion, the pellets must be stored in a dry place.
PELLET LOAD
To load the pellets, open the tank cover positioned on the upper part of the stove and empty the bag of
pellets, paying attention not to let them escape.
For the Inserto Comfort Maxi model consult the“Inserto Comfort Maxi Installation” chapter.
For Falò models consult the “Falò 1XLP, Falò 1CP and Falò 2CP”chapter”.
gure 2.1

9
SAFETY DEVICES
Chapter 3
SAFETY DEVICES
WARM AIR BLOWER BREAKDOWN
If the blower stops for any reason, the stove automatically shuts down to prevent overheating.
FUME EXHAUSTER BREAKDOWN
If the exhauster stops, the electronic unit immediately prevents pellet feeding.
PELLET FEED MOTOR BREAKDOWN
If the motor stops, the stove continues to operate until the minimum cooling level is reached.
IGNITION FAILURE
If a ame is not developed during the ignition phase, the appliance automatically attempts ignition again,
this time without pellet feeding.
If no ame develops also in this case, the appliance will signal “IGNITION FAILURE” on the display. When
trying to re-ignite the machine, it will indicate “WAIT FOR COOL.” on the display. This function reminds
that before performing ignition, it must be ensured that the pot is completely free and clean.
TEMPORARY POWER FAILURE
The appliance will re-light automatically after a brief power failure. When the power goes o, the stove
may emit a minute quantity of smoke inside the house for a period of 3 to 5 minutes.
THIS DOES NOT POSE ANY SAFETY RISK.
ELECTRICAL SAFETY
The stove is protected against violent power swings by a master fuse on the rear of the stove (2A 250V
delayed).
EXHAUST FUME SAFETY
If the exhaust system fails, an electronic pressure switch stops the stove and an alarm is signalled.
PELLET OVERHEATING SAFETY
In case of overheating inside the pellet hopper, this safety device blocks stove operation; resetting is
manual and must be performed by an authorized technician.

10
Chapter 4
ASSEMBLY AND INSTALLATION INSTRUCTIONS
Chapter 4
ASSEMBLY AND INSTALLATION INSTRUCTIONS
The installation must comply with:
UNI 10683 (2005) heat generators fed with wood and other solid fuels: installation.
The chimneys must comply with:
UNI 9731 (1990) chimneys: classication according to thermal resistance.
EN 13384-1 (2006) calculation method of the thermal and uid-dynamic features of the chimney.
UNI 7129 point 4.3.3 provisions, local rules and prescriptions of the re brigade.
UNI 1443 (2005) chimneys: general requirements.
UNI 1457 (2004) chimneys: internal ducts in terracotta and ceramics.
GLOSSARY
CLOSED HEARTH DEVICE
Heat generator that can only be opened to load fuel during use.
BIOMASS
Material of organic origin, excluding the material incorporated in geological formations and fossilised.
BIOFUEL
Fuel produced directly or indirectly from biomass.
FLUE or CHIMNEY
Vertical duct for collecting and expelling combustion products from a single appliance at a suitable height
from the oor.
EXHAUST CHANNEL OR PIPE
Duct or connecting element between the heat generating device and the chimney for extracting the
combustion products.
INSULATION
The series of measures taken and materials used to prevent heat transmission through a wall dividing
rooms at dierent temperatures.
CHIMNEY CAP
Device located at the top of the chimney that facilitates dispersion of the combustion products in the
atmosphere.
CONDENSATE
Liquid products that form when the temperature of the combustion gas is lower than or equal to the dew
point of the water.
HEAT GENERATOR
Device that permits the production of thermal energy (heat) by the rapid transformation of the chemical
energy of the fuel by means of combustion.
AIR LOCK
Mechanism for modifying the dynamic resistance of the combustion gasses.

11
ASSEMBLY AND INSTALLATION INSTRUCTIONS
Chapter 4
EXHAUST VENTING SYSTEM
A system for fume exhaust venting that is independent from the appliance, composed of a pipe or channel,
chimney or single ue, and chimney cap.
FORCED DRAUGHT
Air circulation by means of a fan driven by an electric motor.
NATURAL DRAUGHT
Draught resulting in a chimney/ue due to the dierence in the volume mass existing between the (hot)
fumes and the surrounding atmospheric air, without any mechanical suction aid installed inside or on top
of it.
RADIANCE AREA
Area immediately adjacent to the hearth in which the heat produced by combustion is diused; this area
must not contain any objects made of combustible material.
REFLUX AREA
Area in which the combustion products come out from the appliance towards the room in which it is
installed.
INSTALLATION
Before carrying out installation, it is necessary to check the positioning of the chimneys, ues or exhaust
terminal ducts of the appliance, keeping in mind the following:
Installation prohibitions
Legal clearances
Limitations set forth by local administrative regulations or specic regulations of the authorities.
Common limitations deriving from building regulations, and easement or contract regulations.
ADMISSIBLE INSTALLATIONS
Inthe roomin whichtheheatgeneratoristobe installed,anyexistingor installed appliancesmust beairtight
to the room and must not cause depression in the room with respect to the external environment.
Appliances used for cooking foods and the related hoods without extractor can only be installed in rooms
used as kitchens.
PROHIBITED INSTALLATIONS
The room in which the heat generator is to be installed must not contain any of the following devices,
either pre-existing or installed:
Hoods with or without extractor;
Ventilation ducts of the collective type.
Should these devices be located in adjacent rooms communicating with the installation room, it is
forbidden to use the heat generator simultaneously where there is the risk that one of the two rooms may
be subject to depression with respect to the other.

45°
<45°
<
12
Chapter 4
ASSEMBLY AND INSTALLATION INSTRUCTIONS
CONNECTION TO THE EXHAUST VENTING SYSTEM
EXHAUST CHANNEL OR PIPE
For the assembly of the exhaust channels it is imperative to use non-ammable materials that are resistant to
combustion products and any condensates.
It is forbidden to use exible metal pipes and asbestos cement for connecting the stove to the ue, also for pre-
existing exhaust channels.
There must be continuity between the exhaust channel and the ue so that the ue does not lean on the stove.
The exhaust channels must not pass through rooms in which the installation of combustion devices is
forbidden.
The assembly of the exhaust channels must be carried out in such a way as to ensure that they are airtight for
the operating conditions of the appliance, as well as to limit the formation of condensates and prevent them
from being conveyed towards the appliance.
The assembly of horizontal sections must be avoided where possible.
Where roof or wall exhaust outlets have to be reached that are not coaxial in relation to the exhaust outlet
from the appliance, the direction changes must be made using open elbows no greater than 45° (see gures
below).
Insulation
Flue
Inspection
For heat generating devices equipped with an electric exhaust fan, i.e. all products made by Extraame, it
is necessary to observe the following instructions:
Horizontal sections must have a minimum slope of 3% upwards.
The length of the horizontal section must be as short as possible, and in any case no greater than 3
meters.
No more than four direction changes may be used, including the one resulting from the use of the“T”-
element. (When four bends are used, use double wall piping with a 120 mm diameter.)
In any case, exhaust channels must be sealed in relation to combustion products and condensates, as well
as insulated, if they pass outside the installation room.
It is forbidden to use elements in counter-slope.
The exhaust channel must allow soot recovery and cleaning using a swab.
The exhaust channel must have a constant cross-section. Any changes in cross-section are allowed only at

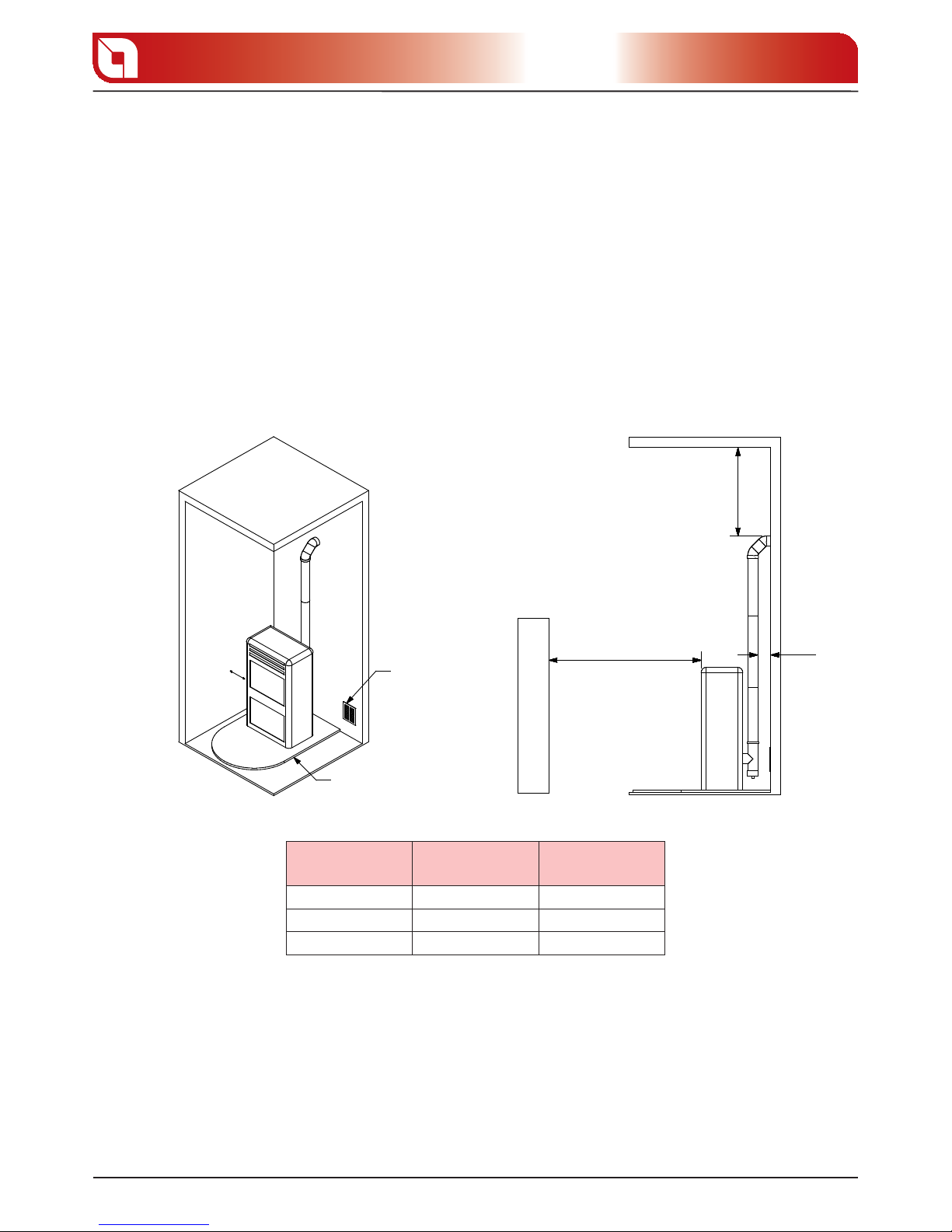

gure 4.1 gure 4.2

BC
20 cm
A
13
ASSEMBLY AND INSTALLATION INSTRUCTIONS
Chapter 4
the ue connection.
It is forbidden to run other air feed channels or piping for utilities inside the exhaust channels, even if
they are oversized. It is also forbidden to t manual draught adjustment devices on the forced draught
appliance.
CHIMNEY OR SINGLE FLUE
The chimney or ue must meet the following requirements:
be airtight to combustion products, waterproof and properly insulated according to the usage conditions;
be made of materials suitable to resist normal mechanical stress, as well as heat and the action of combustion
products and any condensates;
have a predominantly vertical layout with deviations from the axis no greater than 45°;
be situated at a proper distance from combustible or ammable materials by means of an air gap or suitable
insulation material;
Minimum80 cm2
Floor protection
REFERENCES Flammable
objects
Non-ammable
objects
A 200 100
B 1500 750
C 200 100
preferably have a round internal section: square or rectangular sections must have rounded edges
with radius no less than 20 mm;
have a constant, free and independent internal section;
have rectangular sections with a maximum ratio between sides of 1.5.
The exhaust duct should be equipped with a chamber for the collection of solid materials and any
condensates located below the mouth of the exhaust channel, so that it is easy to open and inspect from
the airtight hatch.
gure 4.3 gure 4.4

< 3 m
3 - 5 %
< 3 m
45°
45°
14
Chapter 4
ASSEMBLY AND INSTALLATION INSTRUCTIONS
Inspection
Windproof
chimney cap
Flue
Inspection
External
insulated
duct
Inspection
Inspection
gure 4.5 gure 4.6
gure 4.7 gure 4.8

50 cm
< 5 m > 5 m < 5 m
5
0
H min
β
15
ASSEMBLY AND INSTALLATION INSTRUCTIONS
Chapter 4
CONNECTION TO THE FLUE AND COMBUSTION PRODUCT EXHAUST VENTING
The ue must receive exhaust from a single heat generator.
Direct discharge towards enclosed areas, even when rooess, is forbidden.
Direct discharge of combustion products must take place on the roof and the exhaust duct must have the
features set forth in the section“Chimney or single ue”.
CHIMNEY CAP
The chimney cap must meet the following requirements:
have an internal section equivalent to that of the chimney;
have a useful outlet section no less than twice the internal section of the chimney;
be constructed in such a way as to prevent the penetration of rain, snow and foreign bodies into the
chimney, as well as to assure the discharge of the combustion products also in the presence of winds
coming from any direction and at any angle.
be positioned in such a way as to assure proper dispersion and dilution of the combustion products
and, in any case, outside the reux area in which the formation of counter-pressure is most likely to occur.
This area has dierent sizes and shapes depending on the slope of the roof; therefore, it is necessary to
use the minimum heights indicated in the gures below.
The chimney cap must not have any mechanical suction devices.
SLOPED ROOF
FLAT ROOF
Distance > A
Distance < A
50 cm beyond the ridge beam
REFLUX AREA
Reux area height
gure 4.9
gure 4.10

16
Chapter 4
ASSEMBLY AND INSTALLATION INSTRUCTIONS
CHIMNEYS, DISTANCES AND POSITIONING
Roof pitch Distance between the
crown and the chimney
Minimum height of the chimney
(measured from the outlet)
β A (m) H (m)
15° < 1,85 0,50 m beyond the crown
> 1,85 1,00 m from the roof
30° < 1,50 0,50 m beyond the crown
> 1,50 1,30 m from the roof
45° < 1,30 0,50 m beyond the crown
> 1,30 2,00 m from the roof
60° < 1,20 0,50 m beyond the crown
> 1,20 2,60 m from the roof
CONNECTION TO EXTERNAL AIR INTAKES
To ensure correct operation, the appliance must have sucient air available by means of external air intakes, which
must meet the following requirements:
They must have a total free section of at least 80 cm.1.
They must be protected by a grate, metal mesh, or other suitable protection provided that it does not reduce2.
the minimum section as per point a) and that it is positioned in such a way as to prevent the intakes from being
obstructed.
If the combustion air is collected directly from the outside by means of a pipe, it is necessary to t a downward bend or
a wind hood on the outside. In addition, no grating or similar device should be positioned. (Extraame S.p.A. suggests
creating an air intake directly communicating with the installation room, even if air is collected from outside by means
of a pipe).
Air inow can also be obtained from a room adjacent to the installation room, provided that the ow can occur freely
through permanent openings communicating with the outside.
The adjacent room must not be subject to depression with respect to the outside as a result of the opposing draught
caused by the presence of another utility device or suction device in this room.
In the adjacent room, the permanent openings must meet the requirements described above.
The adjacent room cannot be used as a garage, storage area for combustible material, or for activities involving re hazards.
INSULATION, TRIMS, FACINGS, AND SAFETY PRECAUTIONS
The facings, no matter what type of material they are made of, must constitute a self-bearing structure with reference
to the heating assembly and not in contact with it.
The beam and the trims in wood or combustible materials must be positioned outside of the radiant area of the hearth
or be properly insulated.
If the space above the heat generator has coverings made of combustible or heat-sensitive material, a protective
membrane made of non-combustible insulating material must be placed between it and the generator.
All elements made of combustible or ammable material, such as wooden furnishings, curtains, etc., that are directly
exposed to the radiance of the hearth must be placed at a safe distance.
The installation of the appliance must guarantee easy access for cleaning the appliance itself, of the waste gas pipes
and the ue.
NATIONAL, REGIONAL, PROVINCIAL AND MUNICIPAL LAWS
All the national, regional, provincial ad municipal laws of the country where the appliance has been installed must be
taken into consideration.

PRODUCT FUNCTIONALITY 17
Chapter 5
PRODUCT FUNCTIONALITY
CONTROL BOARD
REMOTE CONTROL
SENSOR D1 D2
1 DON/OFF BUTTON
By pressing button 1 it is possible to switch the stove on and o automatically.
2-3 DAIR TEMPERATURE SETTING
Buttons 2 and 3 are used to adjust the room temperature inside the house.
4-5 DFUNCTIONING POWER
Use buttons 4 and 5 to adjust the heating power that goes from a minimum of 4.5 kw/h to a maximum of
23 kW/h.
Displays D1 and D2 show the various messages.
LANGUAGE SELECTION
Controls procedure
Remove and restore the stove power supply using the master switch or using the power supply1.
cable.
The stove will rst display the microprocessor version (2. OVEN_1 or successive),“LANGUAGE”,
“CLOCK”, “ LEVEL” and then “OFF”.
When“3. LANGUAGE”appears, press button 5 to access the adjustment mode.
Display D1 will show the language currently selected while display D2 will show “LANG”: use keys 2 and
3 to select the language from those available: ITALIAN  ENGLISH  GERMAN  FRENCH  SPANISH 
FINNISH  PORTUGUESE  NORWEGIAN  DUTCH
Once the desired language has been selected, press button 1 to escape and conrm.4.
gure 5.1

PRODUCT FUNCTIONALITY
18
Chapter 5
CURRENT DATE AND TIME ADJUSTMENT
Controls procedure
Remove and restore the stove power supply using the master switch or using the power supply1.
cable.
The stove will rst display the microprocessor version (2. OVEN_3 or successive),“LANGUAGE”,
“CLOCK”, “ LEVEL” and then “OFF”.
When“3. CLOCK”appears, press button 5 to access the adjustment mode.
Display D1 will show a day of the week (from4. DAY 1 to DAY 7) :
use keys 2 and 3 to set the current day and conrm using button 5.5.
D1 display Meaning
DAY 1 Monday
DAY 2 Tuesday
DAY 3 Wednesday
DAY 4 Thursday
DAY 5 Friday
DAY 6 Saturday
DAY 7 Sunday
Display D1 will show the current time, the hours ashing while the minutes are xed: use keys 2 and6.
3 to adjust the time and then conrm using key 5.
At this point the hours will become xed and the minutes will start to ash: use keys 2 and 3 to7.
adjust the minutes.
To go back to selection of the hours, press button 4 again or escape and conrm using button 1.
BASIC INSTRUCTIONS
The stove you have purchased uses pellet fuel. This type of material is obtained from natural waste from
the machining of wood. By means of a special process that does not require the use of any binding agent
and additive, the waste is compressed in industrial machinery under high pressure and it becomes solid
wooden pellets.
IT IS PROHIBITED to burn non-pelletised raw materials inside our stoves. The failure to comply with these
prescriptions voids all guarantees and could jeopardise the safety of the appliance.
The following recommendations must be followed the rst two or three times the stove is ignited:
no children must be present because the vapours emitted can be noxious to health. Adults should
also avoid long stays.
Do not touch the surfaces as they could still be unstable.
Air the room well several times.
The hardening of the surfaces is terminated after several heating processes.
This appliancemust not be used to burn waste.

PRODUCT FUNCTIONALITY 19
Chapter 5
IGNITION
Before switching the stove on, the following points must be veried:1.
a. the feed-box must be full of pellets
b. the combustion chamber must be clean
c. the pot must be completely free and clean
d. check the hermetic closure of the re door and the ash drawer
e. make sure the power supply cable is connected correctly
f. the bipolar switch in the rear right part must be positioned on 1
Press button 1 for 3 seconds: display D1 will show“2. START”, while on display D2, starting from
number 8, the numbers will decrease every second. In this phase the appliance performs self-analysis
to check the functionality of each individual electric component. When this cycle has been completed,
display D1 will show“IGNITION”, while display will show“15”(these are the minutes when the stove
attempts the ignition phase and decreases by 1 every minute that passes). NOTE: The rst time the
product is used, even if the feed-box is full, there is the possibility that the pellets are not distributed
into the combustion chamber for the rst 15 minutes. This is because the pellet feed worm screw is
empty. If no ame has developed in the stove after 15 minutes D1 will show“IGNITION FAILURE”.
If points 1 and 2 have been performed correctly, when the ame is developed the stove will pass to
“START”mode.
On termination of the start phase the stove will pass to normal functioning: display D1 will show the3.
room temperature while display D2 will show the work power.
ATTENTION!!!
1. DO NOT USE ANY INFLAMMABLE LIQUIDS FOR IGNITION
2. DO NOT ALLOWTHE BAG OF PELLETS TO COME INTO CONTACT WITH THE BOILING HOT STOVE
DURING THE FILLING PHASE
N.B. In the case of continuous ignition failure, contact an authorised technician.
STOVE FUNCTIONING
NORMAL FUNCTIONING
When ignition has taken place, the user can adjust the heating power using buttons 4 and 5. By pressing
button 4 the heat power is decreased and therefore also the consumption of pellets per hour, vice versa by
pressing 5, the heating power is increased and as a consequence also pellet consumption. As well as the
adjustment of ow rate it is also possible to adjust the room temperature directly from the control board.
Regarding the ventilation of hot air the stove adjusts itself automatically.
Check the content of the feed-box in order to prevent the re going out due to the lack of fuel.

PRODUCT FUNCTIONALITY
20
Chapter 5
ATTENTION!!!
The lid of the pellet container must always be closed. It must only be opened during the1.
fuel loading phase.
The bags of pellets must be kept at least 1.5 metres from the stove.2.
It is recommended that the feed-box is always half full.3.
Make sure the appliance is o before lling the pellet feed-box.4.
SWITCHOFF
Press button 1 for three seconds.
When the operation has been performed, the appliance automatically enters the switch- o phase, blocking
the supply of pellets; display D1 will alternately show “OFF” and room temperature while display D2 will
show the current time.
Both of the motors used for fumes extraction and ventilation of the hot air will stay on until the temperature
of the stove has dropped suciently.
