Occupancy Sensor OCS 100W • Setup Guide
The OCS 100W is a wall-mounted occupancy sensor that incorporates ultrasonic (US) and passive infrared (PIR) into a
dual-technology sensor. The US sensor emits ultrasonic sound waves into an area and measures the speed of their return to
detect the presence of people. Frequency changes are caused by the movement of people, which is detected by the US waves.
The PIR sensor detects the presence of people based on the difference between the heat generated by moving people versus the
ambient room temperature.
The OCS 100W has a 24 VDC power input, ground/common connection, normally open/closed relay, photocell, and occupancy
output connections.
Front Panel Features
AB
1234
1234
Blue Timer Test Button
Blue Photocell Dial
Notch
Green Ultrasonic Range Dial
Red Infrared Sensitivity Dial
Ultrasonic
Sensors
Green LED
(status indicator)
Red LED
(status indicator)
Infrared/Photocell
Sensor and Lens
Removable Front Cove
r
DIP Switches (B)
DIP Switches (A)
Figure 1. OCS 100W Front Panel Features
Control
AB
1234
1234
Blue Timer Test Button
Blue Photocell Dial
Notch
Green Ultrasonic Range Dial
Red Infrar
ed Sensitivity Dial
Ultrasonic
Sensors
Green LED
(status indicator)
Red LED
(status indicator)
Infrared/Photocell
Sensor and Lens
Removable Front Cove
r
DIP Switches (B)
DIP Switches (A)
Figure 2. OCS 100W Controls
• DIP Switches (B) — (see NOTE on the next page)
B OPERATION Settings
1Timer Setting
(B1 and B2 switches
must be set together)
8 minutes:
OFF*
4 minutes:
OFF
15 minutes:
ON
30 minutes:
ON
2OFF * ON OFF ON
B OPERATION OFF ON
3Timer adjust Automatic Manual*
4Sensitivity adjust Automatic Manual*
*Default
• The settings for DIP Switches B3 (timer adjust) and B4 (sensitivity adjust can be set to Automatic mode or Manual mode.
• Automatic mode — The sensors automatically adjust for changes in usage and seasons, eliminating the need for
manual adjustments and improving system performance.
• Manual mode — The user sets the parameters of the sensors using the DIP Switches B1 and B2 set together, and
the dials.
• Ultrasonic Sensors — Detect movement in the room, based on
ultrasonic waves.
• Green LED (status indicator) — Flashes when the ultrasonic
sensors detect occupancy.
• Infrared/Photocell Sensor and Lens — Diffracts the incoming
light and directs the light to the infrared/photocell sensor.
• Red LED (status indicator) — Flashes when the infrared sensor
detects occupancy.
• Removable Front Cover — Conceals all controls and DIP
switches.
1
2 • DIP Switches (A) —
A OPERATION OFF ON
1Not used Not used* Not used
2Not used Not used* Not used
3LED indicators LEDs enabled* LEDs disabled
4Automatic adjust
reset
Toggle to reset (Default: OFF)
*Default

2
Occupancy Sensor OCS 100W • Setup Guide (Continued)
• Timer Setting (B1 and B2) (see figure2 on the previous page) — The occupancy sensor has a built in timer feature.
When the sensor detects motion, it instantly triggers ON (high). Once occupancy is no longer detected, the timer begins.
If no motion is detected and the timer expires, then the sensor triggers OFF (low). In Manual mode, set the B1 and B2
DIP Switches together, as shown in the table above, to set the amount of time before the sensor triggers OFF.
NOTE:
• The B1 and B2 DIP Switches are inactive when the B3 timer adjust DIP Switch is in Automatic Mode.
• The red infrared sensitivity dial and green ultrasonic range dial are inactive when the B4 sensitivity adjust DIP Switch
is set to automatic.
• Blue Timer Test Button —
• To enable an 8 second timer test mode, push the blue button once. The test mode will last for 1 hour, and then
automatically resets to the dip switch settings.
• To cancel the 8 second test mode, push and hold the blue button until the red LED ashes, returning the OCS to the
settings dened by the dip switches.
• Red Infrared Sensitivity Dial — Adjust this dial to increase or decrease infrared sensitivity.
• Turn counter clockwise (CCW) to decrease sensitivity.
• Turn clockwise (CW) to increase sensitivity.
• The factory default setting is at 75%.
• Green Ultrasonic Range Dial — Adjust this dial to increase or decrease ultrasonic sensitivity.
• Turn counter clockwise (CCW) to decrease sensitivity.
• Turn clockwise (CW) to increase sensitivity.
• The factory default setting is at 50%.
NOTE: B4 DIP Switch must be set to ON for Manual mode, in order to adjust the Red Infrared Sensitivity Dial or the Green
Ultrasonic Range Dial manually.
• Blue Photocell Dial — Photocell prevents the sensor from triggering on when the area is adequately lit with natural light and
when motion is detected. The sensor must be mounted directly over an area that is representative of the average, natural
room lighting. Before setting the photocell control, wait until the natural light is brightest (optional). Adjust this dial to increase
or decrease photocell sensitivity.
• Turn counter clockwise to decrease photocell sensitivity.
• Turn clockwise to increase photocell sensitivity.
• Factory default is 100% (full clockwise).
• Full counter clockwise — Photocell is disabled.
• Range — 10 to 1000 LUX

3

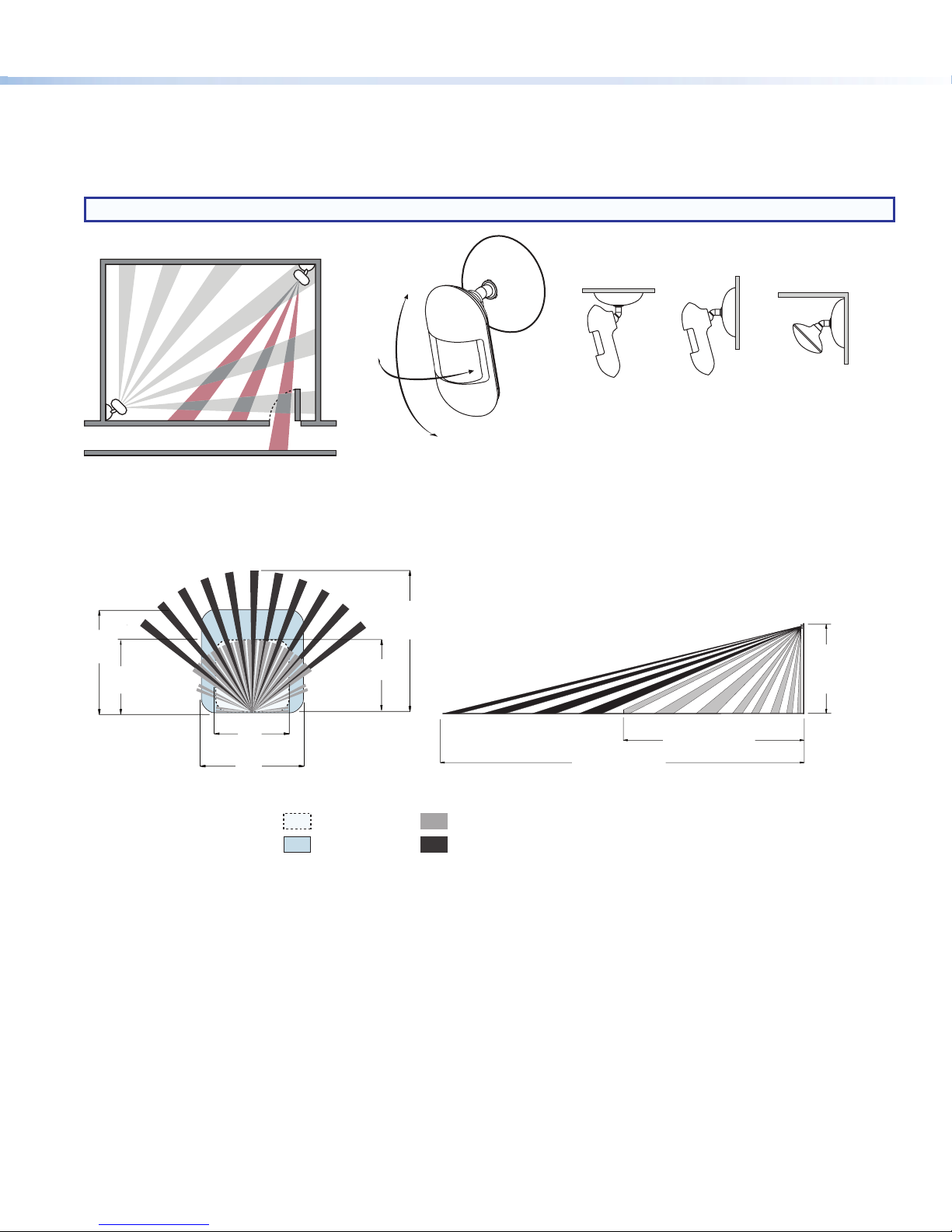

Sensor Placement and Installation Options
When placing the sensor in a room, be sure the sensor is not aimed out through a door. The sensor can detect hallway trafc,
causing false triggers. PIR sensors trigger in response to changes in the amount of IR arriving from any of their segments of view
within a direct line of sight from the sensor. US sensors trigger in response to changes in the frequency of reected ultrasonic
waves, caused by movement within the space.
NOTE: See Troubleshooting on page6 if you experience false triggers.
Installation OptionsRotation
60˚
80˚
Ceiling Mount Wall Mount Top View
Cor
ner Mount
Sensor Placement
Wrong
Correct Hallway
Figure 3. Sensor Placement and Installation Diagrams
Sensor Coverage
32'
(10 m)
23'
(7 m)
32'
(10 m)
23'
(7 m)
40'
(12 m)
20'
(6 m)
40' (12 m) Major
Motion Coverage
20' (6 m) Minor
Motion Coverage
10' (3 m)
Mounting
Height
Sensor Coverage
US Minor Motion
US Major Motion
IR Minor Motion
IR Major Motion
Figure 4. Sensor Coverage Diagrams
3
4

4
Occupancy Sensor OCS 100W • Setup Guide (Continued)
OCS 100W Parts
Pull
Cover
Body
Bracket
Cover
Wiring
Harness
Mounting
Bracket
Mounting Bolt,
Washer and Nut. (2)
Figure 5. OCS 100W Parts
Installation
ATTENTION:
• All structural steps and electrical installation must be performed by qualied personnel in accordance with local and
national building codes and electrical codes.
• Toute étape structurelle et installation électrique, doit être effectuée par un personnel qualié, conformément aux codes
du bâtiment, aux codes incendie et sécurité, et aux codes électriques, locaux et nationaux.
Pull
Cover Body
Bracket
Cover
Wiring
Harness
Mounting
Bracket
Mounting Bolt,
Washer and nut. (2)
Insert wiring through
Mounting Bracket.
Wall
Building Wiring
1
“POP”
Snap sensor onto
mounting post.
5
“SNAP”
Push
Replace Cover.
7
Wall
Wiring
Harness
Secure Mounting
Bracket to the wall.
Connect building wiring to
Wiring Harness with included
wire nuts.
2
3
Position
Locking
Screw
Loosen Tighten
Plug Wiring Harness into connector located
on the left side, opposite exit slot and place
wiring under wire tabs. Align sensor and tighten
position locking screw.
6
32'
23'
32'
23'
40'
20'
40' - 0" Major Coverage
20' - 0" Minor Motion Coverage
10' - 0"
Mounting
Height
Sensory Coverage
US Minor Motion
US Major Motion
IR Minor Motion
IR Major Motion
Snap Bracket Cover in place to
conceal wiring and Mounting
Bracket.
4
Bracket
Cover
Figure 6. OCS 100W Installation
5
6

5
Extron
PC 1224
Power Module
12 V Power
Source
Additional
Devices
Occupancy
Sensor
1.25 A MAX 75 mA MAX
1.5 A MAX
PC 1224
33-2665-01 B
www.extron.com
24V
OUT
12V
OUT
12V
IN
Connections
Black Ground
Red +24 VDC
Blue Occupancy control output
Gray Occupancy and photocell
control output
NOTE:
• The gray wire is used when
the control system needs
to know when the area is
adequately lit with natural
light and when motion is
detected (for example,
automatic lighting control
through an Extron control
system).
• When wiring the blue or gray
wires of the OCS to Extron
products with Digital or FLEX
Input ports, congure the
ports as Input without pull
up. The sensor provides
approximately 21 VDC in the
ON (High) state and 0 VDC in
the OFF (Low) state.
NOTE: Relay contacts could be used to trigger third party devices,
such as HVAC, based on occupancy.
OCS 100W Wiring
Extron
IPCP PRO 550
Control Processor
Dual Zone
Single Zone
RO
5
50
LAN
IPCP PRO 550
MAC: 00-05-A6-XX-XX-XX S/N: ####### E######
00-05-A6-XX-XX-XX
5A MAX
100-240V ~ 50-60Hz
1 1 2 3 72 1 2 3 4 1 2 3 4PWR OUT = 9W
eBUS
+V +S -S GTx Rx GTxRxG Tx Rx GTxRxG SGSG SGSG RTSCTS
SWITCHED 12 VDC
40W MAX TOTAL
3 4 8
4 5 6 5 6 7 8 5 6 7 83214G
FLEX I/ORELAYSIR/SERIALCOM12 VDC
SGSG SGSGTx Rx GTxRxG Tx Rx GTxRxG
RTSCTS
ECM DIO8
BUS ID
eBUS + V OUT
24 GG-S+S+V
DIGITAL I/O
1234GG6578
L
S
B
M
S
B
Ext
ron
ECM DI
O8
eBUS
Control Module
Extron
PC 1224
Power Module
Extron
OCS 100W
Occupancy
Sensor 2
Extron
OCS 100W
Occupancy
Sensor
Extron
OCS 100W
Occupancy
Sensor 1
Control Signal #2 (Blue)
Control Signal #1 (Blue)
Sensor with 12 VDC
Power Supply
Sensor with 24 VDC
Power Supply
Control Signal #1 (Blue)
Ground
(Black)
Ground
(Black)
Ground (Black)
Ground (Black)
+24 V (Red)
+24 V (Red)
+12 V (Red)
Extron
Extr
on
Extron
E
t
1.25 A MAX 75 mA MAX
1.5 A MAX
PC 1224
33-2665-01 B
www.extron.com
24V
OUT
12V
OUT
12V
IN
Figure 7. OCS 100W Wiring Diagram
Relay Contacts
Blue/White Common
Black/White Normally closed when unoccupied
Yellow/White Normally open when unoccupied
PC 1224 Wiring
ATTENTION:
• Do not connect power until you have read the ATTENTIONS: notices on the next page.
• Ne branchez pas l’alimentation avant d’avoir lu les mises en garde «ATTENTIONS:» de la page suivante.
• Remove power from the system before making any connections.
• Mettez le système hors tension avant d’effectuer tout raccordement.
The OCS100W requires 24 VDC. If the sensors are connected to a device that does not provide 24 VDC, use the included
PC1224 power module:
1. Connect a 12 VDC power source to the 12 VDC input on the supplied PC 1224 power converter,
using a 2-pole captive screw connector (see image on the right).
2. Wire the PC 1224 24 VDC 2-pole captive screw connector to the black and red wires on the
OCS100W.
A 12 VDC pass-through is available to power additional 12 VDC devices.
7

68-3155-50 Rev. E
02 18
© 2017-2018 Extron Electronics — All rights reserved. www.extron.com
All trademarks mentioned are the property of their respective owners.
Troubleshooting
Problem Possible Cause Test Solution
Sensor remains on. Constant noise. Reduce both green and red
knobs by 15% and remove
noise source.
Move sensor to a less noisy
area within the room.
Sensor remains on too long. Timer setting too high. Check dip switch settings. Reduce timer setting.
Hallway trafc turns sensor
on.
Infrared sensor can see into
the hallway.
Put sensor in timer test mode
and walk the hallway.
Move sensor, so it cannot see
into the hallway.
Safety Instructions
For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the
Extron Safety and Regulatory Compliance Guide on the Extron website.
FCC Class A Notice
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the
FCC rules. The Class A limits provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause interference. This interference must be corrected at the expense of the user.
NOTE: For more information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related
topics, see the Extron Safety and Regulatory Compliance Guide on the Extron website.
Power Attentions
ATTENTIONS:
• These products are intended for use with a UL Listed LPS type power source.
• Ces produits doivent être utilisés avec une source d’alimentation de type LPS certiée UL.
• Use of a non-LPS or unlisted power supply will void all regulatory compliance certication.
• L’utilisation d’une source d’alimentation non-listée ou non-listéeLPS annulera toute certication de conformité
réglementaire.
• Unless otherwise stated, the AC/DC adapters are not suitable for use in air handling spaces or in wall cavities. The power
supply is to be located within the same vicinity as the Extron AV processing equipment in an ordinary location, Pollution
Degree 2, secured to the equipment rack within the dedicated closet, podium, or desk.
• Sauf mention contraire, les adaptateurs CA/CC ne conviennent pas à une utilisation dans les espaces d’aération ou dans
les cavités murales. La source d’alimentation doit être placée à proximité de l’équipement Extron dans un emplacement
ordinaire soumis à un degré de pollution de catégorie II, solidement xé au rack d’équipement d’une baie technique, d’un
pupitre, ou d’un bureau.
• The installation must always be in accordance with the applicable provisions of National Electrical Code ANSI/NFPA 70,
article 725 and the Canadian Electrical Code part 1, section 16.
• Cette installation doit toujours être conforme aux dispositions applicables du Code américain de l’électricité (National
Electrical Code) ANSI/NFPA 70, article 725, et du Code canadien de l’électricité, partie1, section16.
• The power supply shall not be permanently xed to building structure or similar structure.
• La source d’alimentation ne devra pas être xée de façon permanente à la structure de bâtiment ou à d’autres structures
similaires.
