Operating Manual

iTAG X30

Document Number X124749(1) (See DDM for the latest Version)

For warranty information, refer to Terms and Conditions at http://www.extronics.com

Extronics reserve the right to change this manual and its contents without notice, the latest

version applies.



3
Contents

1Introduction.......................................................................................................... 5
1.1 What is inside the box? ................................................................................. 5
1.2 Pre-requisites ................................................................................................ 5
1.3 Reference documentation ............................................................................. 5
2Safety Information ............................................................................................... 6
2.1 Storage of this Manual................................................................................... 6
2.1 Special Conditions for Safe Use –ATEX IECEx ........................................... 6
2.2 Warnings ...................................................................................................... 6
2.3 Marking Information....................................................................................... 7
3Tag Features ....................................................................................................... 8
Emergency Call Button ........................................................................................... 8
Visual, Audible and tactile indication....................................................................... 8
Wi-Fi Security.......................................................................................................... 8
Beaconing ............................................................................................................... 8
Wi-Fi/GPS ............................................................................................................... 8
LF Radio ................................................................................................................. 8
OTA (Over the Air) Updates.................................................................................... 8
Battery and Battery Life........................................................................................... 8
Mounting ................................................................................................................. 9
Simple configuration................................................................................................ 9
Motion sensor ......................................................................................................... 9
Integrated access control ........................................................................................ 9
Rugged performance .............................................................................................. 9
4Tag usage instructions ........................................................................................ 9
4.1 Before using the tag ...................................................................................... 9
4.2 Configuring and updating the tags................................................................. 9
4.2.1 Activating the iTAG X30 ........................................................................ 11
To Activate a tag:............................................................................................... 11
To activate multiple tags:................................................................................... 12
4.2.2 How to Configure .................................................................................. 13
4.2.3 Available configurations ........................................................................ 15
4.2.4 Setting the Configuration ...................................................................... 16
4.2.5 Updating the Firmware.......................................................................... 16
4.3 LED and Audio Indications .......................................................................... 16
4.4 Mounting the tag.......................................................................................... 17
4.5 Battery ......................................................................................................... 17
4.5.1 Battery levels and charging................................................................... 17
4.5.2 Variances in Battery Life ....................................................................... 17
4.5.3 Battery Capacity.................................................................................... 18
4.5.4 Charging the Battery ............................................................................. 18
4.6 Transport ..................................................................................................... 18
4.7 Authorized Persons ..................................................................................... 19
4.8 Cleaning and Maintenance.......................................................................... 19
4.8.1 Assembly and Disassembly .................................................................. 19
4.8.2 Cleaning and Maintenance Intervals..................................................... 19
4.8.3 Aggressive substances ......................................................................... 19
4.9 Exposure to external stresses ..................................................................... 19
5Variants ............................................................................................................. 20

5.1 EU Declaration of Conformity ...................................................................... 21

6Manufacturer ..................................................................................................... 24

7Radio Equipment –FCC Warning Statement .................................................... 25

1 Introduction

The iTAG X30 worker location tag with hybrid technology, allows for accurately locating

workers in Hazardous and Non-Hazardous areas, anytime anywhere.

The iTAG X30 tag provides, audible, visual and tactile alerts and works with Stanley

healthcare MobileView software to provide real-time alerting and reporting, for worker

location solutions.

1.1 What is inside the box?

•iTAG X30

•iTAG X30 charging cable

•Quick start guide

1.2 Pre-requisites

Refer to iTAG X30 Compatibility Matrix (X124937) for compatible software required to

be installed to use the iTAG X30.

1.3 Reference documentation

•ELS Deployment Guide

•ELS Datasheet

•iTAG X30 Datasheet

•MobileView Administrator guide from 5.4 and above

•Tag Management Standard (TED) User Guide

2 Safety Information

2.1 Storage of this Manual

Keep this user manual safe and in the vicinity of the product. All persons required work on or

with the product should be advised on where the manual is stored.

2.1 Special Conditions for Safe Use – ATEX IECEx

•Tag must only be charged in safe area only

•Tag must only be charged from a supply meeting the following requirements:

oA SELV or PELV system, or

oVia a safety isolating transformer complying with the requirements of

IEC 61558-2-6, or technically equivalent standard, or

oDirectly connected to apparatus complying with the IEC 60950 series,

IEC 61010-1, or a technically equivalent standard, or

oFed directly from cells or batteries.

•Tag charger input Um= 6.5Vdc.

•Battery cells must not be replaced in a hazardous area.

2.2 Warnings

Warning! The iTAG X30 should only be cleaned with a damp cloth.

Warning! Do not open the iTAG X30. There are no user-serviceable parts inside.

Warning! Any repairs or replacement of parts MUST be performed by the

manufacturer or its nominated sub-contractor or agent.

Warning! This product can be delivered in a number of different variants; each

variant has restrictions on where it can be used. Please read the

information in the type codes section fully and ensure that your iTAGX30

is suitable for the hazardous area in which it is to be used.

Warning! Before setting the units to work, read the technical documentation

carefully.

Warning! The iTAG X30 contains a lithium ion battery. Do not force open, heat

excessively or dispose of in fire.

2.3 Marking Information

Where:

•YYYY is the Notified Body for production

•XXXXXX: is the serial number

•ZZZZ is a code to identify model variants

Exact layout of markings may differ from that shown.

3 Tag Features

Emergency Call Button

The iTAG X30 features a call button which can be activated in the case of an

emergency, which triggers an event in MobileView to show the location of the

worker in need of assistance.

Visual, Audible and tactile indication

The iTAG X30 features multiple LED's to indicate to the worker the tag is

running, the call button has been activated and when the tag has a low battery.

Tactile and audible indications occur to inform the wearer that the call button

has been activated.

Wi-Fi Security

The iTAG X30 supports 802.1x Enterprise security networks with PEAP-

MSCHAPv2 protocol.

Beaconing

The tag utilises lightweight beaconing communication.

Wi-Fi/GPS

The iTAG X30 features hybrid technology which includes Wi-Fi and GPS to

accurately locate workers in all areas of the site, whether there is a dense Wi-Fi

infrastructure or not.

LF Radio

The iTAG X30 sends out specific location reports upon arrival at a chokepoint

or gateway where an LF exciter is positioned. The tags behaviour can be

automatically modified whilst in certain areas after passing through a

chokepoint such as a doorway or gate.

OTA (Over the Air) Updates

The tag has firmware over-the-air update capability which can be used when

new functionality becomes available. This eliminates the need to return the tag

to the factory to enable new features.

Battery and Battery Life

The iTAG X30 is powered by rechargeable lithium ion battery.

Mounting

The iTAG X30 comes complete with a stainless-steel clip which can be used to

clip to PPE or used with a lanyard.

Simple configuration

The iTAG X30 Firmware contains 7 pre-defined configurations, which can be

activated quickly and easily using the TED and Tag Manager BD.

Motion sensor

The iTAG X30 contains on-board motion sensors. When the tag is configured to

a profile which utilises the motion sensor it will enable different transmission

intervals of the tags whether the tag is stationary or in motion, reducing

unnecessary network traffic and conserving battery.

Integrated access control

Minimise the number of ancillary products being carried by using integrated

access control to gain access to site. Easily identify workers due to Photo ID

being visible on the front of the tag.

Rugged performance

The iTAG X30 tag enclosure has been designed for durability with IP rating of

IP65 and IP67 to ensure complete confidence in the product when in harsh

environments.

4 Tag usage instructions

4.1 Before using the tag

Please check for damage to the tag, clip and charging cable prior to using the tag.

Check firmware is latest version and update if required.

4.2 Configuring and updating the tags

Tag Manager BD is used to configure the tag. Refer to separate user guide for

general instruction on the use of Tag Manager BD.

4.2.1 Initial Start

Detect tags etc…..

Click detect:

4.2.2 Activating the iTAG X30

On delivery from the factory, tags must be activated before configuring and use. A

single tag or multiple tags can be activated simultaneously.

To Activate a tag:

Confirm the tag is detected. See Detecting Tags

•From the Detected Tags list, right click on the tag and select Activate. The

tag colour indicator changes to green (Activated Tag). The tag LED will flash

to indicate communication.

•

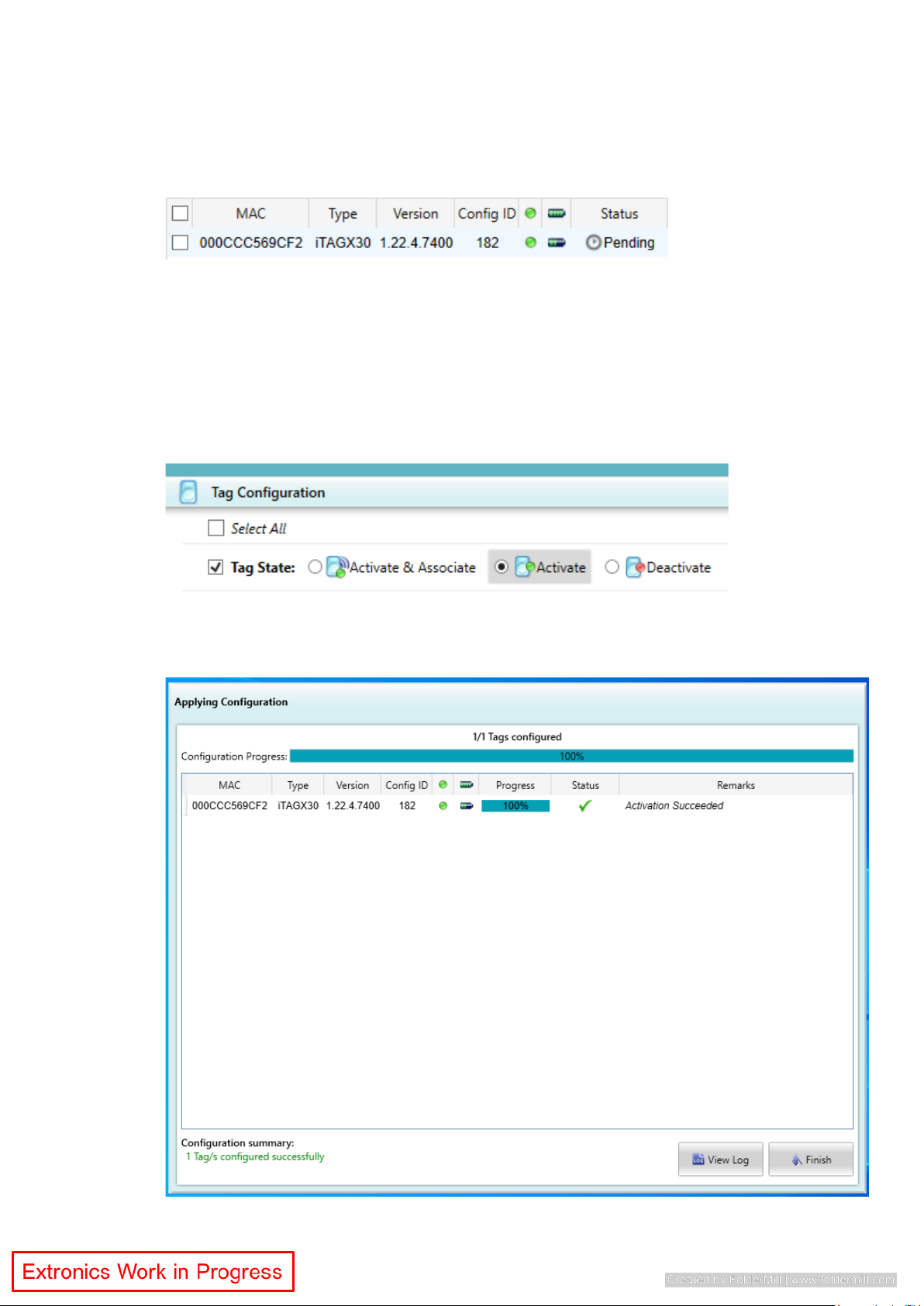

To activate multiple tags:

Confirm the tags are detected. See Detected Tags

1. From the Detected Tags list, select the tags by checking their selection boxes

(or check the box in the column header to select them all)

2. Under the selection Tag Configuration, select Activate and check the Tag

state box.

3. Click Apply. The Applying Configuration window opens.

The tag colour indicator changes to green (Activated Tag)

4. Click Finish.

4.2.3 How to Configure

The iTAG X30 must be initially configured using the TMBD application (Tag manager

BD application, which is part of the Hardware manager application)

The TMBD application allows you to activate and configure the following tag

parameters according to sites infrastructure and use case. More information can be

found in the Tag manager BD Guide.

•Transmission and Wireless:

oTransmission Channels

oIP Settings (Static IP/DHCP)

oApplication servers

oWi-Fi Security Settings (WPA2-PSK / 802.1 Enterprise security with

PEAP-MSCHAPv2)

WPA-PSK:

4.2.4 Available configurations

The tag firmware contains 7 pre-defined configurations. These configurations define

the tag type and beacon rate behaviour. Each configuration has a unique ID number

called a “Static Configuration” which cannot be edited. Only 1 configuration can be

selected and used per tag.

The following table shows the available configurations.

Tag Configurations

TMBD FW Version XXX

Configuration

Badge

Type

Beacon Rate

Motion

enabled

Transmission

166

iTAG X30

5 Seconds

Uni Directional

167

iTAG X30

15 Seconds

Uni Directional

168

iTAG X30

1 Minute / 15 seconds motion

Yes

Uni Directional

169

iTAG X30

3 Minute / 5 seconds motion

Yes

Uni Directional

170

iTAG X30

3 Minute / 15 seconds motion

Yes

Uni Directional

171

iTAG X30

3 Minute / 30 seconds motion

Yes

Uni Directional

172

iTAG X30

5 Minute / 30 seconds motion

Yes

Uni Directional

4.2.5 Setting the Configuration

The tag configuration is set using Hardware Manager and Tag Manager BD.

4.2.6 Updating the Firmware

The iTAG X30 does not automatically check for Firmware and configuration updates.

If a new version of tag firmware is available, you will be notified.

4.3 LED and Audio Indications

The iTAG X30 has multi-colour LED’s on the top of the tag and on the front of the tag,

Update images with drawings from quick start guide

Green Flashing –Tag is active

Red Static Top and Front -

Call button activated

Orange Flashing - Tag error

Red Static –Call button

activated

4.4 Mounting the tag

Ensure the tag is worn in an upright position. For best results wear the tag as high

up your body as possible.

•Tag clipped to pocket

•Tag clipped to epilate

•Tag clipped to chest pocket

4.5 Battery

The iTAG X30 has a non-replaceable rechargeable Lithium Ion Battery and is

charged using the Charging cable included.

*Battery life depends on configuration and use case.

4.5.1 Battery levels and charging

The iTAG X30 has the following 3 battery levels that are shown in MobileView:

•High –Indicate the tag has more than 75%

•Medium –Indicates the tag has between 75% and 30%

•Low –Indicates the tag has less than 30%

It is recommended to charge the tag daily.

4.5.2 Variances in Battery Life

Variances in battery life are based on usage and is calculated based on typical use

cases in the table. Actual results may vary due to the following:

•Shift changes

•LF exciter usage

•Extensive LF environments –such as increased time under LF

•Changes in tag usage and time in storage before use

Battery Status

Low battery - Red flashing

Critical low battery –Red Static

Battery Charging –Red Static

Battery Charged –Green Static

•Changes in transmission interval

•Temperature

•Motion

•Indoor/Outdoor applications

•Time to receive firm GPS co-ordinates

4.5.3 Battery Capacity

The tag’s battery capacity degrades over a period, depending on the number of

charge cycles.

4.5.4 Charging the Battery

The iTAG X30 is charged using the USB Charging Cable provided. It its attached

and detached from the rear of the tag as shown:

The charger input conditions listed in the Special Conditions of Safe Use must be

observed.

Charging is only permitted between 0oC and 45oC. When connecting to a USB

power supply, ensure the supply is rated less than 100W.

4.6 Transport

All iTAG X30 devices must be transported and stored such that they are not subjected

to any excessive mechanical or temperature stresses.

4.7 Authorized Persons

Only persons trained for the purpose are authorized to handle the iTAG X30; they must

be familiar with the unit and must be aware of the regulation and provisions required

for explosion protection as well as the relevant accident prevention regulations.

4.8 Cleaning and Maintenance

The iTAG X30 and all its components require no maintenance and are self-monitoring.

All work on the iTAG X30 must be carried be performed by Extronics approved

personnel.

4.8.1 Assembly and Disassembly

The iTAG X30 is provided ready assembled and should not be dismantled by the

user.

4.8.2 Cleaning and Maintenance Intervals

The cleaning interval depends on the environment where the system is installed.

4.8.3 Aggressive substances

Some cleaning materials include aggressive ingredients that can harm tags. We

recommend that you do not use compounds containing:

• Combinations of isopropyl alcohol and dimethyl benzyl ammonium chloride

• Combinations of ethylene Diamine Tetra Acetic Acid and Sodium Hydroxide

• Benzul-C12-16-Alkyl Dimethyl Ammonium Chlorides

• D-Limonene

4.9 Exposure to external stresses

The iTAG X30 is not designed to be subjected to excessive stresses e.g. vibration,

heat, impact.
