STI-7560AC ENCLOSURE MOUNTING INSTRUCTIONS
All specifications and information shown were current as of publication and are subject to change without notice.
7560AC JAN2017
8.79 in.
(223mm)
7.5 in.
(191mm)
15.75 in.
(400mm)
6.35 in.
(161mm)
24 in.
(610mm)
36 in.
(914mm)
19105 3/8 LAG SHIELD
(4) PROVIDED
19106 SEALING WASHER
(4) PROVIDED
19104 3/8 x 1-1/2 LAG SCREW
(4) PROVIDED
HINGE PIN SNAP RING
(ONE ON EACH HINGE PIN)
A
DETAIL A
Electronic warranty form at www.sti-usa.com/wc14
NOTE:
If mounting to brick, block or concrete wall, drill 5/8” diameter
holes 2” deep and insert lag shields.
If mounting to wood wall or wood stud, drill 9/32” diameter holes
1-1/2” deep.
INSTALLATION INSTRUCTIONS:
1. Using needle-nose pliers remove both hinge pin snap rings.
2. Push out or lift out hinge pins and remove door.
3. Place enclosure on wall and mark top right hole position onto
wall. Set enclosure aside.
4. Drill hole according to note above.
5. Insert lag screw into sealing washer. Place enclosure on wall and
insert lag screw with sealing washer through enclosure and into
drilled hole. Finger tighten only.
6. Allow enclosure to pivot and hang from lag screw.
7. Set a level on top of enclosure and level enclosure. Mark the
remaining three mounting holes onto wall.
8. Allow enclosure to pivot and hang from lag screw and drill the
remaining three holes.
9. Insert the remaining three lag screws with sealing washers
through enclosure into wall and tighten all (4) lag screws.
Toll Free: 800-888-4784 • E-mail: [email protected]
Web: www.sti-usa.com
USA - Headquarters
2306 Airport Road • Waterford, Michigan 48327-1209
Phone: [phone] • Fax: [phone]
Tel: [phone] Fax: [phone]
E-mail: [email protected] • Web: www.sti-emea.com
European Office
Taylor House • 34 Sherwood Road • Bromsgrove
Worcestershire • B60 3DR • England

8.79 in.
(223mm)
7.5 in.
(191mm)
15.75 in.
(400mm)
FRONT COVER
STI-7560AC MOUNTING A/C UNIT INSTRUCTIONS
All specifications and information shown were current as of publication and are subject to change without notice.
7560ACIS JAN2017
15.75 in.
(400mm)
6.35 in.
(161mm)
24 in.
(610mm)
36 in.
(914mm)
19105 3/8 LAG SHIELD
(4) PROVIDED
19106 SEALING WASHER
(4) PROVIDED
19104 3/8 x 1-1/2 LAG SCREW
(4) PROVIDED
HINGE PIN SNAP RING
(ONE ON EACH HINGE PIN)
A
DETAIL A
“EZ” MOUNT TABS
DETAIL A
BOTTOM
CUTOUT EDGE
A
A/C UNIT
INSTALL GASKET PROVIDED
ENCLOSURE SHOWN
WITH DOOR REMOVED
1/4 - 20 x 3/4 in. BOLT
(4) PROVIDED
LOCK WASHER
(4) PROVIDED
REMOVE THE (4) SCREWS AND
FRONT COVER TO OBTAIN ACCESS
TO TEMPERATURE CONTROLS.
(SEE INSTRUCTION MANUAL FOR DETAILS)
INLET AIR FILTER
REMOVE TO CLEAN.
(SEE INSTRUCTION MANUAL)
TEMPERATURE
CONTROLS
Electronic warranty form at www.sti-usa.com/wc14

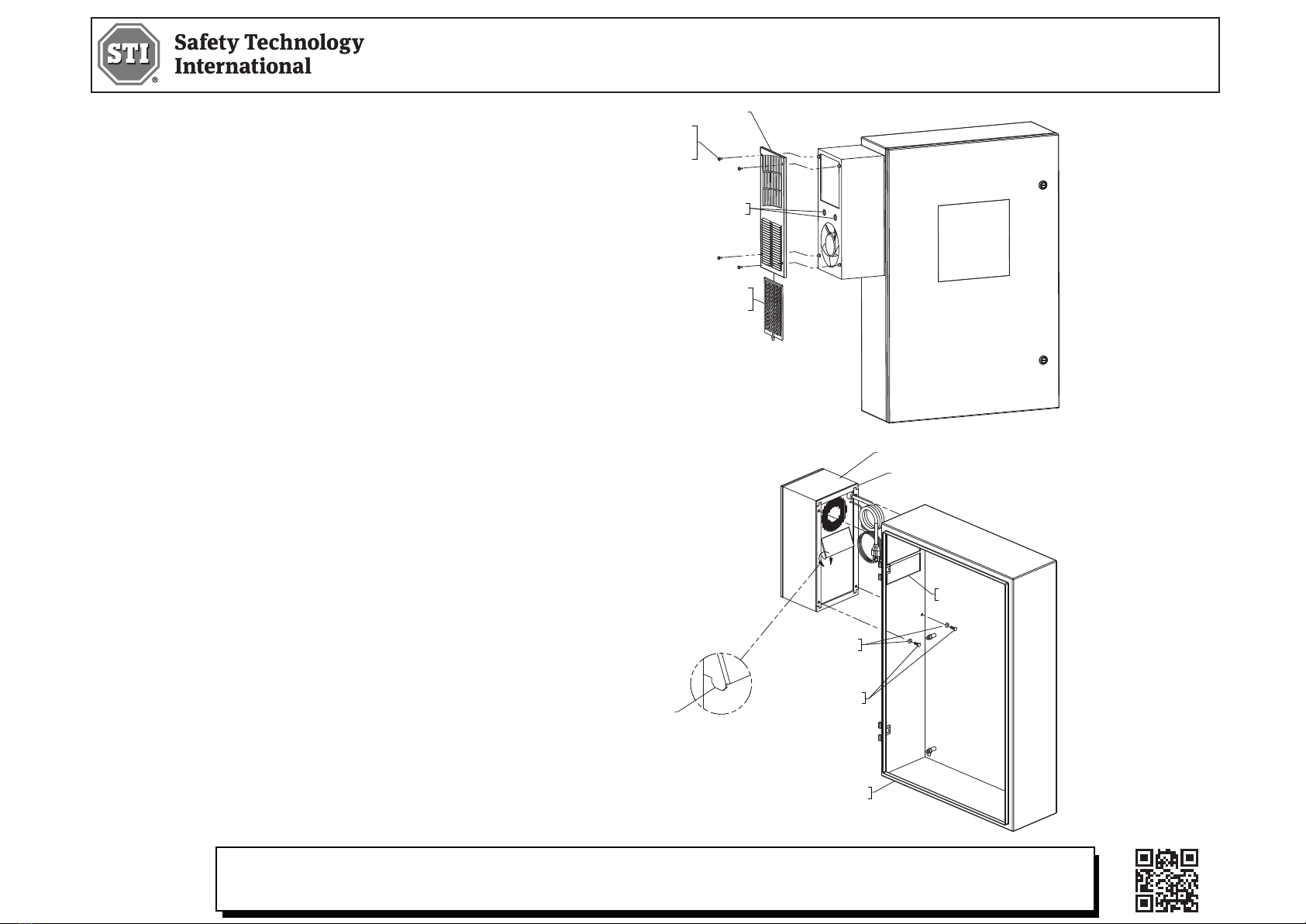

After enclosure has been mounted to the wall, the A/C
unit can be mounted to the enclosure.
INSTALLATION NOTES:
1. Read and understand instruction manual before
mounting and operating A/C unit.
2. Install gasket provided on to A/C unit.
3. Insert power cord and wires through top cutout in
enclosure.
4. Mount A/C unit to enclosure by resting EZ mount tabs
on bottom cutout edge. This will hold A/C unit in
place while bolts are inserted.
5. Insert the (4) 1/4 - 20 x 3/4 inch bolts with lock
washers. Make sure the threads of all (4) bolts have
engaged with the A/C unit before tightening.
6. Tighten the 4 bolts evenly.
7. Replace door, hinge pins and hinge pin snap rings.
