Eyemax DVS-9030 User manual

EEyeMax
99000000
Series
DDVRR
Mannuall
EEyyeeMMaaxx
99000000
SSeerriieess
DDVVRR
MMaannuuaall

1. Configuration Diagram 154
2. Installing FP Server 155
3. Installing “Access Control Server” 155
-OnInstalling 156
-Finish 156
4. DVR setup 157
-Setup 157
5. Access Control Search 159
6. Access Control Client 160
-Installing 160
-Execution 160
-“Access Control Client” setup 161
Main System Application 23
-Device 39
Camera 40
Output Device 60
Input Device 61
Audio 62
Alert 63
-Event 65
Input 65
Motion Detection 67
No Video Signal 68
Watchdog 68
-Schedule 71
Camera 71
Manual(Instant) Recording 73
Device 74
-Network 74
DVR Server 75
Web Sever 76
Central Station 76
E-mail 77
Dial Alarm 81
IP Address Setup 82
-User 83
1. Startup Screen 24
2. Login 24
3. Exit/Logout 24
4. System Information 25
5. Control Screen 25
6. Setup 26
-System 26
DVR Information 26
System Time Setup 27
System Power Management 28
Auto Switching Interval 29
E-Map 29
TV-out 31
On-Screen Display 33
Text Inserter 35
Hard Disk Usage 38
I-Phone 38
Maintenance Log 39
2
Software Installation 7
1. Automatic Installation 9
-Definition 9
-Installation Method Selection 9
-Installing Drivers 9
-DVRFileSystemInstallation 10
-Completion&Retry 13
2. Manual Installation 14
-Definition 14
-Installation Method Selection 14
-Software Selection 14
3. Remote Client Installation 15
-UsingEyemax S/W 15
-UsingtheWebBrowser 16
4.Uninstallation 21
5.Program Execution 21
1
Ta b l e o f Co n t e n t s
View Log Application (Status) 85
1. Screen Features 86
-EventLog 87
3
Remote Monitoring System (Client) 121
1. Program Execution 122
2. Remote Save and Backup 124
3. Real Time Audio 125
5
Playback Application (Search) 89
1. Search Features 1 90
2. Search Features 2 91
-Playback 91
- Event/Object/Text/People Count Search 92
-Monitoring&Searching 97
-Bookmark&GoTo 98
-Save 99
-Print 104
-Backup 104
4
POS DVR 127
1. Hardware Installation 128
-Parts 128
-Installation 130
Appendix 1
I-phone 133
1. Installation 134
2. Execution 135
3. Audio Setup 136
Appendix 2
MDVR 139
1. Installation 140
-Start 140
- Selection of Installation Method 140
-OnInstalling 141
-Finish 141
2. Overview 142
3. Execution 142
-properties 142
-Log in & Log out 144
-Setup 145
4. Search 149
Save 149
Back up 150
Appendix 3
Access Control DVR 153 Appendix 4

1. Hardware Specification
Models
Displaying Speed
Recording Speed
Video Inputs
Audio Inputs
Sensor Inputs
Alarm Outputs
Video Resolution
Compression Type
Supported Signal Types
Supported Network
Supported Backup Devices
Supported PTZ Protocols
Operating Systems
DVS-9030 DVS-9060 DVS-9120 DVS-9240 DVS-9480 DVS-9424 DVS-9448
30
fps(NTSC) 60 120 240 480 480 480
30
fps(NTSC) 60 120 240 120 240 480
4161616161616
12484816
441616 16 16 16
2288888
CIF, Half D1, D1
MPEG-4
NTSC, PAL
TCP/IP, PSTN
HDD, DVD/R, CD/RW, Network Driver, etc.
C&B Tech-CND100200&SMART, Changzhou Minking-Minking, CTNCom-HD0670,
Dong Yang Unitech-DSC230, DRAGON-DRAGON, Dynacolor-TPD7720,
Geosan-GRX1000, GOLDENEYE-GOLDENEYE, InterM-VRX2201,
KALATEL-KTD312, KJK-KJK, LG-LPTA100L, PELCO D&P,
SAMSUNG-SCC641&SDZ160R&SPD1600&SPX1000&SPT1000,
SONY-EVID3031, Vicon-Survey&2000, ZITEC-ZITECH, etc.
Windows XP, Windows 2000
EEyyeemmaaxx
9000 Series DVR

Software
Installation
Chapter 1
>Automatic Installation
>Manual Installation
>RemoteClient Installation
>Uninstallation
>Program Execution
EEyyeemmaaxx
9000 Series DVR

User’s Manual (5.1.0.0)9
Software
Installation
[
EyeMax
]
8
It is a method to install all the relevant softwares automatically. Select “Automatic
Installation” at all times unless only “Eyemax Client” is to be installed.
Steps:

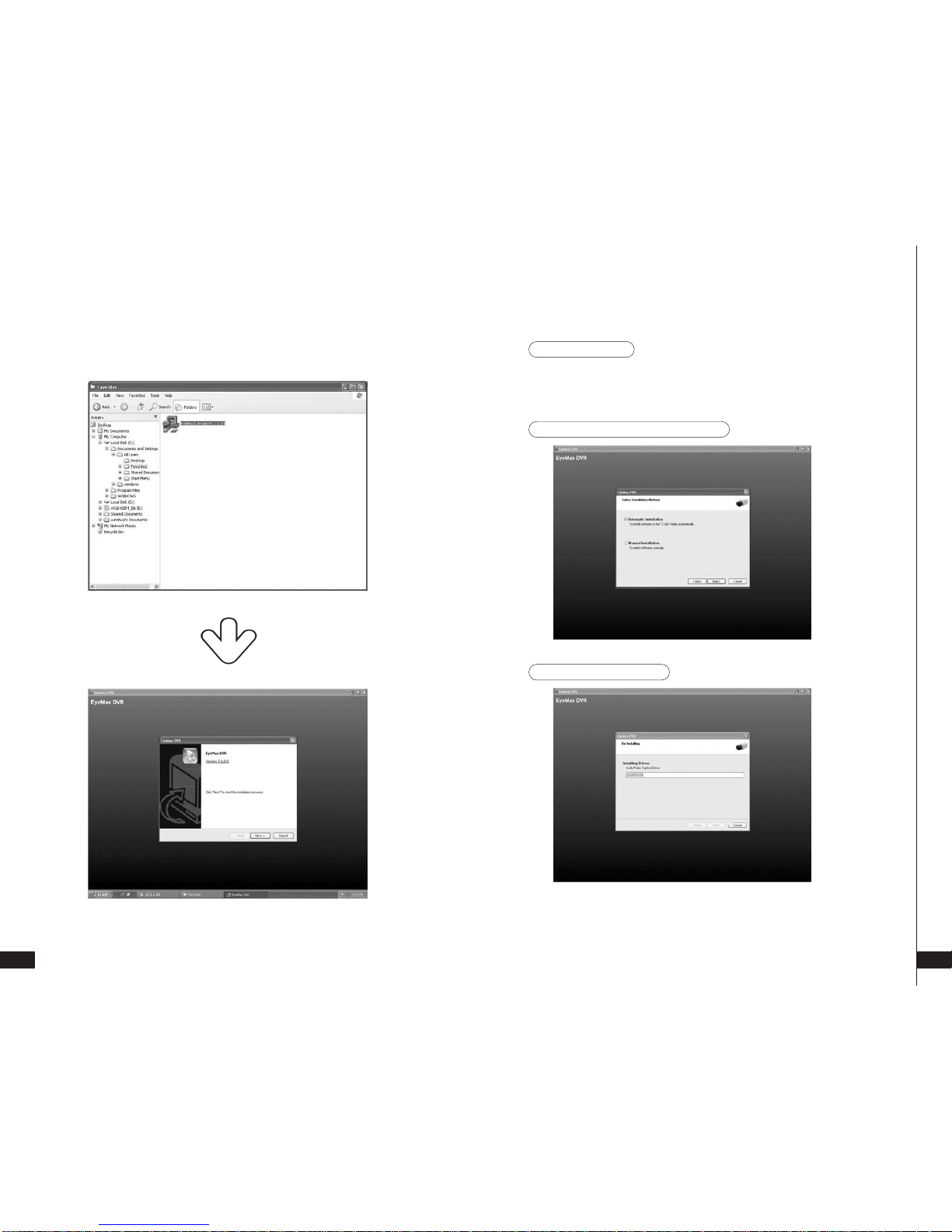

1. Insert Eyemax S/W.
2. Double-click “Eyemax. English(5.1.0.0).exe”. (1) Definition
(2) Installation Method Selection
(3) Installing Drivers
1. Automatic Installation

User’s Manual (5.1.0.0)11
Software
Installation
[
EyeMax
]
10
Definition:
Occupying disk capacity to record data
Steps:

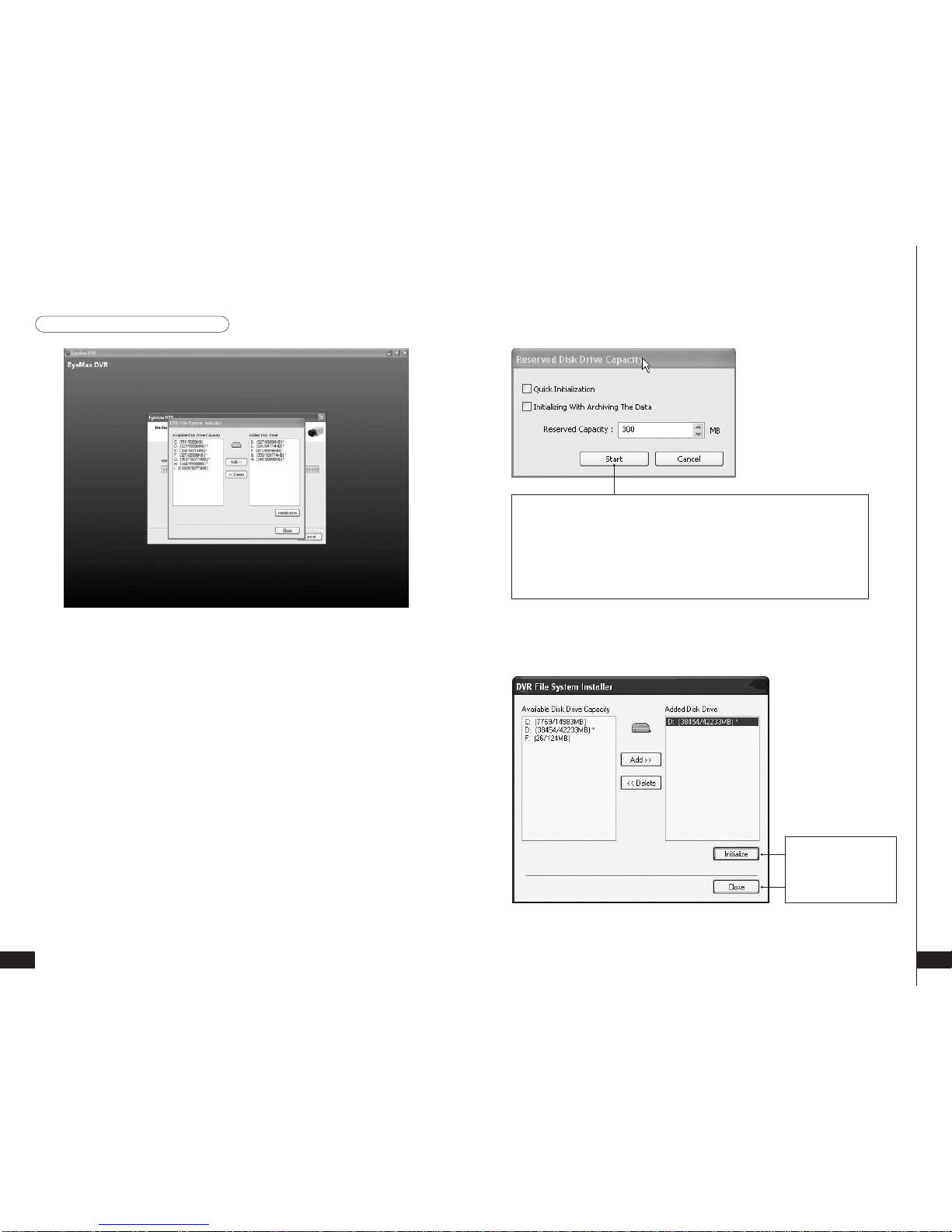

1. Select drives from “Available Disk Drive Capacity”
2. Click “Add”.
3. Click “Initialization”.
Caution:
1. Be very careful not to add “C Drive”, for it is used for O/S and the DVR softwares.
2. HDD has to be initialized to record data
(4) DVR File System Installation
Initialization process will
be performed
automatically.
Click “Close” upon
completion.
Selecting “Quick Initialization” will lead to the initialization of entire disk capacity
added. Otherwise, put in desirable number to initialize. Note that the number can
not exceed total capacity added.
Initializing With Archiving the Data: This is to increase DFS storage by taking
additional space from the current “Reserved Capacity”. So new value for
“Reserved Capacity” can not exceed the current one.
Minimum 300MB is recommended for DVR performance.

User’s Manual (5.1.0.0)13
Software
Installation
[
EyeMax
]
12

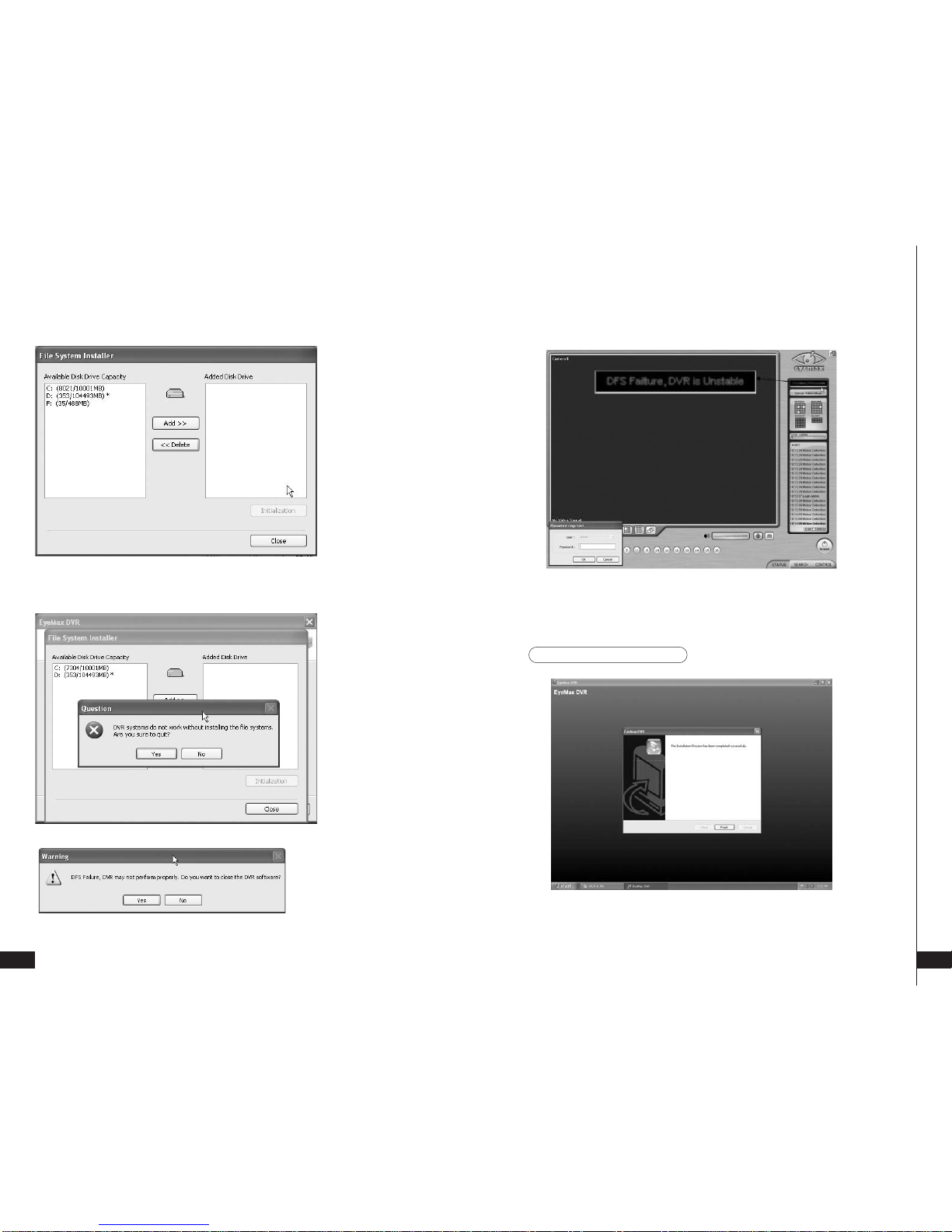

At least one of “available disk drive” must be added for data
storage. Otherwise, the alert message will pop up.
(5) Completion & Retry
Retry the entire procedure if an error message is displayed.

User’s Manual (5.1.0.0)15
Software
Installation
[
EyeMax
]
14
Note: The rest of the procedures are the same as “Automatic installation”.
(1) Definition
(3) Software Selection
(2) Installation Method Selection
It is a method to install selected softwares manually.
Select “Manual Installation” only in the case of “Eyemax Client” installation.
2. Manual Installation
(1) Using Eyemax S/W
3. Remote Client Installation
Double click
“Eyemax.english(5.1.0.0). exe”.
Select “Manual Installation”.
Select “Eyemax DVR
Client” only.

User’s Manual (5.1.0.0)17
Software
Installation
[
EyeMax
]
16
(2) Using Web Browser
1. Type in the IP address of DVR server.
2. Log in first before downloading Remote Client Program.

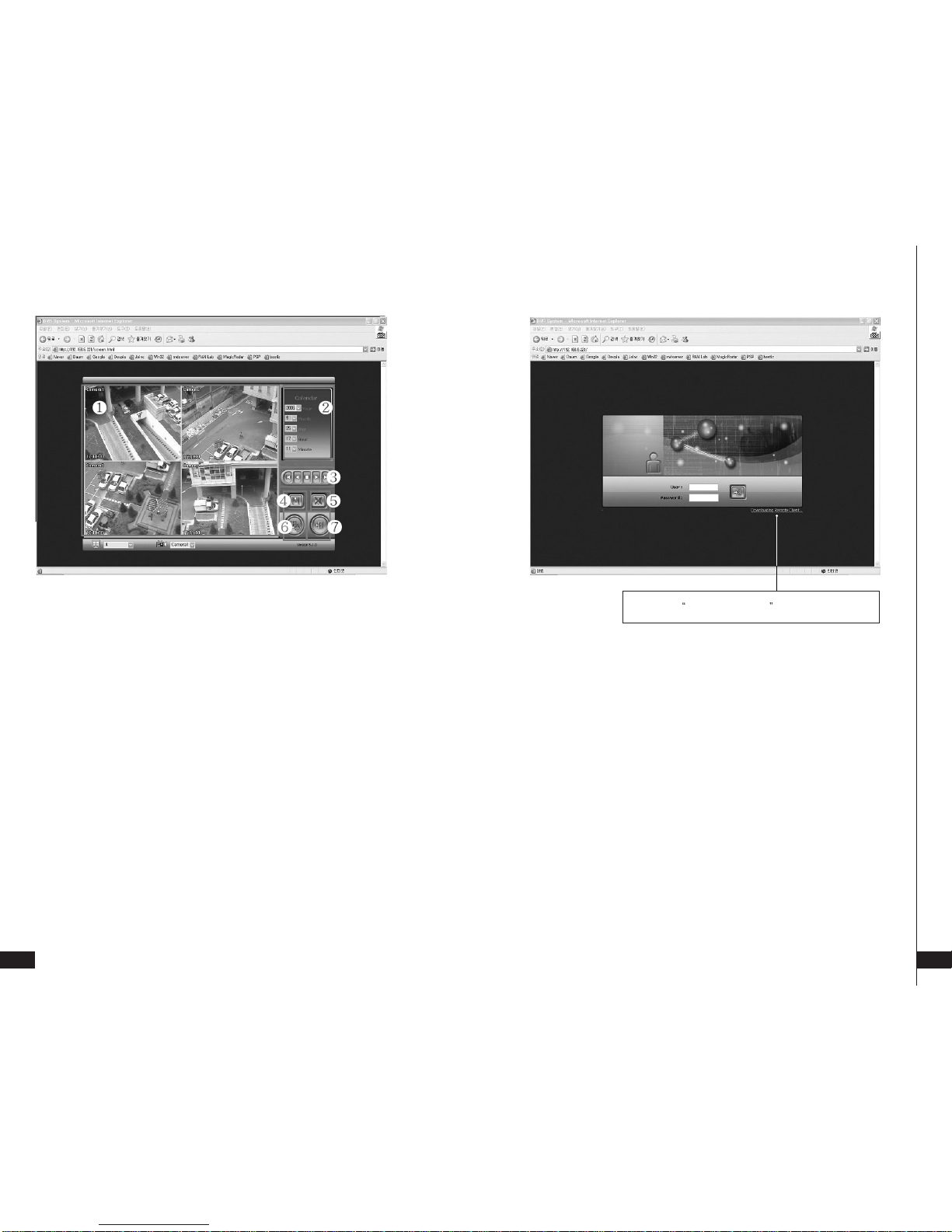

1. Live View
2. Screen splits and channel selection
3. PTZ control : Only users with proper authority to control PTZ remotely.
4. Advanced: Controlling preset, tour and E-map only for authorized users.
5. Speed: PTZ speed control
6. To save live image to JPEG
7. To listen Audio of a selected channel applied only for authorized user remotely
8. Mode change between Live and Search
9. Log In/Out or EXIT
10. Display web browser information.

User’s Manual (5.1.0.0)19
Software
Installation
[
EyeMax
]
18
1, Searched Image
2. Selection for image search
3. Play back(Fast back, Back, Stop, Play, Fast Play)
4. Save: AVI, JPEG, BMP
5. Audio
6.To change Tab to CONTROL
7.Log out and go back to LOG IN page
1. Click the Install Remote Client button for downloading

User’s Manual (5.1.0.0)21
Software
Installation
[
EyeMax
]
20
5. Program Execution

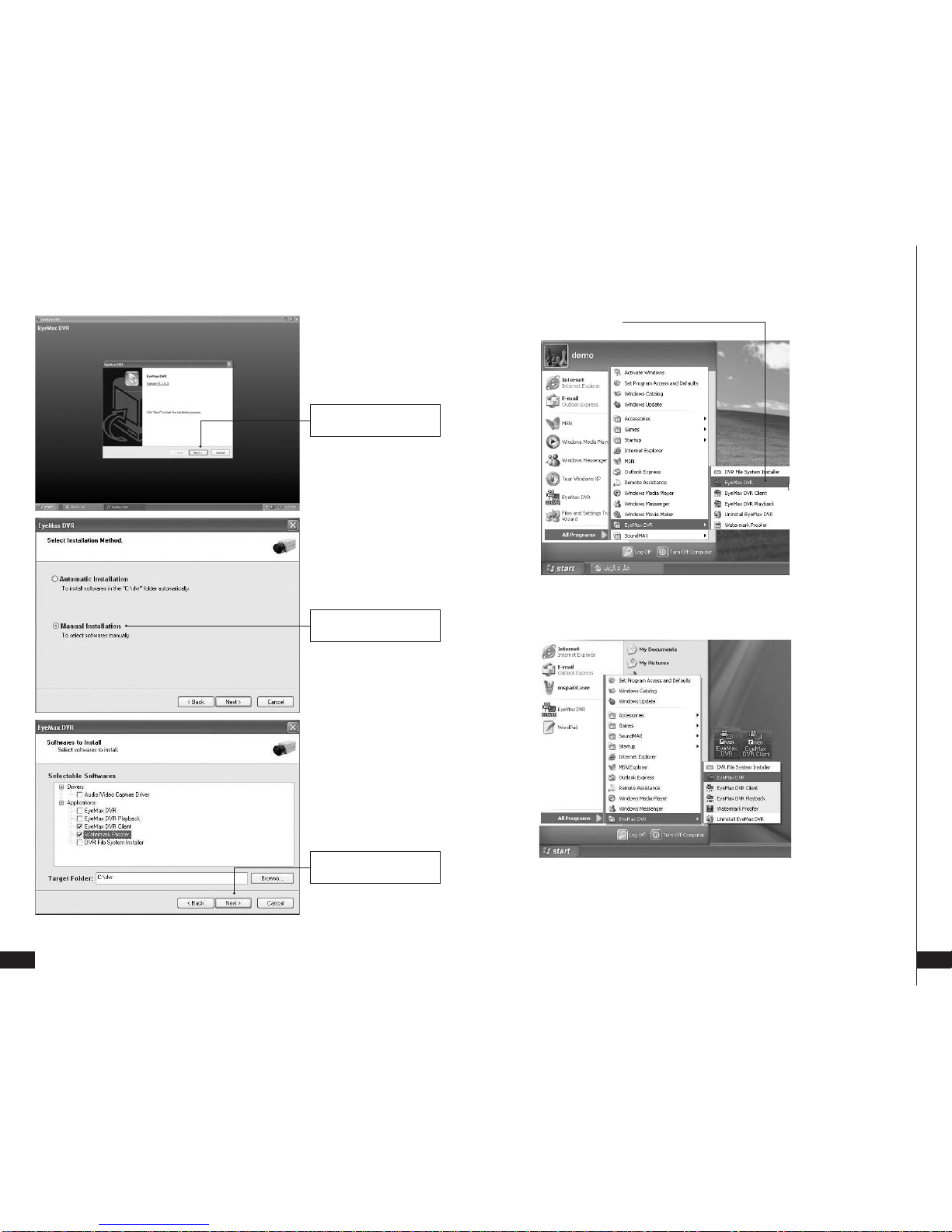

Find the icons on the desktop to execute “Eyemax DVR” and “Eyemax DVR Client”.
Or find “Eyemax DVR” under “All Programs”.
4. Uninstallation
4. Click “Next” to finish
Installation process.
3. Select “Manual Installation”.
2. Click “Next” to proceed.

Main System
Application
Chapter 2
>Startup Screen
>Login
>Exit/Logout
>SystemInformation
>Control Screen
>Setup(System/Device/Event/Schedule/Network/User)
EEyyeemmaaxx
9000 Series DVR

User’s Manual (5.1.0.0)25
Main System
Application(Control)
[
EyeMax
]
24

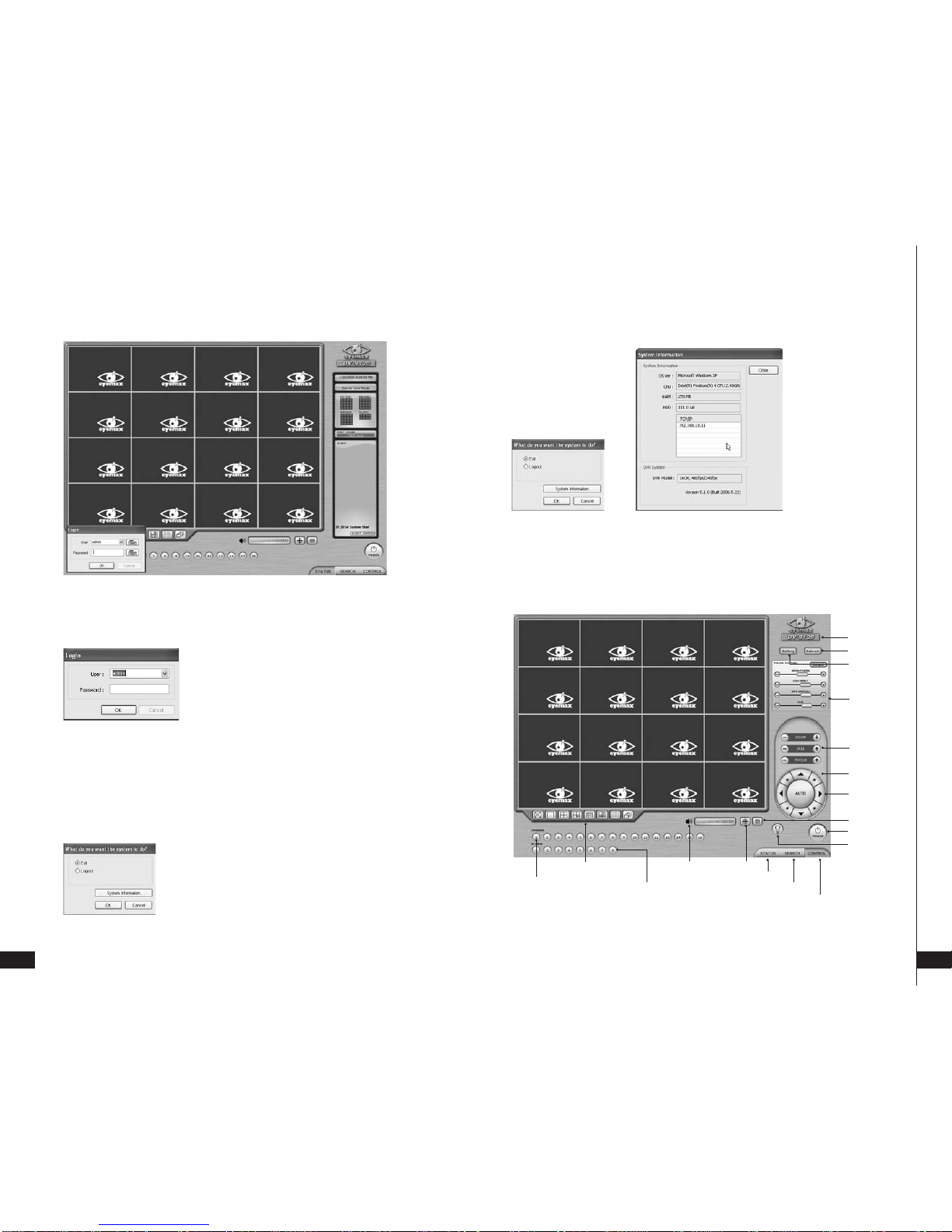

1. Startup Screen
3. Exit/Logout
To end Eyemax DVR system,
select “Exit” and type in password.
The above screen will appear as Eyemax DVR system starts.
2. Login
The default values for User and Password are “admin” and “no password”. Click “OK” to
execute Eyemax DVR system. To give “admin” a password and to create new users,
certain configurations are required(Setup/User). Only “admin” and users with appropriate
authorization have access to the Setup menu.
Note: Virtual keypad is available on the right top of GUI if needed.
5. Control Screen
4. System Information
Click on System Information to see DVR system information, such as OS version,
CPU, RAM, HDD, IP address, DVR model and DVR software
Search
Manual Output Panel Status
Camera Layout Panel
Control
Adjust
PTZ Control
Touring
Power
I-Phone
Light
Volume E-map
PTZ Adjustment
Model
Network
Setup
Camera Selection Panel

User’s Manual (5.1.0.0)27
Main System
Application(Control)
[
EyeMax
]
26
(1) System
6. Setup
DVR Information

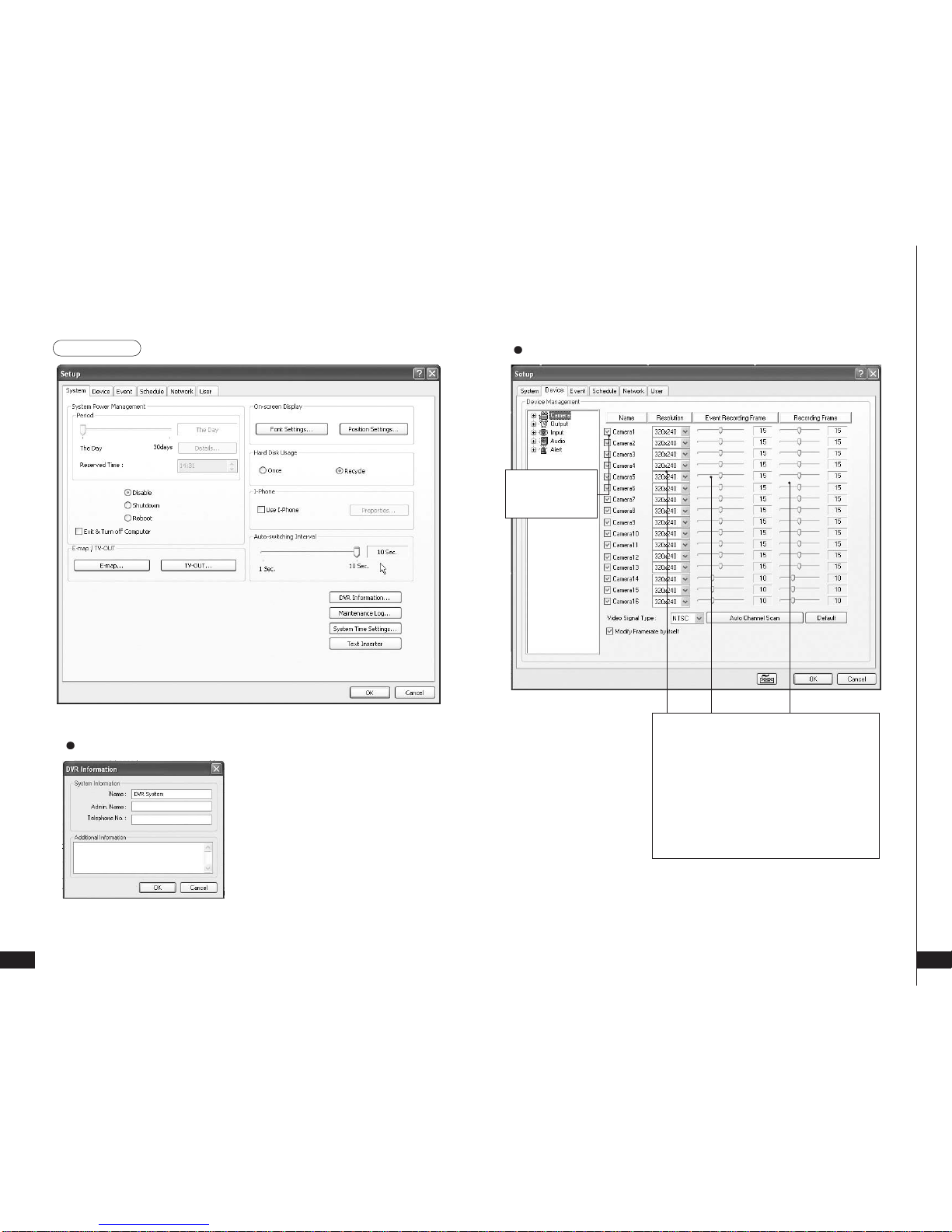

Create a DVR name and put in admin. info.
They will be displayed on outgoing e-mails.
Camera
Different resolutions and
recording frame rates can
be set up for different
cameras.
Cameras will be
enabled by
checking the boxes.
Video Signal Type:
Select either NTSC or PAL.
Auto Channel Scan:
It automatically identifies all the active video
channels. Make sure to always click and scan after
S/W version change.
Default:
It sets “Event Recording Frame” and “Recording
Frame” as default values.

User’s Manual (5.1.0.0)29
Main System
Application(Control)
[
EyeMax
]
28
System Power Management

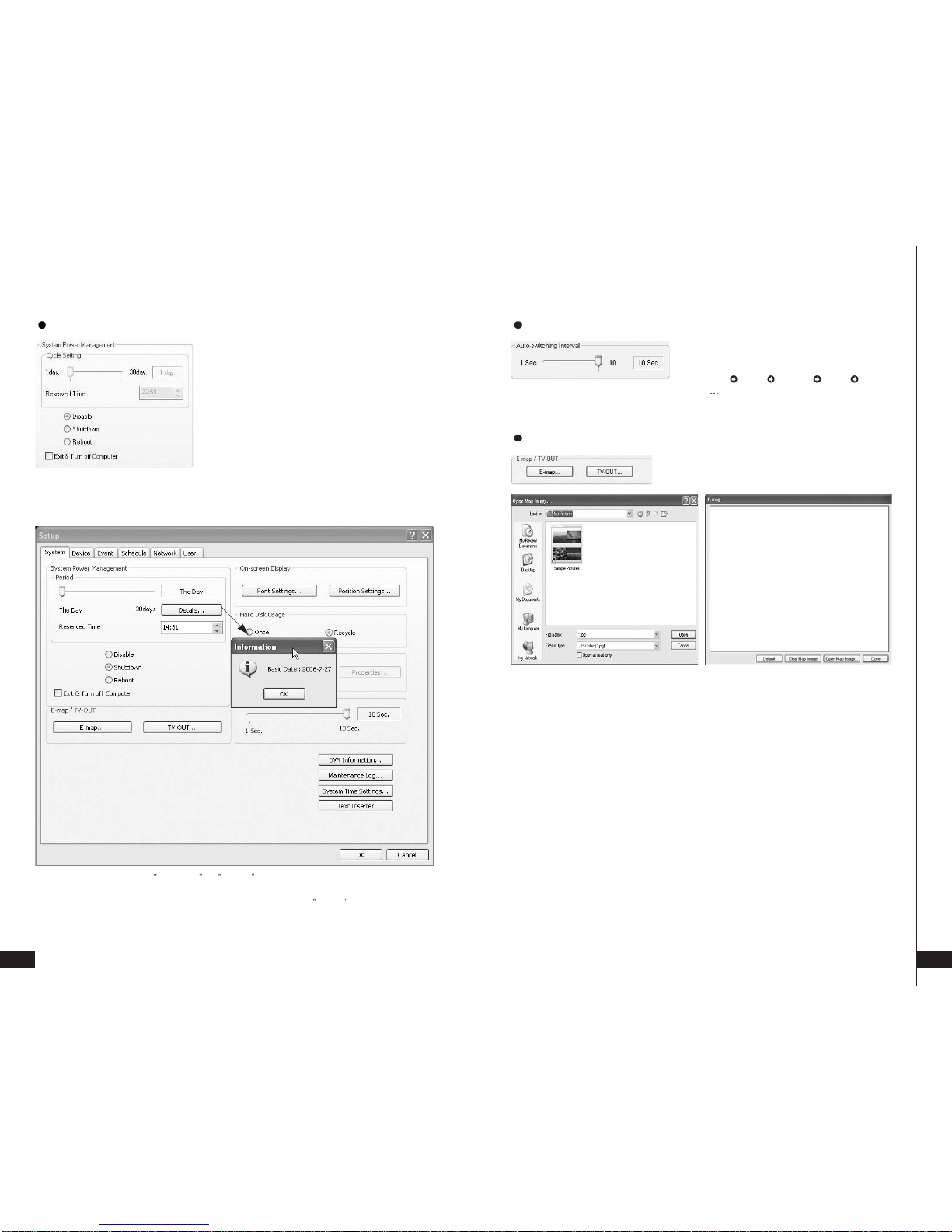

Details: First select either Shutdown or Reboot to enable Period.
For example in above picture,
7daysafterthebasicdate, system will shutdown automatically. Details shows the set date
and it will be the starting point.
Period : Select a day that DVR system reboots automatically by
the period.
Reserved time : Time set to shut down or to reboot DVR system
Disable : selected when System Power Management is not to
be used
Shutdown : selected when shutting down computer is required
at the time set
Reboot : selected when rebooting DVR system is required at
the time set
Exit & Turn off Computer : By checking this box, computer will
be turned off automatically as a user
exits from Eyemax DVR system.
Auto-switching Interval Auto-switching Interval is a function that allows
green square around selected camera to move to
the next one at the interval set.
e.g.) Camera1 10 sec. Camera2 10 sec.
Camera3 .
E-map
Click on the “E-map” button to design E-map.
Click on “Open Map Image” to select an E-map image.

User’s Manual (5.1.0.0)31
Main System
Application(Control)
[
EyeMax
]
30
The above is a designed E-map sample.
Drag mouse to position Camera/Input/Output and design E-map.

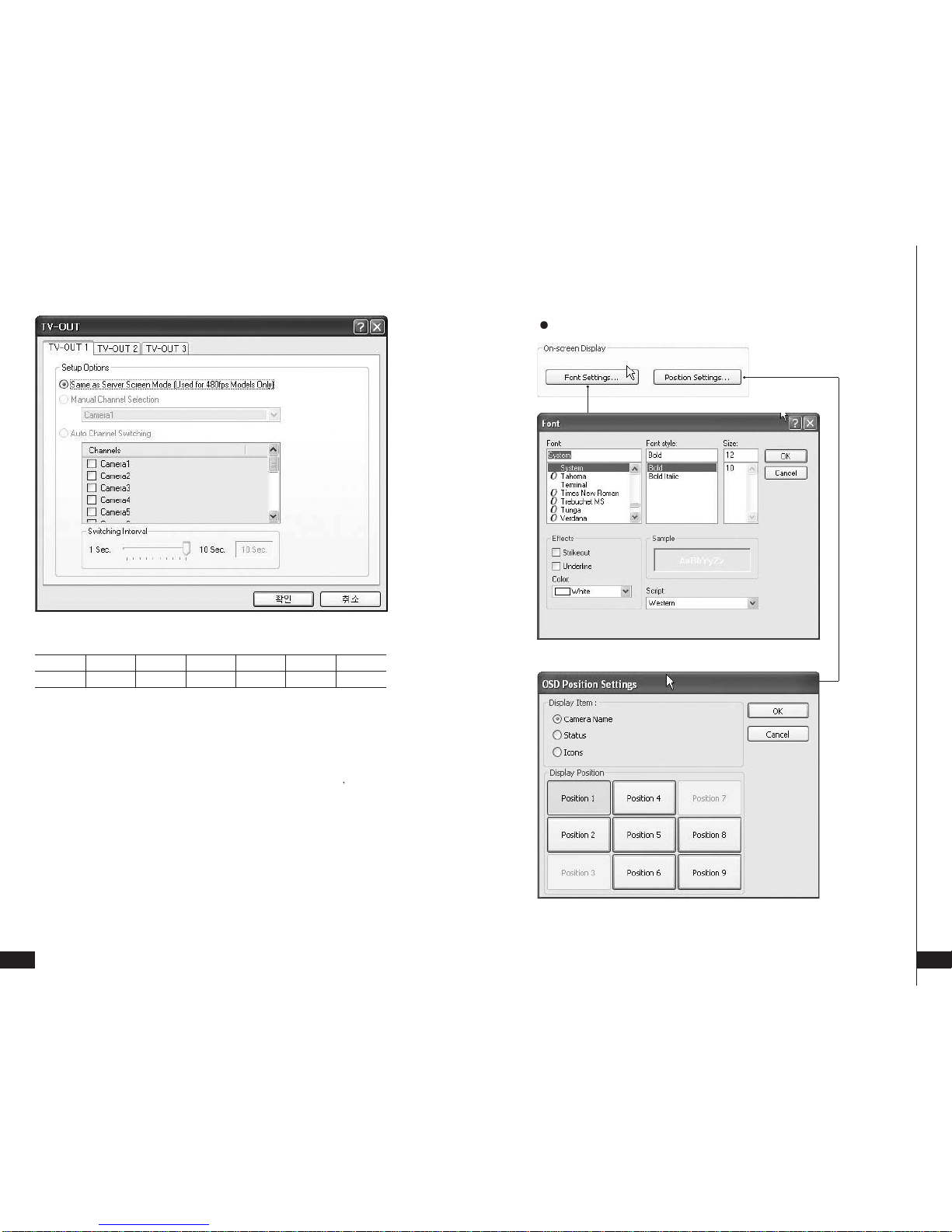

TV-OUT is a function that sends selected cameras to a call monitor
(external analog monitor). Click on the “TV-OUT” button for setup.
TV-OUT
Click on the E-map button positioned next to the I-phone button to open E-map.
White Camera : Not on Recording, Yellow Camera: On Recording,
White Input/White Output : Not Activated, Yellow Input/Yellow Output: Activated

User’s Manual (5.1.0.0)33
Main System
Application(Control)
[
EyeMax
]
32
The models such as 9240 (240FPS/240FPS) and 9480 (480FPS/120FPS) support 2
TV-OUTs. 9424 (480FPS/240FPS) support 3 TV-OUTs and the rest of the models
support 1.
Setup Options :
1. Same as Server Screen Mode
(For 9480(480FPS/120FPS) only) - TV-OUT Monitor displays whatsonDVR
server.
Manual Channel Selection - Channels are selected manually. Once “Manual
Channel Selection” is selected, channels can also be selected manually on
Control screen by placing mouse on camera picture and clicking the right mouse.
2. Auto Channel Switching - Selected channels rotate to display at the switching
interval set.
*Switching Interval: The length of time to stay at one camera
The Number of TV-out Supported
9030 9060 9120 9240 9480 9424 9448
1112231(2)
Font Settings: Font change on screen display.
Postion Setting: Position change on screen display.
On-screen Display

User’s Manual (5.1.0.0)35
Main System
Application(Control)
[
EyeMax
]
34
Note: One right mouse click can be a very useful tool. Manual TV-out and OSD setup
can be done. Additionally, instant recording can start by one click.
On a camera screen, you may click one right mouse to control OSD as belows.
Show Camera Names and Status :
By checking it, camera names and status will be displayed on camera pictures.
Show Motion Detection Blocks :
By checking it, green motion detection blocks will be displayed on camera pictures
when recording schedule is set as “M” (Setup/Schedule).
Show Object Detection Blocks :
By checking it, blue object detection blocks willbe displayed on camera pictures.

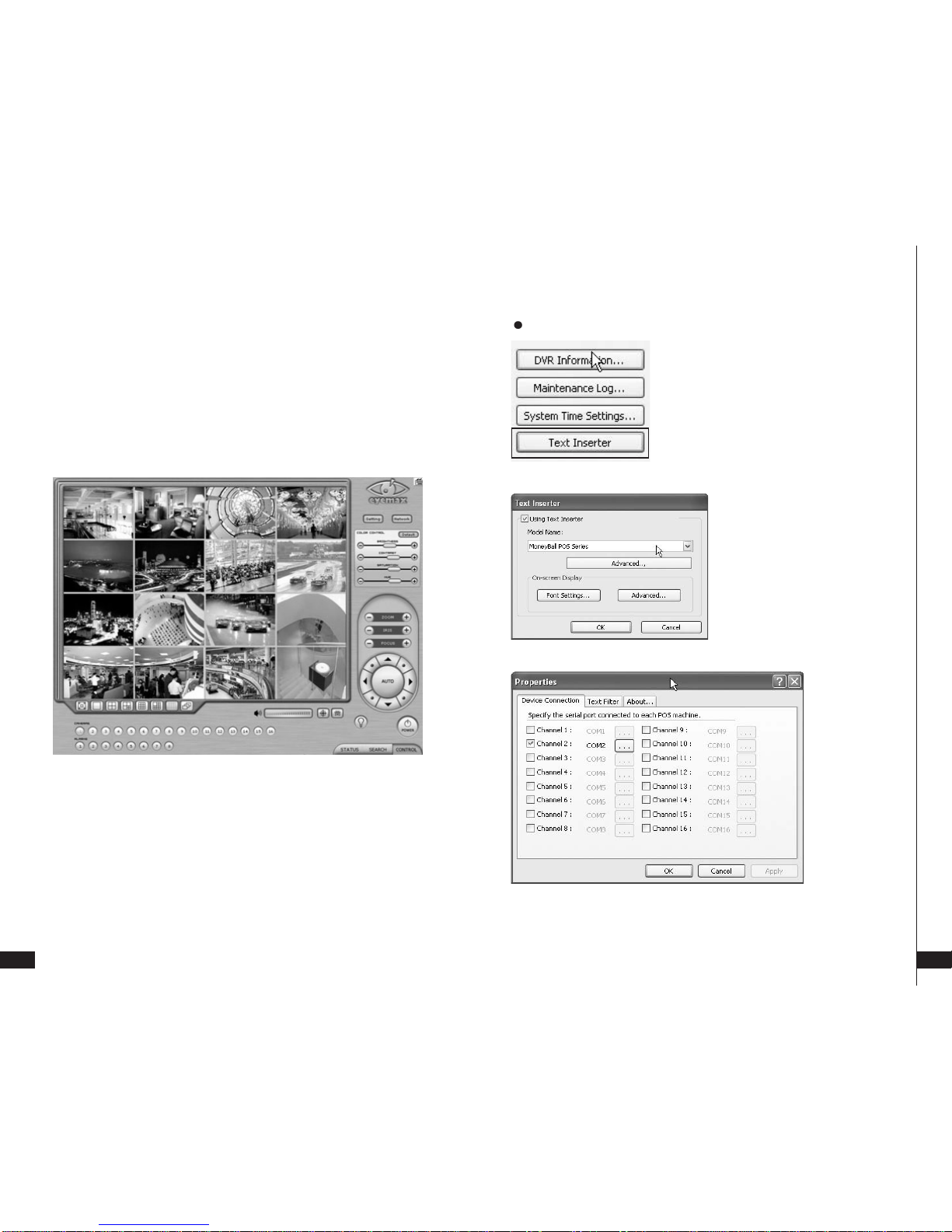

Text Inserter
Text Inserter is a function that allows Eyemax DVR
system to integrate with POS machines. Simply
select POS driver like selecting PTZ driver to
enable POS text inserter program and transactions
that occur will be displayed on selected camera
pictures. Transaction recording and text search are
possible as well.
For more detailed installation and information, refer
to Appendix 1.
Device Connection: Select camera(s) and a comport connected with POS system(s)
How to Set
1. Tick the “Using Text Inserter”
2. Choose a connected POS driver.
(POS driver is addable as PTZ protocol
adding.)
3. Click on Advanced to set hardware
feature.

User’s Manual (5.1.0.0)37
Main System
Application(Control)
[
EyeMax
]
36
Text Filter: Register important goods and useless text to display distinguishably and
search POS data conveniently.
Important goods items: Pre-registered items will be displayed in red characters.
Useless text: It is not going to be displayed during transaction.
About: Shows POS S/W version.
Font Settings:
Font change on screen
display.
Postion Setting:
Position change on screen
display.

User’s Manual (5.1.0.0)39
Main System
Application(Control)
[
EyeMax
]
38

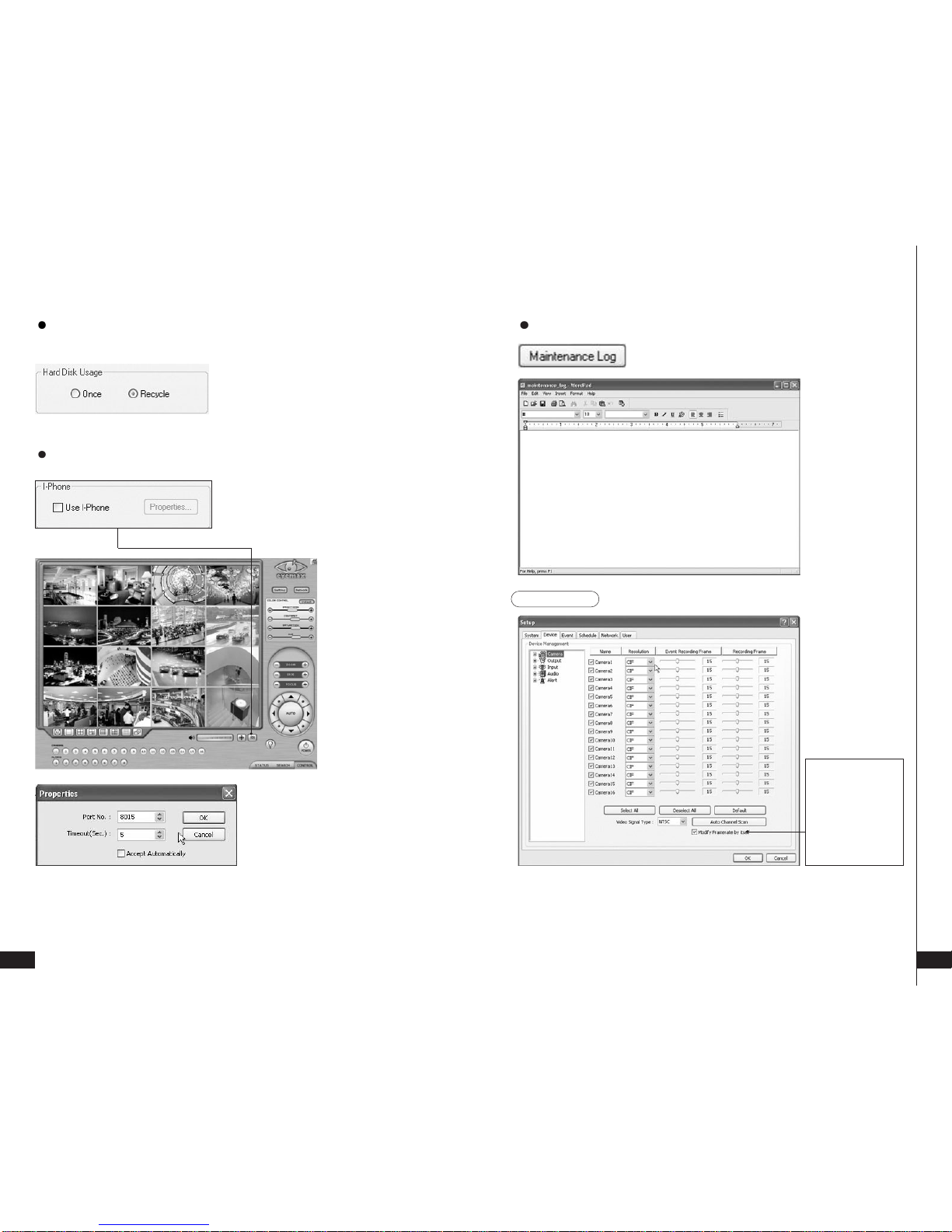

Hard Disk Usage
I-Phone
I-phone is “Two-Way Audio Communication”.
Check the box, go to Control Screen,
and click on the I-phone button for audio
communication. For more detailed
I-phone setup, refer to Appendix 2.
Port No.:
Aport number for I-phone use has to be set
up. Normally the default value is good to
use.
Timeout:
It indicates the maximum length of
connection trial. If there is no response within
the value set, call will be cancelled.
Accept Automatically:
To accept counter part’s IP-phone connection without checking a confirmation message.
Hard Disk Usage is to select data storage method.
If “Once” is selected, data will be stored up to the
point where HDD reaches its maximum capacity.
If “Recycle” is selected, data will be overwritten
from the point HDD reaches its maximum capacity
based on “First InFirstOut”.
Maintenance Log
It is used to record and view maintenance history.
(2) Device
Device sub-screen is divided into 5 different setup categories;
Camera, Output, Input, Audio and Alert.
All devices in each category can be set up on one same page.
Modify Framerate
itself:
By ticking it, DVR
software will
automatically
allocate proper
frames to channels.
