Intelligent pulse battery charger AP-800
INSTRUCTIONS FOR USE
Pulse battery charger AP–800
12V 0A, 24V 28A, 36V 19A, 48V 14A, 60V 11A, 72V 10A
CHARGER CHARACTERISTICS
-Charger that can "listen" to the chemistry of the battery
-Fast, smooth and battery friendly charging
-Battery itself determines charging current under supervision of Intelligent
microprocessor pulse charging system
-8 charging programs for different type of batteries
-There is no warming up effect, which reduces battery life at overcharge
- charging phase: bulk charge, absorption, equalization, float charge
-Regenerate cells majorly, when they were charged improperly- Battery
desulfati ation effect
-Pulse-charging prolong the battery life
-Safe against short-circuit
-Safe against wrong polarity by connecting battery on the charger
-Automatic battery detector (yellow LED)
-Precise charging indicator (green LED)
-Simple signaling of green, red, yellow LED and acoustic bu er
-"Burst Charge" button for completely discharged battery
-Working temperature range from 0º to 35ºC
-Charging is independent of oscillations in the supply voltage (PWM technology)
-Desktop or mounting version.
1

Intelligent pulse battery charger AP-800
CHARGER OVERVIEW (MOUNTING VERSION)
DESKTOP VERSION (OPTION)
2

Intelligent pulse battery charger AP-800
HOW TO USE THE BATTERY CHARGER AP-800
The battery charger is designed to charge only 12V, 24V, 36V, 48V, 60V or 72V
lead (Pb) batteries, depending on the type of charger. Check if the charger and
battery have the same voltage!
Plug the charger (230Vac cable) into the mains.
Switch on the main supply switcher (POWER) on back of the charger.
The device responds with a short beep and all three LED blinks briefly, the
charger is ready to charge.
BLACK on – poll of the battery
RED on + poll of the battery
At correct connection device short beeps and the yellow LED starts blinking.
The battery is charging.
When the battery is full, GREEN LED indicator lights on.
Tip: The battery is fully charged only a few hours after the green LED light is on.
You can use the battery immediately after the green LED flashes when the
charge is up to 90%, but it is recommended at least 1x per month to leave the
battery on the charger to be fully charged.
Warning: If the battery is properly connected and all three LED blinks, but the charger does
not charge, then the battery is over-discharged. Press the "BURST" button on the
front panel of the charger to activate forced charging (instruction- page 6).
LEGEND OF LED SIGNALS WHILE CHARGING THE BATTERY
LED LED activity Charge phase battery
charge level
RED, YELLOW, GREEN short blink all LEDs charger is ready (Ready) /
YELLOW blinks bulk charge (Bulk) < 65%
YELLOW continuously lit absorption I charge (Abso1) 65..75%
GREEN blinks absorption II charge (Abso2) 75..90%
GREEN 2x fast blink equali ation charge (Equal) 90..95%
GREEN continuously lit float charge (Float) >95%
RED continuously lit temperature off (Error) /
3

Intelligent pulse battery charger AP-800
CHARGING PROGRAMS
"UNIVERSAL" universal program, used for unrecognized types of batteries
"STANDARD" standard Pd program, used for older types of Pb batteries
"CaCaWET" Pb Ca/Ca program, is used for starting maintenance free batteries
"AGM" Pb with acid swab, used for hermetic AGM batteries
"GEL" Pb GEL electrolyte program, used for hermetic GEL batteries
"LeadCry" Crystal Pb LC (SIPBE) program, used to lead Si crystal battery
"TRACTION" Pb Traction program, used for Traction Lead with liquid electrolyte
SELECTING CHARGING PROGRAM DEPENDS ON THE BATTERY TYPE
To set the correct charging program it is necessary to remove the cover.
There are 4 screws on both sides. Unscrew them. Before that switch off the
charger from the mains or off the main switch. Disconnect the battery from the
charger and wait for all LED on the front panel to turn off. We can choose
between 8 types of lead acid batteries. With the jumper JP1 and JP2 and JP3 set
the program. The choice depends on the battery type.
JP3 JP2 JP1 Tip baterije
open (0) open (0) open (0) Universal program (UNIVERSAL)
open (0) open (0) connect (1) Standard Pb program (STANDARD)
open (0) connect (1) open(0) Pb Ca/Ca program (CaCaWET)
open (0) connect (1) connect (1) Pb with acid swab program (AGM)
connect (1) open (0) open (0) Pb GEL electrolyte program (GEL)
connect (1) open (0) connect (1) Cristal Pb LC p. (Lead cristal) >100Ah
connect (1) connect (1) open (0) Cristal Pb LC p. (Lead cristal) <100Ah
connect (1) connect (1) connect (1) Pb Traction program (TRA)
DESCRIPTION OF CHARGE PHASE
Charge phase: Description:
Bulk BULK CHARGE Charges the battery up to 65%, delivering a lot of energy to
the battery in a short time.
Abso 1 ABSORPTION I The charge is slowed down so that the battery absorbs more
energy. The battery reaches 65..75% of the capacity.
Abso 2 ABSORPTION II Charge current is gradually reduced.
The battery reaches 75..85% of the capacity.
Equal EQUALIZATION At this phase, levels between different filled cells are
equali ed. The battery reaches 90..95% of the capacity.
Float FLOAT CHARGE Keeps the battery at 100% of the capacity without causing
damage to the battery. Also, can not over-charge the battery.
4

Intelligent pulse battery charger AP-800
CHARGING VOLTAGE RELATING TO CHARGE PHASE
The table below shows the charging voltage per cell in the battery. The
charging voltage per cell are indicated for each charging profile or for each type
of battery and charging phase.
(Bulk)
V/cel
(Absorption I)
V/cel
(Absorpion II)
V/cel
(Equalization)
V/cel
(Float)
V/cel
Universal 1.. 2,355 2,430 2,397 /2,20..2,30
Standard 1.. 2,355 2,460 2,410 2,490 2,25..2,30
Ca/Ca WET 1.. 2,355 2,600 2,550 2,660 2,25..2,30
AGM 1.. 2,355 2,470 2,450 2,510 2,25..2,38
GEL 1.. 2,355 2,400 2,380 /2,25..2,30
Lead crystal 1.. 2,355 2,460 2,380 /2,316..2,325
Traction 1.. 2,355 2,580 2,400 2,630 2,28..2,32

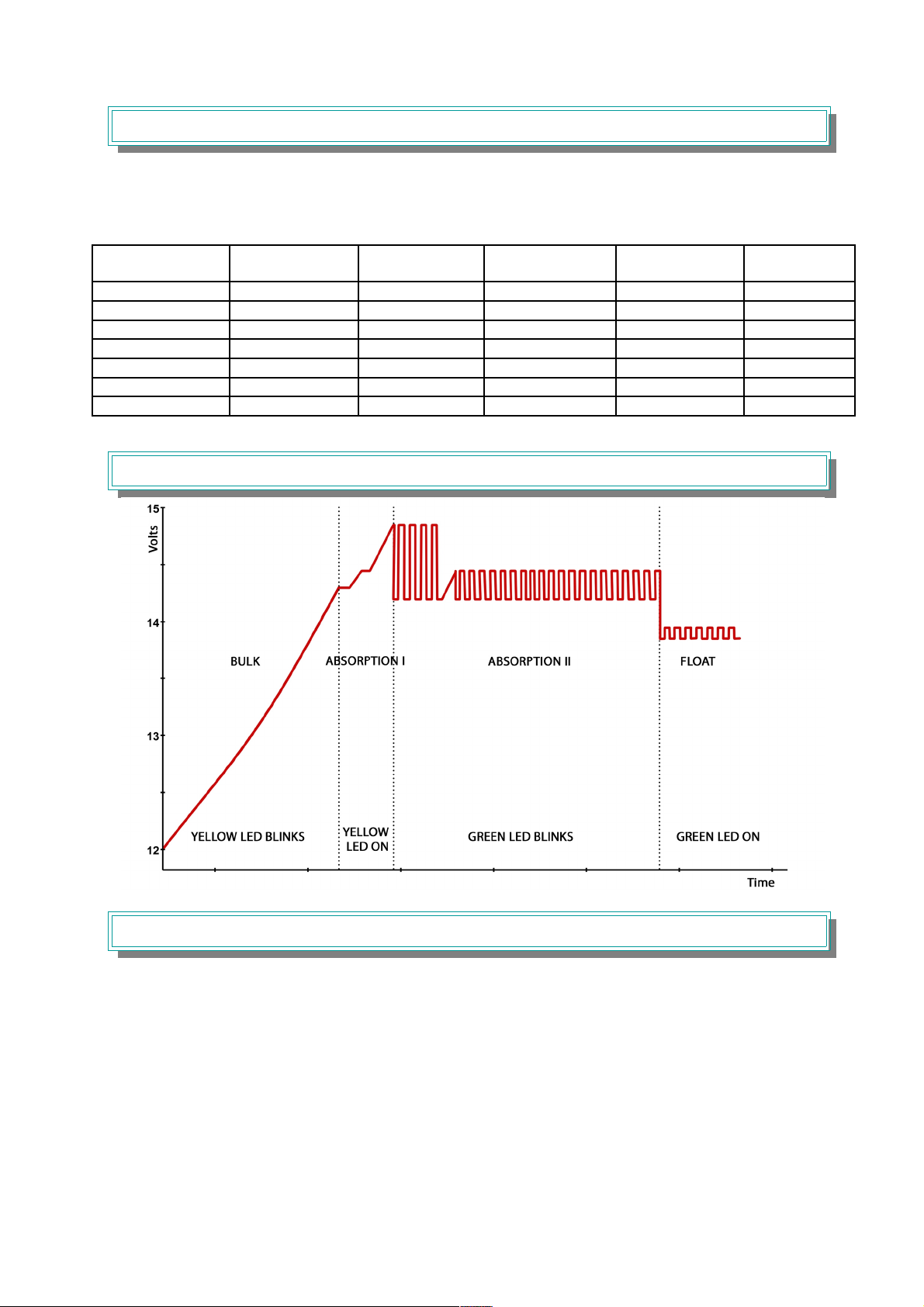

CHARGING DIAGRAM
DESCRIPTION OF THE PULSE BATTERY CHARGING TECHNOLOGY
Pulse charging system is electrode specific charging system; it is new technology of
battery charging. It presents a small revolution on this area, because the results in
practice are drastically better. With this technology is possible very fast and very
precise charging, because only electrochemical condition of battery "dictates" the
charging phase and charging current, which is momentarily correctly for the battery.
When charging with pulse charger AP-800, does not come to the gasification of
the electrolyte and heating up, that destroys (breaks) cell lead-acid batteries. So as a
result, pulse charging majorly prolong battery life and shortens the charging time.
Your experience with this charging method please send to info@eyra elektronika.si.
5

Intelligent pulse battery charger AP-800
HOW AND WHEN TO USE THE BURST CHARGING
When charging an overdischarged battery which has a voltage below 6V (at
12V charger), the system does not start charging, even though the charger is
properly connected. In this case, press the "BURST" button on the front panel of
the charger to activate forced charging with the single-pulse. If necessary, press
the button several times, up to 100x, until a short beep is heard and a voltage of
6V is reached at 12V charger (For the other chargers, see table below). From then on the
system automatically starts charging.
Charger model: AP-800 12V AP-800 24V AP-800 36V AP-800 48V AP-800 60V AP-800 72V
Start charge at: 6V 12V 18V 2 V 30V 36V
OPERATIONAL PROBLEMS
Error Cause Solution
The charger is connected to the mains,
power switch is ON. LED not flashing.
there is no able mains voltage 230Vac ensure supply voltage
230Vac
Battery is connected but the charger is not
charging, all LED blinking.
to low voltage on the battery (Over
discharged battery)
press BURST button
Red LED is on. devices has overheated due to high
ambient temperatures
fan error
decrease temp. of
environment
service intervention
clean up fan
WARNING!
•The charger is designed for indoor use (do not expose the charger to rain).
•Charger AP800 8V/1 A can not use unauthorized person!
•During charging ensure adequate ventilation!
•Never hold with hand red and black crocodile + and – and push BURST
button!
•We recommend disconnecting the battery from the car if the CaCaWET or
Traction charging program is used.
•The charger AP-800 has a built-in security feature that prevents the automatic
charging start if charger detects an over-discharged battery. Over-discharged
battery could be in damage. Therefore, the charger will start only if you press
the »Burst button« Sometimes it is necessary to press it several times, up to
100x, until a voltage of 6V is reached at 12V charger (For the other chargers,
see technical data), then the system automatically starts charging. From this
moment on, the user is obliged to control the charging of batteries.
Because in case of a defect on the battery, it can overheat, begin to gasify
and in extreme cases may happen an explosion and /or a fire.
6

Intelligent pulse battery charger AP-800
TECHNICAL DATA OF THE CHARGER
Model AP 800 12V 50A AP 800 24V 28A AP 800 36V 19A AP 800 48V 14A
Output
Bulk charge voltage 14,6V yellow LED 29,2V yellow LED 43,8V yellow LED 58,4V yellow LED
Float charge voltage 13,7V green LED 27,4V green LED 41,1V green LED 54,8V green LED
Pulse current eff 50A 28A 19A 14A
Battery capacity 50Ah (min) 25Ah (min) 20Ah (min) 15Ah (min)
Battery type GEL, AGM, CaCaWET, traction, universal, standard, Lead crystal
Charging mode intelligent pulse charging, 20Hz
Charge phases bulk / absorption I / absorption II / equalization float
Input
Mains voltage 185V 265Vac
Mains frequency 40 65 Hz
Power factor > 0,95 at all volt. range, active PFC
Efficiency 91% 92% 93% 94%
Input current 8.5Aeff at 105Vac, 5Aeff at 180Vac, 4Aeff at 230Vac
Inrush current cold start 23A
Leakage current < 3,5mA / 240Vac, class l
Protect
Short circuit save, no voltage on output if battery is no connect
Start charge at 6V 12V 18V 24V
Reverse polarity save, active protect, acoustic buzzer active, Error on LCD
Over temperature automatically disconnect charge current and red LED is active
Cooling active with fan, 5 speeds
Environment
working temperature 0 35 C
IP protect IP20
Temperature
compensation
+2mV/C /cel, if temp < 15°C and 2mV/°C/cel, if temp > 25°C,
for SiPb battery: +4mV/C/cel, if temp<15°C and 4mV/°C/cel., if temp >25°C
Other
Weight 4kg
Dimensions 350 x 170 x 100 mm (L x W x H)
Signals red, yellow, green LEDs & buzzer sound
Use area nautics, industry, workroom, labs, el. vehicle, el. scooter, el. vessels, car service...
Assembling desktop or wall mounting
Model AP 800 60V 11A AP 800 72V 10A
Output
Bulk charge voltage 73V yellow LED 87,6V yellow LED
Float charge voltage 68V green LED 81,7V green LED
Pulse current eff 11A 10A
Battery capacity 15Ah (min) 10Ah (min)
Battery type GEL, AGM, CaCaWET, traction, universal, standard, Lead crystal
Charging mode intelligent pulse charging, 20Hz
Charge phases bulk / absorption I / absorption II / equalization float
Input
Mains voltage 185V 265Vac
Mains frequency 40 65 Hz
Power factor > 0,95 at all volt. range, active PFC
Efficiency 94,00% 94,00%
Input current 8.5Aeff at 105Vac, 5Aeff at 180Vac, 4Aeff at 230Vac
Inrush current cold start 23A
Leakage current < 3,5mA / 240Vac, class l
Protect
Short circuit save, no voltage on output if battery is no connect
Start charge at 30V 36V
Reverse polarity save, active protect, acoustic buzzer active, error on LCD
Over temperature automatically disconnect charge current and red LED is active
Coolinga active with fan, 5 speeds
Environment
working temperature 0 35 C
IP protect IP20
Temperature
compensation
+2mV/C /cel, if temp < 15°C and 2mV/°C/cel, if temp > 25°C,
for SiPb battery: +4mV/C/cel, if temp<15°C and 4mV/°C/cel., if temp >25°C
Other
Weight 4kg
Dimensions 350 x 170 x 100 mm (L x W x H)
Signals red, yellow, green LEDs & buzzer sound
Use area nautics, industry, workroom, labs, el. vehicle, el. scooter, el. vessels, car service...
Assembling desktop or wall mounting
7

Intelligent pulse battery charger AP-800
SERVICE AND GUARANTEE
Eyra elektronika d.o.o.
Gabrje pri Stični 45
SI 1295 Ivančna Gorica
Slovenia
Tel.++386 (0)1 7869 037 Fax++386 (0)1 7869 038
e mail: info@eyra elektronika.si http://www.eyra elektronika.si
GUARANTEE STATEMENT
Guarantee conditions:
1. The guarantee is valid for 2 months from the date of sale.
2. The guarantee repairs are carried out exclusively by an authorized service center.
3. The guarantee applies only to the charger, and not to any other device connected to this module.
. The guarantee and liability does not include any fees, postal costs, damages and any costs related
to the failure of this device.
5. The guarantee does not apply to batteries, mechanical damage or lightning strikes.
6. The guarantee does not apply if the device was mounted or used in violation of the instructions.
7. The guarantee does not apply if an unauthorized person interferes with the device.
8. If, during the guarantee period the device is not repaired within 5 days from the date of receipt in
our service center, we are obliged to replace it with a new one.
9. The guarantee period shall be extended for the period of repair.
10. The original invoice must be submitted for the enforcement of the guarantee.
seller :
company:
------------------------------------------------------------------------------------------------------------------------
name and surname of the seller:
-------------------------------------------------------------------------------------------------------------------------
signature of the seller:
-------------------------------------------------------------------------------------------------------------------------
date of sale:
------------------------------------------------------------------------------------------------------------------------
stamp:
8
