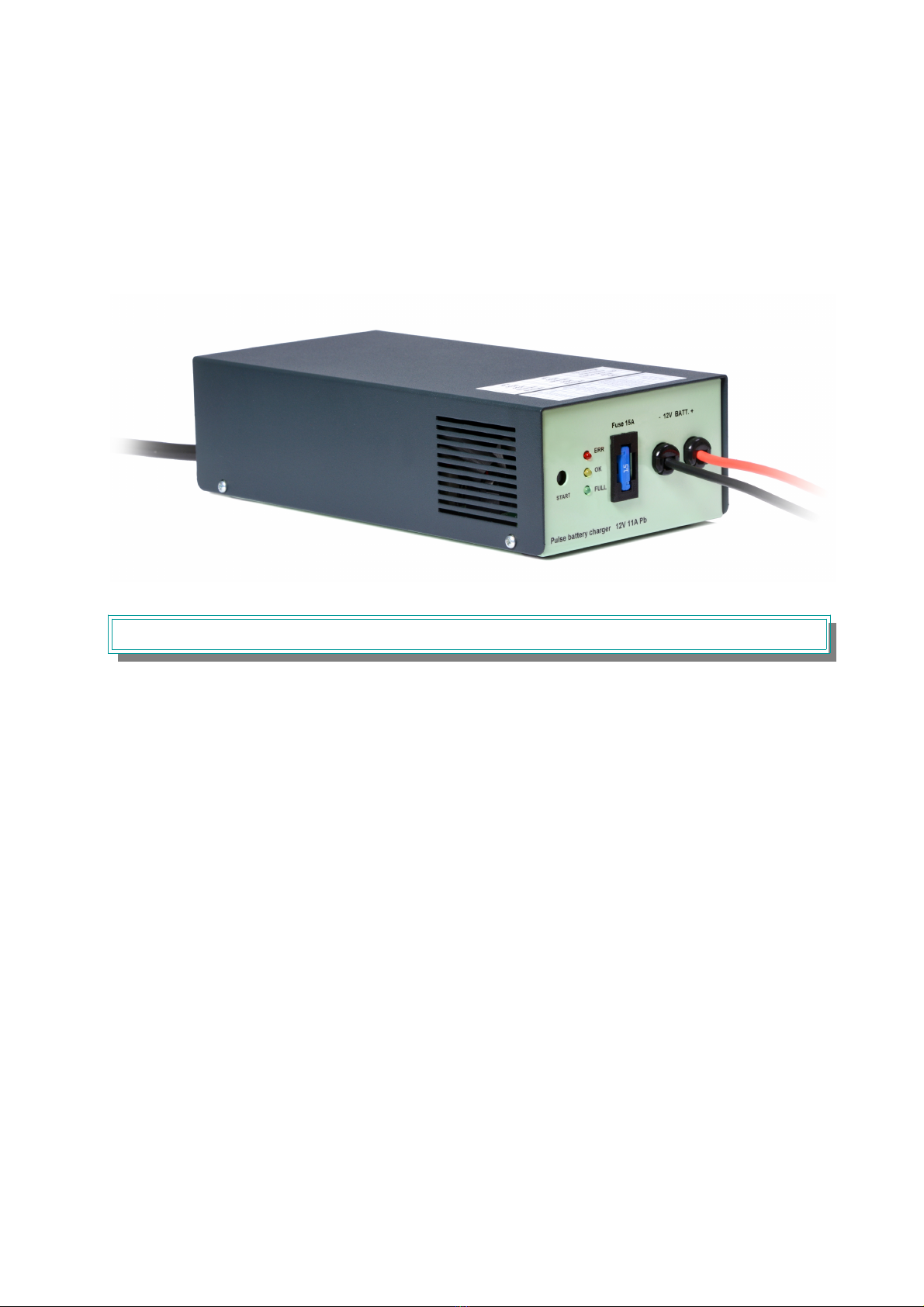

Eyra AP–180 User manual

Intelligent pulse battery charger AP-180
INSTRUCTIONS FOR USE
Pulse battery charger AP–180
12V 12A 24V 6A 36V 3 6A 48V 3A 60V 2 5A
CHARGER CHARACTERISTICS
-Pulsed charge current
-Charger that can "listen" to the chemistry of the battery
-Fast, smooth and battery friendly charging
-Battery determines charging current by itself under supervision of Intelligent
microprocessor pulse charging system
- charging programs, STA (standard), AGM, GEL, CaCaWET starter battery
-There is no warming up effect, which reduces battery life at overcharge
- charging phase: bulk charge, absorption, equalization, float charge
-Regenerate cells ma orly, when they were charged improperly - Battery
desulfatization effect
-Pulse-charging prolong the battery life.
-Safe against short-circuit
-Precise full charge indicator (green LED)
-Working temperature range from 0º to +35ºC
-Charging is independent of oscillations in the supply voltage (PWM
technology)
-START button for completely discharged battery
1

Intelligent pulse battery charger AP-180

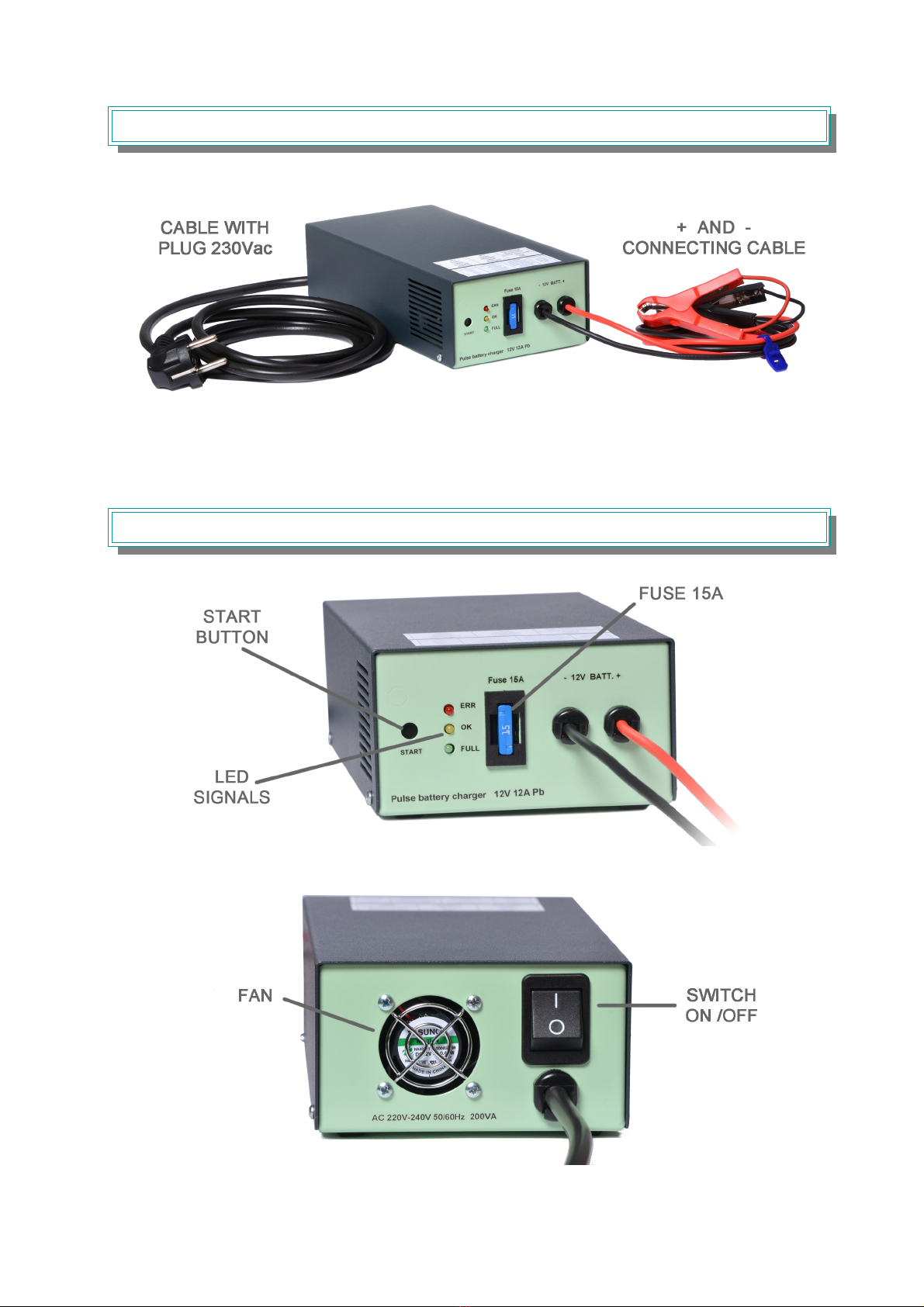

CHARGER PARTS
CHARGER OVERVIEW
2

Intelligent pulse battery charger AP-180
INSTRUCTIONS FOR CONNECTING THE CHARGER WITH BATTERY
Battery charger AP-180 is suitable for charging only lead (Pb) batteries from all
together capacity of min. 6Ah (at 12V charger). Maximum capacity of charged battery is
not limited. Battery charger is for (we recommend that the charging time is not too long)
battery systems up to 200Ah total capacity. Check if charger and battery have the
same voltage!
Charger model: AP-180 12V AP-180 24V AP-180 36V AP-180 48V AP-180 60V
Minimum battery capacity: 6Ah 3Ah 2Ah 1Ah 1Ah
Plug the charger (230Vac cable) into the mains.
Switch on the main supply switcher (POWE ) on back of the charger.
All three LEDs flash briefly, the charger is ready to charge.
BLACK on – poll of the battery
RED on + poll of the battery
At correct connection YELLOW LED indicator lights on. The battery is charging.
When the battery is full, G EEN LED indicator lights on.
If the charger does not activate by flashing a yellow LED:
Battery voltage is too low (fully discharged battery) - Press START button for
forced charging.
The front panel fuse is burn. The fuse on the front panel should be only 15A (for
the 12V charger, for the rest of chargers, see the table below).
Charger model: AP-180 12V AP-180 24V AP-180 36V AP-180 48V AP-180 60V
Front panel fuse: 15A 10A 7,5A 5A 5A
LEGEND OF LED SIGNALS WHILE CHARGING THE BATTERY
LED LED activity Charge phase battery charge
level
RED YELLOW GREEN short blink all LEDs charger is ready /
YELLOW blinks bulk charge (Bulk) < 65%
YELLOW continuously lit absorption I charge (Abso1) 65%...75%
GREEN blinks absorption II charge (Abso2) 75%...85%
GREEN 2x fast blink equalization charge (Equal) 85%...90%
GREEN continuously lit float charge (Float) >90%
RED continuously lit temperature off (Error) /
3

Intelligent pulse battery charger AP-180

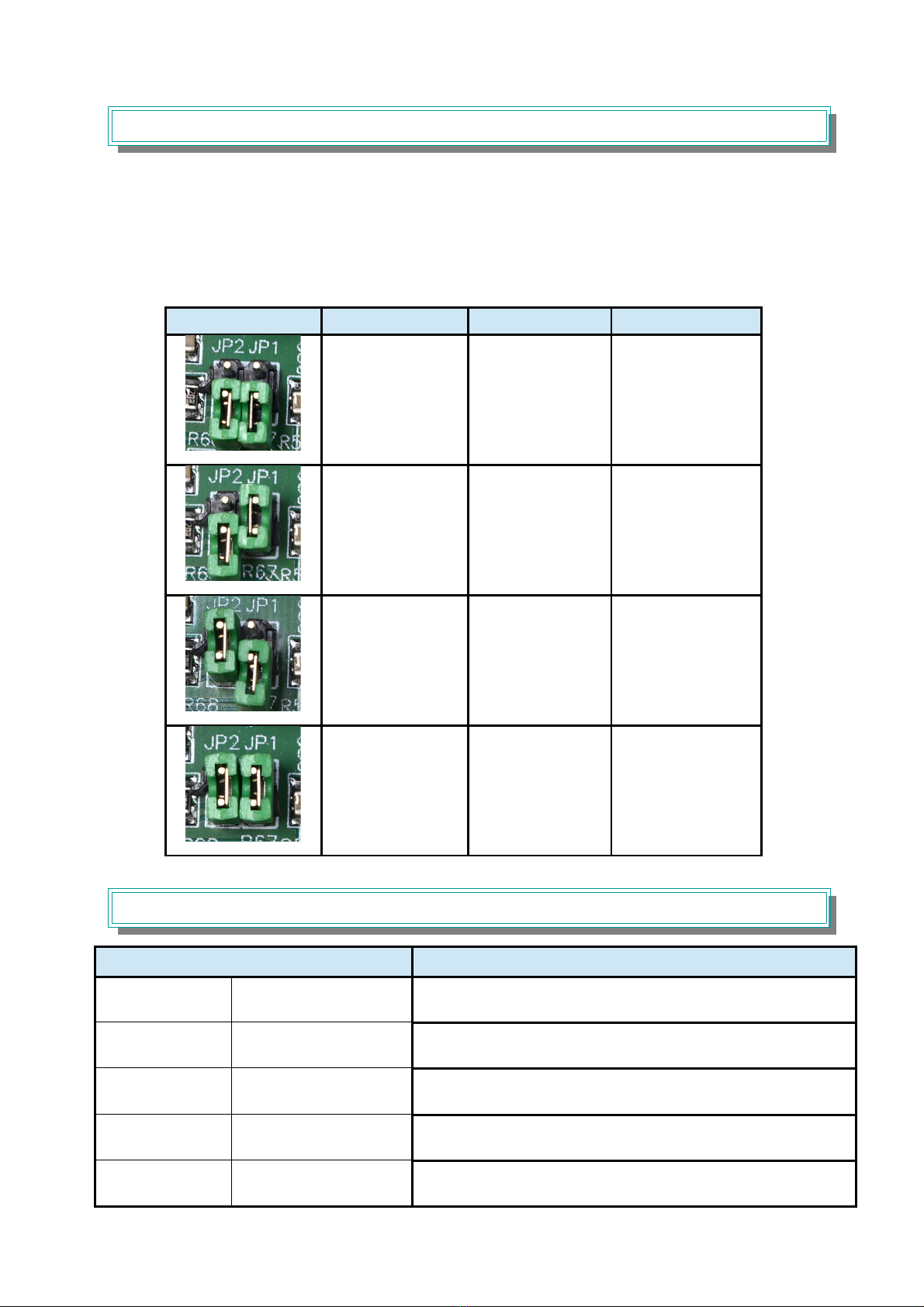

CHARGING PROGRAMS
To set the correct charging program it is necessary to remove the cover. First
disconnect the charger from the network and disconnect the battery from the
charger. There are 4 screws on both sides, unscrew them. Charger has 4 charging
programes for 4 types of lead batteries: standard (STA) or universal, programe for
wet hermetic start battery CaCaWET, AGM and GEL. Set the battery type with
umpers JP1 and JP2.
Jumpers position JP2 JP1 Type of battery
Disconect (0) Disconect (0)
UNI (universal)
and
STA (standard)
Disconect (0) Conect (1)CaCaWET
Conect (1) Disconect (0)AGM
Conect (1) Conect (1)GEL
DESCRIPTION OF CHARGE PHASE
Charge phase: Description:
Bulk BULK CHARGE Charges the battery up to 65%, delivering a lot of energy to the
battery in a short time.
Abso 1 ABSORPTION I The charge is slowed down so that the battery absorbs more
energy. The battery reaches 65..75% of the capacity.
Abso 2 ABSORPTION II Charge current is gradually reduced.
The battery reaches 75..85% of the capacity.
Equal EQUALIZATION At this phase, levels between different filled cells are equalized.
The battery reaches 90..95% of the capacity.
Float FLOAT CHARGE Keeps the battery at 100% of the capacity without causing
damage to the battery. Also, can not over-charge the battery.
4

Intelligent pulse battery charger AP-180
DESCRIPTION OF THE PULSE BATTERY CHARGING TECHNOLOGY
Pulse charging system is electrode specific charging system; it is new
technology of battery charging. It presents a small revolution on this area,
because the results in practice are drastically better. With this technology is
possible very fast and very precise charging, because only electrochemical
condition of battery "dictates" the charging phase and charging current, which is
momentarily correctly for the battery.
When charging with pulse charger AP-180, does not come to the
gasification of the electrolyte and warming up, that destroys (breaks) cell
lead-acid batteries. So as a result, pulse charging majorly prolong battery
life and shortens the charging time.
We can say that pulse charging technology works as transformer between
battery chemistry and signals that commands the charge. Each battery is treated
individually. Your experience with this charging method please send to
[e-mail] .

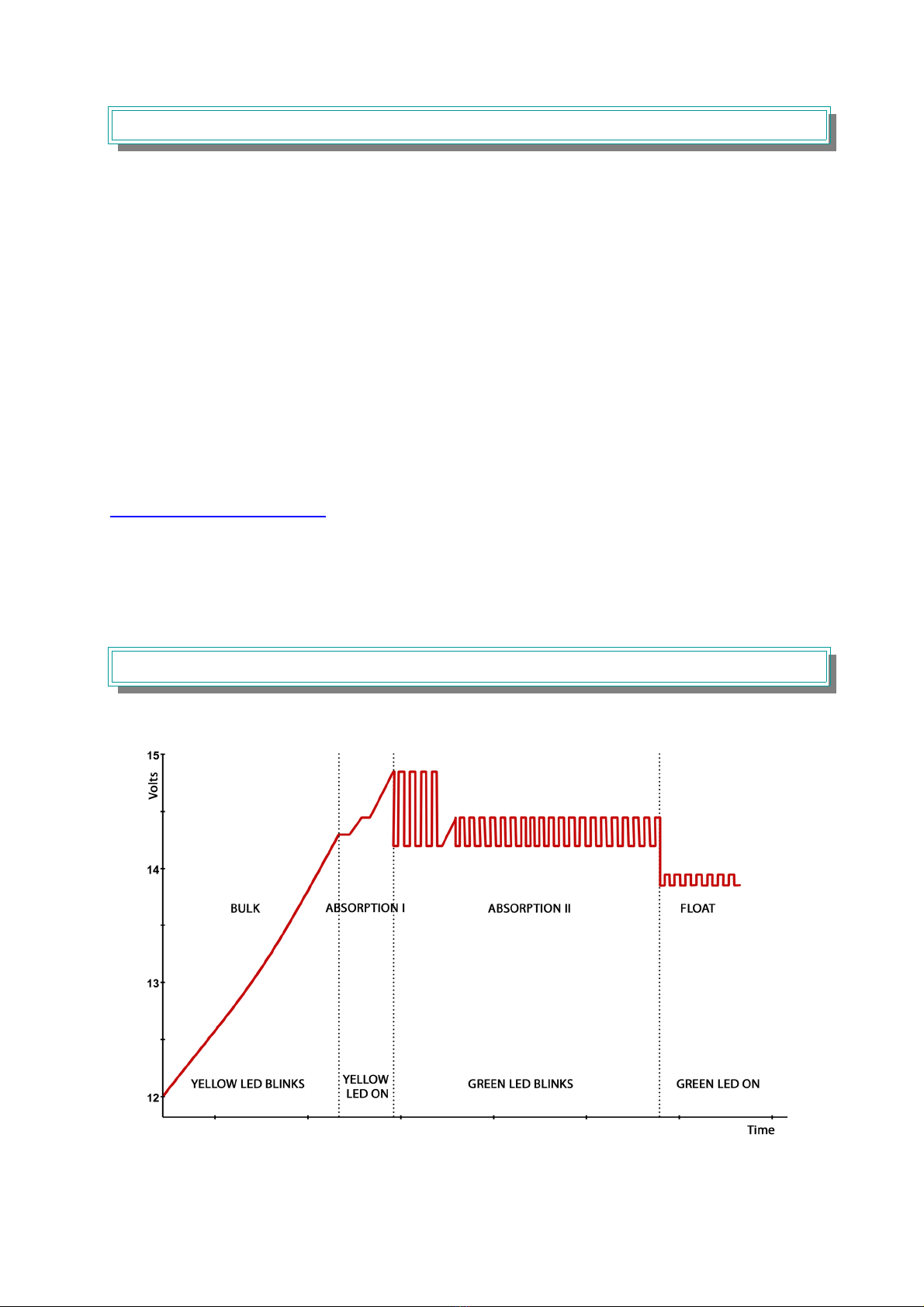

CHARGING DIAGRAM
5

Intelligent pulse battery charger AP-180
HOW AND WHEN TO USE THE BURST CHARGING
When charging an over-discharged battery which has a voltage below 6V (at
12V charger), the system does not start charging, even though the charger is
properly connected. In this case, press START HELP button to activate forced
charging with the single-pulse. If necessary, press the button several times (up to
100x). When the 6V voltage is reached at 12V charger (For the other chargers, see table
below), the yellow LED flashes, then the system automatically starts charging.
Charger model: AP-180 12V AP-180 24V AP-180 36V AP-180 48V AP-180 60V
Start charge at: 6V 12V 18V 2 V 30V
TECHNICAL DATA OF THE CHARGER
- type of battery: Pb battery: standard (STA) or universal, AGM, GEL, CaCaWET
- charge phases: bulk / absorption I / absorption II / equalization / float
- capacity of battery: minimum 6Ah (at 12V charger), maximum is not limited
- battery voltage: 12V, 24V, 36V, 48V, 60V
- nominal charging current (max): 12A, 6A, 3,6A, 3A, 2,5A intelligent pulse system
- charging mode: pulse charging system 20Hz
- main voltage: 195V – 242VAC
- main voltage frequency: 40 … 60Hz
- max. power: 200 VA
- activating the output voltage: min. batt. voltage at 6V, 12V, 18V, 24V, 30V
- ambient temperature: from 0 °C to +35 °C
- short contact output: : fully protected (fuse remains whole)
- wrong polarity output (main output): fuse FKS 15A (at 12V charger) -fuse burn
- main input fuse: T 3,15A (on the main grid side -230V)
- cooling: fan
- dimensions:: 120 x 65 x 225 mm
- weight: 1,3 kg
- signals: red, yellow and green LED indicator
- IP protect: IP20
- housing grounding: housing grounded, Class I
- recommended battery capacity: 1...200Ah
- field of use: el. bikes, el. vehicles, el. wheelchairs, motorcycles, cars, tractors,
quadricycles, workshops ...
6

Intelligent pulse battery charger AP-180
TROUBLESHOOTING
Error Cause Solution
The charger is connected to the mains,
power switch is ON.
LED signals not blinks.
- there is no mains voltage 230Vac - ensure supply voltage
230Vac
Battery is connected but the charger is
not charging, all LED blinking.
- to low voltage on the battery (over-
discharged battery)
- the fuse on the front panel is burn
- use START button
- replace the fuse
Red LED is on. - devices has overheated
- to high ambient temperatures
- fan error
- reduce the ambient
temperature
- service intervention
- clean up fan
WARNING!
•The charger is designed for indoor use (do not expose the charger to
rain).
•Polarity + and - must not be confused!
•During charging ensure adequate ventilation!
•Never hold with hand red and black crocodile + and – and push
BURST button!
•We recommend disconnecting the battery from the car if the
CaCaWET charging program is used.
•The charger AP-180 has a built-in security feature that stops the automatic
charging start if charger detects an over-discharged battery. Over-
discharged battery could be in damage. In this case press START
button to activate forced charging with the single-pulse. If necessary, press
the button several times (up to 100x). When the 6V voltage is reached at
12V charger, the yellow LED flashes, then the system automatically starts
charging. From this moment on, the user is obliged to control the
charging of batteries. Because in case of a defect on the battery, it
can overheat, begin to gasify and in extreme cases may happen an
explosion and / or a fire.
7

Intelligent pulse battery charger AP-180
SERVICE AND GUARANTEE
Eyra elektronika d.o.o.
Gabrje pri Stični 45
SI-1295 Ivančna Gorica
Slovenia
Tel.++386 (0)1 7869-037 Fax++386 (0)1 7869-038
e-mail: [e-mail] http://www.eyra-elektronika.si
GUARANTEE STATEMENT
Guarantee conditions:
1. The guarantee is valid for 2 months from the date of sale.
2. The guarantee repairs are carried out exclusively by an authorized service center.
3. The guarantee applies only to the charger, and not to any other device connected to this module.
. The guarantee and liability does not include any fees, postal costs, damages and any costs related
to the failure of this device.
5. The guarantee does not apply to batteries, mechanical damage or lightning strikes.
6. The guarantee does not apply if the device was mounted or used in violation of the instructions.
7. The guarantee does not apply if an unauthorized person interferes with the device.
8. If, during the guarantee period the device is not repaired within 5 days from the date of receipt in
our service center, we are obliged to replace it with a new one.
9. The guarantee period shall be extended for the period of repair.
10. The original invoice must be submitted for the enforcement of the guarantee.
