ezdupe Mini USB Pro User manual

Content
Copyright © 2019. All right reserved.
Mini USB PRO
Duplicator
User Manual

1
I. Introduction....................................................................................................................2
1. Features........................................................................................................................................2
2. ControlPanelOverview ...............................................................................................................3
3. Specifications...............................................................................................................................4
II. Warning..........................................................................................................................4
III. Asynchronous Operation............................................................................................5
IV. Menu Overview............................................................................................................6
1. Copy .............................................................................................................................................6
2. Compare.......................................................................................................................................6
3. Utility............................................................................................................................................7
3.1 FormatFAT32 ..............................................................................................................................7
3.2 Format exFAT..............................................................................................................................7
3.3 QuickErase ..................................................................................................................................7
3.4 Full Erase.....................................................................................................................................8
3.5 Media Information......................................................................................................................8
3.6 Set Language ...............................................................................................................................8
3.7 System Information ....................................................................................................................8
3.8 SystemUpdate..............................................................................................................................9

2
I. Introduction
This duplicator system is designed and developed based on the FPGA from the world famous
semiconductor company XILINX. Every processing port is parallel to each other with its own
control unit, therefore the duplicator will not sacrifice speed for the increasing number of targets
loaded - always remain the same and fast copy speed. The duplicator supports fast copy with
multiple file formats created by three major operating systems (Windows/Linux/MAC), and makes
mirror copies of data efficiently. Furthermore, this duplicator has been fully tested with quality
assurance before leaving our manufacturing facility.
1. Features
•Each processing channel has its own control unit and operates independently with dedicated
bandwidth of up to 35MB per second.
•Standalone operation. No PC or software is required, minimizing possible computer virus
infection.
•Instant power on and off, no warm-up or cool-down required.
•Easy-to-use One-Touch copy operation.
•Compare function available for verification of copy accuracy
•Menu options are user-friendly and easily accessed through the 4-button control panel. Use ▲or
▼ button to scroll through the options and view the operation status of each channel on the 2-line
backlit LCD display.
•Support Asynchronous copy mode for best operation efficiency.
•Powerful 32-bit CRC checksum to assure data integrity.
•Heavy-duty hardware construction for commercial production or personal use.
•115V and 230V switching power supply maximizes portability for operation anywhere.
•Designed to save users time and effort in creating multiple copies quickly and reliably.
•Unique source data analysis to copy data area only to achieve highest efficiency
•Supports multiple file formats: Windows: FAT 16/32、exFAT、NTFS, Linux: Ext 2/3/4, Mac:
HFS/HFS+, HFSX

3
2. Control Panel Overview
▲ Button: Up, Backward
▼ Button: Down, Forward
ENT Button: Enter, OK
ESC Button: Escape, Cancel
2-linebacklitLCD creen
▼ Button
Button
▲ Button
ENT Button
ESC Button

4
3.
Specifications
Operation
Standalone (No PC or Software is required)
Target
9
Copy Speed
35 MB/S
Copy Mode
Asynchronous
Copy Area
System and Files (Intelligent Copy)
Supported Media
USB Flash Drive 1.1/ 2.0/ 3.0/ 3.1
Display
2-line Backlit Monochrome LCD
Supported Format
FAT16,FAT32,exFAT,NTFS,ext2/3/4(Linux),HFS/HFS+(Mac)
System Memory
128 MB DDR3
Power Adapter
Input：AC 100-230V Output：DC 12V/3A
Control Button
4 push-button control panel (ENT, ESC, UP, DOWN )
Humidity
Working
20% ~ 80%
Storage
5% ~ 95%
Temperature
Working
41°F ~ 113°F (5℃~ 45℃)
Storage
-4 °F ~ 185°F (-20℃~ 85℃)
II. Warning
1. Source port is write-protected to prevent source data is erased accidently.
2. The duplicator tasks mentioned in this user’s manual are as following: Copy, Compare, Format,
and Erase.
3. The Green LED flashes during the execution process of a task. After the task is done, the Green
LED will stay solid if the process is successful, otherwise the Red LED will be on if the process is
failed.
4. It is strongly recommended that the capacities of the source and target media are equal or similar.

5
III. Asynchronous Operation
Asynchronous Operation is designed for the duplicator. It means that the duplicator will read the
data from source device into system memory buffer and start to execute a task immediately when
target device(s) inserted. Duplicator does not have to wait for all target device(s) inserted in order to
start the execution of the task at the same time. No matter the data size of the source device,
duplicator can asynchronously execute a task.
1. Insert source media into the source port, select the task to execute from the menu, and press ENT
button. Duplicator will start to execute the task.
2. Target devices can be plugged in during the execution process, and will start to execute the task
immediately
3. Target device can be removed when it finishes the execution process and its green LED is solid
on. New target device can be plugged into the same port for execution of the task again.
4. LCD display will show the percentage of execution process, the number of successful and failed
target(s). Here the percentage of execution process displayed is only for the least processed target
device.
5. During the execution process, the status of each target device can be checked by using the ▲ and
▼ buttons.
6. After the task is done for all target devices, press ESC button to exit from the task. LCD display
will show the total number of successful and failed target(s).
7. Each USB port executes the task asynchronously, doesn’t need to wait for all target devices to be
ready at same time.

6
IV. Menu Overview
1. Copy
To copy from source device to target device(s) bit by bit and only copy available data area.
When the source device reads fail, all target devices stop copying. When one of the target
devices writes fail, it will stop copying.
2. Compare
This command allows comparing the copied target devices against the source for accuracy.
ENT
Insert source device
and press ENT button
No source device
Copy：01100M
00:00 Wait
1. Copy
Source Not Ready
1. Copy
Ready device: 0
Copy: 0 number of targets
1100M: data to be copied
00:00: executing time
Wait: Waiting for target
drives to be inserted
Copy is finished, the target
devices can be unplugged and
new target devices can be
inserted to start copy again. Or
press ESC button to end the
copy process.
Copy: 0 1100M
P: 4 F: 0 Wait
Copy starts automatically when
target devices are inserted
Copy：41100M
00:10 10%
ENT
No source device
Compare：0 1100M
00:00 Wait
2. Compare
Source Not Ready
1. Compare
Ready device: 0
Result: 01:31
Pass：4Fail：0
Compare：41100M
00:10 10%
ESC
Result: 01:31
Pass：4Fail：0
ESC
Press ESC button to end
the copy process.
Insert source device
and press ENT button
Compare starts automatically
when target devices are inserted
Press ESC button to end
the compare process.
Compare is finished, the target
devices can be unplugged and
new target devices can be
inserted to start compare again.
Or press ESC button to end the
compare process.
Compare: 0 1100M
P: 4 F: 0 Wait
Wait for target devices

7
3. Utility
3.1 Format FAT32
This option allows to format the target device to FAT32 file format. It will not format the source
device, avoiding accidently erasing the original data content.
3.2 Format exFAT
This option allows to format the target device to exFAT file format. It will not format the source
device, avoiding accidently erasing the original data content.
3.3 Quick Erase
This option erases the table of content of file system of the target device.
Format：0
00:00 Wait
[Utility]
1. Format FAT32
Sure to format?
Yes
Result:
Pass：4Fail：0
ENT
ESC
ENT
Format：4
00:01 100%
Press ESC button to
end the process
Format：0
00:00 Wait
[Utility]
2. Format exFAT
Sure to format?
Yes
Result:
Pass：4Fail：0
ENT
ESC
ENT
Format：4
00:01 100%
Q_Erase：0
00:00 Wait
[Utility]
3. Quick Erase
Sure to erase?
Yes
Result:
Pass：4Fail：0
ENT
ESC
ENT
Q_Erase：4
00:01 100%
Wait for target devices
Format starts automatically
when target devices are inserted
Wait for target devices
Press ESC button to
end the process
Format starts automatically
when target devices are inserted
Wait for target devices
Press ESC button to
end the process
Erase starts automatically when
target devices are inserted

8

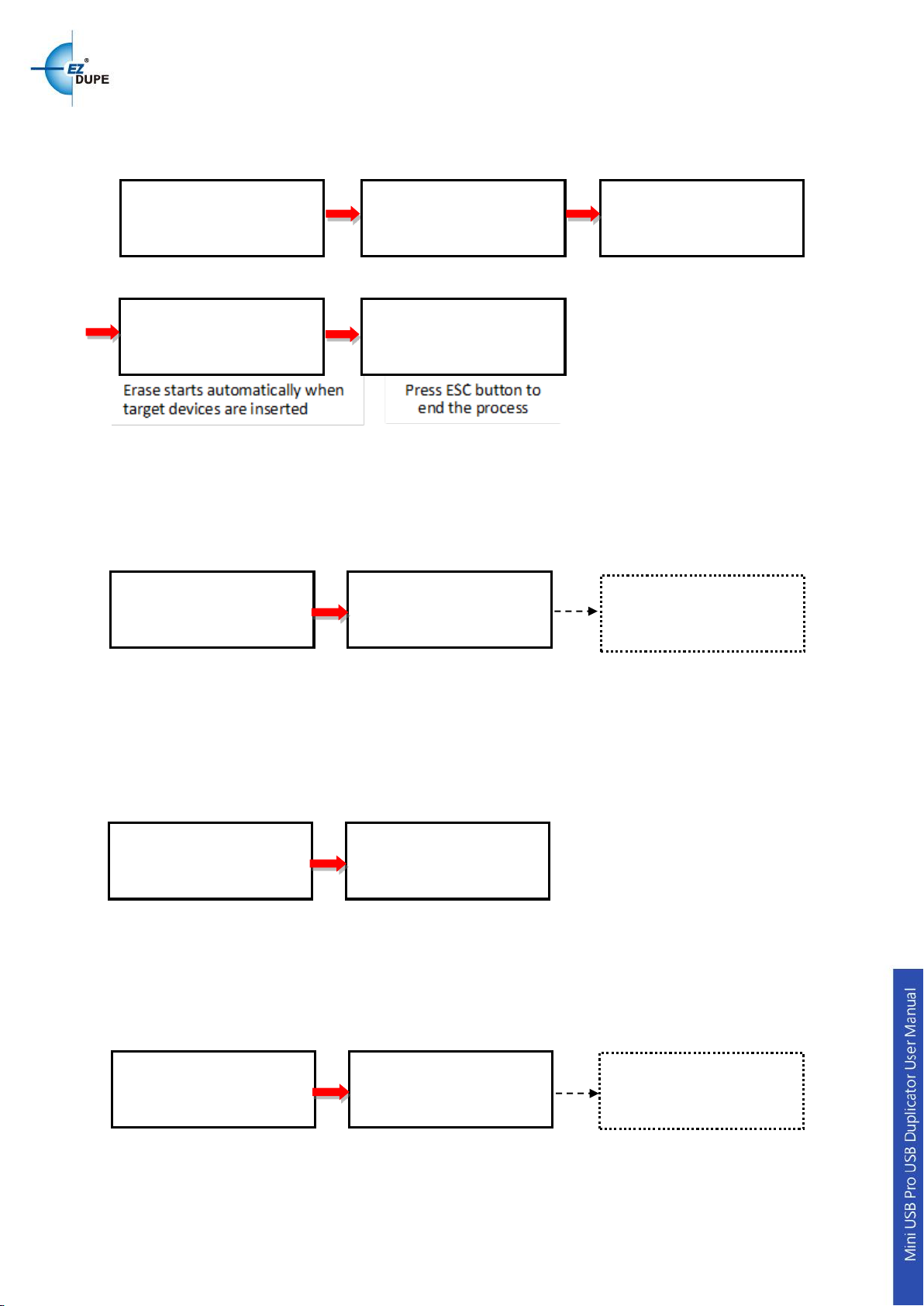

3.4 Full Erase
This option completely erases the content of target device.
3.5 Media Information
This option displays the information of selected device media, such as total capacity, file format and
the size of data content.
3.6 Set Language
This option allows choose the language for display: English, Spanish, Portuguese, and Japanese.
English is the default language.
3.7 System Information
This option displays general information of the duplicator, including controller model, system
memory size, firmware version and number of targets.
ENT
Use ▲or ▼to select
device
[#0] 29.8G
FAT32 20.1G
[Utility]
5. Media Information
Port # Total Capacity
File Format Data Size
ENT
Display system info
F0104V 128MB
V2.00.41
[Utility]
7. System Information
Model Memory
Firmware
F_Erase：0
00:00 Wait
[Utility]
4. Full Erase
Sure to erase?
Yes
Result:
Pass：4Fail：0
ENT
ESC
ENT
F_Erase：0
01:00 100%
Use ▲or ▼to select and
press ENT to confirm
ENT
[Language]
English
[Utility]
6. Set Language
Wait for target devices

9
3.8 System Update
This option allows user to update the firmware of duplicator when necessary. Please obtain the
proper firmware file from manufacturer, and save the unzipped file under home folder on the flash
device (DO NOT save the file under sub folder). Insert the flash device containing the firmware
into the source port of duplicator and press ENT. It will update the system, reboot the duplicator
after update, and operate under the new firmware. The file system of the flash drive must be
FAT32.
Copyright © 2019. All right reserved.
Update complete!
Please wait for reboot
ENT
Searching disc
Update BIOS
Identify disc…
[Utility]
8. System Update
Update BIOS
Complete! Reboot!
