EZee Life Rover 3 User manual

Rover 3 and 4
Scooters
User's Manual
Original instructions

Rover 3 and 4 2 User Manual (E) - Rev. Feb. 2012
Dear User,
Factory Direct Medical would like to thank you for choosing the Rover 3 and
4scooter and wishes you safe and enjoyable journeys.
For proper operation and to maintain the scooter’s operational readiness, we
recommend that you read this user manual prior to using the scooter.
220 Wildcat Rd
Toronto, Ontario M3J 2N5
Internet Mail: [e-mail]
Internet Address: www.factorydirectmedical.com

Rover 3 and 4 3 User Manual (E) - Rev. Feb. 2012
Table of Contents
Components ………………………………………………... 7
Safety Instructions …………………………………………. 9
Assembly Instructions ……………………………………... 13
Adjustments for Seating Comfort …….…………………… 18
Operating the Scooter ………….………………………….. 19
Batteries and Charger ……………………………………... 23
Maintenance and Repairs ………………………………… 27
Troubleshooting ………………………………………….… 29
Technical Specifications …………………………………… 31

Rover 3 and 4 4 User Manual (E) - Rev. Feb. 2012
Components
Your power scooter comes partially disassembled for protection during
shipment. After unpacking, please familiarize yourself with the following
components (see Figs. 1, 2 and 3)
Figure 1 (Rover 4W) Figure 2 (Rover 3W)
6. Foldable armrests
7. Basket and support tube
8. Battery packs (detachable)
9. Rear Wheels Figure 3
10. Anti tip Wheels
11. Battery Charger
1. Control Panel
2. Tiller
3. Front Wheel
4. Foot Platform
5. Foldable Seat

Rover 3 and 4 5 User Manual (E) - Rev. Feb. 2012
Safety Instructions
Operation
These safety considerations and tips will help you operate the scooter safely.
The Scooter is a powerful electric vehicle, and the following rules will help
you prevent personal injury and damage to your scooter.
Make sure that your weight does not exceed the recommended weight
limit of the scooter (see Technical Specifications).
Do not carry passengers.
Always ensure that the power is switched off, when getting on or off of
the scooter.
When getting on and off the scooter, do not step on the foot rest.
At all times while driving, keep your feet on the foot rest.
Be aware of the environment around you when choosing a desired
speed. For indoor environments, we recommend that you select the
slowest speed setting. For outdoor operation select a speed that is
comfortable for you to control it safely.
Reduce speed when making sharp turns.
Do not switch off the power when the scooter is still moving forward.
This will bring the scooter to an extremely abrupt stop.
Avoid jerky stop/start motions as it will result in excessive battery drain
and increased tire wear. To break in an emergency, simply release the
forward/reverse lever.
Make sure the wheel release lever is in driving mode prior to operation
(see Fig. 4).

Rover 3 and 4 6 User Manual (E) - Rev. Feb. 2012
Make sure the wheel release lever is in driving mode prior to operation
(see Fig. 4).
Figure 4
Make sure the forward/reverse lever is in the proper position according
to your desired direction.
Ramps and Curbs (Sidewalks)
Use extra caution when driving down a slope.
Never drive across a slope.
Do not turn sharply on a slope.
Do not drive in reverse on a slope or on a bumpy surface.
When driving over a curb or raised surface, make sure that the bottom
of the scooter has sufficient clearance (see Technical Specifications).

Rover 3 and 4 7 User Manual (E) - Rev. Feb. 2012
General Instructions
Do not attempt to lift or move a power scooter by any of its removable
parts. Personal injury and damage to the power scooter may result.
Do not drive the scooter on a major roadway.
Avoid driving in the dark or in times of limited vision.
Do not connect any electrical or mechanical devices to the scooter.
Doing so may cause personal injury or damage to equipment, and
voids the manufacturer’s warranty.
Do not operate your vehicle if it is not functioning properly. Contact
your service center immediately.
Influence of Medication or Alcohol
Check with your physician if you are taking any medication that may
affect your ability to operate your power scooter safely.
Do not operate your vehicle while you are under the influence of
alcohol, as it impairs your ability to operate your power scooter in a
safe manner.

Rover 3 and 4 8 User Manual (E) - Rev. Feb. 2012
Assembly Instructions
It is very easy to assembly your scooter. Please follow the steps below.
Contact your service center in any problems occur.
Chassis Installation

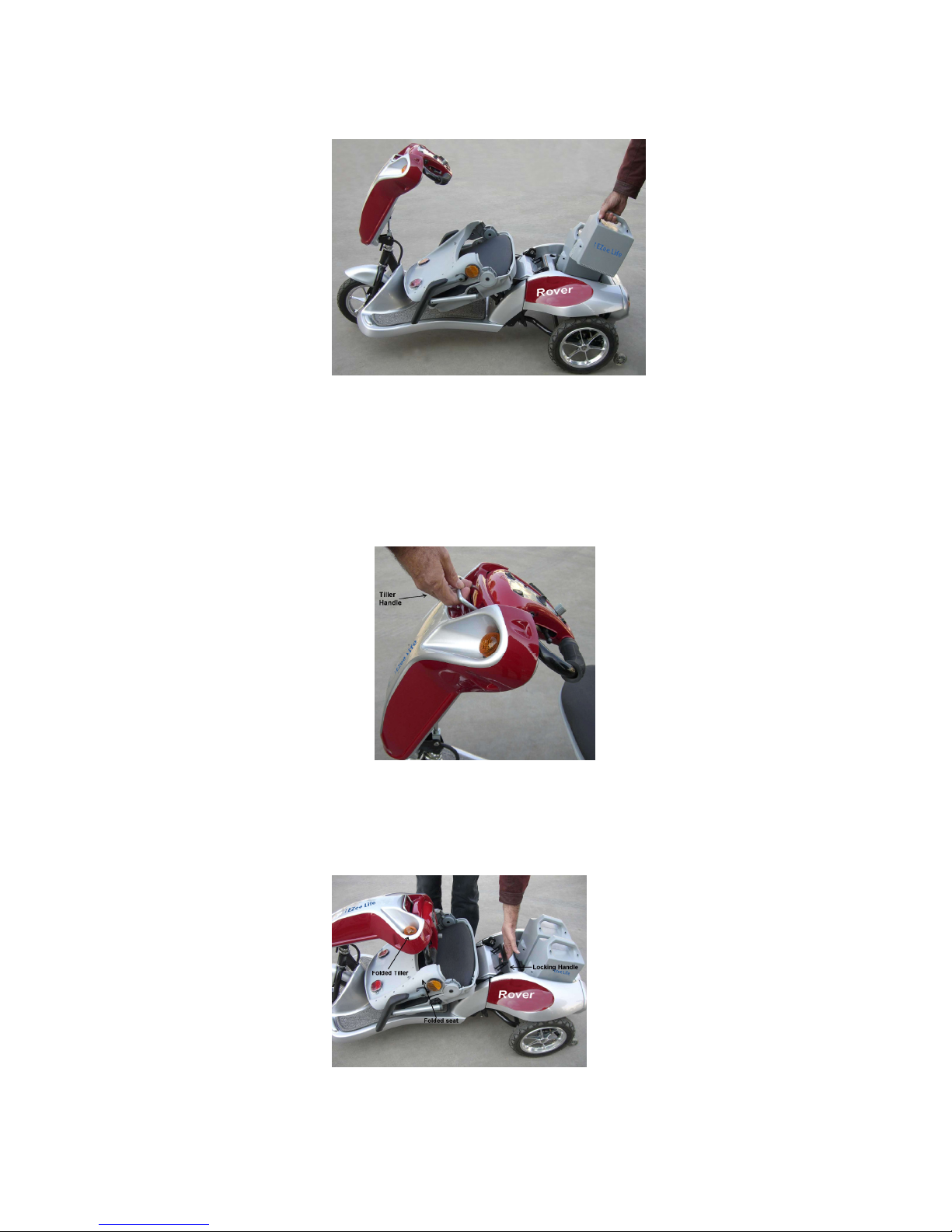

1. Insert both batteries into the back chassis (see Fig. 8).
2. Using the handle located behind the seat, raise the front chassis and
connect it to the back chassis. Make sure they are aligned and locked
(see Fig. 5).
Figure 5
Tiller Positioning
1. Pull up the tiller handle, in order to release the position lock (see Fig 6).
2. Adjust the tiller to a driving position, according to your own preference.
Figure 6

Rover 3 and 4 9 User Manual (E) - Rev. Feb. 2012
Installing the Seat
1. Raise the seat assembly until it reaches a locked position (see Fig. 7).
2. Raise the backrest to an upright position.
Figure 7
Installing the batteries
1. Take the batteries out of the box.
2. Place the battery into the rear tray with the protruding part towards
rear (see Fig. 8).
3. Then, lower the battery until it stops (the connectors will engage).
Note: The batteries are partially charged. We recommend charging them
fully prior to usage.
Figure 8

Rover 3 and 4 10 User Manual (E) - Rev. Feb. 2012
Installing the Basket Support Frame and Rear Basket
1. Insert the legs of the basket support frame into the two tubes located on
either side of the rear tray. Make sure the frame is secure and stable.
2. Insert the basket into the basket support frame. Make sure it is seated
securely (see Fig. 9).
Figure 9
Moving the Scooter
When moving the scooter (without operating it), be sure to follow these
instructions:
1. Turn the power off.
2. Ensure that the wheel release lever is in Freewheel mode (see Fig. 4).
3. Move the scooter carefully and slowly.
4. To brake the scooter, move the wheel release lever to the Drive
position.
Note: Do not change the scooter to freewheel mode when on a slope.
Disassembly

Rover 3 and 4 11 User Manual (E) - Rev. Feb. 2012
If necessary, the scooter can be easily disassembled. To transfer the scooter
safely, follow these steps:
1. Turn the power off.

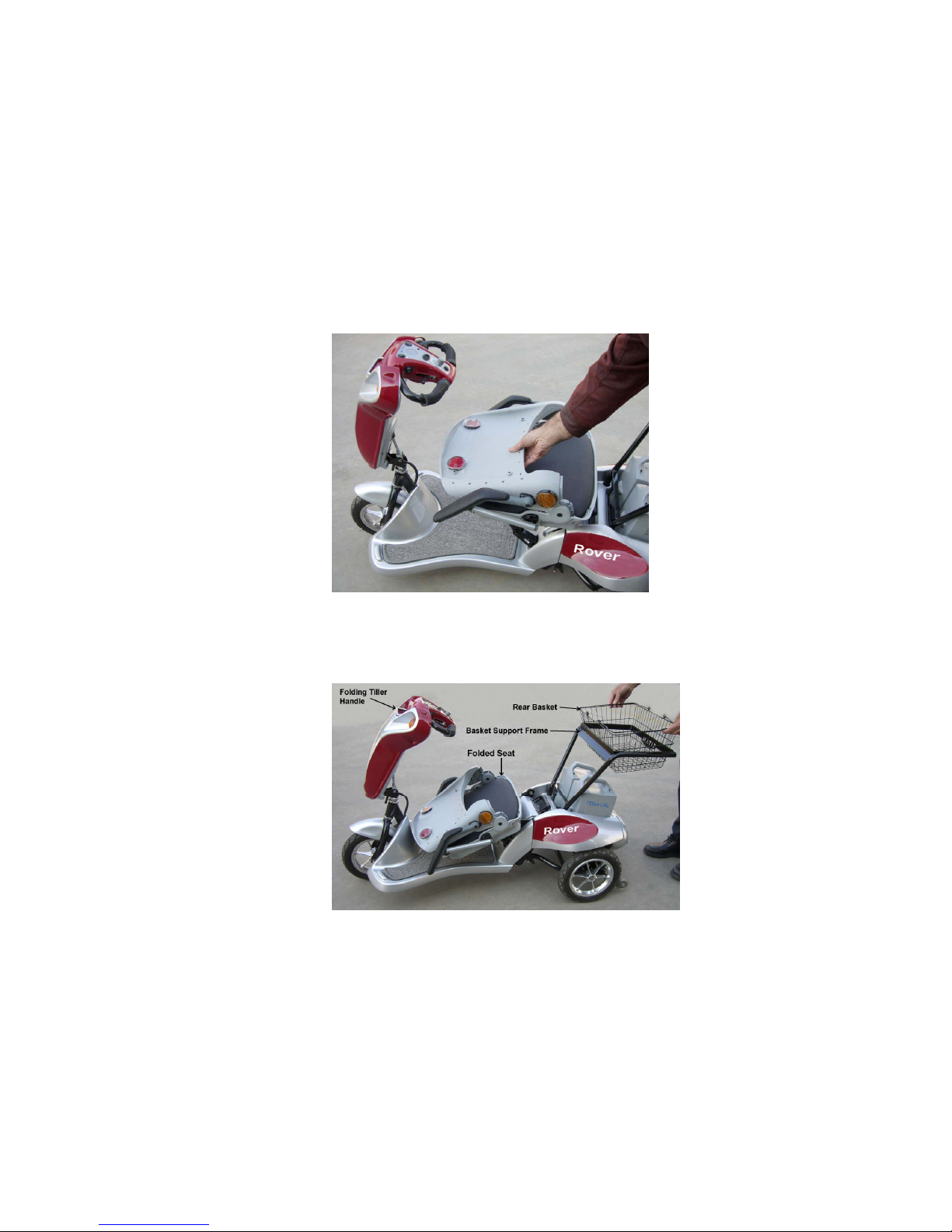

2. Fold the backrest down, slightly raise the seat and push it forward and
down. (see Fig. 10).
Figure 10
3. Remove the rear basket and the basket support frame (see Fig. 11).
Figure 11
4. Disconnect and remove the batteries from the rear tray (see Fig. 12).
Note: Pull the battery up first to disconnect from electrical contacts.

Rover 3 and 4 12 User Manual (E) - Rev. Feb. 2012
Figure 12
Note: To avoid damage when disassembling the scooter, make sure it is
stabilized in a fixed position.
5. Raise the tiller handle slightly in order to release the tiller lock. Then
fold the tiller towards the seat (see Fig. 13).
Figure 13
6. Lift the front chassis using the handle located under the seat.
Disconnect the front chassis from the rear chassis (see Fig. 14).
Figure 14

Rover 3 and 4 13 User Manual (E) - Rev. Feb. 2012
Adjustments for Seating Comfort
Your power scooter allows you adjust the tiller and the arm rests to maximize
seating comfort and configure the scooter to your body structure.
1. Tiller Angle Adjustment

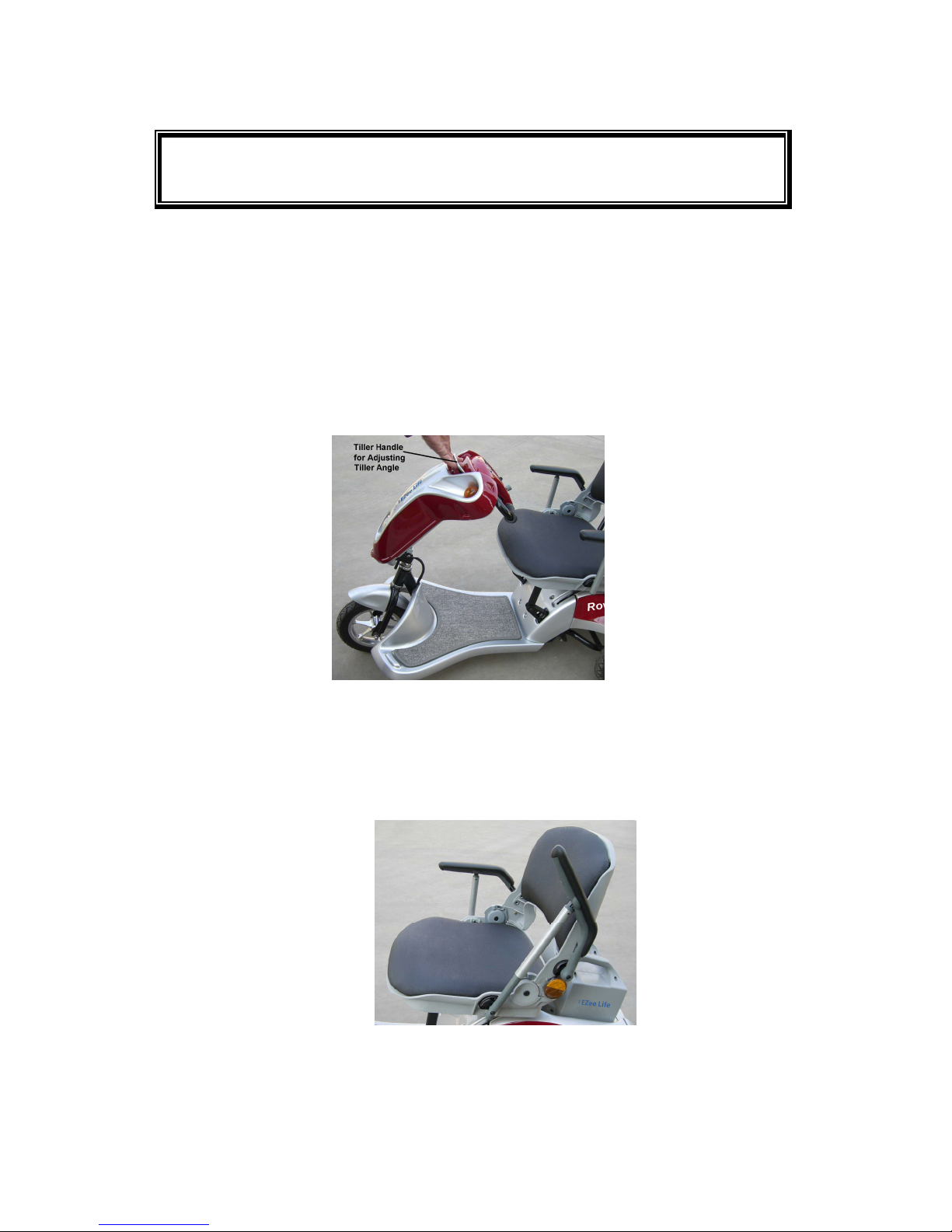

A. Pull the tiller lever up (see Fig. 15). Alternatively, the tiller lever may
be pushed from the back of the tiller.
B. Move the tiller to the desired position and release to lock.
Figure 15
2. Arm Rests
When getting on or off the scooter, you can raise the arm rest for easier
access and motion (see Fig. 16).
Figure 16

Rover 3 and 4 14 User Manual (E) - Rev. Feb. 2012
Operating the Scooter
Operating the scooter is not complicated. However, we recommend reading
these instructions prior to using the scooter, to ensure full understanding of
the scooter operations.
Note: Be aware of the environment around you when choosing a
desired speed. For indoor environments, we recommend that
you select the slowest speed setting. For outdoor operation,
select a speed that is comfortable for you to control safely.
Control Panel
The control panel is located in the center of the tiller. It enables you to control
the steering, lights and signals of the scooter, supplies information on the
battery status, and shows fault warnings (see Fig. 17).

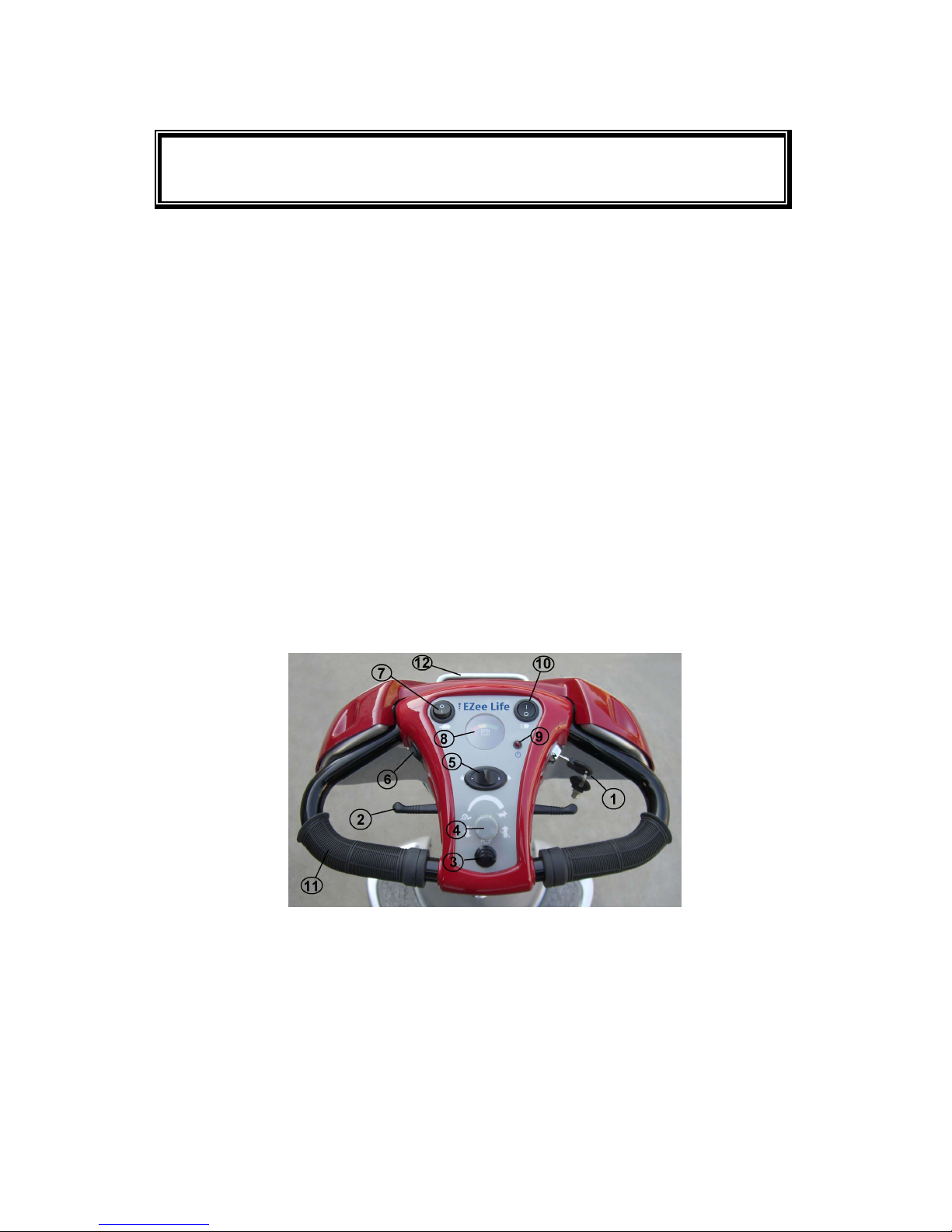

Figure 17

Rover 3 and 4 15 User Manual (E) - Rev. Feb. 2012
The following table details the various systems on the control panel:
Functionality Description
1. Operating Key Main On/Off switch (power source) for the
Titan.
(Remove the key when the scooter is not
in use)
2. Operating Lever
(Left/Right)
Moving the lever controls the speed. To
drive forward, pull the right lever toward
you and push the left lever away from you.
Releasing the lever will bring the scooter
to a gradually stop. To drive backward, pull
the left lever towards you.
3. Horn Pressing the button sounds the horn.
4. Manual Speed
Adjuster
The maximum speed is 11 km/h. Rotating
the button to the lower speed (turtle icon)
will reduce the speed, for slower, gentle
operation.
5. Turn Signal Operates the turning signal lamps
6. Hazard Lights Signal Operates the emergency warning lights.
7. Speed Selector Switch Set the switch to the lower speed (turtle
icon) position for slower operation.
8. Battery Charge Indicator Shows the state of the battery whenever
the scooter is operation.
9. Operation Indicator Shows operational faults (See Table of
Faults)
10. Lights Switch Turns the front and rear headlights on and
off.
11. Hand Grips Flexible hand grips for comfortable hand
support.
12. Tiller Handle Adjusts the tiller to your preferred position.

Rover 3 and 4 16 User Manual (E) - Rev. Feb. 2012
Suggestions for Safe Driving
Before operation, make sure the front and rear chassis are connected
and locked.
For your own safety and the safety of others, always drive at a moderate
speedy.
Releasing the operating handle will bring the scooter to a stop.
Operate with caution whenever going up or down a ramp or slope.
When entering an elevator, drive in reverse so that you can then exit
facing forward. Check that the elevator has stopped at the exact level of
the floor.

Rover 3 and 4 17 User Manual (E) - Rev. Feb. 2012
Batteries and Charger
Batteries
The Rover scooter is programmed to work with sealed, maintenance-free
12V batteries.
Note: Turn off the scooter before removing or installing batteries.
Full charging of the batteries prior to usage helps keep them operational and
lengthens their lifespan. Batteries can be charged at any time, without
concern for over-charging.
Note: Do not use a car battery. Car batteries are not designed for the
scooters and can be dangerous. Battery lifespan is influenced by treatment,
number of recharges, storage and usage.
Charging the Battery
The charger works with a standard socket outlet, between 100-240V. The
charger automatically prevents over-charging.
Note: The battery cannot be charged if it completely discharged. It is
recommended that you recharge as often as possible.
The batteries can only be charged while they are connected to the scooter.
Plug the charger connector into the scooter input outlet and then connect the
charger to the power source (see Fig. 18).

Rover 3 and 4 18 User Manual (E) - Rev. Feb. 2012
Figure 18
While charging, the charging indicator light will be lit red. When the batteries
are fully charged, the indicator light will change to green. For maximum
battery utilization, charge the battery overnight, or for at least 4 hours after
the light turns green.
Safety Instructions
Follow these instructions to prevent damage or harm during charging:
Make sure the scooter is turned off and the key removed before
charging.
Use the charger only for charging the scooter batteries.
Charge the batteries in a well ventilated area.
Do not smoke near the batteries and keep away from source of heat
or flames.
Charge the batteries indoors or in a covered area, and avoid water.
Always dry hands before charging.
Remove jewelry before charging.
Do not use charge cables that are damaged in any way.
It is recommended that you change both batteries if they are weak.
If you do not use the scooter for an extended period, be sure to
charge the batteries at least once a month.
Charge batteries overnight. There is no need for concern of
over-charging.

Rover 3 and 4 19 User Manual (E) - Rev. Feb. 2012
Battery Storage
Before storing, make sure the battery packs are fully charged. When stored,
bring out the batteries to charge at least once every 3 months.
Temperature for storage: -2
0℃ to +40 ℃
Temperature for charging: 0 ℃ to +40 ℃
Temperature for operation: -20 ℃ to +50 ℃
Battery Troubleshooting
The battery indicator shows the battery status, and warns about problems by
flashing.
Action Description
Indicator is lit, with no
flashing
System is operational
Slow flashing indicator Charge the batteries as soon as possible
Quick flashing
indicator
Trouble indicator. Perform the following actions:
1. Turn off the scooter.
2. Make sure the rear wheels are locked.
3. Make sure the charger is disconnected from the
scooter.
4. Make sure the operating lever is set in the middle.
If the lever does not return to center, do not
operate the scooter and contact your service
center.
5. Turn the scooter on and begin driving.
6. If the indicator continues flashing quickly, count the
number of flashes in each sequence, and check
the specific problem in the Troubleshooting table at
the end of this manual.
Safety Measure

Rover 3 and 4 20 User Manual (E) - Rev. Feb. 2012
1. Read the directions before charging.
2. Charge in a well ventilated area.
3. Use only the manufacturer's recommended battery type.
4. Disconnect from the power source immediately upon completing
charging.
5. Each battery pack contains sealed lead acid batteries.
6. Battery replacement should only be performed by an authorized agent.
Note: The batteries may emit a minimal amount of acid fumes. When
removing batteries, always place them on cardboard, newspaper,
or any other material that will prevent damage to the surface on
which they stand.
