EZG EFPC60W User manual

EFPC60W
EFPC70W
EFPC90C
Vibratory Forward
Plate Compactors
Owner’s Manual
EZG MANUFACTURING
1-800-417-9272
Vibratory Forward
Plate Compactors
EZG Manufacturing
405 Watertown Road
Waterford, Ohio 45786
[phone] or 1-800-417-9272
Fax [phone] www.ezgmfg.com
Before using this Vibratory Forward
Plate Compactors, study and
understand the entire Owner’s Manual.
Serial Number _____________

EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
Revision Number-001 09-01-2019 - Present
2EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
INTRODUCTION.................................................................................................................................3
ABOUT THIS MANUAL.......................................................................................................................3
GENERAL INFORMATION..................................................................................................................3
SAFETY INFORMATION.....................................................................................................................3
SAFETY PRECAUTIONS..................................................................................................................4-5
CALIFORNIA PROPOSITION 65 WARNING......................................................................................6
MACHINE DESCRIPTION.....................................................................................................................6
PRE-START CHECKS............................................................................................................................................7
START & STOP PROCEDURE.......................................................................................................................7
OPERATION.......................................................................................................................8
SERVICE & MAINTENANCE.......................................................................................................................8

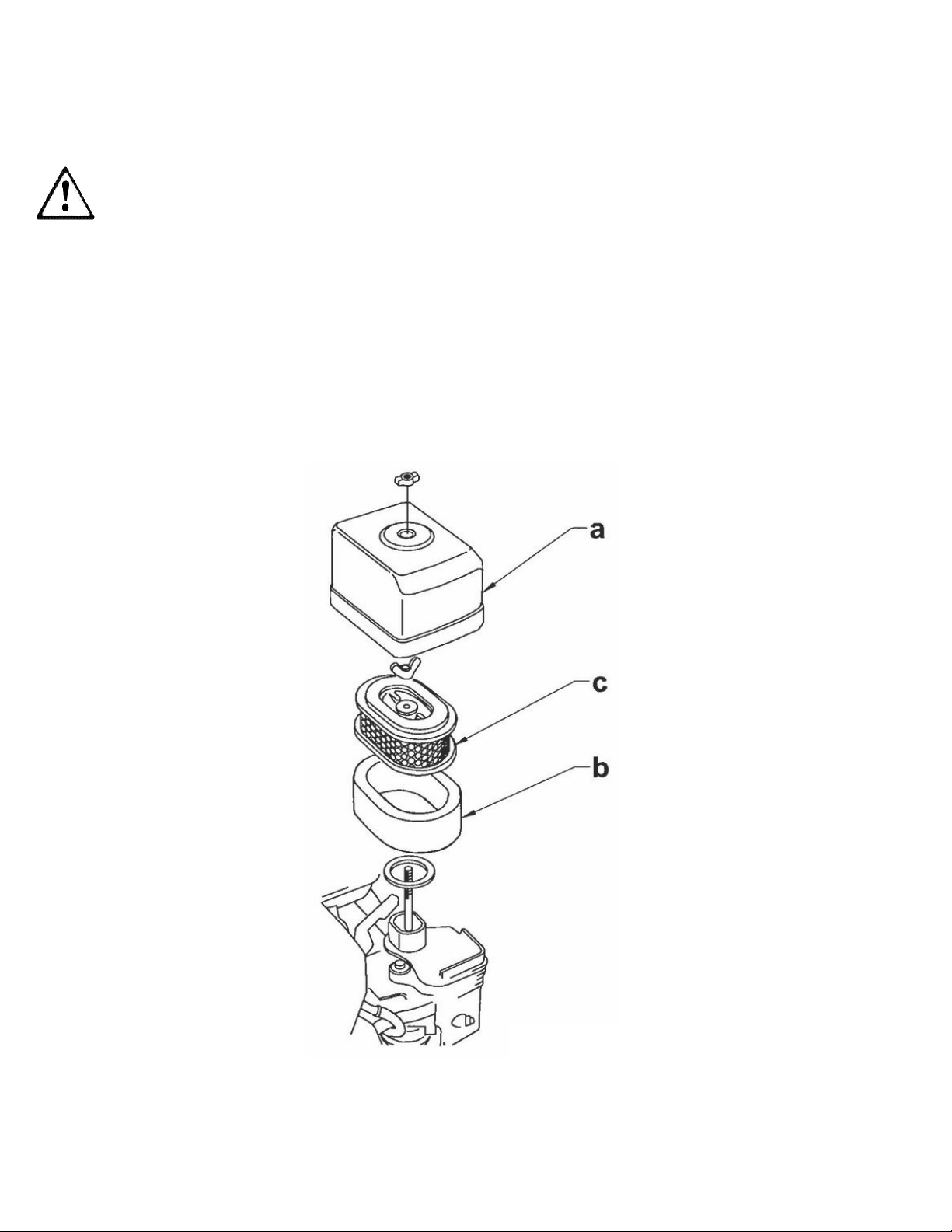

AIR CLEANER.......................................................................................................................9

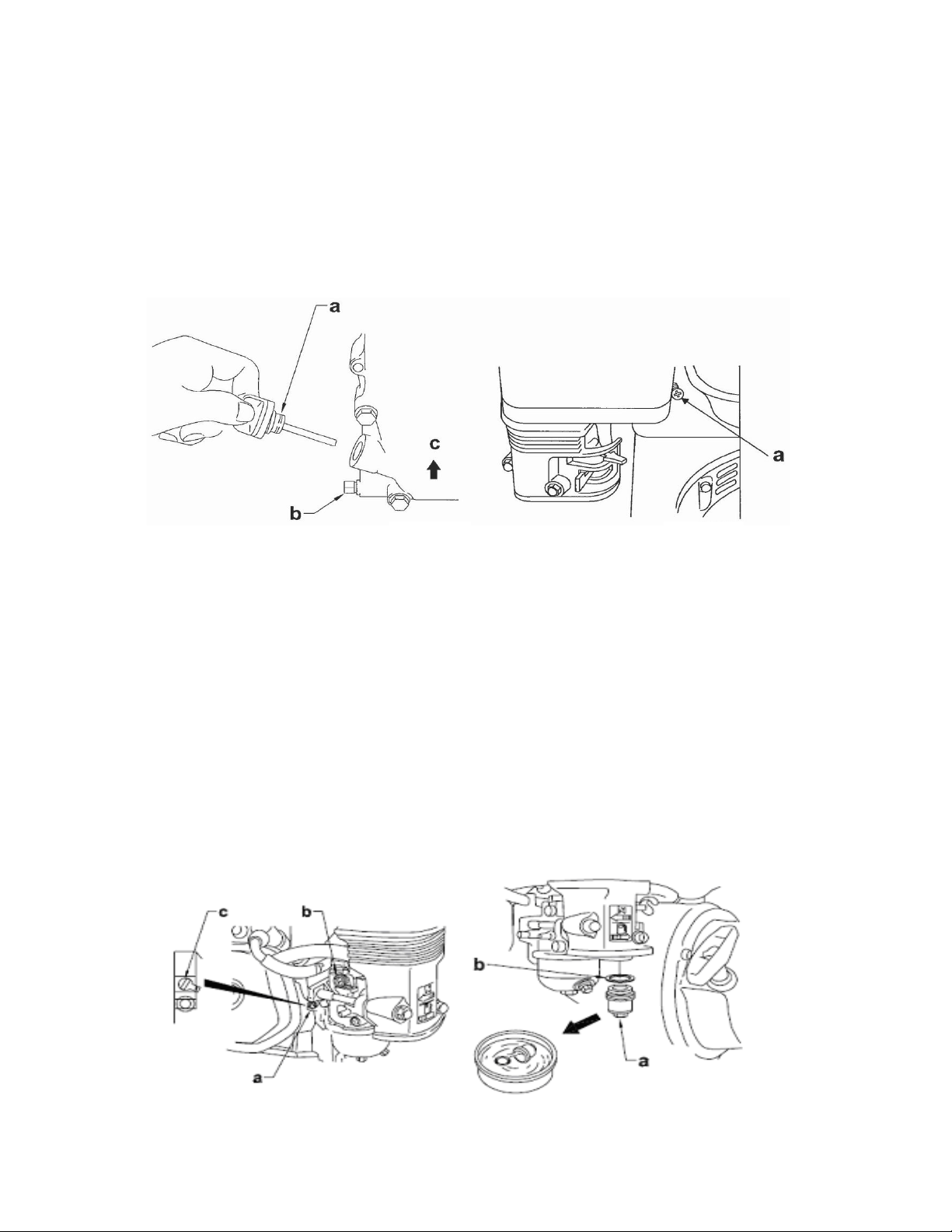

ENGINE OIL.......................................................................................................................10
CARBURETOR ADJUSTMENT.......................................................................................................................10
DRIVE BELT.......................................................................................................................11
EXCITER LUBRICATION.......................................................................................................................11
CLEANING PLATE COMPACTOR.......................................................................................................................12
TRANSPORATIONAND STORAGE.......................................................................................................................12
WARNING LABELS AND LOCATIONS.............................................................................................13

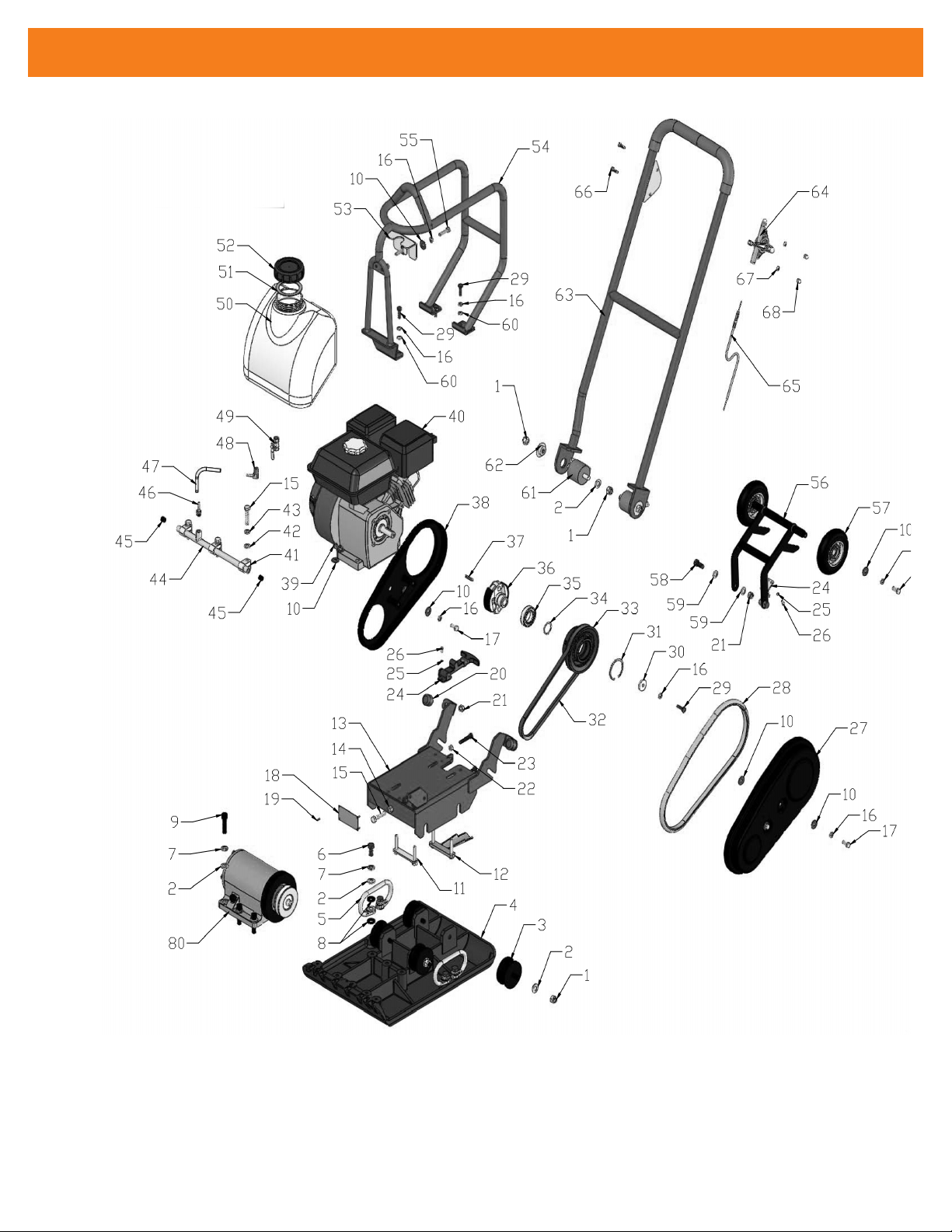

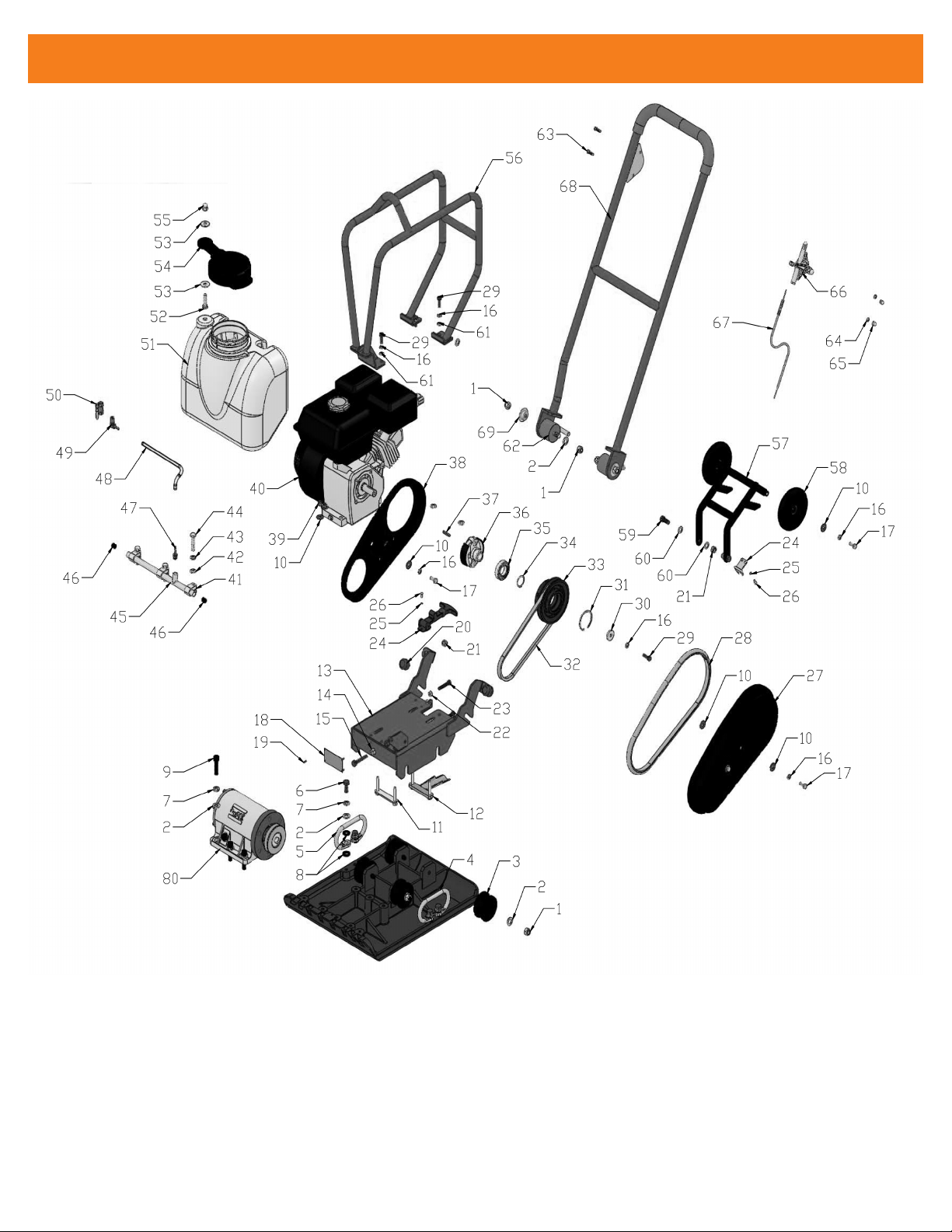

MAIN FRAME ASSEMBLY-EFPC60W.......................................................................................................................14-15

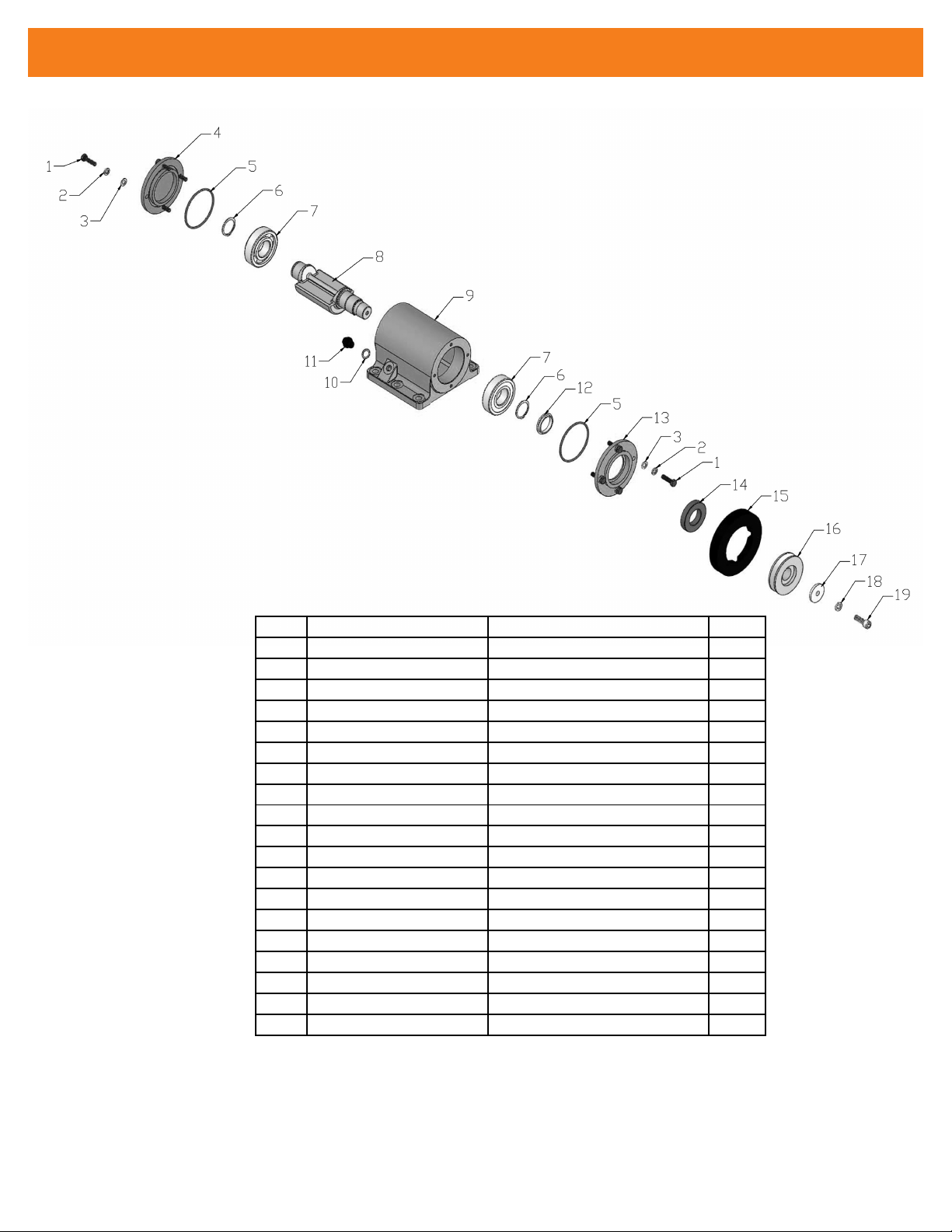

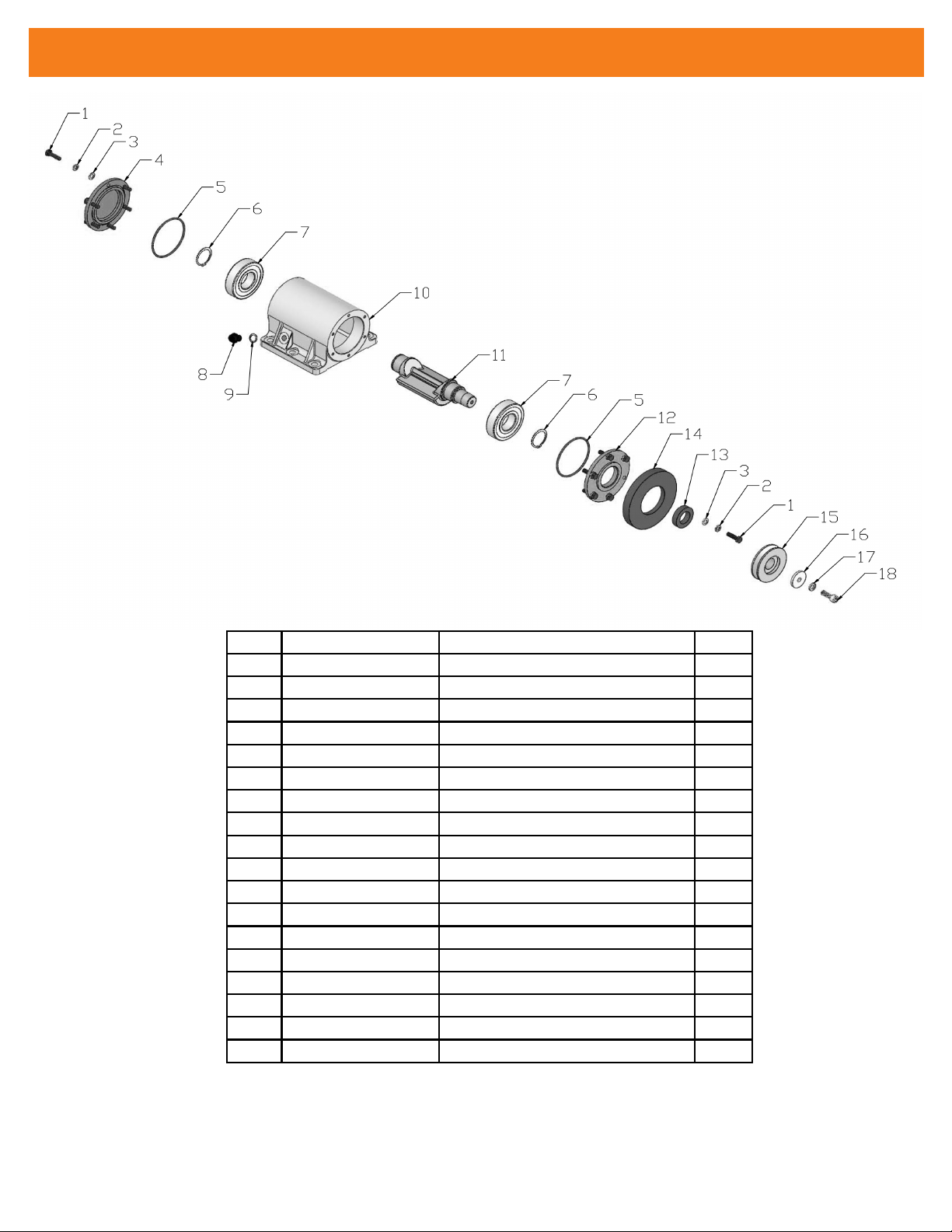

EXCITERHOUSINGASSEMBLY-EFPC60W..................................................................................................................16
EXCITERHOUSINGASSEMBLY-EFPC70W..................................................................................................................17
MAINFRAMEASSEMBLY-EFPC70W.............................................................................................................................18-19

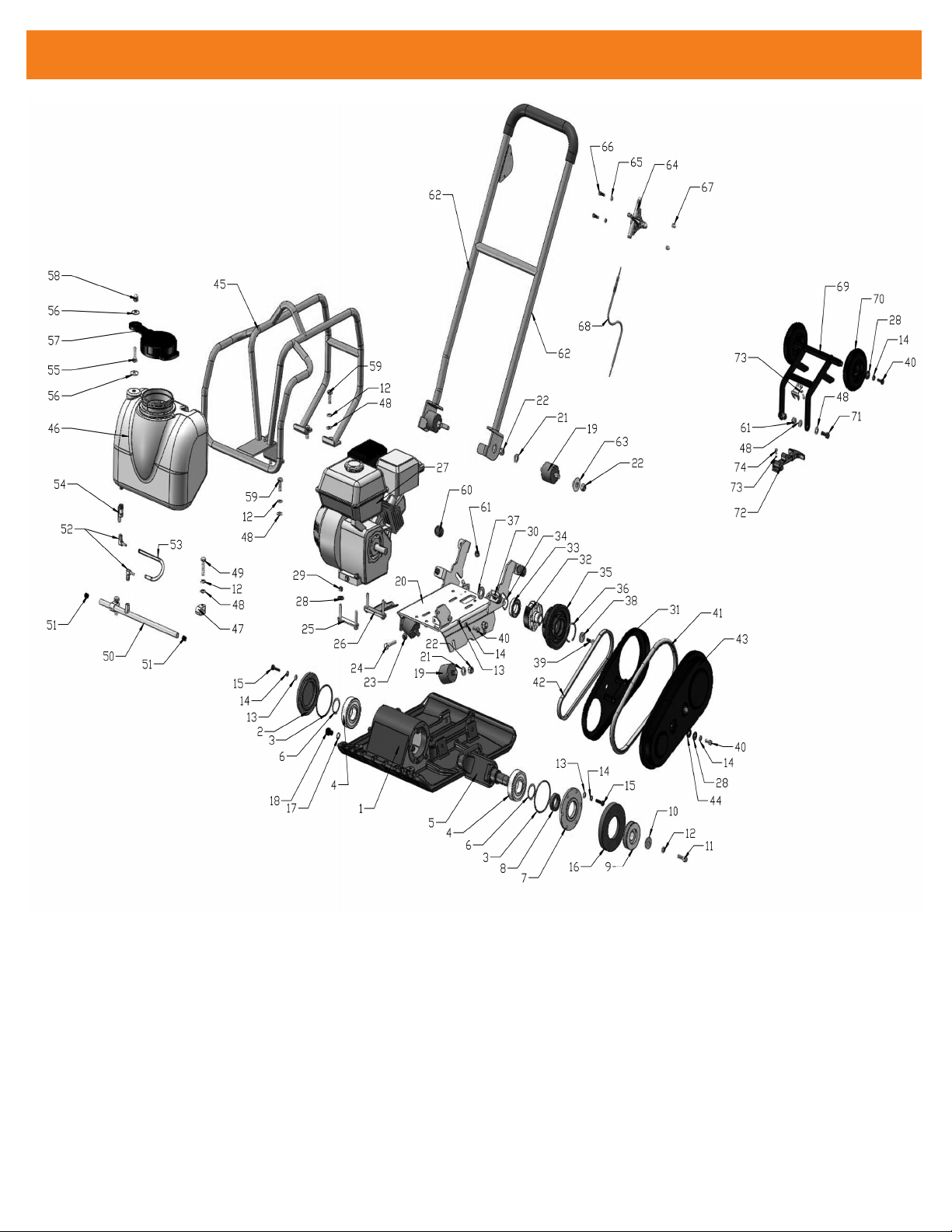

MAINFRAMEASSEMBLY-EFPC90C.............................................................................................................................20-21
NOTES / SERVICE RECORDS...................................................................................................................22
WARRANTY.........................................................................................................................................23
WARRANTY REGISTRATION............................................................................................................24
TABLE OF CONTENTS

3
Revision Number-001 09-01-2019 - Present
EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
This symbol, either used alone or with a signal word, is used to call your attention
to instructions involving your safety and/or the safety of others. Failure to follow
these instructions will likely result in personal injury or death.
DANGER This signal word is used to identify a hazard which, if not avoided, will result in
death or serious injury.
WARNING This signal word is used to identify a hazard which, if not avoided, could result in
death or serious injury.
CAUTION This signal word is used to identify a hazard which, if not avoided, could result in
minor or moderate injury.
NOTICE
This signal word is used to identify a hazard which, if not avoided, could result in
property or equipment damage. It also may be used for special instructions
related to performance, maintenance or general items.
INTRODUCTION
Congratulations on purchasing one of the nest pieces of construction equipment on the market today!
If this is your rst EZG Manufacturing product, you will not be disappointed. If you have previously
owned an EZG Manufacturing product, you will nd the same high quality and dependability that you
have come to expect from EZG Manufacturing.
The purpose of this manual is to inform the owner/employer/and the operator, how to safely operate
this piece of equipment, and make them aware of any hazards. It also contains important information
regarding assembly, set up, operation, and maintenance. It is the Owner/Employer’s responsibility
to make sure that anyone who operates this machine understands all safety warnings. If you do not
understand any items in this manual, please contact the dealer where this product was purchased, or
the manufacturer at the number listed throughout this manual. If you have any suggestions about how
to make this manual easier to understand, contact the manufacturer. Keep this manual available for
reference wherever this piece of equipment is being used and make it available to any operators.
Illustrations in this manual may show details or components that may not be the same as your
machine. Continuing improvements to the design of this machine may have caused changes that are
not included in this manual. The information in this document is subject to change without notice.
The following safety symbols and signal words will be used throughout this manual and on the
product, for your safety and the safety of others, please become familiar with their meaning and heed
their warnings.
ABOUT THIS MANUAL
GENERAL INFORMATION
SAFETY INFORMATION

EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
Revision Number-001 09-01-2019 - Present
4EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
WARNING
Failure to obey the following safety instructions could result in DEATH or
SERIOUS INJURY.
Read and understand entire manual before operating the Vibratory Forward Plate Compactor.
For your safety and the safety of others, replace any missing or damaged warning decals by
contacting the manufacturer at 1-800-417-9272.
Make sure anyone operating the Vibratory Forward Plate Compactor is thoroughly familiar with its
operation. Keep all unauthorized and untrained personnel, especially children, away from Vibratory
Forward Plate Compactor.
Improper maintenance can be hazardous. Read and understand this section before you
perform any maintenance, service or repairs.
General Safety
• The owner of this machine must observe, and also train the user of the machine to observe, the
e󰀨ective labour protection laws in the country of application.
• Use suitable lifting equipment to lift the machine.
• This machine is to be used for is intended application only.
• This machine must only be operated by well-trained personnel.
• Personal Protective Equipment (PPE) must be worn by the operator whenever the equipment is
being used.
• The machine must be operated on ground where stability is guaranteed. When working near the
rim of excavated trenches, keep a sensible distance from the edge so that there is no danger of the
machine falling down or the trench collapsing.
• Cordon o󰀨 the work area and keep members of the public and unauthorised personnel at a safe
distance.
• Make sure you know how to safely switch this machine OFF before you switch it ON in case you
run into any di󰀩culties.
• Always switch OFF the engine before servicing it.
• During use, the engine becomes very hot. Always allow the engine to cool down before touching it.
• Never leave the engine running and unattended.
• Never remove or tamper with any tted guards; they are there for your own protection. If they are
damaged or missing, DO NOT USE THE MACHINE until the guard has been replaced or repaired.
• Always switch OFF the engine before transporting it, moving it around site or servicing it.
• Do not operate the machine when you are ill, feeling tired or when under the inuence of alcohol or
drugs.
• If the surface to be compacted is on a slope, take great care when controlling the Vibratory Forward
Plate Compactor’s direction of travel. Always work up and down a slope; not across.
• This machine is designed to eliminate the possible risks arising from the use of it. However, risks
DO reside, and these residual risks are not clearly recognisable and may cause personal injury or
property damage, and possibly death. If such unpredictable and unrecognisable risks become
apparent, the machine must be stopped immediately, and operator or his supervisor must take
appropriate measure to eliminate such risks. It is sometimes necessary that the manufacturer must
be informed of such event for future counter measuring.
SAFETY PRECAUTIONS

5
Revision Number-001 09-01-2019 - Present
EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
Fuel is ammable. It may cause injury and property damage. Shut down the engine, extinguish
all open ames and do not smoke while lling the fuel tank. Always wipe up any spilled fuel.
• Before re-fuelling, switch o󰀨 the engine and allow it to cool.
• When re-fuelling, use a proper funnel, and avoid spilling over the engine.
• When re-fuelling, DO NOT smoke or allow naked ames in the area.
• Spilt fuel must be made safe immediately by using sand. If fuel is spilt on your clothes, change
them.
• Store fuel in an approved, purpose made container away from heat and sources of ignition.
Fuel Safety
SAFETY PRECAUTIONS
WARNINGS (continued)
Health & Safety
Vibration
Some vibration from the compacting operation is transmitted through the handle to
the operator’s hands. Ensure operator rotation and do not exceed the maximum
recommended usage times.
Dust
The compaction process can produce dust, which may be hazardous to your health.
Always wear a mask that is suited to the type of dust being produced.
Fuel
Do not ingest fuel or inhale fuel vapors and avoid contact with your skin. Wash fuel
splashes immediately. If you get fuel in your eyes, irrigate with copious amounts of
water and seek medical attention as soon as possible.
Exhaust Fumes
The exhaust fumes produced by this machine are highly toxic and can kill!
Do not operate the Vibratory Forward Plate Compactor indoors or in conned spaces. Make sure
the work area is adequately ventilated.

EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
Revision Number-001 09-01-2019 - Present
6EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
California - Proposition 65 Warning
Engine exhaust and some of its constituents, and some dust created by power sanding,
sawing, grinding, drilling, and other construction activities contains chemicals known to the
State of California to cause cancer, birth defects and other reproductive harm. Some examples
of these chemicals are:
Lead from lead based paints - Crystalline silica from bricks -Cement and other masonry
products -Arsenic and chromium from chemically treated lumber
Your risk from these exposures varies, depending on how often you do this type of work. To
reduce your exposure to these chemicals: ALWAYS work in a well ventilated area, and work
with approved safety equipment, such as dust masks that are specially designed to lter out
microscopic particles.

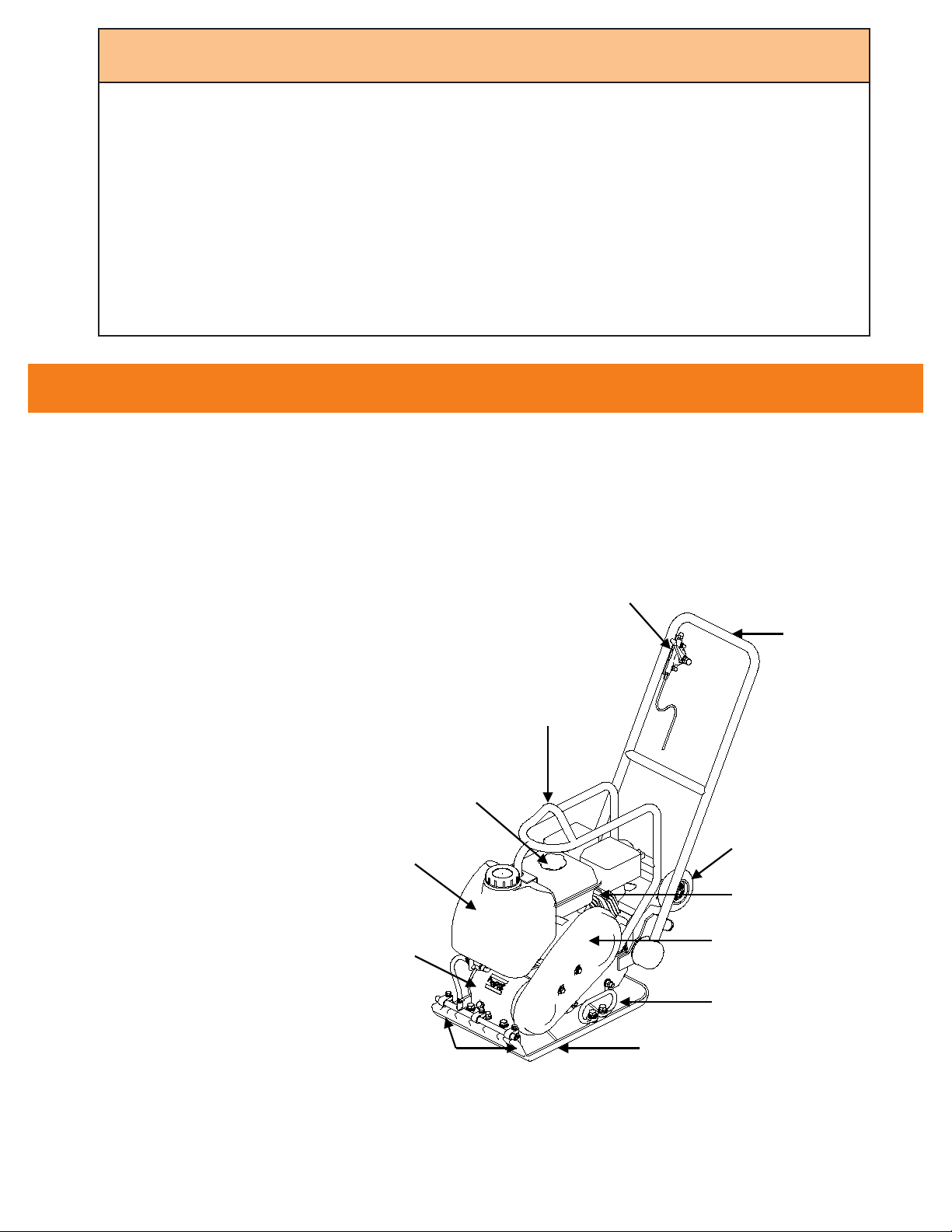

MACHINE DESCRIPTION
1. Throttle
2. Operating Handle
3. Wheels
4. Engine
5. Belt Guard
6. Lifting Handle
7. Base Plate
8. Water Sprinkler
9. Exciter Housing
10. Water tank
11. Fuel Tank
12. Lifting Hook
The Vibratory Forward Plate Compactor is designed for compacting loose, granular soils, gravel, paving
stones and asphalt. It is intended to be used in conned areas and areas next to structures such as walls,
curbs, and foundations. Plate Compactors with water tanks can be used for compacting asphalt.
The Plate Compactor is not recommended for the compaction of cohesive soils with heavy clay content. For
cohesive soil, use a Tamping Rammer.
12
1
2
3
11
6
7
8
9
10
5
4

7
Revision Number-001 09-01-2019 - Present
EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
PRE-START CHECKS
The following pre-start checks must be performed before the start of each work session or after every four
hours of use, whichever is rst. Please refer to the Service and Maintenance section for detailed guidance.
If any fault is discovered, the Vibratory Forward Plate Compactor must not be used until the fault is rectied.
1. Thoroughly inspect the machine for signs of damage, Make sure all guards are in place and secured.
Check for losse bolts and nuts, retighten if necessary.
2. Check hoses, ller openings, drain plugs and other areas for signs of leakage. Fix any leaks before
operating.
3. Check the engine oil level and top up as necessary. Use proper engine oil with the proper viscosity (SAE
10W-30 is recommended).
4. Check the engine fuel level and top us as necessary. Use clean fuel. The use of contaminated fuel may
damage the fuel system.
5. Check the air lter is clean. Excessive dirt/dust accumulation within the lter element will cause erratic
engine operation. Clean the air lter element when it is contaminated (refer to the Service and
Maintenance section).
6. Check for fuel and oil leaks.
START/STOP PROCEDURE
Before starting the engine, make sure that the Safety Switch is in the ON position and the Throttle Lever is
set to the idle position.
1. Take the Vibratory Forward Plate Compactor to where it is required. Use suitable lifting equipment to
position the Vibratory Forward Plate Compactor where it is necessary. Make sure the lifting equipment
has a WLL (Working Load Limit) suitable for the Vibratory Forward Plate Compactor weight. Attach
suitable slings or chains only to the lifting point.
2. Never leave the engine running during transporting, even if it is for a short period of time.
3. Having carried out the checks listed in the ‘pre-start’ section, you may start the engine. EZG
Vibratory Forward Plate Compactors are tted with a centrifugal clutch which allows the engine to run at
idle speed without engaging the exciter and driving the Vibratory Forward Plate Compactor. The
Centrifugal clutch will be engaged as the speed of engine is increased. For correct operation, the engine
speed should be set to maximum, full-open position.
Before Starting Gasoline Engine
4. Check the oil in the engine crankcase. Be sure to maintain the proper level per the engine manufacturer
specications. If the oil is dirty and in need of changing, follow the Engine User Manual instructions.
5. Check the fuel supply. Refer to Engine User Manual.

EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
Revision Number-001 09-01-2019 - Present
8EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
OPERATIONS
1. Run the engine at full throttle and allow the Plate Compactor to pull itself along at its
normal speed.
2. When operating on an incline it may be necessary to assist the Plate Compactor by
pushing it forward slightly.
3. When operating downhill hold the Plate Compactor back slightly, if it begins to pick up
speed.
4. Depending on the material being compacted, 3 or 4 passes are recommended to achieve
the best compaction.
5. While a certain amount of moisture in the soil is necessary, excessive moisture may
cause soil particles to stick together and prevent good compaction.
6. If soil is extremely wet, allow it to dry somewhat before compacting.
7. If soil is so dry as to create dust clouds while operating Plate Compactor, some moisture
should be added to the ground material to improve compaction. This will also reduce
service to the air lter.
8. When using the Plate Compactor on paving stones, attach a pad to the bottom of the
plate to prevent chipping or grinding surface of stones.
SERVICE & MAINTENANCE
The EZG Vibratory Forward Plate Compactors are designed to give many years of trouble free operation.
It is, however, important that the simple regular maintenance listed in this section is carried out. It
is recommended that an approved EZG dealer carry out all major maintenance and repairs. Always
use genuine EZG replacement parts, the use of spurious parts may void your warranty. Before any
maintenance is carried out on the machine, switch o󰀨 the engine and disconnect the HT lead from the
spark plug. Always set the machine on level ground to ensure any uid levels will be correctly read. Only
use recommended oils.
Do not operate the plate on concrete or on extremely hard, dry, compacted surfaces. The
plate will jump rather than vibrate and could damage both the plate and the engine.

9
Revision Number-001 09-01-2019 - Present
EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
AIR CLEANER
1. Remove air cleaner cover (a). Remove both elements and inspect them for holes or tears. Replace
damaged elements.
2. Wash foam element (b) in solution of mild detergent and warm water. Rinse thoroughly in clean water.
Allow element to dry thoroughly. Soak element in clean engine oil and squeeze out excess oil.
3. Tap paper element (c) lightly to remove excess dirt. Replace paper element if it appears heavily soiled.
Never run the engine without the air cleaner. Severe engine damage will occur.
The engine is equipped with a dual element air cleaner. Air cleaner must be serviced regularly to prevent
carburetor failure.
SERVICE (FIGURE 1)
FIGURE 1

EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
Revision Number-001 09-01-2019 - Present
10 EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
ENGINE OIL
SERVICE (FIGURE 2)
FIGURE 2
1. Start the engine and allow it to warm up to operating temperature.
2. Set the pilot screw (a) 2 turns out. See note.
3. With the engine idling, turn the pilot screw (a) in or out to the setting that produces the highest rpm.
4. After the pilot screw is adjusted, turn the throttle stop screw (b) to obtain the standard idle speed.
Note: On some engines the pilot screw is tted with a limiter cap (c) to prevent excessive enrichment of
the air-fuel mixture in order to comply with emissions regulations. The mixture is set at the factory and no
adjustments should be necessary. Do not attempt to remove the limiter cap. The limiter cap cannot be re-
moved without breaking pilot screw.
SERVICE (FIGURE 3)
CARBURETOR ADJUSTMENT
FIGURE 3
1. Drain oil while engine is still warm.
2. Remove the oil ll plug (a) and drain plug (b) to drain oil.
Note: In the interests of environmental protection, place a plastic sheet and a
container under the machine to collect any liquid which drains o󰀨. Dispose of this liquid in
accordance with environmental protection legislation.
3. Install drain plug.
4. Fill the engine crankcase with recommended oil up to the level of the plug opening (c). See engine user
manual for oil type and quantity.
5. Ret the oil ller plug.

11
Revision Number-001 09-01-2019 - Present
EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
DRIVE BELT
To Adjust the Belt:
On new machines or after installing a new belt, check the belt tension after rst 20 hours of
operation. Check and adjust the belt every 50 hours thereafter.
1. Loosen the 2 screws on the belt guard (4 screws on box type), then remove the belt
guard, keeping the screw assemblies captured on the belt guard.
2. Loosen the 4 nuts which hold the engine to the engine mounting plate and the belt screw.
3. Slide the engine backward (towards the handle) to tighten the belt, forward to loosen the
belt.
4. Adjust the belt so that it deects 1/2 inch (10–15mm) when pressed midway between the
belt pulleys.
5. Then tighten the belt screw which prevents the engine from sliding forward.
6. Make sure the clutch pulley and the exciter pulley are in alignment. Place a straight edge
against the exciter pulley and move the engine so that the two pulleys are parallel.
7. Retighten all nuts and screws to secure
The bearings in the exciter assembly are splash lubricated and rotate at very high speed. It
is crucial to maintain the exciter oil at the correct level and change it regularly.
Check exciter oil level every 50 hours of operation. (Use SAE-30W)
To Check Oil Level:
1. Place plate on a at level surface
2. Remove the oil Filter Plug
EXCITER LUBRICATION

EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
Revision Number-001 09-01-2019 - Present
12 EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
Clean plate after use to remove dirt, stones, and mud caught under the engine console. If
plate is being used in a dusty area, check engine cylinder cooling ns for heavy dirt accu-
mulation. Keep engine cylinder ns clean to prevent engine from overheating. You may use
an air gun to blow away excessive dirt.
CLEANING PLATE COMPACTOR
TRANSPORTATION AND STORAGE
For long-term storage, empty the fuel in the carburetor by running the engine with the fuel
tap being closed.
The chemical composition of the fuel will deteriorate after prolonged storage. When the ma-
chine needs to be stored for a long time, remove all the fuel from the fuel tank and the water
from the water tank. Also remove the fuel from the oat chamber of the carburetor by drain-
ing the fuel out from the drain plug.
Clean excessive dirt accumulated on the Plate Compactor. Cover the machine and store it
in a dry place.
Extreme care must be taken when loading or unloading this machine.
Always use the lifting hook for hoisting purposes. Use proper hoisting equipment and tech-
niques.
Be certain the area surrounding the machine is clear of personnel before hoisting. Always
hoist the machine high enough to transport.

13
Revision Number-001 09-01-2019 - Present
EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
WARNING LABELS AND LOCATIONS
ITEM PART NUMBER DESCRIPTION QUANTITY
A EFPC-DECAL-A LABEL KIT 1
1EZG Decal - A 1
2 Water Cap Decal - A 1
3 Gasoline Decal - A 1
4 Throttle Decal - A 1
5Lift Hook Decal - A 1
6 Decibel Decal - A 1
7EZG Decal - B 1
8 Warning Decal - A
1
2
4
5
6
7
3
8

EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
Revision Number-001 09-01-2019 - Present
14 EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
MAIN FRAME ASSEMBLY - EFPC60W
VIBRATORY FORWARD PLATE COMPACTOR [EFPC60W]
MAIN FRAME ASSEMBLY

15
Revision Number-001 09-01-2019 - Present
EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
MAIN FRAME ASSEMBLY
VIBRATORY FORWARD PLATE COMPACTOR [EFPC60W]
MAIN FRAME ASSEMBLY
NO. PART NO. PART DESCRIPTION QTY NO. PART NO. PART DESCRIPTION QTY
01-1 IN.N-M12-DIN-1 LOCK NUT 8 01-35 W01-6006ZZ-G BEARING 1
01-2 FN.W12-DIN-1 WASHER 16 01-36 80-0500A CENTRIFUGAL CLUTCH 1
01-3 60III-060100 CUSHION 4 01-37 Key.C-5x5x32 KEY 1
01-4 60W-010100S BASE PLATE 1 01-38 60W-060100 INNER BELT GUARD 1
01-5 90P-010100 HANDLE 2 01-39 IN.N-M8-DIN-1 LOCK NUT 4
01-6 FN.B-M12x25-8.8-DIN-1 BOLT 4 01-40 W05-GX160UT1-SWX2 ENGINE 1
01-7 HSPG.W12-DIN-1 SPRING WASHER,TANG ENDS 10 01-41 90P-010901 HOOP 3
01-8 90P-010600 RUBBER WASHER 8 01-42 FN.W10-DIN-1 WASHER 3
01-9 HS.B-M12x45-12.9-GB-3 SCREW 6 01-43 HSPG.W10-DIN-1 SPRING WASHER,TANG ENDS 3
01-10 WOD.W8-GB-1 WASHER 14 01-44 60W-010800 SPRINKLING PIPE 1
01-11 60-060200 BOLT 101-45 HSHOS.B-ZG1-4 HEXAGONAL SOCKET HEAD PLUG 2
01-12 90P-031000 FIX ENGINE BOLT 1 01-46 CPT-BT-1／4-6 HOSE NIPPLE 1
01-13 60W-020100 ENGINE BASE 1 01-47 SLSG-9*1.5 HOSE 0.3M
01-14 FN.N-M10-DIN-1 NUT 1 01-48 CPT-BT-1／4-6-90° HOSE NIPPLE 1
01-15 FN.B-M10x45-8.8-DIN-1 BOLT 4 01-49 CPT-QF-1／4VALVE 1
01-16 HSPG.W8-DIN-1 SPRING WASHER,TANG ENDS 13 01-50 90P-070000 WATER TANK 1
01-17 FN.B-M8x20-8.8-DIN-1 BOLT 6 01-51 ROL6.5-070109 SEAL,WATER TANK COVER 1
01-18 80-0409 NAMEPLATE 1 01-52 ROL6.5-070108 WATER TANK CAP 1
01-19 K.RVT-3.2x11 RIVET 4 01-53 90P-050300 WATER TANK CLIP 1
01-20 80-0408 CUSHION 2 01-54 60W-050100 WATER TANK FRAME 1
01-21 IN.N-M10-DIN-1 LOCK NUT 4 01-55 FN.B-M8x35-8.8-DIN-1 BOLT 2
01-22 FN.N-M8-DIN-1 NUT 2 01-56 60W-040100 WHEEL FRAME 1
01-23 FN.B-M8x45-8.8-DIN-1 BOLT 2 01-57 60W-040200 WHEELE 2
01-24 ROL500S-010505 BUCKLE 1 01-58 FN.B-M10x25-8.8-DIN-1 BOLT 2
01-25 SPG.W5-DIN-1 SPRING WASHER 4 01-59 FN.W10-DIN-1 WASHER 4
01-26 FN.B-M5x10-8.8-DIN-1 BOLT 4 01-60 FN.W8-DIN-1 WASHER 4
01-27 60W-060200 OUTER BELT GUARD 1 01-61 90B-030100 HANDRAIL ABSORBER 2
01-28 60W-060300 SEAL 1 01-62 60W-010300.3 NYLON WASHER 2
01-29 FN.B-M8x25-8.8-DIN-1 BOLT 5 01-63 60W-030100 HANDRAIL 1
01-30 80-0319 WASHER 1 01-64 RAM70ND-010018 THROTTLE LEVER ASSY 1
01-31 CH.RG55 INTERNAL CIRCLIP 1 01-65 W06-S04-L800x1000 THROTTLE CABLE 1
01-32 W02-A31 V-BELT 1 01-66 FN.B-M6×20-8.8-DIN-2 BOLT 2
01-33 90P-031800 CLUTCH PULLEY 1 01-67 HSPG.W6-DIN-2 SPRING WASHER,TANG ENDS 3
01-34 CS.RG30 EXTERNAL CIRCLIP 1 01-68 HC.N-M6-DIN-2 CAP NUT 2
01-35 W01-6006ZZ-G BEARING 1 01-80 2 EXCITER HOUSING ASSY 1set
第 1 页，共 1 页

EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
Revision Number-001 09-01-2019 - Present
16 EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
EXCITER HOUSING ASSEMBLY - EFPC60W
VIBRATORY FORWARD PLATE COMPACTOR [EFPC60W]
EXCITER HOUSING ASSEMBLY
NO. PART NO. PART DESCRIPTION QTY
02-1 FN.B-M8x30-8.8-DIN-1 BOLT 8
02-2 HSPG.W8-DIN-1 SPRING WASHER,TANG ENDS 8
02-3 FN.W8-DIN-1 WASHER 8
02-4 60-010400 CLOSE COVER 1
02-5 W04-80x3.5 O RING 2
02-6 CS.RG35 EXTERNAL CIRCLIP 2
02-7 W01-6307Z-J BEARING 2
02-8 60W-010200E EXCITER SHAFT 1
02-9 60-010200 EXCITER HOUSING 1
02-10 GB97.1-M14 CUPRUM WASHER 1
02-11 HHOS.B-M14x1.5 HEXAGON HEAD PLUG 1
02-12 60-010700 BUSH 1
02-13 60-010300 COVER 1
02-14 W03-65x35x12 OIL SEAL 1
02-15 60III-010500 COVER GUARD 1
02-16 40-060200 EXCITER PULLEY 1
02-17 60-060301 WASHER 1
02-18 HSPG.W10-DIN-1 SPRING WASHER,TANG ENDS 1
02-19 90B-010800 VENT SCREW 1
第 1 页，共 1 页

17
Revision Number-001 09-01-2019 - Present
EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
EXCITER HOUSING ASSEMBLY - EFPC70W
VIBRATORY FORWARD PLATE COMPACTOR [EFPC70W]
EXCITER HOUSE ASSEMBLY
NO. PART NO. PART DESCRIPTION QTY
02-1 FN.B-M8x30-8.8-DIN-1 BOLT 12
02-2 HSPG.W8-DIN-1 SPRING WASHER,TANG ENDS 12
02-3 FN.W8-DIN-1 WASHER 12
02-4 90P-020400 CLOSE COVER 1
02-5 W04-90x3.5 O RING 2
02-6 CS.RG40 EXTERNAL CIRCLIP 2
02-7 W01-6308ZZC3-J BEARING 2
02-8 HHOS.B-M14x1.5 HEXAGON HEAD PLUG 1
02-9 GB97.1-M14 CUPRUM WASHER 1
02-10 70W-010100 EXCITER HOUSING 1
02-11 70W-010200E EXCITER SHAFT 1
02-12 90P-020300 COVER 1
02-13 W03-50x30x12 OIL SEAL 1
02-14 90P-020500 COVER GUARD 1
02-15 40-060200 EXCITER PULLEY 1
02-16 80-0303 WASHER 1
02-17 HSPG.W10-DIN-1 SPRING WASHER,TANG ENDS 1
02-18 90B-010800 VENT SCREW 1

EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
Revision Number-001 09-01-2019 - Present
18 EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
VIBRATORY FORWARD PLATE COMPACTOR [EFPC70W]
MAIN FRAME ASSEMBLY
MAIN FRAME ASSEMBLY - EFPC70W

19
Revision Number-001 09-01-2019 - Present
EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
VIBRATORY FORWARD PLATE COMPACTOR [EFPC70W]
MAIN FRAME ASSEMBLY
MAIN FRAME ASSEMBLY - EFPC70W
NO. PART NO. PART DESCRIPTION QTY NO. PART NO. PART DESCRIPTION QTY
01-1 IN.N-M12-DIN-1 LOCK NUT 601-36 80-0500A CENTRIFUGAL CLUTCH 1
01-2 FN.W12-DIN-1 WASHER 16 01-37 Key.C-5x5x32 KEY 1
01-3 60III-060100 CUSHION 4 01-38 60W-060100 INNER BELT GUARD 1
01-4 60W-010100 BASE PLATE 101-39 IN.N-M8-DIN-1 LOCK NUT 4
01-5 90P-010100 HANDLE 2 01-40 W05-GX160UT1-SWX2 ENGINE 1
01-6 FN.B-M12x25-8.8-DIN-1 BOLT 401-41 90P-010901 HOOP 3
01-7 HSPG.W12-DIN-1 SPRING WASHER,TANG ENDS 10 01-42 FN.W10-DIN-1 WASHER 3
01-8 90P-010600 RUBBER WASHER 801-43 HSPG.W10-DIN-1 SPRING WASHER,TANG ENDS 3
01-9 HS.B-M12x45-12.9-DIN-1 SCREW 601-44 FN.B-M10x45-8.8-DIN-1 BOLT 3
01-10 WOD.W8-GB-1 WASHER 12 01-45 60W-010800 SPRINKLING PIPE 1
01-11 60-060200 BOLT 101-46 HSHOS.B-ZG1-4 HEXAGONAL SOCKET HEAD PLUG 2
01-12 90P-031000 FIX ENGINE BOLT 101-47 CPT-BT-1／4-6 HOSE NIPPLE 1
01-13 60W-020100 ENGINE BASE 101-48 SLSG-9*1.5 HOSE 0.3M
01-14 FN.N-M10-DIN-1 NUT 101-49 CPT-BT-1／4-6-90° HOSE NIPPLE 1
01-15 FN.B-M10x55-8.8-DIN-1 BOLT 101-50 CPT-QF-ZG1／4VALVE 1
01-16 HSPG.W8-DIN-1 SPRING WASHER,TANG ENDS 11 01-51 90P-070000A WATER TANK 1
01-17 FN.B-M8x20-8.8-DIN-1 BOLT 601-52 FN.B-M10x35-8.8-DIN-1 BOLT 1
01-18 D4-MP-E NAMEPLATE 101-53 WOD.W10-GB-1 WASHER 2
01-19 K.RVT-3.2x11 RIVET 401-54 650-070200 WATER TANK CAP 1
01-20 80-0408 CUSHION 2 01-55 HC.N-M10-DIN-1 CAP NUT 1
01-21 IN.N-M10-DIN-1 LOCK NUT 401-56 60W-050100A WATER TANK FRAME 1
01-22 FN.N-M8-DIN-1 NUT 201-57 60W-040100 WHEEL FRAME 1
01-23 FN.B-M8x45-8.8-DIN-1 BOLT 201-58 60W-040200 WHEEL 2
01-24 500S-010505 BUCKLE 101-59 FN.B-M10x25-8.8-DIN-1 BOLT 2
01-25 SPG.W5-DIN-1 SPRING WASHER 401-60 FN.W10-DIN-1 WASHER 4
01-26 FN.B-M5x10-8.8-DIN-1 BOLT 401-61 FN.W8-DIN-1 WASHER 4
01-27 60W-060200 OUTER BELT GUARD 101-62 90B-030100 SHOCK ABSORBER 2
01-28 60W-060300 SEAL 101-63 FN.B-M6x20-8.8-DIN-2 BOLT 2
01-29 FN.B-M8x25-8.8-DIN-1 BOLT 501-64 HSPG.W6-DIN-2 SPRING WASHER,TANG ENDS 2
01-30 80-0319 WASHER 1 01-65 HC.N-M6-DIN-2 CAP NUT 2
01-31 CH.RG55 INTERNAL CIRCLIP 101-66 70ND-010018 THROTTLE LEVER ASSY 1
01-32 W02-A31 V-BELT 101-67 W06-S04-L800x1000 THROTTLE CABLE 1
01-33 90P-031800 CLUTCH PULLEY 101-68 60W-030100 HANDRAIL 1
01-34 CS.RG30 EXTERNAL CIRCLIP 101-69 60W-010300.3 NYLON WASHER 2
01-35 W01-6006ZZ-G BEARING (轴承) 1 01-80 2EXCITER HOUSING ASSY

EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
Revision Number-001 09-01-2019 - Present
20 EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
VIBRATORY FORWARD PLATE COMPACTOR [EFPC90C]
MAIN FRAME ASSEMBLY
MAIN FRAME ASSEMBLY - EFPC90C
