EZG Grout Hog GPH75 User manual

GPH75 & GPHC75
Grout Hog®
Owner’s Manual
EZG MANUFACTURING
1-800-417-9272
Grout Hog®
EZG Manufacturing
405 Watertown Road
Waterford, Ohio 45786
[phone] or 1-800-417-9272
Fax [phone] www.ezgmfg.com
Before using this Grout Hog®,
study and understand the entire
Owner’s Manual.
Serial Number _____________

EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
Revision Number-005 04-02-2018 - Present
2EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
INTRODUCTION.................................................................................................................................3
ABOUT THIS MANUAL.......................................................................................................................3
GENERAL INFORMATION..................................................................................................................3
SAFETY INFORMATION.....................................................................................................................3
SAFETY PRECAUTIONS..................................................................................................................4-5
CALIFORNIA PROPOSITION 65 WARNING......................................................................................6
OPERATING INSTRUCTIONS............................................................................................................6
CLEANUP.........................................................................................................................7
OBTAINING SPARE PARTS........................................................................................................................7
TROUBLESHOOTING GUIDE.......................................................................................................................8
MAINTENANCE CHART..........................................................................................................................8
SERVICE RECORDS.................................................................................................................9

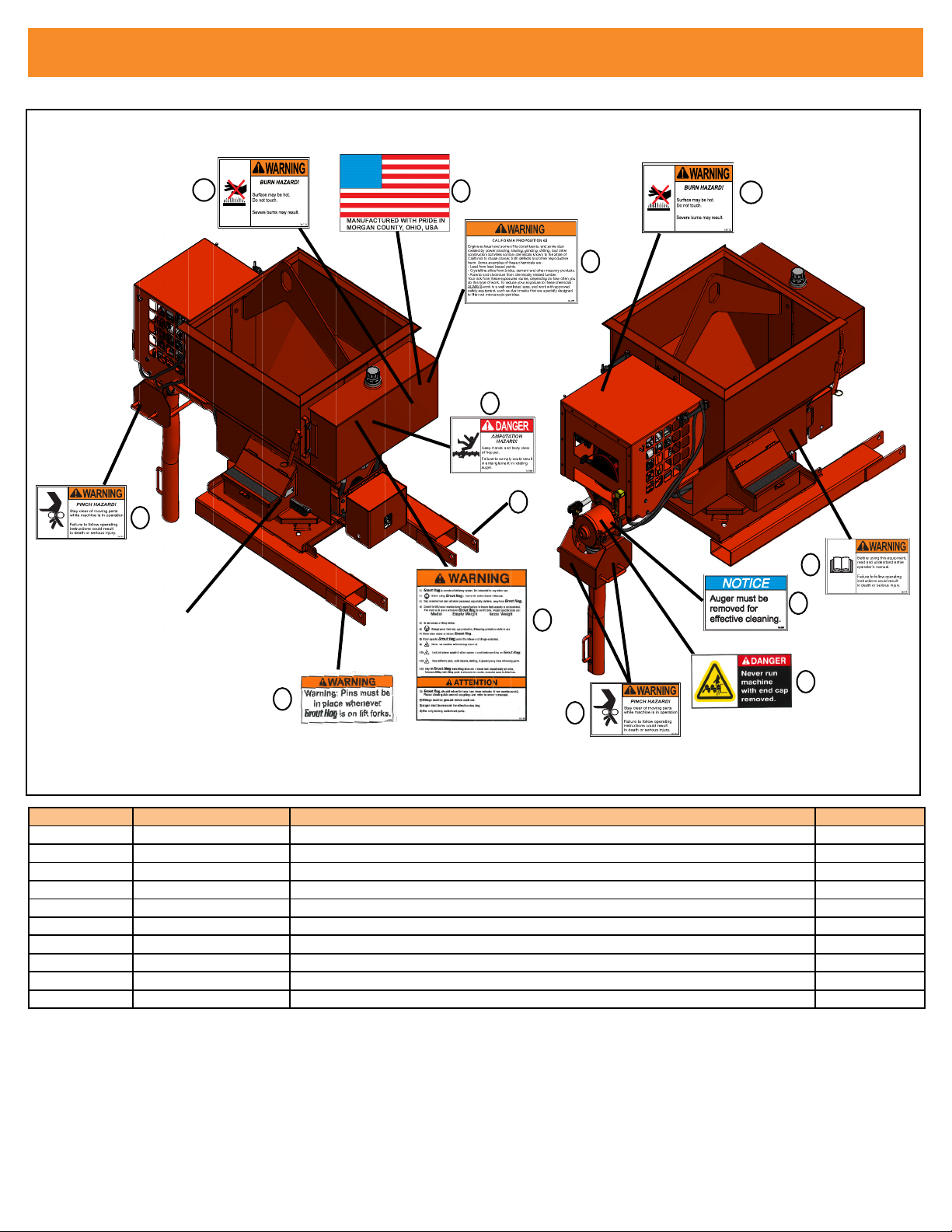

WARNING LABELS AND LOCATIONS ......................................................................................10

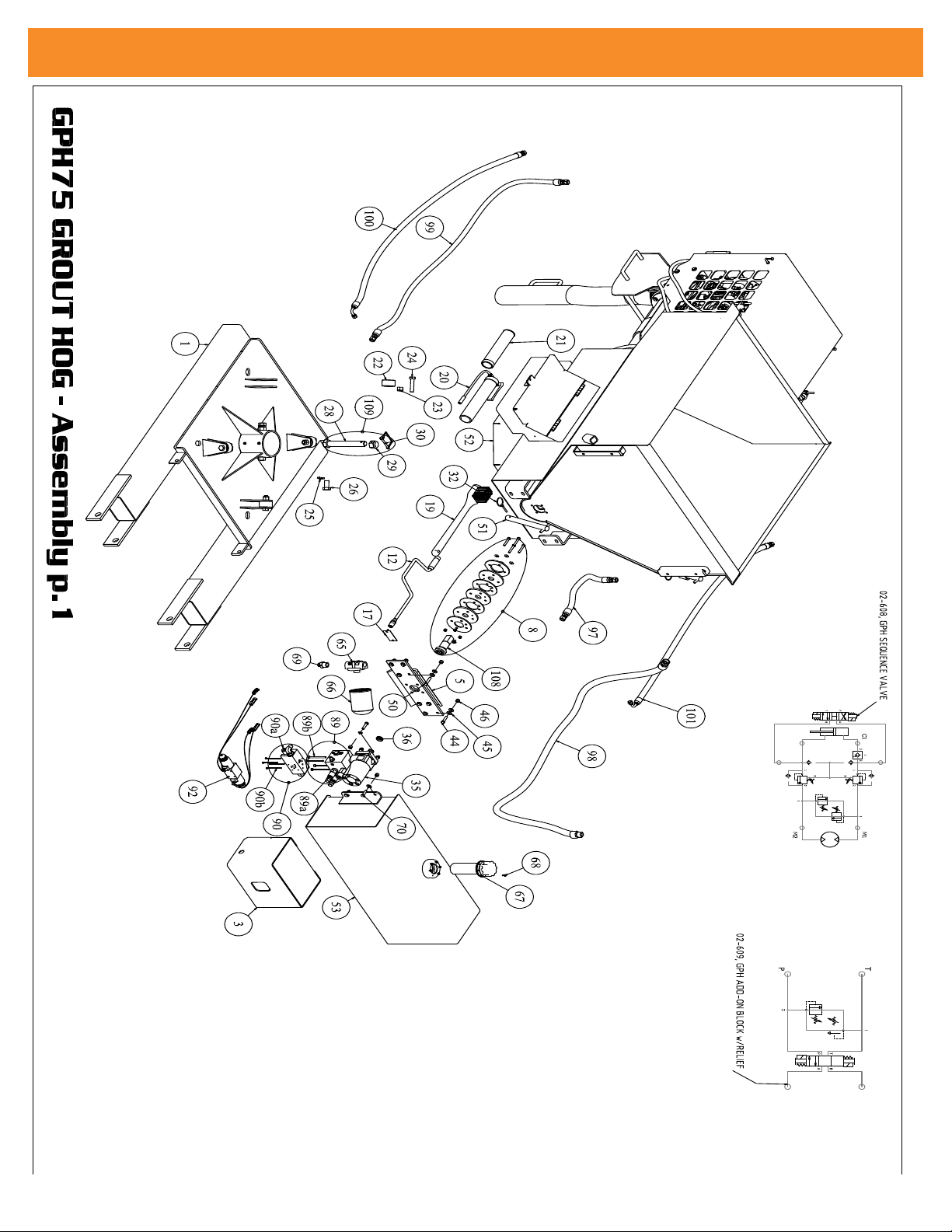

GPH75 ASSEMBLY DRAWING P.1..............................................................................................11
GPH75 ASSEMBLY DRAWING P.2..............................................................................................12

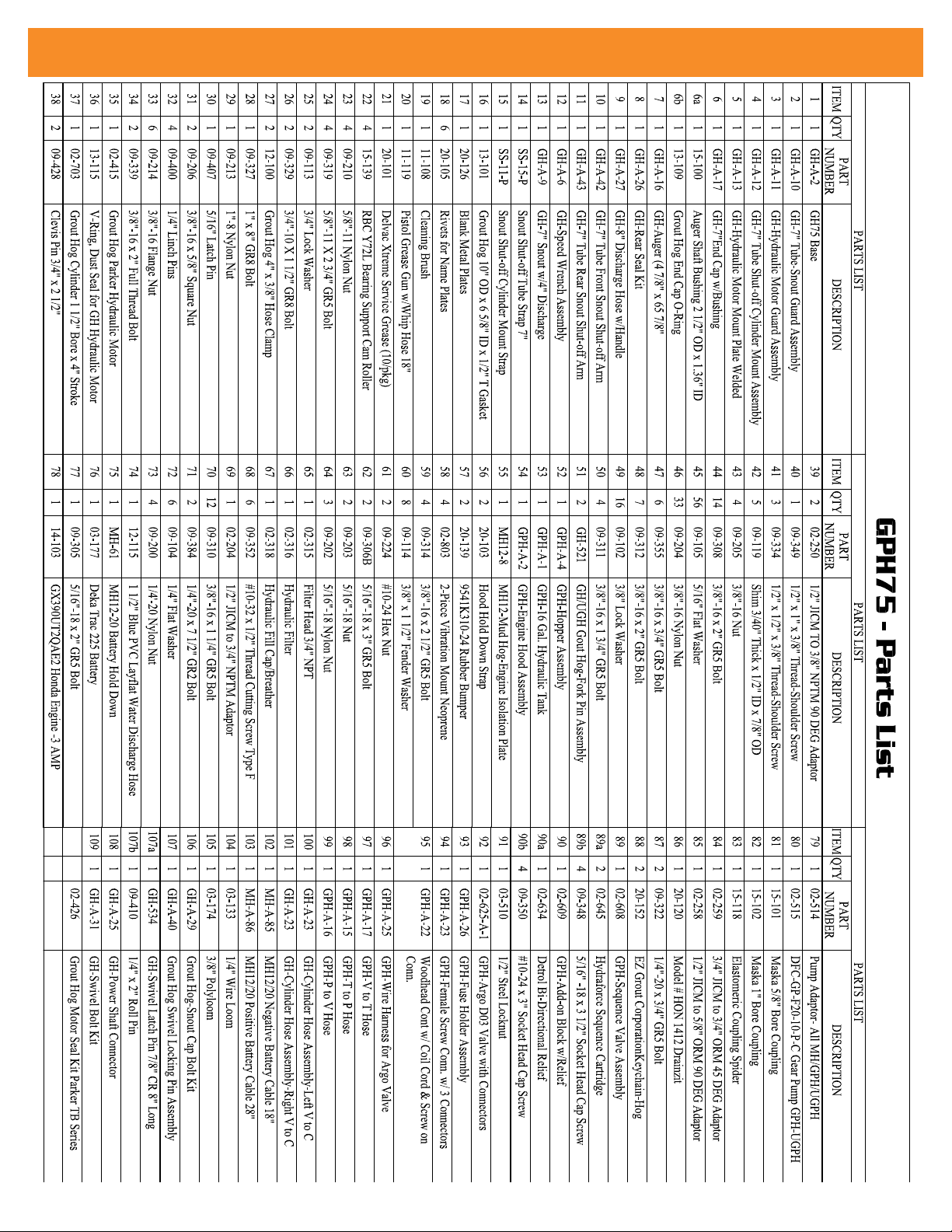

GPH75 PARTS LIST................................................................................................................................13
GPHC75 ASSEMBLY DRAWING P. 1.....................................................................................................14

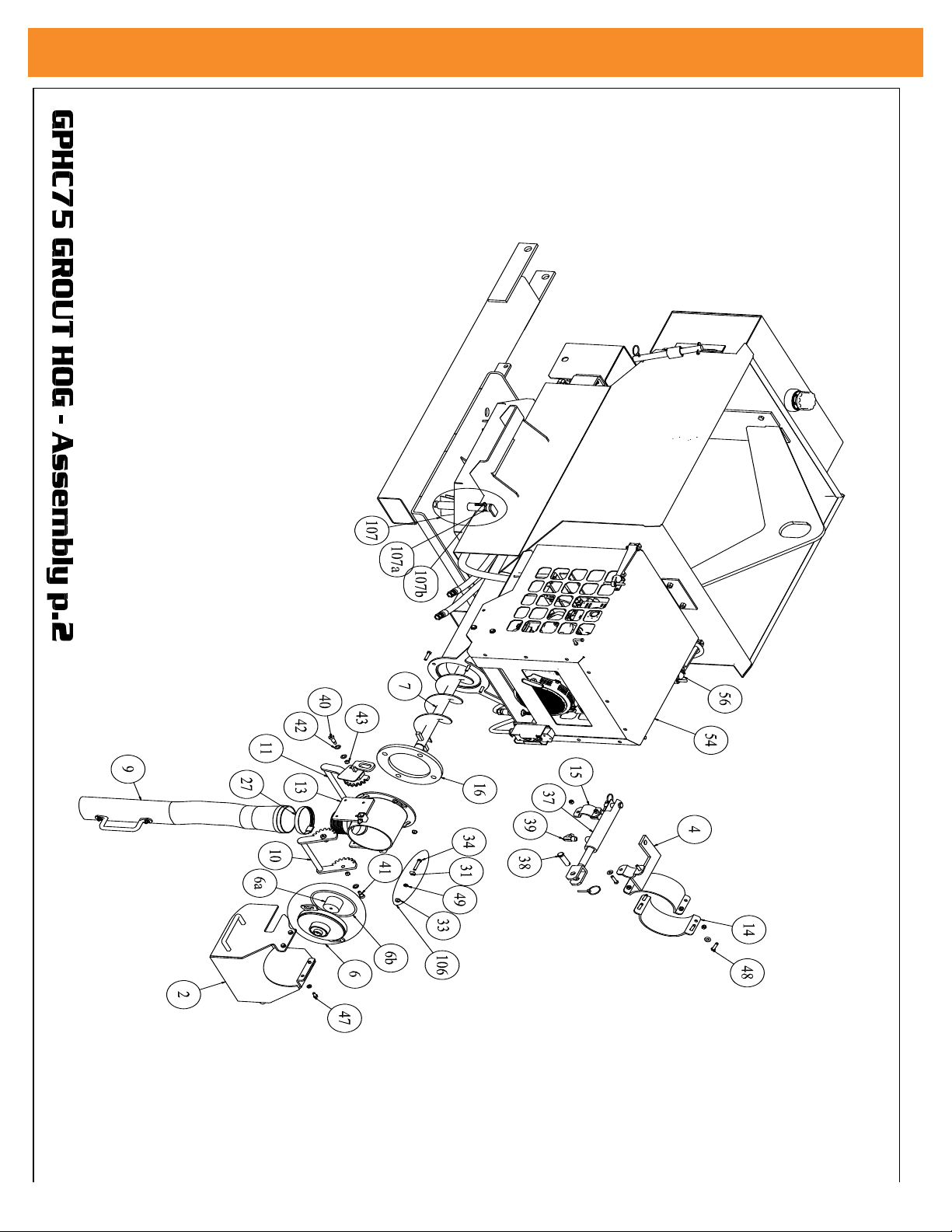

GPHC75 ASSEMBLY DRAWING P. 2.....................................................................................................15
GPHC75 PARTS LIST.........................................................................................................................16
ENGINE ASSEMBLY.........................................................................................................................17

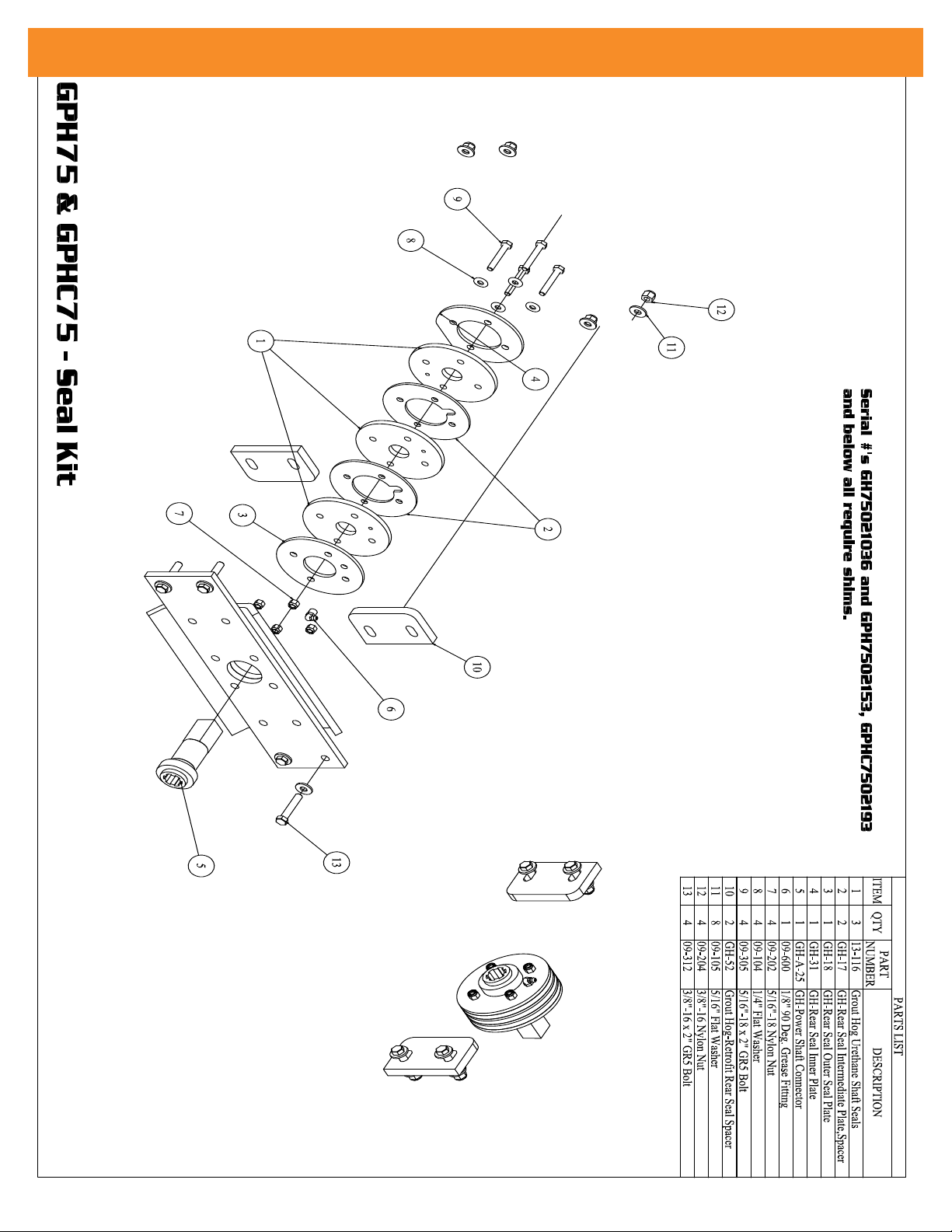

SEAL KIT..............................................................................................................................18
OPTIONS..............................................................................................................................19

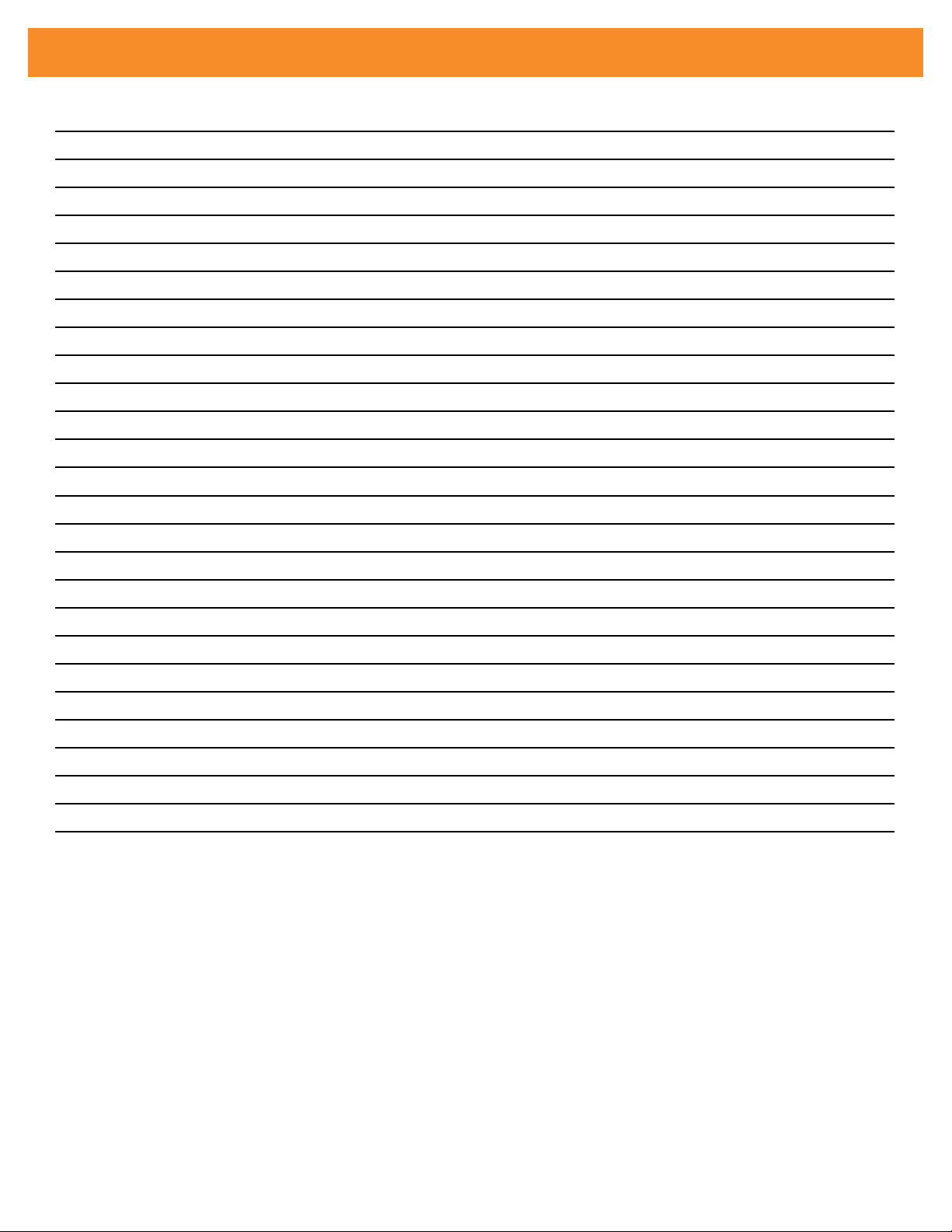

NOTES..............................................................................................................................20
WARRANTY.........................................................................................................................................21
WARRANTY REGISTRATION............................................................................................................22
TABLE OF CONTENTS

3
Revision Number-005 04-02-2018 - Present
EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
This symbol, either used alone or with a signal word, is used to call your attention
to instructions involving your safety and/or the safety of others. Failure to follow
these instructions will likely result in personal injury or death.
DANGER This signal word is used to identify a hazard which, if not avoided, will result in
death or serious injury.
WARNING This signal word is used to identify a hazard which, if not avoided, could result in
death or serious injury.
CAUTION This signal word is used to identify a hazard which, if not avoided, could result in
minor or moderate injury.
NOTICE
This signal word is used to identify a hazard which, if not avoided, could result in
property or equipment damage. It also may be used for special instructions
related to performance, maintenance or general items.
INTRODUCTION
Congratulations on purchasing one of the nest pieces of masonry equipment on the market today!
If this is your rst EZG Manufacturing product, you will not be disappointed. If you have previously
owned an EZG Manufacturing product, you will nd the same high quality and dependability that you
have come to expect from EZG Manufacturing.
The purpose of this manual is to inform the owner/employer/and the operator, how to safely operate
this piece of equipment, and make them aware of any hazards. It also contains important information
regarding assembly, set up, operation, and maintenance. It is the Owner/Employer’s responsibility
to make sure that anyone who operates this machine understands all safety warnings. If you do not
understand any items in this manual, please contact the dealer where this product was purchased, or
the manufacturer at the number listed throughout this manual. If you have any suggestions about how
to make this manual easier to understand, contact the manufacturer. Keep this manual available for
reference wherever this piece of equipment is being used and make it available to any operators.
Illustrations in this manual may show details or components that may not be the same as your
machine. Continuing improvements to the design of this machine may have caused changes that are
not included in this manual. The information in this document is subject to change without notice.
The following safety symbols and signal words will be used throughout this manual and on the
product, for your safety and the safety of others, please become familiar with their meaning and heed
their warnings.
ABOUT THIS MANUAL
GENERAL INFORMATION
SAFETY INFORMATION

EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
Revision Number-005 04-02-2018 - Present
4EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
WARNING
Failure to obey the following safety instructions could result in DEATH or
SERIOUS INJURY.
Read and understand entire manual before operating the Grout Hog®.
For your safety and the safety of others, replace any missing or damaged warning decals by contacting
the manufacturer at 1-800-417-9272.
Make sure anyone operating the Grout Hog® is thoroughly familiar with its operation. Keep all
unauthorized and untrained personnel, especially children away from Grout Hog®.
Never operate machine with guards or safety devices removed. Do not alter any safety guards.
Never perform any work on the Grout Hog® while it is running. Before working on or cleaning the Grout
Hog®, shut o󰀨 engine and disconnect hydraulic supply hoses.
Never operate the Grout Hog® under the inuence of alcohol, drugs, or medications.
This Grout Hog® has been designed and built as a material delivery station, and should not be used
for anything other than its intended purpose.
Consult forklift manufacturers specications to ensure load capacity is not exceeded.
Model Empty Weight Max Gross Weight
GPH75 1436 lbs. (651.4 kg) 4436 lbs. (2012.1 kg)
GPHC75 1525 lbs. (691.7 kg) 4526 lbs. (2052.2 kg)
Do not exceed Maximum Gross Weight
DANGER
Failure to obey the following safety instructions will result in DEATH or
SERIOUS INJURY.
Stay clear of auger while machine is in operation. Keep all body parts, clothing, jewelry and solid
objects away from all moving parts.
Never run Grout Hog® with end cap removed.
Always use skid pins and linch pins or safety chains whenever Grout Hog® is on lift forks.
Never stand under an elevated Grout Hog®.
Never attempt to ride the Grout Hog®.
SAFETY PRECAUTIONS

5
Revision Number-005 04-02-2018 - Present
EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
The Grout Hog® is intended for use with a supervised hold to run control. If used outside of this scope
call the EZG Manufacturing for optional grate to cover hopper.
Avoid breathing dust produced while using the Grout Hog®. Dust may contain crystalline silica and
may cause serious health problems.
Do not operate near combustible materials.
Always know the location of nearest re extinguishers, rst aid kit, and emergency personnel phone
numbers in case of emergency.
Inspect all hoses, fasteners, bolts and welds for nicks, cracks, cuts, damage, wear or looseness
before each use. Repair as needed.
Always wear approved PPE, including glasses, hearing protection, hard hats, and ventilation masks
when operating a Grout Hog®.
Do not use the Grout Hog® as a lifting device or with accessories or attachments not recommended
by EZG Manufacturing, as damage to equipment or operator might result.
Avoid contact with hot hydraulic uid.
Allow system to cool before performing any repairs or service.
Use only factory authorized parts.
Used lubricants such as engine and hydraulic oil, and hazardous waste must be taken to an
authorized disposal or recycling center.
SAFETY PRECAUTIONS
WARNINGS (continued)
CAUTION
Failure to obey the following safety instructions could result in MINOR or
MODERATE INJURY.
NOTICE

EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
Revision Number-005 04-02-2018 - Present
6EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
California - Proposition 65 Warning
Engine exhaust and some of its constituents, and some dust created by power sanding,
sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to
cause cancer, birth defects and other reproductive harm. Some examples of these chemicals are:
Lead from lead based paints - Crystalline silica from bricks -Cement and other masonry products -Arsenic
and chromium from chemically treated lumber
Your risk from these exposures varies, depending on how often you do this type of work. To reduce your ex-
posure to these chemicals: ALWAYS work in a well ventilated area, and work with approved safety equipment,
such as dust masks that are specially designed to lter out microscopic particles.
Before operating the Grout Hog® it should be properly set up on the jobsite. The Grout Hog® may be
lifted by using a forklift. The GPH75 weighs 1436 lbs.(651.4kg) empty and 4436lbs.(2012.1kg) full and
the GPHC75 weighs 1525lbs.(691.7kg) empty and 4526lbs.(2052.5kg) full. Check forklift ratings before
attempting to move the Grout Hog®.
1. Start engine (see Honda owner’s manual page 15). Let engine run for 5 minutes and turn o󰀨.
2. Slide lift forks into lifting channels on Grout Hog®.
3. Insert skid pins into lift channels behind lift forks and secure with locking pins or use chain attachment.
4. Set Grout Hog® securely on ground. Fill to desired capacity.
5. Transport Grout Hog® to desired location. Start engine, fully open throttle, and raise above grouting
level.
6. Hold discharge hose over area to be grouted.
7. Discharge grout to desired areas until hopper is empty. (Repeat steps 4-7 as needed)
8. To regulate grout ow, squeeze discharge hose; to momentarily stop grout ow, crimp or fold hose.
9. To stop ow for extended period, push reverse on pendant switch until valve closes then release button,
and hang on hook provided.
WARNING
This equipment is to be operated by trained and qualied personnel over
the age of 18. Death or serious injury can result.
OPERATING INSTRUCTIONS
WARNING
Pins must be in place whenever Grout Hog® is on lift forks. Death or
serious injury can result.
WARNING
Check forklift or crane manufacturer’s specications to be sure forklift or
crane is designed to handle weight of Grout Hog® and material in hopper.
Death or serious injury can result.
NOTICE: In the unlikely event that the auger plugs, momentarily push the
reverse button on the pendant switch.

7
Revision Number-005 04-02-2018 - Present
EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
Spare parts for your Grout Hog® may be obtained by the following procedure:
1. Record the information from the serial number tag located on the frame.
2. Using the parts reference table in this manual, record the part number or component.
3. Contact your local Grout Hog® dealer or EZG Manufacturing at 1-800-417-9272 with the information
recorded.
7. Grease the ttings using EPI rated or equivalent grease. There are 4 grease ttings on the Grout Hog®,
they are identied on the parts list by #62.
Following each use, it is a good idea to apply a thin layer of lubricant to the inside of the hopper to make
cleaning easier.
If equipped with crane bail, inspect crane bail, hopper, and base for cracked welds, loose bolts, and wear
before each use. Repair or replace if needed.
OBTAINING SPARE PARTS
CAUTION
Before performing any described maintenance items, make sure engine is
o󰀨. Death or serious injury can result.
CLEANUP
1. Set Grout Hog® securely on ground. Turn o󰀨 and remove ignition key. Remove skid pins or chains
before backing away.
2. Remove end cap from auger tube.
3. Grasp auger handle rmly and pull auger straight out of tube.
4. Hose out and brush down hopper, then spray out and brush down auger until all excess grout is removed.
5. Flush discharge hose until clean.
6. Slide auger back in Grout Hog® so that it ts securely in place. Install the end cap back on tube.
DANGER
Never run machine with end cap removed. Death or serious injury will
result.
NOTICE: Do not use so much lubricant that it might stain block work at beginning of
next use.

EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
Revision Number-005 04-02-2018 - Present
8EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
Before
Starting
Work
TROUBLESHOOTING
Symptom Potential Cause Possible Solution
Auger will not turn
Low hydraulic uid Add hydraulic uid
Hard concrete around auger Clean auger
Ice in hopper Clean hopper
Discharge hose plugged Clean hose
Pendant or cord damaged Inspect, replace if needed
Blown fuse Replace fuse
Hopper unloading slowly
Wrong gasket in auger tube Replace 1 1/4” ID Gasket with 6 5/8” ID Gasket
Discharge hose kinked Lift hopper to higher elevation
Discharge hose damaged Replace discharge hose
Auger turning in reverse Press other hold to run button on pendant
Auger worn Replace auger
Concrete leaking from back of machine Continuous use without grease Replace rubber seal and power shaft adapter
Grout continues to ow when auger is stopped Valve not closing Hold reverse button momentarily to close valve
Hopper is di󰀩cult to swivel by pulling on discharge
hose
Lack of grease Grease spindle
Faulty support rollers Replace support rollers
MAINTENANCE CHART
Complete Machine
Visual Inspection
Condition x x
Clean x x
Hydraulic Filter Replace x x x
Hydraulic Oil (5-10W
energul HPD-HD or
equivalent)
Check x
Replace x x
Honda Motor Maintenance Repair
& Safety x
Hydraulic Hoses &
Discharge Hose
Replace x x
Check x
Auger
Replace x
Clean x
Warning Decals
Replace x
Clean x x
Emergency Stop
Functional Test x
Replace x x
Pendant Switch
Functional Test x
Replace x x
End Cap & Rear Seal
Grease x x x
Replace x x
Center Spindle Grease x
Battery Replacement x
First
100 Hours
After
Use
Before
Starting
Motor
Every Time
After
Refueling
Monthly
Annually
or 300
Hours
In the
Event of
Malfunction
If
Damaged
Refer to
Honda Owners
Manual Supplied
with Machine

9
Revision Number-005 04-02-2018 - Present
EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
SERVICE PERFORMED DATE INITIALS
SERVICE RECORDS
Refer to
Honda Owners
Manual Supplied
with Machine

EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
Revision Number-005 04-02-2018 - Present
10 EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
WARNING LABELS AND LOCATIONS
ITEM PART NUMBER DESCRIPTION QUANTITY
1 16-131 Small Pinch Point Decal 3
2 16-133 Pins Must be in Place Decal 2
3 16-195 Grout Hog Weight Decal 1
4 16-104 Danger - Amputation Decal 1
5 16-193 Proposition 65 Decal 1
6 16-106 U.S. Flag Decal 1
7 16-105 Danger - End Cap Decal 1
8 16-200 Remove Auger for Cleaning Decal 1
9 16-177 Read Owners Manual Decal 1
10 16-112 Hot Surface 2
8
7
10
1
2
1
3
2
4
6
9
5
S/N
Location
10

11
Revision Number-005 04-02-2018 - Present
EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
GPH75 ASSEMBLY DRAWING P. 1

EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
Revision Number-005 04-02-2018 - Present
12 EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
GPH75 ASSEMBLY DRAWING P. 2

13
Revision Number-005 04-02-2018 - Present
EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
GPH75 PARTS LIST

EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
Revision Number-005 04-02-2018 - Present
14 EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
GPHC75 ASSEMBLY DRAWING P. 1

15
Revision Number-005 04-02-2018 - Present
EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
GPHC75 ASSEMBLY DRAWING P. 2

EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
Revision Number-005 04-02-2018 - Present
16 EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
GPHC75 PARTS LIST

17
Revision Number-005 04-02-2018 - Present
EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
ENGINE ASSEMBLY

EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
Revision Number-005 04-02-2018 - Present
18 EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
SEAL KIT

19
Revision Number-005 04-02-2018 - Present
EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
OPTIONS

EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
Revision Number-005 04-02-2018 - Present
20 EZG Manufacturing 1-800-417-9272 www.ezgmfg.com
NOTES
