1Dear user
Congratulations on your purchase of a Faber fire! A
quality product from which you will experience
warmth and atmosphere for many years. We
recommend that you read this manual carefully
before using the fireplace. If any problem arises
despite our strict quality control, you can always
contact your dealer or Glen Dimplex Benelux B.V.
For any warranty claims, it is essential you first
register your fireplace. During this registration,
you’ll find all information regarding our warranty.
Please note!
The details of your fireplace can be found in
the user manual.
You can register your fireplace at:
www.faberfires.com
Glen Dimplex Benelux B.V.
Address: Saturnus 8
NL-8448 CC
Heerenveen
Tel: [phone]
Email: [email protected]m
Info: www.faberfires.com
1.1 Introduction
Only have the fire installed by a qualified installer
according to the water and electric safety
Regulations. Read this installation manual properly.
1.2 Check
Check the fire for transport damage and
report any damage immediately to your
supplier.
Check whether all of the parts below are
included:
oControl box
oRemote (incl. batteries)
oDecoration material
oSuction cups (2x)
oService door
oSpare transducers (2x) and
sponge
1.3 CE declaration
The product complies with the European Safety
Standards EN60335-2-30 and the European
Standard Electromagnetic Compatibility (EMC)
EN55014, EN60555-2 and EN60555-3 these cover
the essential requirements of EEC Directives
2006/95/EC and 2004/108/EC.
Product: electric fire Opti-myst
Model: e-MatriX heat 800/500 I,II,III
e-MatriX heat 800/650 I,II,III
Please note!
This declaration is invalid if changes are made
to the fire.
2Safety instructions
Do not use outdoors.
Do not use in the immediate surroundings
of a bath, shower or swimming pool.
Do not use on deep pile carpets or on long
hair type of rugs.
Do not use without the glass installed in
place.
Do not locate the appliance immediately
below a fixed socket outlet or connection
box.
The fire must be installed according this
manual.
3Installation requirements
3.1 Water supply
Water connection ½” or ¾” placed at an
accessible location.
Install an EA backflow protection valve,
not included with the appliance.
Water pressure on the fire between 0,5
and 8 Bar. Where required, use a pressure
reducing valve.
3.2 Power supply
Electric connection -230VAC/50Hz earthed and
placed at an accessible location.
4Preparation and installation
instructions
4.1 Preparing the fire
Ensure that all packing items are
removed.

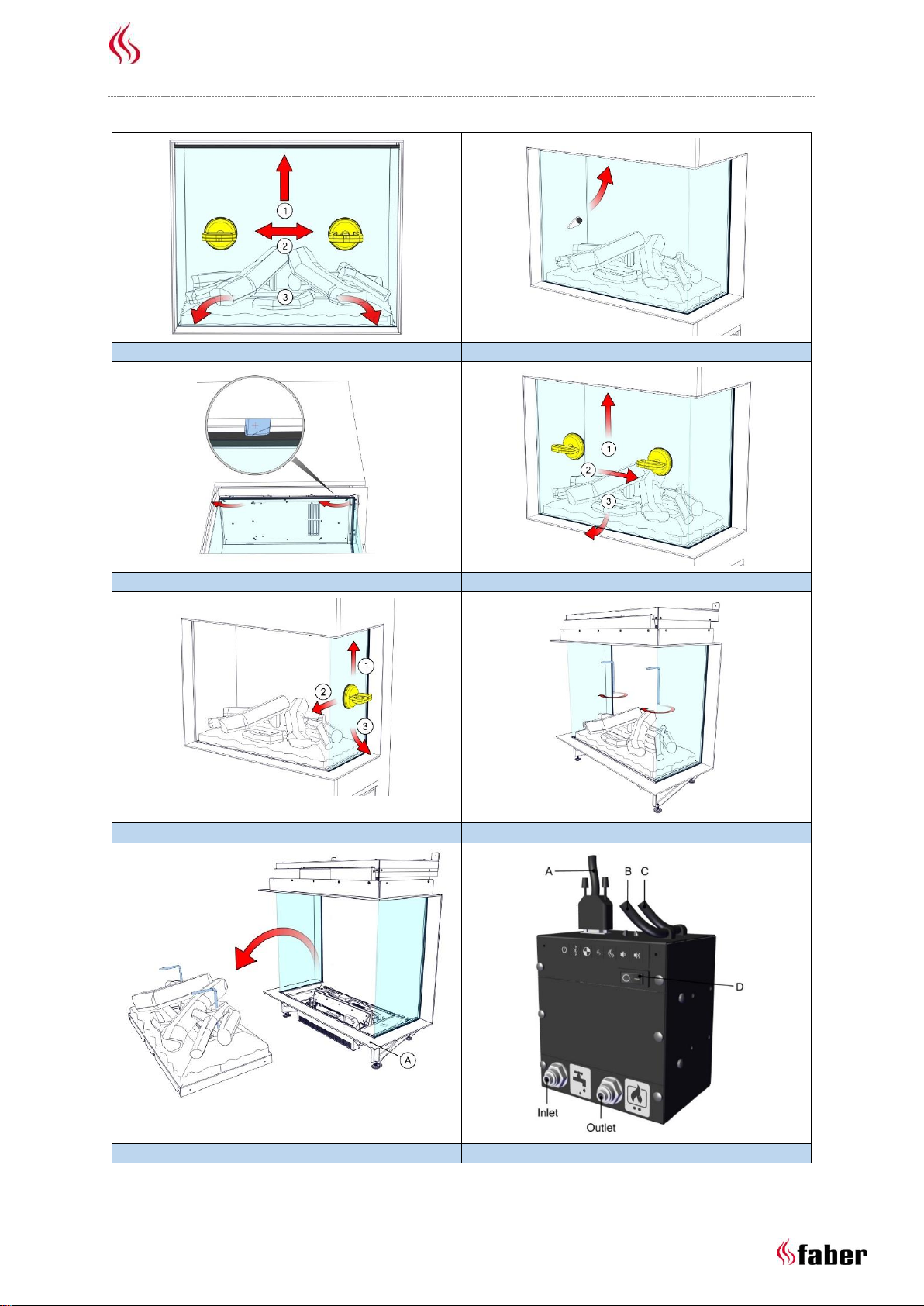

Remove the transport screw on the front,
see fig. 1.0.
Remove the front glass and store it at a
safe place, see chapter 5.
Remove the fuel bed and store it at a safe
place, see chapter 6.

Installation manual e-MatriX heat 800/500-650 I,II,III
6 < <<<

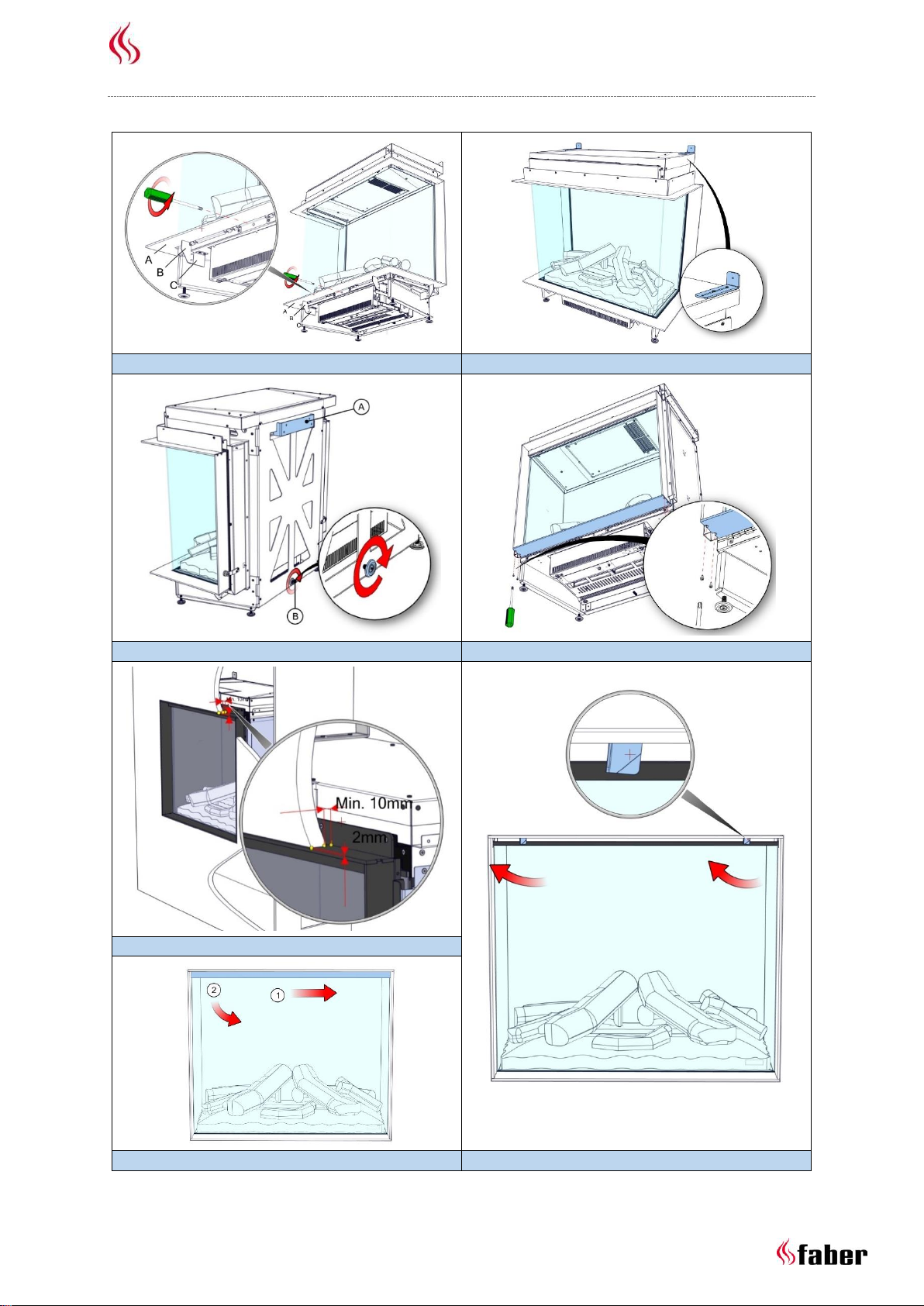

4.2 Placing the fire
For a proper functioning of the fire, always ensure
that the fire is levelled.
Floor standing
Place the fire in the correct position and fix it to
the wall, see fig. 1.1.
Hanging on the wall (fig. 1.2)
The fire can be mounted on the wall using the

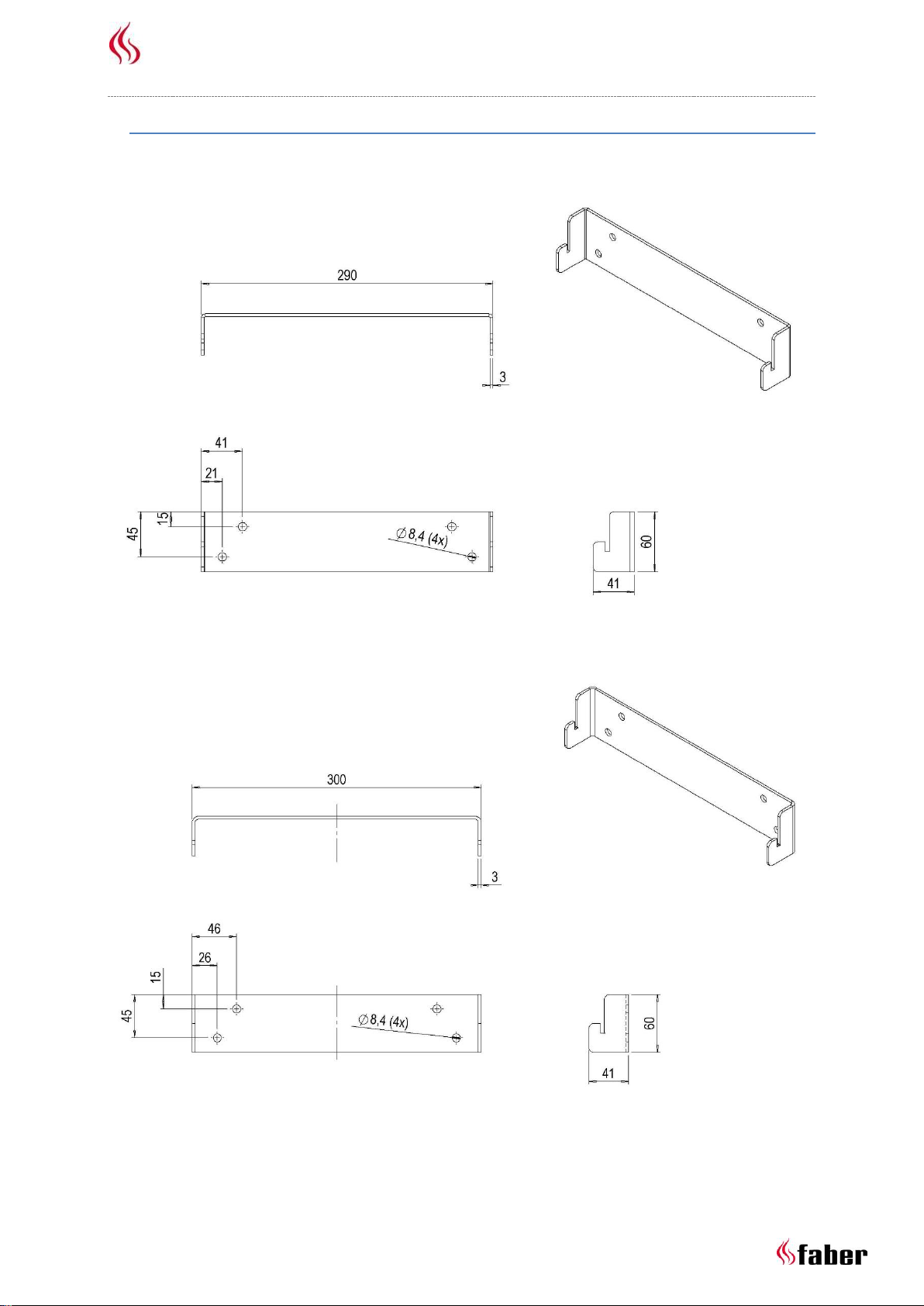

optional wall bracket “A” (see also dimensional
drawing in chapter 12.6). Use the distance holder
“B” for vertical leveling. Remove the existing
brackets, see fig. 1.1.
4.3 Installation and finishing (see fig. 1.0)
With cover strip “A”
Built the false chimney breast or plateau against
distance holder “B”.
Without cover strip “A”
Please note!
At the e-MatriX front glass only versions, the
cover strip is fixed by screws, remove those
first, see fig. 1.3.
Remove distance holders “B”from the fire. Built
the false chimney breast or plateau against
distance holder “C”.

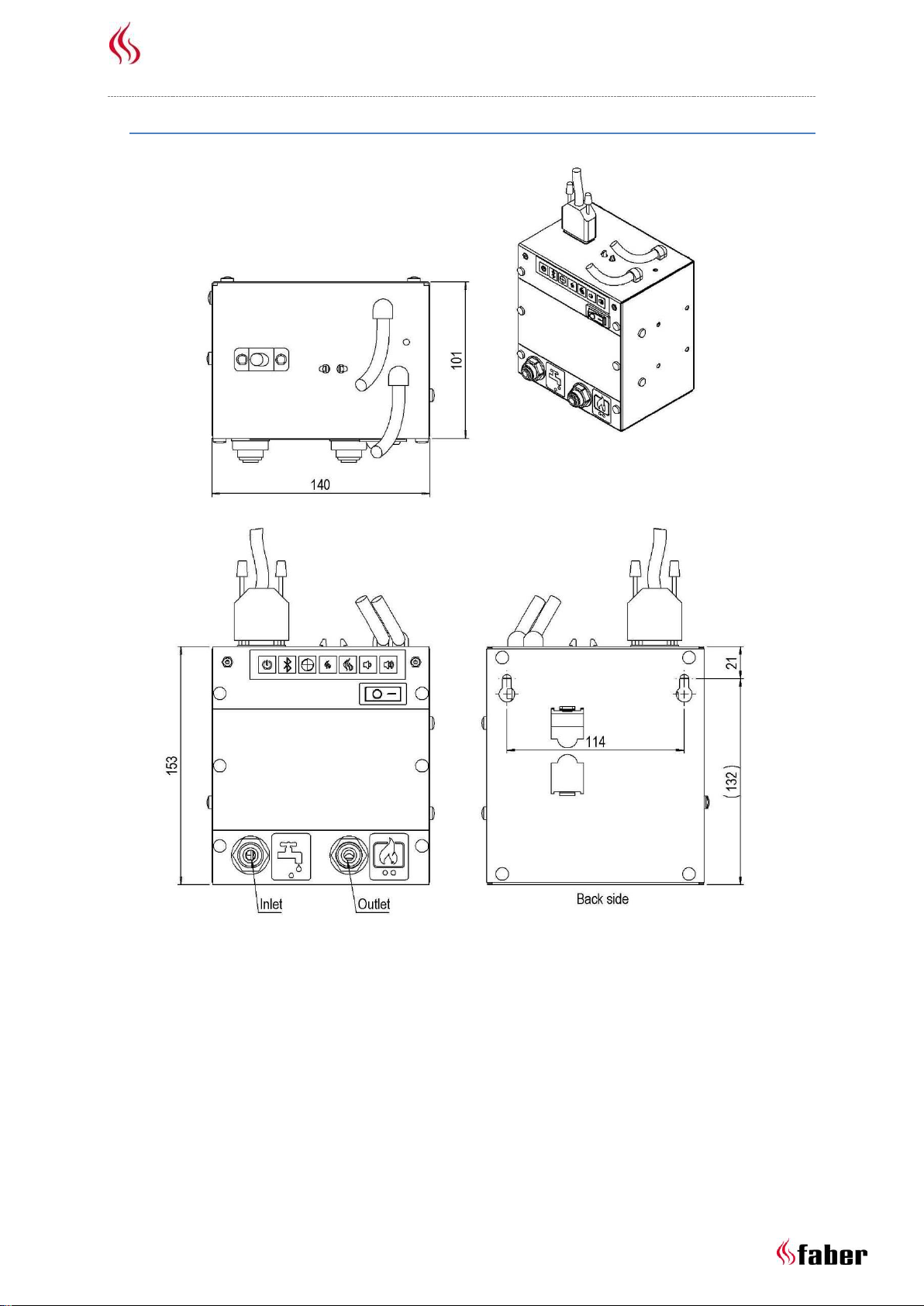

4.4 Control box (see fig. 4.0)
Please note!
Fix the Control box at an accessible location

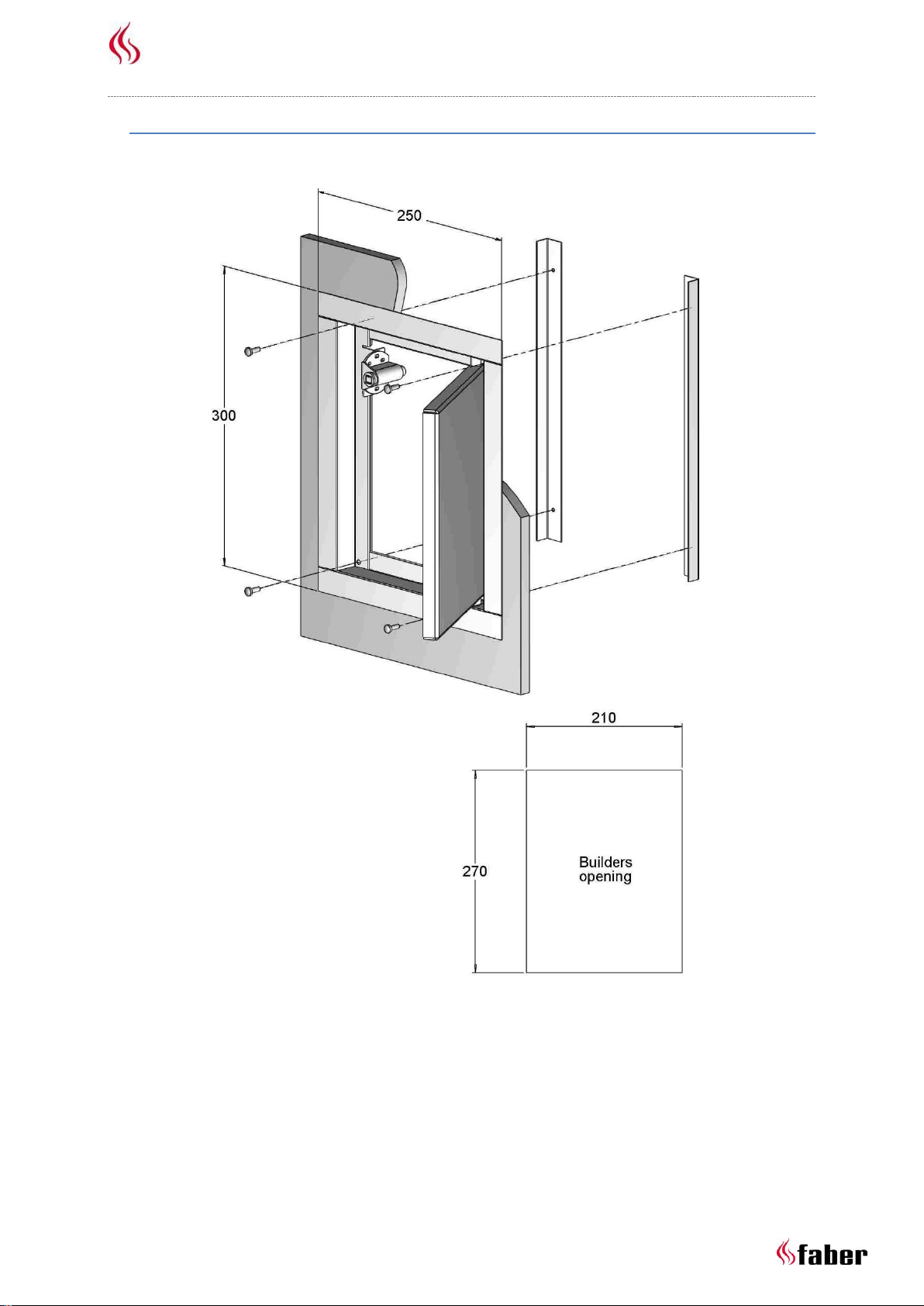

behind the service door, see chapter 12.5 and
12.7.
Electric connection
Use the supplied extension cable to
connect the Control box to the Engine, see
fig. 4.0-B.
Direct the DC cable, inside the Engine, to
the Control box and connect it, see fig.
4.0-A.
oMax. cable length from the
center of the fire to the left 1,5m.
oMax. cable length from the
center of the fire to the right
1,0m.
Connect the supplied mains lead, see fig.
4.0-C.
If desired, an extension set of 2m is available!
(The existing cable length will be extended by 2m,
item number 20901478).
Water connection
This appliance is equipped with the following
(overflow) protections:
-Electromechanical valve in the Control
box that is controlled by sensors in the
water tank.
-Absorption valve in the Engine that kicks
in when the water sump has an
unexpectedly overflow, see fig. 5.0-K.
Connect all parts according flow diagram,
see fig. 5.0.
Place the water filters at an accessible
location in correct alignment, there’s a
“flow” direction marking on both filters
and Control box, see fig. 4.0.
Please note!
Carry out a performance test, see chapter 8
and check all connections for water leakage
before placing the fuel bed and front glass.
4.5 Built-in structure
The construction may not rest on the fire.
Keep a minimum distance of 10mm
between built-in frame and false chimney
breast when using combustible material,
see fig. 1.4.
Take into account a minimum distance of
2mm due to expansion of the fireplace,
see fig. 1.4.
Take into account the thickness of any
finishing layer!
Ventilation
The e-MatriX needs a minimum free space
of 50mm above the fire.
The e-MatriX needs a minimum
ventilation of 210cm² underneath the fire.
5Removing glass
5.1 Front glass (e-MatriX front glass only)
Remove the cover list, see fig. 2.0a.
Rotate both glass clamps clockwise, see
fig. 2.0b.
Place suction cups and remove the front
glass see fig. 2.0c.
5.2 Front glass (e-MatriX 2 or 3 sided glass)
Rotate both glass clamps clockwise, see
fig. 2.1a and 2.1b.
Place suction cups and remove the front
glass, see fig. 2.1c.
For replacing the front glass repeat the steps in
reverse order.

Installation manual e-MatriX heat 800/500-650 I,II,III
7 < <<<
5.3 Side glass
For cleaning only it’s not necessary to remove the
side glass.
First remove the front glass see chapter 5.
Place a suction cup and remove the side
glass, see fig. 2.2.
For replacing the front glass repeat the steps in
reverse order.
6Removing fuel bed
Please note!
-Never lift up the fuel bed without using
the supplied handles.
-Keep these handles for future use.
Remove the front glass see chapter 5.
Cover the frame to avoid scratches see fig.
3.1-A.
Screw the handles in the fuel bed see fig.
3.0.
Lift up the fuel bed carefully, disconnect
the plug and store it at a safe place see
fig. 3.1.
7Placing decoration material
Please note!
-Keep decoration material away from
children, persons with reduced physical or
mental capabilities
-Don’t place decoration material in the
center area, see fig. 6.0.
The supplied artificial ash and chips can be used to
personalize your fire!
8Performance test
First time water fill, see user manual
chapter 4.
Check all connections for water leakage.
Check if the extractor fan is running.
Check if the heating fan is running.
Check if the remote control is functioning
at the desired distance (max. 8m)
Replace fuel bed, see chapter 6.
Replace front glass, see chapter 5.
Perform a final functional check.
9Maintenance
9.1 Maintenance frequency
Cleaning water sump, air filter and
replacing transducers.
Commercial use:
oevery three months.
Domestic use:
oonce a year.
Cleaning mesh filter and replacing in-line
filter.
Commercial use:
oonce a year.
Domestic use:
oevery second year.
Please note!
The maintenance interval depends on the
water quality and/or the running hours and
therefore can differ from the above
mentioned.
Cleaning water sump
Please note!
-Always press the mains switch of the
Control box to the OFF position, see fig.
4.0-D and disconnect the power supply,
-Never use abrasive cleaners.
1. Remove the front glass see section 5.
2. Remove the fuel bed, see chapter 6.
3. Disconnect the “fill cap” by turning it
clockwise, see fig. 7.0.
4. Disconnect both transducers cables, see
fig. 7.1.
5. Release the clip on both sides and remove
the nozzle, see fig. 7.2 and 7.3.
6. Without spilling any water, lift up the
water sump gently and empty the water
sump, see fig. 7.4.
7. The transducers are fixed in the water
sump with plastic clips. Push the clips
backwards gently and remove the
transducers, see fig. 7.5.
8. Put a small amount of washing up liquid
into the water sump and using a soft
brush to clean the sump. Also clean the
transducers, including the discs
underneath the cones. Remove the cone
by turning it clockwise, see fig. 7.6.
9. When cleaned, thoroughly rinse the water
sump with clean water to remove all
traces of washing up liquid.
10. Clean the nozzle with a soft brush and
flush out thoroughly with water.
11. Reverse the steps above to reassemble.

Installation manual e-MatriX heat 800/500-650 I,II,III
8 < <<<
Cleaning air filter
1. Gently slide the air filter upwards out of
its plastic holder, see fig. 8.0.
2. Gently rinse with water in the sink and dry
with fabric towel before returning.
3. Replace the air filter.
4. Place the fuel bed, see chapter 6.
5. Place the front glass, see section 5.
Replacing transducers
Please note!
Always press the mains switch of the Control
box to the “OFF” (0) position (see fig. 4.0-D)
and disconnect the power supply.
1. Follow the first 7 steps in section
“Cleaning water sump” in chapter 9.1 to
gain access and remove the transducers.
2. Place the new transducers and repeat the
steps above in reverse order.
(Please take note that the transducer
cables will not block the opening of the
cones).
Cleaning mesh filter
1. Turn off the water supply.
2. Close the ball valves.
3. Unscrew the base and clean the filter
inside.
Replacing in-line filter
1. Turn off the water supply.
2. Close the ball valves.
3. Replace the in-line filter.
(Place it in correct alignment, there’s a “flow”
direction marking on the filter).
9.2 Resetting absorption valve
(see fig. 5.0-K)
When the absorption valve is activated, the sponge
need to be replaced. The absorption valve is
located on the right front at the bottom of the
Engine.
1. Take out the activated sponge.
2. Fix the cause of the water leakage and
remove any water at the bottom of the
Engine. Place the new sponge and open
the absorption valve by pressing down the
white clamp.
10 Technical data
Watts
W
1800-2000
Volts
V
230-240
Batteries remote
V
(2x) 1,5 AA
Water consumption
L/h
0,15
Inlet water pressure
Bar
0,5-8
Water connection
Inch
½ or ¾

Installation manual e-MatriX heat
9 < <<<
11 Troubleshooting and fault codes remote control
Code
Symptom
Cause
Action
The flame effect will not
start.
No power supply.
Low water level.
The transducers) are not
connected properly.
Check if power supply is connected to wall
socket correctly and the mains switch of the
Control box is in the ON (I) position.
See “First time water fill”, Chapter 4 in the
user manual.
Check that the connector(s) is inserted
correctly, see fig. 7.1.
51
e-MatriX will not start or
stopped working and the
LED’s continuously to blink
twice.
Low water level.
The absorption valve (overflow
protection) is activated.
See “First time water fill”, chapter 4.
Switch the mains switch of the Control box
to the “OFF” (0) position, see fig. 4.0-D.
Check all connections on water leakage and
turn the mains switch back in the “ON”
position.
See section 9.2.
56
e-MatriX will not operate,
the LED’s continuously to
blink four times.
Water filling time is too long.
Switch the mains switch of the Control box
to the “OFF” (0) position, see fig. 4.0-D.
Check all connections on water leakage.
Close the ball valves and check the mesh
filter by unscrewing the base of it to see that
it is not clogged with dirt and debris.
Open the ball valves again and turn the
mains switch back in the “ON” position.
The flame effect is too low
on the highest setting.
The transducers and/or air
filter are dirty.
See chapter 9.
The flame effect is too high
and there is too much
smoke.
The extractor fan doesn’t work
anymore.
Check if the fan, mounted at the top right
inside the fire, is running.
Remote is not working.
Low batteries.
Remote isn’t paired to receiver.
Distance to fire is too far.
Place new batteries, see chapter 5 in user
manual.
Pair the remote control with the receiver,
see chapter 5 in user manual.
Shortens the distance.
Large amount of smoke
appears grey or colourless.
Lamp failure.
Replace circuit board with lamps.
57
e-MatriX will not operate,
the LED’s continuously to
blink three times.
Water leak
Switch the mains switch of the Control box
to the “OFF” (0) position, see fig. 4.0-D.
Check all connections on water leakage and
turn the mains switch back in the “ON”
position.
58
e-MatriX will not operate,
the LED’s continuously to
blink once every eight
seconds.
Water level too high.
Switch the mains switch of the Control box
to the “OFF” (0) position, see fig. 4.0-D and
call for maintenance.

Installation manual e-MatriX heat 800/500-650 I,II,III
10 < <<<
12 Dimensional drawings
12.1 e-MatriX heat 800/500-650 I

Installation manual e-MatriX heat 800/500-650 I,II,III
11 < <<<

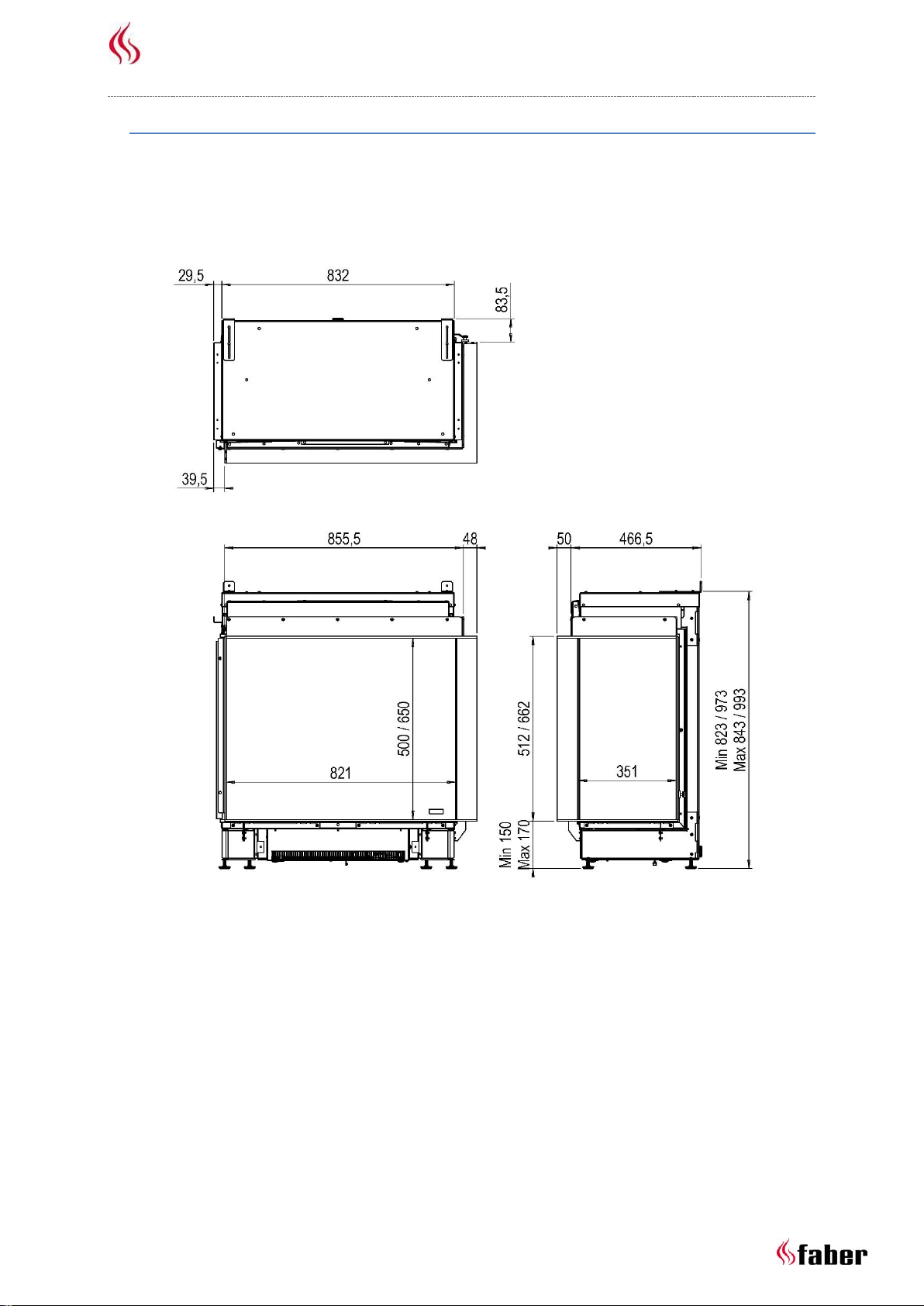

12.2 e-MatriX heat 800/500-650 IIL

Installation manual e-MatriX heat 800/500-650 I,II,III
12 < <<<

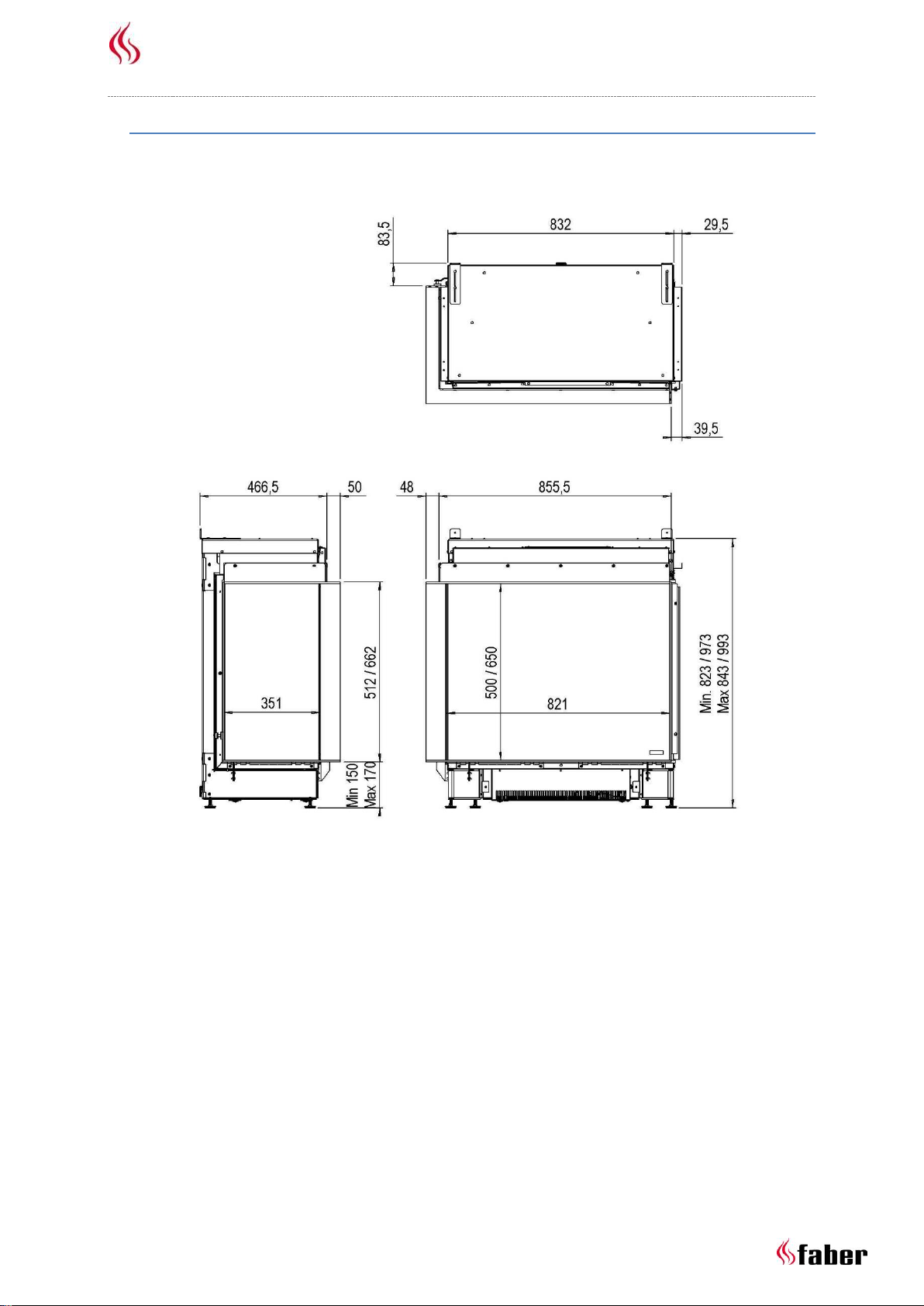

12.3 e-MatriX heat 800/500-650 IIR

Installation manual e-MatriX heat 800/500-650 I,II,III
13 < <<<
12.4 e-MatriX heat 800/500-650 III

Installation manual e-MatriX heat 800/500-650 I,II,III
14 < <<<
12.5 Control box

Installation manual e-MatriX heat 800/500-650 I,II,III
15 < <<<
12.6 Wall brackets
e-MatriX 800/500 I,II, III heat (Article number A9325196)
e-MatriX 800/650 I, II, III heat (Article number A9324596)

Installation manual e-MatriX heat 800/500-650 I,II,III
16 < <<<
12.7 Remote access door (Article number A9299463)

Installation manual e-MatriX heat 800/500-650 I,II,III
17 < <<<

Installation manual e-MatriX heat 800/500-650 I,II,III
18 < <<<

www.faberfires.com [e-mail]
Saturnus 8 NL 8448 CC Heerenveen
Postbus 219 NL 8440 AE Heerenveen
