DISHWASHER QUICK START GUIDE: 3LVF-623 / 3LVF-623X
Dear Customer,
This Quick Start Guide
is enclosed with detailed
dishwasher Operating
Instructions. Before using
the appliance carefully read
the Operating Instructions,
especially guidelines for safe
use.
Before plugging your
dishwasher into the mains
power, remove the safety
packaging. Do not start the
dishwasher before it is properly
set up.
Turn on the appliance1
Close the appliance door, press the on/o󰘯
button to turn on the appliance.
Dispense detergent2
Press the latch to open the detergent dispenser.
Add detergent to the dispenser.
Check the special salt
level
3
Add special salt to the dispenser when the
corresponding indicator on the control panel
comes on.
Load the dishes
4
Remove food leftovers from the dishes
Place the dishes in the baskets according to loading
guidelines.
It is recommended to load the lower basket 󰘰rst, then
the upper basket.
Select the wash programme
5
Select the desired programme and its indicator will
light up. Press Start/Pause, and the dishwasher
programme will resume
IO-DWS-1496 (EN) 05.2019./1
Start your dishwasher
6
Close the dishwasher door.
The dishwasher will start a wash programme.
Turn o󰘯 the appliance
7
Press Start / Pause to turn o󰘯 the appliance
Remove dishes from the
appliance
8
When the dishwasher is o󰘯, open the door and wait
about 15 minutes before removing the dishes. This
will also facilitate the drying process. Hot dishes are
more susceptible to cracking.

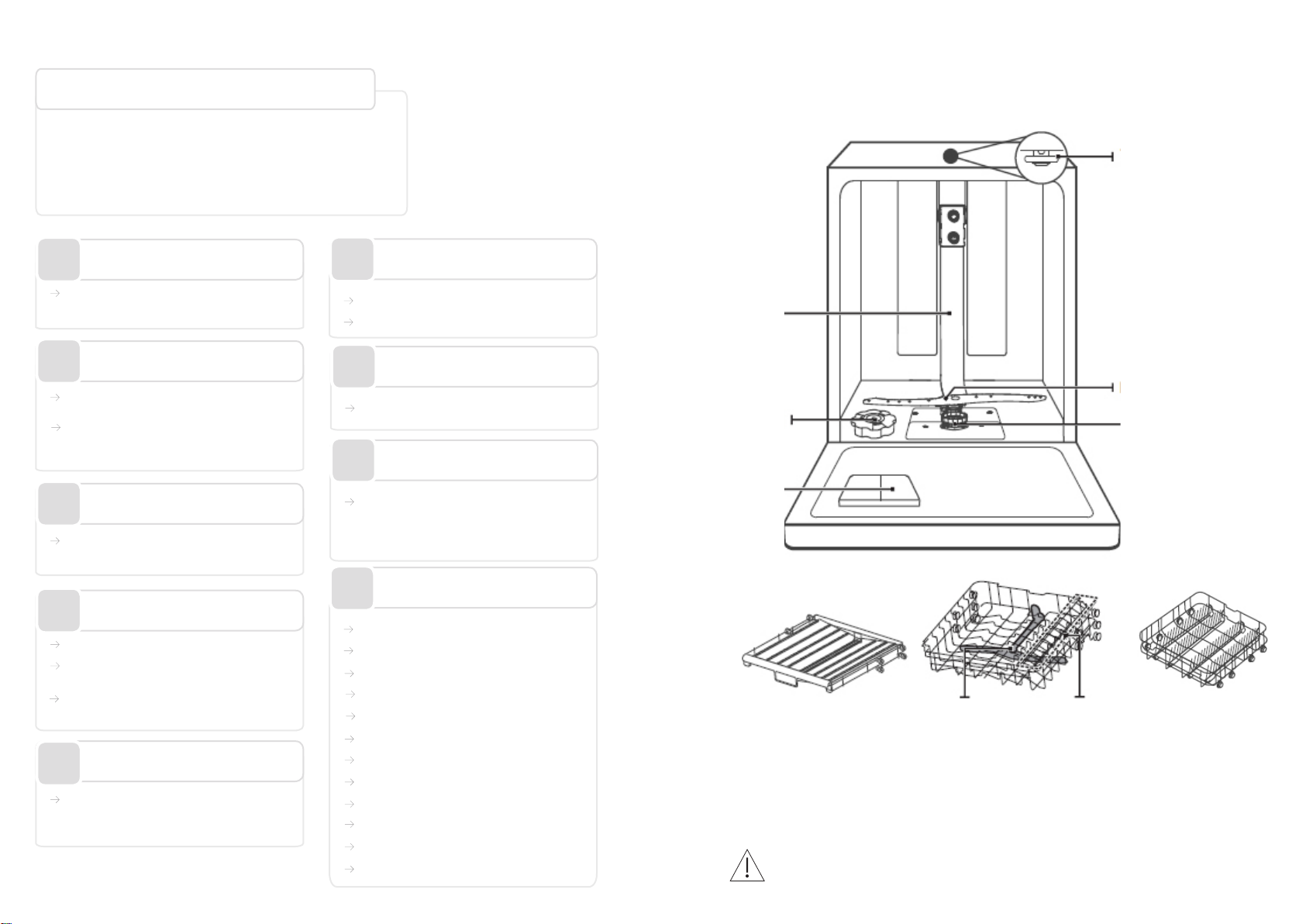

Features and components
Spray arms
Cutlery basket
Upper basket
Inner tube
Lower basket
Salt container
Detergent dispenser
Mugs and cups shelves
Main 󰘰lter
Water supply hose connection
Water drain hose
Regulator
9
Bottom spray arm
Filter assembly
Tube
Salt container
Dispenser
NOTE:
Figures are for illustrative purposes only Individual models may vary.
Cutlery rack
Upper basket
Lower basket
Top spray
arm
Mugs and
cups shelf
Top arm

TABLE OF WASH PROGRAMMES: 3LVF-623 / 3LVF-623X
Standard programme This is a reference program for research institutes. Tests according to
EN 50242.
 Thisprogrammeissuitableforwashingnormallysoiledtableware.Thisisthemoste󰀨ectivepro-
gramme taking into account the total energy and water consumption for this kind of tableware.
** Programmeduration,energyandwaterconsumptionvaluegiveninthetablehavebeendetermined
underlaboratoryconditions.Actualvaluescanvary.
*
ITEM Programme name Default
tempera-
ture
[°C]
Type of soil Amount of
detergent
Duration
(min.)*
Power
consumption
(kWh)*
Water
consumption
(l)*
1 Auto 45-55° 5g/30g
(1 or 2 pieces) 150 0.9-1.3 11~ 15
Automatic programme selection for any type of soil,
including residual dried food on the dishes.
2
3
4
**ECO
60°
5
60’
45°
Party 35°
Soil level
Varying soil
175 1.6 17.5
Pre-wash
45°C
Automatic
wash 45-55°C Rinse Rinse 65°C Dry
Heavilysoileddisheswithdriedfoodreside. Heavysoil 5g/30g
(1 or 2 pieces)
Pre-wash
50°C Wash 60°C Rinse Dry
225 0.93 10
Light soil 5g/30g
Wash 50°C Rinse 60°C
60 1.15 10
Rinse 60°C
Lightly soiled glass-ware and porcelain. Light soil 5g/30g
(1 or 2 pieces)
Pre-wash Rinse 60°C Dry
20 0.45 10
Wash 45°C
Wash 35°C Rinse 35°C
Type of cycle
60° Lightly soiled dishes that do not require full drying.
Quick programme for lightly soiled dishes, which do
not require drying. Light soil
Intensive
Rinse Rinse 70°C
Dry
/
4Glass Light soil 5g/30g
(1 piece)
Pre-wash Wash 40°C
130 0.9 13
40° For lightly soiled crockery and glass.
Dry
Rinse 60°C
6Auto-clean 100 1.2 11
Wash 70°C Rinse 60°C
Auto-clean programme. Light soil 35g
(1 tablet)
70°
Rinse 70°C Dry
Rinse
