DISHWASHER QUICK START GUIDE: 3LVF-438X
Dear Customer,
This Quick Start Guide
is enclosed with detailed
dishwasher Operating
Instructions. Before using
the appliance carefully read
the Operating Instructions,
especially guidelines for safe
use.
Before plugging your
dishwasher into the mains
power, remove the safety
packaging. Do not start the
dishwasher before it is properly
set up.
Turn on the appliance1
Close the appliance door, press the on/o
button to turn on the appliance.
Dispense detergent2
Press the latch to open the detergent dispenser.
Add detergent to the dispenser.
Check the special salt
level
3
Add special salt to the dispenser when the
corresponding indicator on the control panel
comes on.
Load the dishes
4
Remove food leftovers from the dishes
Place the dishes in the baskets according to loading
guidelines.
It is recommended to load the lower basket rst, then
the upper basket.
Select the wash programme
5
Select the desired programme and its indicator will
light up. Press Start/Pause, and the dishwasher
programme will resume
IO-DWS-1538 (EN) 01.2020./1
Start your dishwasher
6
Close the dishwasher door.
The dishwasher will start a wash programme.
Turn o the appliance
7
Press Start / Pause to turn o the appliance
Remove dishes from the
appliance
8
When the dishwasher is o, open the door and wait
about 15 minutes before removing the dishes. This
will also facilitate the drying process. Hot dishes are
more susceptible to cracking.

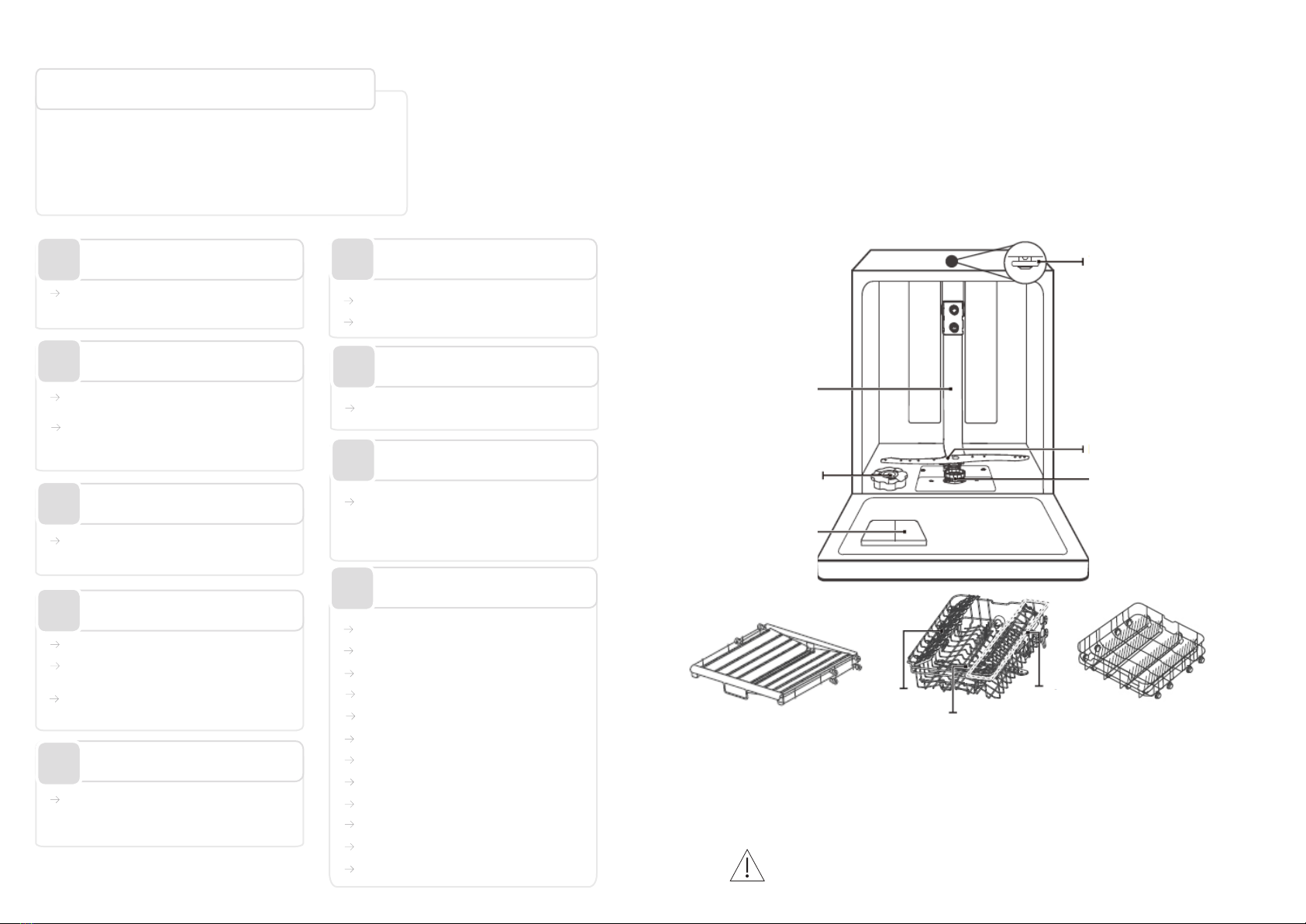

Features and components
Spray arms
Cutlery basket
Upper basket
Inner tube
Lower basket
Salt container
Detergent dispenser
Mugs and cups shelves
Main lter
Water supply hose connection
Water drain hose
Regulator
9
NOTE:
Figures are for illustrative purposes only Individual models may vary.
Bottom spray arm
Filter assembly
Conduit
Salt container
Dispenser
Cutlery basket Lower basket
Upper basket
Top spray arm
Top spray arm
Win-wine
glass rack
Cup rack

TABLE OF WASH PROGRAMMES: 3LVF-438X
Standard programme This is a reference program for research institutes. Tests according to EN
50242.
This programme is suitable for washing normally soiled tableware. This is the most eective pro-
gramme taking into account the total energy and water consumption for this kind of tableware.
** Programme duration, energy and water consumption value given in the table have been deter-
mined under laboratory conditions. Actual values can vary.
*
ITEM Programme name
The
default
temper-
ature
[°C]
Type of soil Amount of
detergent
Duration
[min.] *
Power con-
sumption
[kWh] *
Water con-
sumption
[litres] *
1 Auto 45-55° 3g / 22g
(1 tablet) 150 0.9-1.3 9.5~13
Automatic programme selection for any type of soil,
including residual dried food on the dishes.
2
3
4**ECO
70°
5
55°
Glass 40°
Soil level
Varying soil
170 1.6 15.5
Pre-wash
45°C
Automatic
wash 45-55°C
Rinse Rinse 65°C Dry
When you select the Hygiene programme, the water
temperature will reach 70°C, which ensures that your
dishes will be bacteria-free.
Light soil 3g / 22g
(1 tablet)
Pre-wash
50°C Wash 70°C Dry
Light soil 3g / 22g
(1 tablet)
Pre-wash Rinse 55°C
220 0.66 8
Wash 45°C
Lightly soiled glass-ware and porcelain
125 0.75 12
Pre-wash Wash 40°C
Type of cycle
45°
For normally soiled loads, such as pots, plates,
glasses and
lightly soiled pans.
For lightly soiled crockery and glass. Light soil
Hygiene
Rinse Rinse
Dry
3g / 22g
(1 tablet)
Rinse Rinse 60°C Dry
6
Normal Normal soil 3g / 22g
(1 tablet)
Pre-wash
45°C
Wash 55°C Rinse Dry
180 1.1 12
7 Party 35° For lightly soiled tableware such as glasses, crystal
glasses and fragile porcelain, etc. Light soil
Wash
35°C Rinse 35°C
20 0.34 10
70° Auto-clean programme.
8
Auto-clean Light soil 25g
(1 tablet)
Wash
70°C Rinse 60°C Rinse 70°C
95 1.0 10
--
Rinse 70°C
9
Soak -- For rinsing dishes to be washed later. --
Pre-wash
15 0.02 3.5
--
Dry
65° For normally soiled loads that need quick wash. 90’ Light soil 25g
(1 tablet)
Wash
65°C Rinse Rinse 65°C Dry
90 1.15 11.5
Rinse Rinse 65°C
