Fagor LFU-45IT User manual

Contents
27
1. Description of the controls________________________________28
2. Troubleshooting _______________________________________36
Thank you for choosing one of our products.
You are advised to read this manual carefully; it contains all the
information you need about the right conditions for the proper, safe use
of your dishwasher.
The individual sections are laid out to provide you with a step-by-step
guide to all your appliance's functions; the texts are easy to understand
and are complete with detailed illustrations.
This user-friendly manual will provide answers to all your questions
about use of the dishwasher.
For any other information about use and maintenance of the dishwasher,
read the enclosed manual carefully.
USER INSTRUCTIONS: useful information is provided for the use of the
washing programs and all the dishwasher's functions.

User instructions
28
1. Description of the controls

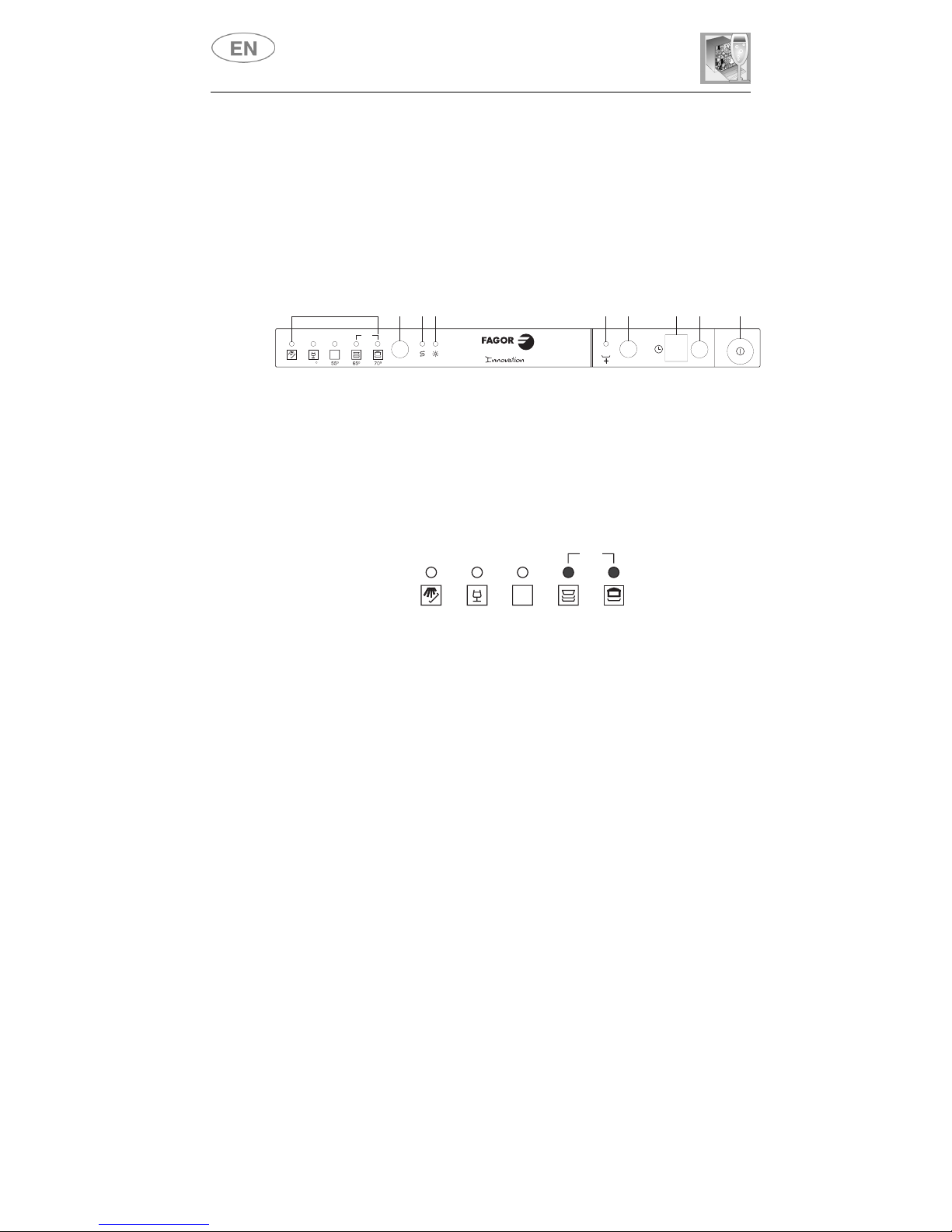

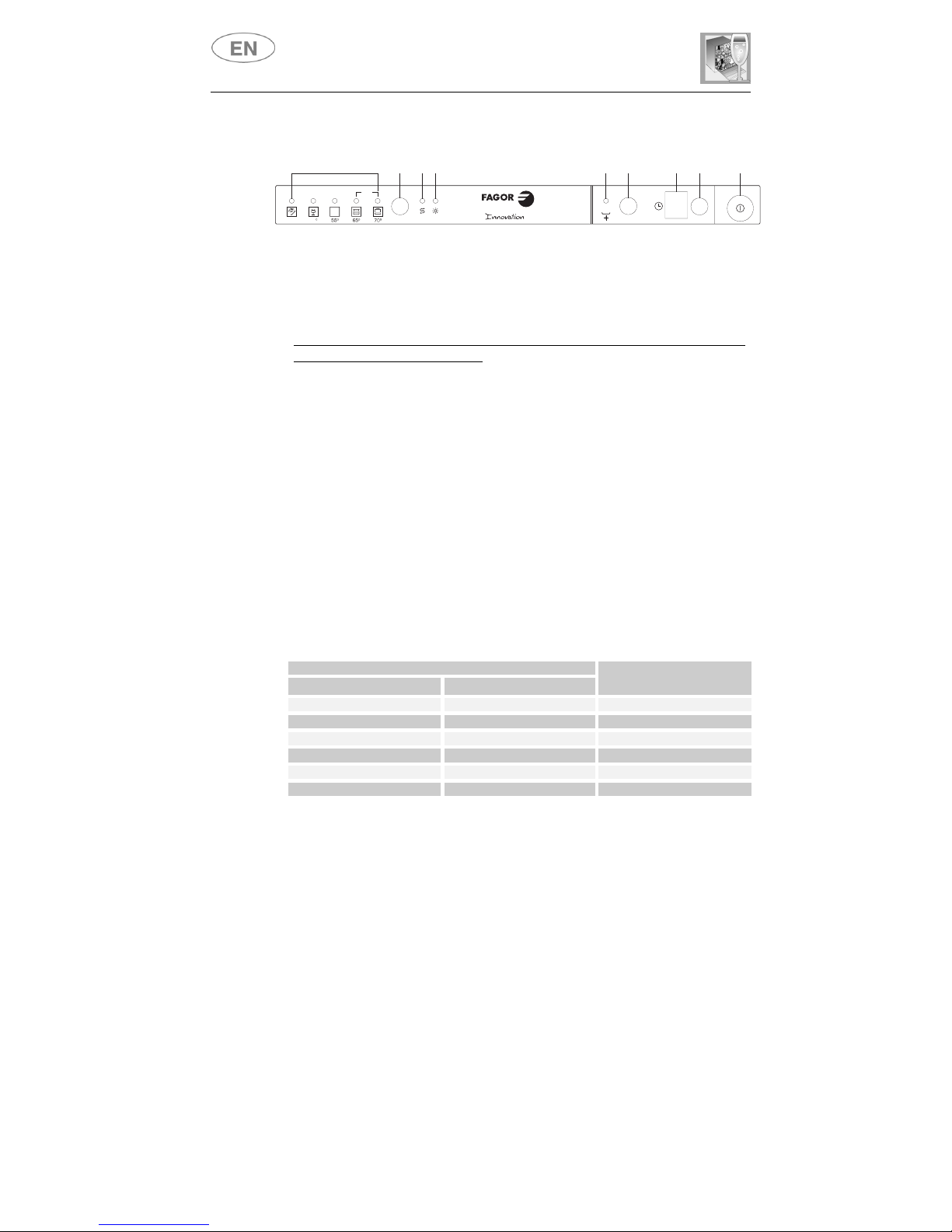

1.1 Upper panel

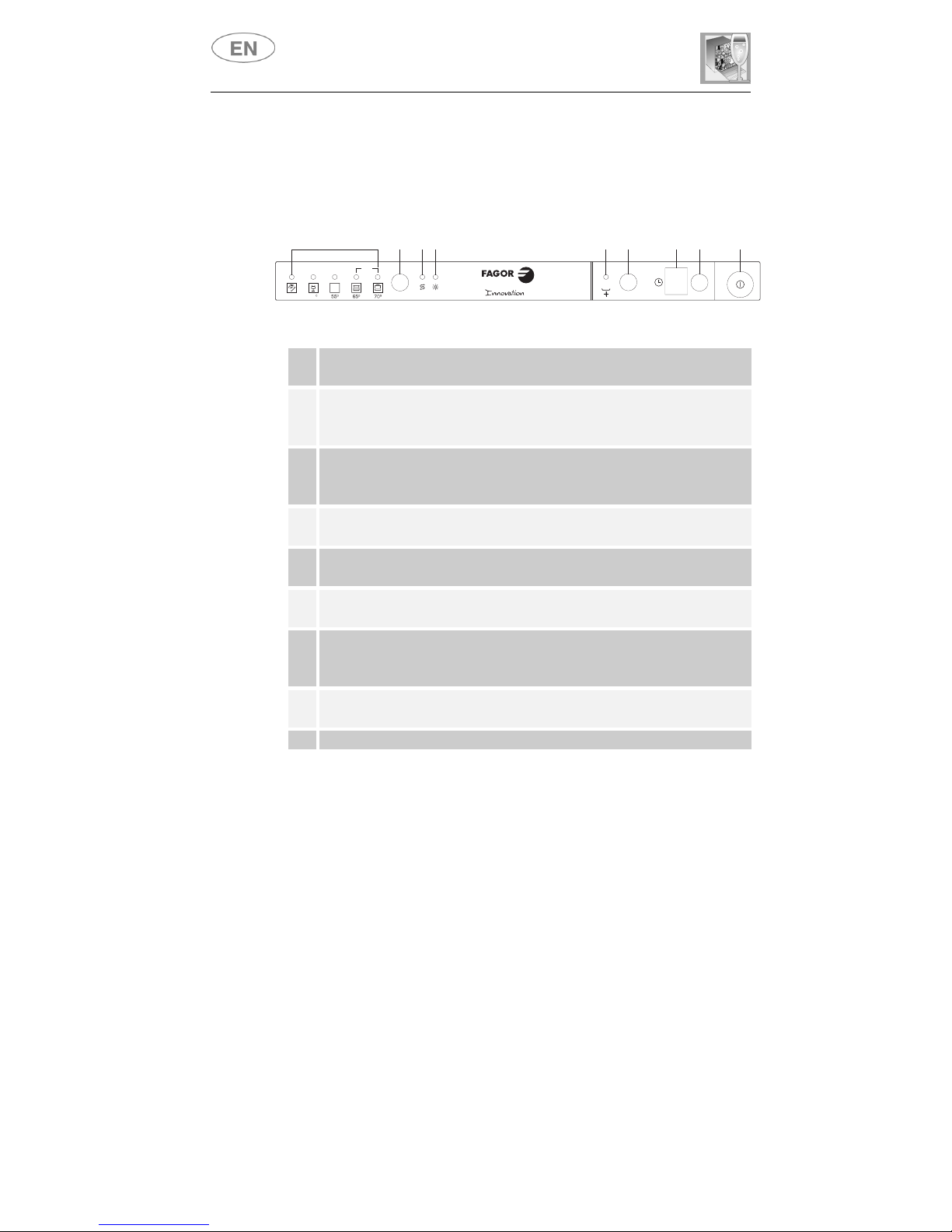

All the dishwasher controls are grouped on the upper panel. Switch-on,
programming, switch-off etc. procedures are only possible when the door
is open.
1ON/OFF BUTTON
Pressing this button energises the appliance.
2
SELECTED PROGRAM INDICATOR LIGHTS
Illumination of this light denotes the program selected and the
occurrence of a fault (troubleshooting).
3
PROGRAM SELECTION BUTTON
By pressing this button in sequence it is possible to select the desired
program.
4SALT WARNING LIGHT
Illumination of this light signals that salt container is empty.
5RINSE AID WARNING LIGHT
Illumination of this light signals that rinse aid dispenser is empty.
6EXTRA PROGRAM BUTTON
This button gives access to the one of the five extra programs (see table).
7
EXTRA PROGRAM LIGHT
Illuminates to indicate that one of the five extra programs (see table) is
going to be executed.
8PROGRAMDELAYBUTTON
Press this button to delay the start of the program by up to 9 hours.
9INFORMATION DISPLAY
END
45
P
MIX
234576981

User instructions
29

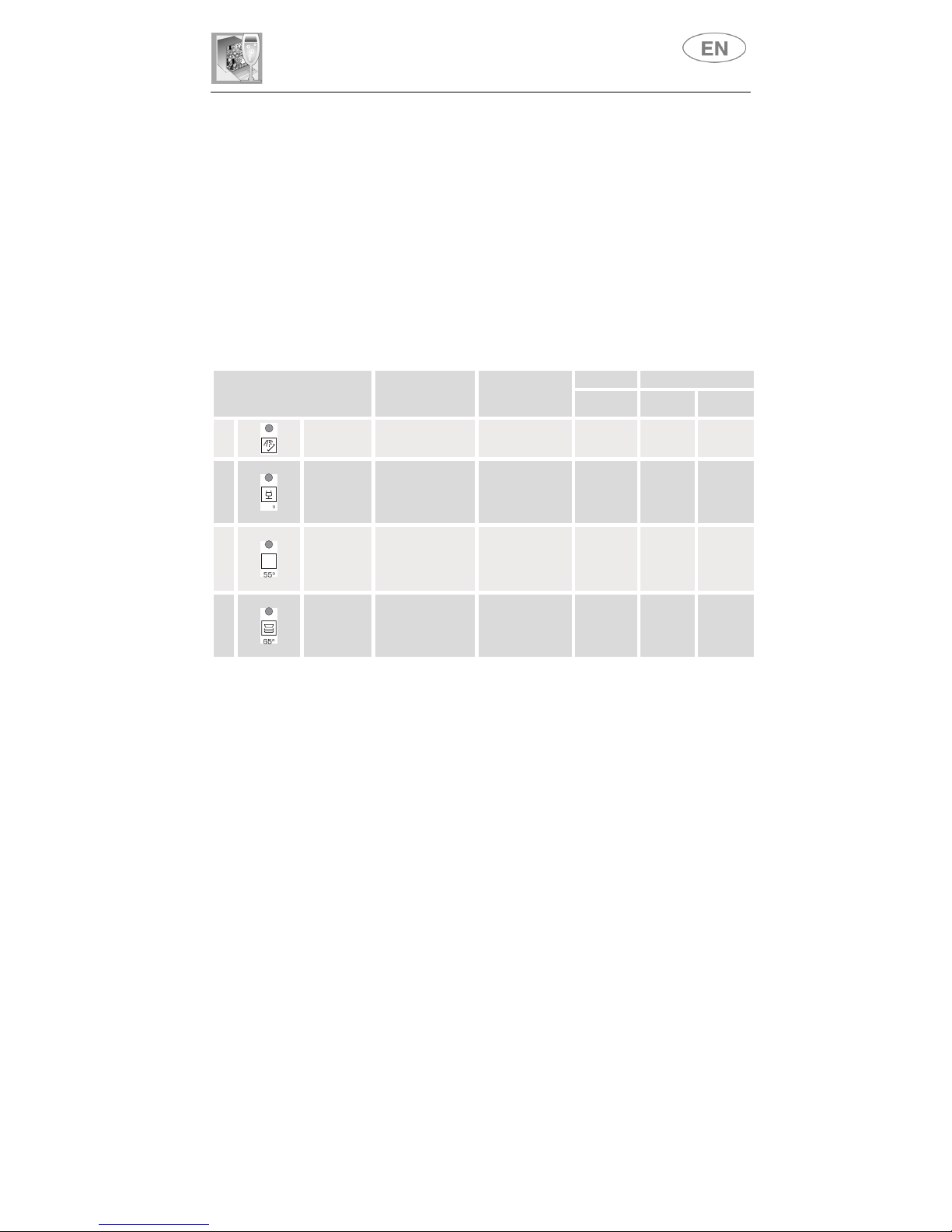

SETTING THE WASHING PROGRAM AND SWITCHING ON

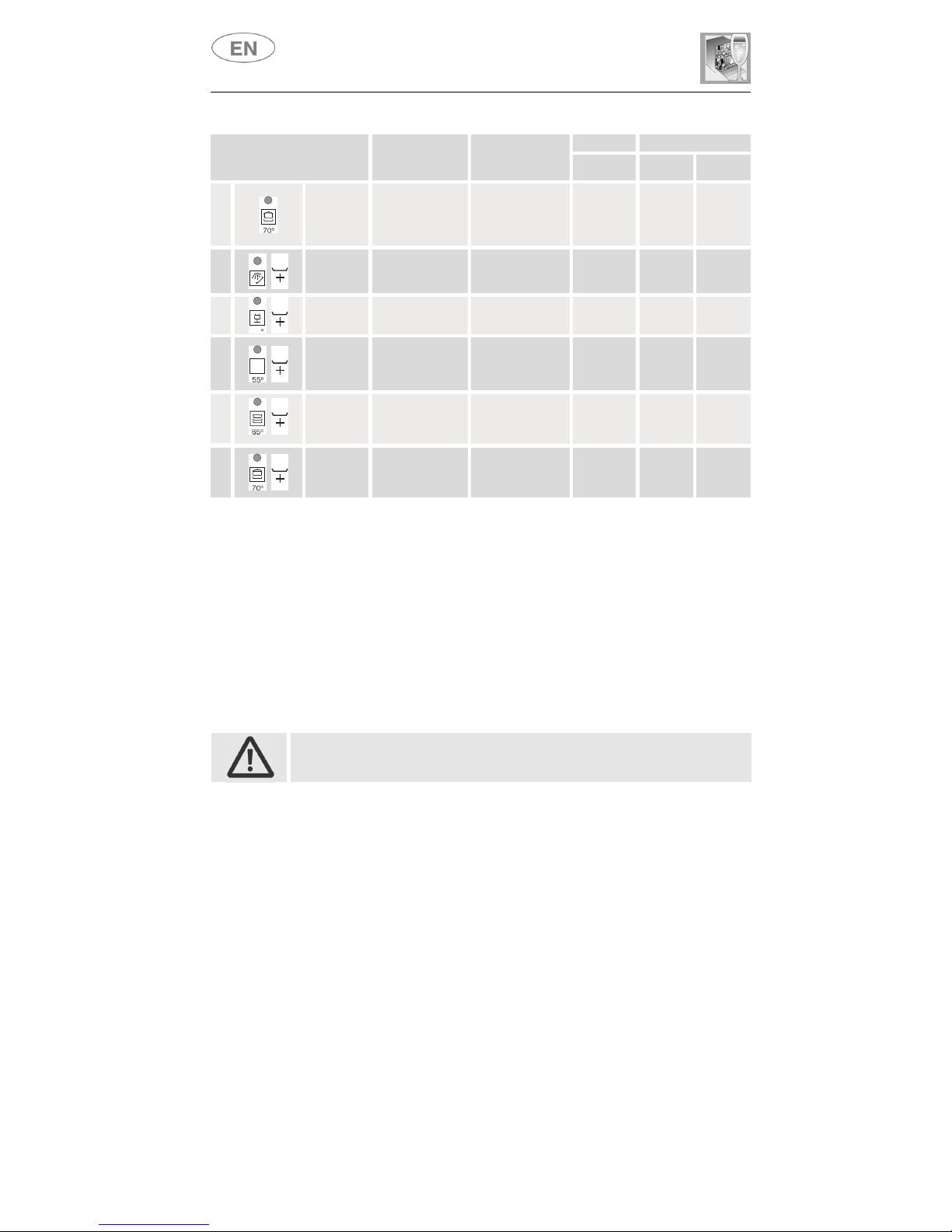

To select the most suitable program for the dishes to be washed refer to
the table below, which indicates the most appropriate program according
to dish type and degree of soiling.
After using the table to identify the most appropriate washing program:
•press the
ON/OFF button (1) and wait for the PROGRAM
INDICATOR LIGHT (2) to illuminate;
•keep pressing the
PROGRAM SELECTION button (3) until the
indicator light corresponding to the desired program illuminates;
•close the door; after about 2" the program will start. While it is in
progress, the relative LIGHT will flash (indicating that the program is
being executed).
Only run the soak program with half loads.
(1) Average power consumption with the softener set on level 2.
(2) The cycle duration and power consumption may vary according to the water and
room temperatures, and the type and amount of dishes.
1
2
3
480’ 17 1,20
RINSE
DELICATE
MIX
NORMAL
Pans and dishes
for rinsing
and drying
Dishes with
normal dirt
Dishes with
normal dirt
Normally soiled
dishes, including
dried-on residue
Cold rinse
Rinse at 68°C
Dry
Cold prewash
Wash at 45°C
Cold rinse
Rinse at 68°C
Dry
Cold prewash
Wash at 55°C
Cold rinse
Rinse at 68°C
Dry
45’ 90,80
59’ 12 0,90
85’ 16 1,10
45
MIX
Cold prewash
Wash at 65°C
Cold rinse
Rinse at 68°C
Dry
PROGRAMME
NUMBER & SYMBOL
LOAD CROCKERY
AND CUTLERY
PROGRAM
PROCESS
DURATION
MINUTES
(2)
CONSUMPTION
WATER
LITRES (1)
POWER
KWh (2)

User instructions
30
Only run the soak program with half loads.
To execute programs 6,7,8,9,10 users must first press the extra programs button (6).
(*) Reference program as per EN 50242 standard.
(1) Average power consumption with the softener set on level 2.
(2) The cycle duration and power consumption may vary according to the water and
room temperatures, and the type and amount of dishes.
The washing cycle will not take place if the dishwasher door is left open or
not properly closed.
5
6
7
8
9
10
PROGRAMME
NUMBER & SYMBOL
LOAD CROCKERY
AND CUTLERY
PROGRAM
PROCESS
DURATION
MINUTES
(2)
CONSUMPTION
WATER
LITRES (1)
POWER
KWh (2)
SUPER
SOAK
QUICK
ECO
(*)EN 50242
STRONG
DAILY
Very dirty
pans and dishes,
even with
dried-on dirt
Pans and dishes
awaiting a
further wash
Dishes with
light dirt
Wash immediately
after use for
dishes with
normal dirt
Normally soiled
pans and dishes,
including
dried-on residue
Prewash at 45°C
Wash at 70°C
2 cold rinses
Rinses at 70°C
Dry
Cold prewash
Wash at 38°C
Cold rinse
Rinse at 58°C
Wash at 55°C
Cold rinse
Rinse at 66°C
Dry
Wash at 65°C
Cold rinse
Rinse at 68°C
Dry
Wash at 70°C
2 cold rinses
Rinse at 70°C
Dry
105’ 20 1,50
9’ 50,03
45’ 13 0,70
175’ 13 1,01
85’ 14 1,25
85’ 17 1,45
P
P
P
P
P
45
MIX
Wash immediately
after use for
dishes with
normal dirt

User instructions
31
TABLE FOR CERTIFICATION BODIES
Reference standard EN 50242
Reference program ECO
Load 10 place-settings
Type of detergent B
Amount of detergent 25 g
Rinse aid setting 5/6
1.2 Washing programs
Before starting a washing program make sure that:
•The water supply tap is open.
•The correct amount of detergent has been added to the
dispenser.
•The baskets have been correctly loaded.
•The spray arms are able to rotate freely and without
obstruction.
•The dishwasher door is securely closed.
EXTRA PROGRAMS
Button (6) gives access to five extra programs in addition to the ones
which can be selected directly using the program selector button.
This button must be pressed (the light comes on) after selection of the
"main" program (1, 2, 3, 4 or 5).
This function is retained in the memory, so the button has to be
pressed again (the light goes out) if the user wishes to execute one of
the 5 main programs at the next cycle.
END
45
P
MIX
234576981

User instructions
32
DELAYING THE PROGRAM
The PROGRAM DELAY button (8) can be pressed to delay the start of
the program by up to 9 hours. This means that the dishwasher can be
operated at the time of day of your choice. Press the button several
times in succession and the display will show the delay with which the
appliance will start, beginning from 9 hours.

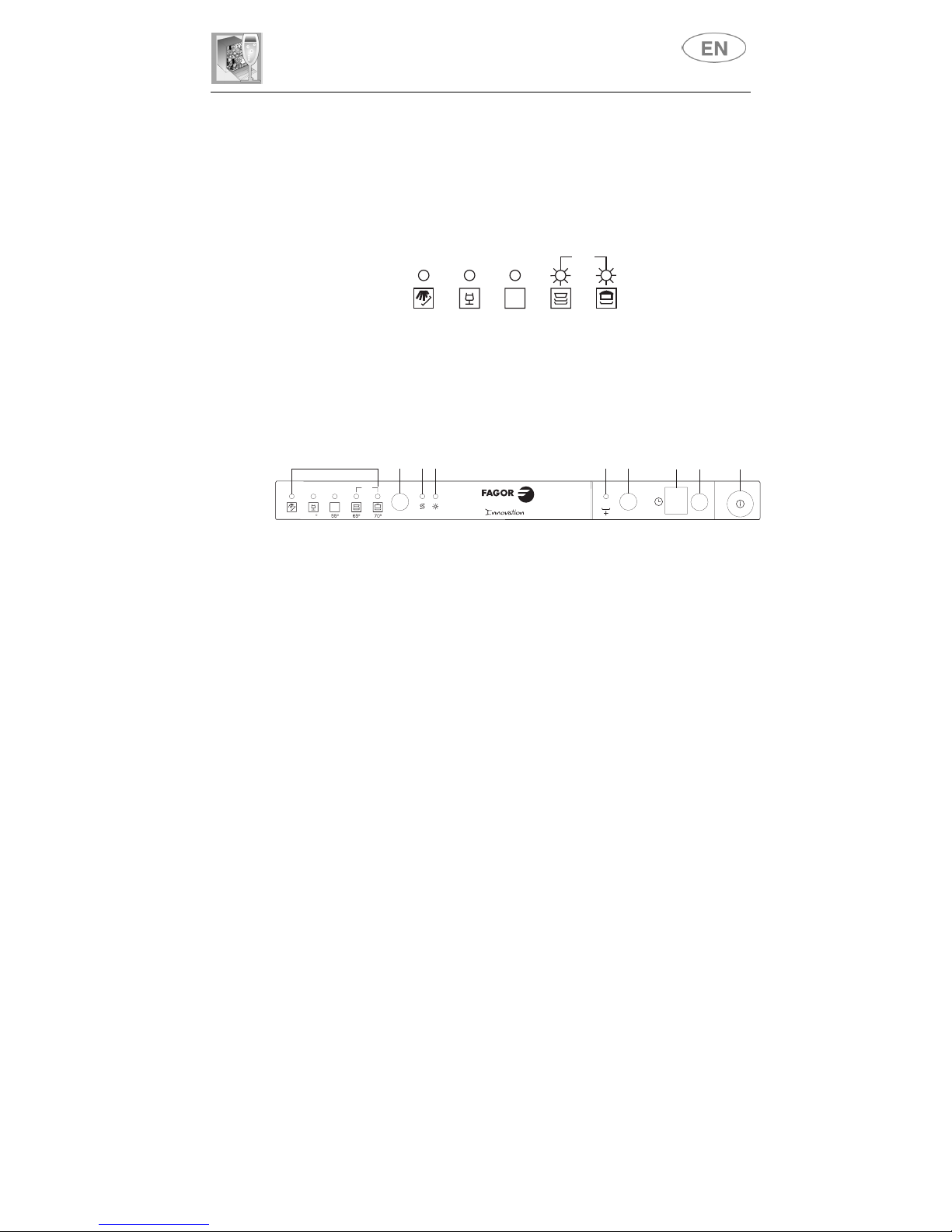

CANCELLING THE CURRENT PROGRAM
•To cancel the currently selected program, open the door and hold
down the PROGRAM SELECTION (3) button for a few seconds
until the indicator lights for programs 4and 5illuminate
simultaneously (the word "end" is displayed on the window).
•Close the door.
•After approximately 1 minute the dishwasher will advance to the end
of cycle.
CHANGING THE PROGRAM
To change the program in progress, simply open the door and select a
new program. When the door is closed the dishwasher will automatically
select the new program.
END
45
P
MIX
234576981
45° 55° 65° 70°
END
MIX

User instructions
33
TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT
•Always try to run the dishwasher fully loaded.
•Do not wash the dishes in running water.
•Use the washing program that is most appropriate for each type of
load.
•Do not carry out any preliminary rinsing.
•If available, connect the dishwasher to a hot water supply up to 60°C.
TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT
THE ENVIRONMENT
The phosphates contained in dishwasher detergents are harmful to the
environment. To avoid using excessive amounts of detergent and to save
on electricity, observe the following:
•separate the more delicate items from dishes that are more resistant
to aggressive detergents and high temperatures;
•do not pour the detergent directly on the dishes.
If the door has to be opened while washing is in progress, the program
will be interrupted. The relative light will keep flashing and a beeper will
signal that the cycle has not been completed. You must wait about 1
minute before closing the door to restart the program. When the door is
closed the program will continue from where it was interrupted. This
operation should only be carried out if strictly necessary, because it
might cause problems in execution of the program.

User instructions
34
ADJUSTING THE WATER SOFTENING SYSTEM
N.B.: for the setting below to be possible, a washing program other than
the soak program must be set.
Press the PROGRAM DELAY button (8) and keep it pressed until the
preset value appears followed by a full stop (normally 3.).
Release the button then press it again in succession to display the value
required, referring to the table.
The 6setting levels available will appear in this order:
3., 4., 5., 0., 1., 2..
When the value required appears on the display, release the button;
after 5 seconds the system automatically returns to setting of the
program delay, and the setting will be made with the chosen value.
N.B.: the display shows the water hardness setting and the program
delay. The dot (.) after the number indicates that the water hardness
setting is being displayed. If the dot (.) does not appear, the program
delay is being displayed.

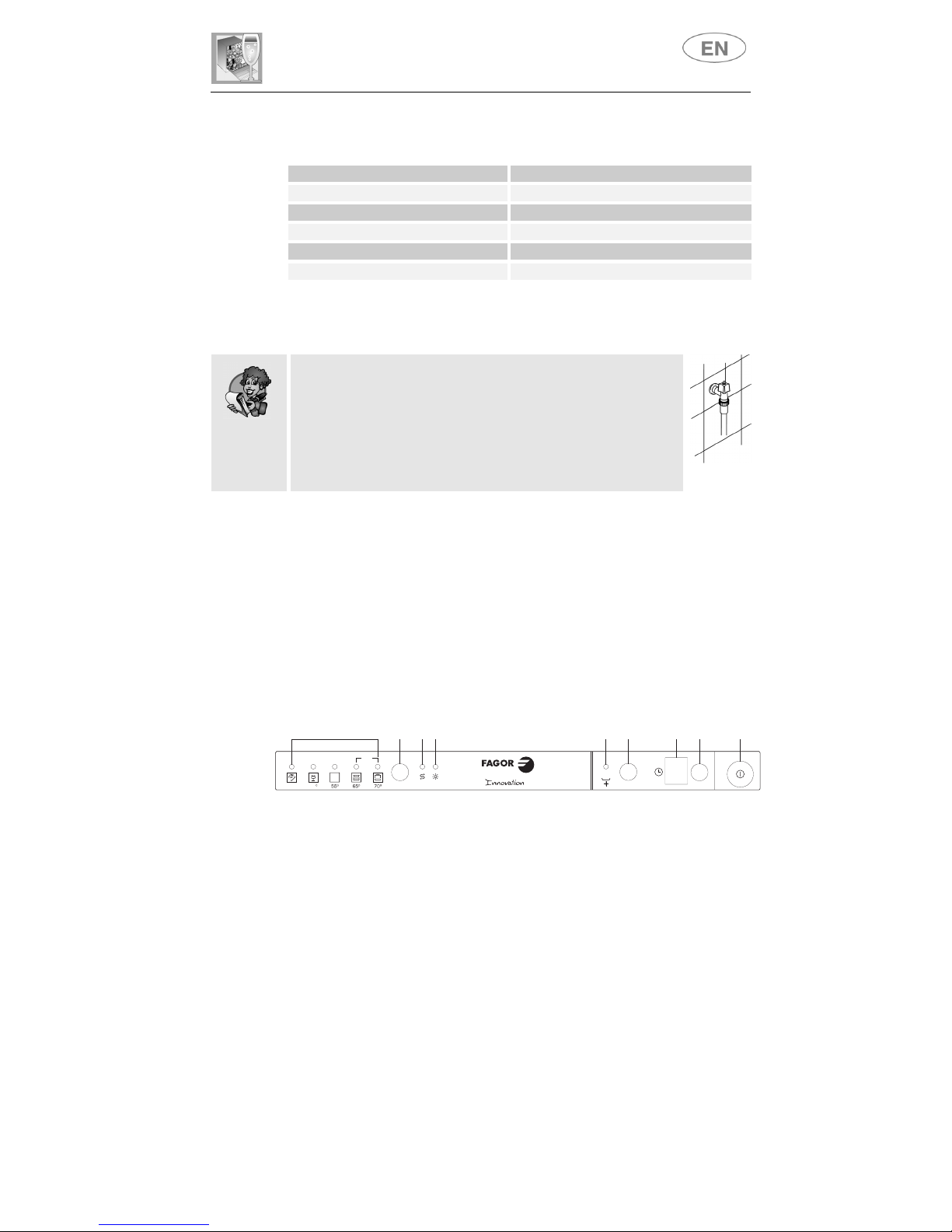

WATER HARDNESS TABLE
WATER HARDNESS
German Degrees (°dH) French Degrees (°dF) SETTING
0 - 5 0 - 9 0.
6 - 11 10 - 19 1.
12 - 21 20 - 36 2.
22 - 33 37 - 59 3.
34 - 45 60 - 79 4.
46 - 53 80 - 107 5.
Contact your local water board for information on the hardness of your
water supply.
END
45
P
MIX
234576981

35
END OF CYCLE
At the end of the program the beeper sounds briefly and the lights of
programs 4and 5 flash (the word "end" is displayed on the window).
To switch off the dishwasher, open the door and press the ON/OFF
button (1).
REMOVING THE DISHES
At the end of the washing program, wait at least 20 minutes before
removing the dishes, to allow them to cool down. To prevent any water
droplets on the upper basket from falling on the dishes in the lower
basket, it is advisable to unload the lower basket first, and then the
upper basket.
45° 55° 65° 70°
END
MIX
END
45
P
MIX
23457
69
8
1
User instructions

36
2. Troubleshooting
The dishwasher is capable of signalling a number of faults through the
simultaneous illumination of several indicator lights, with the following
meanings:
FAULT DESCRIPTION
E1
Acquastop failure
The anti-flooding system has been activated (for the
relevant models only). The system is tripped in case
of water leaks. Contact the after-sales service.
E3
Water heating malfunction
The water is not heated or the heating parameters
are not correct. Repeat the washing program; if the
problem persists, contact the after-sales service.
E4
Water temperature monitoring malfunction
Interrupt the program and switch off the dishwasher.
Switch the dishwasher back on, program it again and
start the washing cycle. If the problem persists,
contact the after-sales service.
E5
Water intake malfunction
The appliance does not take in water or does not do
so correctly. Check that the water connections are
correct, the water intake tap is turned on and the filter
is not fouled. If the problem persists, contact the
after-sales service.
E6
Water pump-out malfunction
The appliance does not pump out the water or does
not do so correctly. Check that the drain hose is not
kinked or crushed and that the siphon and filter are
not fouled. If the problem persists, contact the after-
sales service.
Light off Light on Light flashing
45° 55° 65° 70°
MIX
45° 55° 65° 70°
MIX
45° 55° 65° 70°
MIX
45° 55° 65° 70°
MIX
45° 55° 65° 70°
MIX
User instructions

37
If an alarm occurs the appliance interrupts the program in progress and
signals a fault.
•Alarms
E1, E3, E4 interrupt the current program immediately.
•The
E5, E6 alarms interrupts the running program once the cause is
resolved, it will bring bach the execution of the program.
To “reset” an alarm is necessary:
•Open and close the door, or turn off and on the machine. At this
point is possible to program the dishwasher again.
If the malfunction persists, contact your authorised Service Centre.
User instructions

19570005000
3/4” 3/4”
1/2”
SW32
MIN
40cm
Cuø10
12345
7891011
6
1
2
8
9
12
ATTENZIONE: Quota:secondoimodelli820÷870oppure820÷890.Dependingonthemodel,distancemaybe820÷870or820÷890.Cote:selonlesmodèles820÷870ou820÷890.
Maß:gemäßdenModellen820÷870oder820÷890.Hoogte:voordemodellen820÷870of820÷890.
Cota:segúnlosmodelos820÷870obien820÷890.Cota:dependendodosmodelos820-870ou820-890.
"H"CAUTION:"H"ATTENTION:“H”
ACHTUNG:"H"LETOP:"H"
ATENCIÓN:"H"ATENÇÃO:"H"
Zethemopéénlijnmetdebovensterandvanhet
durpaneel.
Alinearrespectodelbordesuperiordelpanelpuerta.
Alinhecomabordasuperiordopaineldaporta.
Allinearealbordosuperioredelpannelloporta.
Alignwiththetopedgeofthedoorpanel.
Aligneraubordsupérieurdupanneaudelaporte.
MitderOberkantederDekorplattefluchten.
