Fagor W Series User manual

GENERAL INSTRUCTIONS FOR INSTALLATION, USE AND MAINTENANCE
W MODELS
MOD:
COP-174 W
COP-504 W
CO-502 W
CO-500 W
CO-402 W
CO-400 W
CODE: 12220401
REV.: 05 (2021)
Hood type Dishwasher
Undercounter Dishwasher
Glasswasher

READ FIRST
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE.
READ, UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND
WARNINGS CONTAINED IN THIS MANUAL.
WARNING
IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR MAINTENANCE
CAN CAUSE PROPERTY DAMAGE, INJURY OR DEATH. READ THE INSTALLATION,
OPERATION & MAINTENANCE INSTRUCTIONS THOROUGHLY BEFORE INSTALLING OR
SERVICING THIS EQUIPMENT.
Model:
Purchased From:
Serial:
Location:
Date Purchased:
Date Installed:
Purchase Order:
For Service, Call:
WARNING
HAZARDOUS
VOLTAGE
PLEASE READ
INSTRUCTIONS
PROTECTIVE
EARTH
EQUIPOTENTIAL
BONDING

3
LIMITED WARRANTY
One Year Parts & Labor Warranty: Fagor Commercial, Inc. (“Fagor”) warrants to the first-end-user purchaser (the “User”)
that the Fagor brand equipment sold hereunder, except for parts and accessories which carry the warranty of a supplier
(the “Equipment”) will be free from defects in material and factory workmanship under normal conditions of use and
maintenance for a period of (1) one year from the date of Installation (Warranty Commencement Date), but in no event to
exceed (15) fifteen months from the date of shipment.
Warranty Coverage: If there is a defect in material or factory workmanship covered by this Warranty reported to Fagor
during the period the applicable Warranty is in force and effect, Fagor will repair or replace, at Fagor’s option, that part of
the Equipment that has become defective. Fagor will cover labor cost within one year from the Warranty Commencement
date or 15 months from shipment date, whichever occurs first. Fagor shall bear all labor costs in connection with the
installation of these replacement parts, provided that, the installation is conducted by Fagor or its authorized representative.
Charges for warranty travel time to round trip total (2) two hours or up to 100 miles. Any charges exceeding those stated
herein must have prior authorization by Fagor. In case Fagor deems the equipment non-repairable, said equipment will be
replaced and the replacement unit(s) will carry the same warranty period from the original unit’s installation date (Original
Warranty Commencement Date).
Exclusions from and Conditions to Warranty Coverage: This Warranty does not cover parts or accessories, which (a)
carry the warranty of a supplier or (b) are abused. Application of this Warranty is further conditioned upon the following:
•Installation. The Equipment must be properly installed in accordance with Fagor’s installation procedures and
instructions and reviewed and tested by a professional technician.
•No Alteration. The Equipment must not have been modified or altered from its condition at the date of original
installation.
•Use. FAGOR EQUIPMENT IN NOT DESIGNED FOR PERSONAL, FAMILY OR HOUSEHOLD PURPOSES,
AND ITS SALE FOR SUCH PURPOSES IS NOT INTENDED. IN THE EVENT THE EQUIPMENT IS SO USED, THIS
WARRANTY SHALL BE NULL AND VOID, AND THE EQUIPMENT SHALL BE DEEMED TO HAVE BEEN SOLD “AS IS-
WHERE IS” WITHOUT ANY WARRANTY OF ANY KIND, INCLUDING WITHOUT LIMITATION ANY WARRANTY OF
TITLE, NON-INFRINGEMENT, MERCHANT-ABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
•Water Quality. Water supply should have hardness between .25 and 3.0 grains per gallon, pH level between 6.5
–7.5 and TDS level less than 60 PPM. Equipment failure due to inadequate water supply is not covered by this Warranty.
•Proper Maintenance and Operation. The Equipment must be properly maintained and operated in accordance
with Fagor’s maintenance and operating procedures. All service, labor and parts must be acquired from Fagor or its
authorized service representative for the User’s area.
•Minor Parts. No labor will be associated with the replacement of minor items such as, and not limited to, switches,
pilot lights, gauges, fuses, etc. or replacement of wear items such as curtains, squeeze tubes, etc.
•This warranty is void if failure is a direct result of handling &/or transportation, fire, water, accident, misuse, acts
of God, attempted repair by unauthorized persons, improper installation, if serial number has been removed or altered, or
if unit is used for purpose other than it was originally intended.
Failure to comply with any of these conditions will void this Warranty. In addition, this Warranty does not cover defects
due to apparent abuse, misuse or accident.
Fagor will have no responsibility to honor claims received after the date the applicable Warranty expires. Notwithstanding
the foregoing, any claim with reference to the Equipment or any parts therefore for any cause shall be deemed waived
unless submitted by the User to Fagor within thirty (30) days after the date the User discovered, or should have discovered,
the claim. In connection with all claims under this Warranty, Fagor will have the right, at its own expense, to have its
representatives inspect the Equipment at the User’s premises and to request all of User’s records pertaining to the
Equipment to determine whether a defect exists, whether the conditions set forth in this Warranty have been satisfied, and
whether or not the applicable Warranty is in effect.
THE FOREGOING WARRANTY IS IN LIEU OF AND EXCLUDES ALL OTHER WARRANTIES NOT EXPRESSLY SET
FORTH HEREIN, WHETHER EXPRESS OR IMPLIED BY OPERATION OF LAW OR OTHERWISE, INCLUDING BUT
NOT LIMITED TO ANY REPRESENTATION OF PERFORMANCE AND ANY IMPLIED WARRANTIES OF TITLE, NON-
INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. NO OTHER WAR-RANTIES
ARE AUTHORIZED ON BEHALF OF FAGOR UNLESS SPECIFICALLY ISSUED BY FAGOR.
Fagor shall have no liability for incidental or consequential losses, damages or expenses, loss of sales, profits or
goodwill, or punitive or exemplary damages directly or indirectly arising from the sale, handling or use of the
Equipment or from any other cause relating thereto, whether arising in contract, tort, warranty, strict liability or
otherwise. Fagor’s liability hereunder in any case is expressly limited, at Fagor’s election, to repair or replacement
of Equipment or parts therefore or to the repayment of, orcrediting the user with, an amount equal to the purchase
price of such goods.

4
1. INDEX
1. INDEX......................................................................................................................................4
2. GENERAL MEASUREMENTS AND CONNECTIONS .............................................................5
3. QUICK STARTUP GUIDES.....................................................................................................8
4. ELECTRICAL DIAGRAM.......................................................................................................10
5. ELECTRIC DIAGRAMS LEGEND..........................................................................................12
6. GENERAL INFORMATION AND WARNINGS.......................................................................13
7. PRODUCT DETAILS.............................................................................................................13
7.1 TECHNICAL SPECIFICATIONS............................................................................................................ 14
8. INSTALLATION INSTRUCTIONS..........................................................................................17

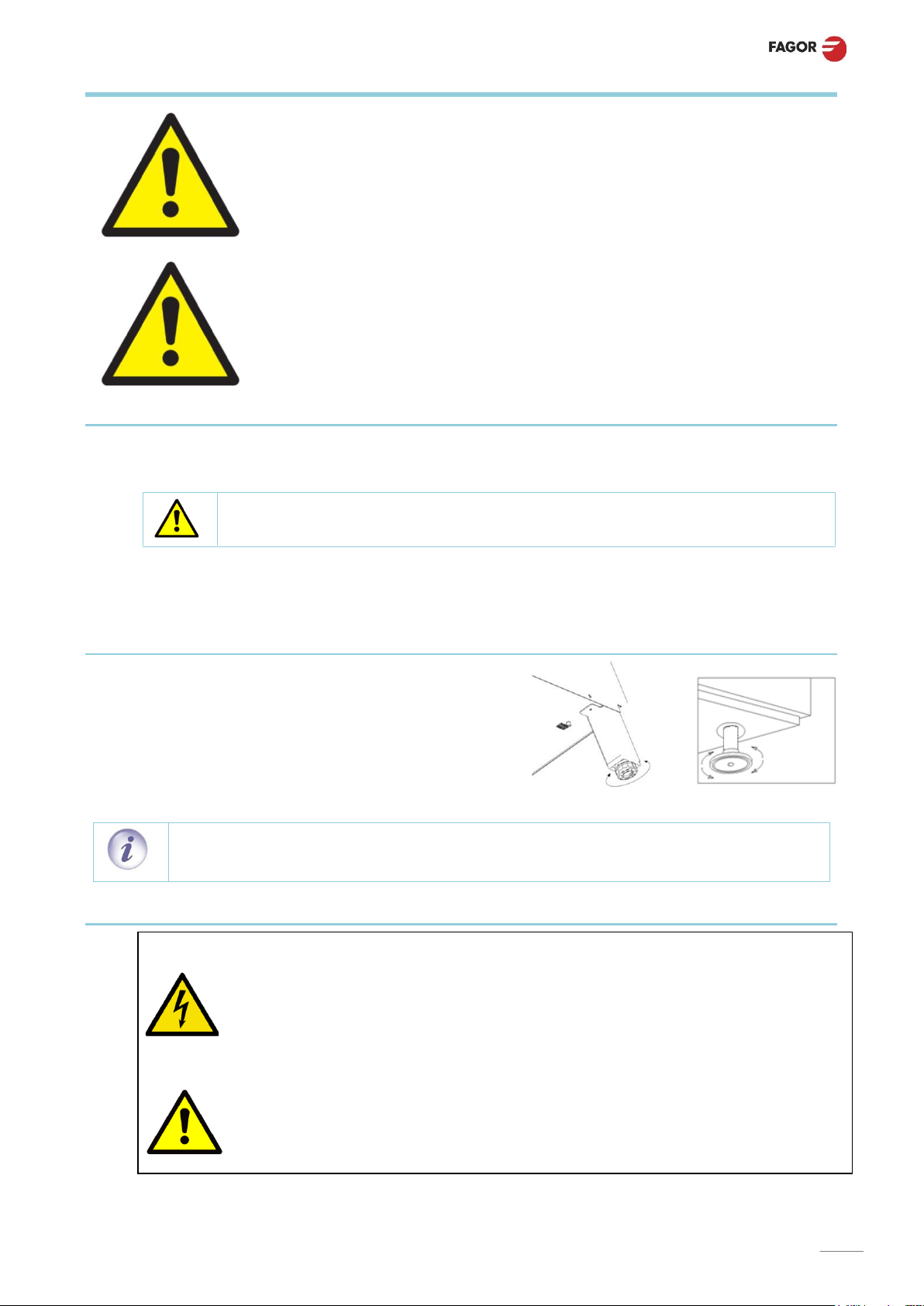

8.1 Removal of packaging...................................................................................................................... 17
8.2 Positioning and levelling.................................................................................................................. 17

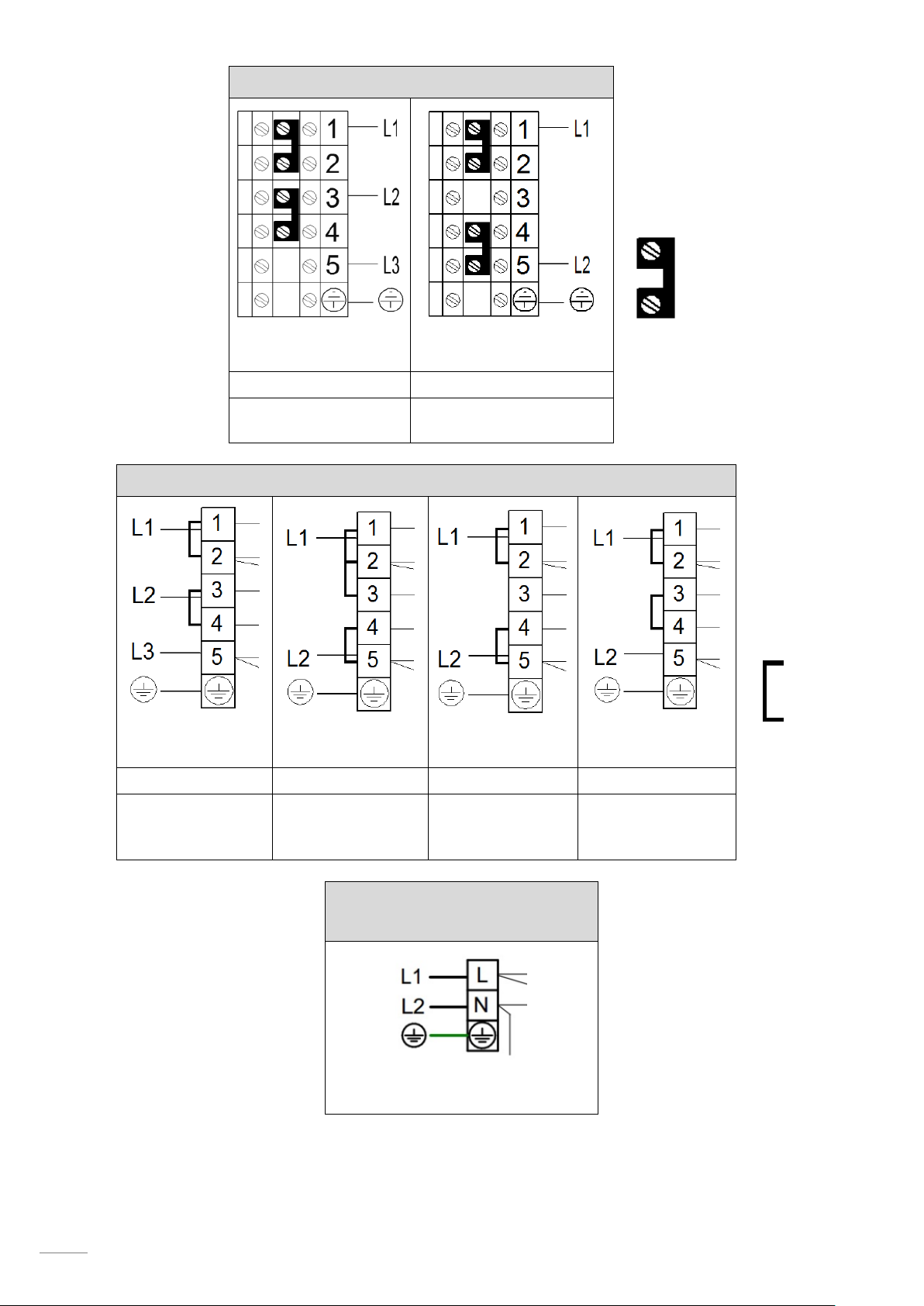

8.3 Electrical connection ....................................................................................................................... 17
8.4 Hydraulic connection....................................................................................................................... 18

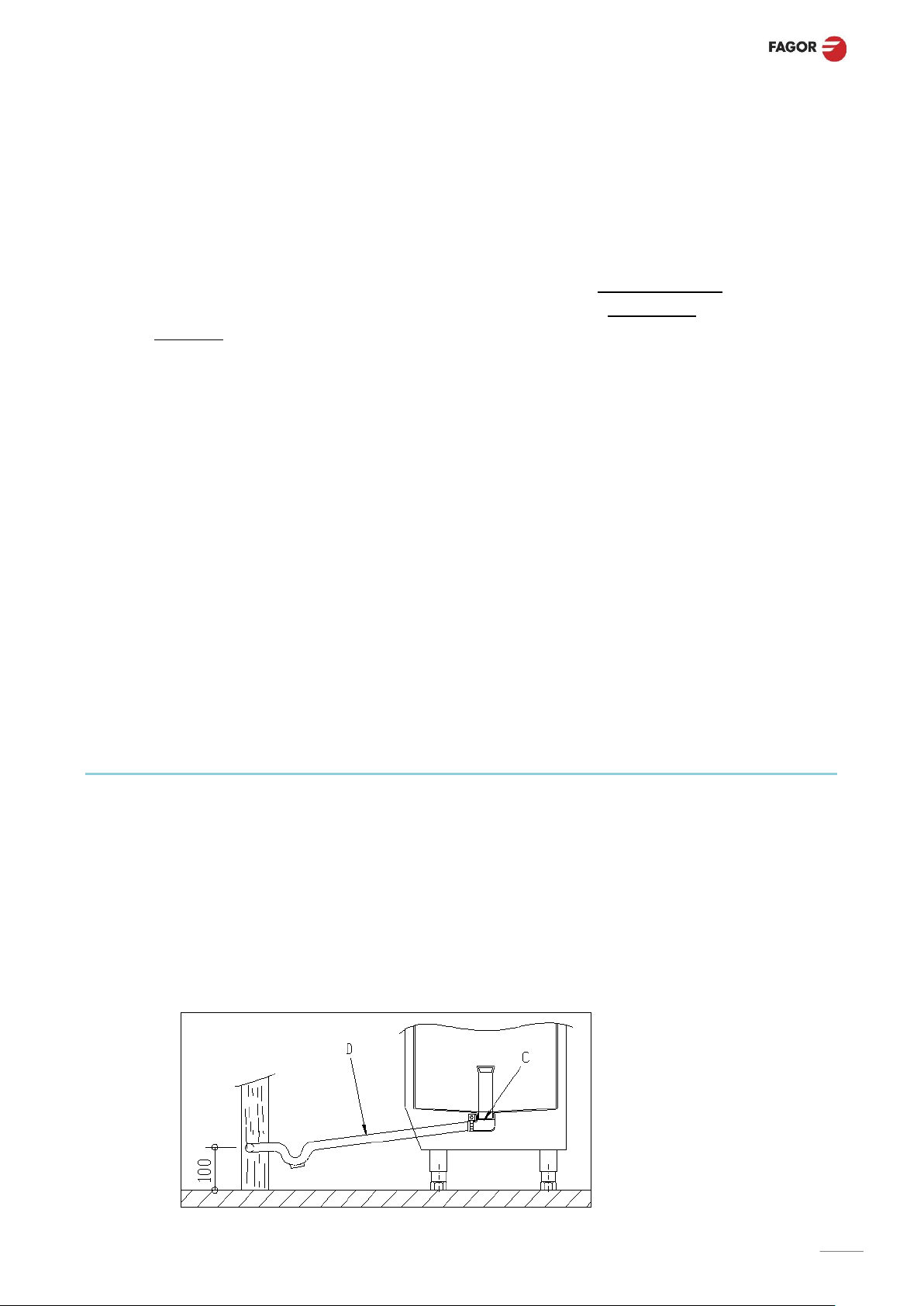

8.5 Drainage connection........................................................................................................................ 19
8.6 Hydraulic rinse aid dispenser (CO MODELS).................................................................................... 20
8.7 Electric rinse aid dispenser (COP MODELS)..................................................................................... 21
8.8 Detergent dispenser........................................................................................................................ 22
8.9 Recycling.......................................................................................................................................... 23
9. USE AND MAINTENANCE INSTRUCTIONS.........................................................................24
9.1 Operation......................................................................................................................................... 24
9.1.1 Control panel symbols............................................................................................................. 24
9.1.2 Switching on the machine ....................................................................................................... 25
9.1.3 Hygiene practices .................................................................................................................... 25
9.1.4 Preparation of the dishes ........................................................................................................ 25
9.1.5 Selecting the wash cycle.......................................................................................................... 26
9.1.6 Stopping the wash cycle and end of wash cycle...................................................................... 27
9.1.7 Drainage of the machine ......................................................................................................... 27
9.1.8 Switching off the machine....................................................................................................... 28
9.1.9 Cleaning the machine at the end of the day ........................................................................... 28
9.2 Cleaning and Maintenance Instructions.......................................................................................... 28
9.2.1 Routine maintenance .............................................................................................................. 28
9.2.2 Rinse aid and detergent........................................................................................................... 29
9.2.3 Prolonged non use................................................................................................................... 29
10. FAULTS, ALARMS AND BREAKDOWNS .............................................................................29
10.1 Error diagnosis................................................................................................................................. 31

5
2. GENERAL MEASUREMENTS AND CONNECTIONS
Hood type Dishwasher COP-174 W
A
B
C
D
E
F
G
Water
inlet
Drain
hose
Power Supply Cable
Strain Relief
Connection
Strip
(Inside)
Rinse aid
inlet
Detergent
inlet
Equipotential
bond

6
Hood type Dishwasher COP-174 W HRS
A
B
C
D
E
F
G
Water
inlet
Drain
hose
Power Supply Cable
Strain Relief
Connection
Strip
(Inside)
Rinse aid
inlet
Detergent
inlet
Equipotential
bond

7

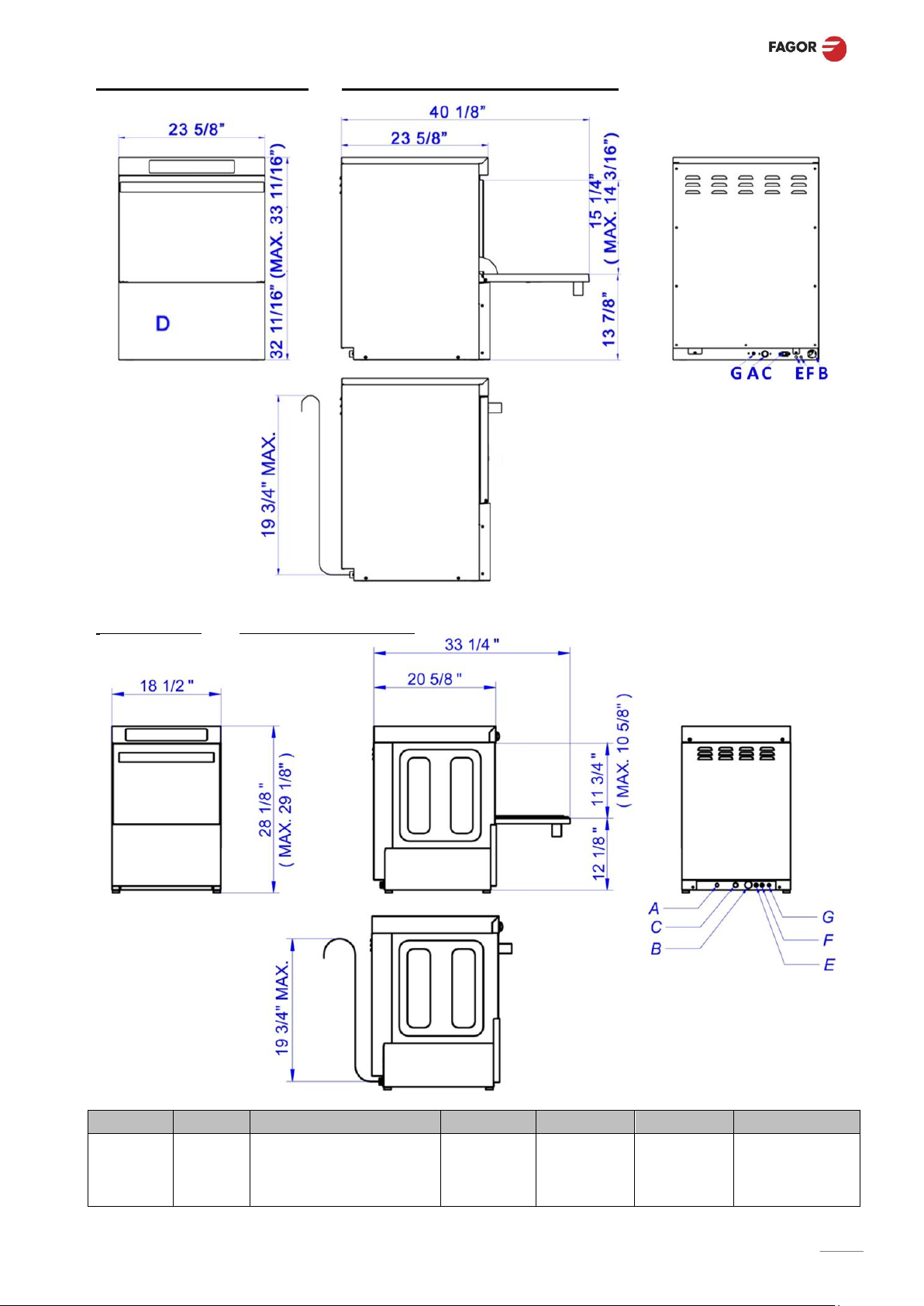

Undercounter Dishwasher CO-500 W /CO-502 W / COP-504 W
Glasswasher CO-400 W / CO-402 W
A
B
C
D
E
F
G
Water
inlet
Drain
hose
Power Supply Cable
Strain Relief
Connection
Strip
(Inside)
Rinse aid
inlet
Detergent
inlet
Equipotential
bond

8
3. QUICK STARTUP GUIDES

9

10

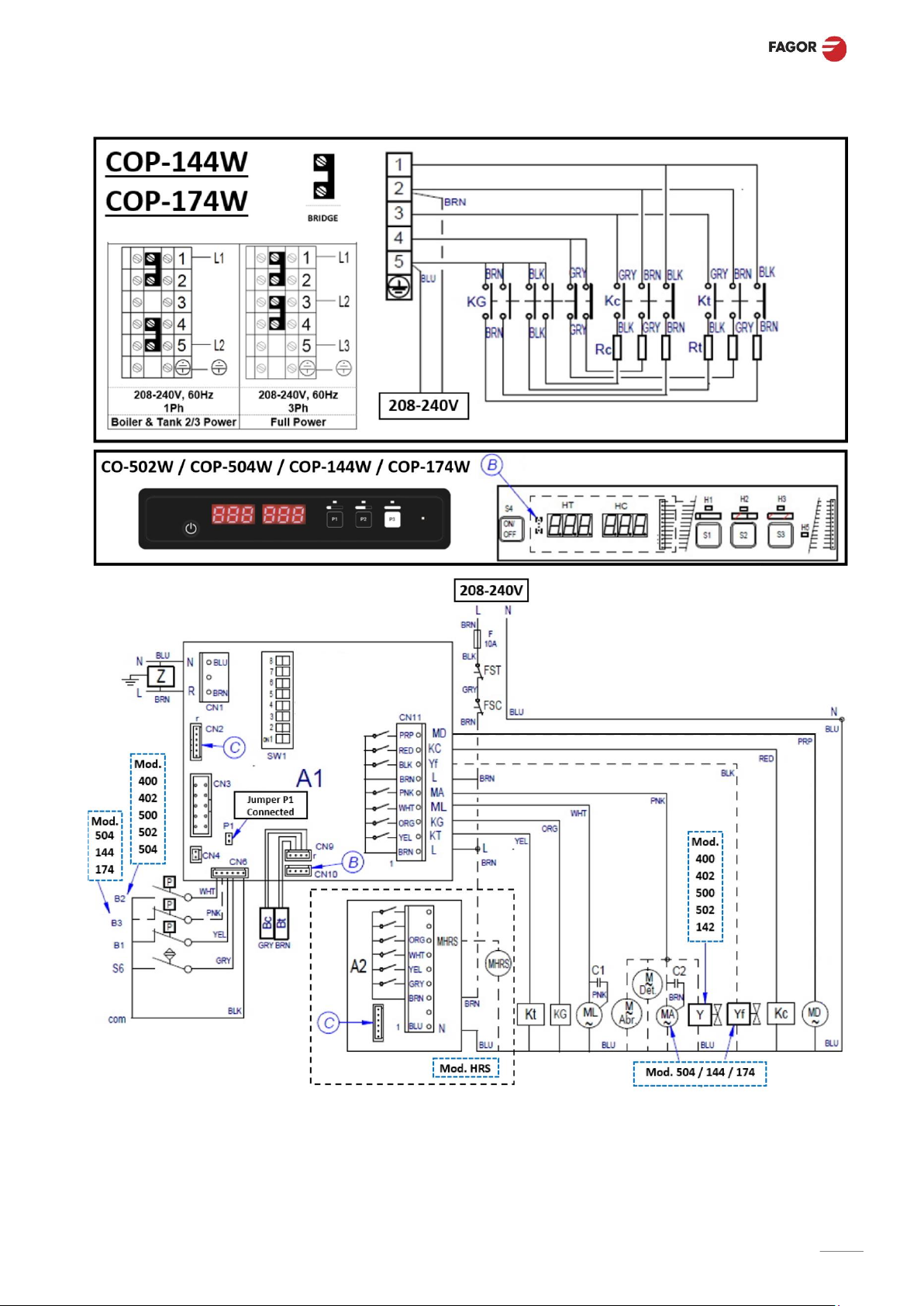

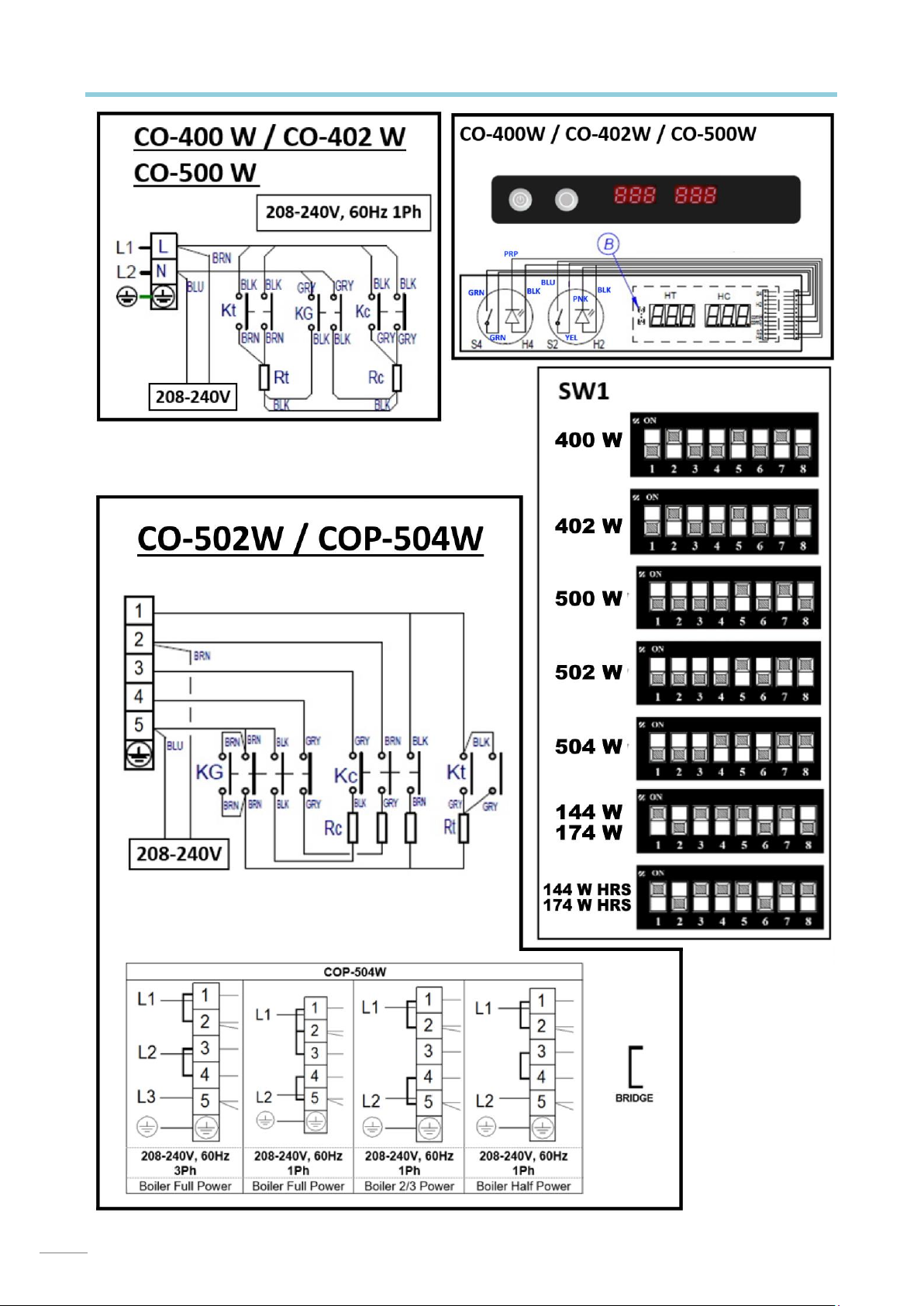

4. ELECTRICAL DIAGRAM

11

12
5. ELECTRIC DIAGRAMS LEGEND
Terminal block bridge
MD
Drain Pump
A1, A2
Electronic Board
MDet
Detergent Dispenser
A1-P1
Electric Bridge / Jumper
MHRS
HRS Fan
Bc
Boiler temperature probe
ML, ML1, ML2
Wash Pump
Bt
Tank Temperature Probe
N
Neutral
C1, C2
Capacitor
P1
Tank Pressure Switch
F
Fuse
P2
Tank Safety Pressure Switch
FSC
Boiler Safety Thermostat
P3
Boiler Pressure Switch
FST
Tank Safety Thermostat
PE /
Earth Ground
H1, H2, H3
Cycle Light
RC
Boiler Heating Element
H4
Power On Light
RT
Tank Heating Element
H5
Effi-rinse Light
S1, S2, S3
Program/Cycle Push button
HC
Boiler temperature Display
S4
ON/OFF Push button
HT
Tank Temperature Display
S5
Lack of salt switch
KC
Boiler Heating Contactor
S6
Door Switch
KG
Main Relay
SW1
DIP-SWITCH
KT
Tank Heating Contactor
TRF
Transformer
L, L1, L2, L3
Power Supply Phases
Y
Tank Filling Solenoid valve
MAbr
Rinse Aid Dispenser
Yf
Boiler Filling Solenoid valve
MA
Rinse Pump
Z
EMC Filter
COLOUR
COLOUR
BLK, bk, n
Black
PNK, pk, rs
Pink
BLU, bl, a
Blue
PRP, pr, vi
Purple
BRN, bn, m
Brown
RED, rd, r
Red
GRN, gn, ve
Green
WHT, wh, b
White
GRY, gy, g
Grey
YEL, yw, am
Yellow
ORG, or, na
Orange
YW/GN, am/ve
Yellow / green

13
6. GENERAL INFORMATION AND WARNINGS
This manual has been created to help you understand the operation, installation and maintenance of the
machine. It contains all the necessary information and warnings to ensure that the appliance is installed and
used correctly, together with information about the characteristics and possibilities offered, so that you may
enjoy your machine to the full.
BEFORE STARTING THE APPLIANCE, PLEASE READ THE INSTRUCTIONS CONTAINED
IN THIS MANUAL CAREFULLY.
The manual should be kept safely to hand for future reference.
If the machine is sold or transferred, please pass the manual to the new user.
THIS APPLIANCE IS EXCLUSIVELY FOR PROFESSIONAL USE AND SHOULD ONLY BE
USED BY QUALIFIED PERSONNEL.
•The positioning and installation, and all repairs or modifications, should always be carried out by an
AUTHORISED TECHNICIAN, in accordance with the applicable legislation of the country. The
manufacturer does not accept liability if the machine is incorrectly installed.
•The installation, incorrect adjustment, inappropriate maintenance or use of the appliance may cause
material damages and injuries.
•The dishwasher should be correctly levelled, and care taken to ensure that none of the electric cables,
water or drainage hoses are trapped or kinked.
•DO NOT climb on top of the dishwasher or place heavy objects on top of the machine as it has only been
designed to bear the weight of the basket of plates to be washed.
•The dishwasher is designed for washing plates, glasses and other kitchenware with traces of
human food. Any other objects must not be washed in the machine.
•If your machine breaks down, please call the Technical Service Centre.
•Unqualified or unauthorised personnel must NOT try to repair the machine.
•Use of spare parts other than original parts will cancel the guarantee.
•During all maintenance operations, the dishwasher must be disconnected from the main power
supply at the mains power switch, and the water intake tap must be closed.
•Abrasive or corrosive products, acids, solvents and chlorine-based detergents must NOT be used
to clean the appliance, as this may damage the components.
•Detergents or sanitizers shall not be manually added to the machine.
•This appliance has been designed for use in ambient temperatures between 41 ºF and 104 ºF.
•Only the baskets, soaps and rinse aids recommended by the manufacturer should be used.
Failure to comply with these instructions or the incorrect use of the appliance shall
relieve the manufacturer of any obligations regarding the guarantee or possible claims.
7. PRODUCT DETAILS
As it is an industrial product, it is characterised for having a high dishwashing capacity. The characteristics of
the product are listed below to help you understand your machine better.
All the appliances have a nameplate which identifies the appliance and indicates its technical characteristics.
This data plate is located on one side of the machine. Under no circumstances should the data plate be
removed from the unit. The data plate is essential to identify the particular features of your machine and is of
great benefit to installers, operators and maintenance personnel. It is recommended that, in the event the data
plate is removed, you copy down the essential information in this manual for reference before installation.

14
DATA PLATE
1:
APPLIANCE MODEL NAME
4:
ELECTRICAL SPECIFICATIONS
2:
APPLIANCE REFERENCE
5:
WATER INLET SPECIFICATIONS
3:
SERIAL NUMBER + MANUFACTURE DATE
These details should be quoted when the technical service is called.
7.1 TECHNICAL SPECIFICATIONS
MODEL
RACKS
PER HR.
DISHES
PER HR.
GLASSES
PER HR.
WASH
TANK
(gal)
GALLONS
PER
CYCLE
WATER INLET
MAX. TEMP.
WATER INLET
PRESSURE
COP-174W HRS
34
850
1224
8.7
0.53
77 ºF
At Water Inlet
15 –58 psi
COP-174W
60
1500
2160
8.7
0.53
140 ºF
COP-504W
40
925
1332
5.4
0.53
CO-502W
40
750
1080
5.4
0.53
At Pressure
Gauge
25psi ± 5psi
CO-500W
30
700
1008
5.4
0.53
CO-402W
40
242
352
4
0.53
CO-400W
30
242
352
4
0.53
WASH
MIN. TEMP.
HEATING ELEMENTS
OPERATING CYCLE TIME (s)
MODEL
PUMP
MOTOR
WASH
RINSE
WASH
TANK (kW)
BOILER
(kW)
WASH
DWELL
RINSE
HRS
TOTAL
COP-174W
HRS
1 hp
156°F
180°F
4.9/3.25
13.1/8.7
39/59/104/584
5
11
50
105/125/170/650
COP-174W
1 hp
156°F
180°F
4.9/3.25
13.1/8.7
39/59/104/584
5
11
-
55/75/120/600
COP-504W
3/4 hp
156°F
180°F
3
6.1/4.1/3
74/104/164
5
11
-
90/120/180
CO-502W
3/4 hp
156°F
180°F
3
3
71/101/161
5
14
-
90/120/180
CO-500W
3/4 hp
156°F
180°F
3
3
101
5
14
-
120
CO-402W
1/3 hp
156°F
180°F
2.15
3
71/101/161
5
14
-
90/120/180
CO-400W
1/3 hp
156°F
180°F
2.15
3
101
5
14
-
120
MODEL
WIDTH
DEPTH
HEIGT
MAX CLEARANCE
FOR DISHWARE
RACK
COP-174W HRS
24 3/4”
29 1/2”
75 1/2"
17”
20” x 20”
COP-174W
24 3/4”
29 1/2”
57 2/3”
17”
20 x 20”
COP-504W
CO-502W
CO-500W
23 5/8”
23 5/8”
32 11/16”
14 3/16”
20” x 20”
CO-402W
CO-400W
20 7/8”
26 3/4”
35
10 5/8”
16” x 16”
1
2
3
4
5

15
HOOD TYPE DISHWASHERS
CONNECTION
Voltage
Total
Load
Total
Power
Pump
Load
Pump
Power
Tank
Power
Boiler
Power
MODEL
TYPE
(V)
(A)
(kW)
(A)
(kW)
(kW)
(kW)
COP-174W
208-240V
208V
40,33
14,09
2,87
0,60
3,68
9,81
COP-174W HRS
60Hz
220V
42,65
15,76
3,04
0,67
4,12
10,98
Full Power
3Ph
240V
46,53
18,76
3,31
0,79
4,90
13,07
COP-174W
COP-174W HRS
Boiler & Tank
2/3 Power
208-240V
208V
46,12
9,59
2,87
0,60
2,45
6,54
60Hz
220V
48,78
10,73
3,04
0,67
2,74
7,32
1Ph
240V
53,22
12,77
3,31
0,79
3,27
8,71
UNDERCOUNTER DISHWASHERS
CONNECTION
Voltage
Total
Load
Total
Power
Pump
Load
Pump
Power
Tank
Power
Boiler
Power
MODEL
TYPE
(V)
(A)
(kW)
(A)
(kW)
(kW)
(kW)
CO-502W
208-240V
208V
15,03
5,06
2,36
0,48
2,29
4,58
COP-504W
60Hz
220V
15,9
5,66
2,50
0,54
2,56
5,12
Full Power
3Ph
240V
17,35
6,74
2,72
0,64
3,05
6,10
CO-502W
208-240V
208V
24,34
5,06
2,36
0,48
2,29
4,58
COP-504W
60Hz
220V
25,74
5,66
2,50
0,54
2,56
5,12
Full Power
1Ph
240V
28,08
6,74
2,72
0,64
3,05
6,10
CO-502W
208-240V
208V
17
3,54
2,36
0,48
2,29
3,05
COP-504W
60Hz
220V
17,98
3,96
2,50
0,54
2,56
3,42
Boiler 2/3 Power
1Ph
240V
19,61
4,71
2,72
0,64
3,05
4,07
CO-502W
208-240V
208V
13,33
2,77
2,36
0,48
2,29
2,29
COP-504W
60Hz
220V
14,1
3,1
2,50
0,54
2,56
2,56
Boiler Half Power
1Ph
240V
15,38
3,69
2,72
0,64
3,05
3,05
CO-500W
208-240V
208V
13,33
2,77
2,36
0,48
2,29
2,29
60Hz
220V
14,1
3,1
2,50
0,54
2,56
2,56
1Ph
240V
15,38
3,69
2,72
0,64
3,05
3,05
GLASSWASHERS
CONNECTION
Voltage
Total
Load
Total
Power
Pump
Load
Pump
Power
Tank
Power
Boiler
Power
MODEL
TYPE
(V)
(A)
(kW)
(A)
(kW)
(kW)
(kW)
CO-400W
CO-402W
208-240V
208V
12,03
2,50
1,02
0,21
1,64
2,29
60Hz
220V
12,73
2,80
1,08
0,24
1,83
2,56
1Ph
240V
13,88
3,33
1,18
0,28
2,18
3,05

16
COP-174W / COP-174W HRS
208-240V, 60Hz
3Ph
208-240V, 60Hz
1Ph
BRIDGE
Full Power
Boiler & Tank 2/3 Power
AWG 6
MCA 47,3 / MOP 55
AWG 6
MCA 54 / MOP 60
CO-502W / COP-504W
208-240V, 60Hz
3Ph
208-240V, 60Hz
1Ph
208-240V, 60Hz
1Ph
208-240V, 60Hz
1Ph
BRIDGE
Boiler Full Power
Boiler Full Power
Boiler 2/3 Power
Boiler Half Power
AWG 12
MCA 18
MOP 25
AWG 10
MCA 28,8
MOP 35
AWG 10
MCA 20,3
MOP 25
AWG 12
MCA 16
MOP 20
CO-400W / CO-402W
CO-500W
208-240V, 60Hz
1Ph

17
8. INSTALLATION INSTRUCTIONS
The dishwasher shall be installed in accordance with local
codes, or in the absence of local codes, installed in accordance
with the applicable requirements in the National Electrical Code,
NFPA 70, Canadian Electrical Code (CEC), Part 1, CSA C22.1, and
Standard for Ventilation Control and Fire Protection of
Commercial Cooking Operations, NFPA 96.
The positioning and installation, and all repairs or modifications,
should always be carried out by an AUTHORISED TECHNICIAN,
in accordance with the applicable legislation of the country.
The installation, incorrect adjustment, inappropriate maintenance or use of
the appliance may cause material damages and injuries.
8.1 Removal of packaging
Remove packaging from the machine and check for damage during transportation. If any damage is
observed, immediately notify the supplier and the transport company. In the event of doubt, do not use
the machine until the problem has been assessed.
Packaging (plastic, expanded polyurethane, staples, etc…) must not be left in the
reach of children, they are a potential hazard.
The machine should be moved using a fork-lift truck or similar to avoid damage to the structure.
Transport the machine to the installation location and then remove packaging.
All the packaging can be recycled. Dispose of packaging correctly.
8.2 Positioning and levelling
This appliance has adjustable feet. This is done by
turning the leveling stands to the desire height. For
optimum operation, it is essential that the machine is
correctly levelled. The flooring on which the machine
is to be installed must be able to bear the full weight
of the machine.
Inspect final location of the machine prior to installation to prevent damage during use.
8.3 Electrical connection
An AUTHORISED TECHNICIAN should always carry out the appliance’s electrical
connection.
The dishwasher shall be installed in accordance with local codes, or in the
absence of local codes, installed in accordance with the applicable requirements
in the National Electrical Code, NFPA 70, Canadian Electrical Code (CEC), Part 1,
CSA C22.1, and Standard for Ventilation Control and Fire Protection of
Commercial Cooking Operations, NFPA 96.”.
THIS APPLIANCE, WHEN INSTALLED, MUST BE ELECTRICALLY GROUNDED
The manufacturer cannot accept any responsibility for damage caused from a
failure to observe grounding instructions.

18
•Refer to the wiring diagram, the machine data plate and technical specifications
for service size requirements.
•Check that the mains voltage corresponds to that indicated on the nameplate.
•The power-supply cord shall be Type S, SE, SO, SOO, ST, STO, or STOO (with
or without W at the end).
•The power supply cord wire size must be suitable for the rated current of the
machine (amperage load). Use copper conductors only.
•The appliance must be grounded using the ground connection of the terminal
block of the appliance.
•An all phase Circuit Breaker must be installed near to the appliance between the
power supply and the appliance in accordance to required consumption
guidelines. Switch the circuit breaker to “OFF” when servicing the appliance. It is
recommended that it has lockout-tagout capabilities. The manufacturer will not be
held liable for damage originated by failure to observe this requirement.
•A suitable safety switch / Residual current device must be installed near the
appliance between the power supply and the appliance. The manufacturer will not
be held liable for damage originated by failure to observe this requirement.
•If any faults are observed during the installation, the supplier should be notified
immediately.
When a number of appliances are installed in line, they should all be ground bonded at the point
provided for that purpose.
To access the connection strip when a permanent connection needs to be made, release the cover of
the machine’s front (see chapter 2. General measurements and connections). The power cable is
connected to the connection strip. It is also possible to change the machine configuration here.
The manufacturer will not be held liable for any personal or material damage to the
machine resulting from incorrect installation or failure to comply with the
manufacturer’s specifications.
It is the personal responsibility and obligation of the customer to contact a
qualified electrician to assure that the electrical installation is adequate.
8.4 Hydraulic connection
The new hoses supplied with the appliance should be used (do not reuse old hoses).
Before connecting the machine to the water supply, the water quality should be tested.
Recommended water quality:
pH:
6.5 to 7.5
Alkalinity:
Less than 50 ppm (mg/L)
Free Chlorine:
Less than 0.2 ppm (mg/L)
Total Dissolved Solids (TDS):
Less than 60 ppm
Chlorides:
Less than 30 ppm (mg/L)
Sulfates:
Less than 40 ppm
Hardness:
Less than 3 gpg (52 ppm)
Iron:
Less than 0.1 ppm
Conductivity:
400 –1.000 µS/cm
Copper:
Less than 0.05 ppm
Silica:
Less than 12 ppm (mg/L)
Manganese:
Less than 0.05 ppm
Water installation is carried out as shown in Fig. 1:
S→SHUT-OFF COCK
F→FILTER
H→WATER HOSE
E→WATER VALVE
Fig. 1. Direct connection of water input hose.

19
Use 3/4” copper tubing inlet line.
It is necessary to remove all foreign debris from the water line that may potentially get trapped in the
valves or cause an obstruction, prior to connecting to the machine.
Use only the supplied hoses (3/4” Female hose connector) at the water connections. Failure to do so
may result in damage to the solenoid valve threads and leaking. Tighten by hand. Connect the bent
side of the hose to the machine. Adaptor supplied for ¾” female garden hose connection.
FOR HARD WATER SUPPLIES WITH A HARDNESS OF OVER 3 gpg OR 5ºfH AND PH BEYOND
THE RANGE OF 6.5 –7.5, A WATER CONDITIONER/DESCALER MUST BE INSTALLED.
In addition to water quality, the pressure of the mains water supply must be considered. This is
important to ensure the machine operates correctly.
CO models: Required water dynamic pressure measured at pressure gauge 25psi ± 5psi.
COP models: Required water dynamic pressure measured at water inlet between 20-58 psi.
CAUTION:Do not confuse static pressure with flow pressure. Static pressure is the line pressure in
a “no flow” condition (all valves and services are closed). Flow pressure is the pressure
in the fill line when the solenoid valve is opened during the filling or cycle.
In areas where the pressure fluctuates or it is higher than the recommended pressure, a water pressure
regulator shall be installed between the shut-off cock and the water hose (Fig. 1.).
If the water pressure is less than required, installation of a water pump is required.
The hot water heater should be set to deliver 140 F (not lower than 122 °F) water temperature to the
dishwasher for best results, except in hood type HRS models, where the water inlet temperature
should be between 41 ºF and 77 ºF in order for the HRS system to function properly.
Slowly turn on the water supply to the machine after the incoming fill line and the drain line have been
installed. Check for any leaks and repair as required. All leaks must be repaired prior to placing the
machine in operation.
The following requirements are necessary for the correct hydraulic installation of the machine.
•The hydraulic circuit must be fitted with a valve to shut-off the water supply.
•Check that the mains pressure is within the range indicated.
•To optimise the work of the machine, the water temperature at the machine intake should be
within the following range: 122 ºF (50 ⁰C) < Hot water Temp < 140 ºF (60 ⁰C)
For HRS hood type models: 41 ºF (5 ⁰C) < Water Temp (HRS) < 77 ºF (25 ⁰C).
•If using hot water, the water temperature must not exceed 60 ºC / 140 ºF.
•All the machines should have a 3/4” screw-on connection.
8.5 Drainage connection
Attach the drain hose as shown in Fig. 2. The drainage pipe must always be fitted on a siphon to
prevent the return of odours.
All piping from the machine to the drain must be a minimum 1-1/2” I.P.S. There should also be an air
gap between the machine drain line and the drain. For natural overflow efficiency use floor drain.
The water draining from the machine must flow freely and therefore the drainage pipe should be lower
than the drainage outlet (Fig. 2).
If the drainage pipe is not lower, a drainage pump will be required. This must not be mounted at a
height of more than 23 5/8”for hood type dishwashers or 19 3/4” for undercounter dishwashers and
glasswashers (Fig. 3). In this case, the pump may be requested at the time of purchase or
subsequently.
Fig. 2. Drainage installation.
D: Drain hose
C: Drain collector

20
Fig. 3.Installation of drainage at a height using drainage pump.
The drainage pump must only be installed by personnel authorised by the
manufacturer, and the manufacturer does not accept liability in the event of
incorrect installation.
8.6 Hydraulic rinse aid dispenser (CO MODELS)
Installation: Take the tube located in the back or your machine marked “Rinse Aid” and place inside
rinse container.
Tubes are transparent to provide you visible mean that chemicals are being dispensed.
Operation: This dispenser absorbs the rinse aid when it detects a loss in pressure during rinsing. That
is, when the filling solenoid valve closes, a vacuum is created that makes the rinse aid dispenser
absorb the fluid to which it is connected.
Adjustment: The dispenser should be adjusted when the machine is installed to ensure that the wash
is optimised from the start. The setting should be adjusted according to the type of rinse aid and the
water hardness.
WATER PRESSURE MUST BE MINIMUM 20 PSI AT THE PRESSURE GAUGE FOR THE RINSE
AID DISPENSER TO OPERATE PROPERLY.
