Fagor 3FCA-68NFX User manual

CARE & INSTRUCTIONS MANUAL
GUIDE D’UTILISATION ET D’ENTRETIEN
MANUAL DE INSTRUCIONES Y MANTENIMIENTO
REFRIGERATOR RÉFRIGÉRATEUR FRIGORÍFICO
• 3FCA-68NFX
NOTE: To avoid accident and damage, please read these instructions carefully before operating the appliance.
NOTE: Veuillez lire ces instructions attentivement a fin d’éviter accidents et dommages.
NOTA: Por favor, lea este manual de instrucciones atentamente para evitar posibles daños o accidentes.

1. Important Safety Instructions ........................................................ 3
2. Installation ...................................................................................... 4
2.1 Installation Requirements .......................................................... 4
2.2 Electrical Requirements.............................................................. 4
2.3 Installation Instructions.............................................................. 5
2.4 Before First Use.......................................................................... 5
3. Features of the Refrigerator and the Freezer .............................. 6
3.1 Temperature Regulation.............................................................. 7
3.2 Control Panel (No Frost)............................................................ 7
3.3 Functions .................................................................................... 8
4. Operation of the Refrigerator ...................................................... 9
4.1 Multifresh System........................................................................ 9
4.2 Double Fresh System .................................................................. 10
4.3 Bio Filter .................................................................................... 10
4.4 Normal Refrigerator Noises ...................................................... 11
5. Operation of the Freezer .............................................................. 12
5.1 Ice Making .................................................................................. 12
5.2 Defrosting.................................................................................... 12
5.3 Defrosting Food .......................................................................... 12
6. Care and Cleaning .......................................................................... 13
7. Troubleshooting .............................................................................. 14
8. Customer Service ............................................................................ 16
9. Product Warranty .......................................................................... 17
TABLE OF CONTENTS
Page
Please read these instructions carefully before use.
Keep this manual for future reference.
1

3
READ BEFORE INSTALLING AND USING.
FAILURE TO FOLLOW THESE INSTRUCTIONS CAN RESULT
IN SERIOUS OR EVEN FATAL INJURY.
WARNING: To reduce the risk of fire, electric shock, or injury when using your refriger-
ator, follow these basic precautions:
• This refrigerator must be properly installed in accordance with the Installation
Instructions before it is used.
• Always plug into a grounded 3 prong outlet, do not remove ground prong.
• Do not use an adapter or an extension cord.
• Replace all panels before operating.
• Keep flammable materials and vapors, such as gasoline, away from refrigerator.
• Use two or more people to move and install refrigerator.
• Unplug the refrigerator before cleaning, making repairs, changing the light bulbs or
servicing the refrigerator.
• Never clean refrigerator parts with flammable fluids. The fumes can create a fire
hazard or explosion.
• Never allow children to operate, play with, or crawl inside the refrigerator. They
could damage the refrigerator and seriously injure themselves.
• Do not touch the cold surfaces in the freezer compartment when hands are damp or
wet. Skin may stick to these extremely cold surfaces.
• Keep fingers out of the “pinch point” areas; clearances between the doors and cabi-
net are necessarily small. Be careful closing doors when children are in the area.
IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or
abandoned refrigerators are still dangerous – even if they will sit for “just a few days.” If
you are getting rid of your old refrigerator, please follow these instructions to help prevent
accidents.
Before you throw away your old refrigerator or freezer:
• Take off the doors.
• Leave the shelves in place so that children may not easily climb inside.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
1. IMPORTANT SAFETY INSTRUCTIONS
ENGLISH

2.2 ELECTRICAL REQUIREMENTS:
➭Plug specifications: grounded 220-240 V.
➭Do not use adaptors or extension cables.
➭Ensure that the cable is not in contact with the motor.
➭Ensure that the cable is not caught under the refrigera-
tor.
2.1 INSTALLATION REQUIREMENTS:
➭Ensure that the refrigerator is located away from heat sources
(stoves, radiators, etc.) and protected from direct sunlight, which
increases energy consumption.
➭Allow air flow around the rear of the refrigerator. Do not cover
the space between the refrigerator and the floor or the top of the
refrigerator with any object.
➭The refrigerator must not be installed outdoors or exposed to rain.
➭To ensure better energy efficiency, a 1 inch space is recommend-
ed between the back of the refrigerator and the wall.
➭On certain occasions, relative humidity and room temperature
may generate condensation on the inside and outside of the refrig-
erator.
To avoid vibrations and noise, ensure that the refrigerator is
stable and level.
2. INSTALLATION
4

5
2.4 BEFORE FIRST USE:
➭Clean the inside with warm water and baking soda. Rinse carefully and allow to
dry completely.
➭Wait for 2 hours before starting to ensure that the motor lubricants have stabi-
lized.
➭If the refrigerator has been switched off, wait 4 hours after restarting before plac-
ing food inside.
2.3 INSTALLATION INSTRUCTIONS:
TOOLS REQUIRED:
➭A Phillips screwdriver.
PROCEDURE:
1. Unplug the refrigerator.
2. Remove the cover from the top hinge. (Fig.1)
3. Loosen the top hinge screws. (Fig.1)
4. Take the door off with an upward movement.
5. Remove the cover of the central hinge screws,
and loosen the two screws holding it in place.
(Fig.2)
6. With the screws loose, move the freezer door
upward to release it.
7. Lastly, remove the screws and take out the bot-
tom hinge. (Fig.3)
8. Change the position of the bottom hinge shaft,
placing it on the opposite side. (Fig.3)
9. If fitted, change the lateral handles to the other
side.
10. Reverse this procedure to refit the doors.
Fig. 2 Central hinge
Fig. 3 Bottom hinge
Fig. 1 Top hinge
ENGLISH

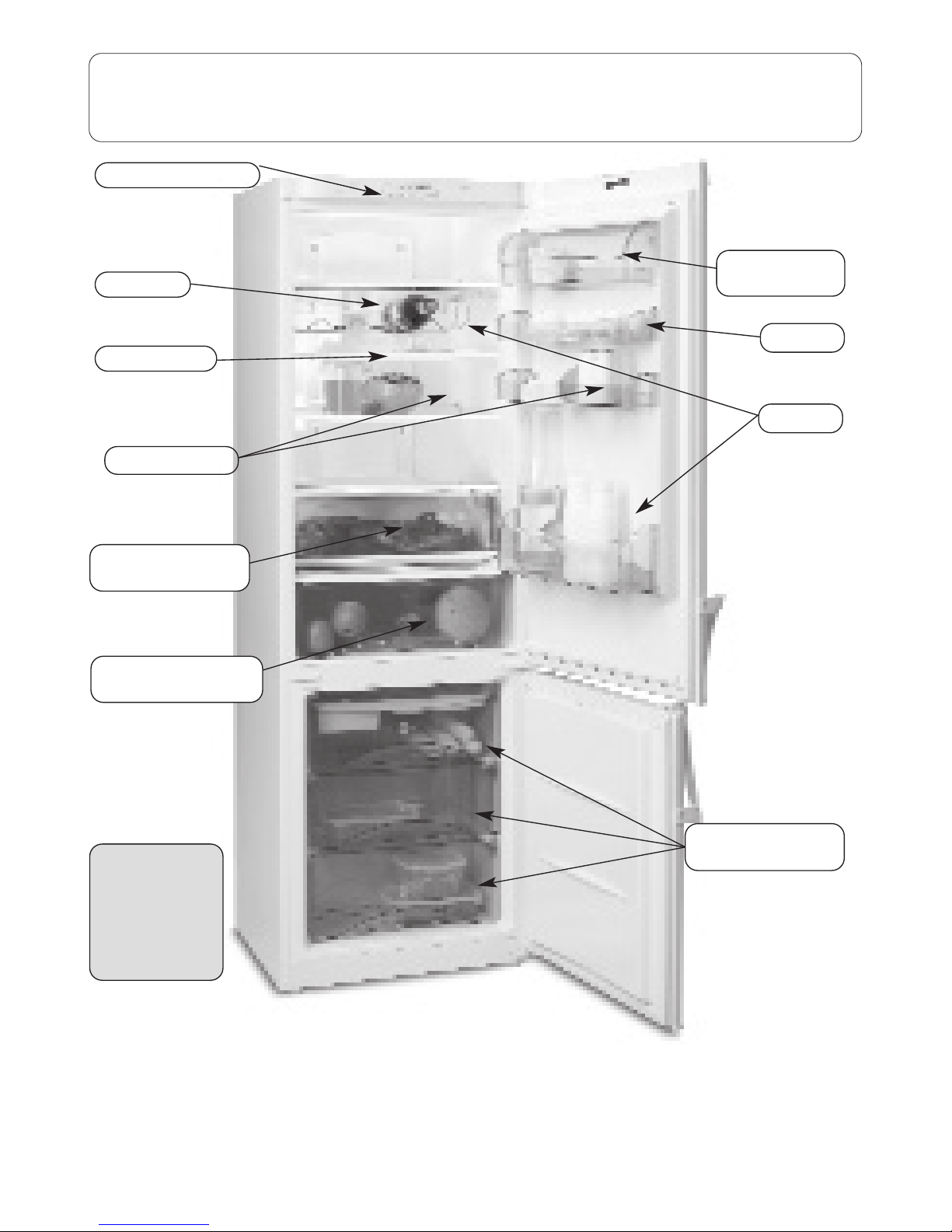

3. FEATURES OF THE REFRIGERATOR
AND THE FREEZER
Eggs
Bottles
DOUBLE FRESH
Vegetable compartment
MULTIFRESH
Meat compartment
Cans and jars
Control panel
Cheese, butter,
medicines
Frozen food and
ice cubes
Light
BIO FILTER
NOTE:
This diagram
may not
correspond
exactly to your
refrigerator.
6
FEATURES OF THE REFRIGERATOR:
➭This refrigerator includes a four star (****) freezer compartment enabling you
to freeze food.
➭This refrigerator will operate correctly between the following temperatures:
•
•
No-Frost Models 50ºF-116ºF (10ºC-43ºC)

3.2 CONTROL PANEL (No-Frost)
Your refrigerator will have either a LED control panel or a digital control panel.
7
➭In normal conditions, the recommended approximate temperature is
38ºF (4ºC) in the refrigerator and about –8ºF (-19ºC) in the freezer.
➭To regulate the temperature, use the temperature selection controls.
Temperatures are indicated in ºF.
3.1 TEMPERATURE REGULATION:
WARNING: The inside refrigerator temperature depends on:
➭Room temperature.
➭The location of the refrigerator.
➭Door-opening frequency
Freezer
Temperature
Selection
Refrigerator
Temperature
Selection
SUPER
FREEZING
ON / OFF
Holiday
SUPER
COOLING ALARM
REFRIGERATOR FREEZER
Cold level
LED control panel
Freezer
Temperature
Selection or
ON / OFF
Refrigerator
Temperature
Selection or
Holiday SUPER
FREEZING
SUPER
COOLING ALARM
Freezer
Display
Refrigerator
Display
REFRIGERATOR FREEZER REFRIGERATOR
Digital control panel
ENGLISH

8
ON/OFF
LED control panel
The refrigerator is switched on and off using the "ON/OFF" button.
Digital control panel
The refrigerator is switched on and off using the freezer temperature selection buttons. If a
number appears on the freezer displays, this means the refrigerator is running. To switch off
the refrigerator, press + or – repeatedly until the displays switch off.
Freezer (ºF) OFF -4 -6 -8 -10 -12 -14 -16 -18 OFF
Freezer (ºC) OFF -17 -18 -19 -20 -21 -22 -23 -24 OFF
Temperature selection
LED control panel
The refrigerator and freezer temperatures in ºF can be selected by turning the dials. The
coldest temperature is obtained by turning the dial clockwise as far as it will go.
Refrigerator (ºF) +32 +34 +36 +38 +40 +42 +44 +46 +48
Freezer (ºF) -6 -8 -10 -12 -14 -16 -18
Refrigerator (ºC) +1 +2 +3 +4 +5 +6 +7 +8 +9
Freezer (ºC) -18 -19 -20 -21 -22 -23 -24
Digital control panel
The refrigerator and freezer temperatures in ºF can be selected by pressing the + and – but-
tons. While the number display flashes, choose the temperature required. Once this is done
the temperature in the compartment will be shown on the display and will gradually move
to the level chosen.
Refrigerator (ºF) H +32 +34 +36 +38 +40 +42 +44 +46 +48 H
Freezer (ºF) OFF -4 -6 -8 -10 -12 -14 -16 -18 OFF
Refrigerator (ºC) H +1+2+3+4+5+6+7+8+9H
Freezer (ºC) OFF -17 -18 -19 -20 -21 -22 -23 -24 OFF
SUPER COOLING
➡
With this function running, the refrigerator temperature is regulated automati-
cally to maximum cold for six hours. It switches off automatically but can also be
turned off automatically before the 6 hours is up.
SUPER FREEZING
➡
With this function running, the freezer temperature is automatically adjusted to
maximum cold. This is to facilitate freezing of food and it is recommended that it
is turned on 24 hours before introducing a large amount of food. The function will
turn off automatically, and can also be switched off manually.
Alarm
➡
A light and audio signal is activated if the freezer temperature is abnormally low.
The audio alarm can be turned off manually using the SUPER FREEZING func-
tion.
➡
When the refrigerator door is left open for more than 120 seconds, an alarm
will sound intermittently. This alarm will be switched off by closing the door.
Cold level
➡
The number of lights on will indicate freezer cold level. The more lights on, the
colder the freezer.
3.3 FUNCTIONS

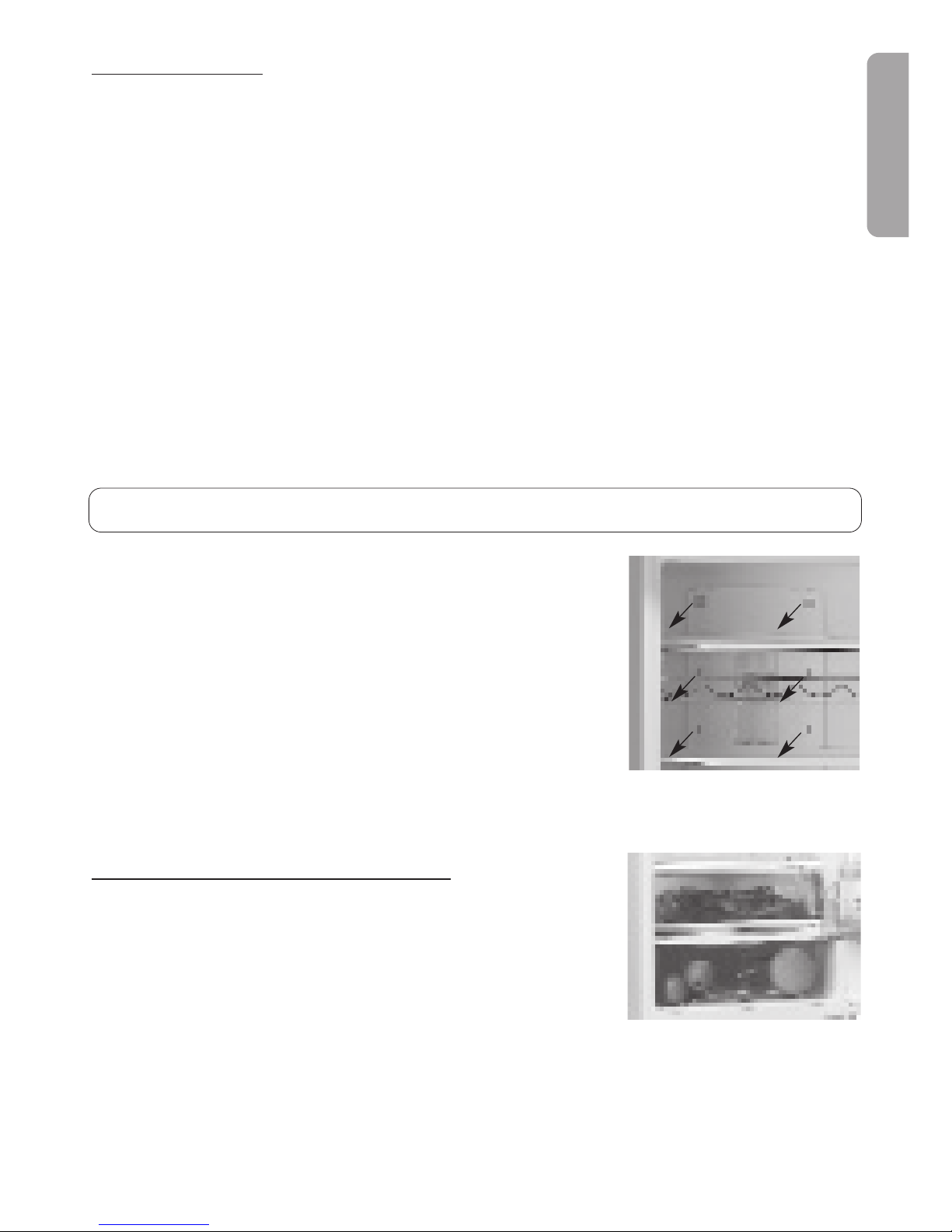

4.1 MULTIFRESH SYSTEM
If your refrigerator has a Multifresh compartment:
➭This guarantees ideal conservation of fresh food
such as meat, fish, and also vegetables, allowing
these items to be conserved for longer periods of
time without having to freeze them.
➭This area has the coldest temperatures in the refrigerator and is also the area
least affected by frequent opening.
➭For meat and fish, an intermediate refrigerator temperature is recommended.
➭For greater capacity in the refrigerator, remove the top rack and cover, and store
directly on the tray. This area loses the benefits outlined above.
9
Holiday Function
➡
Used when you want the freezer to work normally and the refrigerator to be
switched off when you do not plan to use it for a long period of time, for example,
during a vacation. Before enabling this option, empty the refrigerator, clean it and
close the door. Then activate this function to ensure that your refrigerator is main-
tained in optimum conditions to avoid generating unpleasant odors. When you
come back from your holiday, simply deactivate the holiday function and the tem-
perature in the refrigerator will drop once again to the pre-selected level.
To activate or deactivate the Holiday function:
LED control panel
Press the Holiday function button and close the refrigerator door.
Digital control panel
Press the + or – button used for selecting the refrigerator temperature until the
letter H (Holiday) appears on the refrigerator display.
➡
Leave enough space between food items to let air
flow around them.
➡
Do not leave the door open longer than necessary.
➡
Do not put hot food in the refrigerator.
➡
Do not obstruct the ventilation grills. (Fig.4)
➡
To prevent stored food from drying out, we recommend
that you place them in an airtight container or wrap
them in aluminium foil or plastic food wrap.
Fig. 4 Ventilation grills
ENGLISH
4. OPERATION OF THE REFRIGERATOR

4.3 BIO FILTER
Function
The refrigerator may be equipped with a filter that absorbs any unpleasant smells
produced by the food, and retains microorganisms (mold and bacteria) from the
circulating air.
Location
The BIO FILTER is located on the inside of the reflector
cover on the refrigerator light.

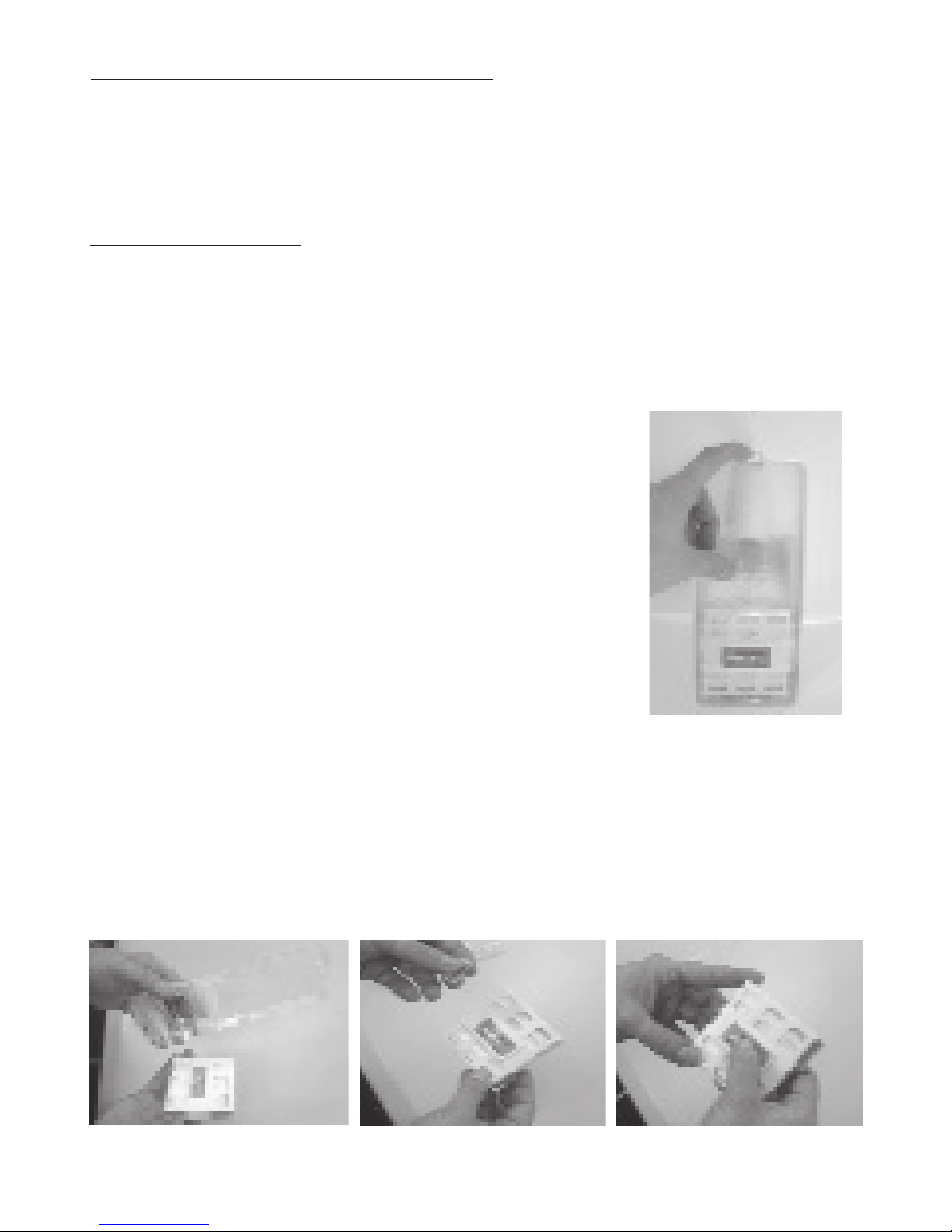

Activation
If your refrigerator has a BIO FILTER, the procedure for
activating it is as follows:
1. Press the top tab and remove the light reflector cover
(Fig.5).
2. Separate the filter from the cover (Fig.6) and remove
the seals by pulling on the red tabs (Fig.7).
3. Then press on the BIO FILTER window until you hear a click. After a few
seconds the time scale will begin to change color (Fig.8).
4. Put the filter back in place and fit the cover into its corresponding recess
(first, position the lower part and then click the top part into place.)
4.2 DOUBLE FRESH SYSTEM
Your refrigerator is fitted with this system. The top rack covering the fruit and veg-
etable baskets has a membrane filter maintaining a high level of humidity in the bas-
kets. The humidity level provided is ideal to ensure that vegetables do not dry out,
ensuring that they retain their texture, flavor and nutritional value.
10
Fig.5
Fig.7Fig.6 Fig.8

Duration and replacement
The BIO FILTER only maintains its properties for a certain time (approx. 6
months). The BIO FILTER window shows when it needs changing. To replace it,
follow the activation directions on previous page. Replacement parts can be pur-
chased in the shop where you bought your refrigerator by calling ____________.
The code 993010246 will be printed on the rear of the filter.
Caution
➭ Keep all replacement parts and used BIO FILTERs out of reach of
children. They could be dangerous if swallowed.
➭ Do not get the BIO FILTER wet, as it will lose its properties.
11
ENGLISH

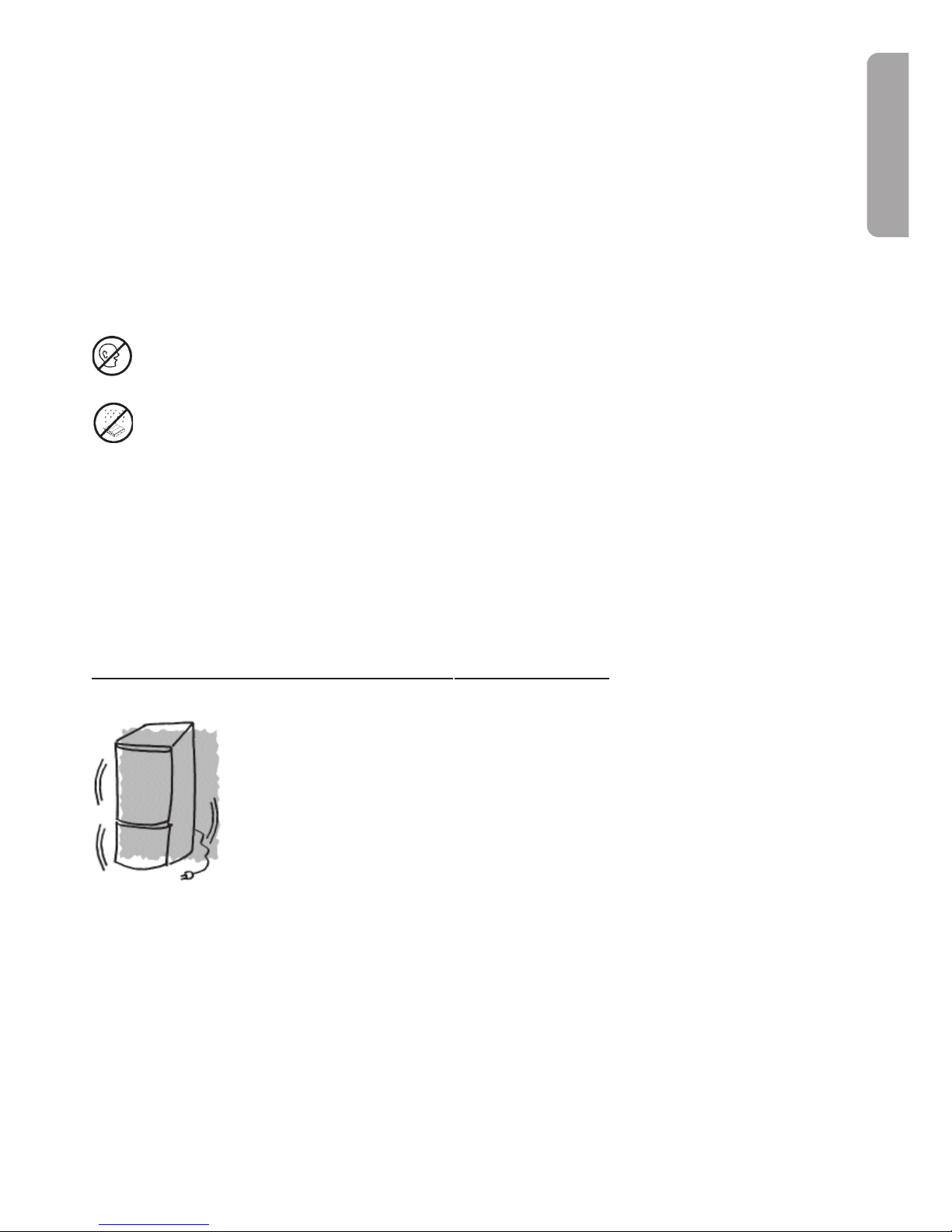

➭The refrigerating gas may produce bubbling sounds as it
flows through the unit.
➭The compressor may buzz and/or produce a light knocking
noise, which maybe louder when started.
➭Cracking sounds produced by expansion and contraction of
the materials used.
➭The insulation used amplifies sound levels.
➭You may hear a gentle murmur when your refrigerator is
switched on. This is due to the working fan incorporated to
ensure adequate air circulation inside the appliance.
➭You will note the effect of the fan in the freezer, which cools
the entire refrigerator evenly.
4.4 NORMAL REFRIGERATOR NOISES

5.2 DEFROSTING
➭No-Frost refrigerators do not generate layers of frost or ice.
5.3 DEFROSTING FOOD
Not all food should be defrosted in the same way.
➭If you have bought frozen food, follow the instructions on the package.
➭Vegetables should be cooked directly per instructions.
➭In general, prepared or pre-cooked foods can be cooked directly from freezer.
➭Meat and fish must be defrosted slowly in the refrigerator over several hours, or
you can use a microwave.
12
➭Fill the trays in the freezer up to three quarters with water.
➭Place the trays in the freezer.
➭Once the water has frozen, the cubes can be removed by
twisting the tray slightly. Store the cubes in the ice compart-
ment.
5.1 ICE-MAKING:
➭The amount of food to be frozen at once must not exceed the freezing power
indicated on the specifications plate.
➭Ensure that your food to be frozen is in good condition.
➭Observe the best-by date.
➭To prevent the food from drying out, wrap it in aluminium foil or plastic wrap.
➭Do not put food to be frozen in contact with food already frozen.
➭Never refreeze thawed food.
➭Freeze in daily servings.
➭Do not store bottles with carbonated drinks or glass bottles containing liquids in
the freezer. They may burst.
➭Do not eat very cold ice-cream or food; this may burn your mouth.
➭Label the wrapping, indicating the contents and the freezing date.
➭For best energy yield, keep the ice-cube holder full, along with the ice holder on
the upper basket tray.
5. OPERATION OF THE FREEZER

13

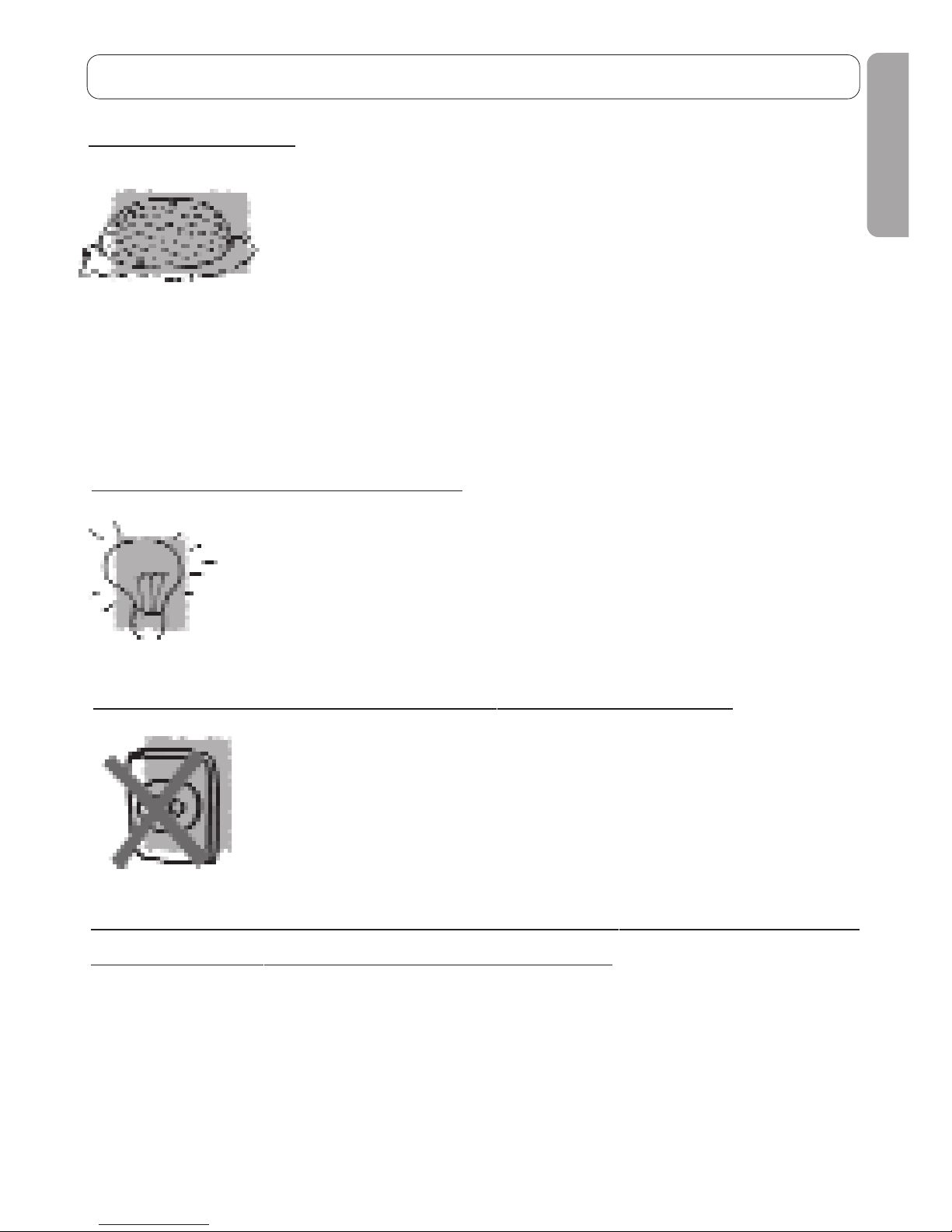

6.2 CHANGING THE LIGHT
➭Switch the refrigerator off.
➭Remove the light reflector cover by pressing the top tab.
➭
Remove the bulb and replace it with another of the same type,
screw type E14, 220-240 V, with a maximum of 15 W.
6.3 WHAT TO DO IN CASE OF APOWER OUTAGE:
➭If possible, do not open the refrigerator doors.
➭When power is restored, check to see if the food has defros-
ted, if so please discard.
6.4 WHAT TO DO IF THE REFRIGERATOR IS NOT TO BE
USED FOR ALONG PERIOD OF TIME:
➭Empty the refrigerator.
➭Switch off and clean the refrigerator as described in the Cleaning section.
➭Leave the doors open to prevent formation of unwanted odors.
➭Holiday function: If your refrigerator is to be out of use for any length of time
and you wish to keep food in the freezer, you may switch it off and activate the
Holiday function, leaving the door closed. The refrigerator will then function at
a very low rate of energy consumption and no bad odors will be produced.
6.1 CLEANING:
➭Switch off the refrigerator using the ON/OFF button before
starting to clean it.
➭Clean the interior with water and baking soda, with a sponge
or cloth, this will prevent the formation of odors.
➭ Never use steam cleaning machines, solvents or abrasive
detergents. This may damage the inside of your refrigerator. Do
not place the inside shelves in the dishwasher.
➭It is recommended that the rear grill be cleaned once a year using a vacuum
cleaner. If it is dusty and dirty, it reduces the refrigeratorʼs performance and
increases its consumption.
6. CARE AND CLEANING
ENGLISH

CAUSEPROBLEM SOLUTION
14
• It is not plugged in.
• There is no electrical current
to the plug because the fuse
has blown or the automatic
power switch has activated.
• The controls are not on.
• Plug in.
• Change the fuse or reset the
automatic power switch.
• Switch the controls on.
• The refrigerator is not prop-
erly level.
• Level the refrigerator prop-
erly, with the leveller bases.
• Temperature selection is set
too hot.
• The door is not properly
closed, is opened frequently
or was left open.
• The space between the re-
frigerator and floor or the
top of the refrigerator has
been covered.
• The refrigerator is exposed
to direct sunlight or a heat
source.
• A large amount of food has
been stored.
• There is something obstruct-
ing the ventilation grills.
• Set temperature selection to
maximum cold.
• Ensure that the door does
not remain open too long.
• Keep these areas free as de-
scribed in the "Installation"
section of this manual.
• Relocate the refrigerator or
protect it from these heat
sources.
• Consult the section on
"Operation and Use of the
Refrigerator".
• Remove any obstacles
blocking the air outlet of the
ventilation grills.
• The doors are not properly
closed.
• The doors are opened often.
• The food was stored recent-
ly.
• Temperature selection is in
the high position.
• Close the door properly.
• Avoid opening the door fre-
quently.
• Wait for the appliance to re-
turn to normal.
• Set the temperature switch
to less cold.
The refrigerator does not oper-
ate
The refrigerator vibrates
The refrigerator or freezer is
not very cold
The motor runs constantly
7. TROUBLESHOOTING

PROBLEM SOLUTION
15
CAUSE
• The refrigerator is not lev-
elled correctly.
• The door was closed vio-
lently.
• It is prevented from closing
by a product inside.
• Level the refrigerator
correctly.
• Close the doors gently.
• Rearrange food.
• Wrap the food or cover it
correctly or replace the BIO
FILTER, in models which
have this function.
• Some food is producing
odors in the refrigerator.
• The food is not properly
wrapped.
• Wrap the food or cover it
correctly.
• The light is loose.
• It has blown.
• The plug is not connected to
the power.
• There is no electrical cur-
rent to the plug because the
fuse has blown or the auto-
matic power switch has acti-
vated.
• Screw it in properly.
• Change the light as explai-
ned in the manual.
• Plug in.
• Change the fuse or reset the
automatic power switch.
The door does not close
Too much ice at the front of the
freezer drawers
The refrigerator light does not
come on
• The door is open.
• The door has been opened
often.
• Check to see if food is pre-
venting the door from being
closed.
• Ensure that the door does
not remain open for too
long.
Odor in the refrigerator
The food dries out
ENGLISH

16
Write the model and serial number on the lines below, youʼll
need them in the event of a service call. The serial and model
numbers are inside of the refrigerator on the inside left of the re-
frigerator near the food storage drawers.
Model: ________________________________
Serial: _________________________________
Date Purchased: __________________________
Store: __________________________________
Should you need service or have any questions about this product, donʼt hesitate
to contact FAGOR AMERICA Customer Service at 1-800-207-0806.
8. CUSTOMER SERVICE

ONE-YEAR LIMITED WARRANTY
For one year from the date of purchase, provided this product is operated and maintained in accordance with the
instructions attached to or furnished with the product, Fagor America Inc. will replace parts and provide labor to
correct defects in materials or workmanship. Service has to be provided by a Fagor America Inc. designated ser-
vice company. Please contact Fagor America at 1 800 201 0806 or by email at [email protected]
FIVE YEAR LIMITED WARRANTY ON THE SEALED SYSTEM
For five years from the date of purchase, provided this product is operated and maintained in accordance with the
instructions attached to or furnished with the product, Fagor America Inc. will replace parts for any component
of the sealed system* that proves defective under conditions of normal home use, labor charges excluded.
*Sealed refrigeration system includes compressor, evaporator, condenser, dryer/strainer and connecting tubing.
THIS LIMITED WARRANTY DOESNʼTCOVER:
1. Repairs when the product is used in other than normal, single family household use.
2. Damage resulting from accident, alteration, misuse, abuse, fire, acts of God, improper installation, instal-
lation not in accordance with local electrical and plumbing codes, or use not approved by Fagor America.
3. Replacement parts or repair labor costs if the product is operated outside of the United States/Canada
4. Pick up/delivery. This product is designated to be repaired in the home.
FAGOR AMERICA WILL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES
Some states do not allow the exclusion or limitation of incidental or consequential damages so this exclusion or
limitation may not apply to you. This warranty gives you specific legal rights and you may also have other rights
which vary from state to state.
IF YOU NEED SERVICE
Please contact Customer Care at Fagor America at 1.800.207.0806 or email Fagor America at
[email protected]
WARRANTY REGISTRATION CARD Refrigerator
Register your warranty on line at www.fagoramerica.com
IMPORTANT NOTICE: PLEASE COMPLETE AND MAIL THIS
WARRANTY REGISTRATION CARD IMMEDIATELY TO PRO-
TECT YOUR WARRANTY SERVICE
Mr./Mrs./Ms.
Address:
City: State: Zip Code:
Phone:
E-mail:
Date of purchase:
Name of Dealer:
Comments:
9. PRODUCT WARRANTY
✂
Model # __________________
Serial # __________________
The serial number is located on
the inside left of the refrigerator
near the food storage drawers.
