Fairphone 4 User manual

Repairability and recyclers information on
Fairphone 4

Product Identification 3
Electronic board, wiring and connection diagrams 4
List of repair and test equipment needed 5
Technical manual 6
Diagnostic fault and error codes 7
Component and diagnosis information 8
Instructions for software updates. 9
Data records of reported failure incidents 10
Technical bulletins 10
Guidance for self-repair and technical manual. 11
Spare Parts Overview and disassembly map 11
Disassembly Flow 12
Cautions Before Disassembly 12
Check for water ingress 13

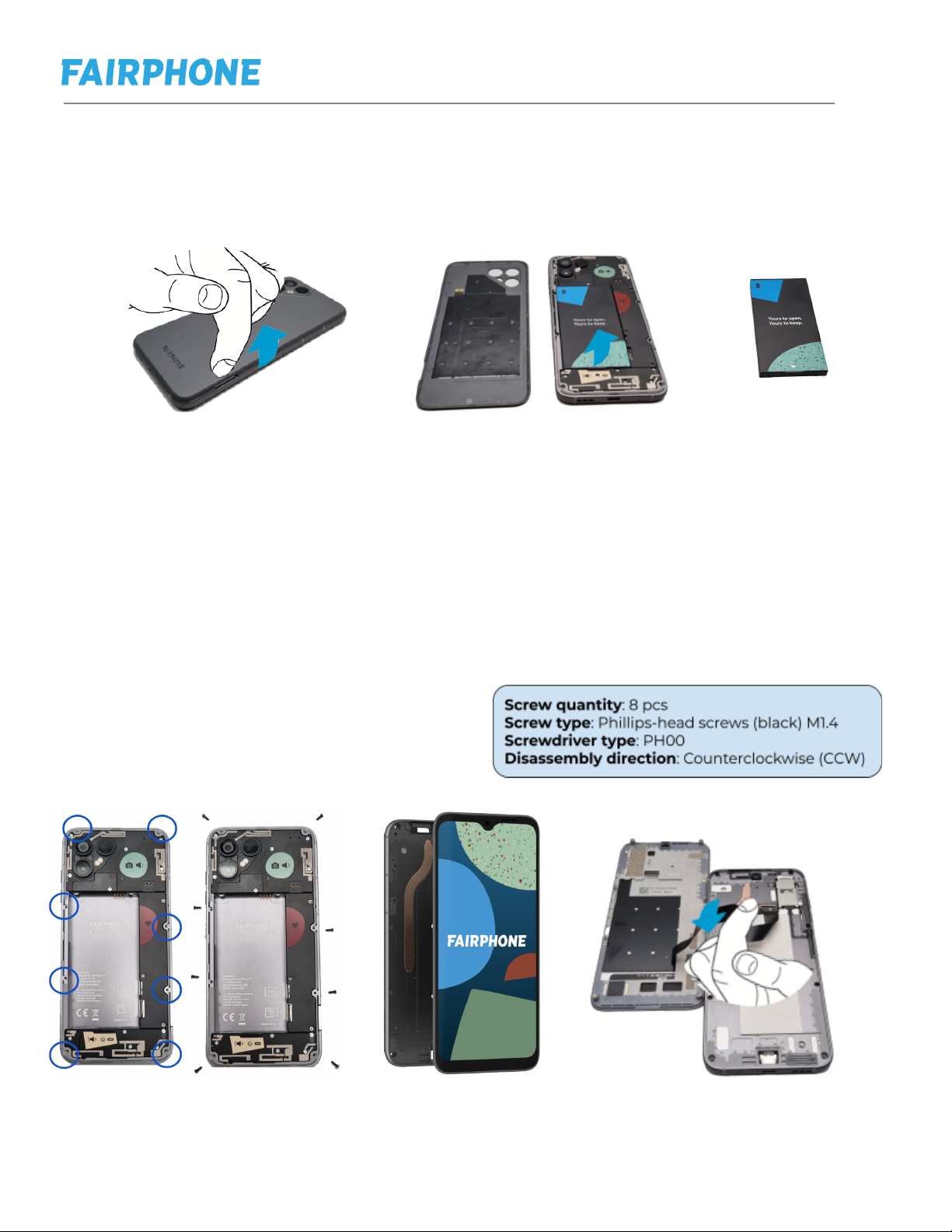

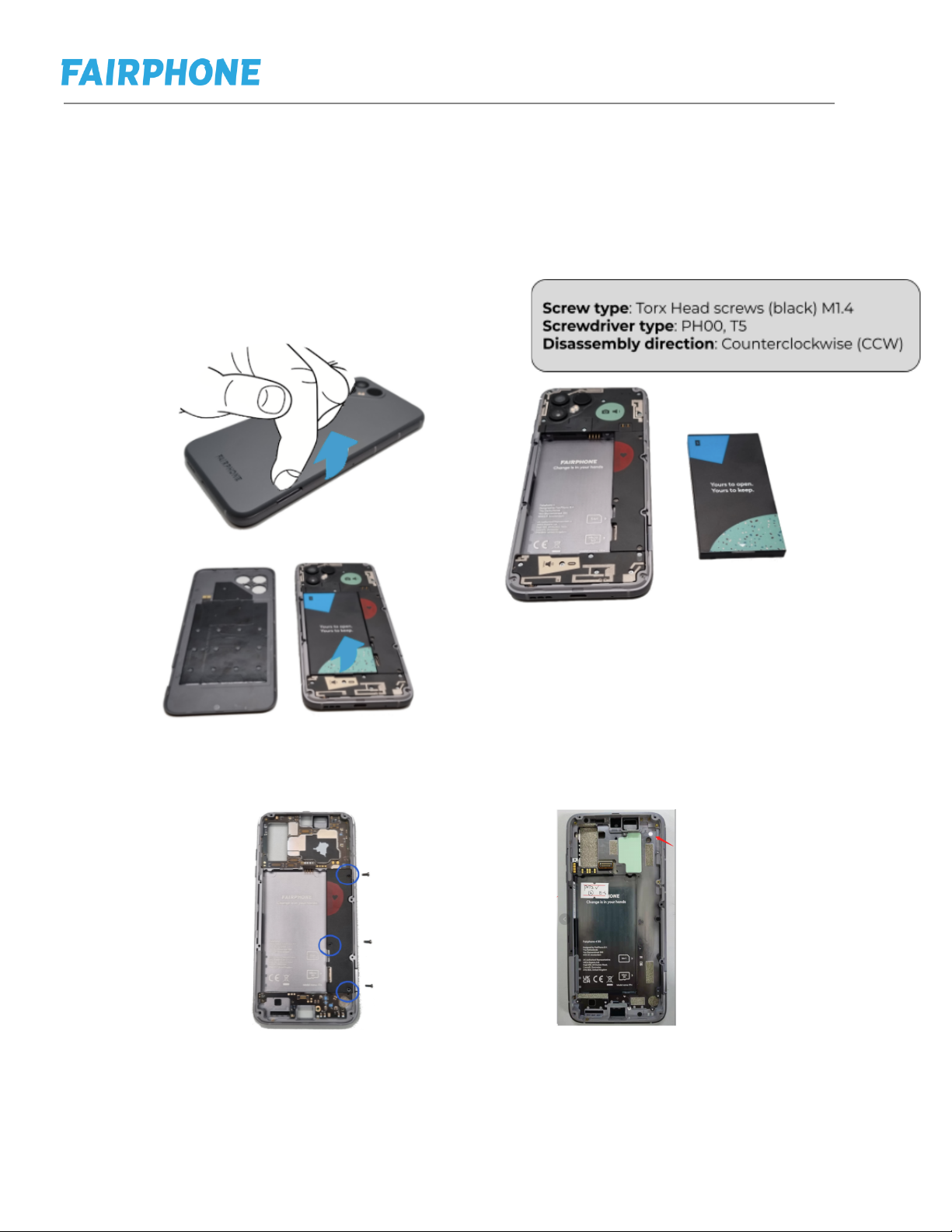

Replacing Back Cover (NFC Antenna) and Battery 14
Replacing Display 14
Replacing Rear Cameras, Selfie Camera or Earpiece 15
Replacing Loudspeaker, Vibration Motor or USB-C Port 16

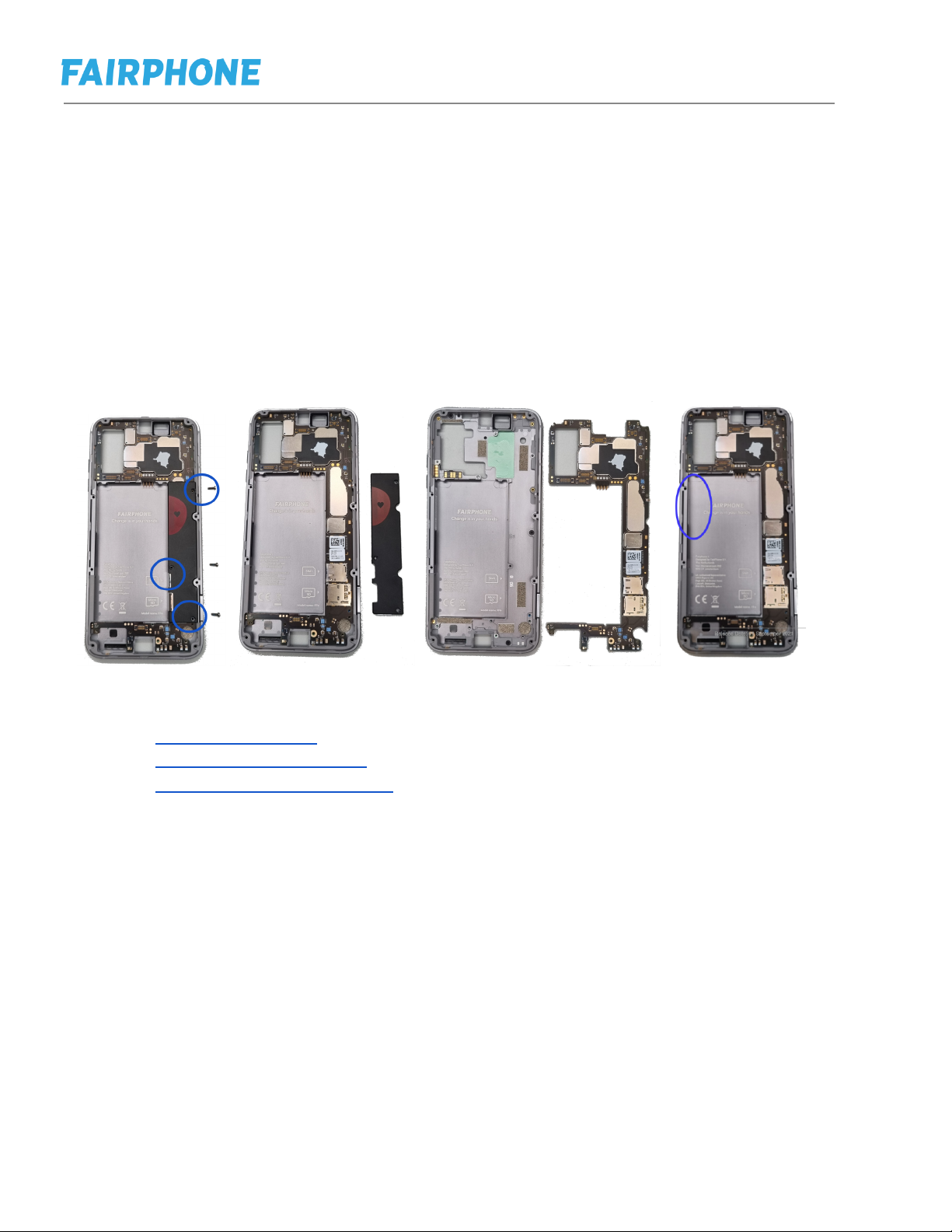

Replacing PCB and Mid-frame 17
Aditional resources 17
Material information for recyclers 17

1. Product Identification
This document refers to Fairphone 4 5G a product by Fairphone, that was launched in
the market on the 25th of October 2021.
This device comes in different configurations:
Grey
6 GB RAM, 128 GB Internal Memory
579 EUR RRP
Grey, Green and Green speckled
8 GB RAM, 256 GB Internal Memory
649 EUR RRP
The main technical specifications are as follows:
5G European operator ready
Dual SIM (NanoSIM and eSIM)
Cameras
48MP wide OIS with laser AF
48MP ultra-wide / macro
Color sensor & 1D TOF sensor (low-light assist)
25MP FF (Selfie)
Qualcomm 750G (7225) Chipset
3905 mAh Battery (50% charge in 30min)
Qualcomm 4.1 Quick Charge
6.3 inches Full HD+ Display
1080 x 2340 resolution
Pixelworks Technology
Corning Gorilla Glass 5
IP 54 Rating
Side Mounted Fingerprint Sensor
Expandable SD card slot (up to 2TB)

2. Electronic board, wiring and connection diagrams
At the moment of writing this document we are still early in the product lifecycle and
very few repairs have been necessary. Once we have a larger pool of devices that can
be investigated for board repairs, we will publish the necessary electronic board,
wiring and connection diagram.
If you need any information to facilitate your repair, please email
[e-mail] and we will be happy to share more
information.
3. List of repair and test equipment needed
Repairing FP5 is very simple and the list of required tools is short. Most of the repairs
will only need 1 and 2 below. For more complex repairs you will need tools 3 to 7.
1. Phillips screwdriver PH00 (for most of the repairs)
2. Torx screwdriver T5 (only for PCBA repairs)
3. USB-C cable (to test charging)
4. Battery Discharge Power measurement equipment
5. ESD protection gear
6. Soldering gun and solder tin
7. Software flashing tool, but can also be done using a computer. You can find the
instructions here.
4. Technical manual
Any person can access our technical manual online. There are tens of different guides
depending on the needs. See below for a selection of the 10 most important articles.
1. FP4. Charge your phone
2. FP4. Set up SIM card
3. FP4. Set up eSIM card (embedded SIM)
4. FP4. Connect to Mobile data
5. FP4. Connect to Bluetooth
6. FP4. Connect to a Wi-Fi
7. FP4. Migrate data from another phone
8. FP4. Update to the latest Fairphone OS
9. FP4. Maximize battery lifespan
10. FP4. Replace a spare part
You can access all the rest here

5. Diagnostic fault and error codes
●We make use of Android's (AOSP) default logging and tracing mechanisms, which
mostly means Android logcat messages generated by the Android framework, apps
and HAL implementations, as well as kernel logs.
●Additionally, we use logging and diagnostics in components of third party suppliers,
most of which comes from Qualcomm. These components use the same technical
mechanisms as AOSP code: Android logcat and kernel logs.
●For modem and low-level implementations, we fully rely on logging and diagnostics
implemented by our chipset vendor Qualcomm and their proprietary tooling.
●We currently mostly use a "pure-AOSP" approach -- keeping customization compared
to AOSP to a minimum -- which facilitates maintenance and longevity
●For any customization we add on top of AOSP and device-specific code (from
Qualcomm and other suppliers), we again make use of Android logcat and kernel log.
●If you encounter a pop-up with an error code "There has been an error" then you can
use usb debugging https://developer.android.com/studio/debug/dev-options and the
"adb logcat" tool to get the full log that contains all the strings to help you figure out
what the error code is.
In summary, our failure analysis relies on analyzing Android logcat, Linux kernel logs,
and additionally Qualcomm modem logs where applicable, making use of existing
tagging mechanisms from Android and Linux to identify failing components. Within
the scope of Android and Linux kernel, we currently do not have any proprietary
formal error/fault codes (e.g., numerical error codes that follow certain specifications to
identify which code would be related to what fault state). Our fault analysis relies on
the mostly text-based analysis of Android and Linux logs.

6. Component and diagnosis information
For any question on this chapter please contact
[e-mail].
Fairphone 4 contains the following key components with the following key data
points:
Component
Part details
Vendor
Key specs
Battery
Model:
F4AC1
Kayo
Capacity : 3905 mAh
Nominal Voltage: 3.85 V
Cut off Voltage: 3.0 V
Charging Voltage: 4.4 V
Dimensions: 91.3 x 46.8 x 6.5 mm
Internal Impedance < 120 mΩ
Standard discharge: Continuous 0.2C to 3.0V
Operational Charging Temperature Range: 0-60℃
Operational Discharge Temperature Range: -20℃ - 60℃
Recommend full charge & discharge cycle once every 3-6
months.
Chipset
SM7225
Qualcomm
64 bit application processor
Dual DSP
Always on sub system & processor
Supports: GNSS, WLAN/BT, LTE, TD-SCDMA, WCDMA, GSM
and 5G NR.
Support camera interfaces: 3 x ISP, 1 x ISP-lite, 16+16+16MP
ZSL, MCTF.
Adreno 619 GPU
14 QUP (Qualcomm Universal Ports): multiplexed serial
interface functions (eights ports on GPIO and six ports
on LPI GPIO)
Display
Model:
9A-3R063-11
02B
LTPS & incell
DJN
6.3”
Outline: 71.00(W)*157.4(H)*2.09(T)
Viewing area: 67.47(W)*145.71(H)
Active Area: 67.068(W)* 145.314(H)
Viewing Direction: all directions
MIPI Interface
LCM Input voltage:
IOVCC=+1.8V(+1.95V Max)
AVDD=+5.5V(6VMax)
AVEE=-5.5V(-6V Max)
Storage Temp: -40 to 80℃
Board to
Board
Camera
Connector
Model:
BM24-30DP
/2-0.35V(51)
Tohoku
Hirose
Electric Co.
Voltage 30V A/DC
Signal contact 0.25 A
Power Contact 5.0 A
Op Temperature: -40℃ to 85℃
Storage Temperature -10℃ to 60℃
Electrical Contact Resistance: 20 mV AC or less 1kHz, 1mA
Electrical Insulation Resistance 100 V DC
Electrical Voltage Proof 150V AC for max 1 minute
Speaker
Dynamic
AAC
Dimensions: 11 x 15 x 2.5 mm
8 Ω @ 2 kHz, 1 Vrms input

Miniature
Speaker
SLS1115D-01
1 W rated noise (1.5W Max) in 0.7cc
200-20kHz Frequency range
Operating Temperature: -20℃ to +70℃
Storage Temperature: -40℃ to 85℃
Microphone
Part
Number:
SM0103B-RI
S421-M02
AAC
AOP 134 dB SPL
Power Supply Rejection (@10%THD @ 1kHz) 134 dB SPL
Min Load Resistor 5kΩ
Operating Temperature: -40℃ to +100℃
Storage Temperature: -40℃ to 100℃
Soldering Information:
Preheat 150-180℃ for a maximum of 120 secs.
Soldering Above 220℃ for a maximum of 90 secs.
Peak 260℃ for a maximum of 30 seconds.
Do not reflow more than 2 times.
There are several components in your device that can be diagnosed. We advise
you to follow our diagnosis tree in our website.
Welcome message of our diagnostics tool
Nevertheless you can also test one of the phone functions or components directly.
To do so, please go to My Fairphone App on your phone. Please only do this under
the instruction of our customer support :
- In the My Fairphone App, Click on “phone” menu
- Click on Test and Troubleshoot
- Click on “Open Internal Test App”
To exit the test mode, scroll down and press exit.
Diagnostic tests you can
perform:
a. Traceability test
b. Fingerprint sensor (raw data)
c. Touch panel (raw data)
d. Psensor (raw data)

e. SD Memory card
f. SIM
g. eSIM
h. Earpiece (top speaker)
i. Speaker (bottom speaker)
j. Bluetooth
k. Wifi 2.4G
l. WIfi 5G
m. GPS
n. Fingerprint enroll (image
capture)
o. Touch panel
p. LCD
q. LCD Backlight LEDs
r. Keyboard
s. E-compass
t. G-Sensor
u. Gyroscope
v. Front Camera
w. Main Camera
x. Ultra Wide Camera
y. Camera LED
z. Audio
aa. Vibration sensor
bb.NFC
cc. Proximity sensor
dd.Light sensor
ee. Back Light Sensor
ff. USB / Charger
gg.USB Type-C
hh.Accessory
ii. USB 3.0
jj. DP (video output)
kk. USB NTC (for temperature)
ll. Camera OTP
mm. Attestation Key Check
(tests public and private keys
to validate SW in the device)
nn.Calling
7. Instructions for software updates.
Fairphone OS releases for Fairphone 4 5G (FP4), based on Android 11 (A11), and we
provide regular software updates.
Instructions on how to download and install these updates directly on your
phone here.
Instructions on how to download and install these updates using your computer
can be found here.
Instructions on how to make a factory reset can be found here.
8. Data records of reported failure incidents
Fairphone maintains data records of failure incidents in accordance with GDPR
regulations, when customers contact us about a reported failure it is necessary for us
to hold a certain amount of data to be able to process this failure and potential return

of the product to our repair center. We also maintain records of reported failures in an
anonymised way where no customer data is required for varied business related
purposes such as cost management and future warranty provisioning. We do not
make this information available publicly. We do make information available about
certain known failures on our products on a case by case basis. For any question on
this chapter please contact [e-mail].
9. Technical bulletins
Fairphone OS releases for Fairphone 4 5G (FP4), based on Android 11 (A11), available
for the open market. Here you will also find the updated list of new features, bug
fixes, and security patches of each release. The date and availability of system
updates may vary by network carriers or country.
To take advantage of the latest improvements and security fixes, make sure to
update to the latest Fairphone OS. In case you need to manually download the
latest software version, please go to FP4. Install Fairphone OS offline.

10. Guidance for self-repair and technical manual.
Repairing the Fairphone 4 is very easy. Any of
the actions contained in this chapter have any
consequence for your warranty.
You can find any of our video self repair videos
and a simple self-repair guide in this link.
In this document you can also find a printed
version of our repair manuals.

a. Spare Parts Overview and disassembly map
b. Disassembly Flow

c. Cautions Before Disassembly
i. Power off the device: Before disassembly please power off the device
and take out the battery.
ii. Press the power button more than 5s after the battery is removed, to
release the electricity residual in capacitors.
iii. ESD Protection: Electronic sensitive components inside, (esp. in winter)
suggest to release the static electricity on the body (e.g. finger touch
metal objects).

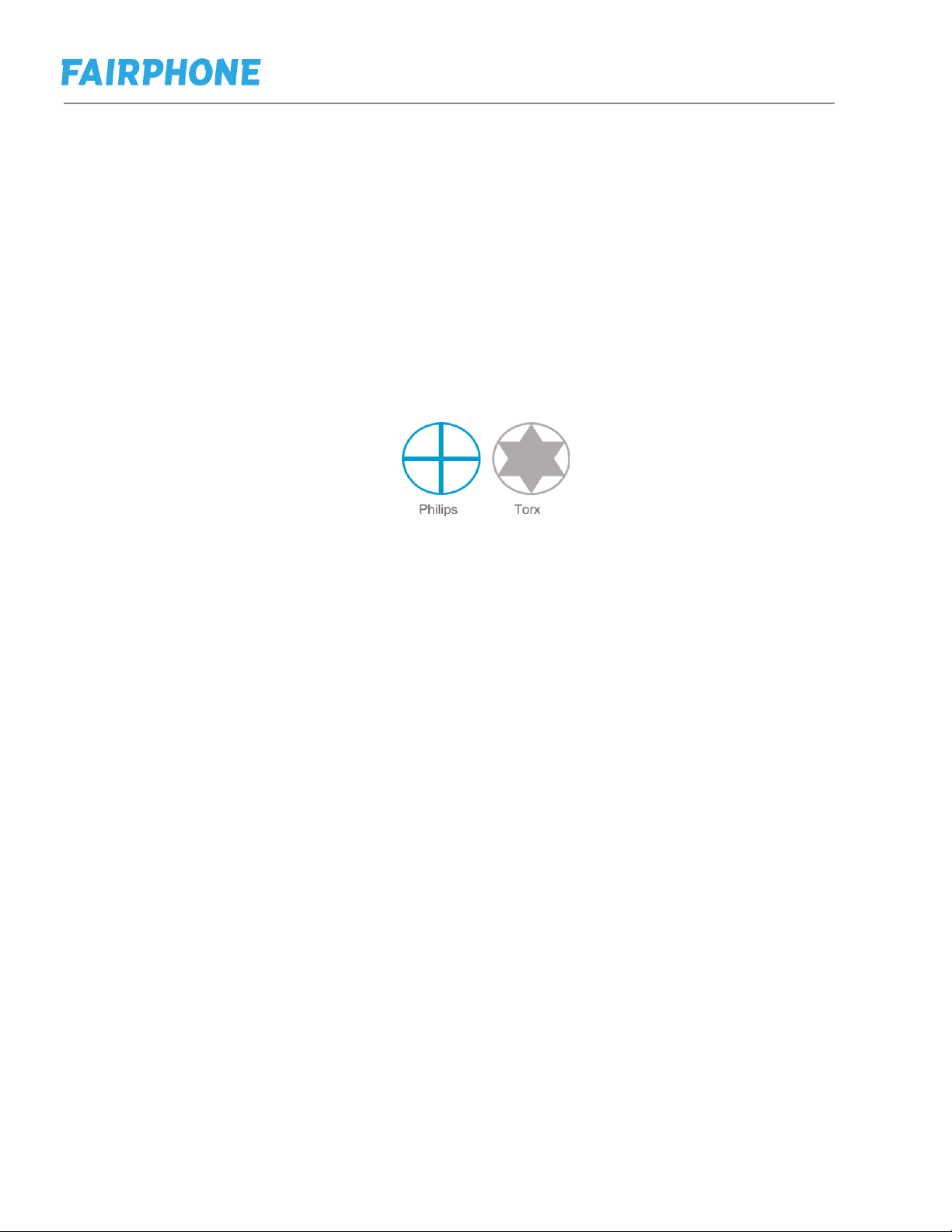

iv. Pay attention to the three different types of screws:
1. Black Phillips head (M1.4) (for display repairs)
2. Silver Phillips head (M1.4) (for other repairs, not involving PCB)
3. Torx head (for repairs involving accessing the PCB)
v. Prepare your tools:
1. Phillips screwdriver PH00.
2. Torx screwdriver T5.
vi. If you are a professional repairer, consider the torque force needed for
screw/unscrew operation:
1. Torque Force for Philips screws: 0.8±0.15KGF
2. Torque Force for Torx screws: 0.4±0.05KGF

d. Check for water ingress
Step 1: Lift up back cover and remove back cover.
Step 2: Remove the battery lifting up from the tab at the bottom of the battery
Step 3: Follow the steps to remove the camera explained in section g.
Step 4: Remove PCBA Cover Torx Screws with a T5 screwdriver
Step 5: Check Rear Water Marker

e. Replacing Back Cover (NFC Antenna) and Battery
Step 1: Lift up back cover and remove back cover. This part contains the NFC
antenna.
Step 2: Remove the battery lifting up from the tab at the bottom of the battery.
f. Replacing Display
Step 1: Follow previous steps to remove the back cover and the battery
Step 2: Remove the 8 Phillips Black screws indicated in the picture below.
Step 3: Lift the display and disconnect the cable behind.
Step 4: Connect the new display by first connecting the cable back. Simply push
the connector in until you hear a click.
Step 5: repeat actions in step 3, 2 and 1 in reverse order.

g. Replacing Rear Cameras, Selfie Camera or Earpiece
Step 1: Follow instructions to replacing Back Cover (NFC Antenna) and Battery (e)
Step 2: Remove Camera Connectors Lid Screw
Step 3: Lift up and remove Camera Connectors Lid
Step 4: Lift up 3 Connectors
Step 5: Remove 5 Rear Cameras Screws (Silver)
Additional step if you are replacing the selfie camera or the earpiece, change at
this point any of the two.
Step 6: Put new camera on the right position and click it in
Step 7: Connect back the 3 connectors (pay special attention to the first connector
is hidden behind a cable).
Step 8: Screw all the screws back
Step 9: Place the Camera Connectors Lid back, by introducing first the small lip on
the left side and then placing back the screw.

h. Replacing Loudspeaker, Vibration Motor or USB-C Port
Step 1: Follow the steps in e.
Step 2: Remove Loudspeaker 6 Phillips Screws (Silver)
Step 3: Lift up Loudspeaker lifting the central lip and remove it. This part also
contains the vibration mechanism.
Aditional step: if you are replacing the USB-C port, you can now access it. Please
mind that there is not screw holding the USB-C port at this point. You have
already removed it when removing the Loudspeaker Screws. Place the new
USB-C back in place and push the connector until to feel a click.
Step4: Put the new Louspeaker in place. Click it in and place back the 6 screws

i. Replacing PCB and Mid-frame
j. Step 1: Follow the steps in eto remove back cover and battery.
k. Step 3: Follow the steps in fto remove display
l. Step 4: Follow steps in gto remove cameras and earpiece
m. Step 7: Follow steps in hto remove loudspeaker and USB-C port
n. Step 9: Remove PCBA Cover Torx Screws
o. Attention: The PCBA will include 2 copies of the IMEI sticker. Everytime there is
a PCBA or Mid Frame swap, please make sure the IMEI on the PCBA matches
the IMEI label on the mid frame.
p. Aditional resources
Fairphone Website (where you can find our spare parts)
Fairphone Support Page (where you can ask us questions)
Fairphone Youtube channel (with all video repair guides)

11. Electronic board diagrams and wiring/connection
diagrams.
In the next pages you can find how to identify any other component that has not been
identified in section 10. For the repair of these components you will need to be a highly
skilled repair professional, and our customer support team can not help you out in this
case. If you have any questions, please contact [e-mail].

1
Component placing and Schematics for Fairphone 4
For any question about this document please mail [e-mail]
The PCB Placement code can be used to locate a specific component on the PCB of Fairphone 4
#
Part Number
Manufacturer part
number
Description
QTY
PCB placement code
1 BAB39M000ECX Customer made PCB 1 Base PCB
2 AAA0000JA8CX RC0201JR-070RL,RC-01000JT Resistor,0 ohm,±5 %,1/20 W,0201, 157
C6901,C6910,L5801,L5802,L5806,L5811,L5816,L5817,L6039,L6112,L6154,L6401,L6410,L6502,L6505,L6509,L6514,L6515,L6516,L6519,
L6918,L6953,R1902,R1906,R1907,R1908,R1909,R1910,R1923,R3601,R3602,R3604,R4305,R4308,R4309,R4312,R4313,R4314,R4315, R4316,
R4416,R4505,R5001,R5007,R5008,R5012,R5401,R5701,R5703,R5704,R5705,R5709,R5801,R5802,R5805,R5809,R5812,R5817, R5819,
R5824,R5826,R5901,R5905,R5906,R5907,R5909,R5910,R5915,R5916,R5917,R5918,R6002,R6003,R6007,R6010,R6011,R6012, R6013,
R6014,R6029,R6030,R6052,R6101,R6103,R6104,R6105,R6106,R6107,R6108,R6109,R6110,R6111,R6112,R6113,R6114,R6115,R6116, R6117,
R6118,R6122,R6123,R6124,R6125,R6126,R6127,R6130,R6203,R6204,R6205,R6206,R6207,R6209,R6210,R6212,R6216,R6218, R6220,R6222,
R6226,R6230,R6303,R6304,R6306,R6307,R6309,R6314,R6322,R6323,R6324,R6408,R6501,R6503,R6504,R6505, R6601,R6602,R6603,
R6604,R6608,R6609,R6611,R6708,R6717,R6901,R6904,R6906,R6908,R6910,R6913,R6914,R6917,R7002,R7032, R7204,R7206,R7208,
R7210
3 AAA0000JB7CX RC0402JR-070RL,RC-02000JT Resistor,0 ohm,±5 %,1/16 W,0402 4 R4918,R5017,R5018,R6918
5 AAA0000JT9CX MCR004YZPJ000 Resistor,0 ohm,±5 %,1/32 W,01005 2 B5601,B5602
6 AAA0010FA8CX RC-01U1R0FT Resistor,1 ohm,±1 %,1/20 W,0201, 2 R5601,R5603
7 AAA0100JA8CX RC-01W100JT Resistor,10 ohm,¡À5 %,1/20 W,0201, 2 R7001,R7025
9 AAA0101FA8CX RC-01W101FT Resistor,100 ohm,¡À1 %,1/20 W,0201, 2 R0703,R0704
10 AAA0102JA8CX RC0201JR-071KL,RC-01W102JT Resistor,1K ohm,±5 %,1/20 W,0201, 10 R1106,R4605,R4609,R4701,R4702,R4703,R4704,R4706,R5009,R5011
12 AAA0103JA8CX RC0201JR-0710KL,RC-01W103JT Resistor,10K ohm,±5 %,1/20 W,0201, 16 R1108,R1118,R1119,R1128,R1951,R4404,R4405,R4408,R4411,R4507,R4520,R4521,R4595,R4596,R4597,R4599
15 AAA0104FA8CX RC-01W1003FT Resistor,100K ohm,±1 %,1/20 W,0201 2 R4713,R4714
16 AAA0104JA8CX RC0201JR-07100KL,RC-01W104JT Resistor,100K ohm,±5 %,1/20 W,0201, 11 R1121,R1122,R1125,R4306,R4410,R4412,R4418,R4419,R4501,R4604,R4608
18 AAA0105JA8CX RC0201JR-071ML,RC-01W105JT Resistor,1M ohm,±5 %,1/20 W,0201, 5 R3002,R4503,R4506,R4509,R4510
20 AAA0201JA8CX RC-01W201JT Resistor,200 ohm,¡À5 %,1/20 W,0201,
Resistor,200 ohm,±5 %,1/20 W,0201, 3 R3302,R3303,R3305
21 AAA0203JA8CX RC-01W203JT Resistor,20K ohm,±5 %,1/20 W,0201, 1 R4602
23 AAA0220JA8CX RC-01W220JT Resistor,22 ohm,¡À5 %,1/20 W,0201, 3 R0709,R4504,R4522
24 AAA0222JA8CX RC0201JR-072K2L Resistor,2.2K ohm,±5 %,1/20 W,0201, 17 R1101,R1102,R1103,R1104,R1105,R1107,R1109,R1110,R1111,R1112,R1113,R1115,R1116,R1117,R1123,R1124,R4755
26 AAA0241FA8CX RC-01W241FT Resistor,240 ohm,±1 %,1/20 W,0201, 3 R0801,R4101,R4102
29 AAA0304JA8CX RC-01W304JT Resistor,300K ohm,±5 %,1/20 W,0201 1 R4450
30 AAA0330JA8CX RC-01W330JT Resistor,33 ohm,±5 %,1/20 W,0201, 1 R1901
31 AAA0334FA8CX RC-01W3303FT Resistor,330K ohm,±1 %,1/20 W,0201 1 R4417
32 AAA0472JA8CX RC-01W472JT Resistor,4.7K ohm,±5 %,1/20 W,0201, 4 R5002,R5003,R5013,R5014
34 AAA0510JA8CX RC-01W510JT Resistor,51 ohm,¡À5 %,1/20 W,0201, 3 R5823,R5834,R5836
36 AAA0513FT9CX RC-005L5102FT Resistor,51k ohm,±1 %,1/32 W,01005 1 R1922
37 AAA0513JA8CX RC-01W513JT Resistor,51K ohm,±5 %,1/20 W,0201, 1 R7115
38 AAA0824FA8CX RC-01W824FT Resistor,820k ohm,¡À1 %,1/20 W,0201 1 R3102
39 AAA3011FA8CX RC-01W3011FT Resistor,3.01K ohm,±1 %,1/20 W,0201 1 R1001
40 AAA4022FA8CX RC-01W4022FT Resistor,40.2K ohm,±1 %,1/20 W,0201 1 R3103
41 AAA4991FA8CX RC-01W4991FT Resistor,4.99K ohm,±1 %,1/20 W,0201,
0.63×0.33×0.26 mm 1 R3101
42 AAA6041FA8CX RC-01W6041FT Resistor,6.04K ohm,±1 %,1/20 W,0201, 2 R1002,R1003
43 AAC0104FA6CX NCP03WF104F05RL Thermistor,100K ohm,±1 %,1/10 W,
0201 7 RT0701,RT0702,RT3401,RT4101,RT4401,RT5901,RT6101
47 ABA05FAJACCX C0201C0G0R5A500NTA Capacitor,0.5 pF,±0.05 pF,50 V,C0G,
0201 2 C6912,L6951

2
49 ABA05FAJACEDX V0R5A0201C0G500NAT Capacitor,0.5 pF,±0.05 pF,50 V,C0G,
0201, 0.63×0.33×0.33 mm 1 L5804
51 ABA08FAJACEDX V0R8A0201C0G500NAT Capacitor,0.8 pF,±0.05 pF,50 V,C0G,
0201, 0.63×0.33×0.33 mm 3 C6930,L5910,R6912
53 ABA12FAJACFDX V1R2A0201C0G500NAT Capacitor,1.2 pF,±0.05 pF,50 V,C0G,
0201, 0.63×0.33×0.33 mm 1 C6715
54 ABA15FAJACDDX V1R5A0201C0G500NAT Capacitor,1.5 pF,±0.05 pF,50 V,C0G,
0201, 0.63×0.33×0.33 mm 4 C6716,C6911,L5901,R6716
57
ABA56FBJACDDX
V5R6B0201C0G500NAT Capacitor,5.6 pF,±0.1 pF,50 V,C0G,
0201, 0.63×0.33×0.33 mm 3 C7209,C7211,L7208
58
ABA68FBJACDDX
V6R8B0201C0G500NAT Capacitor,6.8 pF,±0.1 pF,50 V,C0G,
0201, 0.63×0.33×0.33 mm 1 C7204
60 ABA75SBJACDDX VR75B0201C0G500NAT Capacitor,0.75 pF,±0.1 pF,50 V,C0G,
0201, 0.63×0.33×0.33 mm 2 C5818,C5819
61
ABA82FBJACDDX
V8R2B0201C0G500NAT Capacitor,8.2 pF,±0.1 pF,50 V,C0G,
0201, 0.63×0.33×0.33 mm 3 C4407,C4422,C4453
63 ABA010AJACDDX V1R0A0201C0G500NAT Capacitor,1 pF,±0.05 pF,50 V,C0G,
0201, 0.63×0.33×0.33 mm 2 C6712,C6903
64
ABA020BJACDDX
V2R0B0201C0G500NAT Capacitor,2 pF,±0.1 pF,50 V,C0G,
0201, 0.63×0.33×0.33 mm 2 L5903,L6609
65
ABA050AJACDDX
V5R0A0201C0G500NAT Capacitor,5 pF,±0.05 pF,50 V,C0G,
0201, 0.63×0.33×0.33 mm 1 C7205
67 ABA100JJACDDX V100J0201C0G500NAT Capacitor,10 pF,±5 %,50 V,C0G,0201,
0.63×0.33×0.33 mm 6 C6414,C6416,C6418,C6419,C6502,C6513
68 ABA101GJACCX GRM0335C1H101GD01D
Capacitor,100 pF,¡À2 %,50 V,C0G,
0201,Capacitor,100 pF,±2 %,50 V,
C0G,0201
69
C3601,C3602,C3603,C3604,C3605,C3606,C3610,C3611,C3612,C4327,C4328,C4329,C4330,C4331,C4710,C5013,C5014,C5028,C5030,
C5031,C5032,C5701,C5703,C5706,C5707,C5812,C5813,C5816,C5901,C5902,C5906,C5911,C5917,C6002,C6011,C6102,C6105,C6110,C6113,
C6115,C6117,C6214,C6216,C6220,C6222,C6226,C6314,C6316,C6320,C6322,C6326,C6521,C6602,C6603,C6606,C6608,C6616,C6618, C6619,
C6620,C6621,C6622,C6717,C6719,C6724,C6726,C7104,C7202,C7206
70 ABA101JJACCX V101J0201C0G500NAT Capacitor,100 pF,±5 %,50 V,C0G,
0201, 0.63×0.33×0.33 mm 3 C3344,C3351,C7117
72 ABA102KGAWCX GRM033R71E102KA01D Capacitor,1 nF,±10 %,25 V,X7R,0201 15 C1101,C1904,C4601,C4709,C5801,C5814,C5815,C6227,C6325,C6402,C6403,C6514,C6516,C6517,C7203
74 ABA102KJAWCX C0201X7R102K500N Capacitor,1 nF,±10 %,50 V,X7R,0201 2 C5702,C5708
76 ABA103KDAXCX GRM033R61A103KA01D Capacitor,10 nF,±10 %,10 V,X5R,0201 1 C3325
77 ABA103KGAXCX C0201X5R103K250N Capacitor,10 nF,±10 %,25 V,X5R,0201 10 C3337,C4505,C6111,C7110,C7112,C7116,C7120,C7121,C7122,C7124
78 ABA104KCAXCX GRM033R60J104KE19D
Capacitor,100 nF,¡À10 %,6.3 V,X5R,
0201,Capacitor,100 nF,±10 %,6.3 V,
X5R,0201
30 C2010,C2503,C3003,C3113,C3117,C3613,C3614,C3616,C3624,C3626,C4109,C4113,C4309,C4318,C4319,C4320,C4324,C4325,C4507,C4513,
C4514,C4707,C4708,C4905,C4911,C4920,C5002,C5004,C5016,C5019
79 ABA104KDAXCX GRM033R61A104KE15D Capacitor,100 nF,±10 %,10 V,X5R,0201 1 C3330
80 ABA104KGAXCX C0201X5R104K250NTJ,
GRM033R61E104KE14
Capacitor,100 nF,¡À10 %,25 V,X5R,
0201,Capacitor,100 nF,±10 %,25 V,
X5R,0201
4 C3318,C3340,C5008,C5023
81 ABA104MCAXCX C0201X5R104M6R3NTAT,
CL03A104KQ3NNNC
Capacitor,100 nF,?¨¤20 %,6.3 V,X5R,
0201,Capacitor,100 nF,¡À20 %,6.3 V,
X5R,0201,Capacitor,100 nF,±20 %,6.3
V,X5R,0201,Capacitor,100 nF,±20 %,
6.3 V,X5R,0201, 0.63×0.33×0.33 mm
90
C1501,C1502,C1503,C1504,C1506,C1509,C1523,C1532,C1535,C1540,C1541,C1705,C1706,C1707,C1708,C1709,C1710,C3319,C3321,C3333,
C3335,C3380,C4427,C4508,C4512,C5005,C5021,C5502,C5505,C5506,C5507,C5508,C5510,C5511,C5512,C5513,C5514,C5515,C5516,C5517,
C5518,C5520,C5521,C5522,C5523,C5524,C5525,C5526,C5527,C5528,C5529,C5530,C5531,C5532,C5533,C5535,C5536,C5537,C5538,
C5539,C5540,C5541,C5542,C5543,C5544,C5545,C5546,C5547,C5548,C5549,C6215,C6217,C6221,C6223,C6315,C6317,C6321,C6323,
C6601,C6604,C6605,C6607,C6615,C6617,C6718,C6720,C6723,C6725,C7001,C7026
83 ABA105KDBXCX C0402X5R105K100NTB,
GRM155R61A105KE15D
Capacitor,1 uF,¡À10 %,10 V,X5R,0402,
Capacitor,1 uF,±10 %,10 V,X5R,0402 4 C3615,C3617,C3620,C3623
84 ABA105KGBXCX GRM155R61E105KA12
Capacitor,1 uF,¡À10 %,25 V,X5R,0402,
Capacitor,1 uF,±10 %,25 V,X5R,0402,
Capacitor,1 uF,±10 %,25 V,X5R,
0402,1.05×0.55×0.55 mm
4 C3105,C3331,C4711,C5916
