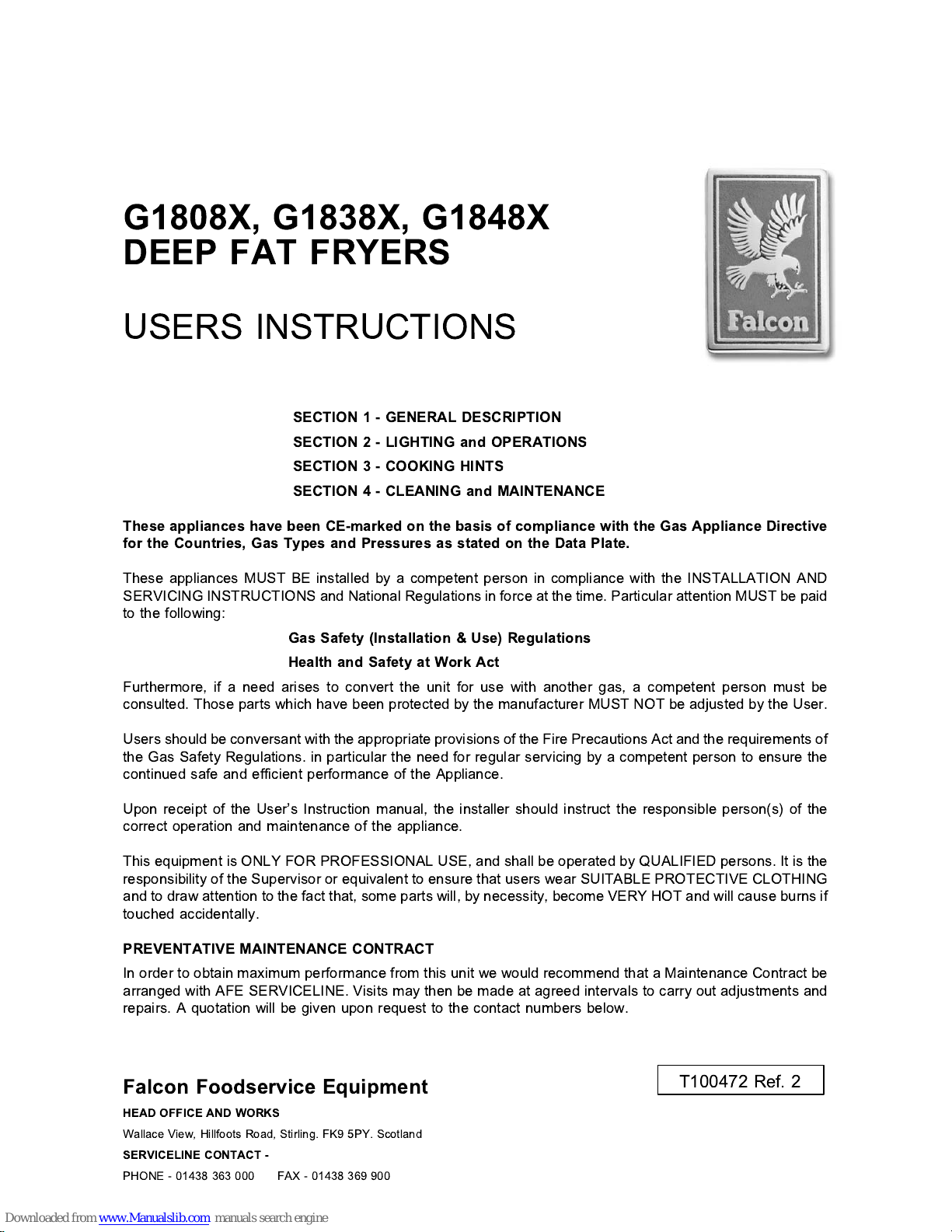

T100472 Ref. 2
G1808X, G1838X, G1848X
DEEP FAT FRYERS
USERS INSTRUCTIONS
SECTION 1 - GENERAL DESCRIPTION
SECTION 2 - LIGHTING and OPERATIONS
SECTION 3 - COOKING HINTS
SECTION 4 - CLEANING and MAINTENANCE
Th s applianc s hav b n CE-mark d on th basis of complianc with th Gas Applianc Dir ctiv
for th Countri s, Gas Typ s and Pr ssur s as stat d on th Data Plat .
These appliances MUST BE installed by a c mpetent pers n in c mpliance with the INSTALLATION AND
SERVICING INSTRUCTIONS and Nati nal Regulati ns in f rce at the time. Particular attenti n MUST be paid
t the f ll wing:
Gas Saf ty (Installation & Us ) R gulations
H alth and Saf ty at Work Act
Furtherm re, if a need arises t c nvert the unit f r use with an ther gas, a c mpetent pers n must be
c nsulted. Th se parts which have been pr tected by the manufacturer MUST NOT be adjusted by the User.
Users sh uld be c nversant with the appr priate pr visi ns f the Fire Precauti ns Act and the requirements f
the Gas Safety Regulati ns. in particular the need f r regular servicing by a c mpetent pers n t ensure the
c ntinued safe and efficient perf rmance f the Appliance.
Up n receipt f the User's Instructi n manual, the installer sh uld instruct the resp nsible pers n(s) f the
c rrect perati n and maintenance f the appliance.
This equipment is ONLY FOR PROFESSIONAL USE, and shall be perated by QUALIFIED pers ns. It is the
resp nsibility f the Supervis r r equivalent t ensure that users wear SUITABLE PROTECTIVE CLOTHING
and t draw attenti n t the fact that, s me parts will, by necessity, bec me VERY HOT and will cause burns if
t uched accidentally.
PREVENTATIVE MAINTENANCE CONTRACT
In rder t btain maximum perf rmance fr m this unit we w uld rec mmend that a Maintenance C ntract be
arranged with AFE SERVICELINE. Visits may then be made at agreed intervals t carry ut adjustments and
repairs. A qu tati n will be given up n request t the c ntact numbers bel w.
Falcon Foods rvic Equipm nt
HEAD OFFICE AND WORKS
Wallace View, Hillf ts R ad, Stirling. FK9 5PY. Sc tland
SERVICELINE CONTACT -
PHONE - 01438 363 000 FAX - 01438 369 900

SECTION 1 - GENERAL DESCRIPTION
The units are pr vided with wire mesh basket(s)
which may be l cated up n the pan rear f r draining
etc. A rem vable dust c ver is pr vided t be placed
ver the pan(s) when n t in use. A pan strainer is
p siti ned in the c l z ne at the pan b tt m t
c llect il sediment during the c king perati n.
Oil temperature is c ntr lled by an adjustable users
therm stat and a pre-set safety therm stat.
The multifunci nal gas c ntr l has the pil t, main gas
and flame failure c ntr ls built in. If the pil t flame
sh uld extinguish f r any reas n, r if the main gas
supply is turned ff the burner will shut d wn until the
lighting pr cedure is repeated.
A spark igniter is fitted t light the pil t and a drain
valve is l cated within the c ntr ls c mpartment t
empty the pan when necessary.
G1808X G1838X G1848X
Figur 1
Us r Th rmostat
This is an adjustable setting device which will pr vide
frying temperatures up t 190
C.
Saf ty Th rmostat
This is pre-set at the fact ry. In the event f a
therm stat failure the safety stat will shut the gas ff
at the pil t and main burners sh uld the il
temperature rise ab ve 230
C.
This device can be reset by a push f the red butt n.
Gas Control
Situated at the t p side f the multifuncti nal c ntr l,
the c ntr l kn b is set c rrectly when the appr priate
symb l is al ngside the p inter. (See Figure 2)
Flam Failur D vic
Operated by the pil t flame. If the pil t bec mes
extinguished, gas will be shut ff fr m the main
burner.
Warning
If the pil t is turned ff f r any reas n, wait a
minimum f three minutes bef re attempting t relight
it. The burner gas c ntr l is built-in t the flame failure
device and the meth d f perati n is detailed bel w
SECTION 2 - LIGHTING and OPERATION
Lighting
A 20 sec nd delay (appr x.) will ccur between
establishing a pil t flame and burner igniti n.
Op rating Th Fry r
The unit will perate aut matically with the burner
g ing ut when the desired temperature is reached.
N further perati n f the c ntr l kn b is necessary
until the c king cycle is ver
Choic of Frying M dium
A g d quailty vegetable il is preferred. H wever,
pure edible dripping may be used pr viding that the
therm stat setting d es n t exceed 180
C.
The sm ke p int will be reached ab ve such a
setting and the fat will break up and deteri rate.
Important
In rder t meet the requirements f the Fire
Precauti ns Act 1971, the unit sh uld always be
turned ff when unattended.
Warning
It is danger us t use il which is t ld as it has a
reduced flash p int temperature and is pr ne t surge
b iling. Change the il regularly t prevent risk t the
perat r.
Caution
T prevent surge b iling, d n t exceed the
rec mmended l ads and never charge the pan with
ver-wet f d items. Never leave a w rking fryer
unattended.
Caution
Overheating f il sh uld be av ided.
R pl nishing Oil Wh n Fry r Is Hot
Caution - It is rec mmended that replenishment f il
sh uld take place when the fryer is c l.
R comm nd d Filling l v ls
Caution - Always maintain an il level between the
maximum and minimum levels indicated n the pan
wall rear.
Initial Charging Of Th Pan
Pri r t first time use, the pan sh uld be th r ughly
cleaned using h t water and detergent. Rinse and dry
up n c mpleti n.
Make sure that the drain valve is cl sed. Fill the pan
with il up t the level indicated by the strip n the well
rear. Appr ximate capacity is :
G1808X - 15 litr s G1838X - 24 litr s
G1848X - 2 x 15 litr s
If s lid fat is used, rem ve the basket supp rts fr m
the pan b tt m(s). Apply fat in small pieces and melt
at a therm stat setting f 120
C. Add fat until the
required level has been achieved. S lid fat sh uld
always be melted at a l w setting. Set frying
temperature when the fat has disappeared.

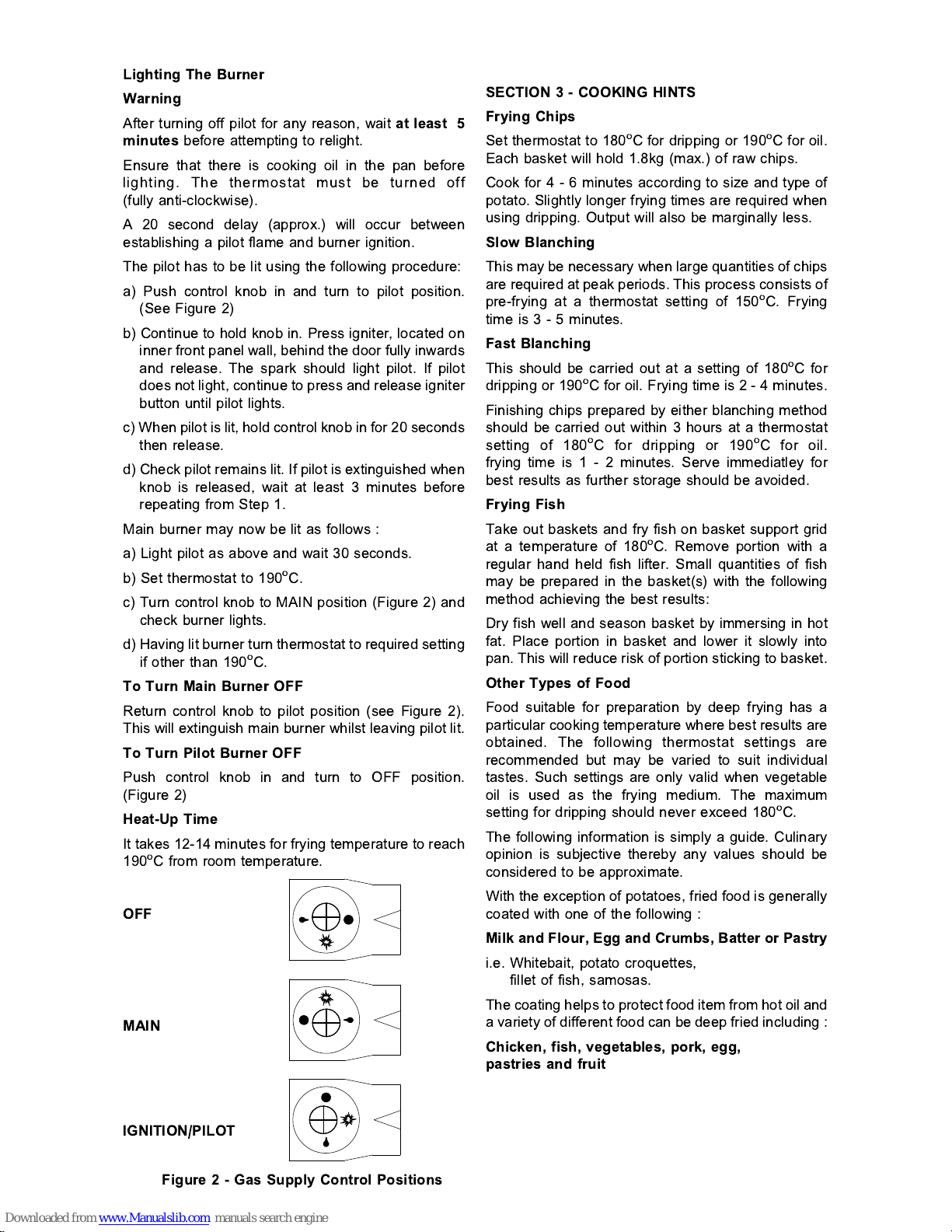

Lighting Th Burn r
Warning
After turning ff pil t f r any reas n, wait at l ast 5
minut s bef re attempting t relight.
Ensure that there is c king il in the pan bef re
lighting. The therm stat must be turned ff
(fully anti-cl ckwise).
A 20 sec nd delay (appr x.) will ccur between
establishing a pil t flame and burner igniti n.
The pil t has t be lit using the f ll wing pr cedure:
a) Push c ntr l kn b in and turn t pil t p siti n.
(See Figure 2)
b) C ntinue t h ld kn b in. Press igniter, l cated n
inner fr nt panel wall, behind the d r fully inwards
and release. The spark sh uld light pil t. If pil t
d es n t light, c ntinue t press and release igniter
butt n until pil t lights.
c) When pil t is lit, h ld c ntr l kn b in f r 20 sec nds
then release.
d) Check pil t remains lit. If pil t is extinguished when
kn b is released, wait at least 3 minutes bef re
repeating fr m Step 1.
Main burner may n w be lit as f ll ws :
a) Light pil t as ab ve and wait 30 sec nds.
b) Set therm stat t 190
C.
c) Turn c ntr l kn b t MAIN p siti n (Figure 2) and
check burner lights.
d) Having lit burner turn therm stat t required setting
if ther than 190
C.
To Turn Main Burn r OFF
Return c ntr l kn b t pil t p siti n (see Figure 2).
This will extinguish main burner whilst leaving pil t lit.
To Turn Pilot Burn r OFF
Push c ntr l kn b in and turn t OFF p siti n.
(Figure 2)
H at-Up Tim
It takes 12-14 minutes f r frying temperature t reach
190
C fr m r m temperature.
OFF
MAIN
IGNITION/PILOT
Figur 2 - Gas Supply Control Positions
SECTION 3 - COOKING HINTS
Frying Chips
Set therm stat t 180
C f r dripping r 190 C f r il.
Each basket will h ld 1.8kg (max.) f raw chips.
C k f r 4 - 6 minutes acc rding t size and type f
p tat . Slightly l nger frying times are required when
using dripping. Output will als be marginally less.
Slow Blanching
This may be necessary when large quantities f chips
are required at peak peri ds. This pr cess c nsists f
pre-frying at a therm stat setting f 150
C. Frying
time is 3 - 5 minutes.
Fast Blanching
This sh uld be carried ut at a setting f 180
Cfr
dripping r 190
C f r il. Frying time is 2 - 4 minutes.
Finishing chips prepared by either blanching meth d
sh uld be carried ut within 3 h urs at a therm stat
setting f 180
C f r dripping r 190 C f r il.
frying time is 1 - 2 minutes. Serve immediatley f r
best results as further st rage sh uld be av ided.
Frying Fish
Take ut baskets and fry fish n basket supp rt grid
at a temperature f 180
C. Rem ve p rti n with a
regular hand held fish lifter. Small quantities f fish
may be prepared in the basket(s) with the f ll wing
meth d achieving the best results:
Dry fish well and seas n basket by immersing in h t
fat. Place p rti n in basket and l wer it sl wly int
pan. This will reduce risk f p rti n sticking t basket.
Oth r Typ s of Food
F d suitable f r preparati n by deep frying has a
particular c king temperature where best results are
btained. The f ll wing therm stat settings are
rec mmended but may be varied t suit individual
tastes. Such settings are nly valid when vegetable
il is used as the frying medium. The maximum
setting f r dripping sh uld never exceed 180
C.
The f ll wing inf rmati n is simply a guide. Culinary
pini n is subjective thereby any values sh uld be
c nsidered t be appr ximate.
With the excepti n f p tat es, fried f d is generally
c ated with ne f the f ll wing :
Milk and Flour, Egg and Crumbs, Batt r or Pastry
i.e. Whitebait, p tat cr quettes,
fillet f fish, sam sas.
The c ating helps t pr tect f d item fr m h t il and
a variety f different f d can be deep fried including :
Chick n, fish, v g tabl s, pork, gg,
pastri s and fruit

Chip Output Chart
M del Pre-blanched Fr zen Sh estring
G1808X 36kg (79lbs) 20kg (44lbs)
G1838X 54kg (118lbs) 32kg (70lbs)
G1848X 2 x 36kg (79lbs) 2 x 20kg (44lbs)
C king temperatures and times are dependant up n
the f ll wing :
Class and stat of th cooking m dium
Quality, siz and cut of food it m
Pr -h at t mp ratur
Load
P rsonal pr f r nc
SECTION 4 - CLEANING and MAINTENANCE
Shutting Down aft r Work
When w rk is d ne, the gas c ntr l kn b sh uld be
returned t the pil t p siti n (See Figure 2) leaving
the pil t lit if required.
D n t use the therm stat kn b as a gas c ntr l. The
burner will re-light when the temperature dr ps bel w
the dial setting. Bef re draining, the burner c ntr l
sh uld be OFF t av id accidental burner perati n.
Daily Cl aning
Is late the gas supply and all w the pan c ntents t
c l t a safe temperature. Insert the drain pipe
suppied int the drain valve. Open the valve and filter
the il thr ugh a strainer int the receptacle. Cl se
the valve and wipe d wn the stainless steel exteri r
panels with a cl th wrung ut in h t water and
detergent. Rinse with clean water and dry th r ughly.
W kly Cl aning
Carry ut the n rmal daily cleaning pr cedure.
Rem ve the false pan b tt m and strainer and clean
seperately. Fill the pan with l w sudsing detergent
and h t water, just ab ve the n rmal il level mark.
All w the pan t s ak vernight if necessary.
Drain the detergent water away and rinse the pan
th r ughly with clean, h t water bef re wiping dry.
Rep siti n the false b tt m and strainer and refill the
pan with il.
Stainl ss St l Surfac s
Stainless steel can be easily marked by certain types
f sc uring pad including nyl n types theref re care
sh uld be exercised when using these. Always rub
al ng in the grain directi n when rubbing stainless
steel with a cl th.
Saf ty Pr cautions
A st p valve will be fitted in the sas suppy pipe t the
unit. The user must be familiar with the device
l cati n and perati n f the valve t enable is lati n
in the event f an emergency.
Warning
D n t attempt t clean the fryer with a jet f water r
steam clean. Acid r hal gen based descaling liquids
(e.g. - chl rine) and cleaning p wders sh uld similarly
never be used. If a smell f gas is evident, is late the
supply and ventilate the area bef re calling the l cal
Gas Regi n Supplier.
Take care n t t damage the therm stat b ss r
tubes which are l cated within the stainless steel
guards when cleaning. These are p siti ned
immediately bel w the fishplate at the fr nt f the
fryer pan. The use f flammable s lvents f r cleaning
must be av ided.
NEVER SEARCH FOR A GAS ESCAPE WITH A
NAKED FLAME.
S rvic - Contact AFE S rvic lin , d tails on th
cov r of this manual.

Descripti n G1808X/G1848X G1838X
Multifuncti nal c ntr l (Natural gas) 537320590 537320590
Multifuncti nal c ntr l (Pr pane gas) 537320595 537320595
Operating therm stat 537350034 537350034
Safety therm stat 537350032 537350032
Therm c uple 537350033 537350033
Therm pile 537320589 537320589
Spark igniter 537350036 537350036
Igniter lead 535710115 535710115
Igniti n electr de 537320591 537320591
Burner 537320130 537300130
Inject r (Natural gas) 537320140 531690410
Inject r (Pr pane gas) 537320150 531690415
Pil t burner assembly (Natural gas) 537320587 537320587
Pil t burner assembly (Pr pane gas) 537320588 537320588
Pil t jet (Natural gas) 537320592 537320592
Pil t jet (Pr pane gas) 537320593 537320593
X-lighting assembly (Natural gas) 537320210 537320210
X-lighting assembly (Pr pane gas) 537320215 537320215
X-lighting jet (Natural gas) 537320230 537320230
X-lighting jet (Pr pane gas) 537320235 537320235
Drain valve 534510060 534510060
