Fantek FT-6860 User manual

Rev. 11/05/2017

1
MANUAL DE USUARIO PARA TORRES FT. / USER MANUAL FOR FT TOWERS
IMPORTANT
Read and understand precisely all points and aspects
of this manual. Irresponsibly lifting loads can cause
lethal accidents. Installation of lifting systems and
proper use are only responsibility of the user.
It is recommended to attach this manual with tower
system used.
If in doubt, consult the technical department of
Fantek Industrial S.L.
CONTENT
RULES AND SAFETY USE ..................................... 2
PARTS IDENTIFICATION...................................... 8
HOW TO USE. STEP BY STEP............................... 9
ACCESSORIES.................................................... 12
STANDARDS TAKEN INTO ACCOUNT................ 15
LOAD DATA ...................................................... 16
Place of the load. .........................................16
Load table. ...................................................17
Degree of compaction load..........................20
DYNSYS SYSTEM............................................... 21
MAINTENANCE................................................. 22
TRANSPORT...................................................... 23
With forklift..................................................23
With truck or container. .............................. 24
In horizontal.................................................25
DGUV V17/18 NORM REGULATION................. 26
ESPECIFICACIONES / ESPECIFICATIONS............ 52
DECLARACION DE CONFORMIDAD /
DECLARATION OF CONFORMITY...................... 53
MARCADO DGUV / DGUV MARK ..................... 54
CONTACT
Internet: www.fantek.es
e-mail: [email protected]et
ILLUSTRATION INDEX
Figure 1 ............................................................................... 2
Figure 2 ............................................................................... 2
Figure 3 ............................................................................... 2
Figure 4 ............................................................................... 2
Figure 5 ............................................................................... 3
Figure 6 ............................................................................... 3
Figure 7 ............................................................................... 3
Figure 8 ............................................................................... 3
Figure 9 ............................................................................... 4
Figure 10 ............................................................................. 4
Figure 11 ............................................................................. 4
Figure 12 ............................................................................. 4
Figure 13 ............................................................................. 5
Figure 14 ............................................................................. 5
Figure 15 ............................................................................. 5
Figure 16 ............................................................................. 5
Figure 17 ............................................................................. 6
Figure 18 ............................................................................. 6
Figure 19 ............................................................................. 6
Figure 20 ............................................................................. 6
Figure 21 ............................................................................. 7
Figure 22. ............................................................................ 8
Figure 23 ............................................................................. 9
Figure 24 ............................................................................. 9
Figure 25 ............................................................................. 9
Figure 26 ............................................................................. 9
Figure 27 ........................................................................... 10
Figure 28 ........................................................................... 10
Figure 29 ........................................................................... 10
Figure 30 ........................................................................... 10
Figure 31 ........................................................................... 11
Figure 32 ........................................................................... 12
Figure 33 ........................................................................... 13
Figure 34 ........................................................................... 13
Figure 35 ........................................................................... 14
Figure 36 ........................................................................... 14
Figure 37 ........................................................................... 15
Figure 38 ........................................................................... 16
Figure 39 ........................................................................... 16
Figure 40 ........................................................................... 17
Figure 41 ........................................................................... 18
Figure 42 ........................................................................... 19
Figure 43 ........................................................................... 19
Figure 44 ........................................................................... 20
Figure 45 ........................................................................... 20
Figure 46 ........................................................................... 21
Figure 47 ........................................................................... 22
Figure 48 ........................................................................... 23
Figure 49 ........................................................................... 24
Figure 50 ........................................................................... 25
ENG

2
MANUAL DE USUARIO PARA TORRES FT. / USER MANUAL FOR FT TOWERS
RULES AND SAFETY USE
Figure 1
Keep hands and fingers away from moving parts of
the tower.
Figure 2
Not charge the tower without the legs stabilizers
lowered.
Figure 3
Do not lift the tower without proper leveling. To lift a
load, the tower must always be stabilized. The wheels
must not touch the ground.
Figure 4
Place the tower on a stable Surface.
If the ground has a low degree of compaction (earth,
gravel, etc..) consult the section of load data.

3
MANUAL DE USUARIO PARA TORRES FT. / USER MANUAL FOR FT TOWERS
Figure 5
Do not use the tower on tilted surfaces that require
pieces to level the tower.
Figure 6
Mount the longest legs stabilizers in the part of the
horns. Safety pins must lock the stabilizers.
Figure 7
Lift the mast in the correct order.
Lift the mast of the tower starting always for the
carried. The last mast lifted has to be the next to the
section where the winch is placed.
Figure 8
Before placing a load, make sure that the load never
exceeds the maximum allowed. Consult the section of
load data

4
MANUAL DE USUARIO PARA TORRES FT. / USER MANUAL FOR FT TOWERS
Figure 9
Never move a load without level.
Figure 10
Do not use ladders on the tower or leaning against it.
Figure 11
Not grease and lubricate the mechanism of the winch
and the pulleys of the masts.
Figure 12
Not allowed to lift people or animals.

5
MANUAL DE USUARIO PARA TORRES FT. / USER MANUAL FOR FT TOWERS
Figure 13
Do not stand under the load. The load must be
secured to the tower in order to prevent that the load
cannot fall down.
Figure 14
Verify that the tower is beyond the reach of power
lines.
The tower is not electrically insulated and can
transmit currents of power lines.
On the following table is recommended the average
length between the highest part of the structure and
the power lines.
Voltage
Min. distance
Between phases
Meters
Feet
0 a 230v
1.5
4.92
230v a 400v
2.8
9.19
400v a 50Kv
3.4
11.15
50Kv a 200Kv
4.9
16.08
200Kv a 350Kv
6.5
21.33
350Kv a 500Kv
8.2
26.90
500Kv a 750Kv
11.3
37.07
750Kv a 1000Kv
14.2
46.59
Figure 15
Not use the tower as welding mass.
If necessary, use the grounding placed on the base.
Figure 16
Not lift a load if there is danger of collision. Take at
least 1.5 meters on any direction to lift safety the
load.

6
MANUAL DE USUARIO PARA TORRES FT. / USER MANUAL FOR FT TOWERS
Figure 17
The tower can be used outdoor if the wind speed is
low and If it doesn’t put the installation in risk. The
installation is always under responsibility of the
owner.
Figure 18
Do not use the tower as a support of banner or
another type of decoration with strong wind. That can
destabilize the tower and make it fall down.
Figure 19
Prevent that the load do not touch the tower
Figure 20
Do not lift structures that require more than one
tower at different speeds
V1
≠
V2
No lift
V1
=
V2
Ok

7
MANUAL DE USUARIO PARA TORRES FT. / USER MANUAL FOR FT TOWERS

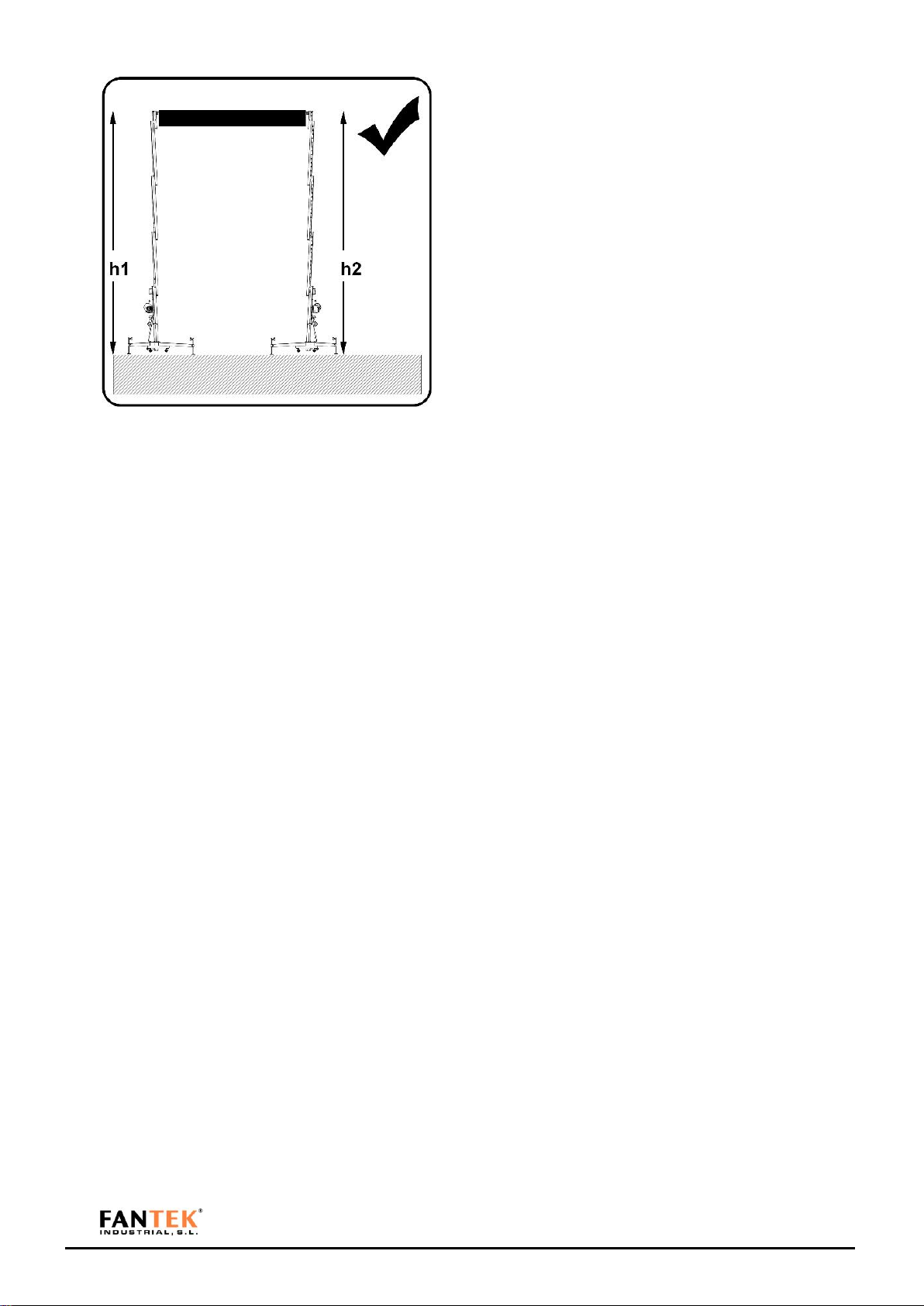

Figure 21
The structure must be levelled correctly. If not, the
structure can fall.
Always h1 = h2

8
MANUAL DE USUARIO PARA TORRES FT. / USER MANUAL FOR FT TOWERS
PARTS IDENTIFICATION
Figure 22.
1
Support leg stabilizers
carrier
11
Lower vertical wheel
transport
21
Leveler asparagus
2
Steel cable
12
Pin reinforcement strut
22
Leveler support
3
Top boost reinforcement
13
Red knob base security
system
23
Stabilizer support
handle
4
Red knob mast security system
14
Tower base
24
Leveler knob
5
Strut reinforcement mast support
15
Steel carrier
25
Horns
6
Winch
16
Carrier brake system
26
Aluminum carrier
7
Tower mast
17
Base wheel
27
Leg stabilizer carrier
knob
8
Aluminum reinforcement strut
18
Pin horn
9
Protection sleeve
19
Leg stabilizer
10
Horizontal transport wheel
20
Stabilizer plate

9
MANUAL DE USUARIO PARA TORRES FT. / USER MANUAL FOR FT TOWERS
HOW TO USE. STEP BY STEP
Figure 23
Fix and secure the legs stabilizers to the base.
Figure 24
Turn the horns and adjust to the desired width.
Ensure it with the pins.
Figure 25
Place the reinforcement bars and fix it with its pins.
Figure 26
Place the tower in its working position and level until
the bubble level is centered.

10
MANUAL DE USUARIO PARA TORRES FT. / USER MANUAL FOR FT TOWERS
Figure 27
Unlock the security brake of the aluminum carrier.
Figure 28
Unblock the security system of the mast.
Operate the winch handle to lift the carrier.

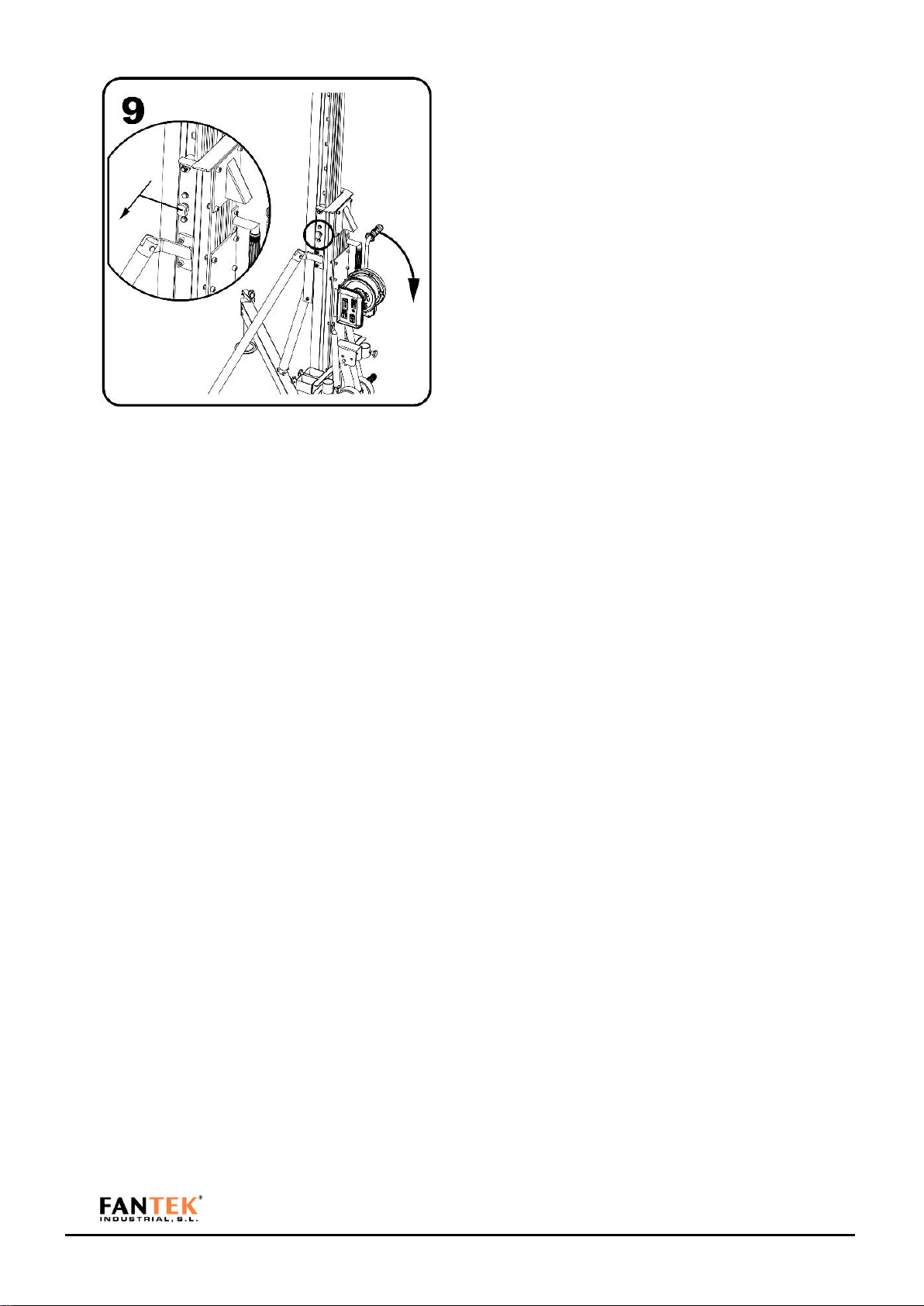

Figure 29
When the section reaches its limit, lock with the
security system and unlock the following security
system to lift the next mast. Do the same operation
until you reach the required height.
Figure 30
All security systems must be in locked position.
Slacken the cable of the winch for the system can
stabilize correctly.

11
MANUAL DE USUARIO PARA TORRES FT. / USER MANUAL FOR FT TOWERS
Figure 31
To lower the load. Tighten the cable and unlock the
first security system. Turn the winch while
maintaining the other hand unlocking security
system.
Once the load has lowered and the carrier is down.
Block the carrier and follow the steps from 5 to 1

12
MANUAL DE USUARIO PARA TORRES FT. / USER MANUAL FOR FT TOWERS
ACCESSORIES
The P.A. towers has the following accessories.
Figure 32
1
ATF2DS
4
ATF08PAM
7
ATF17PA
2
ATF1DS
5
ATFT200
8
ATF08PA
3
ATF17PAM
6
ATFT600

13
MANUAL DE USUARIO PARA TORRES FT. / USER MANUAL FOR FT TOWERS
Accessories are compatible with the following models of towers.
ACCESORIES
T600PA
T108PA
T200PA
T118PA
T117PA
ATF1DS
X
X
X
ATF2DS
X
X
ATF17PA
X
X
X
ATF08PA
X
X
ATFT200
X
X
X
ATFT600
X
X
ATF17PAM
X
X
X
ATF08PAM
X
X
Figure 33
Figure 34
Example of tower FT6033 with accessory ATF17PA.

14
MANUAL DE USUARIO PARA TORRES FT. / USER MANUAL FOR FT TOWERS
Figure 35
Example of tower FT6033 with accessory ATF1DS.
Figure 36
Example of tower FT6033 with accessory ATF17PAM.

15
MANUAL DE USUARIO PARA TORRES FT. / USER MANUAL FOR FT TOWERS
STANDARDS TAKEN INTO ACCOUNT
Figure 37

16
MANUAL DE USUARIO PARA TORRES FT. / USER MANUAL FOR FT TOWERS
LOAD DATA
Before placing a load, make sure that it can be raised to the maximum height of the tower. Otherwise it could
cause an accident or damage the tower.
Figure 38
Place and position detal of the load.
Place of the load.
1. Determine the position where the load is to be placed and consult the tower capacity. Never exceed.
2. The "X" distance between the load is taken from the carrier to the end of the horns.
3. When it is possible, place the load as close to the carrier. This prolongs the life of the tower.
TOWER
X in P1
(mm / inch)
X in P2
(mm / inch)
X in P3
(mm / inch)
X in P4
(mm / inch)
X in P5
(mm / inch)
FT6860
85
270
450
635
820
3.34
10.63
17.72
25
32.33
FT7045 / FT6033
100
260
425
580
3.93
10.23
16.73
22.83
FT6520 / FT5323
95
225
355
485
3.74
8.85
13.97
19.1
Figure 39
Detail of the position of all points of load.

17
MANUAL DE USUARIO PARA TORRES FT. / USER MANUAL FOR FT TOWERS
Load table.
P.A. lifting systems are designed so that the maximum load is placed in the central area of the horns allowing a better
use of the system. Following can be found the maximum loads to be borne by each tower model for maximum
working height.
Figure 40
Detail of load positions.

18
MANUAL DE USUARIO PARA TORRES FT. / USER MANUAL FOR FT TOWERS
USE AS MECHANISM.
The tower lifter works like a mechanism when the load is lifted using the winch.
USE AS STRUCTURE.
The tower lifter works like a structure when all mast are locked and the Steel wire doesn’t have strength.
In that case, all parts of the tower Works like a big column to support load. The load can be lifted using
manual or electric hoists.
USE WITHOUT ALUMINIUM REINFORCEMENT STRUT.
This use is restricted for assemblies that has the tower in front themselves joined by a truss structure
and fixed. Never use this load table for towers joined by a truss in parallel position.
Figure 41
Correct position of towers for use without aluminium reinforcement strut..

19
MANUAL DE USUARIO PARA TORRES FT. / USER MANUAL FOR FT TOWERS
Figure 42
Incorrect position of towers for use without aluminium reinforcement strut.
AS MECHANISM
AS STRUCTURE
WITHOUT ALUMINUM
REINFORCEMENT STRUT
P1
P2
P3
P4
P5
P1
P2
P3
P4
P5
P1
P2
P3
P4
P5
FT-6860
lbs
1323
1257
1180
1113
1036
1885
1775
1609
1268
1036
815
738
661
584
507
kg
600
570
535
505
470
855
805
730
575
470
370
335
300
265
230
FT-7045
lbs
992
849
705
562
X
1135
882
716
562
X
716
595
474
353
X
kg
450
385
320
255
X
515
400
325
255
X
325
270
215
160
X
FT-6033
lbs
728
661
595
518
X
1003
871
683
529
X
551
485
419
353
X
kg
330
300
270
235
X
455
395
310
240
X
250
220
190
160
X
FT-6520
lbs
441
436
432
428
X
794
771
617
485
X
264
229
194
158
X
kg
200
198
196
194
X
360
350
280
220
X
120
104
88
72
X
FT-5323
lbs
518
496
474
452
X
1003
838
772
452
X
330
286
242
198
X
kg
235
225
215
205
X
455
380
350
305
X
150
130
110
90
X
Figure 43
Detail of load place
