INTRODUCTION
Thank you for purchasing a Federal Industries display case. This manual contains
important instructions for installing and servicing the IMSS Models. A repair parts list
and wiring diagrams are also included in the manual. Read all of these documents
carefully before installing or servicing your case.
NOTICE
Read this manual before installing your case. Keep this manual and refer to it before
doing any service on the equipment. Failure to do so could result in personal injury or
damage to the case.
NOTICE
Installation and service of the electrical components in the case must be performed by a
licensed electrician.
The portions of this manual covering components contain technical instructions are
intended only for persons qualified to perform electrical work.
DANGER
Improper or faulty hookup of electrical components in the case can result in severe
injury or death.
All electrical wiring hookups must be done in accordance with all applicable local,
regional, or national standards.
SERIAL NUMBER
Record the model and serial numbers of the case for easy reference. Always refer to both model and
serial numbers in your correspondence regarding the case.
Case Model__________________________ Serial Number______________________
Condensing Unit Model________________ Serial Number______________________
This manual cannot cover every installation, use, or service situation. If you need additional information,
call or write us: TECHNICAL SERVICE DEPARTMENT
Federal Industries
P.O. Box 290
Belleville, WI 53508
Toll Free [phone] / WI Phone [phone]

IMSS E3265
- 4 -
WARNING LABELS & SAFETY
INSTRUCTIONS
This is the safety-alert symbol. When you see this symbol on your case or
in the manual, be alert to the potential for personal injury or damage to
your equipment.
Be sure you understand all safety messages and always follow recommended precautions and safe
operating procedures.
NOTICE TO EMPLOYERS
You must make sure that everyone who installs, uses, or services your case is thoroughly familiar
with all safety information and procedures.
Important safety information is presented in this section and throughout the
manual. The following signal words are used in the warning and safety messages:
DANGER: Severe injury or death will occur if you ignore the message.
WARNING: Severe injury or death can occur if you ignore the message.
CAUTION: Minor injury or damage to your case can occur if you ignore the message.
NOTICE: This is important installation, operation, or service information. If you ignore the
message, you may damage your case.
The warning and safety labels shown throughout this manual are placed on your Federal
Industries case at the factory. Follow all warning label instructions. If any warning or
safety labels become lost or damaged, call our customer service department at 1(800)
356-4206 for replacements.
This label is located behind the removable base This label is located below panels
and under the display deck pans. display deck pans.
CAUTION
POWER BEFORE
RISK OF ELECTRIC
SHOCK DISCONNECT
91-12340
SERVICING UNIT.
C AU T IO N
H AZ A R DO U S M O V IN G P AR T S
D O N O T O P E R A TE U N IT W IT H
D IS P LA Y P A NS R E M O VE D .

IMSS E3265
- 5 -
PRE-INSTALLATION PROCEDURES
Inspection For Shipping Damage
You are responsible for filing all freight claims with the delivering truck line.
Inspect all cartons and crates for damage as soon as they arrive. If damage is
noted to shipping crates, cartons, or if a shortage is found, note this on the bill of
lading (all copies) prior to signing.
If damage is discovered when the case is uncrated, immediately call the
delivering truck line and follow-up the call with a written report indicating
concealed damage to your shipment. Ask for an immediate inspection of your
concealed damaged item. Crating material must be retained to show the
inspector from the truck line.
INSTALLATION INSTRUCTIONS
Locating The Display Case
The case should be located where it is not subjected to the direct rays of the sun,
heating ducts, grills, radiator, or ceiling fans, nor should it be located near open
doors or main door entrances. Also, avoid locations where there is excessive air
movement or air disturbances and avoid high humidity locations such as near
cases with water misting or fogging devices. Failure to locate this case as stated
will reduce the performance of your Island display and will affect temperature of
interior of case and product.
The case requires a minimum of 48” of clearance is needed on all sides of unit
Electrical Connection
DANGER: Improper or faulty hookup of electrical components in the
display case can result in severe injury or death.
Permanent Connected (Standard)
-Only a licensed electrician must perform all case electrical connections.
-All electrical wiring hookups must be done in accordance with all applicable local, regional, or
national electrical standards.
-A separate circuit for each display case is required to prevent other appliances on the same
circuit from overloading the circuit and causing malfunction.
-The electrical service must be grounded upon installation.
-See the electrical data plate located on the base end, for proper circuit size and wire ampacity.

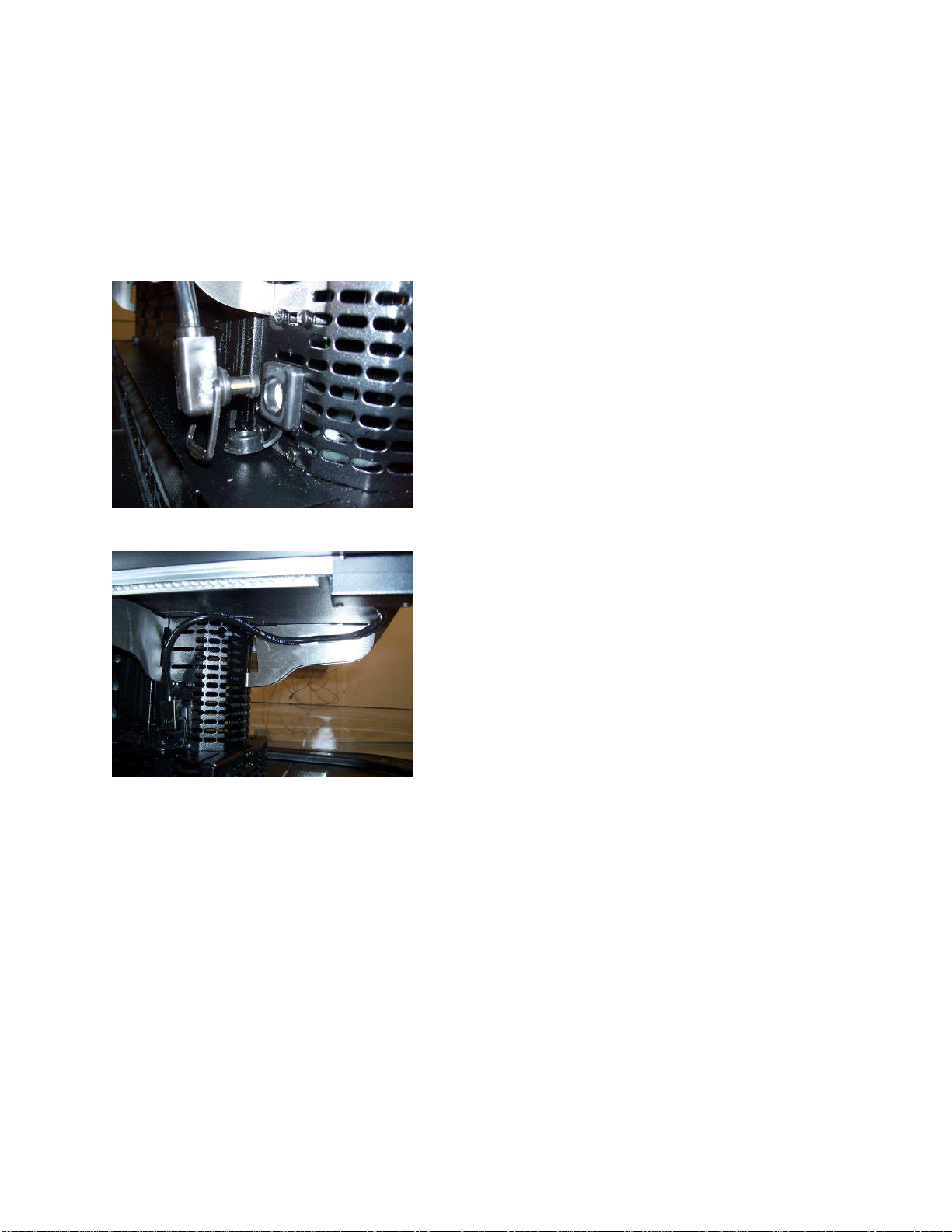

Standard Base Electrical Connection: There are (2) different styles of electrical box
connections as shown in pictures below. The electrical connection box is in the base for floor
electrical connection. The box is accessible by removing the base panel. See “Panel Removal

IMSS E3265
- 6 -
Section” of this manual for panel removal instructions. Remove electrical box cover to access
electrical connection.

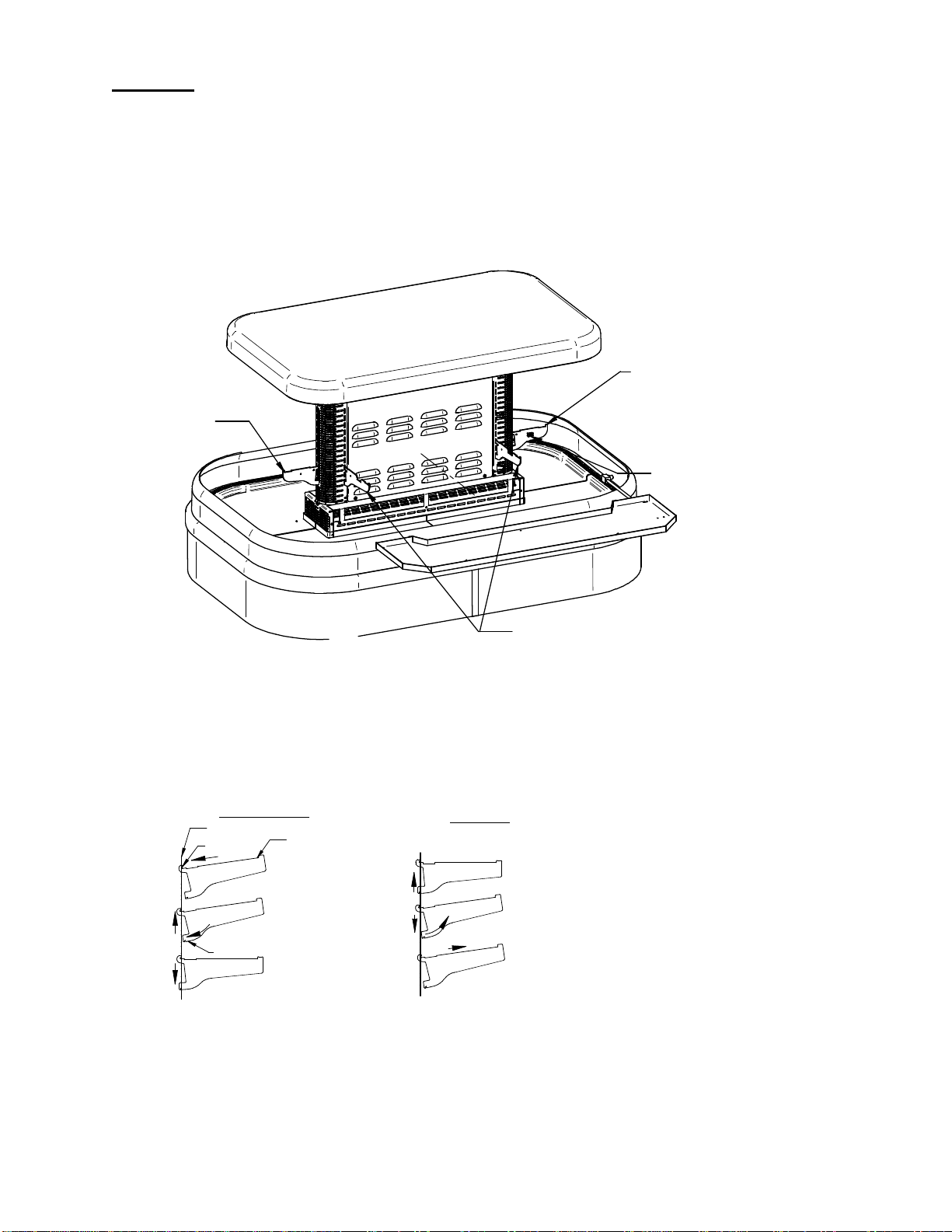

Optional Top Electrical Connection: The electrical connection box is accessible on
the top of the case for ceiling drop electrical connection. Remove electrical box cover to access
electrical connection.
Cord Connected (OPTION)
-A factory installed optional power cord is properly sized to the amperage requirements of the
case. See the electrical data plate located on the rear exterior of the case for the proper circuit
size for each case.
- The cord is factory installed protruding from the corner of the case.
-A separate circuit for each display case is required to prevent other appliances on the same
circuit from overloading the circuit and causing malfunction.
CAUTION Risk of Electric Shock. If the cord or plug becomes damaged,
replace only with a cord and plug of the same type".
PERMANENT
CONNECTION
TERMINAL
BLOCK
OR WIRE
PERMANENT
CONNECTION
ELECTRICAL
BOX COVER
PERMANENT
CONNECTION
ELECTRICAL
BOX COVER
PERMANENT
CONNECTION
WIRES

IMSS E3265
- 7 -
Removing Case From Shipping Skid
Remove the screws and brackets that secure the case to the skid. Remove the
brackets from the case.
Note that the case may have optional wheels installed and once the brackets
holding the case to the skid are removed the case will roll.
Removing Packaging Material
Remove bubble wrap and packing material for all shelves and panel, brackets,
etc. If it is necessary to remove tape residue from plastic materials, use cleaning
compounds recommended in the cleaning section of this manual.
Leveling The Case
The case must be level for proper drainage of defrost water to the condensate
pump. A wrench is included to aid in adjusting leg levelers
Check the level of the case where the display overhangs the base.
Adjust the (4) outside leg levelers as needed to level the case in each direction.
The IMSS120 has (2) center leg levelers adjust these so that the center of base
floor is flat.
NOTE: Use a wood or plastic shim under each leg leveler to avoid scratching the
tile floor.
CAUTION : Do not push against the clear acrylic deflector around the sides and nose.
Doing so can cause the acrylic to break.
Do not lift or push on the top canopy located on top of the case.
Doing so can permanently damage the tower frame.
Care must be taken not to damage or tip the case when removing it from the
skid or moving the case.

IMSS E3265
- 8 -
Sealing Unit To The Floor
After the unit is positioned and the leg levelers are turned out, the unit needs to be
sealed to the floor for NSF approved installation.
Base Panel Removal
IMSS60 and IMSS84 Panels
Panels must be in place when operating the case.
END PANEL
(ONE AT EACH END)
SIDE PANEL
SIDE PANEL
END PANEL SCREWS (4)
SIDE PANEL SLOT
SIDE PANEL HOOK
SIDE PANEL
RETAINER SCREWS
REMOVE THIS PANEL
TO CLEAN CONDENSER
Side Panels
1. Loosen the 2 retainer screws from top of panel.
(The screws will stay on the panel even after they are detached from base)
2. Tilt the top of the panel away from the base and pull up on panel to allow the
side panel tabs to pull out of the side panel slots.
3. Set the panel in safe place to prevent damage.
4. Reinstall panels in the reverse order.
End Panels
1. Remove the (4) retainer screws from all four corners of end panel.
2. Remove end panel from case and set it in safe place to prevent damage.
3. Reinstall panels in the reverse order.
IMSS120 Panels
DANGER: Electric shock hazard. Do not operate unit with panels removed.
DANGER: Electric shock hazard. Do not operate unit with panels removed.

IMSS E3265
- 9 -
Panels must be in place when operating the case.
LEFT SIDE PANEL
SIDE PANEL SLOT
(3) SIDE PANEL
RETAINER SCREWS
RIGHT SIDE
PANEL
LOUVERS
LOUVERS
(3) TABS
REMOVE THIS PANEL
TO CLEAN CONDENSER
REMOVE THIS PANEL
TO CLEAN CONDENSER CONTROLS
Side Panels
1. Loosen the 3 retainer screws from top of each side panel.
(The screws will stay on the panel even after they are detached from base)
2. Tilt the top of the panel away from the base and pull up on panel to allow the
side panel tabs to pull out of the side panel slots.
3. Set the panel in safe place to prevent damage.
4. Reinstall panels in the reverse order.
NOTE: left and right side panels can only be installed as shown. Louvers
must be near the end of case in order for the tabs to align with side panel
slots. Be sure all (3) tabs are engaged into side panel slots.
Base Component Layout Self Contained IMSS60 & IMSS84

IMSS E3265
- 10 -
CONTROL
PANEL LOCATION
CONDENSATE
EVAPORATOR
OR OPTIONAL
CONDENSATE PUMP
PULL OUT
CONDENSING UNIT
POWER
CONNECTION
BOX
ELECTRICAL
BOX
DATA PLATE
LOCATION
60.41 IMSS60
4.41 IMSS 4
40.4
SIGHT GLASS
7/ FLOOR ELECTRICAL
CONNECTION LOCATION
LIGHT POWER SUPPLY
QUANITY MAY DIFFER
BETWEEN MODELS
5.1
4.2
4.2
4.2
5.1
4.2
Base Component Layout Remote IMSS60 & IMSS84
CONTROL
PANEL LOCATION
CONDENSATE
PUMP
REMOTE REFRIGERATION
LINE ACCESS COVER
LIGHT POWER SUPPLY
QUANITY MAY DIFFER
POWER
CONNECTION
BOX
ELECTRICAL
BOX
DATA PLATE
LOCATION
REFRIGERATION SHUT OFF
SOLENOID VALVE
SIGHT GLASS
40.41
60.41 IMSS60
4.41 IMSS 4
7/ FLOOR ELECTRICAL
CONNECTION LOCATION
5.0
5.0
3/ HIGH PRESS
CONNECTION 5/ SUCTION
CONNECTION
24.3
LEG LEVELERS (6)
BASE SUPPORTS
CONTROL DISPLAY
WIRING DIAGRAM
4
4
4
4
Base Component Layout Self Contained IMSS120

IMSS E3265
- 11 -
CONTROL
PANEL LOCATION
CONDENSATE
EVAPORATOR
OR OPTIONAL
CONDENSATE PUMP
PULL OUT
CONDENSING UNIT
POWER
CONNECTION
BOX
DATA PLATE
LOCATION
SIGHT GLASS
7/ FLOOR ELECTRICAL
CONNECTION LOCATION
LIGHT POWER SUPPLY
17.1
4.6
12.1
BASE FLOOR
ACCESS PLATE
CASTERS (6) LEG LEVELERS (6)
BASE SUPPORTS
CONTROL
DISPLAY
WIRING DIAGRAM
120.41
40.41
4.3
3.0
3.0
4.3
Base Component Layout Remote IMSS60 & IMSS84
REMOTE REFRIGERATION
LINE ACCESS COVER
3/ HIGH PRESS
CONNECTION
REFRIGERATION SHUT OFF
SOLENOID VALVE
SIGHT GLASS
CONTROL
PANEL LOCATION
CONDENSATE PUMP
POWER
CONNECTION
BOX
DATA PLATE
LOCATION
7/ FLOOR ELECTRICAL
CONNECTION LOCATION
BASE FLOOR
ACCESS PLATE
4.6
5.0
17.05
4.3
4.3
3.0
3.0
120.4
40.4
BASE SUPPORTS
CONTROL
DISPLAY 5/ SUCTION
CONNECTION
42.2
WIRING DIAGRAM
Condensate Evaporator (Standard Self Contained Models)

IMSS E3265
- 12 -
NOTICE: During normal defrost cycles, steam from the condensate
evaporator may be visible around the case.
The standard Self Contained case is furnished with an electric condensate evaporator.
Plumbing connections are not required.
The condensate evaporator can be removed from the case and the condensate drain
can be plumbed to a drain to conserve energy if desired. Disconnect the condensate
evaporator wires at the condensate evaporator to remove. This must be done by a
qualified electrician.
This is an open merchandiser and at times can produce a large amount of condensate
water. To ensure that adequate evaporator capacity is available, a high wattage heater
is used. The heater turns off automatically when the water level in the pan drops.
Check that the float is positioned correctly and that the switch operates at time of
installation.
Make sure that the drain line has not been dislodged during shipment and that the drain
trap terminates properly over the water reservoir.
Condensate Pump (Standard Remote, optional Self Contained)
Note: There is a piece of cardboard that has to be removed from the side of the
pump to free up the float. If this is not done, the pump will not turn on and the pan
will overflow.
NOTICE: This unit could be shipped with an optional condensate pump. The pump has a
float that turns the pump on automatically when needed.
The pump is mounted in the base compartment. The pump should be cleaned and
inspected every 3-4 months.

IMSS E3265
- 13 -
Shelves
The IMSS has solid metal shelves with LED lighting as standard.
There are (4) brackets required for each shelf (2) long brackets and (2) short
brackets. The long brackets are for the long side of case and the short brackets
are at the short end of case. The short bracket with cord retainer clip must be
used at the short end of case where the light cord plugs in.
The shelves are adjustable in ~ 1 1/16” increments.
SHORT SHELF
BRACKET WITH
CORD CLIP
CORD CLIP
SHORT SHELF
BRACKET
LONG SHELF BRACKETS
1. Turn the light switch to the off position.
2. Follow the instruction in the illustration below and insert (1) of the (4) shelf brackets in the
desired tower slot on one side of the case. Place the additional shelf brackets in the same
height level on the opposite end of case. The (2) short brackets must go on the short end and
(2) long brackets must go on the long end. The short bracket with a shelf light cord retainer
clip must be on the side with the shelf light receptacle.
4
1
2
3
4
INSTALLATION REMOVAL
23
1
TOP HOOK
BOTTOM TAB
SHELF BRACKET
TOWER
1. Place shelf bracket top hook into desired slot in
the tower.
2. Lift shelf bracket top hook to allow shelf bracket
bottom tab to clear slot in tower.
3. Swing shelf bracket bottom tab into tower slot.
4. Place the shelf bracket notch onto bottom of tower
slot.
1. Lift shelf bracket up to allow shelf bracket notch
to clear the bottom of slot in tower.
2. Swing shelf bracket bottom tab out of slot in tower.
3. Drop shelf bracket down to allow shelf bracket top
hook to clear the slot in tower.
4. Remove shelf bracket top from slot in tower.

IMSS E3265
- 14 -
3. Set the shelf on to the brackets and place the bracket retainer clip into slots on shelf. .
4. Push shelf light cords into plastic shelf cord retainer clip located on inside of shelf bracket.
5. Remove the cap from the appropriate female light sockets
.
6. If the socket is not being used for a shelf light, the cap must be plugged into socket to prevent
contamination and moisture out of the socket.
7. Plug in each shelf light by aligning the male pins on the appropriate shelf light cord plugs
with the female light sockets and push together. IMPORTANT: Do not roll plug during
insertion.
8. Place extra cord into cord clip as shown to keep it out of the way.
9. Removal of shelving is performed by following steps in reverse order.

IMSS E3265
- 15 -
OPERATING INSTRUCTIONS
User Controls
Power Switch
The unit has a power switch that turns off power to the entire unit, including the
condensate evaporator and the lights. This switch is located behind a lift up panel
on the unit base.
Light Switch
The unit has a light switch that turns on and off the interior lights of unit. This
switch is located below the lift up panel on the unit base.
Electronic Control
This control is located behind a lift up panel on the unit base.
Temperature Control Knob
This controls the temperature of the display interior of case.
-OFF: Turning the control counterclockwise to the “WARM” setting is an
Off position, this position turns the refrigeration off and all indicator
lights will also be off at this setting.
-ON; The control will be on from the warmest setting at “1” and the coldest
setting at “COLD”.
Cooling light
This light will be on when control requires refrigeration to be on. The
compressor / condensing unit should be running to cool the case.
Defrost light
This light will be on when control when refrigeration is defrosting allowing
ice to melt off of evaporator coil. The number of times and length of
defrost will vary depending on case environment.
Alarm light
This light indicates that there is a problem with case or electronic control
and service should be called.
TEMPERATURE
CONTROL KNOB
POWER SWITCH
LIGHT SWITCH
COOLING
INDICATOR
DEFROST
INDICATOR
ALARM
INDICATOR
ELECTRONIC
CONTROL

IMSS E3265
- 16 -
Initial Start-Up
After all the checks outlined in the installation section of this manual have been
made, the case is ready to be put into service. Turn on the Power at the breaker
box and flip the Power Switch and Light Switch on unit to the on position.
At start up from a warm unit, it is recommended that the temperature control is
set at a warm setting, such as 1 on the dial. After the unit has gone through
several cycles, turn the control to a mid range setting, then to a colder setting if
necessary to maintain desired product temperature
NOTICE: This refrigerated display case is designed to operate
in a maximum environment of 75 DEG. F and 55% relative
humidity. Exceeding these limits will cause poor case
performance and excessive sweating.
Placing Product into Case
-Do not exceed 75 pounds of weight per shelf. Heavy product should be distributed
evenly across the entire shelving area.
- Determine desired shelving location before placing product in case. Product must be
removed to readjust shelf location.
-Allow a minimum of 2” between top of product and bottom of shelf.
-Do not overhang the front or rear of shelves with product. Improper clearance in front
and rear of shelf will block the refrigerated airflow and will cause product loss.
-Do not block the slots along the front and rear air discharge slots. Covering these slots
will block the refrigerated airflow and could cause product loss.
-The display deck is removable for cleaning and can become dislodged in shipment. To
ensure proper airflow and performance of the case, make sure that the display deck is
pushed completely down.
-Allow refrigerated models to run for at least two hours before placing pre-chilled
product into unit.
NOTICE: CASE MUST BE STOCKED WITH PRE-CHILLED PRODUCT
ONLY.
NOTICE: This refrigerated display case is designed to operate
in a maximum environment of 75 DEG. F and 55% relative
humidity. Exceeding these limits will cause poor case
performance and sweating of glass panels.

IMSS E3265
- 17 -
Maintance
Cleaning Condenser Coil
NOTICE: Condenser coil must be cleaned a minimum of twice per month
to insure proper refrigeration performance and prevent
compressor failure. Failure to clean condenser coil will void
condenser warranty.
It is very important that the Condenser coil is cleaned twice per month to insure proper
refrigeration performance and to prevent compressor failure. Failure to clean condenser
coil will void condenser warranty. This procedure is for Self Contained models. The
remote condenser coil must also be cleaned at same intervals.
1. Disconnect power to the unit.
2. On IMSS60 and IMSS84 Remove the side panel with the narrow set of louvers and on
IMSS120 remove panels from both sides at the end the control panel is located. See the
illustration in the “Bottom Panel Removal” section of this manual for panel clarification.
3. Carefully vacuum the front surface of condenser coil. Take care not to bend coil fins with
vacuum cleaner nozzle.
4. Reinstall side panel(s).
VACUUM FRONT
SURFACE OF
CONDENSER COIL

IMSS E3265
- 18 -
.
CLEANING INSTRUCTIONS
Acrylic Air Deflector Cleaning
NOTICE: Clear acrylic air deflector requires special washing procedures
to prevent hazing and yellowing of material.
NEVER USE paper towels (wet or dry) for cleaning or drying and never use a dry towel.
NEVER USE glass cleaner of any kind.
Lightly dust (not wipe) surface with a damp Micro Fiber towel or chamois. The surface can then
be washed using a small amount of dishwashing detergent such as Dawn or Joy and lukewarm
water. Use a Micro Fiber towel or chamois, applying only light pressure. The cloth or chamois
must be kept free of grit by frequently rinsing. Rinse surface with clear water and dry by blotting
with a damp Micro Fiber towel or chamois.
Daily Cleaning
The case should be cleaned thoroughly, as described in the weekly cleaning section,
before it is used for the first time.
NOTICE: Avoid splashing or soaking any electrical components with
water to prevent electrical damage to the case.
NOTICE: Shut off lights and power switches and remove all products
from case. Allow sufficient time for the unit to reach room
temperature before proceeding with cleaning.
NOTICE: Remove all products from the case before proceeding with
cleaning procedure.
NOTICE: Acrylic air deflector requires special washing procedures to
prevent hazing and yellowing of material. Clean as described
in “Acrylic Air Deflector Cleaning” section of this manual.
Note: For major spills or foreign material buildup use complete weekly cleaning
instructions.
Note: Detergents are not recommended and do not use abrasive cleaners or pads to
prevent scratching of surfaces.
1. Dip rag in warm soapy water and ring out thoroughly. Wipe complete interior of
case and dry with soft dry towel.
2. The remaining exterior surface should be wiped down using any ammoniated
cleaners or soapy warm water and dried with soft dry towel..
3. IMPORTANT: Cleaning the clear acrylic plastic front air deflector requires
special care to prevent hazing and yellowing of material. Clean as described in
“Acrylic Air Deflector Cleaning” section of this manual.

IMSS E3265
- 19 -
Weekly Cleaning
NOTICE: Avoid splashing or soaking any electrical components with
water to prevent electrical damage to the case.
NOTICE: Shut off lights and power switches and remove all products
from case. Allow sufficient time for the unit to reach room
temperature before proceeding with cleaning.
NOTICE: Remove all products from case before proceeding with
cleaning procedure.
NOTICE: Acrylic front air deflector requires special washing procedures
to prevent hazing and yellowing of material.
Note: Detergents are not recommended and do not use abrasive cleaners or pads to
prevent scratching of surfaces.
SHELVES (4)
DISPLAY DECK
FAN SHROUD
FAN SHROUD
FAN SHROUD
RETAINER SCREWS (2)
DISPLAY DECK
DISPLAY DECK
DISPLAY DECK
TOWER SIDE PANEL
LATCH (4)
TOWER SIDE PANEL
TOWER INNER PANEL
(THERE IS NO INNER PANEL
ON IMSS 4 MODEL)
ILLUSTRATION IS TYPICAL,
SOME MODELS MAY HAVE MORE PANELS, SHELVES AND DISPLAY DECKS
1. Remove interior shelving from unit as described in the “Shelving Installation and
Removal” section of this manual.
2. Dip rag in warm soapy water and ring out thoroughly. Clean all shelves and shelf
brackets and dry with soft dry towel.

IMSS E3265
- 20 -
CAUTION
POWER BEFORE
RISK OF ELECTRIC
SHOCK DISCONNECT
91-12340
SERVICING UNIT.
3. Remove tower side panels by lifting (4) latch levers and pulling tower side panel out
away from tower.
4. Remove the tower inner panel by lifting panel up until retaining pins clear key slots
hole. Pull panel out of tower.
5. Dip rag in warm soapy water and ring out thoroughly. Clean the tower side panels,
tower inner panels and inside both tower ends. Dry with soft dry towel
6. Lift the display decks up and out of evaporator tub.
7. Remove the fan shroud assembly by removing (4) retaining screws from the outer flange
and the (2) from the inner flange. Lift the fan shroud assembly and reach in and unplug
the evaporator fan motor cord(s). Lift fan shroud assembly out of tub.
8. Clean the display deck(s) using warm soapy water and a brush. Rinse thoroughly and
allow dry. Wipe off fan shroud assembly (do not rinse or submerge fan motors).
9. Clean the entire interior of the case using warm soapy water. Wipe off all soapy water
with a damp cloth and allow to dry. (DO NOT use solvents such as Acetone, Benzene,
Carbon Tetrachloride, and Lacquer Thinners)
10. IMPORTANT: Cleaning the clear acrylic plastic front air deflector requires special
care to prevent hazing and yellowing of material. Clean as described in “Acrylic
Air Deflector Cleaning” section of this manual.
11. Reassemble all components in reverse order.
NOTE: Depending on the amount of usage and spillage of foreign material, some fasteners
may have to be removed and parts disassembled to allow proper cleaning of the unit.
SERVICE INFORMATION
Before any service work is performed on the case, make sure all power is disconnected
to the case.
Service problems or request for repair parts from authorized service agencies, trained
service personnel, or owners should be referred to:
TECHNICAL SERVICE DEPARTMENT
Federal Industries
P.O. Box 290
Belleville, WI 53508
Toll Free: [phone] / WI Phone [phone]
Fax: [phone]
