Fellowes Titan 125 User manual

Please read these instructions before use.
Lire ces instructions avant utilisation.
Lea estas instrucciones antes del usarlo.
E
F
S

LAMINATOR CONTROLS / QUICK START GUIDE 3
ENGLISH 4-9
FRANCAIS 10-15
ESPAÑOL 16-21
INDEX

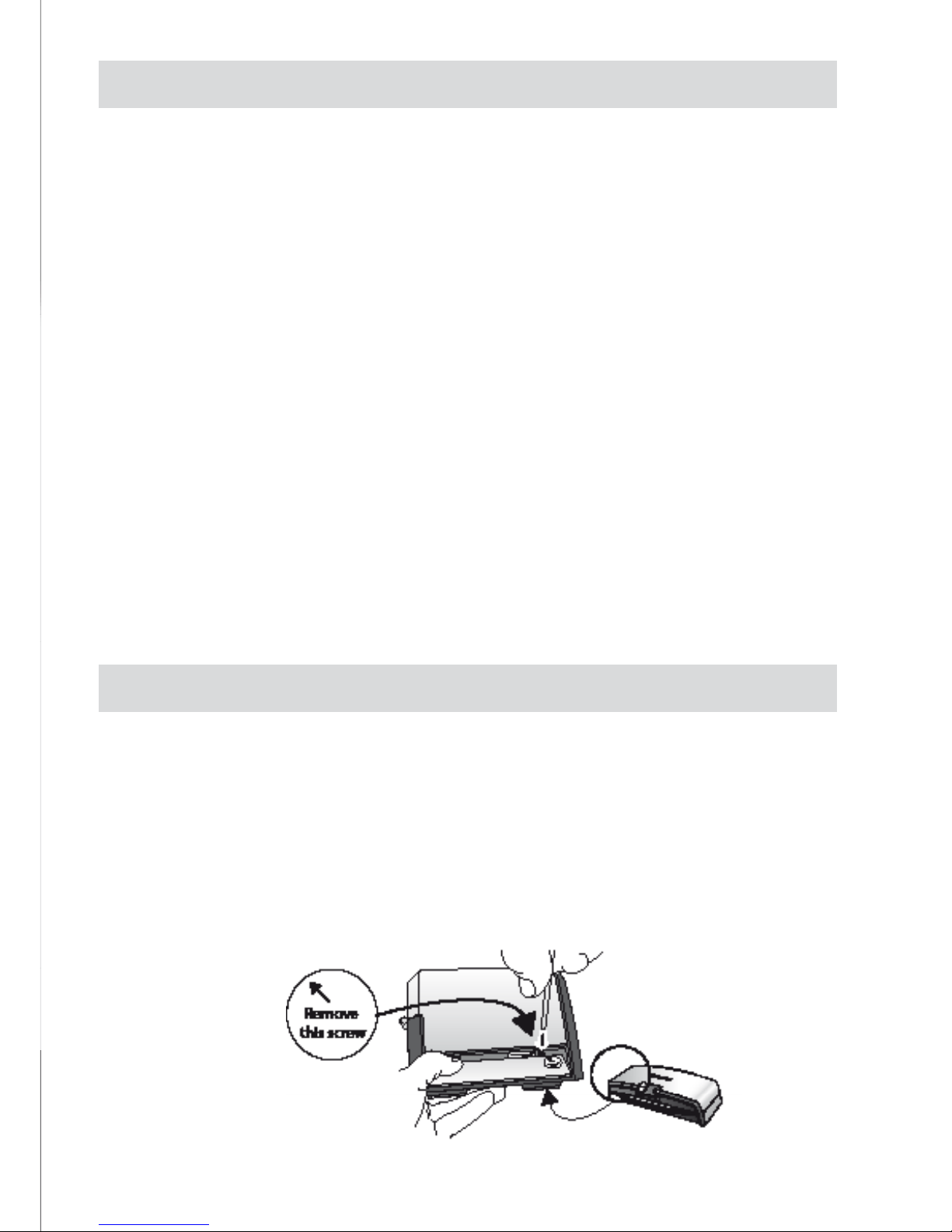

EASY-ACCESS LOCKING SCREW
ATTENTION:
TOP COVER LOCKING SCREW MUST BE
REMOVED BEFORE THIS MACHINE CAN
BE OPENED.
Note: You will be unable to operate
the easy access feature (to open the
machine) for cleaning/maintenance
if the top lid locking screw (A) is not
removed first.
ATTENTION:
LA VIS DE VERROUILLAGE DU COU-
VERCLE DOIT ÊTRE RETIRÉE AVANT DE
POUVOIR OUVRIR CET APPAREIL.
Remarque: Vous ne pourrez
pas activer la fonction d’accés facile
permettant d’ouvrir l’appareil pour
le nettoyage/entretien, si la vis de
verrouillage du couvercle (A) n’est pas
d’abord retirée.
ATENCIÓN:
ANTES DE ABRIR ESTA MAQUINA, DEBE
RETIRAR EL TORNILLO DE RETENCION
DE LA CUBIERTA SUPERIOR.
Nota: Si no retira el tornillo de
retención de la tapa superior (A), no
podrà utilizar la función de acceso
ràpido para abrir la màquina y limpi-
arla o realizarle mantenimiento.

LAMINATOR CONTROLS
QUICK START GUIDE
CK
I
B
FG
J
A
SETTING UP THE LAMINATOR
STEPS TO LAMINATE
1 2 3 4
5 6 7 8
9 10 11 12
DH
L

CAPABILITIES
When laminating:
- plug the machine into an easily accessible main socket.
- to prevent electrical shock - do not use the appliance close to water, do not spill water on to the appliance, power cord or main
socket.
- when working with very small pouch sizes (less than 3” / 75mm long) place the pouch within a carrier or on a sheet of paper.
Performance
Entry width 12.5” / 317mm
Estimated heat-up time 4 minutes
Cool down time 30-60 minutes
Lamination speed variable - max. 35” / 90cm/min
Laminating mechanism Belt-drive
Ready indication Light & beep
Easy-Access open mechanism Yes
HeatGuard™ technology Yes
Clear Path Yes
Auto shut-off Yes (30 mins)
Photo-capable Yes
Carrier-free Yes
Technical Data
Voltage / Frequency /
Current(Amps) 120V AC, 60Hz, 8.5A
Wattage 1100 Watts
Dimensions (WxDxH)
25” x 8.5” x 6.3” / 634 x 215 x 159mm
Net weight 22lb / 10 kg
Laminating capacity (max thickness) 0.04”
Max pouch thickness 10 Mil. / 250 micron
(total thickness = 2 x 10 = 20 Mil.)
DO ensure the machine is on a stable surface.
DO test laminate scrap sheets before final laminations.
DO remove staples and other metal articles prior to laminat-
ing.
DO keep the machine away from heat and water sources.
DO turn off the machine after each use.
DO unplug the machine when not in use for an extended
period.
DO use pouches designed for use at the appropriate settings.
DO keep away from pets, while in use.
DO only use Fellowes Roller Wipes (CRC #57037) for internal
cleaning.
DO NOT use appliance if the power cord is damaged.
DO NOT attempt to open or otherwise repair the machine
beyond the Easy-Access functions.
DO NOT exceed the machines quoted performance.
DO NOT allow children to use this machine without adult
supervision.
DO NOT laminate sharp or metal objects (eg: staples,
paper clips).
DO NOT laminate heat-sensitive documents (eg: tickets,
ultrasounds etc).
DO NOT laminate with self-adhesive pouches (which
require a cold setting).
DO NOT laminate an empty pouch.
DO NOT use sharp objects to clean laminator.
IMPORTANT SAFETY INSTRUCTIONS
4
ENGLISH
CAUTION:
Please read before use and keep for future reference.
E

‘Hot Swap’ function.
The Hot Swap function enables the user to
instantly switch between thick and thin pouch
settings without any processing delays.
Easy-Access open mecha-
nism
The Easy-Access mechanism allows user to safely
and easily open the laminator for cleaning and
maintenance.
HeatGuard™ technology
Keeps the laminator surface up to 50% cooler and
makes it more energy efficient then comparable
laminators.
‘Safe Start’ function
When switched on, the machine has a default
‘Safe Start’ function which is set to the 3 Mil.
setting. You may select other thickness settings
as required.
Power Save
The Auto shut-down switches the machine off if it
hasn’t been used for 30 mins to save energy.
To return to the “Home” Menu at any stage, press
the “Left/back” key on the navigation buttons.

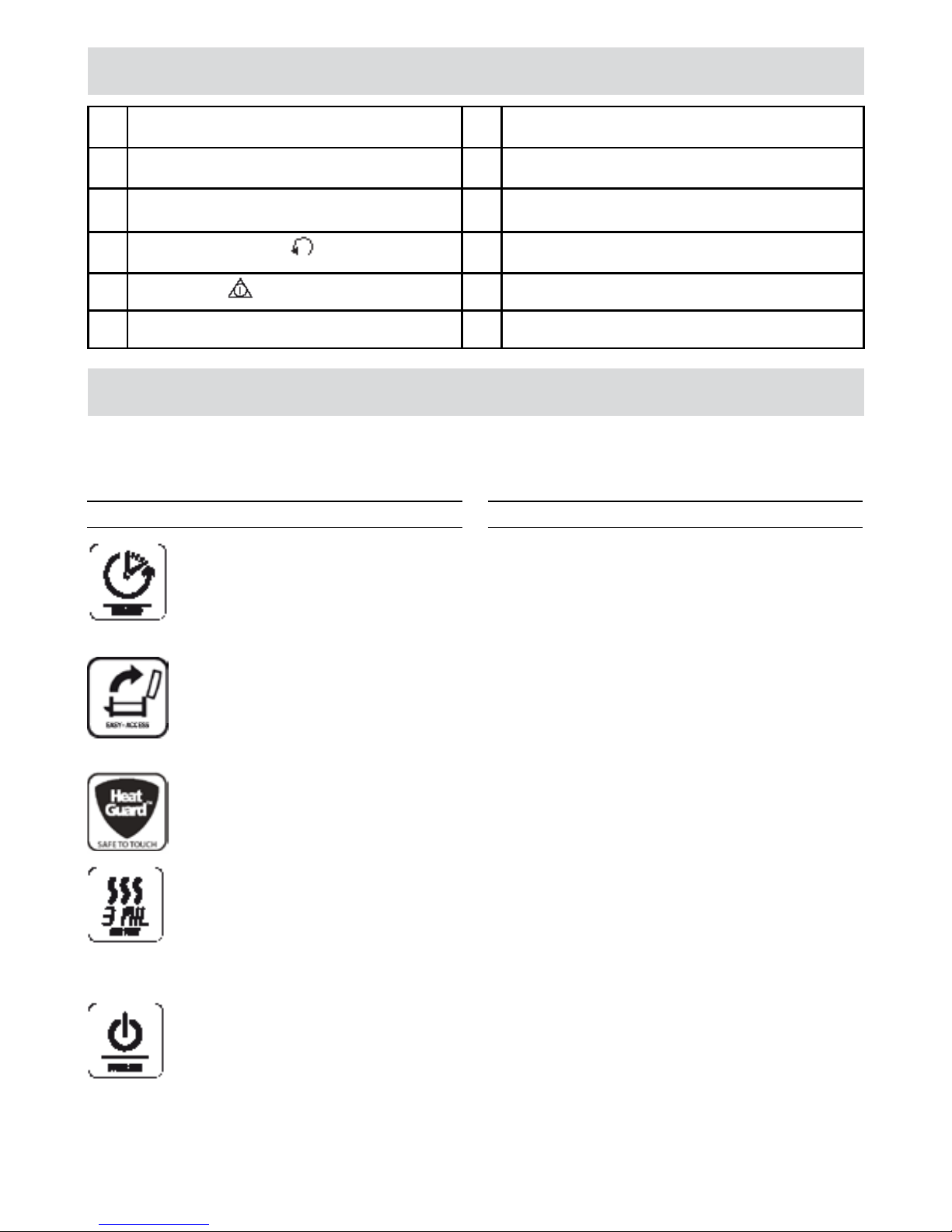

A Easy-Access opening cover G Selection buttons (up/down/left/right)
B Adjustable document entry guide H Select / OK button
C Entry support shelf I Detachable document exit tray
D Reverse button J On/off switch (at rear)
E Standby button K Carry points (at sides)
F LED user interface L Ready LED
LAMINATOR CONTROLS
FEATURES & TIPS
5
FEATURES
• Always put item into the appropriate sized pouch.
• Always test laminate with a similar size and thickness
before final process.
• If required, trim excess material from around the item
after lamination and cooling.
• For best results, use Fellowes®brand laminating pouches:
Enhance 3 Mil, Capture 5 Mil, Protect 7 Mil, Preserve 10
Mil.
• When working with different pouch thickness’ (tempera-
ture settings) it is recommended to start first with the
thinnest pouches.
• Prepare pouch and item for lamination. Center item in
pouch against the leading sealed edge. Ensure the pouch is
not too large for the item.
• Please read these instructions before use.
TIPS
TitanTM operates at a fixed temperature. The user only needs to select the required pouch setting before laminating. There is no
need to wait for the machine to warm-up or cool-down when switching between thick or thin pouch settings. Once the laminator has
reached normal operating temperature, simply select the pouch thickness required and laminate immediately.

Switch the power on (Power switch located at the rear
of the machine).
Select the ‘Standby’ button on the control panel. The
3 Mil. and ready LED’s will flash for 5 seconds before
automatically selecting the 3 Mil. heat setting. Any
setting can be selected at any time as required. Allow
the machine to cool before opening.
The LED interface allows selection of these functions:
- 3, 4, 5, 7, 10 Mil. pouch settings
- Manual laminating
- Reverse
- ‘Easy-Access’ for cleaning and maintenance.
The laminator will automatically select the thinnest
pouch setting (3 Mil.) within 5 seconds of power-on
unless another setting is selected. During warm-up or
cool-down, the selected pouch setting will flash red.
When the laminator has reached the chosen setting, the
LED will stop flashing and glow red. The machine will
sound 2 short alerts.
Place item into open pouch. Center the item against the
sealed front edge. Use the appropriate pouch size for
the item.
Place the pouch, sealed edge first into the document
entry. Keep the pouch straight and centered within the
document entry, not on an angle. Use the entry mark-
ings as a guide.
Upon exit, the laminated pouch is hot and soft. Take
care and remove the pouch immediately. Place the
pouch onto a flat surface to cool. This helps prevent any
jamming.
To reverse the laminating process at any stage, press
and hold the ‘Reverse’ button to eject the item. The
laminator will sound alerts continuously and the ready
LED will flash.
5.
6.
7.
8.
9.
STEPS TO LAMINATE
6
Let our experts help you with a solution.
Customer Service: www.fellowes.com
Always call Fellowes before contacting your place of purchase.
See back cover for useful telephone numbers.
NEED HELP?
Place the machine on a stable surface. Ensure enough
clear space behind the machine to allow items to pass
through freely.
Connect the supplied power cord to the machine.
Plug the machine into an easily accessible main socket.
To fully support pouches and items of different sizes
use the adjustable entry guide to center the item
before laminating. Place exit tray onto the rear of the
machine.
1.
2.
3.
4.
SETTING UP THE LAMINATOR
10.
11.
12.

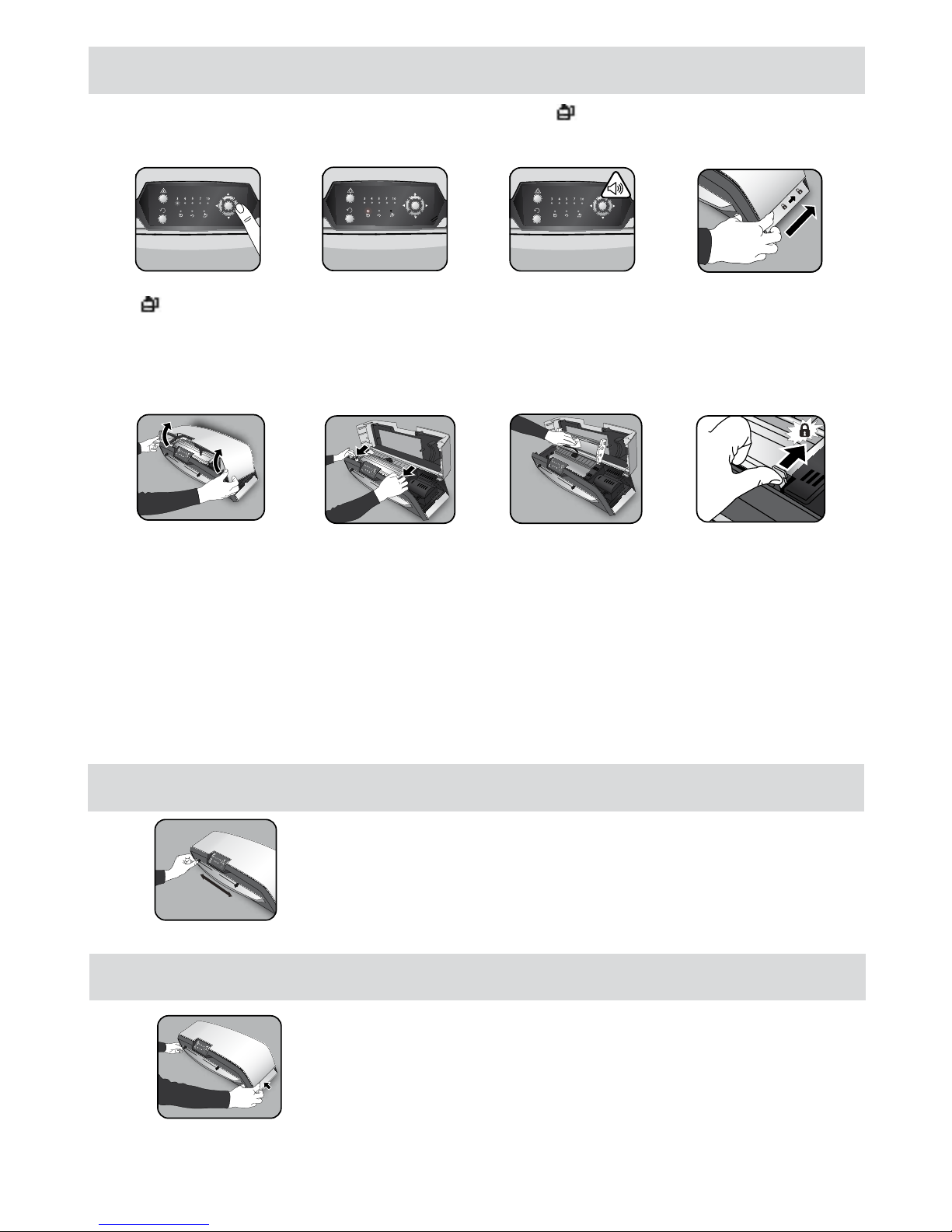

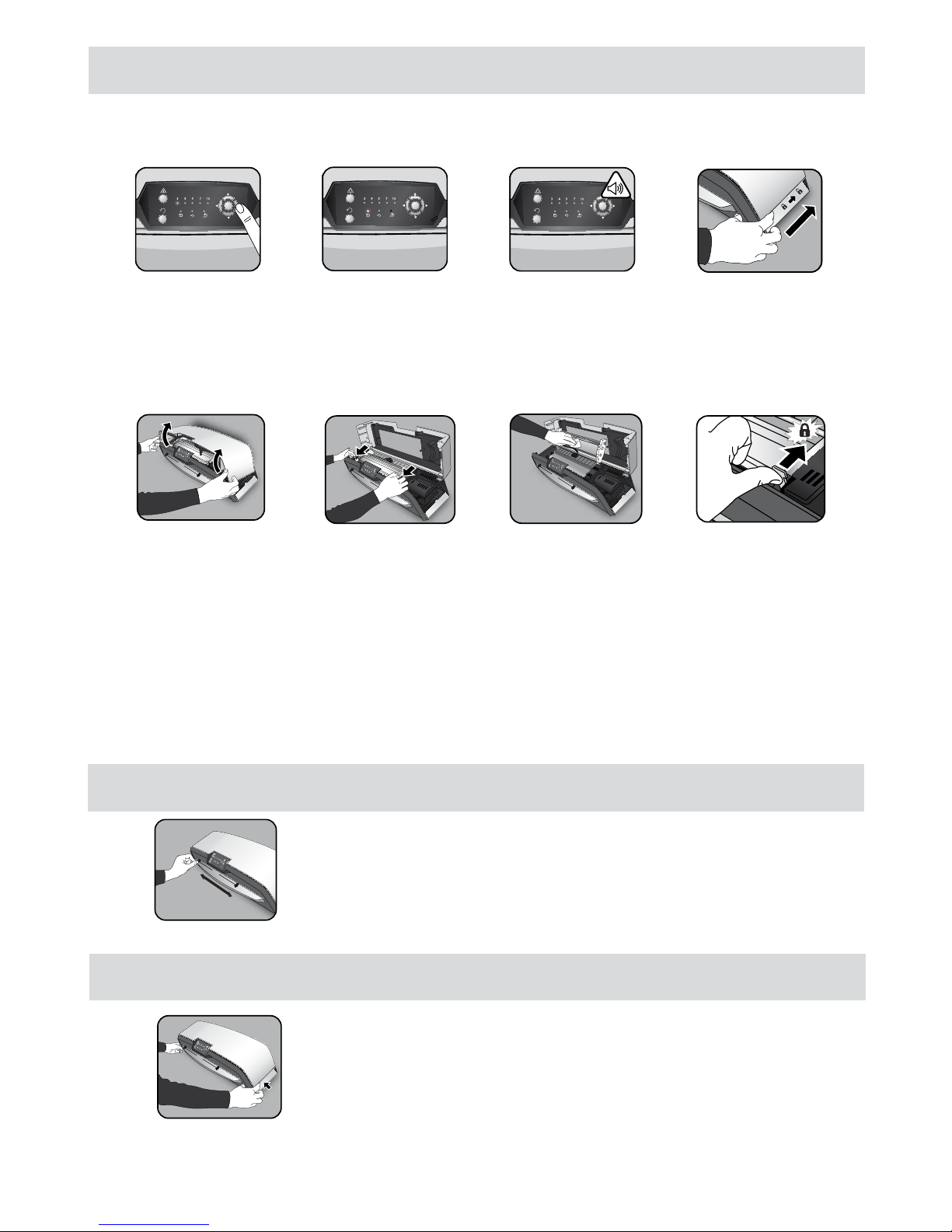

The TitanTM laminator can be opened manually by selecting the ‘open’ setting ( ) on the control panel.
Please note: the power supply and the machine must both be ON to release the electronic safety catch.
MAINTENANCE - Easy-Access™
Select the ‘open’ setting
( ) using the naviga-
tion buttons on the
control panel. Press ‘OK’
button.
The ready LED will
flash and the machine
will cool down. This
may take between
30-60 minutes.
When the machine has
cooled to a safe tempera-
ture, the ready LED will
stop flashing and an alert
will sound.
To open the top cover,
move the levers on each
side of the machine
backwards to release the
electronic safety catch.
Lift the top cover
with both hands. The
laminating engine and
belt-drive mechanism
will be visible.
To open the belt-drive
mechanism, Pull the 2 cam
levers forwards, on each
side of the mechanism. The
upper carriage can now be
lifted upwards from the
front. Lift the carriage and
open fully until it stops in
the rest position.
Take care when cleaning
any residue from the
rollers. Fellowes laminator
wipes (CRC# 57037) are
recommended.
IMPORTANT:
When closing the mecha-
nism, ensure the 2 cam
levers are both pushed
forwards to lock the belt-
drive carriage correctly
in position. The lid can be
closed when the carriage
is correctly locked.
7
The Entry Guide can be manually adjusted (especially for smaller documents) to ensure the
items are best supported when inserted and helps avoid mis-feeds.
ADJUSTABLE ENTRY GUIDE
The TitanTM laminator has integrated carry points for safe and easy movement of the laminator
– push in the flaps on both ends of the laminator to access them.
INTEGRATED CARRY POINTS

Fellowes warrants all parts of the laminator to be free of defects in material and workmanship for 2 years from the date of
purchase by the original consumer. If any part is found to be defective during warranty period, your sole and exclusive remedy
will be repair or replacement, at Fellowes’ option and expense, of the defective part. This warranty does not apply in cases of
abuse, mishandling or unauthorized repair. Any implied warranty, including that of merchantability or fitness for particular
purpose, is hereby limited in duration to the appropriate warranty period set forth above. In no event shall Fellowes be liable for
any consequential damages attributable to this product. This warranty gives you specific legal rights. You may have other legal
rights that vary from this warranty. The duration, terms and conditions of this warranty are valid worldwide, except where differ-
ent limitations, restrictions or conditions may be required by local law. For more details or to obtain services under this warranty,
please contact Fellowes or your dealer.
WORLDWIDE WARRANTY
Thank you for purchasing a Fellowes product. Please visit www.fellowes.com/register to register your product and benefit from
product news, feedback and offers. Product details can be found listed on the rating plate positioned on the rear side or underside
of the machine.
PRODUCT REGISTRATION
8
Unplug the machine at the wall. Allow the machine to cool.
The outside of the machine can be cleaned with a damp cloth. Do not use solvents or flammable materials to polish the machine.
Cleaning sheets (CRC# 53206) can be used with the machine. When the machine is warm, run the sheets through the machine to
clean any residue off the rollers.
STORAGE & EXTERNAL CLEANING

TROUBLESHOOTING
9
Problem Possible cause Solution
No ‘red’ power on LED Machine is not switched on Switch on machine at rear next to plug
inlet and at the wall socket
Ready light does not come on after a
long period Machine is in a hot or humid area Move the machine to a cooler and dry area
Pouch does not completely seal the item
Item may be too thick to laminate Pass through the machine again
Thickness setting may be incorrect Check pouch thickness is correctly
selected and pass through again
Pouch has waves or bubbles Thickness setting may be incorrect Check pouch thickness is correctly
selected and pass through again
Pouch is lost in the machine Pouch is jammed
Select reverse button and pull out the
item by hand. Select the open machine
setting and clean the rollers.
Jamming
Pouch was used ‘open end’ first
Pouch was not centered on entry
Pouch was not straight upon entry
Empty pouch was used
Pouch is damaged after lamination Damaged rollers or adhesive on rollers
Pass cleaning sheets (CRC# 53206)
through the machine to test and clean
rollers. Select the open machine setting
and clean the rollers with Fellowes
roller wipes (CRC# 57037).
Cannot open top cover to gain ‘Easy
Access’
Top cover locking screw is still located on the
left side of the machine
Remove the screw then open the lid
as advised.
Small pouch is lost in the machine Pouch may be too small to use without a
carrier
Select ‘Easy Access’ and open the
machine. Remove the pouch and
laminate small pouches with a carrier
or on a sheet of paper.

CARACTÉRISTIQUES
Pendant la plastification:
- brancher l’appareil dans une prise électrique facilement accessible.
- pour prévenir les chocs électriques, ne pas utiliser l’appareil près de l’eau, ne pas renverser d’eau sur l’appareil, le cordon
d’alimentation ou la prise murale.
- lors de plastification avec de très petites pochettes (moins de 75mm/3po de long), placer la pochette dans un transporteur ou sur
une feuille de papier.
Performance
Largeur d’entrée 317mm (12,5po)
Temps de préchauffage estimé 4minutes
Temps de refroidissement 30 à 60minutes
Vitesse de plastificationvariable – max. 90cm(35po)/min
Mécanisme de plastification À courroie
Indication prêt à l’emploi Voyant et bip sonore
Mécanisme d’ouverture
Easy-Access(facile d’accès) Oui
Technologie HeatGuard™ Oui
Trajet libre Oui
Arrêt automatique Oui (30min)
Plastifie les photos Oui
Nécessite un transporteur Non
Données techniques
Voltage/Fréquence/
Courant (ampères) 120V c.c, 60Hz, 8.5A
Puissance 1100watts
Dimensions (L x P x H)
634mm x 215mm x 159mm (25po x 8,5po x 6,3po)
Poids net 10kg (22lb)
Capacité de plastification (épaisseur max.) 0.04”
Épaisseur maximale de la pochette
10mm /250micron
(épaisseur totale = 2 x 10 = 20mm)
IL FAUT s’assurer que l’appareil soit sur une surface stable.
IL FAUT faire un essai de plastification sur des feuille de
rebut avant de plastifier les documents finaux.
IL FAUT enlever les agrafes et autres pièces métalliques
avant de plastifier.
IL FAUT garder l’appareil loin de toutes sources de chaleur
et d’eau.
IL FAUT éteindre l’appareil après chaque utilisation.
IL FAUT débrancher l’appareil quand il n’est pas utilisé pour
une période prolongée.
IL FAUT utiliser les pochettes conçues pour l’utilisation avec
des réglages appropriés.
IL FAUT garder l’appareil loin des animaux domestiques
quand il est utilisé.
IL FAUT utiliser seulement les lingettes pour rouleau
Fellowes (article no57037) pour le nettoyage interne.
IL NE FAUT PAS utiliser l’appareil si le cordon
d’alimentation est endommagé.
IL NE FAUT PAS tenter d’ouvrir ou de réparer de
quelque façon que ce soit l’appareil au-delà des fonctions
d’accès facile.
IL NE FAUT PAS dépasser les caractéristiques de
fonctionnement citées de l’appareil.
IL NE FAUT PAS laisser les jeunes enfants utiliser cet
appareil sans la supervision d’un adulte.
IL NE FAUT PAS plastifier des objets coupants ou
métalliques (ex: agrafes, trombones).
IL NE FAUT PAS plastifier des documents sensibles à la
chaleur (ex: billets, ultrasons, etc.).
IL NE FAUT PAS plastifier les pochettes autocollantes
(qui requièrent une plastification à froid).
IL NE FAUT PAS plastifier une pochette vide.
IL NE FAUT PAS utiliser d’objet coupant pour nettoyer
la plastifieuse.
CONSIGNES DE SÉCURITÉ IMPORTANTES
10
FRANÇAIS
MISE EN GARDE:
Veuillez lire avant l’utilisation et garder pour consultation future.
F
