Fellowes 120-2 User manual

120-2
120C-2
Get More Done Today™
English Français Español Deutsch Italiano Nederlands Svenska Dansk Suomi Norsk Polski
Русский

A
C
B
D
B
EF
G
J
HI
K

2
Contents
Product Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Set-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Supplies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Dear Customer,
Thank you for buying a Fellowes Commercial Shredder. We
have made many improvements in our commercial shredder
since its introduction in 1982. We are confident that it offers you
the greatest value for your money in its product category today.
We hope it meets – or even exceeds – your expectations.
To ensure years of safe, efficient use, please read these few
pages about your new shredder. If this manual doesn’t answer
all your questions or if you wish to comment on this product, we
welcome your call or letter.
Sincerely,
James Fellowes
Chairman & CEO

3
English
Product Profile
This product is built to shred paper, staples, small paper clips
and credit cards . It is not built to shred adhesive labels, trans-
parencies, newspaper, cardboard, large paper clips, or plastic
(other than credit cards). Attempting to shred items not intended
for this shredder may cause damage.
Strip-Cut Strip-cut Confetti-cut
(120-2) (120-2) (120C-2)
Sheet capacity* 18-20 sheets 16-18 sheets 12-14 sheets
Paper shred size 5,8 mm 3,9 mm 3,9 x 25 mm
Maximum paper width 241 mm 241 mm 241 mm
Recommended daily capacity 4,000 sheets 4,000 sheets 2,000 sheets
*Based on A4 (70 g/m2) paper with shredder operating at rated voltage; heavier paper, high humidity, or other than rated
voltage may reduce sheet capacity.
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING
While setting up shredder
•Check shredder for damage or defects; some paper particles in the basket are normal
due to product testing and does not indicate a defect.
•Avoid touching exposed blades on underside of confetti-cut shredder head.
•Plug power cord in an outlet that can easily be reached. The plug is the primary electri-
cal disconnect.
•Make sure the electrical rating listed on the serial label (located inside, just below top of
shredder) matches the available electric power.
•Do not place shredder near or over a heat or water source.
While operating shredder
•Keep hands and hanging objects (jewelry, ties, loose clothing,
long hair, etc.) away from paper entry.
•Keep children and pets away from the shredder.
When not in use
•Always turn off and unplug shredder.
•Unplug before emptying basket.
•Do not open shredder head: Danger of electric shock.
Opening shredder head will void the warranty.
NOTE: Do not use flammable synthetic oil, petroleum-based products or aerosols of any
kind on or near product at any time.

4
English
Set-Up

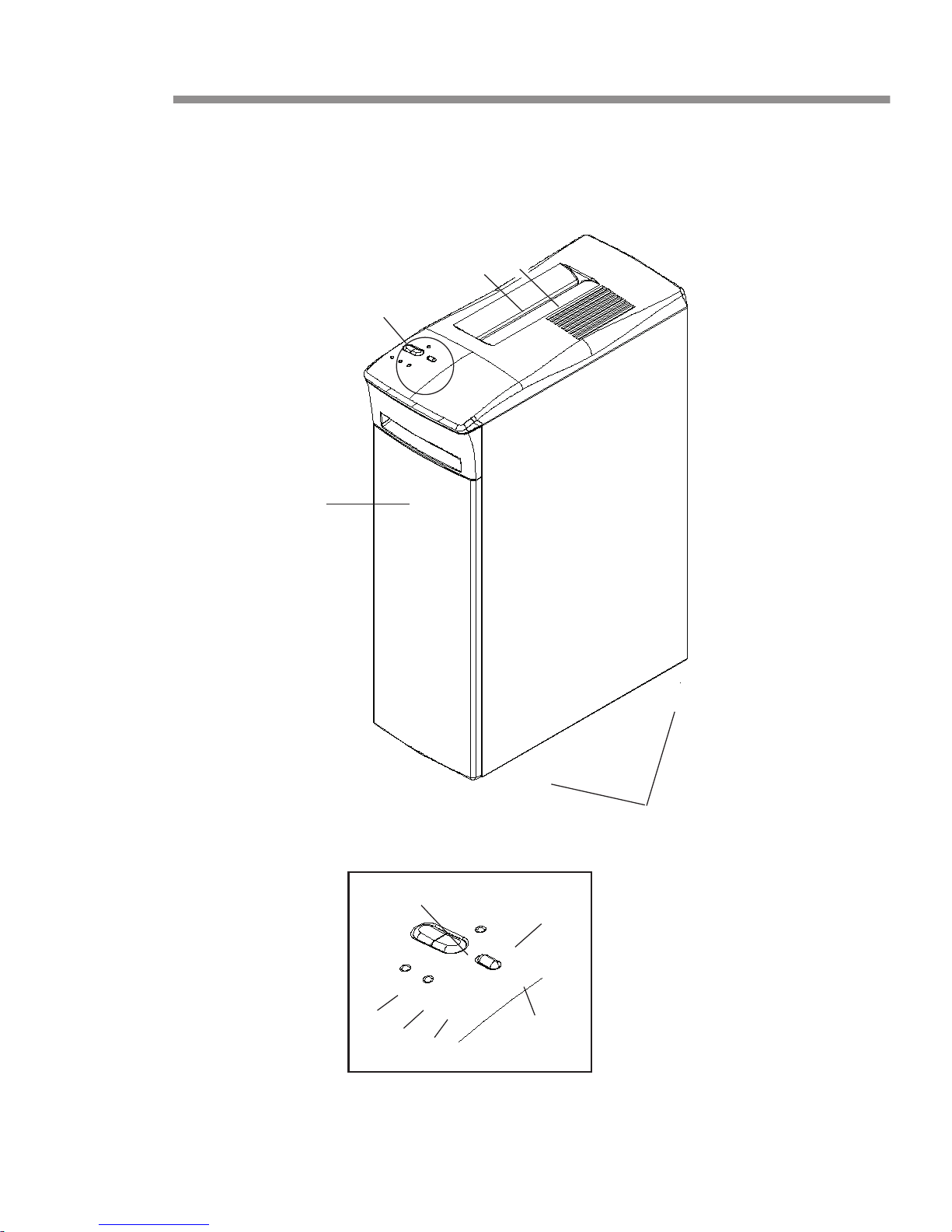

•Turn retractable feet (D) to outward position. This will improve stability. The feet should be
turned outward if shredder will not be placed between furniture.
•Pull waste basket drawer (A) completely out of cabinet.
•Put waste bag in basket (sample bags provided). Allow edges to overhang. Contact
Fellowes to order more bags. (Part #36054).
•Slide waste basket drawer (A) into cabinet. The shredder will not operate if drawer is not
pushed all the way into cabinet.
•Plug power cord into a convenient outlet.
Operation
Control Switches
Control Switch (E)
IAUTOMATIC
Turns on the automatic-start
sensor and the green Ready
light.
OOFF
Turns off the automatic-start
sensor and the green Ready
light.
RREVERSE
Runs shredder in reverse mode.
Press and hold to activate.
Manual Forward Button (G)
Runs shredder when
button is held down.
EF
G
I
H
J
Troubleshooting Lights
Ready Light (F)
(Green)
Shredder is in automat-
ic start mode.
Basket Ajar (H)
Waste basket drawer is
open.
Basket Full (I)
Waste basket is full or
paper has collected
under cutting cylinders.
Paper Jam (J)
Shredder is jammed
(e.g., too much paper
fed at one time).
For convenience and energy savings, your shredder is equipped with an automatic-
start sensor (K). This means that when the control switch (E) is in the automatic [I] posi-
tion, the shredder will start running when you put paper into it and stop a few seconds
after the paper has passed through.
CAUTION: The automatic-start sensor cannot tell the difference
between paper and other objects. This feature can also be a hazard.
Always turn off the shredder when it is not in use. Unplug the shredder
if it will not be used for an extended period.
To shred
• Press control switch (E) to automatic [I] position. Green ready light (F) should turn on.
• Feed paper straight into entry (C), releasing when shredder begins shredding; see
Product Profile for limits on paper width, shreddable items, sheet capacity, etc.

5
English
To empty waste basket
If basket full light (I) is on, follow these steps until light turns off.
•Press manual forward button (G) to finish shredding any paper in paper entry.
– Press control switch (E) to the off [O] position.
– Open the waste basket drawer (A) and remove full bag.
– Place new bag in basket, then slide drawer into cabinet.
•Press and hold control switch (E) in the reverse [R] position for a few seconds to clear
paper shreds that have collected under cutting cylinders.
– Alternate between manual forward (G) and reverse [R] for a few seconds in each
position.
CAUTION: The shredder may be damaged if you alternate too rapidly between forward
and reverse.
•Unplug shredder and remove wastebasket drawer (A).
– Carefully clear any paper shreds that have collected on under side of paper entry (C).
CAUTION: Model 120C-2 (confetti cut model) has exposed blades.Use care when
removing paper shreds on underside of paper entry.
To clear a paper jam
If paper jam light (J) is on, follow these steps until light turns off.
•Check the waste basket and empty if full.
•Press and hold control switch (E) in the reverse [R] position to back paper out of paper
entry (C). Try pulling gently on paper to remove it from shredder.
•Alternate between forward and reverse, if needed:
– Press and hold manual forward button (G) for a few seconds.
– Press and hold control switch (E) in the reverse [R] position for a few seconds.
– Continue alternating between forward and reverse until the jam clears.
CAUTION: The shredder may be damaged if you alternate too rapidly between forward
and reverse.
Maintenance
Empty waste basket regularly to ensure the smooth functioning of the cutting cylin-
ders. The shredder will not operate when the basket is full.
Oil confetti-cut model (120C-2) regularly to ensure proper operation.
If used at or near daily capacity, apply oil every time you empty the basket.
Use Fellowes Powershred Lubricant #35250 or other non-aerosol vegetable-
based oil in a long-nozzle container (sample oil provided).
CAUTION: Do not use flammable synthetic oil, petroleum-based products, or aerosol
lubricants of any kind.
To oil the cutting cylinders
•Apply oil over full width of cutting cylinders through the paper entry (C).
•Press and hold the manual forward button (G) for at least 3 seconds.
•Press and hold the control switch (E) in reverse [R] for at least 3 seconds.
•Repeat the forward/reverse sequence 3 or more times.
2
1
3

6
English
Troubleshooting
If there is a problem with your shredder, check these symptoms and remedies. If you can-
not solve the problem, call your local dealer or contact Fellowes directly. Do not open
shredder head to attempt repair. You could be exposed to serious electric shock and
will void the warranty.
Symptom
Ready Light (F) will not light
Shredder does not start or stops while
shredding
Basket ajar light (H) is on
Basket full light (I) is on
Paper jam light (J) is on
Confetti-cut shredder (120C-2): Shredder
sheet capacity decreases, noise level
increases, or cutting cylinders stop with a
squeak or rubbing sound
Shredder runs for a few seconds after the
paper has cleared the cutters
Remedy
Make sure shredder is plugged in and
the control switch (E) is in the automatic [I]
position.
• Make sure shredder is plugged in and
control switch (E) is in the automatic [I]
position.
• Shredder is jammed. Follow the
instructions under Operation.
Make sure the waste basket drawer (A) is
all the way into the cabinet.
Empty the waste basket. Follow the
instructions under Operation.
Clear the paper jam. Follow the
instructions under Operation.
Oil the cutting cylinders. Follow the
instructions under Maintenance.
No action required. This is a self-cleaning
function.
Supplies
The following items for the 120-2 and 120C-2 shredders are available from Fellowes:
Item Quantity Part Number
Waste bags (in dispenser) 50/roll 36054
Waste basket (box) 1 box 400008
Powershred Lubricant (120C-2 only) 12 oz. bottle 35250
To purchase supplies, contact Fellowes at the appropriate location listed on the back
page of this instruction manual, or visit us at
www.fellowes.com .

7
English
Fellowes conducts extensive testing to ensure that these shredders are capable of meeting all of the specifications listed
in the Product Profile (see page 3). However, the actual sheet capacity is dependent on a number of factors including
the type and weight of paper, the humidity, the voltage level of the power source, the temperature of the motor, and the
care with which the operator feeds the paper. Safety agency testing is conducted to ensure that the shredder will oper-
ate to specifications even if the available voltage is 10% below or 6% above the rated voltage. During this testing 2.5
minutes was taken to empty the basket each time it filled and the following capacities were used for temperature rise
testing: Cut Size Number Paper Size
Voltage Hertz & Type of Sheets & Weight
220-240 VAC 50 Hz 3,9 mm Strip Cut 17 A4 70 g
220-240 VAC 50 Hz 5,8 mm Strip Cut 19 A4 70 g
220-240 VAC 50 Hz 3,9 mm Confetti Cut 13 A4 70 g
120 V 60 Hz 5,8 mm Strip Cut 19 8.5x11 20 lb
120 V 60 Hz 3,9 mm Confetti Cut 13 8.5x11 20 lb
100 V 50/60 Hz 3,9 mm Strip Cut 17 A4 70 g
100 V 50/60 Hz 3,9 mm Confetti Cut 13 A4 70 g
Limited Warranty
Fellowes, Inc. ("Fellowes") warrants the cutting blades of the machine to be free from
defects in material and workmanship for 20 years from the date of purchase by the origi-
nal consumer. Fellowes warrants all other parts of the machine to be free of defects in
material and workmanship for 2 years from the date of purchase by the original con-
sumer. If any part is found to be defective during the warrant period, your sole and
exclusive remedy will be repair or replacement, at Fellowes’ option and expense, of the
defective part.
This warranty does not apply in cases of abuse, mishandling or unauthorised repair.
ANY IMPLIED WARRANTY, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE, IS HEREBY LIMITED IN DURATION TO THE APPROPRIATE
WARRANTY PERIOD SET FORTH ABOVE. In no event shall Fellowes be liable for any
consequential or incidental damages attributable to this product. This warranty gives you
specific legal rights. You may have other legal rights that vary. The duration, terms and
conditions of this warranty are valid worldwide, except where different limitations, restric-
tions or conditions may be required by local law.
For more details or to obtain service under this warranty, please contact:
EUROPEAN CONSUMER HELPLINE
00 800 1810 1810
(Accessible via most major telephone networks)
OR the nearest Fellowes location listed on the back page of this user manual.
Warrantor: Fellowes, Inc.

© 2002 Fellowes Printed in China. Form No. 400006
www.fellowes.com
All European Countries
European Consumer Helpline
00 800 1810 1810
(Accessible via most major telephone networks)
France + 33 (0) 2-99-22-71-22
Germany + 49 (0) 5131-4977-0
Italy + 39 (0) 071-730041
Poland + 48-22-837-7356
The Netherlands + 31 (0) 347-377988
United Kingdom + 44 (0) 1302-836836
Declaration of Conformity
Fellowes
Yorkshire Way, West Moor Park,
Doncaster, South Yorkshire, DN3 3FB England
declares that the product
Models 120-2 and 120C-2
conform with the requirements of the Low Voltage Directive (73/23 EEC) and the
Electromagnetic Compatibility Directive (89/336 EEC) and the following harmonized
European Normes (EN Standards) and IEC Standards.
Safety: EN60950 ‘Information Technology Equipment’
EMC: Standard Severity Level Performance Criteria
EN 61000-4-2: 1995 3AD, 2CD B
EN 61000-4-4: 1995 2 B
EN 61000-4-5: 1995 2DM, 3CM B
EN 61000-4-6: 1996 2 A
EN 61000-4-11: 1994 per table 13 C
EN55014-1:2000
EN 61000-3-2;1995 Class A
+A1: 1998, +A2: 1998, +A14:2000
EN 61000-3-3:1995
+A1:2001
Itasca, Illinois, USA _____________________
2 September 2002 Anthony Storrie
