Fellowes POWERSHRED 425Ci User manual

Quality Office Products Since 1917
Please read these instructions before use.
Do not discard: keep for future reference.
©2015 Fellowes, Inc. Part No. 409356
Canada [phone]
Mexico +001-800-514-9057
United States [phone]
Questions or Concerns?
www.fellowes.com
Troubleshooting
Registration
Manuals
Customer Service & Support
Troubleshooting
Replacement parts
General questions
POWERSHREDTM
425Ci/425i/485Ci/485i
POWERSHREDTM
425Ci/425i/485Ci/485i
Factory Service

14 15

Will shred: Paper, 132 column continuous form, credit cards, CD/DVDs, staples, paper
clips and junk mail
Will not shred: Adhesive labels, transparencies, newspaper, cardboard, large paper clips,
laminates, file folders, X-rays or plastic other than noted above
Paper shred size:
Cross-Cut (425Ci, 485Ci)............................................5/32 in. x 1-1/8 in. (4mm x 30mm)
Strip-Cut (425i, 485i).............................................................................7/32 in. (5.8mm)
Maximum:
Sheets per pass (Cross-cut)........................................................................................... 28*
Sheets per pass (Strip-cut) ........................................................................................... 38*
CDs/Cards per pass ....................................................................................................... 1*
Paper entry width (485Ci, 485i) ................................................................16 in. (407mm)
Paper entry width (425Ci, 425i) ................................................................12 in. (305mm)
*8.5”x11”, 20lb., (75g) paper at 120V, 60 Hz, 12Amps; heavier paper, humidity
or other than rated voltage may reduce capacity. Maximum recommended daily usage
rates: 10,000 sheets per day, 500 credit cards; 50 CDs.
Fellowes SafeSense®shredders are designed to be operated in office environments ranging between
50 – 80 degrees Fahrenheit (10 – 26 degrees Celsius) and 40 – 80% relative humidity.
AUTO
AUTO
C-485C
J.
K. I.
H.
2
ENGLISH
Models 425Ci/425i/485Ci/485i
15
15
15
• Operation, maintenance, and service requirements are covered in the
instruction manual. Read the entire instruction manual before operating
shredders.
• Keep away from children and pets. Keep hands away from paper entry.
Always set to off or unplug when not in use.
• Keep foreign objects – gloves, jewelry, clothing, hair, etc. – away from
shredder openings. If object enters top opening, switch to Reverse ( )
to back out object.
• Never use aerosol products, petroleum based lubricants or other
flammable products on or near shredder. Do not use canned air
on shredder.
• Do not use if damaged or defective. Do not disassemble shredder.
Do not place near or over heat source or water.
• This shredder has a Disconnect Power Switch (G) that must be in the ON (I)
position to operate shredder. In case of emergency, move switch to OFF (O)
position. This action will stop shredder immediately.
• Avoid touching exposed cutting blades under shredder head.
• Use only designated entry for CDs/cards. Keep fingers away from CD entry.
• Do not put foreign objects in paper entry.
• Shredder must be plugged into a properly grounded wall outlet or socket of the
voltage and amperage designated on the label. The grounded outlet or socket
must be installed near the equipment and easily accessible. Energy converters,
transformers, or extension cords should not be used with this product.
• FIRE HAZARD – Do NOT shred greeting cards with sound chips or batteries.
• For indoor use only.
• Unplug shredder before cleaning or servicing.

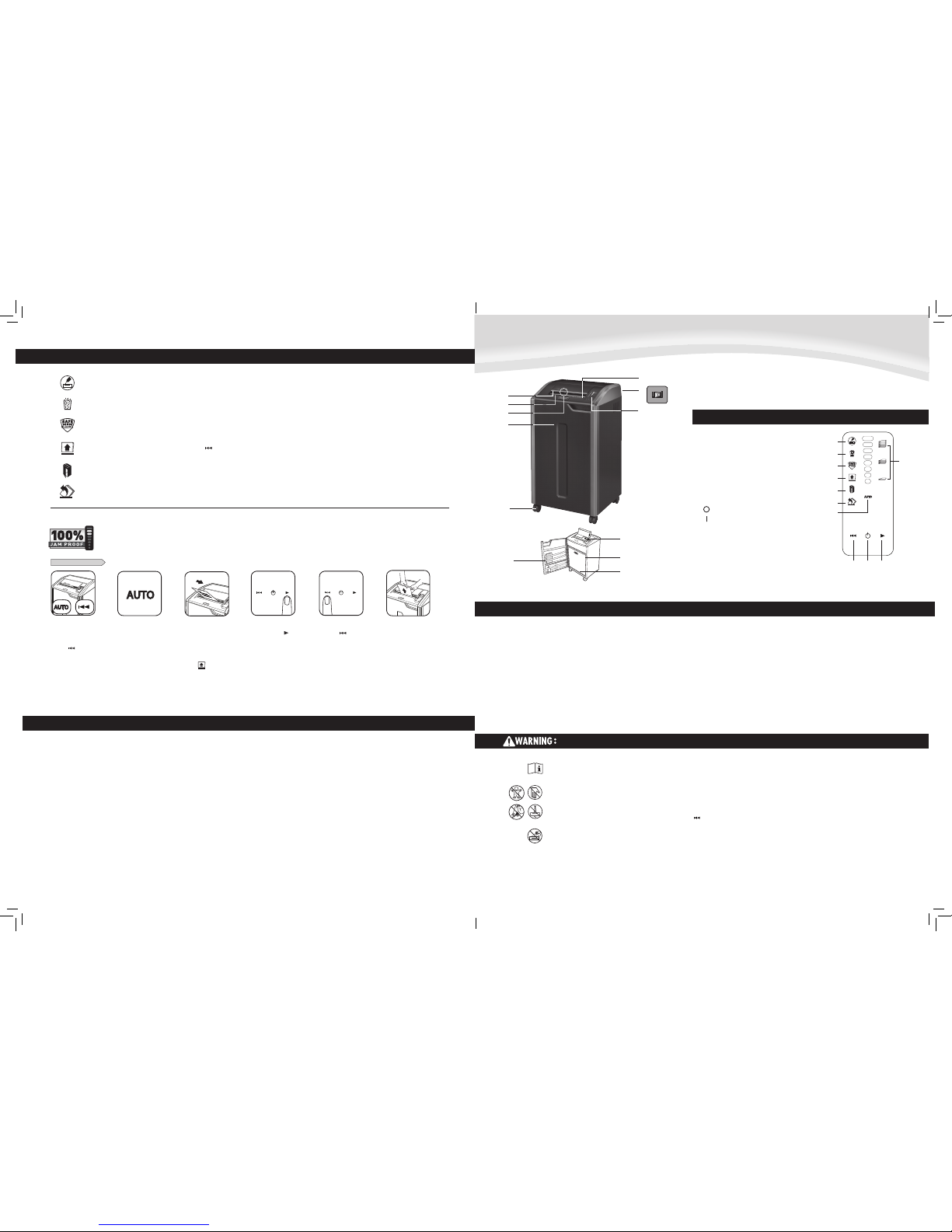

KEY
A. SafeSense
®
Technology
B. Paper entry
C. CD, credit card and
junk mail entry
D. Door
E. Casters
F. See safety instructions
G. Disconnect power switch
1. OFF
2. ON
H. Oil reservoir
425Ci and 485Ci only
I. Oil drain plug (inside)
425Ci and 485Ci only
J. Basket
K. Accessory tray
L. Control panel
1. Sheet capacity indicator
2. Low oil indicator (red)
425Ci and 485Ci only
3. Bin full (red)
4. SafeSense
®
(yellow)
5. Remove paper (red)
6. Door open (red)
7. Straight feed (red)
8. Auto button
9. Reverse
10. ON/OFF (blue)
11. Forward 11.10.9.
1.
8.
7.
6.
5.
4.
3.
2.
IMPORTANT SAFETY INSTRUCTIONS — Read Before Using!
15
CAPABILITIES
G.
F.
A.
C.
B.
D.
E.
L.
5
PREVENTIVE MAINTENANCE & ACCESSORIES
LIMITED PRODUCT WARRANTY
Limited Warranty: Fellowes, Inc. (“Fellowes”) warrants the parts of the machine to be free
of defects in material and workmanship and provides service and support for 1 year from
the date of purchase by the original consumer. Fellowes warrants the cutting blades of the
machine to be free from defects in material and workmanship for 1 year from the date of
purchase by the original consumer. If any part is found to be defective during the warranty
period, your sole and exclusive remedy will be repair or replacement, at Fellowes’ option and
expense, of the defective part. This warranty does not apply in cases of abuse, mishandling,
failure to comply with product usage standards, shredder operation using an improper power
supply (other than listed on the label), or unauthorized repair. Fellowes reserves the right to
charge the consumers for any additional costs incurred by Fellowes to provide parts or services
outside of the country where the shredder is initially sold by an authorized reseller. ANY IMPLIED
WARRANTY, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE,
IS HEREBY LIMITED IN DURATION TO THE APPROPRIATE WARRANTY PERIOD SET FORTH ABOVE.
In no event shall Fellowes be liable for any consequential or incidental damages attributable to
this product. This warranty gives you specific legal rights. The duration, terms, and conditions of
this warranty are valid worldwide, except where different limitations, restrictions, or conditions
may be required by local law. For more details or to obtain service under this warranty, please
contact us or your dealer.
Should you choose to
disable the system, press
and hold the auto and
reverse ( ) buttons at
the same time
DISABLING THE FEATURE
Once disabled, the
blue Auto light is
no longer illuminated
(To re-engage,
repeat step 1)
Shredding can continue
with the system disabled;
however, a paper jam
may occur with too many
sheets and Remove Paper
icon
() will illuminate
If jam occurs, press and
hold forward ( )
button until the document
is completely through the
shredder
If not cleared, press
reverse ( ) briefly
(repeat steps 4 and 5
until shredded)
If steps 4 and 5 do
not clear jam, reverse
paper all the way out,
remove several sheets
and refeed
AUTO
2
AUTO
C-485Ci
34 45
AUTO
C-485Ci
6
TROUBLESHOOTING
Eliminates paper jams and powers through tough jobs.
JAM PROOF SYSTEM*
*100% Jam Proof when used in accordance with user manual
AUTO
C-485Ci
1
AUTO
AUTO
Straight Feed Indicator: When illuminated, remove paper and feed straight into paper entry.
Low Oil Indictor: When illuminated, the shredder is out of oil and needs to be refilled. See the Product Maintenance section for refill instructions.
For optimum performance, use Fellowes oil (35250). *Auto Oil™ is only featured on cross cut models – 425Ci and 485Ci.
Bin Full Indicator: When illuminated, the shredder waste bin is full and needs to be emptied. Use Fellowes waste bag 3605801.
Door Open Indicator: The shredder will not run if the cabinet door is open. When illuminated, close the door to resume shredding.
Remove Paper Indicator: When illuminated, press reverse ( ) and remove paper. Reduce paper quantity to an acceptable amount and refeed into paper entry.
SafeSense®Indicator: If hands are too close to the paper entry, the SafeSense®indicator will illuminate and the shredder will stop shredding. If SafeSense®
is active for 3 seconds, the shredder will automatically turn off and the user must press the power button on the control panel to resume shredding.

4
SET-UP AND TESTING
AUTO
C-485Ci
AUTO
C-485Ci
2 4
1
AUTO
C-485Ci
3
AUTO
C-485Ci
3
AUTO
C-485Ci
WHEN IN SLEEP MODE
1
In sleep mode To get out of sleep mode
touch control panel
insert paper
or
2
CLEANING AUTO-START INFRARED SENSORS
PRODUCT MAINTENANCE
Paper detection sensors are designed for maintenance free operation. However, on rare occasions, the sensors may become blocked by paper dust causing the motor to run
even if there is no paper present. (Note: two paper detection sensors are located in the center of the paper entry.)
TO CLEAN THE SENSORS
Turn off and unplug
shredder
Lift CD flap Locate Auto-start
infrared sensor
Dip cotton swab in
rubbing alcohol
Using cotton swab, wipe
away any contamination
from the paper sensors
4
C-485C
3
C-485C
5
1
AUTO
C-485C
2
REFILLING THE OIL
Low oil indicator will
signal when your reservoir
needs refilling
To maintain shredder
performance, refill oil
reservoir with up to
12
oz. (355 ml.)
of shredder
oil (Fellowes 35250)
Once refilled, automatic
oiling will resume
• All cross-cut shredders require oil for peak performance. If not oiled, a machine may experience diminished sheet capacity, intrusive noise when shredding and
could ultimately stop running. We recommend that you refill the Auto OilTM reservoir as instructed for optimum performance.
• If shipping shredder, oil must be drained. Open cabinet door and remove basket to access oil drain plug. Place suitable container under drain,
remove plug and let oil drain out. Replace plug.
AUTO OILTM
Automatically oils the cutters to enhance performance and extend shredder life.
(Auto oil system is only included on cross-cut models - 425Ci and 485Ci)
AUTO
C-485C
2
1
ENGLISH
Models 425Ci/425i/485Ci/485i
AUTO
C-485Ci
3
ADVANCED PRODUCT FEATURES
SAFESENSE®TECHNOLOGY OPERATION
Stops shredding immediately when hands touch the paper opening.
For more information about all of Fellowes Advanced Product Features go to www.fellowes.com
ENERGY SAVINGS SYSTEM
• Saves energy in four ways: energy-efficient electronics, jam prevention,
standby mode and sleep mode.
• Sleep Mode shuts down shredder after 2 minutes of inactivity.
Optimal energy efficiency 100% of
the time – in use and out of use.
Turn the shredder ON
( ) to activate
SafeSense
®
Touch test area and
look for the SafeSense
®
indicator to illuminate
SafeSense
®
is active and
working properly
If hand is held on SafeSense
®
area more than 3 seconds
shredder will shut off
3
AUTO OIL™ OPERATION
AUTO
C-485C
1
Press the auto and forward
buttons at the same time for
3 seconds to manually oil
shredder
Before using, fill oil reservoir
with 12 oz. (355 ml.) of
Fellowes shredder oil
To maintain shredder
performance, refill oil
reservoir with up to 12 oz.
(355 ml.) of shredder oil
(Fellowes #35250)
Low oil indicator will
signal when your
reservoir needs refilling
Once refilled, automatic
oiling will resume
SET-UP AND TESTING REFILLING OIL
1
AUTO
C-485C
2
Lubricates the cutters automatically to enhance performance and extend shredder life
(Auto oil system is only included on cross-cut models - 425Ci and 485Ci.)
AUTO
C-485C
2
AUTO
AUTO
Eliminates paper jams and powers through tough jobs.
JAM PROOF SYSTEM OPERATION*
*100% Jam Proof when used in accordance with user manual
STRAIGHT FEED
Advanced Jam Prevention- Electronically
measures paper thickness to prevent paper jams:
Remove several sheets until
indicator is below red. Continue 100% Jam
Proof Shredding
If a misfeed
occurs:
If illuminates after paper has been
reversed, press reverse and remove paper.
Otherwise, regular shredding will resume.
1 2 3
Up to RED: Too many
sheets have been inserted.
Up to GREEN: More sheets
can be added.
Up to YELLOW: Productivity
is optimized.
All indicators light up and
shredder pauses for 3-6 seconds
Wait for flashing to stop after automatic correction
is complete. Regular shredding will resume.
If Straight Feed indicator
illuminates, remove paper and
feed straight into shredder.
BASIC SHREDDING OPERATION
Press ( ) ON/OFF
to activate (blue)
Feed paper into paper
entry and release
Plug in and put
disconnect power
switch in ON (I) position
Feed CD, credit card
or junk mail into
designated entry
and release
or
Set to Off ( ) or
shredder will automatically
go into sleep mode after 2
minutes of inactivity
5
1
AUTO
C-485Ci
AUTO
C-485Ci
34
2
ADVANCED PRODUCT FEATURES
AUTO
C-485Ci
3
Auto OilTM
Lubricates the cutters
automatically to
enhance performance
and extend shredder life.
SafeSense®
Technology
Stops shredding
immediately when hands
touch the paper opening.
Jam Proof System
Eliminates paper jams
and powers through
tough jobs.
Energy Savings System
Optimal energy efficiency 100%
of the time – in use and out
of use.
