C-120i/C-120Ci
C-120i/C-120Ci
1789 Norwood Avenue, Itasca, Illinois 60143-1095 • USA • 630-893-1600
Australia Canada Deutschland France Japan Polska United Kingdom
Benelux China España Italia Koreva Singapore United States
2009 Fellowes, Inc. Part No. 403597 Rev E
Please read these instructions before use.
Do not discard: keep for future reference.
Help Line
Australia [phone]
Canada [phone]
Europe 00-800-1810-1810
Mexico [phone]
UnitedStates [phone]
WARRANTY
Our promise to you is quite simple. Fellowes shredders are built stronger, engineered to run longer,
resist jams and power through large jobs. The Fellowes worry free warranty described below covers
the performance of the product, provides for prompt service and support, plus a lifetime cutter
warranty.
Limited Warranty: Fellowes, Inc. (“Fellowes”) warrants the parts of the machine to be free of defects
in material and workmanship and provides service and support for 3 years from the date of purchase
by the original consumer. Fellowes warrants the cutting blades of the machine to be free from defects
in material and workmanship for the lifetime of the shredder. If any part is found to be defective
during the warranty period, your sole and exclusive remedy will be repair or replacement, at Fellowes’
option and expense, of the defective part. This warranty does not apply in cases of abuse, mishandling,
or unauthorized repair. ANY IMPLIED WARRANTY, INCLUDING THAT OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE, IS HEREBY LIMITED IN DURATION TO THE APPROPRIATE WARRANTY
PERIOD SET FORTH ABOVE. In no event shall Fellowes be liable for any consequential or incidental
damages attributable to this product. This warranty gives you specific legal rights. The duration, terms,
and conditions of this warranty are valid worldwide, except where different limitations, restrictions,
or conditions may be required by local law. For more details or to obtain service under this warranty,
please contact us or your dealer.

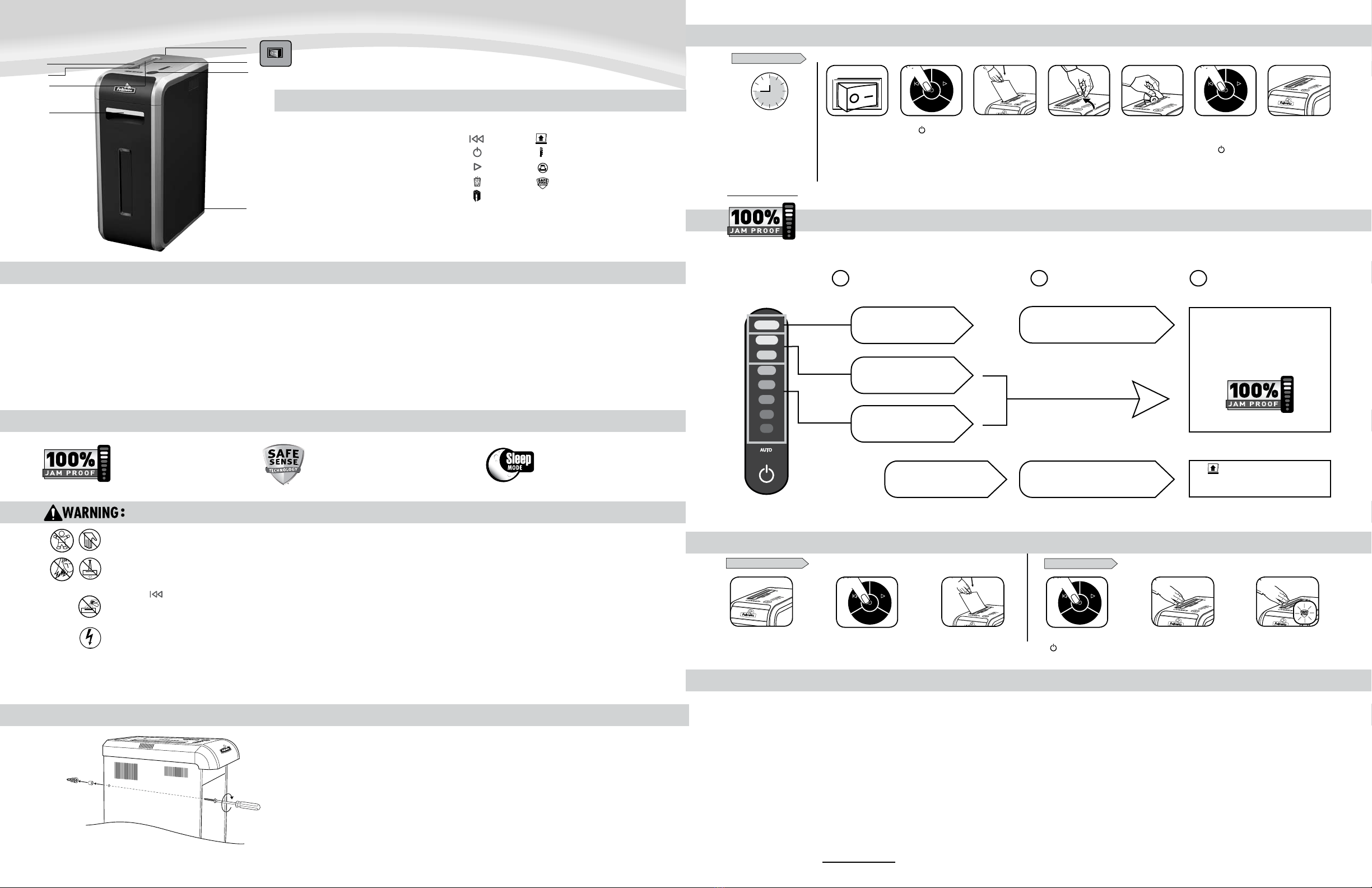

K. Control Panel and LEDs
1. Reverse
2. ON/OFF
3. Forward
4. Bin full
5. Door open
Jam Proof System
Eliminates frustrating jams
by preventing overloads and
powering through misfed paper
2
KEY
Patented SafeSense®Technology
Stops shredder immediately
when hands are too close to
the paper entry
CAPABILITIES
ADVANCED PRODUCT FEATURES
ENGLISH
Model C-120i/C-120Ci
Will shred: Paper, credit cards, CD/DVD’s, staples and small paper clips
Will not shred: Adhesive labels, continuous form paper, transparencies, newspaper,
cardboard, large paper clips, laminates, file folders, X-rays or plastic other than noted above
Paper shred size:
Cross-Cut.....................................................5/32 inches x 1-1/2 inches (3.9mm x 38mm)
Strip Cut........................................................................................... 7/32 inches (5.8mm)
Maximum:
Sheets per pass ........................................................................................................... 18*
CDs/Cards per pass ....................................................................................................... 1*
Paper entry width.................................................................................. 9 inches (230mm)
*8.5 inches x11 inches, 20lb., (75g) paper at 120V, 60 Hz, C-120i 6 Amps, C-120Ci
8 Amps; heavier paper, humidity or other than rated voltage may reduce capacity.
Recommended daily usage rates: 100-150 paper passes; 100 cards; 10 CDs
Fellowes SafeSense®shredders are designed to be operated in office environments ranging
between 50 – 80 degrees Fahrenheit (10 – 26 degrees Celsius) and 40 – 80% relative humidity.
A.
B.
D.
C.
K.
I.
G.
Sleep Mode
Energy saving feature shuts down
automatically after 2 minutes of
no shredding activity
A. SafeSense
®
Technology
B. Paper entry
C. CD entry
D. Door
E. Basket (paper)
F. Basket (CD)
G. See safety instructions
H. Casters (2)
I. Disconnect power switch
J. Shipping bolts (wing nuts)
To be removed prior to operation
6. Remove paper
7. Overheat
8. Sheet capacity indicator
9. SafeSense
®
indicator (yellow)
10. Auto button
H.
INSTALLATION INSTRUCTIONS
1.Place shredder against the wall (drywall, wooden, or concrete).
Mark screw locations on wall through back of cabinet.
2.Drill 1/4" hole in wall for the anchor plugs.
3.Insert white plastic anchor plugs into drilled holes.
4.Insert (2) screws through back of cabinet and thread black rubber spacer onto the screw.
5.From inside cabinet use Phillips screw driver to secure shredder to the wall.
IMPORTANT SAFETY INSTRUCTIONS — Read Before Using!
1 5
15
1 5
1 5
• Keepawayfromchildrenandpets.Keephandsawayfrompaper
entry. Always set to off or unplug when not in use.
• Keepforeignobjects–gloves,jewelry,clothing,hair,etc.–away
from shredder openings. If object enters top opening, switch to
Reverse ( ) to back out object.
• Never use aerosol products, petroleum based lubricants or other flammable
products on or near shredder. Do not use canned air on shredder.
• Donotuseifdamagedordefective.Donotdisassembleshredder.Do
not place near or over heat source or water.
• ThisshredderhasaDisconnectPowerSwitch(I)thatmustbeintheON
(I) position to operate shredder. In case of emergency, move switch to
OFF (O) position. This action will stop shredder immediately.
• Avoidtouchingexposedcuttingbladesundershredderhead.
• KeepfingerawayfromCDholewhenshredding.
• Donotputforeignobjectsinpaperentry.
• Thegroundedsocket-outletshallbeinstalledneartheequipmentandshallbe
easily accessible.
•
WARNING: Shredder Stability - Secure Shredder to wall with hardware
provided following the instructions under Installation Instructions.
• Product is intended for commercial use only, and not for use around children.
Eliminates frustrating jams by preventing overloads and powering through misfed paper.
JAM PROOF SYSTEM OPERATION*
*100% Jam Proof when used in accordance with user manual
PREVENTIVE MAINTENANCE AND MISCELLANEOUS TROUBLESHOOTING
•Forpeakperformance,werecommendoilingshreddereachtimewastebinisemptied.Onlyuseanon-aerosolvegetableoil.
Machines not oiled may lose sheet capacity, become noisy, and ultimately, stop running.
• Thoughpaperdetectionsensorsaredesignedtobemaintenancefree,thesensorsoccasionallybecomeblockedbypaperdust,causingthemotortoruneven 
if there is no paper present. Both sensors are located in the center of the paper entry.
• SelfCleaningCycle:Shredderperiodicallycyclesinforwardandreverselasting3-6seconds.
• Emptywastebasketwhenbinfullindicatorlightsup.
• Shredderwon’trunifthedoorisopen,orbinneedstobeemptied.
• Maintenanceisanimportantpartofprotectingyourinvestment.Don’tforgetouroil(35250)andshredderbags(36054).
• Whenshreddingforaprolongedperiodoftime,themotorcanbecomewarmandrequireacooldownperiod.Whenthisoccurstheoverheatindicatorwillalertyoutothe
problem, this model will require 45 minutes to cool down.
Go to Support Section at www.fellowes.com or see back page of manual for useful telephone numbers. 3
SAFESENSE®TECHNOLOGY OPERATION
SLEEP MODE
AUTO
WHEN IN SLEEP MODE
12 3
In sleep mode To get out of sleep mode
touch control panel
insert paperor
Advanced Jam Prevention- Electronically
measures paper thickness to prevent paper jams:
Continue 100% Jam
Proof Shredding
1 2 3
Up to RED: Too Many
sheets have been inserted.
Up to GREEN: More sheets
can be added.
Up to YELLOW: Productivity
is optimized.
If a misfeed
occurs:
If illuminates after paper has been
reversed, press reverse and remove paper.
Otherwise, regular shredding will resume.
All indicators light up and
shredder pauses for 3-6 seconds
Wait for flashing to stop after automatic correction
is complete. Regular shredding will resume.
SET-UP AND TESTING
AUTO
1
Turn the shredder ON
( ) to activate SafeSense
®
2
Touch test area and
look for the SafeSense
®
indicator to illuminate
SafeSense
®
is active and
working properly
3
Remove several sheets until
indicator is below red.
Do nothing and
shredder will go
automatically to
sleep mode
BASIC SHREDDING OPERATION
Press ( ) ON to
activate
PAPER/CARD OR CD
1
Feed paper/card
straight into paper
entry and release
3
Plug in and put
disconnect power
switch in ON (I)
position
To shred CDs rotate
CD flap into place
When finished
shredding set
to OFF ( )
or
7
www.fellowes.com features an extensive on-line support section with a number of self-service options
Continuous operation:
45 minutes maximum
NOTE: Continuous operation
beyond 45 minutes will trigger
45 minute cool down period.
4
AUTO
6
AUTO
2
Hold CD at edge,
feed into CD
entry and release
57
