Fencee energy Smart DUO EDW100 User manual

www.fencee.eu
www.fenceefarm.com
Insruction for use
fencee energy Smart DUO EDW100
fencee energy Smart DUO EDW150
230V ~ /12 V
STORED
ENERGY
OUTPUT
ENERGY
OUTPUT
VOLTAGE
OUTPUT
VOLTAGE 500 
SWITCHING
ON / OFF
energy Smart DUO EDW 100 13 J 10 J 10 500 V 7 500 V
energy Smart DUO EDW 150 20 J 15 J 10 500 V 7 500 V
300 km 90 km 22 km 10 km
350 km 120 km 28 km 16 km
Electric fencing
Smart Farm
fencee Cloud
System is pro-
tected in the EU
utility model.
EDW
EN
Control and monitor
through mobile application
PHONE
CONTROL FREE APP
fencee Cloud

Thank you for purchasing the product
of the company VNT electronics s.r.o.
The equipment conforms to safety regulations in accordance with
valid legislation as well as relevant EU (CE) regulations.
We also ask you to read these instructions for use before using the device carefully
and to keep it for possible application in the future.
Electric fence must be constructed so that persons are protected against
unintentional contact with pulses conductors under normal operating conditions.
From the point of view of legislation relate to the fences especially the standard
2014/35/EU - 2014/30/EU and
R&TTE EN300-220 a EN 61000-6-3:2007 + A1:2011
2
Smart Farm fencee Cloud System
is protected in the EU utility model.

3
1. CONTENT
1Content .......................................................................................... 3
2Important recommendations ............................................................... 4
3Package contents .............................................................................. 4
4Function electric fence ....................................................................... 5
5Introduction .................................................................................... 6
5.1 Remote control .............................................................................6
5.2 Enerizers EDW with power output higher than 5 J ................................. 7
5.3 List of main advantages ................................................................. 8
6Product description ........................................................................... 9
7Ready to use .................................................................................. 10
8Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
9Explanation of LED indicating lights and bargraph indicator ....................... 15

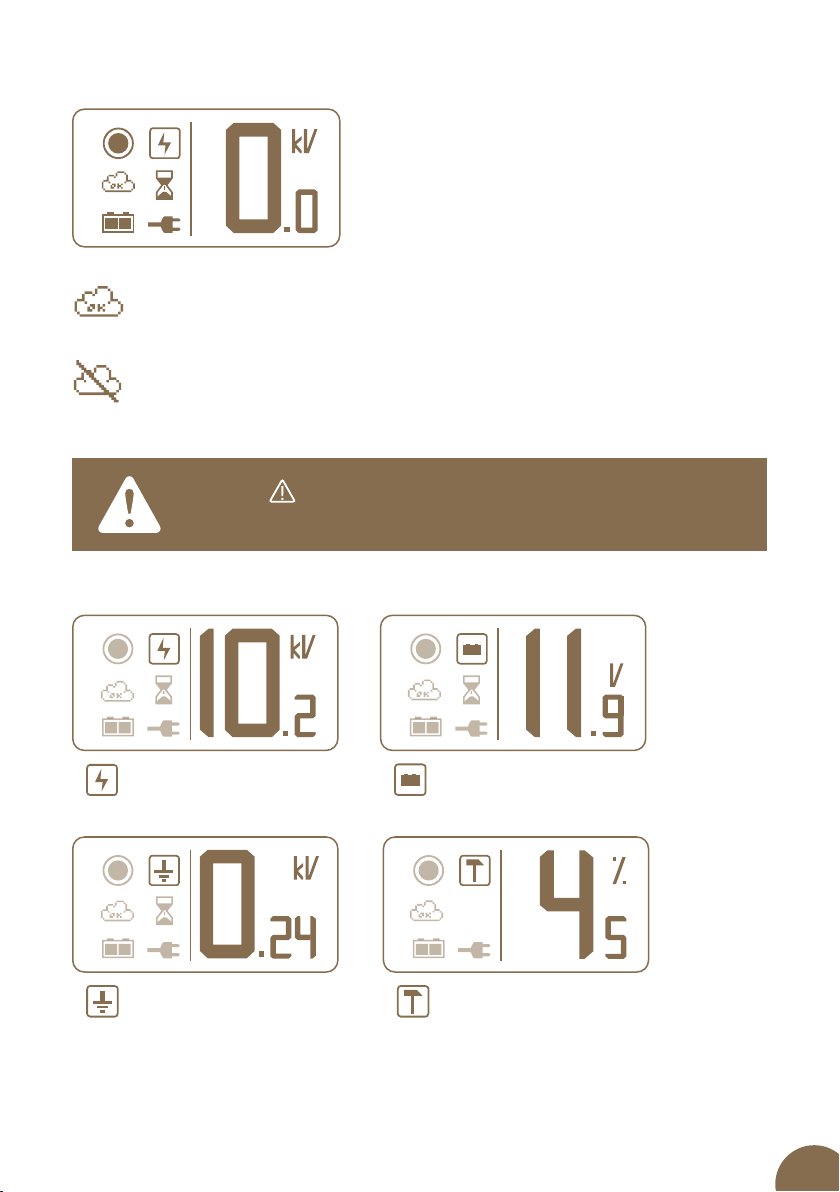

10 Display ......................................................................................... 16
10.1 Main screen ............................................................................. 17
10.2 Informative screen .................................................................... 19
10.3 Setting screen .......................................................................... 20
11 The fencee Cloud app and energizer connection ..................................... 23
12 Safety guidelines ............................................................................ 24
13 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
14 Troubleshooting ............................................................................. 28
15 Technical parameters ....................................................................... 30

4
MAC address and PIN is required to connect the energizer
to a Wi-Fi network, which are listed on the label on the
back of this manual and in the product box.
Please keep these details carefully for any changes.
We recommend that this manual is read thoroughly and fully
understood before using the device and that it is retained for
future reference!
2. IMPORTANT RECOMMENDATIONS
•The energizer will provide better protection for your animals and land. Local conditions and
surroundings always aect the device function and for that reason the manufacturer is not
able to guarantee full protection against damage to the enclosure fence.
•Only use the original 14 V / 2 A adapter to supply the generator. The supply voltage must not
exceed 16 V. Controller must be used if the solar panel is used as the generator must not be
connected directly to the panel.
•Switch o the energizer before carrying out any work on the electric enclosure fence.
•Read thoroughly the Safety Guidelines paragraph.
•Strictly observe all safety guidelines during installation work.
•Do not connect the device on one enclosure fence to another appliance. Damage to all co-
nnected devices and appliances may occur in the event of lightning strike.
•The device may only be repaired by the manufacturer’s qualied personnel.
• Please dispose all waste in accordance with your country’s code of practice.
•Do not let the unconnected battery cable hang freely as the short circuit and the consequent
destruction of the generator may take place.
•The displayed output voltage tolerance is ±10%.
3. PACKAGE CONTENTS
•Energizer fencee energy Smart DUO EDW
•Earthing cable 150 cm
•Connecting cable to the fence system 100 cm
•Wi-Fi antenna
•14 V / 2 A power supply adapter for mains connection
•Battery cable 170 cm
•fencee warning sign
•2 installation self-tapping screws and rawlplugs
•User Manual

5
3
9
4
6
2
15
14
12
5
8
10
11
13
6
7
8
11
1

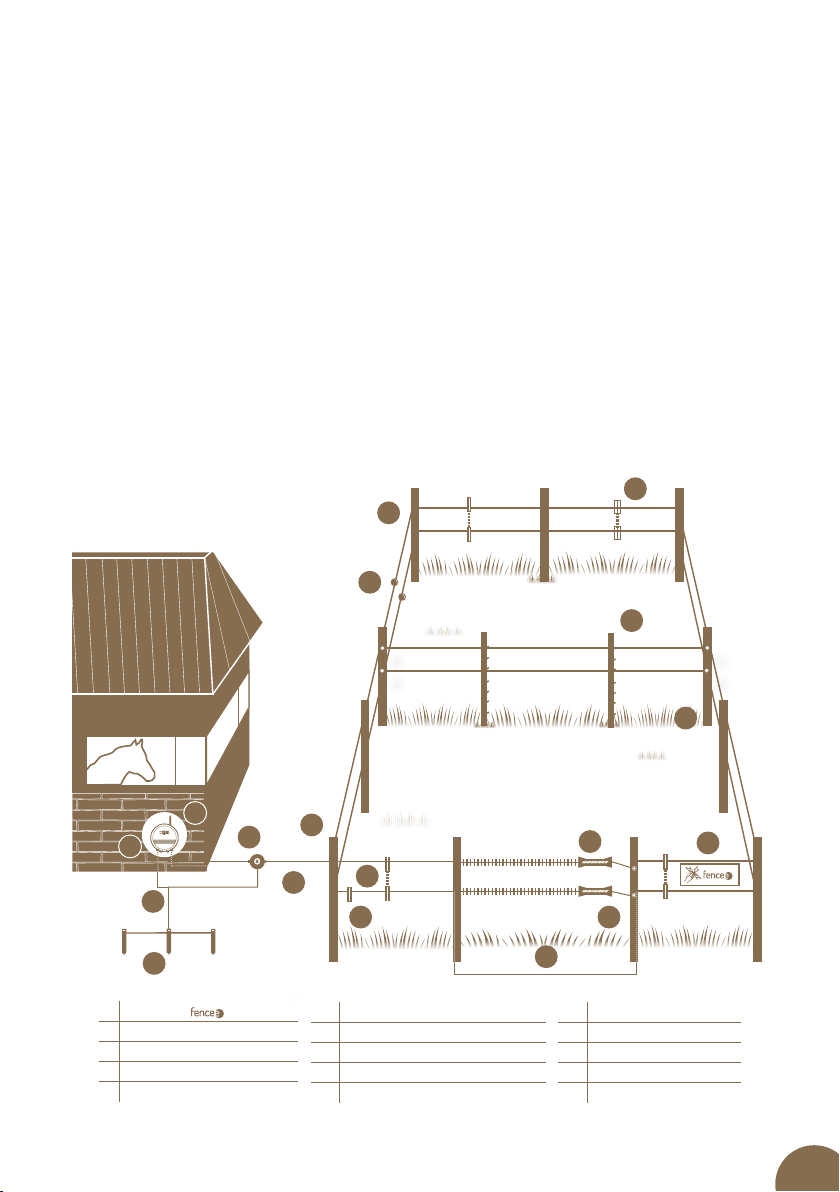

4. FUNCTION ELECTRIC FENCE
How the electric fence works
Electric fence system consist from the energizer and fencing marked with posts and
conductors. The energizer creates regular high-voltage impulses that generate a voltage
between the conducting material and the ground. When an animal (or a person, vegetation
or similar) creates a connection between the ground and the conducting material, the circuit
is completed.
Generated impulses are unpleasant, but not dangerous to people or animals as they only
act for a short period of time and results in the desired deterrent eect. The impulse lasts
for a matter of milliseconds. These fences serve not only to enclose an area, but also act as a
deterrent e.g. to protect against wild boars.
Benefits of electric fence systems:
• Electric fences are long-lasting, simple to put up and great value for money compared with
normal fences.
• It is easy to assembly and exible for using.
• Designed for guarding and protecting dierent animals.
• Compared to other fences, such as barbed wire, it does not cause any damage to the animals.
6High-voltage connecting cable
7Conductor
8Line connector
9Fixed post
10 Tensioner
11 Insulators
12 Flexible post
13 Warning sign
14 Gate
15 Insulator of gate
1Energizer
2On/o button on energizer
3Earthing cable
4Anticorrosive earthing rod
5Lightning diverter

6
5. INTRODUCTION
Powerful energizers energy Smart DUO EDW are suitable for long and densely overgrown
fence system, where it is essential to ensure maximum eciency and reliability. Owing to their
performance, they are able to overcome even densely overgrown fence systems and provide
required voltage along the entire fence system length. The integrated microprocessor fully
controls the operation and ensures optimal performance taking into account the condition of
the fence system and the current situation.
Energizer energy Smart DUO EDW may be either powered from 230 V mains using 14 V
power supply adapter (include in the package contents) or appropriate 12 V battery.
The fence load is continuously measured during the fence system operation. The energizers
energy Smart DUO EDW power output is then automatically adjusted to keep the required
output voltage in the widest possible load range.This control signicantly aids in saving energy
when using quality fence system with a low load. It also optimises energy consumption to
maintain adequately high fence system voltage, which is, for example, overgrown with grass
(high load).

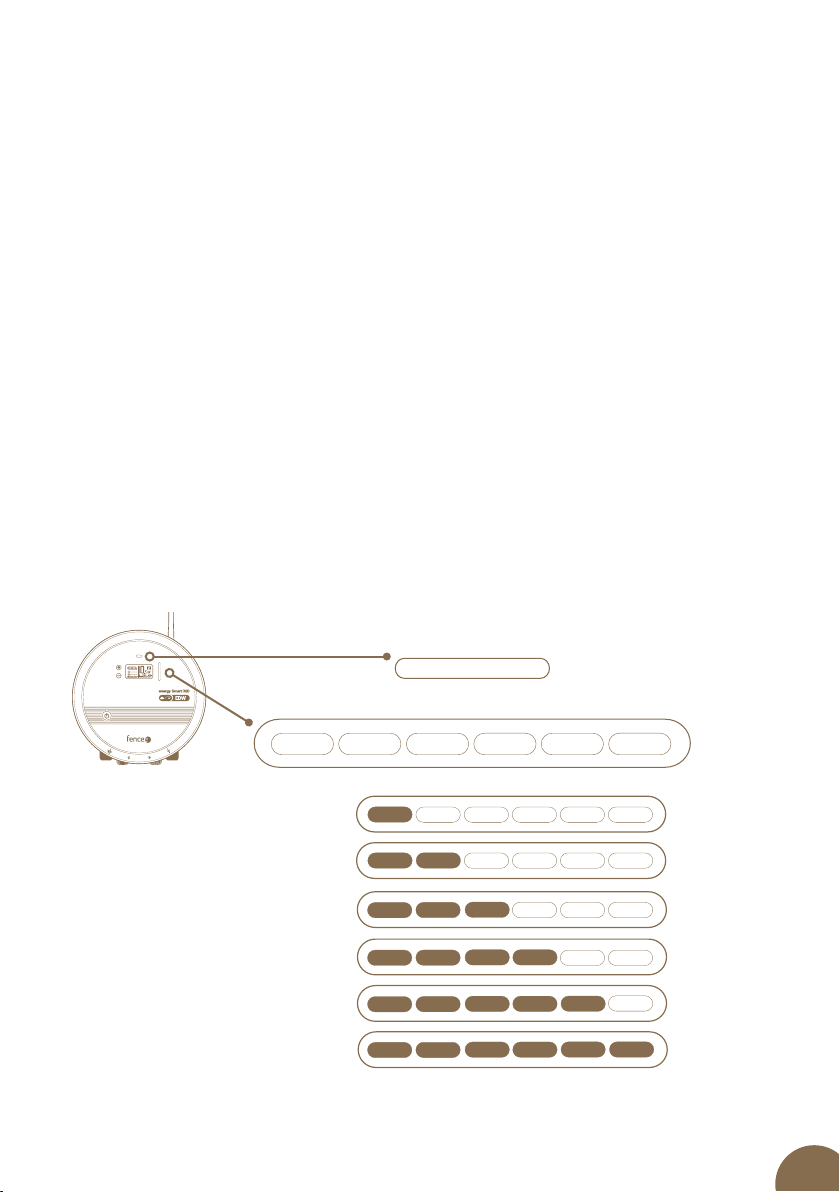

LED indicator lights and BARGRAPH on the front of the energizer show the power supply sta-
tus and fence system voltage and also signal any potential faults on the fence.
5.1 Remote control

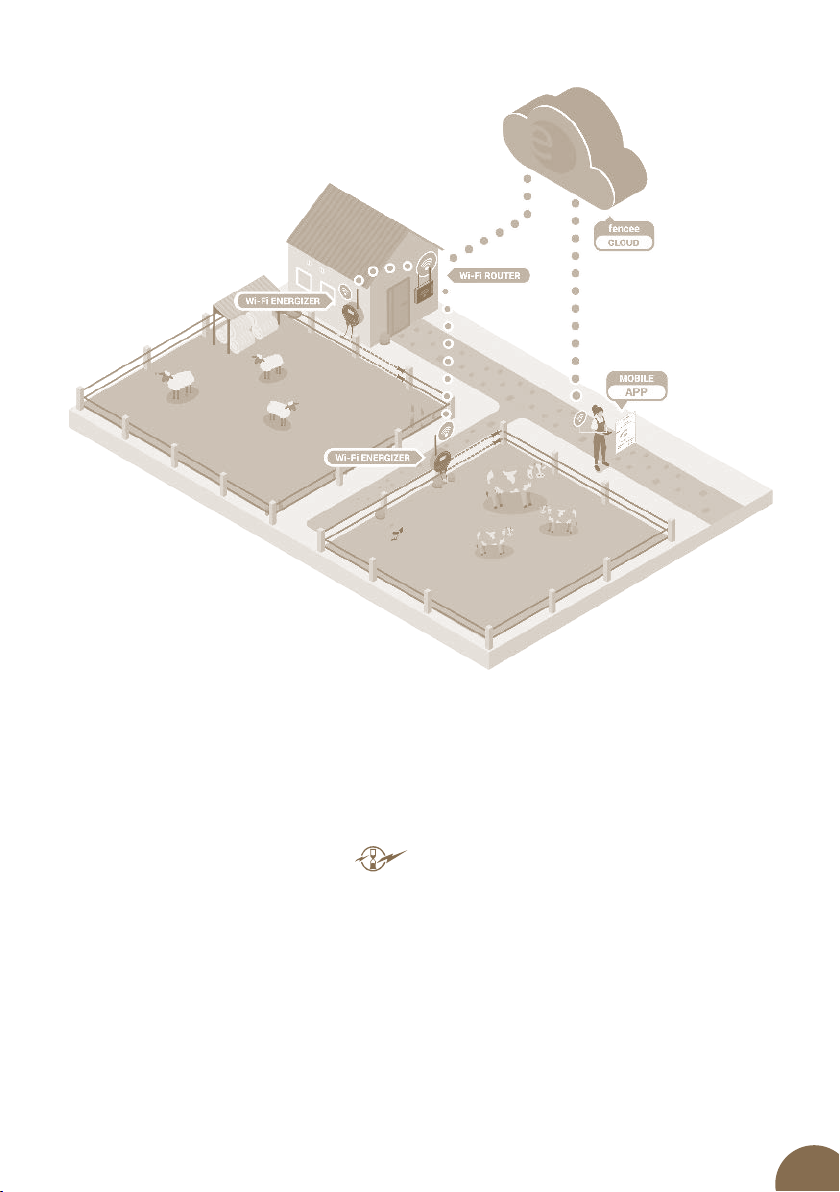

Energizers energy Smart DUO EDW may be remotely controlled using Wi-Fi technology
and Cloud application. The EDW energizer is connected directly to Wi-Fi router and thus the
energizer may be remotely controlled using the fencee Cloud application from mobile phone
or via web interface.
UPTODATE
INFORMATION
Online up-to-date
information on all devices.
Control and monitor
using mobile application.
CONTROL
FROM PHONE
ALARM
SIGNALLING
Immediate warning sent
to the phone and e-mail
relating to the problem.
SAVING TIME
Using remote control means that walk around
the fence system is no longer required. All is
monitored and controlled from the phone, web
site or gateway.
Energizers of the energy Smart DUO EDW series can not be
paired and controlled by remote controller.

7
5.2 Energizers energy Smart DUO EDW with power output higher than 5 J
Standard’s special requirements must be observed for energizers with power output higher
than 5 J, namely time cut-o limit when the power output is increased and thus ensuring
safety.
Products must be identied by mark.
fencee energizers have time cut-o limit of 50 seconds, which means that whilst the fence
system is under load and its resistance drops below 500 Ohm (overgrown grass, fallen branches,
etc.), the energizer will supply the maximum of 5 J for 50 s. If the fence system resistance does
not increase during this time (carrying out corrective measures), the energizer will gradually
increase the power output (e.g. EDW150 model up to 15 J).
Acoustic and visual warning when the fence system is suddenly under load is another feature.
If the fence resistance drops abruptly during one pulse from over than 1000 Ohm to less than
400 Ohm (fallen branches, tangled animal or human, etc.), alarm is triggered after six pulses,
acoustic warning and red LED indicator light ashes. At the same time, the pulse period is
shortened to 3 s. The alarm is switched o after increasing the fence resistance to more than
600 Ohm or after the time limit of 10 min. Both functions are independent and separate.

8
5.3 List of main advantages
LED Bargraph
Provides visual information on fence system status.
Battery management
Battery status monitoring and management.
LCD display
Large graphic LCD display that shows all important information.
Reduced power
Yellow output for reduced power output.
Control push buttons
Easy and simple operation.
Measuring earthing
Green terminal is used for measuring the quality of earthing.
Cloud connection
Direct connection via Wi-Fi router.
Power switching
Manual switching between the high and low power output; option for reducing
demand on the battery.
Up-to-date information
Online up-to-date information on all devices.
Control from phone
Control and monitor using the fencee Cloud mobile application.
Alarm signalling
Immediate problem alert sent to the phone and e-mail.
Combined power supply
Power supply is either from 230 V mains or standard 12 V battery, which may also be
used as the backup power supply.
SIM card is not required
No additional equipment operating costs.

9
4
5
6
7
1
2
910
8
11 12
3

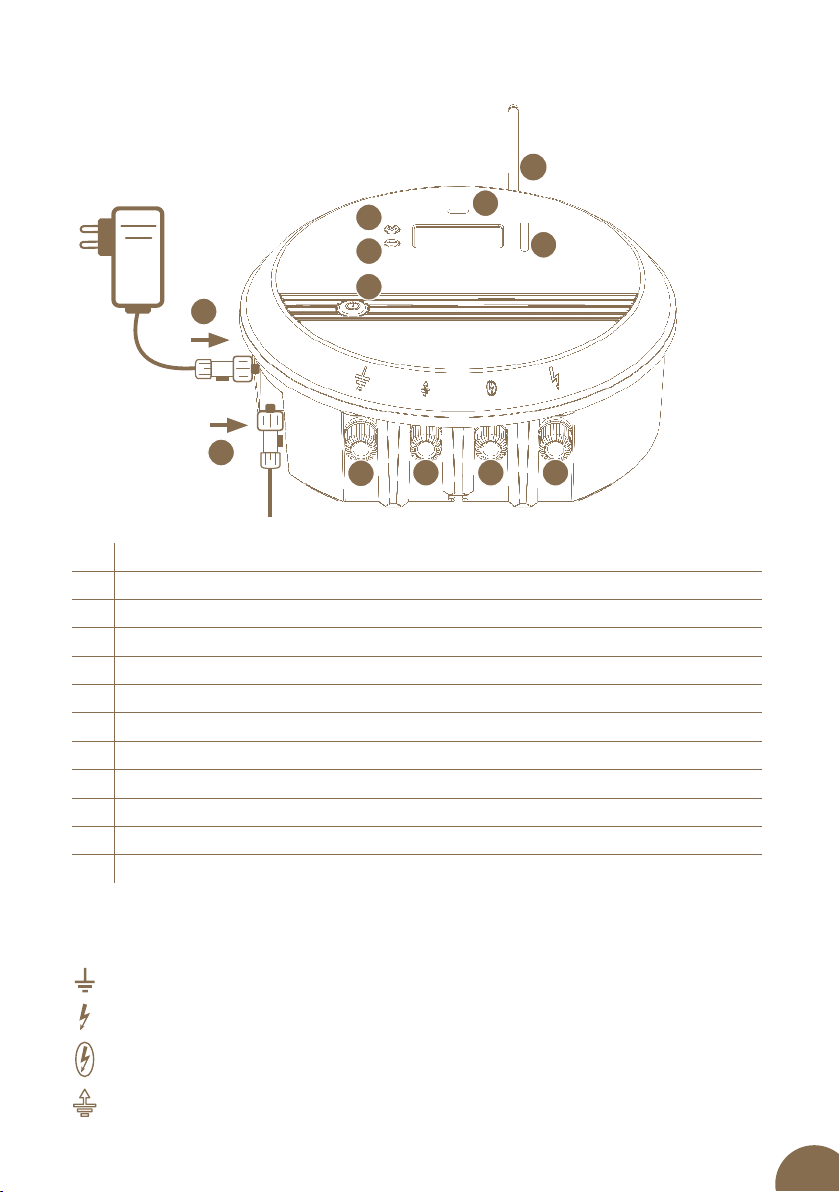

6. PRODUCT DESCRIPTION
Meaning of displayed symbols

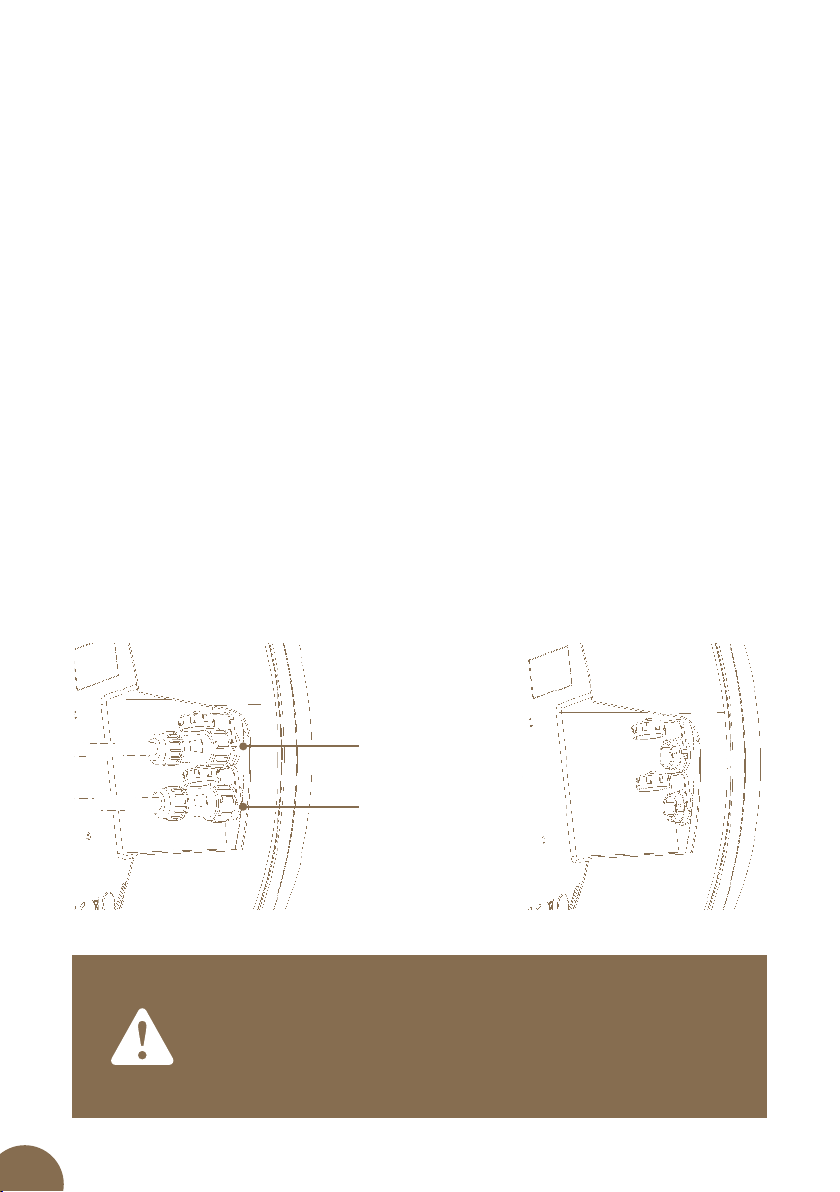

1Waterproof connector for connecting 14 V / 2 A adapter
2Waterproof connector for connecting 12 V battery
3SMA connector and Wi-Fi antenna
4Energizer connection monitoring and status indication shown on LED display
5BARGRAPH shows fence system voltage
6Push button for selecting particular display
7Push button used for conrming / Changing values
8ON / OFF button
9Earthing (black)
10 Connection for measuring the quality of earthing (green)
11 Connection to fence system with reduced power (yellow)
12 Connection to fence system (red)
Earthing connection for connecting to your earthing system.
Full voltage fence system connection for connecting to your fence system.
Reduced power fence system connection.
Connection for measuring the quality of earthing.

10
7. READY TO USE

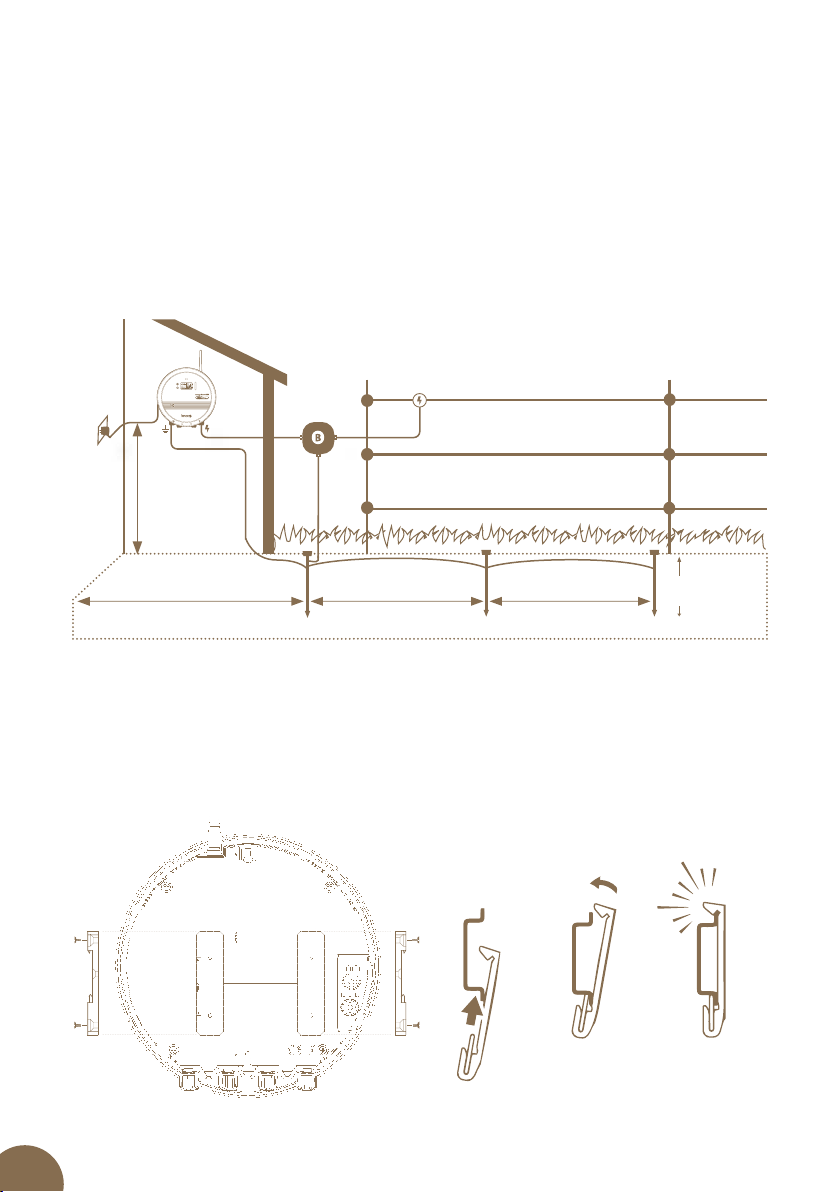

Choose a place suitable for installation of energizer:
• where you can achieve a good earthing.
• which is distant enough from children and animals
• where energizer is well accessible.
• where permanent water stream is avoided.
To mount energizer on wall, use attached screws, on which you can hang the energizer easily.
Assembly of energizer by using DIN rail
Energizer can be easily and practically mounted by using DIN rail and mounting bracket.
Set for assembly on DIN rail can be ordered as separate accessories.
3 m
Energizer min. 20 cm
above the ground
MIN.
1 m
3 m
Min. 10 metres from
next earthing point
1. 2. 3.

11
ON THE GROUND - IN A PUDDLE ON THE GROUND - UPSIDE DOWN
NEGATIVE
ANGLE
NEVER EXPOSE TO A
CONTINUOUS STREAM
OF WATER!
VERTICAL ON THE WALL
IDEALLY WITH A CANOPY
We recommend mounting on
DIN rail 80 mm (Art.No. 8043)
•Energizers must be installed in a dry place.
•Never put energizer on ground – in moist or wet environment.
•Fasten energizer by means of hanging screw or DIN rail with mounting
bracket in vertical position – at least 20 cm above ground.
•Never expose energizer to continuous water stream.

12
Connecting connectors
Models fencee energy Smart DUO EDW have two waterproof input connectors; upper one
for adapter connection and lower one for battery connection. Connectors may be wrongly
connected thus always make sure that the correct connections taken place. This design has
preference for connecting to the mains voltage with the option of connecting to the battery,
as a backup power supply in the event of power failure. Running the energizer for a long time
just from the battery is not desirable due to the higher energy consumption and low capacity
of conventional batteries.
Upper connector
for ADAPTER
Lower connector
for BATTERY
Earthing
Correct earthing is very important because total function of the fence system is
dependent on it!
Beat earthing rod with corrosion protection into ground completely at place with maximum
and permanent humidity. On dry pieces of land or in case of soils with lower electric
conductivity, use one or several supplementary earthing rods (with length of minimum of
1m) and place them at distance of approximately 3 metres from each other.
Exceptions are fence system powered by battery energizer or working with low output. Here
minimum length of earthing rod of 50 cm is recommended. Distance of at least 10 metres must
be between earthing rod of fence system and another earthing system, for example earthing
of a house, protective earthing of electric supply system or earthing of violation alarm.
Do not connect the energizer to already existing earthing.
Antenna installation
Screw the Wi-Fi antenna onto the SMA connector.
If one of the connectors is not used then the connector cover
must be screwed in to keep the connector watertight.
If the the adapter and battery are connected to wrong co-
nnectors, charging and the low battery indication will not work
and the battery will not be discharging.

13
Connecting output
Connect the black earthing output to the earthing rod using earthing cable.
Connect the red output to the fence system using the connecting cable.
Yellow output is intended for connecting fence system where we always require reduced
energy in order that animals receive weaker, approximately half strength impulse; this
relates to fence system for younger and smaller animals (foals, calves). It is also connected
separately to the larger fence system lower wire, where vegetation is expected to be
dense with technical measures to prevent losses, namely voltage leakage to the ground
as it is usual in standard connections thus the energizer power output is not reduced. The
other wires connected to the red output are powered separately at full voltage.
Green output is intended for measuring the quality of earthing to nd out whether the
existing earthing is satisfactory or requires upgrading due to the location, e.g. adding
another earthing rod, irrigate it or repair connections. It is always required to install
measuring electrode located 10 m from the energizer earthing point. Use non-corroding
well conducting rod at least 20 cm long for the measuring electrode. Connect high voltage
cable to the green energizer connection.
Ground voltage shown
on the energizer display Status
0 to 0,20 kV OK
0,20 to 0,50 kV Check earthing; add another earthing
rod as a precaution
> 0,5 kV Carry out repairs or add earthing rod
It is also important what fence system impedance the energizer measures. If the energizer
shows impedance of 500 Ohm or lower, i.e. long or overgrown fence system then there is no
need to install anything else and the earthing check works automatically. Check the ground
voltage on the energizer according to the below table.
If the fence system impedance is higher than 500 Ohm, i.e. quality fence not subjected to
load, then it is required to short-circuit the fence system to enable the measurement and thus
determine the quality of earthing. To carry out short-circuiting, the overhead fence system
wire is earthed at a location of at least 50 m from the energizer. Use good quality earthing rod,
hammer it into the ground and connect it to the wire, subsequently check the ground voltage
on the energizer according to the following table.

14
8. CONTROL
ON/OFF AND POWER OUTPUT SWITCHING PUSH BUTTON
As with DUO PD power models, large control push button is used for basic control. The ON /
OFF switch push button has extended functionality, which is used for switching the energizer
power output. After switching o and then switching on again, the energizer remembers the
last set power output.
ENERGIZER IS SWITCHED OFF; BY PRESSING PUSH BUTTON:
Long press (>2 s) Energizer is switched on
Short press No response
ENERGIZER IS SWITCHED ON; BY PRESSING PUSH BUTTON:
Long press (>2 s) Manual switching between the high and low power
output (approximately 50%). User selectable; when, for example, it is used for
more sensitive animals or to reduce demand on battery, if required. The low power
output is always limited to the maximum of 5 J.
Short press
Energizer is put into the Standby Mode
ENERGIZER IS IN STANDBY MODE; BY PRESSING PUSH BUTTON:
Short press Energizer is fully switched off
Long press (>2 s) Energizer is switched on
If a dash is displayed on the energizer display next to measuring the quality of earthing symbol
it indicates either that the measuring electrode is not connected to the green output or that the
fence system wire is not short-circuited (if fence system impedance is higher than 500 Ohm).

15
LED control:
BURNING / BLINKING
•blinking Operation on battery only
•permanent burning – Operation with adapter
COLOR
• blue Operation at higher output (100%)
• purple Operation at lower output (c. 50%)
• red It lights up when battery voltage drops below 12 V
When battery voltage drops below 11,6 V, warning siren is started (beeping). When battery
voltage drops below 11,4 V, energizer is switched o. Reason is protection of battery from deep
discharge of the battery (battery destruction). If discharged battery and adapter are connected
simultaneously, red LED is burning, until battery is charged at 12 V at least.
BARGRAPH INDICATOR:
To indicate input voltage at fence system, energy Smart DUO EDW models are equipped
with BARGRAPH indicator. It consists of six LEDs - 2x RED I2xYELLOW I2xGREEN –
ordered from left to right. BARGRAPH indicator always goes through LEDs from the rst red
one up to indicated position where it stops for a while.
–
–
–
–
LED
BARGRAPH INDICATOR
Indicating statuses are as follows:
RED YELLOW YELLOW GREEN GREEN
YELLOW YELLOW GREEN GREEN
YELLOW GREEN GREEN
GREEN GREEN
GREEN
RED
RED RED
RED RED YELLOW
RED RED YELLOW YELLOW
RED RED YELLOW YELLOW GREEN
RED RED YELLOW YELLOW GREEN GREEN
9. EXPLANATION OF LED INDICATING LIGHTS AND BARGRAPH INDICATOR
•voltage < 3 kV - 1x RED
•voltage 3-5 kV - 2x RED
•voltage 5-6 kV - 1x YELLOW
•voltage 6-7 kV - 2x YELLOW
•voltage 7-8 kV - 1x GREEN
•voltage > 8 kV - 2x GREEN
RED RED YELLOW YELLOW GREEN GREEN

16
10. DISPLAY
The display shows information on two dierent screens, which can be cycled with the Setup
button .
Use the Conrm button to change or conrm the parameters on the screen.
The first basic screen contains a large numeral of the selected
parameter on the right, and icons indicating the energizer
status appear on the left.
On the second informative screen is displayed the status of
the fence on the left, both numerically (resistance of the fence),
but also graphically with an icon of overgrown grass.
Setting screen
On the rst and second screens, you can select between the displayed parameters using the
Confirmation button . There are three options that repeat in a circle - output voltage [kV],
battery voltage [V] and output energy [%].
For entry to setting screen hold for > 2 s Setup button You can use the Conrm button , to
access the individual settings between which you move, using the Setup button .
In the energy Smart DUO EDW models, an information display and two buttons for the control
of this display have been added.
CONFIRM button
SETUP button

17
Output voltage
10.1 Basic screen
NO SIGNAL - connection error
This means that the connection between energizer and cloud is broken and
cannot be remotely controled. However, the energizer is still functional and can be
controlled using the buttons.
The basic screen displays information about the status
of the connection to the server. The indication has two
states:
A triangle may appear instead of the connection symbol
in the event of an alarm. Or the E1 / E2 error symbol if it occurs.
Output performance
Data indicating the energizer
output needed in the present
condition of the fence, due to
its loading and losses.
Measuring earthing
Battery voltage
OK - everything is fine
Everything works and the energizer can be controlled via fenceecloud.com or
mobile app.

18
Energizer is connected to server and data is available on the fenceecloud.com
or in mobile app.
Energizer is not connected to online services. There is problem on the internet
network or in the energizer settings. See Wi-Fi Info for more information.
Icons indicating the 50% / 100% mode.
Indicating the displayed parameter.
Triangle indicating a warning.
Hourglass indicates a time delay before ramping up the performance.
Icons on the display:
Error message, see point 12. Troubleshooting
Icon indicating the connection of a battery and its status.
Indicates connection to the grid.
Full battery / blue - violet led over 12 V
Half battery / red led 12 – 11,6 V
Empty battery / red led + siren 11,6 – 11,4 V
The energizer will shut down less than 11,4 V

19
10.2 Informative screen
>1000 ohm – a short pen with minimum greenery
1000 ohm – medium pen, with mild growth of vegetation
500 ohm – longer pen, mild growth of greenery
300 ohm – longer pen, medium growth of greenery or mild growth after rain
< 300 ohm – a pen with a dense growth of vegetation, with high power loss
On-screen icons indicating the load on the fence:

20
For entry to setting screen hold for > 2 s Setup button .
You can use the Conrm button to access the individual settings between which you move,
using the Setup button .
10.3 Setting screen
•Alarm - The voltage setting at which the alarm is triggered can be set in the range of
0 - 8000 V, when 0 kV the voltage alarm is o.
•Light - Setting the backlight time. Here you can set the values of 1 minute, 5 minutes
and continuous light (ON).
•Contrast - Setting the display contrast in the range 90 - 150.
The following items are available:
Back
This serves to leave the settings menu.
Select the BACK item
Conrm your choice
You can toggle among screens
1.
2.
Enter the screen
Select an item
Conrm the selection
Adjust the values
Conrm the values
1.
2.
3.
4.
5.
Entering the screen Leaving the screen
