’64 VIBROVERB™ CUSTOM

(This is the model name for warranty claims)

Fender® Musical Instruments Corp. 8860 East Chaparral Road Suite 100 Scottsdale, AZ 85250

Issued 020924

p/n 8140000000 (120V)

SERVICE MANUAL

CONTENTS:

Notices .............................. 2

Specifications.................... 3

Service Notes.................... 4

Circuit Description............. 5

Parts Lists:

PCB Assembly............ 6

Filter Cap Assembly .. 7

Chassis Assembly ...... 7

End Item Assembly .... 9

Footswitch Assembly 10

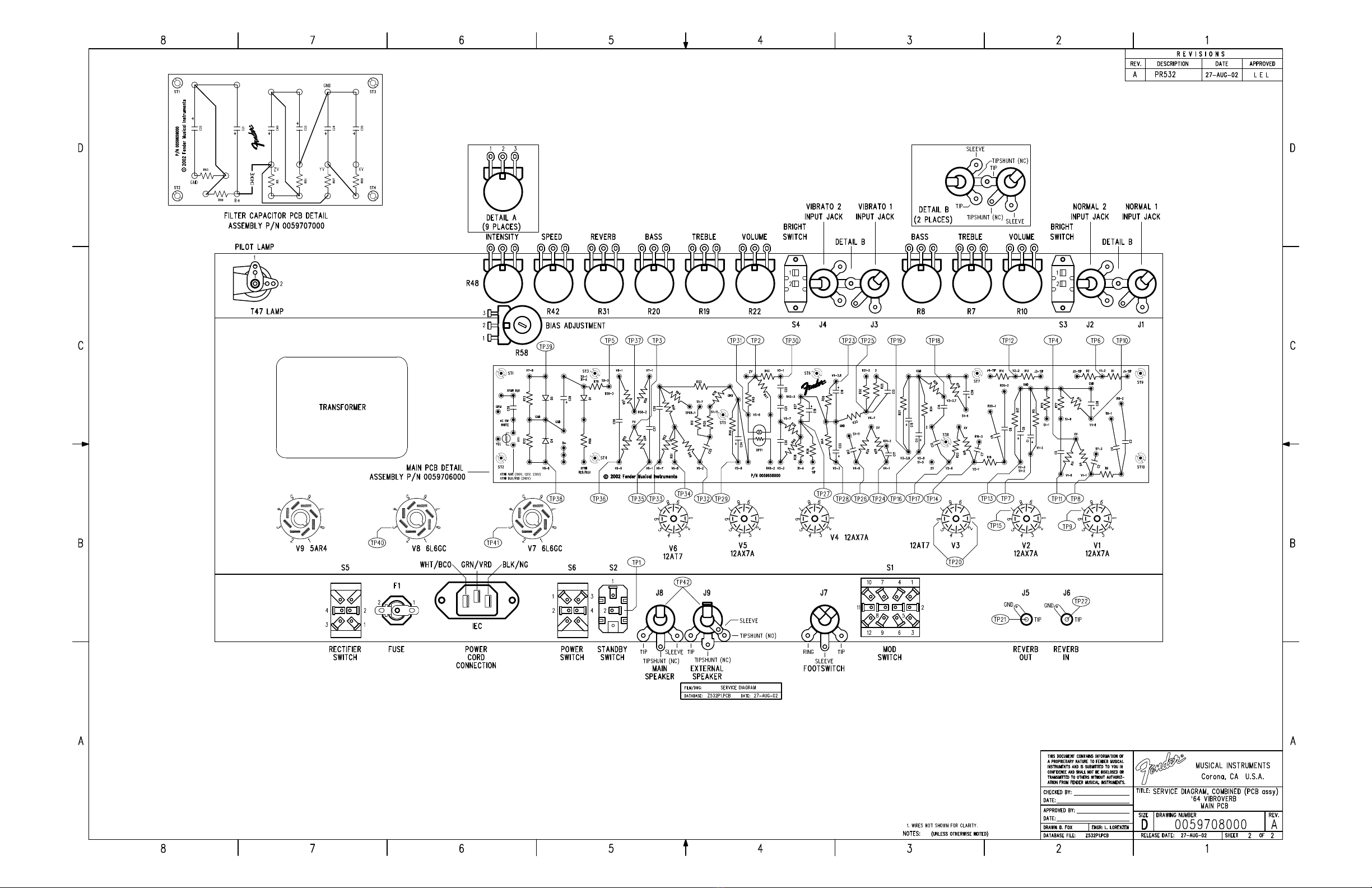

Service Diagram List ...... 11

’64 Vibroverb™ Custom

(This is the model name for warranty claims)

September, 2002

IMPORTANT NOTICE

information contained herein is CONFIDENTIAL

and PROPRIETARY and is the property of

Fender® Musical Instruments Corporation. It is

not to be sold or assigned to another party and is

disclosed soley for use by Fender Authorized

Service Centers for purposes of product service

and maintenance. All information is not to be dis-

closed to others without the expressed permission

of Fender® Musical Instruments Corporation. All

specifications are subject to change without no-

tice. This information and any copies produced

electronically or otherwise must be surrendered

upon demand of Fender Musical Instruments Cor-

poration.

•Parts marked with two asterisks (**) indicate the

required use of that specific part. This is neces-

sary for RELIABILITY and SAFETY requirements.

DO NOT USE A SUBSTITUTE!

PARTS LIST CODES

The description codes used in the itemized Parts Lists are defined below:

CAPACITOR CODES

CAP AE = Aluminum Electrolytic

CAP CA = Ceramic Axial

CAP CD = Ceramic Disk

CAP MPF = Metalized Polyester Film

CAP MY = Mylar

CAP PFF = Polyester Film/Foil

RESISTOR CODES

RES CC = Carbon Comp

RES CF = Carbon Film

RES FP = Flame Proof

RES MF = Metal Film

RES WW = Wire Wound

HARDWARE CODES

BLX = Black Oxide

CR = Chrome Plated

HWH = Hex Washer Head

M = Machine Screw

NI = Nickel Plated

OHP = Oval Head Phillips

PB = Particle Board

PHP = Pan Head Phillips

PHPS = Pan Head Phillips Sems

SMA = Sheet Metal "A" Point

SMB = Sheet Metal "B" Point

SS = Stainless Steel

TF = Thread Forming

ZI = Zinc Plated

’64 Vibroverb™ Custom

(This is the model name for warranty claims)

SPECIFICATIONS

Model Name: ’64 Vibroverb Custom

Release Number: PR 532

(Not a model number)

Part Numbers (120V, 60Hz) US: 8140000000

(110V, 60Hz) TW: _ _ _ _ _ _ _ _ _ _

(240V, 50Hz) AUS: 8140002000

(230V, 50Hz) UK: 8140004000

(230V, 50Hz) ARG: _ _ _ _ _ _ _ _ _ _

(230V, 50Hz) EUR: 8140006000

(100V, 50/60Hz) JPN: 8140007000

(220V, 60Hz) ROK: _ _ _ _ _ _ _ _ _ _

Power Requirement: 154W

Power Output: 40 W RMS into 8 ohms @ 5 %THD

Impedances Input 1 (Pre-Amp): 1 M ohms

Input 2 (Pre-Amp): 200k ohms

Speaker Complement: One (38.3cm) 15", 8 ohm,

Special Design Eminence

(P/N 059660)

Dimensions Height: 20.5 in ( 52.1 cm)

Width: 25 in ( 63.5 cm)

Depth: 10 in (25.4 cm)

Weight: 52 lbs (23.9 kg)

Product specifications are subject to change without notice

’64 Vibroverb™ Custom

(This is the model name for warranty claims)

SERVICE NOTES

1. CHASSIS REMOVAL is accomplished by first

removing the power cord then removing two (2)

screws from each side on the top of the cabinet.

Disconnect the ¼” speaker plug from the

speaker jack and the two RCA plugs from the

reverb jacks. Remove two wood screws on

each side of the upper back panel. After re-

moving the upper back panel, slide the chassis

toward the rear of the cabinet and out.

2. POWER TUBE BIAS is accomplished by ad-

justing the chassis mounted potentiometer R58

until the voltage across R72-73 reads approxi-

mately 38mv. This is done with no signal and

the RECTIFIER switch in the TUBE position.

The bias need only be done when changing

output tubes. Please note that you won’t have

to re-bias if you replace the output tubes with

the same brand and grade as the original which

is recommended.

PCB EXCHANGE POLICY

Parts marked with a single asterisk (*) in the Part

Lists are not field replaceable. If a failure due to

one of these components is detected, please con-

tact the Fender® Dealer Customer Service

Department to order the complete PCB Assembly.

’64 Vibroverb™ Custom

(This is the model name for warranty claims)

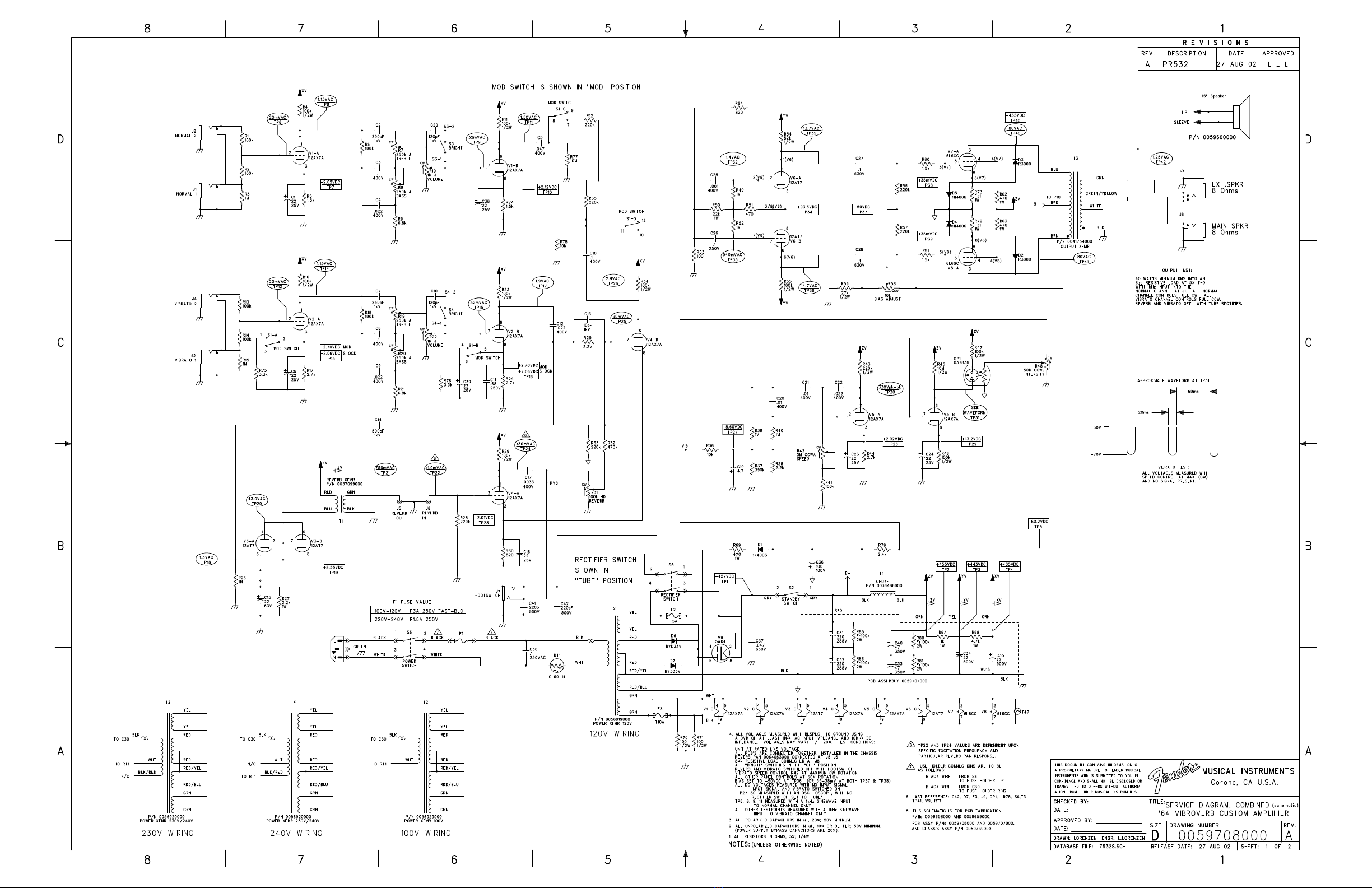

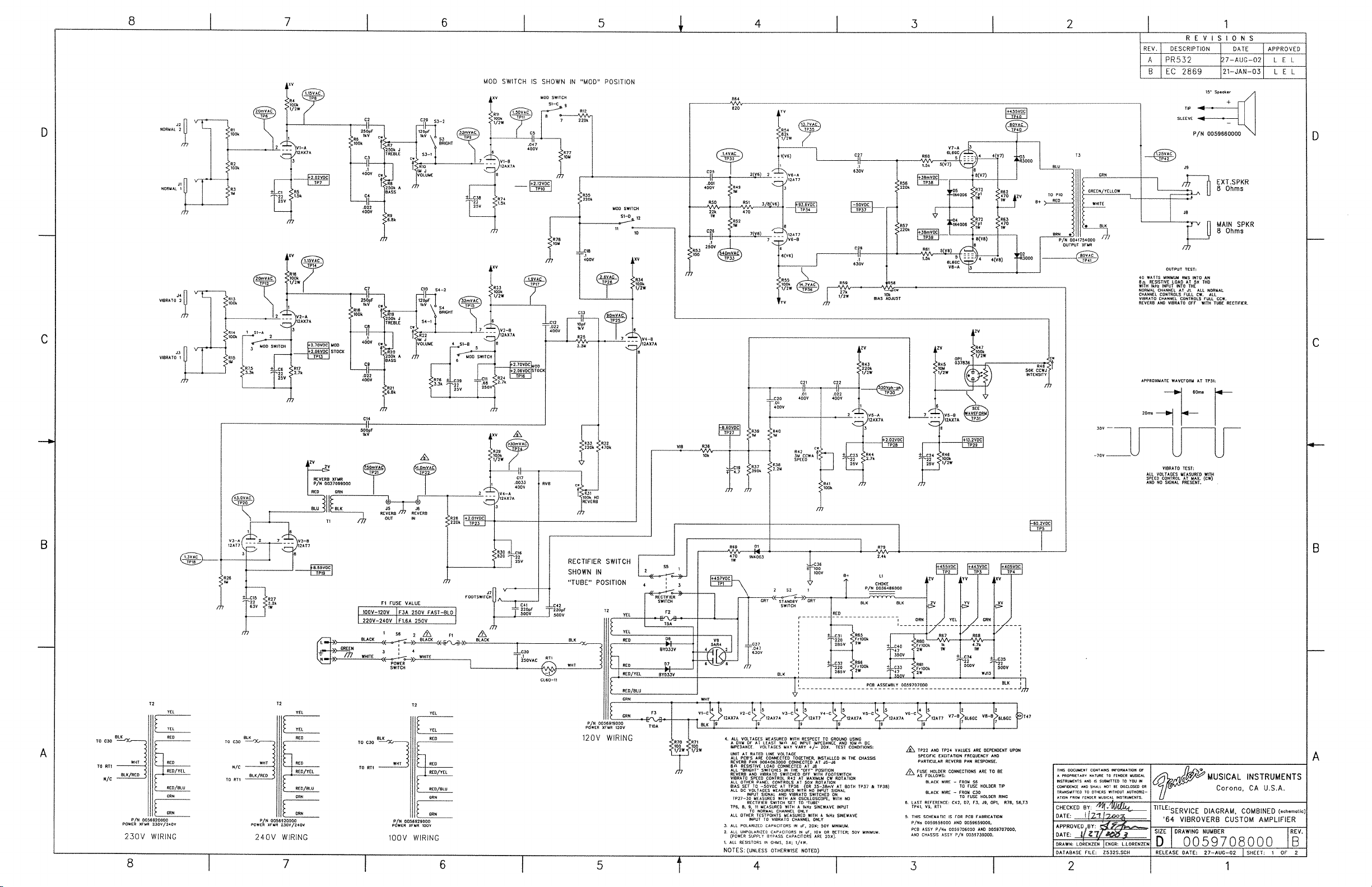

CIRCUIT DESCRIPTION

PRE-AMPLIFIER

The Normal pre-amplifier is comprised of V1-A and

V1-B and associated circuitry. The Vibrato pre-

amplifier is comprised of V2-A and V2-B and asso-

ciated circuitry. V1-A and V2-A present a high

impedance input and provide gain before the tone

controls. V1-B and V2-B recover gain lost in the

tone controls so as to fully drive the power amp.

POWER AMPLIFIER

V6 receives the single ended signal from the pre-

amps and generates two out-of-phase signals

which are necessary to drive the push-pull output

stage comprised of V7, V8 and T3.

POWER SUPPLY

T2 steps up the AC line voltage to the high voltage

necessary to power the tube circuitry. D6-7 are in

series with V9, the tube rectifier and rectify the sec-

ondary AC voltage which is then filtered by a series

of capacitors and dropping resistors to achieve the

proper voltages necessary to power the different

stages. The rectifier switch bypasses V9 in DIODE

Rectifier mode and automatically adjusts the bias

for V7-8.

REVERB CIRCUITRY

The signal from V2 is fed to V3 which drives T1 and

matches the impedance of V3 to the reverb tank.

V4-A recovers the reverberated signal which is

mixed with the original at V4-B.

TREMOLO (VIBRATO)

CIRCUITRY

The output of the Vibrato channel is amplitude

modulated by the combination of R48 and OP1, an

assembly made up of a neon bulb and a light de-

pendent resistor. A variable low frequency oscillator

comprised of V5 and associated circuitry drives the

bulb which modulates the resistance in parallel with

R48.

The MOD SWITCH

The MOD switch changes the bias points of V2-A/B

and disconnects the Normal channel and R48 from

the output of the Vibrato pre-amp. This results in

the disabling of the Normal channel and the Vibrato

function. This also gives the Vibrato channel more

gain and distortion.

’64 Vibroverb™ Custom

(This is the model name for warranty claims)

*Non-serviceable part. Replace complete parent assembly. See PCB EXCHANGE POLICY on page 4

Unique Fender® part. Order directly from the Fender® dealer Customer Service Department.

** Safety Requirement part. Replacement must match Safety Agency…–Value, if specified –Type, if specified –Approval Mark(s) if on part.

** Both a unique Fender® part and Safety Requirement part as defined above.

PARTS LIST:

MAIN – PCB ASSEMBLY

QTY. PART # DESCRIPTION REFERENCE DESIGNATION

10059658000 **PCB FAB MAIN COMPONENT BOARD

1 0036954003 **CAP AE RDL 22uF 63V 20% C15

8 0009512001 CAP AE AX 22uF 25V 20% C1 C6 C16 C23-24 C38-39

1 0038691001 CAP AE AX 4.7uF 50V 20% C19

1 0026502000 CAP AE AX 100uF 100V 20% C36

1 0020883000 CAP CD 10pF 1000V 10% C13

2 0020917000 CAP CD 250pF 1000V 10% C2 C7

1 0020842000 CAP CD 500pF 1000V 10% C14

2 0024823000 CAP MPF RDL .01uF 400V 10% C20-21

4 0024833000 CAP MPF RDL .022uF 400V 10% C4 C9 C12 C22

1 0024845000 CAP MPF RDL .047uF 400V 10% C5

1 0024876000 CAP MPF RDL .68uF 250V 10% C11

1 0024853000 CAP MPF RDL .1uF 250V 10% C26

3 0024854000 CAP MPF RDL .1uF 400V 10% C3 C8 C18

2 0024855000 CAP MPF RDL .1uF 630V 10% C27-28

1 0053860000 **CAP MPF RDL .1uF 250VAC 20% C30

1 0037040002 CAP PFF RDL .0033uF 400V 10% C17

1 0037666002 CAP PFF .001uF 400V 10% C25

1 0064089001 DIODE 1N4003 D1

2 0026730001 DIODE 1N4006 800V 1A D4-5

1 0037836000 OPTO-ISOLATOR ASSY 65 TWIN OP1

9 0025116001 RES CF 1/2W 5% 100k LL R4 R11 R16 R23 R29 R34 R46-47 R55

1 0037663001 RES CF 1/2W 5% 10M LL R45

1 0025117001 RES CF 1/2W 5% 220k LL R43

1 0025115001 RES CF 1/2W 5% 82k LL R54

2 0024969001 RES CF 1/4W 5% 1.5k LL R5 R74

1 0024981001 RES CF 1/4W 5% 10k LL R36

6 0024997001 RES CF 1/4W 5% 100k LL R6 R18 R1 R2 R13 R14

1 0024952001 RES CF 1/4W 5% 100ohm LL R53

5 0025069001 RES CF 1/4W 5% 1M LL R26 R39 R40 R49 R52

1 0025075001 RES CF 1/4W 5% 2.2M LL R38

1 0029455001 RES CF 1/4W 5% 2.4k LL R79

3 0024972001 RES CF 1/4W 5% 2.7k LL R44 R17 R24

2 0024973001 RES CF 1/4W 5% 3.3k LL R75 R76

5 0025059001 RES CF 1/4W 5% 220k LL R12 R33 R35 R56-57

1 0025077001 RES CF 1/4W 5% 3.3M LL R25

1 0025063001 RES CF 1/4W 5% 390k LL R37

1 0025065001 RES CF 1/4W 5% 470k LL R32

1 0024961001 RES CF 1/4W 5% 470ohm LL R51

2 0024964001 RES CF 1/4W 5% 820ohm LL R30 R64

1 0027347001 RES FILM 1W 5% 2.2k LL R27

1 0027350001 RES FILM 1W 5% 22k LL R50

1 0028740001 RES FILM 1W 5% 470ohm LL R69

2 0033095001 RES MOX FP 1W 5% 1ohm LL R72-73

1 0028503000 **THERMISTOR 10ohm 5A C60-11 RT1

2 0025084001 RES CF 1/4W 5% 10M LL R77-78

107 0041296000 EYELET G.S. 4-4

10059833000 **WIRE SET MAIN COMP BOARD 64 VI-

BROVERB

’64 Vibroverb™ Custom

(This is the model name for warranty claims)

*Non-serviceable part. Replace complete parent assembly. See PCB EXCHANGE POLICY on page 4

Unique Fender® part. Order directly from the Fender® dealer Customer Service Department.

** Safety Requirement part. Replacement must match Safety Agency…–Value, if specified –Type, if specified –Approval Mark(s) if on part.

** Both a unique Fender® part and Safety Requirement part as defined above.

PARTS LIST:

FILTER CAP – PCB ASSEMBLY

QTY. PART # DESCRIPTION REFERENCE DESIGNATION

4 0054213001 **RES MOX 2W 5% 100K LL R65-66, R81-82

10059659000 **PCB FABRICATION FILTER CAP PCB

1 0037354001 **RES FILM 1W 5% 4.7k K LL R68

1 0029722001 **RES FILM 1W 5% 1K LL R67

2 0013638000 CAP AE AX 220uF 285V +100%-10% C31-32

2 0024819000 CAP AE AX 22uF 500V +50%-10% C34-35

2 0024820000 CAP AE AX 47uF 350V +50% -10% C33,C40

PARTS LIST:

CHASSIS ASSEMBLY

QTY. PART # DESCRIPTION REFERENCE DESIGNATION

10057992000 CHASSIS '64 VIBROVERB

10057984000 PANEL FRONT '64 VIBROVERB

10057993000 PANEL REAR '64 VIBROVERB

0050505000 LABEL VOLTAGE 230V

0050506000 LABEL VOLTAGE 240V

0050507000 LABEL VOLTAGE 100V

1 0013020000 LABEL GROUNDING SEMKO

10056919000 **XFMR POWER 120V SUPER REVERB REIS-

SUE

0056920000 **XFMR POWER EXPORT 230V/240V SUPER

REVERB REISSUE

0056929000 **XFMR POWER EXPORT 100V SUPER RE-

VERB REISSUE

10041754000 **XFMR OUTPUT HOTROD/BLUES DVL

10037099000 **XFMR REVERB VIBROLUX/65 DLX

1 0036486000 CHOKE REISSUE TUBE AMPS

6 0018022000 BUSHING SNAP 5/16x17/32 BLK

4 0026553000 SCRW M 8-32x3/8 PHP BLX AT OUTPUT XFMR

8 0022004000 NUT KEPS #8-32 ZINC AT OUTPUT/POWER XFMR

1 0059717000 SWITCH TOGGLE 4PDT "MOD" SWITCH

2 0036570000 **SWITCH TOGGLE DPST W/NUTS "PWR" and RECTIFIER

1 0037039000 **SWITCH TOGGLE SPST W/NUTS "STANDBY"

4 0027979000 SCRW M 4-40x1/4 PH BH NI .23HD AT "BRIGHT" SWITCHES

1 0047213000 **CONNECTOR AC LINE MALE IEC

2 0057410000 SCRW TF 6-32 3/8" FHP STL BLX AT IEC

10059707000 PCB ASSY FILTER CAP VIBROVERB

10025239000 COVER CAPACITOR CUSTOM AMPS DOG HOUSE

10059706000 MAIN PCB ASSY VIBROVERB

4 0037783000 STANDOFF NYL PCB SNAP 1/4" NAT AT FILTER BD

10 0047040000 STANDOFF NYL PCB SNAP 1/2" BLK AT MAIN COMP BD

3 0003290800 SCRW TF 6-32x3/8 PHP ZI AT V1, V3, V9 GNDs

3 0069393000 NUT 6-32 HEX EXT LOCK AT V1, V3, V9 GNDs

4 0028937000 SCRW TF 6-32x5/8 PHP ZI AT FILTER BD

10 0037353000 SCRW TF 6-32x3/4 PHP ZI AT MAIN COMP BD

1 0013681000 **FUSE TD 20mmX5mm 250V 5A 5V HEATER

1 0013688000 **FUSE TD 20mmX5mm 250V 10A 6.3V HEATER

1 0057190000 LABEL FUSE HOLDER "T5A 250V" 5V HEATER

1 0059780000 LABEL FUSE HOLDER "T10A 250V" 6.3V HEATER

2 0057183000 **FUSE HOLDER INLINE 5X20MM AT HEATER WINDINGS

1 0036702000 **FUSE HOLDER 3AG FINGER GRIP DOMESTIC

1 0077982000 **FUSE QA 1-1/4x1/4 250V 3A DOMESTIC

26 0038900000 SCRW TF 6-32x1/4 PHP ZI SKTS/XFMRS/DOG/GND

3 0020424000 TUBE RING UNIVERSAL (227H-2) AT 8 PIN TUBES

’64 Vibroverb™ Custom

(This is the model name for warranty claims)

*Non-serviceable part. Replace complete parent assembly. See PCB EXCHANGE POLICY on page 4

Unique Fender® part. Order directly from the Fender® dealer Customer Service Department.

** Safety Requirement part. Replacement must match Safety Agency…–Value, if specified –Type, if specified –Approval Mark(s) if on part.

** Both a unique Fender® part and Safety Requirement part as defined above.

PARTS LIST:

CHASSIS ASSEMBLY

QTY. PART # DESCRIPTION REFERENCE DESIGNATION

3 0023580000 TUBE SOCKET 8 PIN (099-0724-000) AT 8 PIN TUBES

6 0023598000 TUBE SHIELD (099-0723-000) AT 9 PIN TUBES

6 0023606000 TUBE SOCKET 9 PIN AT 9 PIN TUBES

2 0023531000 TUBE 12AT7 HIGH MU TWIN TRIODE V3 V6

1 0041400000 TUBE 5AR4 FULLWAVE RECTIFIER V9

2 0059778000 VACUUM TUBE 6L6GC GE CLONE V7-8

1 0023572000 VACUUM TUBE 7025/12AX7WA (CHINESE) V2

3 0013341000 VACUUM TUBE 7025/12AX7WA (RUSSIAN

MADE)

V1 V4-5

1 0417010000 JACK PHONE TRANSFER 13A EXT SPKR

5 0021550000 JACK PHONE TIP SHUNT L12A SPKR , INPUTS

2 0056930000 JACK PHONO 2 CND REAR PNL MNT RVB SND/RTN

9 0024604000 KNOB BLACK W/WHITE STAMP 1-10

10059661000 **WIRESET CHASSIS '64 VIBROVERB

1 0021642000 PILOT LIGHT #T47

1 0021741000 HOLDER IDAL LITE ASSY PILOT

1 0025718000 JEWEL PILOT LITE RED #20

1 0031625000 NUT HOLDER PILOT LIGHT 1/16-27

1 0032219000 COLLAR-PILOT LIGHT

5 0031153000 WASHER FLAT 3/8X.614 NI (049) SPKR, EXT SPKR & FTSW, RVB IN & OUT

1 0059711000 CONTROL PANEL MNT 100K LINEAR REVERB

2 0059712000 CONTROL PANEL MNT 1M AUDIO VOLUME

2 0059713000 CONTROL PANEL MNT 250K J TREBLE

2 0059714000 CONTROL PANEL MNT 250K A BASS

1 0059745000 CONTROL PANEL MNT 3M CCW A SPEED

1 0059715000 CONTROL PANEL MNT 50K LINEAR INTENSITY

8 0027887000 LUG SOLDER 3/8" AT CONTROLS

2 0051406003 CAP CD 220pf 500V 10% AT J7

1 0024846003 CAP MPF RDL .047uF 630V 10% C37

2 0051405003 CAP CD 120pf 500V 10% C10 C29

1 0025059001 RES CF 1/4W 5% 220k LL R28

2 0057351001 DIODE BYD33V D6-7

2 0029690001 DIODE HV 3kV 200mA D2-3

2 0026368001 RES CF 1/2W 5% 100ohm LL R70-71

2 0028740001 RES CF 1W 5% 470ohm LL R62-63

2 0024969001 RES CF 1/4W 5% 1.5k LL R60 R61

1 0037665001 RES CF 1/2W 5% 27k LL R59

2 0024979001 RES CF 1/4W 5% 6.8k LL R9 R21

2 0025069001 RES CF 1/4W 5% 1M LL R3 R15

5 0012869000 LUG SOLDER BRASS TINNED W/2 HL GROUNDS

1 0024997001 RES CF 1/4W 5% 100k LL R41

2 0026368001 RES CF 1/2W 5% 100ohm LL R70-71

2 0037835000 SWITCH SLIDE SPST BRIGHT

PARTS LIST:

CABINET ASSEMBLY

QTY. PART # DESCRIPTION REFERENCE DESIGNATION

10057914001 CABINET LEFT SIDE 3/4" PINE (027579)

10057914002 CABINET RIGHT SIDE 3/4" PINE (027579)

10057914003 CABINET BOTTOM 3/4" PINE (027579)

10057914004 CABINET TOP 3/4" PINE (027579)

10057914005 CLEAT 7/8 X1 X 16 3/4" PINE (027579)

10057914006 CLEAT 7/8 X1 X 16 3/4" PINE (027579)

10057914008 CABINET UPPER BACK 1/4 PLYWOOD (027882)

’64 Vibroverb™ Custom

(This is the model name for warranty claims)

*Non-serviceable part. Replace complete parent assembly. See PCB EXCHANGE POLICY on page 4

Unique Fender® part. Order directly from the Fender® dealer Customer Service Department.

** Safety Requirement part. Replacement must match Safety Agency…–Value, if specified –Type, if specified –Approval Mark(s) if on part.

** Both a unique Fender® part and Safety Requirement part as defined above.

PARTS LIST:

CABINET ASSEMBLY

QTY. PART # DESCRIPTION REFERENCE DESIGNATION

10057914010 CABINET LOWER BACK 1/4 PLYWOOD (027882)

10047933000 CABINET BAFFLE 1/2" BALTIC BIRCH (047933)

20056910013 GRILLE FRAME STRIP - LEFT/RIGHT SIDES 1/4 PLYWOOD (027882)

20056910014 GRILLE FRAME STRIP - UPPER/LOWER 1/4 PLYWOOD (027882)

1 0037788000 CLOTH GRILLE BLACK/SILVER

A/R 0026570000 TOLEX BLACK

2 0027579000 PINE #3 COMMON 1x10x96 CLEATS

A/R 0032793000 TAPE ALUM 7-1/2"x60 YDS

12 0021972000 NUT T 10-32x3/4 STR 3 PRNG SPEAKER/HANDLE NUTS

2 0025395000 HANDLE CAP 1 HOLE NI

1 0032524000 INSERT HANDLE

1 0037790000 HANDLE 9.25" BLACK RIBBED

2 0022244000 SCRW M 10-32x1-1/8 OHP NI AT HANDLE

4 0022483000 INSERT GLIDE CUSHION 1.02 DIA

4 0024653000 GLIDE CABINET NI PLATE

4 0026625000 SCRW WOOD 8x1 FH AT GLIDES

2 0024695000 CORNER 2 HOLE W/TAB NI CSK FRONT OF CABINET

2 0029071000 CORNER NOTCHED NICKEL REAR OF CABINET

4 0037543000 SCRW SMAB 8x3/4 OHP NI AT CORNERS

6 0017441000 SCRW M 10-32x1-1/2 OHP BLX AT BAFFLE

6 0029527000 WSHR FNSH 8-5/8 FLNGD BLX AT BAFFLE

PARTS LIST:

END ITEM ASSEMBLY

QTY. PART # DESCRIPTION REFERENCE DESIGNATION

10057914000 CABINET ASSY '64 VIBROVERB CUSTOM

10059740000 CHASSIS ASSY '64 VIBROVERB CUSTOM

120V

10059660000 SPEAKER 15" 8 OHM EMINENCE

1 0037983000 LABEL SPEAKER HR/BLUES/TWIN ON SPEAKER MAGNET

8 0047821000 SCRW M 10-32 3/4 THP STL BLX AT SPEAKER

1 0064063000 REVERB UNIT 4 SPRING 4AB3C1B

1 0031849000 REVERB BAG

1 0028453000 PAD CARDBOARD REVERB

1 0056931000 CABLE REVERB 48" RIGHT ANGLE

2 0022491000 CLAMP CABLE NYL SCRW MNT AT RVB AND SPKR CABLE

1 0028044000 CABLE ASSY SPKR RT ANG 33" SPEAKER CABLE

2 0024752000 STRAP CHASSIS 4-1/2" NI CHASSIS MOUNT

4 0022236000 SCRW M 8-32x3-1/4 OHP NI CONE CHASSIS MOUNT

10037211000 FTSW VIB/REV (099-4058-000)

2 0024828000 LEG AMP TILT 16"

2 0021998000 NUT FLEX LOCK 10-32 W/NYLON INSERT AT LEG

2 0022277000 SCRW M 10-32x1-1/2 OHP NI AT LEG

2 0022285000 WSHR SP LOCK 1/4x.493 ZI AT LEG

6 0022319000 WSHR FLAT 1/4x9/16 NI AT LEG

2 0031344000 SCRW SMA 10x3/4 OHP NI AT LEG STOP

2 0024646000 WASHER LEG STOP TN AT LEG STOP

2 0022327000 WSHR FLAT 8x7/16 NI AT REVERB BAG

5 0029828000 SCRW PB 8x3/4 PHP ZI AT REVERB BAG/CHASSIS

2 0030866000 SCRW SMA 8x1/2 PHP NI AT CLAMPS

1 0023192000 NAMEPLATE FENDER 65 TWIN TOP, LEFT OF GRILL

3 0037985000 SCRW SMA 2x3/8 PHP BLX AT NAMEPLATE

8 0037952000 SCRW SMA 6x1 OHP NI AT CABINET BACKS

8 0037215000 WSHR C'SNK #6 NI AT CABINET BACKS

’64 Vibroverb™ Custom

(This is the model name for warranty claims)

*Non-serviceable part. Replace complete parent assembly. See PCB EXCHANGE POLICY on page 4

Unique Fender® part. Order directly from the Fender® dealer Customer Service Department.

** Safety Requirement part. Replacement must match Safety Agency…–Value, if specified –Type, if specified –Approval Mark(s) if on part.

** Both a unique Fender® part and Safety Requirement part as defined above.

PARTS LIST:

END ITEM ASSEMBLY

QTY. PART # DESCRIPTION REFERENCE DESIGNATION

1 0047248000 **CORD PWR w/IEC CONN DOM

10059737000 MANUAL OWNERS '64 VIBROVERB CUSTOM

10059708000 SERVICE DIAGRAM (COMB) '64 VIBROVERB

CUSTOM

10059753000 COVER, '64 VIBROVERB CUSTOM

PARTS LIST:

FOOTSWITCH ASSY

QTY. PART # DESCRIPTION REFERENCE DESIGNATION

10037211000 FTSW VIB/REV (099-4058-000)

1 0016063000 DECAL VIB/REV

2 0022293000 WASHER FLAT

1 0021691000 BUSHING STRAIN RELIEF

2 0024042000 SWITCH

1 0013172000 PLUG 3 CONDUCTOR

1 0022665000 COVER

1 0024638000 CUP, FOOTSWITCH

This manual suits for next models

Table of contents

Other Fender Music Equipment manuals

Fender

Fender MUSTANG LT40S User manual

Fender

Fender BASSBREAKER 18/30 User manual

Fender

Fender VIBRO CHAMP REVERB-AMP User manual

Fender

Fender SHIELDS BLENDER User manual

Fender

Fender Tone Master PRO User manual

Fender

Fender 0990529000 User manual

Fender

Fender Deluxe 90 User manual

Fender

Fender G-DEC 30 User manual

Fender

Fender 1 User manual

Fender

Fender HAMMERTONE SPACE DELAY User manual

Popular Music Equipment manuals by other brands

Aguilar

Aguilar CHORUSAURUS user guide

Fishman

Fishman NEO-D user guide

HEXDEVICES

HEXDEVICES Tama 12 user manual

Mesa/Boogie

Mesa/Boogie Flux-drive owner's manual

DOLFINOS

DOLFINOS The CARBON Edition user manual

DAPAudio

DAPAudio IPS-PT user guide

Dynacord

Dynacord DPM 8016 owner's manual

Moen

Moen GEC8 Live owner's manual

Yamaha

Yamaha MLC-16 operating manual

Sonuscore

Sonuscore TIME TEXTURES manual

flight of harmony

flight of harmony V'Amp user guide

NANO

NANO PERFORMANCE MIXER quick guide

BHI

BHI NEIM 1031 MKII user guide

Befaco

Befaco KICKALL user manual

Paia

Paia 9720 Assembly and using manual

limex

limex ALPIN MASTER 128 user manual

nord

nord Electro 3 user manual

CARVIN

CARVIN 500W STEREO POWER MODULE - SCHEMA REV G manual

Fender VIBROVERB Custom 64 User manual

Popular Music Equipment manuals by other brands
