Ferm CDM1096 User manual

www.ferm.com
18V Cordless drill
CDM1096
EN Original instructions 04

2Ferm
Fig. B
Fig. C
Fig. A

3
Ferm
Fig. E
Fig. D

EN
4Ferm
CORDLESS DRILL
Thank you for buying this Ferm product.
By doing so you now have an excellent product,
delivered by one of Europe’s leading suppliers. All
products delivered to you by Ferm are
manufactured according to the highest standards
of performance and safety. As part of our
philosophy we also provide an excellent customer
service, backed by our comprehensive Warranty.
We hope you will enjoy using this product for many
years to come.
The numbers in the text refer to the diagrams
on pages 2-3.
Read the operating instructions carefully
before using this device. Familiarise
yourself with its functions and basic
operation. Service the device as per the
instructions to ensure that it always
functions properly. The operating
instructions and the accompanying
documentation must be kept in the
vicinity of the device.
Contents
1. Machine information
2. Safety instructions
3. Mounting accessories
4. Operation
5. Service & maintenance
1. Machine information
Technical specifications
Voltage 18 V
Charger voltage 230 V
Charger frequency 50 Hz
Battery capacity 0.8 Ah
Charging time 3-5 hours
Max. torque 10 Nm
No-load speed 0-550/min
Chuck capacity 0.8-10 mm
Weight (incl. battery) 1.556 kg
Lpa (acoustic pressure) 69,2+3 dB(A)
Lwa (acoustic power) 80.2+3 dB(A)
Vibration value
When drilling in metal 3.1+1.5 m/s2
Vibration level
The vibration emission level stated in this
instruction manual has been measured in
accordance with a standardised test given in EN
60745; it may be used to compare one tool with
another and as a preliminary assessment of
exposure to vibration when using the tool for the
applications mentioned
- using the tool for different applications, or with
different or poorly maintainted accessories,
may significantly increase the exposure level
- the times when the tool is switched off or when
it is running but not actually doing the job, may
signifi cantly reduce the exposure level
Protect yourself against the effects of
vibration by maintaining the tool and its
accessories, keeping your hands warm, and
organizing your work patterns
Contents of packing
1 Cordless drill
2 Battery
1 Adapter + battery holder
6 Drill bits
6 Screwdriver bits
1 Operating instructions
1 Safety instructions
Check the appliance, any loose parts and
accessories for damage caused during transport.
Product information
Fig. A
1. On/off switch
2. Torque setting ring
3. Chuck
4. Battery
5. Direction switch
2. SAFETY INSTRUCTIONS

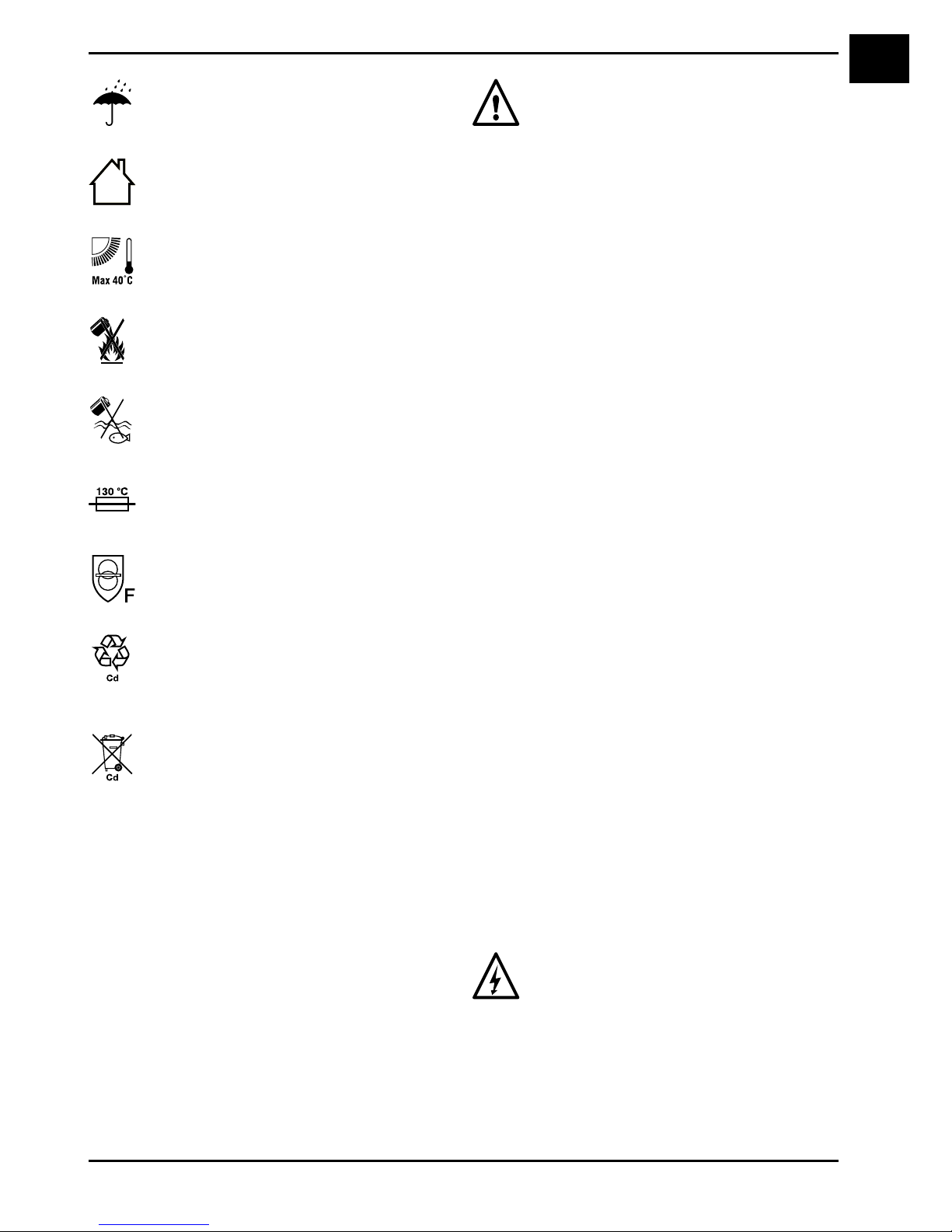

Explanation of the symbols
Denotes risk of personal injury, loss of life
or damage to the tool in case of non-
observance of the instructions in this
manual.
Indicates electrical shock hazard.
The number of revolutions of the machine
can be electronically set.

EN
5
Ferm
Do not use in rain.
Indoor use only.
Maximum temperature 40 °C.
Do not throw the battery into fire.
Do not throw the battery into water.
Thermic protection 130 °C.
In case of failure, the transformer in not
dangerous (separated circuit).
Ni-Cad batteries can be recycled. Drop
them off at a disposal center for chemical
wastes, so that they can be recycled or
disposed of in an eco-friendly manner.
Always recycle batteries
General safety instructions.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they
do not play with the appliance.
Important safety notes on charger and battery
block
If you come in contact with acid from the
battery block, rinse it off with water
immediately. If acid gets into your eyes,
rinse out your eyes at once with water and
contact a doctor immediately!
1. Read and note the operating instructions and
safety notes for the charger and battery block
before use!
2. NB! Only use the charger and battery block
that were supplied by the manufacturer -
otherwise you will risk an accident.
3. Protect the charger, battery block and power
tool from moisture, e.g. rain or snow.
4. Always check that all cables are connected
correctly before using the charger.
5. If you discover that a cable is damaged, you
should not use the charger again. Have the
damaged cable replaced immediately.
6. When the charger is not in use, the mains plug
should be removed from the power socket. Do
not pull out the plug by grasping the cable.
7. If the charger has been dropped or has
otherwise been exposed to high mechanical
stresses, you should have it checked for
damage by an authorised dealer before using
it again. Damaged parts should be repaired.
8. Exercise caution when handling the battery
block and do not drop it or expose it to
impacts.
9. Never attempt to repair the charger or battery
block yourself. Repairs must always be carried
out by an authorised dealer - otherwise you
risk an accident.
10. Before cleaning or servicing the charger or
battery block, always pull the plug from the
charger socket.
11. Never charge the battery block when the
ambient temperature is below 5 °C or above
40°C.
12. The air vents in the charger must never be
blocked.
13. The battery block must not be short-circuited.
A short-circuit will cause a high current to
flow. This may result in overheating, the
danger of fire or explosion of the battery
block. This may damage the battery block
or the user may risk an accident.
Therefore:
Do not connect any cables to the poles of the•
battery block.
Take care that there are no metal objects•

EN
6Ferm
(nails, paper clips, coins, etc.) on the contact
surface of the battery block.
Do not expose the battery block to water or•
rain.
Only use the battery block supplied in•
combination with this cordless drill/screwdriver
so as to avoid faults and/or risks to persons.
14. A damaged battery block or one that can no
longer be charged must be disposed of as
special waste. Do not discard it with
household waste.
15. Never throw the battery block onto a fire or
into water. This will risk explosion!
Electrical safety
Always check that the voltage on the
battery block corresponds to the voltage
on the rating plate. Also check that your
mains voltage corresponds to the input
voltage of the battery charger.
Class II machine – Double insulation –
You don’t need any earthed plug.
Replacing cables or plugs
Immediately throw away old cables or plugs when
they have been replaced by new ones.
Remove the battery block when the power tool•
is not being used and prior to maintenance.
The tool is suitable for use as a screwdriver•
and drill. Any other application is specifically
excluded.
3. Mounting accessories
Prior to mounting an accessory always
remove the battery.
Fitting and removing drill cutters
Fig. B
In addition to screwdriver bits with a hexagonal
shaft, this tool can also accommodate drill bits with
a hexagonal shaft.
Loosen the drill chuck (3) by rotating the hand-•
grip (9).
Insert the shaft of the drill cutter into the chuck.•
Tighten the drill chuck so that the drill cutter is•
firmly clamped.
Rotate the drill chuck in the opposite direction•
when you wish to change the cutter.
Connecting and removing the battery
Fig. C
Ensure that the exterior of the battery
block or tool is clean and dry before
connecting the charger.
Ensure that the direction reversing switch (5,•
Fig. A) is in the central position in order to
prevent the appliance from being switched on
unexpectedly.
Insert the battery (4) into the base of the•
appliance, as shown on the illustration. Push
the battery until it latches in.
Press the locking buttons (10) on both sides•
before removing the battery, and disengage
the battery from the base of the appliance.
4. Operation
Always follow the safety notes and the
relevant safety code.
Hold the appliance firmly and press the drill
steadily onto the workpiece. Do not overload the
appliance. Only use drills with no visible wear.
Worn drills will have a bad effect on the functioning
of the appliance.
Adjusting the torque
Fig. D
The appliance has 16 different torque settings with
which to set the power for driving and removing
screws.
Set the torque adjustment ring (2) to the•
desired position. The available torque settings
are indicated on the adjustment ring by the
numbers 1 to 5 and by dots between the
figures to define intermediate settings (16 in
total).
You should preferably choose a setting as low•
as possible when using the screwdriver.
Select a higher setting if the motor slips.
Driving and removing screws
Set the direction reversing switch (5) to•
position ‘L’ in order to drive screws.
Set the direction reversing switch to position•
‘R’ in order to remove screws.

EN
7
Ferm
Drilling
Rotate the torque adjustment ring (2) to the•
drilling position.
Ensure that the direction reversing switch
(5) is always set to ‘L’ during drilling.
Switching the device on and off
Fig. A
Depress the on/off switch (1). It regulates the•
speed of the appliance by transmitting power
to the switch.
Release the on/off switch (1) to halt the drill•
chuck immediately which will no longer run on.
Move the direction reversing switch (5) to the•
centre in order to lock the appliance in its
disabled state.
Only lay down the appliance when it has stopped
running completely. Do not place it on a dusty
surface as particles of dust could get into the
mechanism.
Charging the battery
The included battery is delivered in partly•
charged condition.
Only use the battery charger in a temperature•
range between + 5 °C to + 40 ºC.
Only use the battery charger in dry, ventilated•
rooms.
Charging
Fig. E
Place the battery holder on a flat table and put•
the battery in the battery holder. Pay attention
to + and - pole markings.
Put the adapter plug of the net adapter in the•
connector on the side of the battery holder.
Put the net adapter in the socket.•
The red charging lamp on the battery holder•
will illuminate indicating the battery is being
charged.
The charging process of a fully discharged•
battery will take approximately 5 hours the first
time and afterwards approximately 3 hours.
As soon as the green trickle charging lamp lights
up, charging has been completed and the device
is ready for operation.
Discharging the battery
Not only charging batteries is important,
discharging is of equal importance or
even greater importance.
When the battery is charged the cordless drill•
has to be used until you start noticing that the
power of the drill is diminishing and that the
maximum rotational speed is not reached.
The battery is almost discharged now. Only•
now you can start charging the battery.
Charging the battery while it is still charged for•
say one-third of capacity, the so-called
‘memory effect’ can occur. Since during
charging only the discharged part of the
battery capacity of the battery is being
charged now, the battery can start crystallizing
in the one-third that is still charged. This part
of the battery capacity can never be used
afterwards.
Do not discharge the battery to the minimum.•
As soon as you notice that the power or the
maximum rotational speed is diminishing, you
have to charge the battery. When you proceed
using the drill and the battery becomes fully
discharged, the so-called ‘switch of poles
effect’ can occur. The polarity of the battery
poles will be switched: the ‘+’will become ‘-‘
and the ‘-‘ will become the ‘+’. Once this has
occurred the polarity will remain switched
during loading and this will damage the battery
irreparable.
When the cordless drill is not being used
over a longer period of time, the battery
has to be charged fully first. The battery
has to be stored in charged condition.
5. Service & maintenance
Make sure that the machine is not live
when carrying out maintenance work on
the motor.
These machines have been designed to operate
over a long period of time with a minimum of
maintenance. Continuous satisfactory operation
depends upon proper machine care and regular
cleaning.
Cleaning
Keep the ventilation slots of the machine clean to
prevent overheating of the engine. Regularly clean

EN
8Ferm
the machine housing with a soft cloth, preferably
after each use. Keep the ventilation slots free from
dust and dirt. If the dirt does not come off use a
soft cloth moistened with soapy water. Never use
solvents such as petrol, alcohol, ammonia water,
etc. These solvents may damage the plastic parts.
Lubrication
The machine requires no additional lubrication.
Faults
Should a fault occur, e.g. after wear of a part,
please contact the service address on the
warranty card. In the back of this manual you find
an exploded view showing the parts that can be
ordered.
Environment
To prevent damage during transport, the appliance
is delivered in a solid packaging which consists
largely of reusable material. Therefore please
make use of options for recycling the packaging.
Faulty and/or discarded electrical or
electronic apparatus have to be collected
at the appropriate recycling locations.
Warranty
The warranty conditions can be found on the
separately enclosed warranty card.

EN
9
Ferm
Spare parts list
CDM1096 - FCD-1800/08
No. Description Position
102877 Drill chuck + bolt left 1 + 2
102878 L/R switch 31
102879 Switch 32
CDA1071 FCD-1800/08 Battery 36 TILL 43
CDA1072 FDCDL-1800/08 Charger 44 + 45

EN
10 Ferm
Exploded view

11
Ferm
DECLARATION OF CONFORMITY
FCD-1800/08, CORDLESS DRILL
(EN) We declare under our sole responsibility that this product
is in conformity and accordance with the following
standards and regulations:
(DE) Der Hersteller erklärt eigenverantwortlich, dass dieses
Produkt den folgenden Standards und Vorschriften
entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijkheid
dat dit product voldoet aan, en in overeenstemming is
met, de volgende standaarden en reguleringen:
(FR) Nous déclarons sous notre seule responsabilité que ce
produit est conforme aux standards et directives suivants:
(ES) Declaramos bajo nuestra exclusiva responsabilidad que
este producto cumple con las siguientes normas y
estándares de funcionamiento:
(PT) Declaramos por nossa total responsabilidade de que este
produto está em conformidade e cumpre as normas e
regulamentações que se seguem:
(IT) Dichiariamo, sotto la nostra responsabilità, che questo
prodotto è conforme alle normative e ai regolamenti
seguenti:
(SV) Vi garanterar på eget ansvar att denna produkt uppfyller
och följer följande standarder och bestämmelser:
(FI) Vakuutamme yksinomaan omalla vastuullamme, että
tämä tuote täyttää seuraavat standardit ja säädökset:
(NO) Vi erklærer under vårt eget ansvar at dette produktet er i
samsvar med følgende standarder og regler:
(DA) Vi erklærer under eget ansvar, at dette produkt er i
overensstemmelse med følgende standarder og
bestemmelser:
(HU) Felelősségünkteljestudatábankijelentjük,hogyeza
termék teljes mértékben megfelel az alábbi
szabványoknakéselőírásoknak:
(CS) Nanašivlastnízodpovědnostprohlašujeme,žejetento
výrobekvsouladusnásledujícímistandardyanormami:
(SK) Vyhlasujemenanašuvýhradnúzodpovednosť,žetento
výrobok je v zhode a súlade s nasledujúcimi normami a
predpismi:
(SL) S polno odgovornostjo izjavljamo, da je ta izdelek v skla-
du in da odgovarja naslednjim standardom terpredpisom:
(PL) Deklarujemynawłasnąodpowiedzialność,żetenprodukt
spełniawymogizawartewnastępującychnormachi
przepisach:
(LT) Prisiimdamivisąatsakomybędeklaruojame,kadšis
gaminysatitinkažemiaupaminėtusstandartusarba
nuostatus:
(LV) Apgalvojamarvisuatbildību,kašisproduktsirsaskaņā
un atbilst sekojošiem standartiem un nolikumiem:
(ET) Deklareerime meie ainuvastutusel, et see toode on vasta-
vuses ja kooskõlas järgmiste standardite ja määrustega:
(RO) Declarămprinaceastacurăspundereadeplinăcă
produsulacestaesteînconformitatecuurmătoarele
standarde sau directive:
(HR) IzjavljujemopodvlastitomodgovornoĻśudajestrojem
ukladansaslijedeśimstandardimailistandardiziranim
dokumentima i u skladu sa odredbama:
(SR) Podpunomodgovornošćuizjavljujemodajeusaglašen
sasledećimstandardimailinormama:
(RU) Подсвоюответственностьзаявляем,чтоданное
изделиесоответствуетследующимстандартами
нормам:
(UK) Насвоювласнувідповідальністьзаявляємо,щодане
обладнаннявідповідаєнаступнимстандартамі
нормативам:
(EL)  ¢ËÏÒÓÔ˘ÌÂ˘‡ı˘Ó·fiÙÈÙÔÚÔ˚fiÓ·˘ÙfiÛ˘ÌʈÓ›ηÈ
ÙËÚ›ÙÔ˘˜·Ú·Î¿ÙˆηÓÔÓÈÛÌÔ‡˜ηÈÚfiÙ˘·:
EN 55014-1, EN 55014-2, EN 60745-1, EN 60745-2-1, EN 60745-2-2,
EN 61000-3-2, EN 61000-3-3, EN60335-1, EN6335-2-29, EN62233
2002/95/EC, 2002/96/EC, 2004/108/EC, 2006/42/EC, 2006/95/EC
Zwolle, 01-11-2010
I. Mönnink
CEO Ferm BV
It is our policy to continuously improve our products and we therefore reserve the right to change the
product specification without prior notice.
Ferm BV • Lingenstraat 6 • 8028 PM • Zwolle The Netherlands

© 2011 Ferm B.V. 1106-14
