Ferno S-265 Scoop User manual

The Model S-265 Scoop Stretcher (stretcher) is an emergency
patient-handling device. It is designed to aid in moving a patient
when space is limited or when the patient needs to be moved with
little change of body position. Operate the stretcher according to
the laws and protocols of the country where it is used. Consult the
appropriate authorities for information regarding laws and
protocols, and resolve any questions before using the stretcher with
a patient.
The stretcher is for professional use by a minimum of two trained
operators.
The stretcher frame is constructed in two halves which uncouple,
slide under the patient, then recouple for lifting the patient. The
stretcher may also be used in a “V” shape when uncoupled at only
the foot end.
Other features include a telescoping foot section with locking
positions for length adjustment, three handholds on each side of
the main frame, and concealed hinges which allow the stretcher to
fold for storage.
The Model S-265 stretcher is equipped with a set of three patient
restraints.
159
kg
kg
159
Users’ Manual
Product Specifications
Length open: 1660mm
Length Folded: 1200mm
Width: 422mm
Height open: 670mm
Height Folded: 90mm
Unit Weight: 9,75 kg
Load Capacity: 159 kg
Model S-265 Scoop
September 2020, ver. 06
Pub. No. 50-8112-001_06
Manufacturer:
Ferno Slovakia s.r.o.
913 07 Bosaca 893 Slovak Republic
Tel: [phone], [email protected]

Ferno Slovakia Model S-265 Scoop
2
1. Adjusting Stretcher Length
Adjust the length of the stretcher to the patient’s
height before uncoupling the halves. This ensures
equal adjustment to both halves.
TO LENGTHEN OR SHORTEN THE STRETCHER
1. Move the lock-pin lever on each side of the
frame to the unlocked position (Figure 1)
Note: When the stretcher is lying face-up on
a flat surface, the locked position is “down”
and the unlocked position is “up” (Figure 1)
2. Pull the foot section outward to the desired
length, stopping near one of the locking
positions located at the holes along the foot-
section frame.
3. Return both lock-pin levers to the locked
position (Figure 1)
4. Push or pull the foot section a little until it
locks into place
5. Make sure both sides are securely locked
2. Applying the Stretcher
To separate the stretcher halves, use thumbs to
press the Twin Safety Lock levers on each end
coupling and pull the coupling halves away from
each other.
Twin Safety Lock Levers

Ferno Slovakia Model S-265 Scoop
3
Applying THE STRETCHER
Carrying THE STRETCHER

Ferno Slovakia Model S-265 Scoop
4

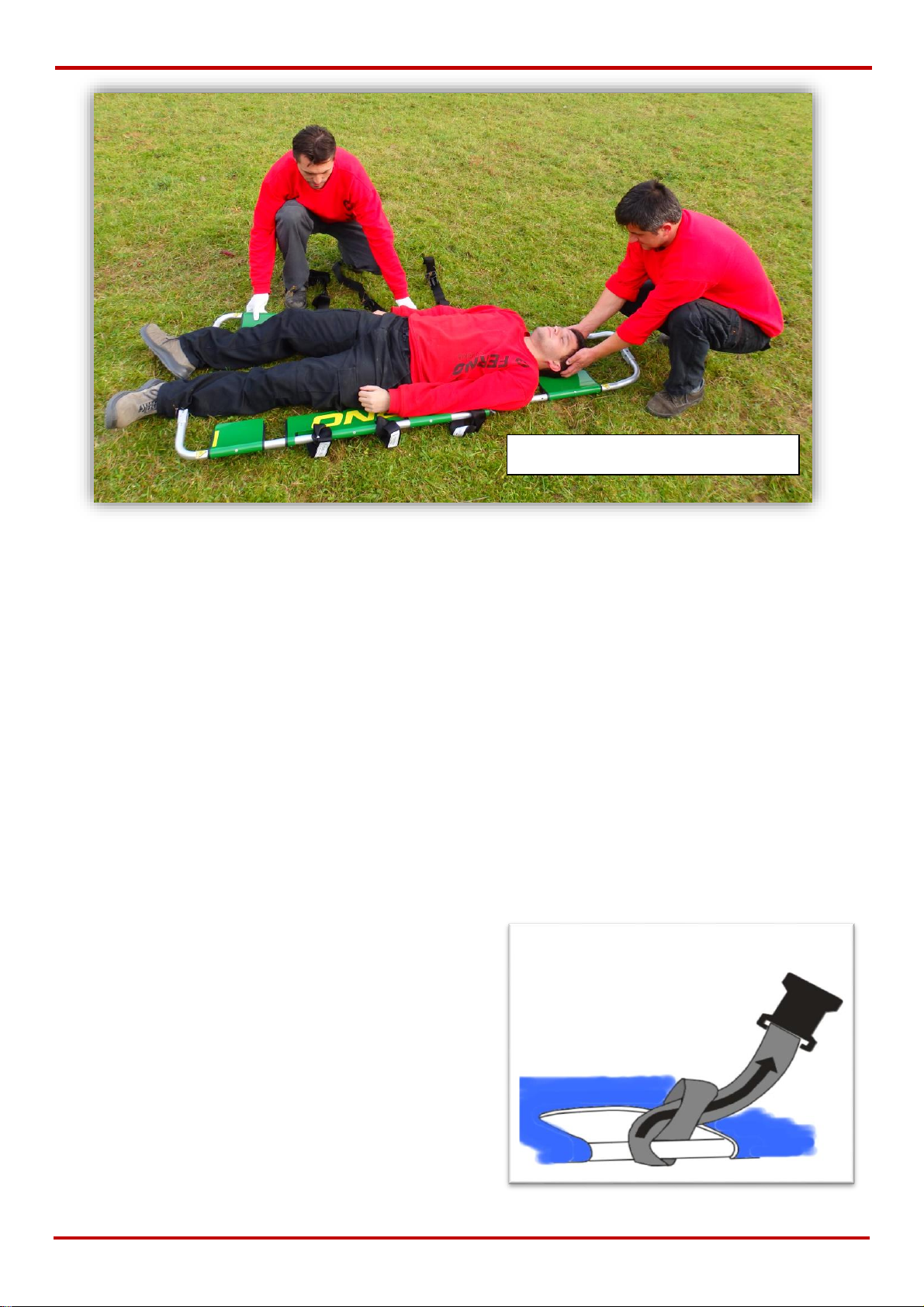

3. APPLYING STRETCHER IN A “V”
Unfold the stretcher if it is folded for storage, and
adjust the length (see B Adjusting stretcher
length)
1. Unfasten the restraints (if stored on
stretcher)
2. Open only the foot-end coupling.
3. Pull the foot and halves of the stretcher
apart to form a “V” shape.
4. Position the stretcher with the patient’s
head at the base of the „V“ (Figure 6)
5. Use locally-approved EMS procedures to
work the stretcher inward and under the
patient. Work from head to foot until the
coupling halves at the foot end meet.
To avoid pinching or pulling the patient`s skin,
hair, or clothing, use care while working the
stretcher halves into place beneath the
patient.
4. ATTACHING RESTRAINTS
The Model S-265 Scoop Stretcher includes a set
of three two-pieces restraints.
To attach a two-piece restraint:
1. Unbuckle the restraint, separating it into
two pieces.
2. Pass the looped end of one restraint piece
upward through a handle hold opening on
stretcher frame.
3. Hold the loop open and thread the buckle
of restraint through loop
4. Pull the webbing through the loop until the
loop is snug against stretcher frame.
5. Confirm that all restrains are securely
fastened
Applying THE STRETCHER „V”

Ferno Slovakia Model S-265 Scoop
5
5. USING ADDITIONAL HELP
O-Operator H-Helper P-Patient
7. STRETCHER COMPONENTS
1. Unlock the lock-pin levers on both sides o
6. STORING THE STRETCHER
nfold the stretcher if it is folded for storage, and
adjust the length (see B Adjusting stretcher
length)
1. Unlock the lock-pin levers on both sides of
the stretcher.
2. Fully extend the foot section by pulling it
out until the hinges are completely visible.
3. Lift the foot section and fold it over onto the
torso panel
8. Warranty and
Service
Standard terms
and
8. Warranty and Service
Hand holds
Lock pin lever
Restraint
s
Head-end coupling
Foot section
Foot-end coupling
section
Leg panel
Torso panel
Head panel

Ferno Slovakia Model S-265 Scoop
6
8. Lubricating the Stretcher
- white lithium grease
- SAE 30-weight oil
- Dry-coating Teflon lubricant
8. Warranty and Service
Standard terms and conditions apply to all sales.
A copy is available upon request. These contain
full details of warrant terms and do not limit the
statutory rights of the customer.
For service, maintenance and any questions
regarding this, or any other product, please contact
your local distributor.
The CE mark on this product demonstrates
conformity with the requirements of the EC
Directive 93/42/EEC for Medical Devices.
WARNING
FOR SERVICE AND REPAIR PLEASE
REFER TO YOUR SALES AGENT
Improper use of the stretcher can cause
injury. Use the stretcher only for the
purpose described in this manual.
Untrained operators can cause injury or be
injured. Permit only trained personnel to
operate the stretcher.
Improper operation can cause injury.
Operate the stretcher only as shown in this
manual.
An unattended patient can be injured. Stay
with the patient at all times.
An unrestrained patient can fall off the
stretcher and be injured. Use restraints to
secure the patient in the stretcher.
Untrained helpers can cause injury or be
injured. Operate and maintain control of the
stretcher and direct any helpers.
