Ferroli Talent Operating and maintenance manual

Supplied By www.heating spares.co Tel. [phone]
Appr. nr. B 95.06 A - CE 0063 AQ 2150
Wall mounted fanned
flue Water Heater
INSTALLATION AND
USE INSTRUCTIONS
Please read these Instructions
thoroughly before using
the appliance
Phone numbers:
Installer ____________________________
Service Engineer _____________________
Serial N°____________________________
These Instructions must be left with the appliance User.
TALENT
Wall Mounted
Fan Flue
Gas Multi-Point Water Heater
3541027/4 • 10/2002

Supplied By www.heating spares.co Tel. [phone]
2
S.p.A.
INDEX
1- General description and information
2- Technical specifications
3- Installation details
4- Installation
5- Water heater connections
6- Commissioning, operation and shutdown
7- Adjustments
8- Converting to L.P.G.
9- Maintenance requirement
10 - Handing over to user

Supplied By www.heating spares.co Tel. [phone]
3
S.p.A.
1. GENERAL DESCRIPTION AND INFORMATION
1.1 Information
1. Installation must be carried out by a competent person, and in accordance with the relevant
requirements of the current issues of:
A. Gas Safety (Installation & Use) Regulations. 1994
B. Building Regulations.
C. Building Standards (Scotland) Regulations.
D. I.E.E. Wiring Regulations.
E. Bye-laws of the local water undertaking.
Guidance on Installation is provided in this booklet, but due account must be taken of the detailed
recommendations of the current issues of:
BS 5440 Part 1: Flues.
BS 5440 Part 2: Ventilation.
BS 5546: Domestic hot water.
BS 6700: Water supply.
BS 6891: Gas supply.
For installation in timber framed buildings, refer to the British Gas Publication Guide for gas
installation in timber framed housing - REF DM2.
2. It is essential that the Water Heater be installed strictly in accordance with these Instructions and
the documents, detailed above.
3. To avoid the possibility of injury, care must be taken when handling sheet metal components.
1.02 Introduction
The Gas Multi Point water heater is a “room-sealed” appliance: it takes in the air required for com-
bustion and encloses all the combustion products in an hermetic compartment. The discharge of
fumes and intake of combustion air are managed through air/flue pipes that may be run horizontally
in all directions, or through a concentric flue running vertically or horizontally.
The main components of the water heater are:
-Acompact heat exchanger in copper, formed by four pipes with external finning and internal
turbulence activators.
-An insulated combustion chamber to reduce heat loss and thus improve efficiency.
-Four stainless steel burners, an oxidation and thermal shock-resistant material specially developed
for this product.
-Afan to discharge combustion products and draw in combustion air.

Supplied By www.heating spares.co Tel. [phone]
4
S.p.A.
-Ahigh limit thermostat
-Asteel room-sealed compartment treated against corrosion, enclosing components.
-An air differential pressure switch which, to ensure safe operation, allows burner ignition only
when the fan functions normally.
-Anewly-designed gas ignition valve assembly, comprising a fullly modulating gas valve and a
flame control device. (Ignition is by an intermittent pilot flame; at the moment a hot water tap is
opened, a pilot flame is sparked electronically which lights the main burners.)
-Aflowmeter.
-Amodulating device which controls the gas valve during use in response to the signal from the
flowmeter, the preset temperature and the desired flow rate (water temperature is kept constant
with no waste due to temperature fluctuation).
-Awater temperature control which allows the user to set the desired temperature - between 40°C
and 55°C.
-Five LEDs: one green signalling that the water heater is on, and four yellow displaying water tem-
perature.
-Atemperature sensor.
-Aexpansion vessel 3 bar.

Supplied By www.heating spares.co Tel. [phone]
5
S.p.A.
2. TECHNICAL SPECIFICA TION
2.01. Technical Data
kW
kW
kW
29.7
26.8
24.4
kW
kW
kW
11.5
10.4
9.7
Max Min
Natural gas (G20) Propane LPG (G31)
kW
kW
kW
29.0
26.8
24.4
kW
kW
kW
11.3
10.4
9.7
Max Min
Dimensions
Weight
Width
Height
Depth
mm
mm
mm
kg
Nominal Heat Input (Gross C.V.)
Nominal Heat Input (Net C.V.)
Nominal Heat Output
LPG.
(G31)
Ø Main Injector
Ø Gas pipe connection
mm
mbar
Quantity of main injectors
Gas Inlet Working Pressure
Gas pressure at Main Burners
Gas Flow
N¡
mbar
kg/h
m3/h
Water Flow Rate
Maximum Pressure
˘t 25 ¡C
˘t 35 ¡C
min
Adjustable Temperature
Ø Water connections
Max
l/min
l/min
¡C
¡C
bar
Model
V/Hz Supply voltage
Natural Gas
(G20)
min
Max mbar
14
10
40
55
10
1/2"
700
420
273
230/50
33
Pilot Injector
3/4"
4
2.25
20
2
12.2
2.83
-
38/36 A
3/4"
4
1.40
37
6
36
2.07
-
0.25 P

Supplied By www.heating spares.co Tel. [phone]
6
S.p.A.

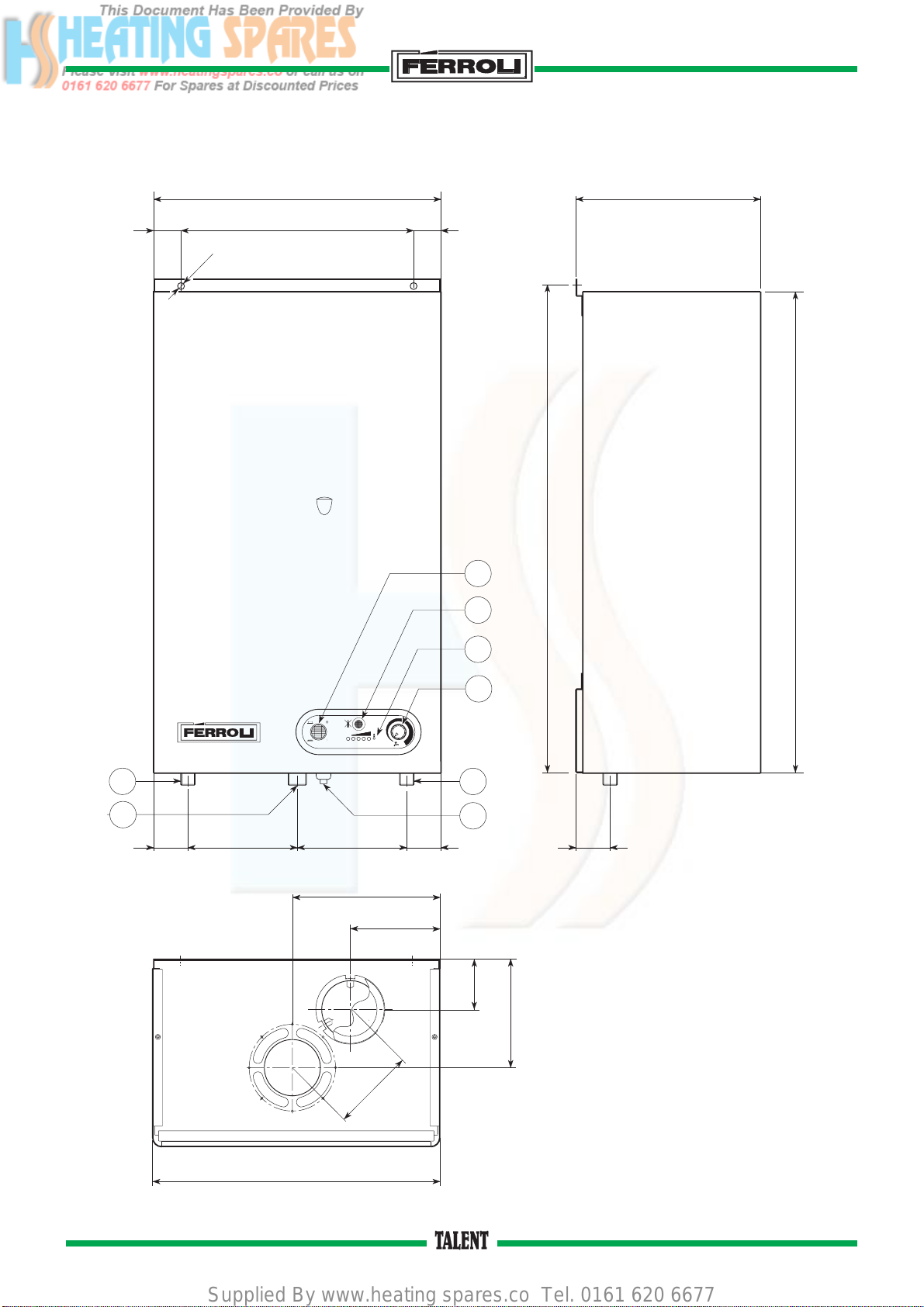

2.02. Dimensions and Measurements
Key
1. Domestic hot water outlet
2. Domestic cold water inlet
3. Gas supply
a. Main electrical switch
b. LED - Power on (green)
LEDs - Temperature level (yellow)
c. Water temperature control knob
(40°C - 55°C)
d. Overheat cut-off thermostat 90°C
Fig. 1
53
710 700
273
°C
°C
50 160 160 50
40 340 40
420
Ø 10
1
3
b
a
2
c
e
d
420
216
131
73
158
120

Supplied By www.heating spares.co Tel. [phone]
7
S.p.A.
5Room-sealed compartment
7Gas inlet
8Domestic hot water outlet
9Cold water inlet
16 Fan
19 Combustion chamber
20 Burner assembly
21 Main injector
22 Burner
25 Pilot
26 Combustion chamber insulation
27 Copper heat exchanger
28 Flue gases collector
29 Internal flue exit
30 Surplus air collector
31 Air pressure control damper
40 Expansion vessel 3 bar
42 Temperature sensor
43 Air pressure switch
44 Combination gas valve
81 Spark electrode
82 Sensor electrode
87 Venturi pressure test point
136 Flowmeter
176 Overheat cut-off thermostat 90°C

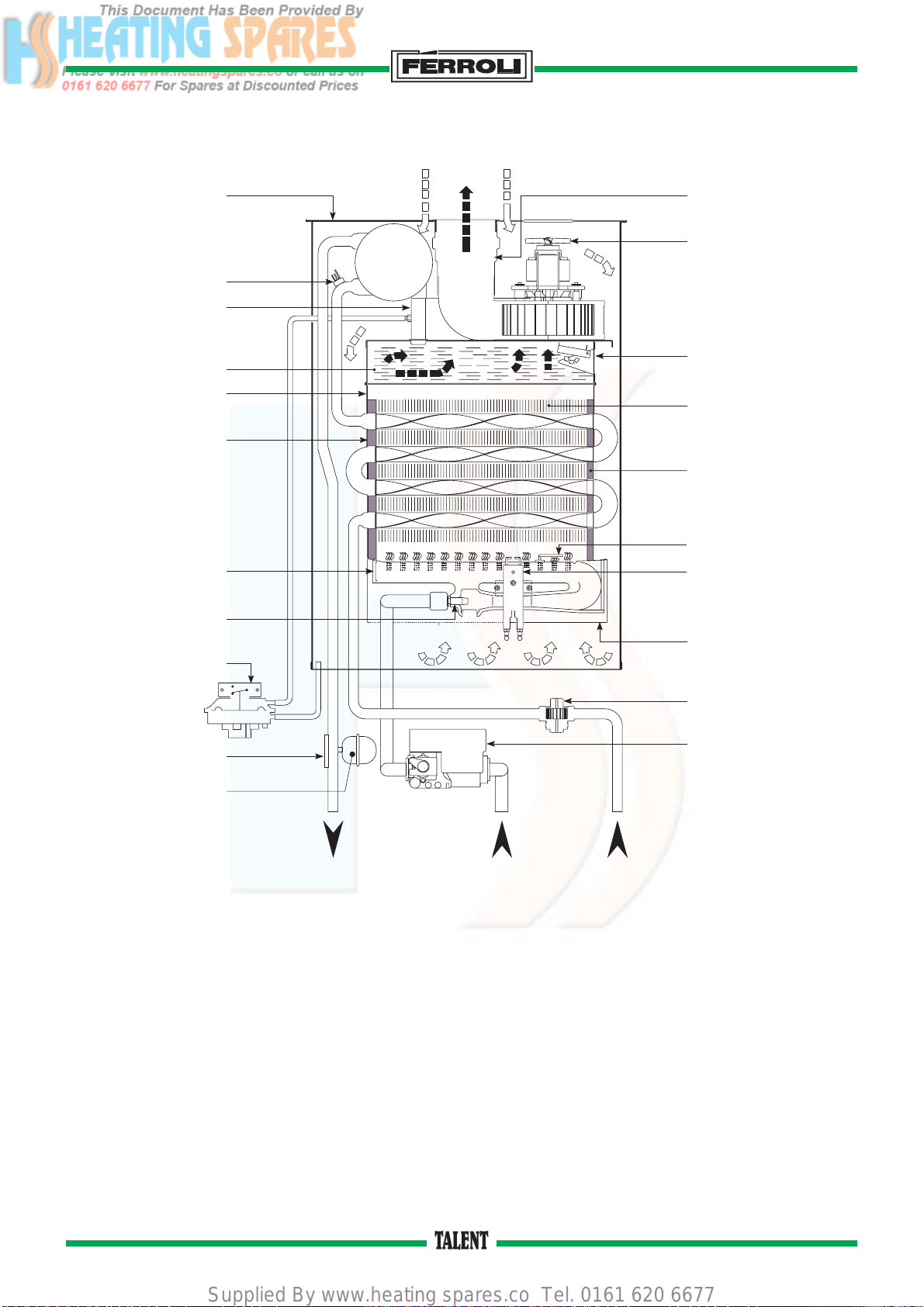

2.03. Flow Diagram
Fig. 2
5
87
28
19
22
21
43
30
42
29
16
31
27
26
81
20
136
44
879
176
82
40

Supplied By www.heating spares.co Tel. [phone]
8
S.p.A.
3.0 INSTALLATION DETAILS
3.1 Gas Safety (Installation & Use) Regulations: 1994
In the interest of safety, it is the law that all gas appliances are installed by a competent person in
accordance with the above Regulations, Building Regulations/Building Standards Scotland, Codes of
Practice, current I.E.E. Regulations and the byelaws of the Local Water Undertaking. Failure to
comply with the Regulations may lead to prosecution; it is in your interest and that of safety to ensure
that the law is complied with.
Important - If the water heater is to be fitted in a timber framed buiding it should be fitted in
accordance with the British Gas publication; Guide for Gas Installation in Timber Frame Housing:
Reference DM2. If in doubt advice must be sought from the Local Gas Region of British Gas Plc.
3.2 Location of the water heater
The installation of the TALENT must be on a suitable non-combustible load bearing wall which will
provide an adequate fixing for the boiler mounting bolts. The location should be in an area where the
water pipes will not be subjected to frost conditions. In siting the water heater the following limitations
must be observed:
The water heater may be installed in any room or internal space, although particular attention
is drawn to the requirements of the current, i.e. wiring regulations and in Scotland the electrical
provisions of the building regulations applicable in Scotland, with respect to the installation of the
water heater in a room or internal space containing a bath or shower.
Where a room sealed appliance is installed in a room containing a bath or shower any electrical
switch or appliance control utilising mains electricity, should be so situated that it cannot be touched
by a person using the bath or shower.
3.3 Terminal Position
POSITION MINIMUM SPACING (fig. 3) mm
ADirectly below an openable window, air vent, or any other ventilation opening ........ 300
BBelow gutters, soil pipes or drainpipes ......................................................................... 75
CBelow Eaves ............................................................................................................... 100
DBelow a Balcony ........................................................................................................ 100
EFrom vertical drainpipes or soilpipes ............................................................................ 75
FFrom internal or external corners ............................................................................... 100
GAbove adjacent ground or balcony level .................................................................... 100
HFrom a surface facing the terminal ............................................................................. 600
IFacing another terminal .......................................................................................... 1.200
JFrom opening (door/window) in carport into dwelling ............................................ 1.200
KVertically from a terminal on the same wall ............................................................ 1.500
LHorizontally from a terminal on the same wall........................................................... 300
NBelow carport ............................................................................................................ 600
A Quinnel Barrat and Quinnel guard (part. No. C2) should be screwed to the wall centrally over the
terminal, when the distance is less than 2 m from the outside floor.
3.4 Air Supply
The room in which the boiler is installed does not require a purpose provided vent.

Supplied By www.heating spares.co Tel. [phone]
9
S.p.A.
Minimum Clearance mm
Fig. 4
Fig. 3
Terminal Position
200 min
25 mm
600**
50
min.
25 mm
200
82
°C
°C
NOTES
** Access to the front of the boiler must be available for maintenance (min. 600 mm).

Supplied By www.heating spares.co Tel. [phone]
10
S.p.A.
3.5 Flue system
The water heater allows the flue outlet to be taken from the rear of the water heater or from either side.
A standard flue length of 0.75 metres is provided. Alternative lengths of two or three metres can be
supplied.
It is absolutely essential, to ensure that products of combustion discharging from the terminal cannot
re-enter the building, or enter any adjacent building, through ventilators, windows, doors, natural air
infiltration, or forced ventilation/air conditioning.
3.6 Gas Supply
If necessary the local Gas Region should be consulted, at the installation planning stage, in order to
establish the availability of an adequate supply of gas.
An existing service pipe must not be used without prior consultation with the Local Gas Region.
A gas meter can only be connected by the Local Gas Region, or by a Local Gas Region's Contractor.
Installation pipes should be fitted in accordance with BS6891-1988.
Appliance inlet working pressure must be 20 mbar MINIMUM.
Pipework from the meter to the boiler must be of an adequate size (3/4" or 22 mm).
Do not use pipes of a smaller size than the boiler inlet gas connection.
The complete installation must be tested for gas soundness and purged as described in BS6981-1988.
All pipework must be adequately supported. An isolating gas valve is provided and should be fitted.
3.7 Water supply
Facing the appliance the cold water inlet is on the right with the hot water outlet on the left.
The maximum domestic water pressure for the inlet supply is 10 bar (145 P.S.I.). If the cold mains supply
exceeds 5 bar (72 P.S.I.), a water governor or pressure reducing valve must be fitted in an accessible
position preferable between 3 and 5 metres before the appliance.
Such a valve must be approved by the water research council.
Attention - Is drawn to the Model Water Byelaws.
Fittings manufactured from duplex (alpha-beta) brass are not acceptable for underground use and
certain water undertakings will not accept their use above ground.

Supplied By www.heating spares.co Tel. [phone]
11
S.p.A.
4. INSTALLATION
4.1 Unpacking
The appliance is delivered in 2 cartons.
4.1.1 The large carton contains the boiler, and the Installation/Servicing and Users Instructions.
4.1.2 The second carton contains the wall fixing bolts (x2), flue assembly, water heater bend and gas
cock.
4.2 Wall mounting
After selecting a suitable place for the water heater, mark location for fixing holes. Using 8 mm drill,
drill 60 mm deep holes to accept fixing bolts and insert. Tighten nuts until secure, then remove nuts
leaving studs protruding, hang water heater and refits nuts to secure.
Fig. 5
cc
d

Supplied By www.heating spares.co Tel. [phone]
12
S.p.A.
Outlet and inlet
through a building wall
MAX 3m
Maximum permitted length for
concentric flue to be run is 3 m.
4.3 Preparing the flue assembly
The water heater is supplied with 0.75 m of concentric flue which can be run from either side or to
the back of the appliance. If a longer flue is required 2 m and 3 m lengths are avaiable.
An example of using the concentric flue.
Flue connection
Drawing below shows
how concentric flue
should be assembled -
the main points being:
1. Inner flue pipe
(alluminium) needs
to be 85 - 90 mm
longer than plastic
air intake pipe
2. The air intake
(plastic) pipe only
butts to the elbow
3. Care must be taken
not to dislodge “O”
rings
Fig. 7
Fig. 6
L
A=L+(85-90)mm
Ø2
Ø1
Clamp detail
25-30 mm 60
Ø2
Chamfer outer edge of
aluminium pipe to
avoid dislodging "O" rings
Ø1
Ø1=100
Ø2=60
"O" rings

Supplied By www.heating spares.co Tel. [phone]
13
S.p.A.
5.Water heater connections
Gas, Water and Electrical

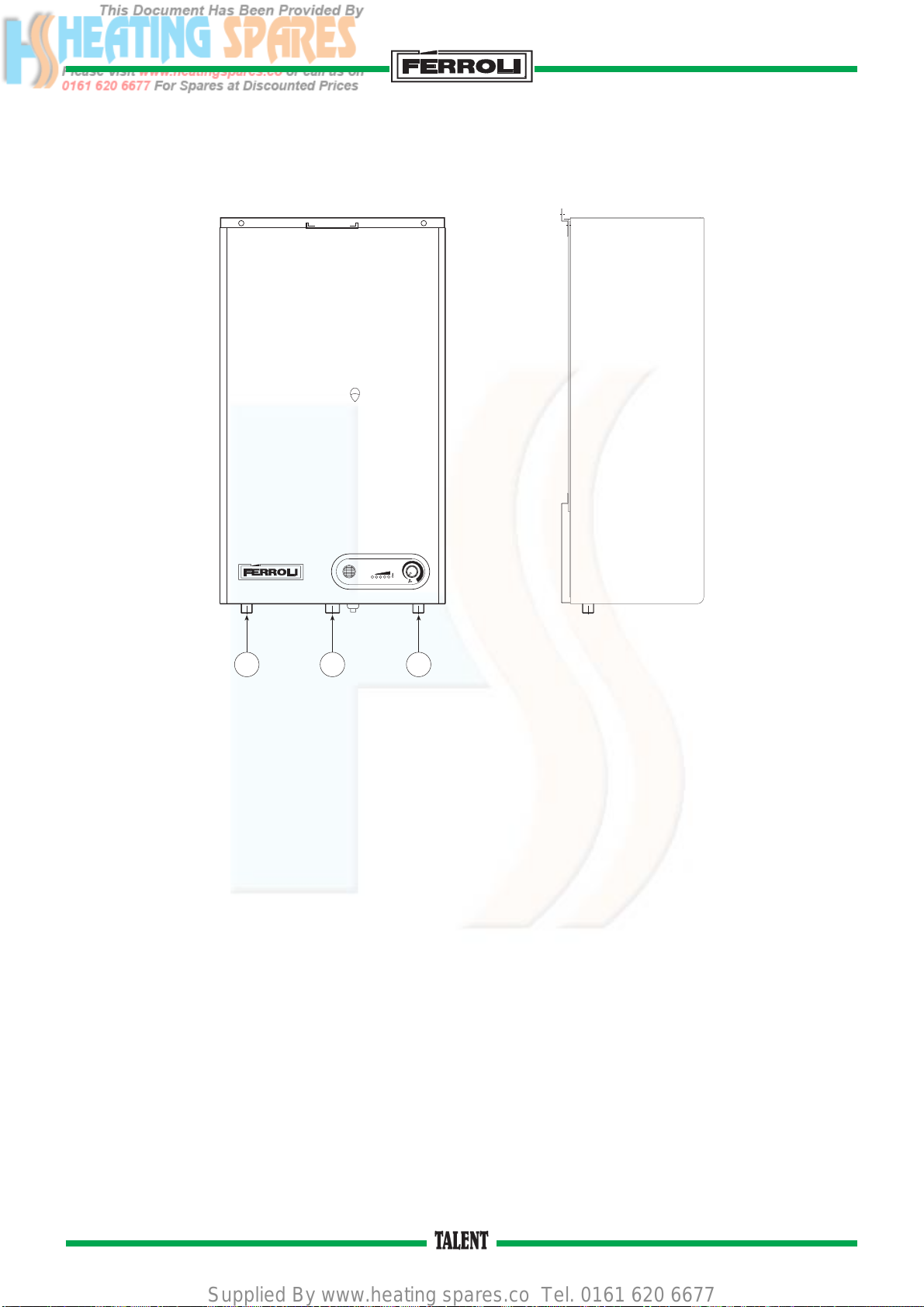

Front View Side View
5.1 Gas supply
1. Further guidance: BS 6891, BS 6798, Gas Safety (Installation and Use) Regulations 1994.
2. Ensure the supply pipe, the gas meter and existing or new pipework will serve the maximum gas
rate of all the appliance served by that meter.
3. An inlet working pressure of 20 mbar will be required at the boiler.
4. Always test for soundness of gas supply pipes in accordance with BS 6891.
5. Fit gas cock supplied upstream from the appliance.
5.2 Connecting to the water system
-The connection to the domestic water supply system should be compatible with the specifications
and rating of the water heater.
-When connecting to a hard water supply, you should install a softener device to reduce the fre-
quency of the heat-exchanger blockages and maintain an optimal output.
-Connect the water heater to the water supply system and fit in a water tap upstream from the
appliance.
°C
°C
1 3 2
1. Hot water outlet 1/2"
2. Cold water inlet 1/2"
3. Gas Supply 3/4"

Supplied By www.heating spares.co Tel. [phone]
14
S.p.A.
178234569101112
83 43 16
Brown Blue Black
101
12
34
LED
876543219
X1 12345
X5 312
J1
176
230V
50Hz L N
-
OUT
+
1364742
4
X2
213 1234567
X3
LPG
2
NAT
3
X5
1
NATURAL GAS
LPG
2
NAT
3
X5
1
L.P.G.
NAT
LPG
24
MAIN P.C.B. JUMPER SETTING ACCORDING TO
TYPE OF OPERATING GAS
JUMPER CONNECTS
2 AND 3
JUMPER CONNECTS
1 AND 2
-Facing the appliance, the cold water inlet is on the right, the hot water outlet is on the left.
Make sure the cold and hot water systems do not serve for earthing of the electric or telephone systems. They
are not designed for this purpose. Such use might cause within a short time serious damages to the plumbing
and appliance.
5.3 Electric supply
The water heater should be powered by a single-phase 230V-50Hz current, with a 3A fuse (set between the main
power line and the water heater) and a two-pole switch with cutoff opening of 3 mm or more.
Connect the power cable provided to the main power line matching with the line, neutral and grounding wires.
If the water heater is installed in a room containing a bath or shower any electrical switch or appliance control
utilising mains electricity, should be so situated that it cannot be touched by a person using the bath or shower.
Ferroli disclaims any liability for damages to persons, animals or property caused by lack of earthing of the
heater or by an electrical system which does not comply with current regulations.
Fig. 9
Key:
16 Fan
42 Temperatur sensor
43 Air pressure switch
47 Modulating regulator valve
81 Spark electrode
82 Sensor electrode
83 Full sequence automatic control
101 Main P.C.B.
129 Reset knob with lamp
136 Flowmeter
176 Security thermostat
J1 Jumper
LED1 (green) = Power ON
LED2-5 (yellow) = Water temperature display

Supplied By www.heating spares.co Tel. [phone]
15
S.p.A.
6 COMMISSIONING, OPERA TION AND SHUTDOWN
6.1 Tests to be performed prior to first start
Before starting the water heater for the first time you should check the following:
-That the gas and water taps upstream of the water heater, are open.
-That there are no gas or water leaks along the lines or in the appliance.
-That electric connections have been performed properly (paying the closest attention to matching line and
neutral wires) and that the appliance is corrected earthed..
-That there are no inflammable liquids or materials in the immediate vicinity of the appliance.
-That the gas pressure and gas flow are at the required levels.
-That the air inlet and flue gases exhaust pipes are properly connected (flue installation).
-That all hot water taps are turned off.
6.2 Commissioning
-Turn on the power.
-Set the switch on the instrument panel to “On” (the green LED should light up).
-Open a hot tap to draw water this will automatically activate the fan to start discharging combustion products.
The electronic device on the gas unit activates an electrode which ignites the pilot flame and simultaneously
verifies the completion of the ignition phase and allows the lighting of the main burner.
-In the event ignition of the pilot flame has failed, check the line and neutral connections for correct polarity.
6.3 Operation
Talent is a water heater designed for prompt production of hot water.
During drawing of domestic water, the flowmeter sends a signal to the electronic device which, in response to
the preset temperature and the desired flow, adjusts the gas valve. The water temperature is thus kept constant
and this eliminates the waste due to temperature fluctuation.
The user may select a temperature between 40°C and 55°C using the knob on the instrument panel.
The diagram in Fig. 10 shows the water heater temperature range, within which it may operate.

Supplied By www.heating spares.co Tel. [phone]
16
S.p.A.
6.4 Shutdown
To shut down the appliance turn the power supply off (switch *), and turn off the gas supply cock.
Note: You should shut down the appliance whenever you intend not to use it for a long period of time. During
long winter breaks, you should drain the water out of the water heater to avoid damage that might be caused by
freezing.
7. ADJUSTMENTS
The TALENT water heater is factory set and no adjustments are normally required, however the
following adjustments can be made if problems are found.
7.1 Adjusting the pressure and flow rate at the main burner
This appliance, being of the modulating-flame type, comes with two fixed pressure settings - for minimum and
maximum, as shown in the table - for each type of operating gas.
Remember: You should adjust the minimum pressure setting first to ensure a correct ignition of the burner, then
proceed to adjust the maximum pressure setting. Any adjustment of the minimum pressure modifies the maximum
setting. The following adjustments, given their extreme sensitivity, should be carried out solely by company expert
personnel.
7.2 Adjusting the minimum and maximum pressure settings
Start with an ignited burner:
-Connect an appropriate manometer to the burner pressure test point.
-Disconnect the power supply wires leading to the “Modureg” coil “c”.
-Disconnect the pressure balancing pipe “h”
- Remove the protection cap “d” fitted on top of the coil.

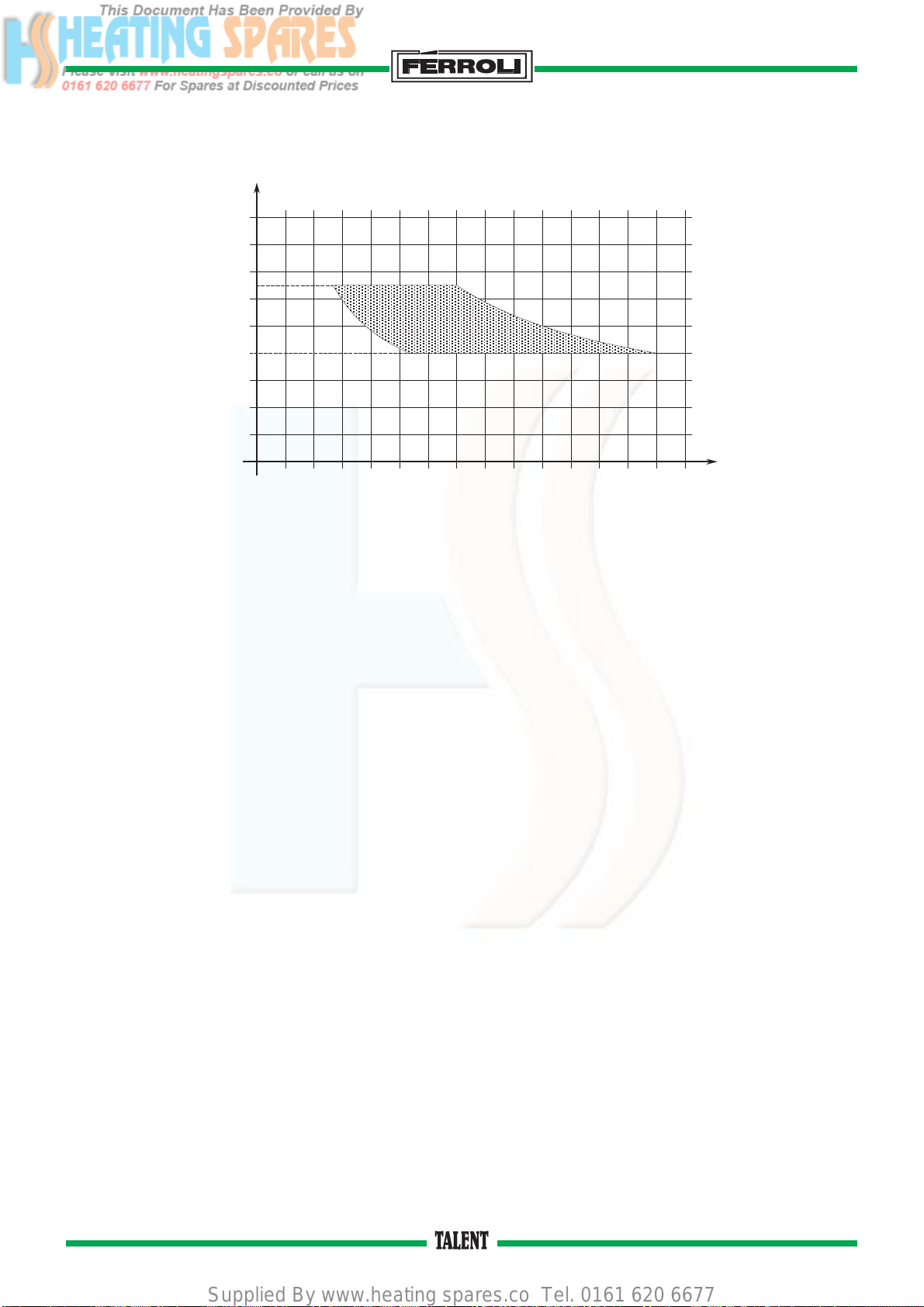

DIAGRAM OF WORK RANGE AS A FUNCTION OF SET TEMPERA TURE
1 2010
10
20
30
40
50
60
70
80
90
3456789 11 12 13 14 15
T [°C]
PORTATA [l/min]
-Results are based on incoming water temperature of 15°C.
-Temperature may be set from a minimum of 40°C to a maximum of 55°C.
Fig. 10
Flow Rate (l/min)

Supplied By www.heating spares.co Tel. [phone]
17
S.p.A.

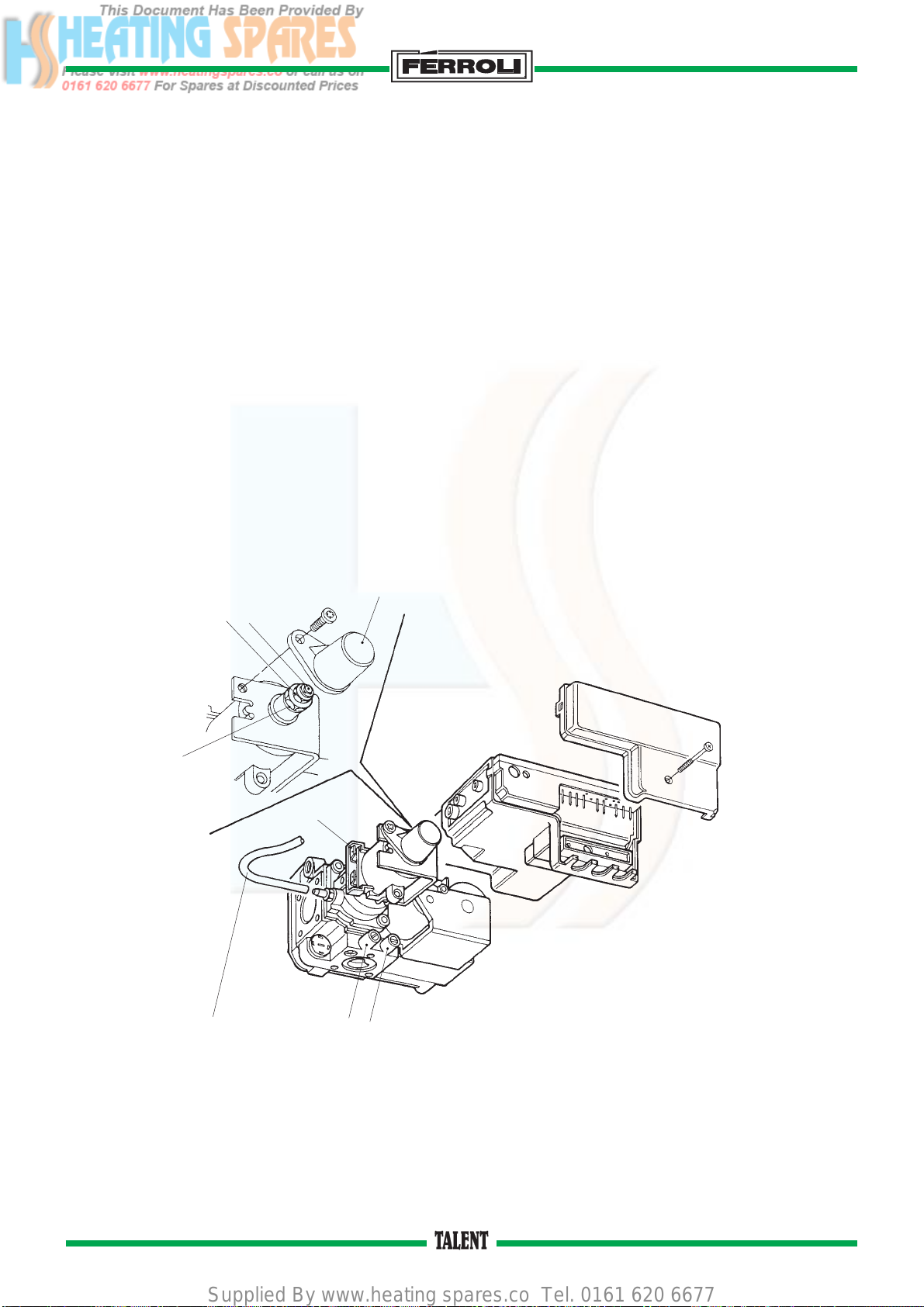

Fig. 11
-Regulate the minimum pressure by turning nut “e”, anticlockwise to reduce it and clockwise to increase it.
-Turn the burner off three or four times by closing and opening the gas cock, checking every time that the
pressure level corresponds to the new setting and that the burner ignites normally. If that is not the case, an
additional adjustment is required.
-Upon completing this procedure, check the maximum pressure level.
-Wait until the pressure reading in the manometer has stabilized.
-Carefully press all the way down the pin “f” and keep it pressed. If you wish to adjust the maximum pressure
setting, turn slowly the regulating nut “g”, clockwise to increase it and counterclockwise to reduce it.
After adjusting the maximum and minimum pressure settings, reconnect the wires to the Modureg coil “c”, re-
attach the pressure balancing pipe “h” and replace the protection cap “d”. Now the water heater is set for
automatic operation. Remove manometer and check for gas soundness.
Note: If the “Modureg” coil fails to respond you must replace the complete “Modureg” unit. Any attempt to
replace only the coil might cause damage to the “Modureg” calibration.
Any adjustment made using the regulating screws should be carried out with caution.
gf
d
e
c
ba
h
Key
a) Inlet pressure test point
b) Burner pressure test point
c) Electric coil connection
d) Protection cap
e) Minimum pressure regulating screw
f) Maximum pressure pin
g) Maximum pressure regulating screw
h) Pressure balancing pipe

Supplied By www.heating spares.co Tel. [phone]
18
S.p.A.
8. CONVERTING FROM ONE OPERA TING GAS TO ANOTHER
The following conversion and adjustment procedures are to be performed solely by qualified personnel. Ferroli
disclaims any liability for any material and/or personal damages caused by tampering with the appliance by
unauthorized persons. If the appliance must be used with a different type of gas, convert it as follows.
To convert the appliance from Natural gas use to Propane use and vice versa, you must change the main
injectors, adjust the maximum and minimum pressure settings of the gas valve (see related chapter), adjust the
start-up “step” as shown in fig. 12, ensuring that the jumper on the electronic board is set as shown in fig. 9.
MAX
STEP
STEP
MIN
ADJUSTING THE START-UP "STEP"
MIN
MAX
Pull out the cap and set the
arrow as shown in the drawing
alongside for each type of gas
NATURAL
GAS
L.P.G.
Fig. 12

Supplied By www.heating spares.co Tel. [phone]
19
S.p.A.
9. MAINTENANCE REQUIREMENT
For continued reliable use it is a good practice to have a qualified person check the appliance at least once a
year.
Prior to performing any work related to cleaning, maintenance and opening or removing panels of the water
heater, shut the power down (by turning the main electric switch off), and turn off the gas cock.
To remove the casing unscrew the four screws “a” and proceed as shown in fig. 13.
Fig. 13
10. HANDING OVER TO USER
A. Explain operation of the water heater and hot water control
B. Advise against obstruction of purpose provided ventilation and of the flue terminal
C. Give advice on frost protection and turning off the appliance
D. Advice on importance of annual service
E. Hand all instructions and literature to the user.

Supplied By www.heating spares.co Tel. [phone]
Lichfield Road, Branston Industrial Estate, Burton Upon Trent, Staffordshire DE14 3HD
Tel. [phone] - Fax [phone]
ALL SPECIFICATIONS SUBJECT TO CHANGE
Phone numbers:
Installer
Service Engineer
BECAUSE OF OUR CONSTANT ENDEAVOUR FOR IMPROVEMENT DETAILS
MAY VARY SLIGHTLY FROM THOSE QUOTED IN THESE INSTRUCTIONS.
