Ferroli SKY ECO F Series Technical manual

IT
ISTRUZIONI PER L'USO, L'INSTALLAZIONE E LA MANUTENZIONE
ES
INSTRUCCIÓN DE USO, INSTALACIÓN Y MANTENIMIENTO
RO
,16758&܉,81,'(87,/,=$5(,167$/$5(܇,Ì175(܉,1(5(
PL
,16758.&-$2%6à8*,,167$/$&-,,.216(5:$&-,
EN
INSTRUCTIONS FOR USE, INSTALLATION AND MAINTENANCE
BAJAS
EMISIONES
SKY ECO F
Basso NOx
Bajo NOx
Emisii reduse de NOx
Niska emisja NOx
Low NOx
cod. 3541S170 - Rev. 00 - 02/2019

Read the warnings contained in this
manual carefully.
Once the unit is installed, describe its
operation to the user and give them
this manual. The manual is an integral
part of the product and must be kept in
a safe, accessible place for future refe-
rence.
Installation and maintenance must be
performed by a registered technician, in
accordance with current standards and
the manufacturer's instructions. Tampe-
ring with the sealed adjustment devices
is prohibited.
Improper installation or lack of appro-
priate maintenance may result in pro-
perty damage or injury. The manufactu-
rer will not be liable for damage caused
by improper installation or use or, in any
case, for failure to comply with the in-
structions.
Before performing any cleaning or
maintenance operations, unplug the
unit from the mains power supply using
the power switch or another cut-off de-
vice.
In the event of a malfunction or impro-
per operation, unplug the unit and have
LWUHSDLUHGE\TXDOL¿HGSHUVRQQHO2QO\
contact registered technicians. The unit
must only be repaired, and its compo-
nents replaced, by registered techni-
cians using original replacement parts.
Otherwise the safety of the unit may be
compromised.
This unit may only be used for the pur-
pose for which it was expressly desig-
ned. Any other use must be considered
inappropriate, and therefore hazardous.
The packing materials are a potential
source of danger, and must be kept out
of reach of children.
The unit may not be used by children,
or by adults with limited physical, sen-
sory or mental capacities, or lacking the
necessary experience and knowledge,
unless instructed or supervised by ano-
ther person responsible for their safety.
Dispose of the unit and its accessories
in accordance with current standards.
The images contained in this manual
DUH D VLPSOL¿HG UHSUHVHQWDWLRQ RI WKH
*(1(5$/:$51,1*6

EN
SKY ECO F
cod. 3541S170 - Rev. 00 - 02/2019

7KLVV\PEROPHDQV³&DXWLRQ´DQGLVGLVSOD\HGQH[WWRVDIHW\ZDU-
QLQJV &DUHIXOO\ REVHUYH VXFK ZDUQLQJV WR DYRLG KD]DUGRXV VLWXD-
WLRQVSURSHUW\GDPDJHDQGLQMXU\WRSHRSOHDQGDQLPDOV
,PSRUWDQWLQIRUPDWLRQLQYROYLQJQRULVNRILQMXU\RUSURSHUW\GDPDJHLVLQGLFDWHGE\WKLVV\PERO
7KH&(PDUNLQJFHUWL¿HVWKDWSURGXFWVPHHWWKHIXQGDPHQWDOUHTXLUHPHQWVRIWKHDSSOLFDEOH
(XURSHDQGLUHFWLYHV
7KHGHFODUDWLRQRIFRQIRUPLW\FDQEHUHTXHVWHGIURPWKHPDQXIDFWXUHU
product. Such representations may in-
FOXGH VOLJKW LQVLJQL¿FDQW GLIIHUHQFHV
with respect to the product supplied.
APPLIANCE INTENDED FOR DOME-
STIC USE; NOT VALID FOR INDU-
675,$/86(

EN
SKY ECO F
cod. 3541S170 - Rev. 00 - 02/2019

1 USER'S MANUAL
,QWURGXFWLRQ
The new SKY ECO F is an instantaneous, high-
performance, low-emission heater for domestic hot
water production, powered by natural gas or LPG and
equipped with a compact, :$7(5&22/(' burner,
HOHFWURQLFLJQLWLRQXSWRÀDPHPRGXODWLRQVHDOHG
chamber, MODULATING fan, and control system with
microprocessor.
&RQWUROSDQHO
1
678910
2345
¿J
1 .H\IRULQFUHDVLQJWKH'+:
temperature
 Key for decreasing the
'+:WHPSHUDWXUH
3 Multifunction display
4 Reset key
5 On/Off key
6 OFF symbol
7 Burner on and current po-
ZHUGLVSOD\:KHQÀDVKLQJ
this indicates a combustion
fault.
8 '+:RSHUDWLRQGLVSOD\
9 Connection for technical
support
10 LCD panel
'LVSOD\GXULQJRSHUDWLRQ
'20(67,&+27:$7(5
:KHQKRWZDWHULVUHTXHVWHGXVLQJWKHKRWZDWHUWDS
the control panel screen will show the current '+:
outlet temperature.
This temperature will increase or decrease as the '+:
sensor temperature reaches the preset value.
In the event of a malfunction (see section 3.4), the LCD
SDQHO will display the error code, along with ³G´DQG
³G´ during the waiting periods.
7XUQLQJWKHXQLWRQDQGRII
 Plug the unit into the mains.
 Press the ON/OFF key on the control panel for 1
second.
¿JTurning the unit off
:KHQWKHXQLWLVRIIWKHFDUGUHPDLQVFRQQHFWHG'+:
SURGXFWLRQ is deactivated.
 To turn on the unit, press the key again for 1 se-
cond. The /&' SDQHO will display the version of the
VRIWZDUHRQWKHFDUGIRUWKH¿UVWVHFRQGVIROORZHG
by the current '+:RXWOHW temperature.
¿JTurning the unit on
 Open the gas cock located before our unit. The unit will
operate whenever domestic hot water is demanded.
¿JIn operation
$GMXVWLQJWKH'+:
 Press the and keys to adjust the '+:
temperature between 40ºC and 50ºC. As you can see,
WKH & V\PERO ÀDVKHV DV WKH DGMXVWPHQW NH\V DUH
pressed.
¿JMinimum temperature

EN
SKY ECO F
cod. 3541S170 - Rev. 00 - 02/2019

¿JMaximum temperature
INSTALLATION MANUAL
*HQHUDOLQIRUPDWLRQ
7KHKHDWHUPXVWRQO\EHLQVWDO-
OHG E\ DQ DXWKRUL]HG WHFKQLFDO
LQVWDOOHULQFRPSOLDQFHZLWKDOO
LQVWUXFWLRQV FRQWDLQHG LQ WKLV
PDQXDO WKH 81(  VWDQGDUG
DQG ORFDO UHJXODWLRQV DIIHFWLQJ
LQVWDOODWLRQDQGH[KDXVW
/RFDWLRQ
The combustion circuit is sealed off from the installation
environment, so the unit can be installed in any room.
1RQHWKHOHVV WKH LQVWDOODWLRQ VLWH PXVW EH VXI¿FLHQWO\
ventilated to avoid hazardous situations in the event of
a gas leak.
European GLUHFWLYH((&establishes this safety
standard for all gas-powered equipment, including those
with a sealed chamber.
The unit can operate in a partially protected environment
in accordance with standard (1SU$.
In any case, the unit must be installed in a location free of
GXVWÀDPPDEOHREMHFWVRUPDWHULDOVRUFRUURVLYHJDVHV
The unit may be installed on a wall.
Attach it to the wall in accordance with the dimensions
LQGLFDWHGLQVHFWLRQ7KHZDOOLQVWDOODWLRQPXVWEH¿UP
and stable.
,I WKH XQLW LV LQVWDOOHG LQVLGH D FDELQHW RU
MRLQHG ODWHUDOO\ WR RWKHU HOHPHQWV VSDFH

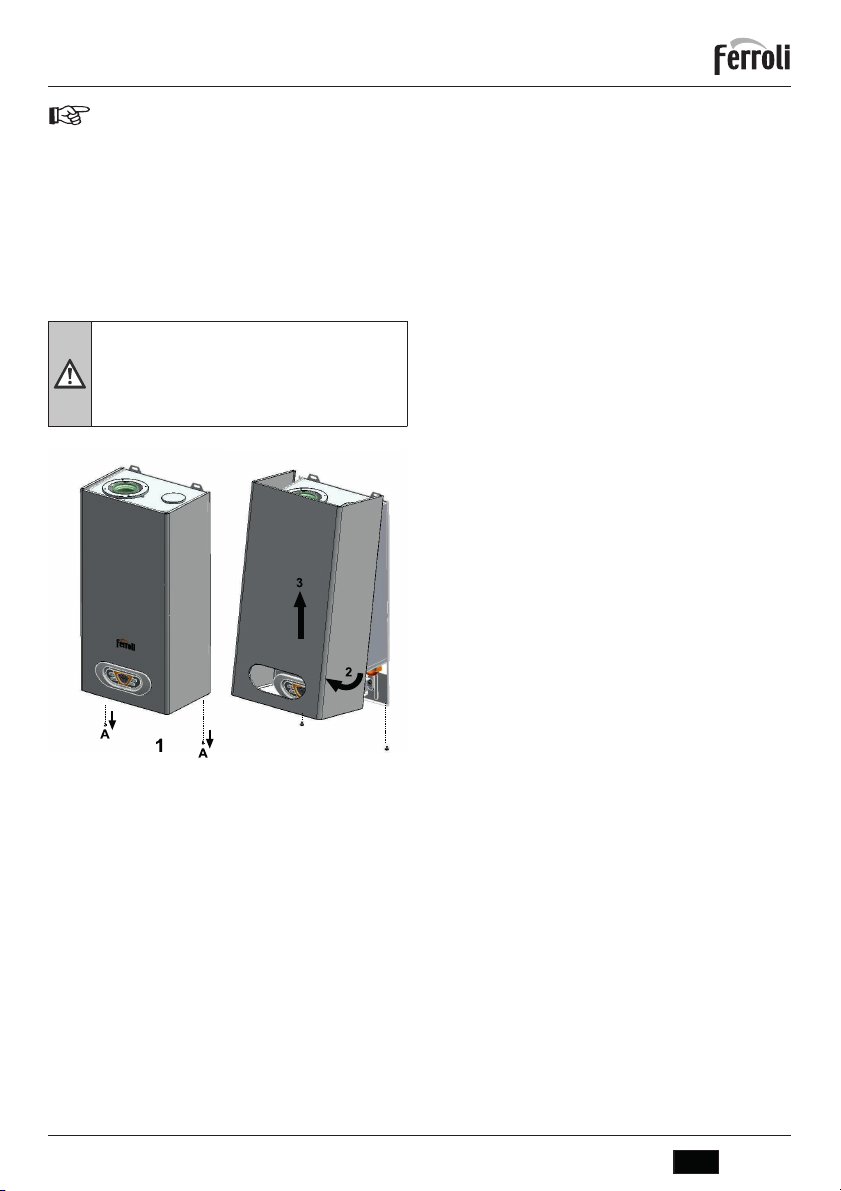

PXVWEHDOORZHGIRUUHPRYLQJWKHFDVLQJDQG
SHUIRUPLQJQRUPDOPDLQWHQDQFHDFWLYLWLHV
AA
B
C
¿JMinimum distances
A On each >2cm
B - >50cm
C In front >2cm
$VVHPEOLQJWKHKHDWHU
%HIRUH DVVHPEOLQJ WKH KHDWHU
PDNH VXUH WKH ZDWHU DQG JDV
FRQQHFWLRQVDUHSURSHUO\VHFX-
UHGLGHQWL¿HGDQGSRVLWLRQHG
6HH WKH GLPHQVLRQV DQG FRQ-
QHFWLRQVLQVHFWLRQ
2SHQWKHSDFNDJLQJDQG\RXOO¿QGDQDVVHPEO\WHP-
plate for the unit inside. Place it on the wall at the
appropriate height (be sure to observe the distances
described in the previous section), and make sure the
template is as horizontal as possible (using a level).
2 - Mark the position of the attachment holes.
:LWKDGULOODQGPPELWPDNHWKHKROHVDQGLQVHUW
the expansion plugs.
4 - Insert the fastenings to be used to attach the unit.

EN
SKY ECO F
cod. 3541S170 - Rev. 00 - 02/2019

Ø 3/4”
88

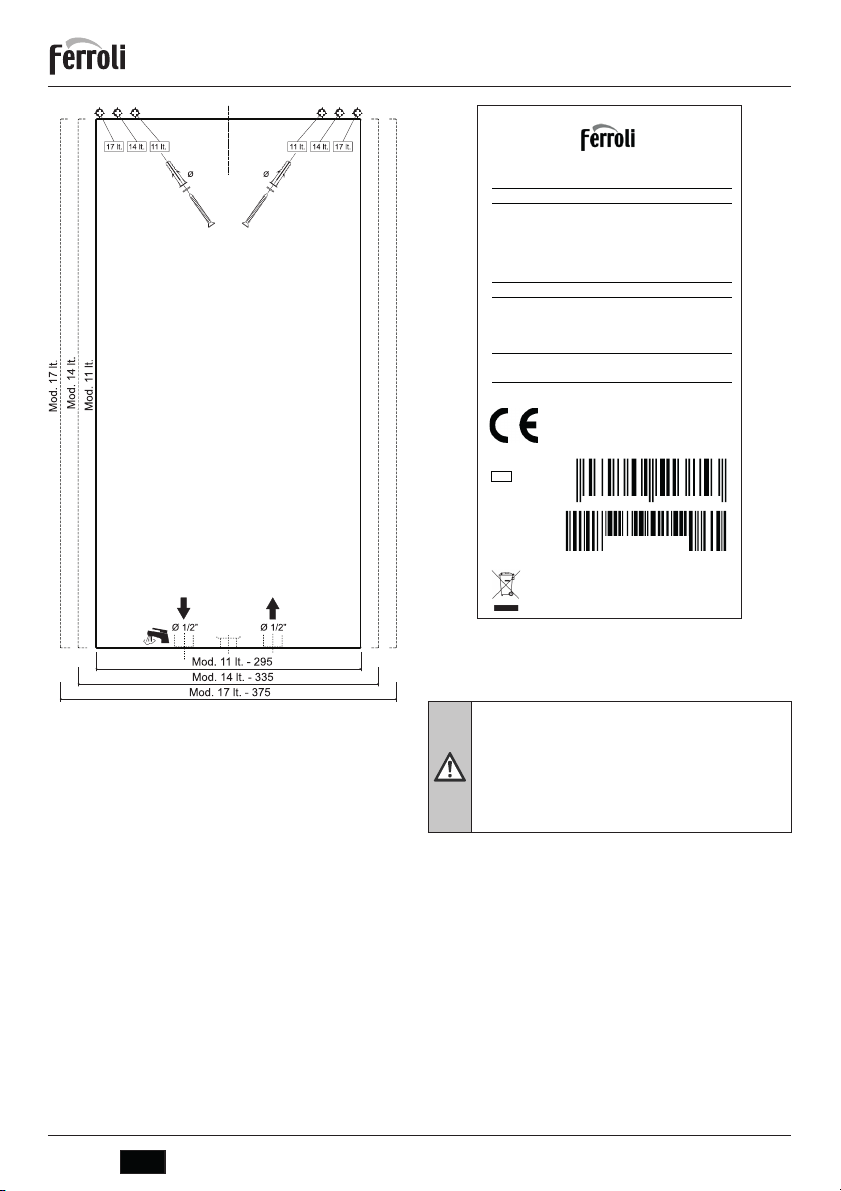

¿JAssembly template
5- Remove the unit from the packaging.
69HULI\DOOGRFXPHQWV
7- Remove the plugs from the water and gas connec-
tions (see Fig. 10).
8- On the rating label, check the destination country
reference and the type of gas for which the unit is
supplied.
8 430709 513853
306EDU
WPD[& 'OPLQ
30:EDU
$SSUQU
4Q+L
3Q
3Q
N:
N:
N:



12[ +2


SKY ECO F 11
') 6HUQ*
&&&&&&&&%
,,+,7
,/1,/6,/:3/
,,+(6
19.5
6 (< 56 mg/kWh)
19
1910G80002
9a+= 40 W IPX4D
6XLWDEOHIRURSHUDWLRQLQDSDUWLDOO\SURWHFWHGSODFH
0$'(,163$,1
,,+%352
10.0
0085
65
7.6
9.3
8.3
21.7 kW
Qnw(DHW)(Hi)
¿JRating label
+\GUDXOLFFRQQHFWLRQV
1HYHU VXSSRUW WKH KHDWHU E\
WKHZDWHUDQGJDVFRQQHFWLRQV
0DNHWKHFRQQHFWLRQVLQDFFRU-
GDQFHZLWKWKHGLPHQVLRQVDQG
FRQQHFWLRQVLQVHFWLRQ

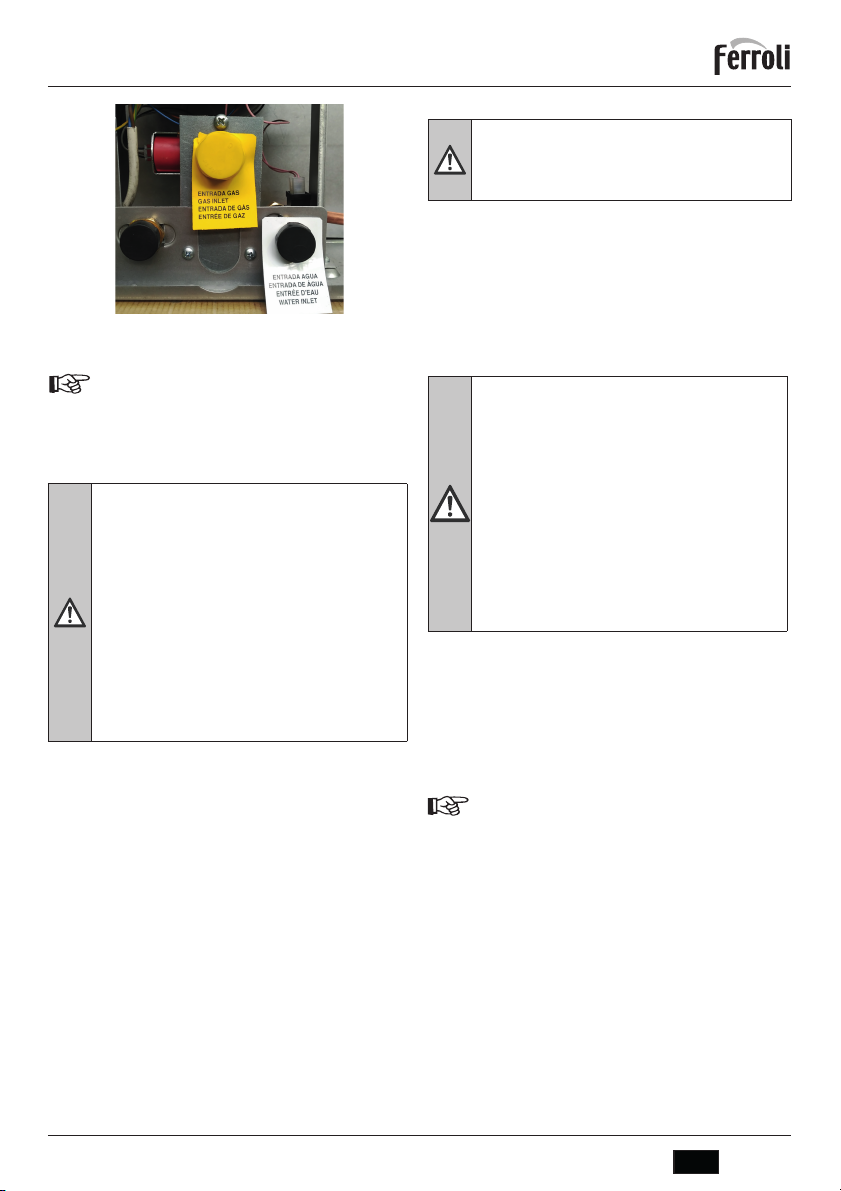

There are labels on the unit identifying the 1/2” water
inlet pipe (white) and the 3/4” gas inlet pipe (yellow).
70
EN
SKY ECO F
cod. 3541S170 - Rev. 00 - 02/2019

¿JConnection cards
,IWKHZDWHUKDUGQHVVLVRYHU)U) SSP
&D&2 WKH ZDWHU PXVW EH WUHDWHG WR DYRLG
SRVVLEOHGHSRVLWVRQWKHXQLW
*DVFRQQHFWLRQ
%HIRUHPDNLQJWKHFRQQHFWLRQ
FKHFN WKDW WKH XQLW KDV EHHQ
SUHSDUHG WR RSHUDWH ZLWK WKH
ULJKWW\SHRIIXHODQGFDUHIXOO\
FOHDQWKHJDVSLSHVWRUHPRYH
DQ\ UHVLGXH WKDW PLJKW KLQGHU
FRUUHFW RSHUDWLRQ 0DNH WKLV
FRQQHFWLRQLQDFFRUGDQFHZLWK
WKH GLPHQVLRQV DQG FRQQHF-
WLRQVLQVHFWLRQ
1 Connect the corresponding gas inlet (see section 4.1)
in accordance with current regulations in the country
where the heater is being installed.
Connect using a rigid PHWDOSLSHFRQQHFWLRQWR
DJDVVXSSO\QHWZRUNRUDÀH[LEOHFRQWLQXRXV
VWDLQOHVVVWHHOSLSH/3*LQVWDOODWLRQ adding a
shut-off valve between the installation and the unit
$6&/26($63266,%/(727+(81,7.
3 Once the connection to the gas network is comple-
te, check that all gas connections are tight. For this
purpose, a tightness test must be performed. To avoid
damage to the unit due to excess pressure, leave the
gas inlet valve closed.
Check that the supplied pressure and gas delivery va-
lues are those indicated for the unit's consumption. See
the technical data table (section 4.4).
,QLQVWDOODWLRQVZLWKDQDSSURYHG
ÀH[LEOH SLSH IRU /3* SD\ VSH-
FLDODWWHQWLRQWRWKHIROORZLQJ
 The pipe must comply with applicable regulations.
 Avoid areas with heat emissions.
 Prevent the pipe from bending or being pinched shut.
 The connections on both sides (gas valve and other
components) must comply with the regulations of the
country where the heater is installed.
(OHFWULFDOFRQQHFWLRQV
7KH XQLWV HOHFWULFDO VDIHW\ LV
RQO\ HQVXUHG ZKHQ LWV HIIHFWL-
YHO\ JURXQGHG DV HVWDEOLVKHG
E\VDIHW\VWDQGDUGV+DYHTXD-
OL¿HGSHUVRQQHOFKHFNWKHHIIHF-
WLYHQHVV DQG VXLWDELOLW\ RI WKH
JURXQGLQJ V\VWHP DV WKH PD-
QXIDFWXUHUZLOOQRWEHOLDEOHIRU
DQ\GDPDJHFDXVHGE\DODFNRI
JURXQGLQJRQWKHLQVWDOODWLRQ
The unit's power cable may not be replaced by the user.
If the cable is damaged, turn off the unit and call the
authorized technical support center to have it replaced.
To replace the cable, use only the 3x0.75mm
2
HAR H05
VV-F cable, with a maximum outer diameter of 8 mm.
$LUDQGÀXHJDVGXFWV
This is a type C unit, with a sealed chamber and
IRUFHGGUDIW7KHDLULQOHWDQGÀXHJDVRXWOHWPXVW
be connected to systems such as those indicated below.
7KHXQLWLVDSSURYHGIRURSHUDWLRQZLWKDOO&[\ÀXHFRQ¿-
gurations shown on the technical data card (some of the-
VHDUHXVHGDVH[DPSOHVODWHU+RZHYHUVRPHFRQ¿JX-
rations may be limited or prohibited by local laws,
standards, or regulations. Before performing the installa-
tion, carefully check and observe any such restrictions.
Also observe all provisions regarding placement on walls
and/or ceilings and minimum distances to windows,
walls, air vents, etc. (section 2.2).
Before performing the installation, verify the diaphragm
71
EN
SKY ECO F
cod. 3541S170 - Rev. 00 - 02/2019

to be used and make sure it does not exceed the maxi-
mum permitted length by making a simple calculation:
'HVLJQWKHHQWLUHVHSDUDWHÀXHV\VWHPLQFOXGLQJWKH
accessories and outlet terminals.
2. See Table 1 and determine the losses in meq (equi-
valent meters) for each component, depending on its
assembly position.
3. Make sure the total sum of the losses is less than or
equal to the maximum length indicated on Table 2 (see
section 2.7.4).
Table 1
Losses in m
eq
Air
inlet
Flue gas
outlet
Verti-
FDO
Hori-
]RQWDO
Ø
80
PIPE
0.5 m M/H .:0$$ 0.5 0.5 1
1 m M/H .:0$$ 112
2 m M/H .:0$. 224
CURVE
45° H/H .:0$. 1.2 2.2
45° M/H .:0$$ 1.2 2.2
90° H/H .:0$. 23
90° M/H .:0$$ 1.5 2.5
90° M/H + outlet for testing .:0$8 1.5 2.5
HOSE
:LWKRXWOHWIRUWHVWLQJ .:0$8 0.2 0.2
For condensate discharge .:0$8 -3
T
For condensate discharge .:0$. -7
TERMI-
NAL
:DOODLU .:0$$ 2-
:DOOIXPHVZLWKZLQGVFUHHQ .:0$$ -5
FLUE
Separate for air/fumes 80/80 .:0$8 -12
Only exhaust vent Ø 80
.:0$8
.:0$8 -4
'LDSKUDJP
For the unit to operate correctly, the included diaphragms
must be installed. Make sure the FRUUHFW GLDSKUDJP
has been installed (when used), and that it's properly
installed.
1
2
 [1] Flue gas gasket
 [2] Diaphragm
¿JReplacing the diaphragm with the unit disassembled
&RQGHQVDWHFROOHFWLRQDFFHVVRULHVRSWLRQDO
For vertical pipe installations, type C3x, C5x, B2x,
and C1x , it is advisable to install the condensate
collection accessory.
 )RUFRQQHFWLRQWRDFRD[LDOSLSHZLWKFRQGHQ-
sate collection (010023X0).
 For connection to separate Ø80 pipes, vertical pipe
ZLWKFRQGHQVDWHFROOHFWLRQ.:0$
&RQQHFWLRQZLWKFRD[LDOSLSHV
C1x - Horizontal aspiration and evacuation on the wall
C3x9HUWLFDODVSLUDWLRQDQGHYDFXDWLRQRQWKHFHLOLQJ
= Air
= Flue gases
C 1X C 1X C 3X C 3X C 3X C 1X
¿JExample of a connection with coaxial pipes
&RD[LDO Coaxial 80/125
Maximum
permitted length 4 m 10 m
Elbow reduction
factor 90° 1 m 0,5 m
Curve reduction
factor 45° 0,5 m 0,25 m
Diaphragm to be
used
0 to 2
m
SKY ECO F 11 = Ø40
SKY ECO F 14 = Ø47
SKY ECO F 17 = Ø50
0 to 3
m
SKY ECO F 11 = Ø40
SKY ECO F 14 = Ø47
SKY ECO F 17 = Ø50
2 to 3
m
SKY ECO F 11 = Ø43
SKY ECO F 14 = Ø50
SKY ECO F 17 = Ø52
WR
m
SKY ECO F 11 = Ø43
SKY ECO F 14 = Ø50
SKY ECO F 17 = No
diaphragm
3 to 4
mno diaphragm WR mno diaphragm
72
EN
SKY ECO F
cod. 3541S170 - Rev. 00 - 02/2019

For the coaxial connection, install one of the following
initial accessories on the unit. For drilling dimensions on
the wall, see section 4.1. Horizontal exhaust segments
must slope slightly toward the outside to prevent any
condensation from returning to the unit.
¿JInitial accessories for coaxial ducts
&RQQHFWLRQZLWKVHSDUDWHSLSHV
C 5x
C
3x
B 2x C 1x
max 50 cm
¿JExample of a connection with separate pipes
C1x Horizontal aspiration and evacuation on the wall.
Intake and exhaust terminals must be concentric,
or close enough to be exposed to similar wind
conditions (maximum distance of 50 cm).
C3x 9HUWLFDODVSLUDWLRQDQGHYDFXDWLRQRQWKHFHLOLQJ
Intake/exhaust terminals suitable for C12.
C5x Separate aspiration and evacuation on the wall
or ceiling or, in any case, in areas under different
pressure. Aspiration and evacuation may not be
placed on opposite walls.
C6x $VSLUDWLRQDQGHYDFXDWLRQZLWKVHSDUDWHFHUWL¿HG
SLSHV(1
%[ Aspiration from the installation environment and
evacuation on the wall or ceiling.
= Air
= Flue gases
IMPORTANT - THE ROOM MUST
%( (48,33(' :,7+ $3352-
35,$7(9(17,/$7,21
To connect the separate ducts, install the following initial
accessory on the unit (010031X0 / 4740).
Table 2
Model /HQJWK 'LDSKUDJP
Maximum permit-
ted length
SKY ECO F 11 P
eq
SKY ECO F 14 55 m
eq
SKY ECO F 17 45 m
eq
Diaphragm to be
used
SKY ECO F 11
0 - 20 m
eq
Ø 40
20 - 35 m
eq
Ø 43
P
eq
no diaphragm
SKY ECO F 14
0 - 20 m
eq
Ø 47
20 - 35 m
eq
Ø 50
20 - 55 m
eq
no diaphragm
SKY ECO F 17
0 - 20 m
eq
Ø 50
20 - 35 m
eq
Ø 52
20 - 45 m
eq
no diaphragm
3 SERVICE AND MAINTENANCE
$OO RI WKH DGMXVWPHQWV FRPPLVVLRQLQJ RSHUDWLRQV
DQGSHULRGLFFKHFNVGHVFULEHGEHORZPXVWEHSHU-
IRUPHG E\ DQ DXWKRUL]HG WHFKQLFLDQ LQ FRPSOLDQFH
ZLWKFXUUHQWUHJXODWLRQV)(552/,GHFOLQHVDOOOLDEL-
OLW\IRUSURSHUW\GDPDJHRULQMXULHVFDXVHGE\XQDX-
WKRUL]HGSHUVRQVWDPSHULQJZLWKWKHXQLW
73
EN
SKY ECO F
cod. 3541S170 - Rev. 00 - 02/2019

ADJUSTMENTS
*DVFRQYHUVLRQ
&RQYHUVLRQRIWKHXQLWWRDW\SH
RIJDVRWKHUWKDQWKHIDFWRU\VHW-
WLQJPXVWEHGRQHE\DQDXWKR-
UL]HGWHFKQLFLDQXVLQJRULJLQDO
FRPSRQHQWVDQGLQFRPSOLDQFH
ZLWK FXUUHQW UHJXODWLRQV LQ WKH
FRXQWU\ ZKHUH WKH XQLW ZLOO EH
XVHG
7KHXQLWFDQRSHUDWHZLWKPHWKDQHJDVRU/3*,WLVIDF-
tory-set for one of the two types of gas, as indicated on
the packaging and technical data plate. To operate the
unit with another type of gas, a conversion kit must be
used:
Code Name
9& &219(56,21 .,7 )520 /3* 72 0(7+$1(
FOR AN 11 L HEATER
9& &219(56,21 .,7 )520 /3* 72 0(7+$1(
FOR A 14 L HEATER
9& &219(56,21 .,7 )520 0(7+$1( 72 /3*
FOR AN 11 L HEATER
9& &219(56,21 .,7 )520 0(7+$1( 72 /3*
FOR A 14 L HEATER
9& &219(56,21 .,7 )520 /3* 72 0(7+$1(
FOR A 17 L HEATER
9& &219(56,21 .,7 )520 0(7+$1( 72 /3*
FOR A 17 L HEATER
COMMISSIONING
&RPPLVVLRQLQJ RI WKH KHDWHU
PXVWEHSHUIRUPHGE\DWUDLQHG
VSHFLDOL]HGWHFKQLFLDQ
&KHFNVWKDWPXVWEHSHUIRUPHG
GXULQJ WKH ¿UVW LJQLWLRQ DIWHU
PDLQWHQDQFH RSHUDWLRQV WKDW
UHTXLUH XQSOXJJLQJ WKH XQLW
DQGDIWHUDQ\RSHUDWLRQVRQWKH
XQLWVVDIHW\GHYLFHVRUFRPSR-
QHQWV
%HIRUHLJQLWLQJWKHZDWHUKHDWHU
 Carefully verify the tightness of the gas installation
using a soap and water solution to check for leaks in
the connections.
 Fill the hydraulic system and make sure no air is
present in the unit or system.
 Check that there are no water leaks in the system or
unit.
 Make sure the grounding and the connection to the
electrical installation are suitable.
 Check that the gas pressure is correct.
 0DNHVXUHWKHUHDUHQRÀDPPDEOHOLTXLGVRUPDWHULDOV
near the heater.
 To avoid damaging the connections, do not place
WKH KHDWHU RQ WKH ÀRRU ZLWK WKH FRQQHFWLRQV IDFLQJ
down.
&KHFNVGXULQJRSHUDWLRQ
 Turn on the unit.
 Make sure the fuel and water systems are tight.
 &KHFNWKHHI¿FLHQF\RIWKHDLUDQGÀXHJDVGXFWVZKLOH
the heater is operating.
 Make sure the gas valve modulates correctly.
 9HULI\WKDWWKHKHDWHULJQLWHVHDVLO\E\WXUQLQJLWRQDQG
off several times.
 Check that the fuel consumption is as indicated.
MAINTENANCE
3HULRGLFFKHFNV
In order for the unit to operate correctly, an authorized
technician must perform an annual inspection, checking
that:
 7KHFRQWURODQGVDIHW\GHYLFHVJDVYDOYHÀRZVZLWFK
etc.) operate correctly.
 7KHH[KDXVWYHQWLVSHUIHFWO\HI¿FLHQW
 7KHDLUDQGÀXHJDVGXFWVDQGWHUPLQDODUHIUHHRIRE-
stacles and leaks.
 The burner and exchanger are free of dirt and deposits.
Do not use chemicals or steel brushes to clean them.
 The electrode is free of deposits and properly positio-
ned.
 The gas and water systems are perfectly tight.
 The gas delivery and operating pressure values are as
indicated on the tables.
74
EN
SKY ECO F
cod. 3541S170 - Rev. 00 - 02/2019

$VRIWGDPSFORWKPD\EHXVHGWRFOHDQWKH
FDVLQJDQGH[WHULRUSDUWVRIWKHKHDWHUXVLQJ
VRDS\ZDWHULIQHFHVVDU\'RQRWXVHDEUDVLYH
GHWHUJHQWVRUVROYHQWV
2SHQLQJWKHFDVLQJ
7RRSHQWKHFDVLQJ
1 8QVFUHZWKH$VFUHZVVHH¿J
5RWDWHWKHFDVLQJVHH¿J
3 Lift the casing.
%HIRUH SHUIRUPLQJ DQ\ RSHUD-
WLRQVLQVLGHWKHKHDWHUWXUQRII
WKH HOHFWULFDO SRZHU DQG FORVH
WKHJDVFRFN
¿J2SHQLQJWKHFDVLQJ
FAULTS
The heater is equipped with an advanced self-diagnostic
system. If a problem arises with the unit, the fault symbol
ZLOOÀDVKRQWKHVFUHHQDQGWKHUHVSHFWLYHFRGHZLOOEH
displayed.
6RPHIDXOWVLGHQWL¿HGZLWKWKHOHWWHU³$´ZLOOEORFNXQLW
operation.
To restore operation, simply press the RESET key (4 -
¿JIRUVHFRQG,IWKHKHDWHUGRHVQRWUHVHWWKHIDXOW
must be resolved.
)DXOWVLGHQWL¿HGE\WKHOHWWHU³)´FDXVHWHPSRUDU\EORFNV
that are automatically resolved when the value returns to
the heater's normal operating range.
75
EN
SKY ECO F
cod. 3541S170 - Rev. 00 - 02/2019

LIST OF FAULTS
Fault
FRGH Fault 3RVVLEOHFDXVH Solution
A01 The burner does not
ignite.
Lack of gas 0DNHVXUHJDVLVÀRZLQJSURSHUO\WRWKHKHDWHUDQG
no air is present in the pipes.
Faulty detection/ignition electrode Make sure the electrode is properly installed,
connected, and free of deposits.
Faulty gas valve Check the gas valve and replace if necessary.
*DVYDOYHZLULQJLQWHUUXSWHG Check the wiring.
Ignition power too low Adjust the ignition power.
$
Flame signal present
while the burner is
off
Faulty electrode Check the ionization electrode wiring.
Faulty card Check the card.
A03 Protection activated )DXOW\'+:VHQVRU &KHFNWKHSRVLWLRQDQGRSHUDWLRQRIWKH'+:VHQVRU
No water is circulating. &KHFNWKHÀRZVZLWFK
A06
1RÀDPHLVSUHVHQW
after the ignition
phase.
Low pressure on the gas network Check the gas pressure.
Minimum burner pressure adjustment Check the pressures.
A09 Faulty gas valve :LULQJLQWHUUXSWHG Check the wiring.
Faulty gas valve Check the gas valve and replace if necessary.
A16 Faulty gas valve :LULQJLQWHUUXSWHG Check the wiring.
Faulty gas valve Check the gas valve and replace if necessary.
$ Bad combustion fault )DXOW)JHQHUDWHGWLPHVLQWKHODVW
minutes See fault F20.
A41 Sensor position '+:VHQVRUGHWDFKHGIURPWKHSLSH Check the position and operation of the sensor.
A51 Bad combustion fault Obstruction of the aspiration/evacuation duct &KHFNWKHÀXH
F04 Card setting fault ,QFRUUHFWO\FRQ¿JXUHGFDUGVHWWLQJ Check the card setting and change if necessary.
F05
Card setting fault ,QFRUUHFWO\FRQ¿JXUHGFDUGVHWWLQJ Check the card setting and change if necessary.
Faulty fan
:LULQJLQWHUUXSWHG Check the wiring.
Faulty fan Check the fan.
Faulty card Check the card.
F07 Card setting fault ,QFRUUHFWO\FRQ¿JXUHGFDUGVHWWLQJ Check the card setting and change if necessary.
F10 )DXOW\'+:
sensor
Defective sensor
Check the wiring or change the sensor.Short-circuited wiring
:LULQJLQWHUUXSWHG
F14 )DXOW\'+:
sensor
Defective sensor
Check the fan and the respective wiring.Short-circuited wiring
:LULQJLQWHUUXSWHG
) Combustion control
fault
Faulty fan Check the fan and the respective wiring.
Incorrect diaphragm Check the diaphragm and replace if necessary.
Flue badly sized or obstructed &KHFNWKHÀXH
F34 Supply voltage under
9 Problems in the electrical network Check the electrical installation.
) )DXOW\':VHQVRU Defective sensor Change the sensor.
F50 Faulty gas valve Modulating actuator wiring interrupted Check the wiring.
Faulty gas valve Check the gas valve and replace if necessary.

EN
SKY ECO F
cod. 3541S170 - Rev. 00 - 02/2019

4 TECHNICAL DATA AND CHARACTERISTICS

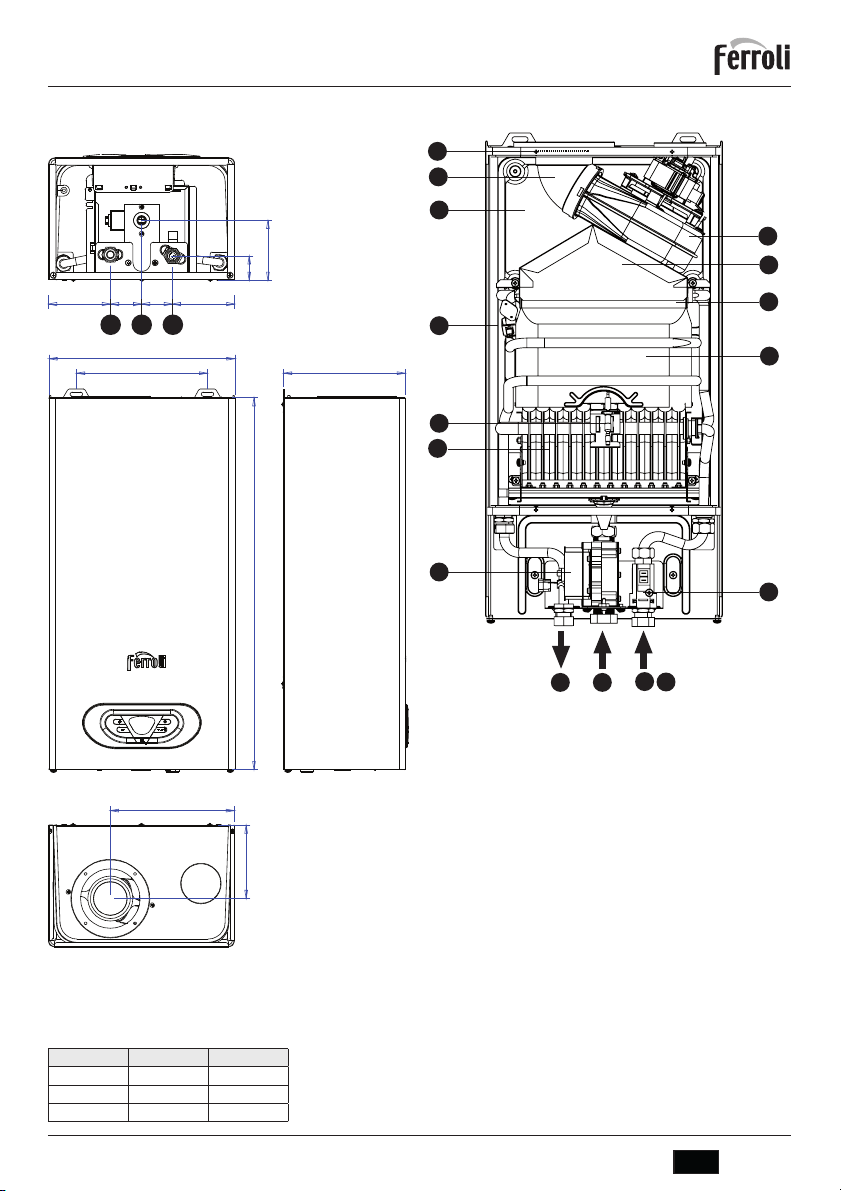

'LPHQVLRQVDQGFRQQHFWLRQV
A
B
595
195
19 9
118
40
96
=
5050
=
12
3
13/4” gas inlet
1/2” cold water inlet
31/2” domestic hot water outlet
Model A (mm) B (mm)
11 295 210
14 335 250
17 375 290
2YHUYLHZDQGPDLQFRPSRQHQWV
14
10
4
7
15
13
12
31216
11
6
8
5
9
¿JOverview
1 *DVLQOHW
 Cold water inlet
3 Sealed chamber
4 Domestic hot water outlet
5 Fan
6 Combustion chamber
7 Burner assembly
8 Copper exchanger
9 Combustion gas collector
10 Flue gas outlet collector
11 Flow switch
 *DVYDOYH
13 Ignition and detection elec-
trode
14 Exhaust diaphragm
15 Double sensor
 VDIHW\'+:
16 Flow regulator
77
EN
SKY ECO F
cod. 3541S170 - Rev. 00 - 02/2019

+\GUDXOLFFLUFXLW
123
12
11
7
8
15
5
4
10
9
¿JHydraulic circuit
1 *DVLQOHW
Cold water inlet
3Domestic hot water outlet
4Sealed chamber
5Fan
7Burner assembly
8Copper exchanger
9Combustion gas collector
10 Flue gas outlet collector
11 Flow switch
 *DVYDOYH
15 Double sensor
 VDIHW\'+:
78
EN
SKY ECO F
cod. 3541S170 - Rev. 00 - 02/2019

7HFKQLFDOGDWDWDEOH
Data Units 11 14 17
Maximum heat capacity N: 21.7  32.9 Q
Minimum heat capacity N: 8.3 10.3  Q
Maximum heat capacity N: 19.5 24.2 
Minimum heat capacity N:  9.5 
Performance at max. power % 89.9 90.0 90.0
%XUQHULQMHFWRUV* no. x Ø 24 x 0,85 28 x 0,85 32 x 0,85
*DVGLDSKUDJP* Ø///
*DVVXSSO\SUHVVXUH* mbar 20 20 20
0D[EXUQHUSUHVVXUHZLWK* mbar 11.3 12.5 14.8
0LQEXUQHUSUHVVXUHZLWK* mbar 1.8 2.0 2.8
0D[LPXPJDVGHOLYHU\* m
3
/h 2.30 2.85 3.48
0LQLPXPJDVGHOLYHU\* m
3
/h 0.88 1.09 1.33
%XUQHULQMHFWRUV* no. x Ø 24 x 0,5 28 x 0,5 32 x 0,5
*DVGLDSKUDJP* Ø5/ /
*DVVXSSO\SUHVVXUH* mbar 29 29 29
0D[EXUQHUSUHVVXUHZLWK* mbar 25  27
0LQEXUQHUSUHVVXUHZLWK* mbar555
0D[LPXPJDVGHOLYHU\* m
3
/h  0.834 1.020
0LQLPXPJDVGHOLYHU\* m
3
/h 0.257 0.319 0.391
%XUQHULQMHFWRUV* no. x Ø 24 x 0,5 28 x 0,5 32 x 0,5
*DVGLDSKUDJP* Ø5/ /
*DVVXSSO\SUHVVXUH* mbar 37 37 37
0D[EXUQHUSUHVVXUHZLWK* mbar 35.5 35.5 35.5
0LQEXUQHUSUHVVXUHZLWK* mbar555
0D[JDVGHOLYHU\* kg/h  2.09 
0LQJDVGHOLYHU\* kg/h  0.80 0.98
NOx emission class - PJN:K NOx
Max. operating pressure bar 10 10 10 PMS
Min. operating pressure bar 0.2 0.2 0.2
'+:GHOLYHU\¨ l/min 11.2 13.9 17.0
'+:GHOLYHU\¨ l/min 9.3  14.2 D
Degree of protection IP IPX4D IPX4D IPX4D
Supply voltage 9+] 9+]
Absorbed electrical power :40 40 55
Empty weight Kg 13 15 18
:HLJKWZLWKSDFNDJLQJ Kg 14.1  19.1
Type of unit &&&&&&&&%
PIN CE
79
EN
SKY ECO F
cod. 3541S170 - Rev. 00 - 02/2019

MODEL: SKY ECO F 14
XL
A
0,093
84
23,357
MAX
54
36
18
20
Item
Declared load profile
Water heating energy efficiency class (from A+ to F)
Daily electricity consumption
Annual electricity consumption
Water heating energy efficiency
Daily fuel consumption
Annual fuel consumption
Thermostat temperature settings of the water heater, as placed on the market
Sound power level
Emissions of nitrogen oxides
Trademark: FERROLI
Type: Conventional water heater
Symbol Unit Value
Qelec
AEC
NWh
Qfuel
AFC
LWA
NOx
kWh
kWh
%
kWh
GJ
dB
mg/kWh
MODEL: SKY ECO F 17
XL
A
0,084
85
23,303
MAX
55
39
18
18
Item
Declared load profile
Water heating energy efficiency class (from A+ to F)
Daily electricity consumption
Annual electricity consumption
Water heating energy efficiency
Daily fuel consumption
Annual fuel consumption
Thermostat temperature settings of the water heater, as placed on the market
Sound power level
Emissions of nitrogen oxides
Trademark: FERROLI
Type: Conventional water heater
Symbol Unit Value
Qelec
AEC
NWh
Qfuel
AFC
LWA
NOx
kWh
kWh
%
kWh
GJ
dB
mg/kWh
MODEL: SKY ECO F 11
ErP product fiche
XL
A
0,083
84
23,345
MAX
54
34
18
18
Item
Declared load profile
Water heating energy efficiency class (from A+ to F)
Daily electricity consumption
Annual electricity consumption
Water heating energy efficiency
Daily fuel consumption
Annual fuel consumption
Thermostat temperature settings of the water heater, as placed on the market
Sound power level
Emissions of nitrogen oxides
Trademark: FERROLI
Type: Conventional water heater
Symbol Unit Value
Qelec
AEC
NWh
Qfuel
AFC
LWA
NOx
kWh
kWh
%
kWh
GJ
dB
mg/kWh
80
EN
SKY ECO F
cod. 3541S170 - Rev. 00 - 02/2019

:LULQJGLDJUDP
¿J:LULQJGLDJUDP
5Fan power supply
11 Flow switch
 *DVYDOYH
13 Ignition and detection electrode
15 'RXEOHVHQVRUVDIHW\'+:
17 Hall sensor
81
EN
SKY ECO F
cod. 3541S170 - Rev. 00 - 02/2019

Pol.Ind.Villayuda
C/Alcalde Martín Cobos, 4
09007 Burgos - España
FERROLI ESPAÑA, S.L.U.
Fabbricato in Spagna - Fabricado en España - Fabricat în Spania
Wyprodukowano w Hiszpanii - Made in Spain
