FFC LAF5416 Product manual

1/9/14
800-456-7100 I www.paladinattachments.com 2800 N. Zeeb Rd., Dexter, MI. 48130, United States of America Copyright ©
OPERATOR’S AND PARTS MANUAL
HIGH FLOW COLD PLANER
SERIAL NUMBER: ___________________
MODEL NUMBER: ___________________
Manual Number: MR25664
Models: LAF5416, LAF5418, LAF5420,
LAF5424, LAF5430 & LAF5436
Rev. 2

NOTES

MR25664 1
TABLE OF CONTENTS
PREFACE .................................................................................................................. 2
OWNER AND OPERATOR SAFETY INFORMATION
SAFETY STATEMENTS ................................................................................. 3
GENERAL SAFETY PRECAUTIONS ............................................................ 3-6
SAFETY SIGNS & DECALS .......................................................................... 7-8
INSTALLATION & SET-UP ........................................................................................ 9-11
OPERATION ............................................................................................................. 12
MAINTENANCE ....................................................................................................... 13-17
PARTS....................................................................................................................... 18-33
3-LINE ASSEMBLY .........................................................................................18-19
5-LINE ASSEMBLY .........................................................................................20-21
CHASSIS ASSEMBLY .....................................................................................22-23
ROLLER ASSEMBLY ......................................................................................24-25
SIDE SHIFT/PIVOT ASSEMBLY .....................................................................26-27
LABELS & DECALS ........................................................................................28-29
MOUNTING ASSEMBLY .................................................................................30
QUICK DISCONNECTS ..................................................................................31-33
.
SPECIFICATIONS .....................................................................................................34-35
PRODUCT........................................................................................................34
BOLT TORQUE ...............................................................................................35
WARRANTY .............................................................................................................. 36

MR25664
2
PREFACE
GENERAL INFORMATION
This product was carefully designed and manufactured to give you many years of dependable service.
Only minor maintenance (such as cleaning and lubricating) is required to keep it in top working condition.
Be sure to observe all maintenance procedures and safety precautions in this manual and on any safety
decals located on the product and on any equipment on which the attachment is mounted.
WARNING! Never let anyone operate this unit without reading the “Safety Precautions” and
“Operating Instructions” sections of this manual. Always choose hard, level ground
to park the vehicle on and set the brake so the unit cannot roll.
Unless noted otherwise, right and left sides are determined from the operator’s control position when
facing the attachment.
NOTE: The illustrations and data used in this manual were current (according to the information
available to us) at the time of printing, however, we reserve the right to redesign and change the
attachment as may be necessary without notication.
BEFORE OPERATION
The primary responsibility for safety with equipment falls to the operator. Make sure the equipment is
operated only by trained individuals that have read and understand this manual. If there is any portion
of this manual or function you do not understand, contact your local authorized dealer or manufacturer
to obtain further assistance. Keep this manual available for reference. Provide this manual to any new
owners and/or operator’s
SAFETY ALERT SYMBOL
This is the “Safety Alert Symbol” used by this industry. This symbol is used to warn of
possible injury. Be sure to read all warnings carefully. They are included for your safety and
the safety of others working with you.
SERVICE
Use only manufacturer replacement parts. Substitute parts may not meet the required standards.
Record the model and serial number of your unit on the cover of this manual. The parts department
needs this information to insure that you receive the correct parts.
SOUND AND VIBRATION
“Sound pressure levels and vibration data for this attachment are inuenced by many different parameters;
some items are listed below (not inclusive):
• prime mover type, age, condition, with or without cab enclosure and conguration
• operator training, behavior, stress level
• job site organization, working material condition, environment
Based on the uncertainty of the prime mover, operator, and job site, it is impossible to get precise machine
and operator sound pressure levels, or vibration levels for this attachment.”

MR25664 3
SAFETY STATEMENTS
THIS SYMBOL BY ITSELF OR WITH A WARNING WORD THROUGHOUT THIS
MANUAL IS USED TO CALL YOUR ATTENTION TO INSTRUCTIONS INVOLVING
YOUR PERSONAL SAFETY OR THE SAFETY OF OTHERS. FAILURE TO FOLLOW
THESE INSTRUCTIONS CAN RESULT IN INJURY OR DEATH.
DANGER! THIS SIGNAL WORD IS USED WHERE SERIOUS INJURY OR DEATH WILL
RESULT IF THE INSTRUCTIONS ARE NOT FOLLOWED PROPERLY.
WARNING! THIS SIGNAL WORD IS USED WHERE SERIOUS INJURY OR DEATH
COULD RESULT IF THE INSTRUCTIONS ARE NOT FOLLOWED PROPERLY.
CAUTION! THIS SIGNAL WORD IS USED WHERE MINOR INJURY COULD RESULT IF
THE INSTRUCTIONS ARE NOT FOLLOWED PROPERLY.
NOTICE! NOTICE INDICATES A PROPERTY DAMAGE MESSAGE.
GENERAL SAFETY PRECAUTIONS
WARNING! READ MANUAL PRIOR TO INSTALLATION
Improper installation, operation, or maintenance of this equipment could result in
serious injury or death. Operators and maintenance personnel should read this manual,
as well as all manuals related to this equipment and the prime mover thoroughly
before beginning installation, operation, or maintenance. FOLLOW ALL SAFETY
INSTRUCTIONS IN THIS MANUAL AND THE PRIME MOVER'S MANUAL(S).
READ AND UNDERSTAND ALL SAFETY STATEMENTS
Read all safety decals and safety statements in all manuals prior to operating or
working on this equipment. Know and obey all OSHA regulations, local laws,
and other professional guidelines for your operation. Know and follow good work
practices when assembling, maintaining, repairing, mounting, removing, or
operating this equipment.
KNOW YOUR EQUIPMENT
Know your equipment’s capabilities, dimensions and operations before operating.
Visually inspect your equipment before you start, and never operate equipment that
is not in proper working order with all safety devices intact. Check all hardware to
ensure it is tight. Make certain that all locking pins, latches, and connection devices
are properly installed and secured. Remove and replace any damaged, fatigued, or
excessively worn parts. Make certain all safety decals are in place and are legible.
Keep decals clean, and replace them if they become worn and hard to read.

MR25664
4
WARNING! PROTECT AGAINST FLYING DEBRIS
Always wear proper safety glasses, goggles or a face shield when driving pins in or
out, or when any operation causes dust, flying debris, or any other hazardous material.
WARNING! LOWER OR SUPPORT RAISED EQUIPMENT
Do not work under raised booms without supporting them. Do not use support
material made of concrete blocks, logs, buckets, barrels or any other material that
could suddenly collapse or shift positions. Make sure support material is solid, not
decayed, warped, twisted, or tapered. Lower booms to ground level or onto blocks.
Lower booms and attachments to the ground before leaving the cab or operator’s
station.
WARNING! USE CARE WITH HYDRAULIC FLUID PRESSURE
Hydraulic fluid under pressure can penetrate the skin and cause serious injury or
death. Hydraulic leaks under pressure may not be visible. Before connecting or
disconnecting hydraulic hoses, read your prime movers operator’s manual for detailed
instructions on connecting and disconnecting hydraulic hoses or fittings.
• Keep unprotected body parts, such as face, eyes, and arms as far away as
possible from a suspected leak. Flesh injected with hydraulic fluid may develop
gangrene or other permanent disabilities.
• If injured by injected fluid, see a doctor at once. If your doctor is not familiar with
this type of injury, ask him to research immediately to determine proper treatment.
• Wear safety glasses, protective clothing, and use a sound piece of cardboard or
wood when searching for hydraulic leaks. DO NOT USE YOUR HANDS!
SEE ILLUSTRATION.
4 76288
GENERAL SAFETY PRECAUTIONS
WARNING! PROTECT AGAINST FLYING DEBRIS
Always wear proper safety glasses, goggles, or a face shield when driving pins in or
out, or when any operation causes dust, ying debris, or any other hazardous mate-
rial.
WARNING! LOWER OR SUPPORT RAISED EQUIPMENT
Do not work under raised booms without supporting them. Do not use support mate-
rial made of concrete blocks, logs, buckets, barrels, or any other material that could
suddenly collapse or shift positions. Make sure support material is solid, not de-
cayed, warped, twisted, or tapered. Lower booms to ground level or on blocks. Lower
booms and attachments to the ground before leaving the cab or operator’s station.
WARNING! USE CARE WITH HYDRAULIC FLUID PRESSURE
Hydraulic uid under pressure can penetrate the skin and cause serious injury or
death. Hydraulic leaks under pressure may not be visible. Before connecting or dis-
connecting hydraulic hoses, read your prime mover’s operator’s manual for detailed
instructions on connecting and disconnecting hydraulic hoses or ttings.
•Keep unprotected body parts, such as face, eyes, and arms as far away as
possible from a suspected leak. Flesh injected with hydraulic uid may develop
gangrene or other permanent disabilities.
•If injured by injected uid, see a doctor at once. If your doctor is not familiar with
this type of injury, ask him to research it immediately to determine proper treat-
ment.
•Wear safety glasses, protective clothing, and use a piece of cardboard or wood
when searching for hydraulic leaks. DO NOT USE YOUR HANDS!
SEE ILLUSTRATION.
CARDBOARD
HYDRAULIC HOSE
OR FITTING
MAGNIFYING GLASS
GENERAL SAFETY PRECAUTIONS

MR25664 5
GENERAL SAFETY PRECAUTIONS
WARNING! DO NOT MODIFY MACHINE OR ATTACHMENTS
Modifications may weaken the integrity of the attachment and may impair the function,
safety, life, and performance of the attachment. When making repairs, use only the
manufacturer’s genuine parts, following authorized instructions. Other parts may be
substandard in fit and quality. Never modify any ROPS (Roll Over Protection Structure)
or FOPS (Falling Object Protective Structure) equipment or device. Any modifications
must be authorized in writing by the manufacturer.
WARNING! SAFELY MAINTAIN AND REPAIR EQUIPMENT
• Do not wear loose clothing, or any accessories that can catch in moving parts.
If you have long hair, cover or secure it so that it does not become entangled in
the equipment.
• Work on a level surface in a well-lit area.
• Use properly grounded electrical outlets and tools.
• Use the correct tool for the job at hand. Make sure they are in good condition
for the task required.
• Wear the protective equipment specified by the tool manufacturer.
WARNING! SAFELY OPERATE EQUIPMENT
Do not operate equipment until you are completely trained by a qualified operator in
how to use the controls, know its capabilities, dimensions, and all safety requirements.
See your machine's manual for these instructions.
• Keep all step plates, grab bars, pedals, and controls free of dirt, grease,
debris, and oil.
• Never allow anyone to be around the equipment when it is operating.
• Do not allow riders on the attachment or the prime mover.
• Do not operate the equipment from anywhere other than the correct operators
position.
• Never leave equipment unattended with the engine running or with this
attachment in a raised position.
• Do not alter or remove any safety feature from the prime mover or this attachment.
• Know your work site safety rules as well as traffic rules and flow. When in
doubt on any safety issue, contact your supervisor or safety coordinator for an
explanation.

MR25664
6
GENERAL SAFETY PRECAUTIONS
WARNING! KNOW WHERE UTILITIES ARE
Observe overhead electrical and other utility lines. Be sure equipment will clear them.
When digging, call your local utilities for location of buried utility lines, gas, water, and
sewer, as well as any other hazard you may encounter.
WARNING! EXPOSURE TO RESPIRABLE CRYSTALLINE SILICA DUST ALONG WITH OTHER
HAZARDOUS DUSTS MAY CAUSE SERIOUS OR FATAL RESPIRATORY DISEASE.
It is recommended to use dust suppression, dust collection and if necessary personal
protective equipment during the operation of any attachment that may cause high levels of
dust.
WARNING! REMOVE PAINT BEFORE WELDING OR HEATING.
Hazardous fumes/dust can be generated when paint is heated by welding, soldering or
using a torch. Do all work outside or in a well ventilated area and dispose of paint and
solvent properly. Remove paint before welding or heating.
When sanding or grinding paint, avoid breathing the dust. Wear an approved respirator.
If you use solvent or paint stripper, remove stripper with soap and water before welding.
Remove solvent or paint stripper containers and other flammable material from area. Allow
fumes to disperse at least 15 minutes before welding or heating.
WARNING! END OF LIFE DISPOSAL.
At the completion of the useful life of the unit, drain all fluids and dismantle by
separating the different materials (rubber, steel, plastic, etc.). Follow all federal, state
and local regulations for recycling and disposal of the fluid and components.

MR25664 7
SAFETY SIGN & DECAL LOCATIONS
The diagram on this page shows the location of the decals used on the FFC Cold Planer. The
decals are identified by their part numbers, with reductions of the actual decals located on the
following page. Use this information to order replacements for lost or damaged decals. Be sure
to read all decals before operating the attachment. They contain information you need to know
for both safety and product longevity.
INSTRUCTIONS
• Keep all safety signs clean and legible.
• Replace all missing, illegible, or damaged safety signs.
• Replacement parts for parts with safety signs attached must also have safety signs
attached.
• Safety signs are available, free of charge, from your dealer or from FFC.
PLACEMENT OR REPLACEMENT OF SAFETY SIGNS
1. Clean the area of application with non-flammable solvent, and then wash the same area
with soap and water.
2. Allow the surface to fully dry.
3. Remove the backing from the safety sign, exposing the adhesive surface.
4. Apply the safety sign to the position shown in the diagram above and smooth out any
bubbles.
6
8
8
2
4
6
8
5
7
1
3
4
6
8
8
2
4
6
8
5
7
1
3
4
RDL317950-0721
50-0737
RDL3100
RDL3179
RDL3100
41043
50-0724
50-10017
RDL3159
RDL3179
50-0737
Serial Tag
Location

MR25664
8
SAFETY SIGNS & DECALS
PART #RDL3100
WARNING! STAND CLEAR
PART #50-10017
WARNING! READ MANUAL
PART #50-0724
WARNING! HIGH PRESSURE FLUID
PART #50-0721
WARNING! CRUSH HAZARD
PART #RDL3159
CAUTION! FLYING DEBRIS PART #RDL3179
LIFT POINT
PART #41043
WARNING! HAZARDOUS DUST
PART #50-0737
WARNING! PINCH POINT

MR25664 9
INSTALLATION & SET-UP
WARNING! READ MANUAL PRIOR TO INSTALLATION
Improper installation, operation, or maintenance of this equipment could result in
serious injury or death. Operators and maintenance personnel should read this
manual, as well as all manuals related to this equipment and the prime mover
thoroughly before beginning installation, operation, or maintenance. FOLLOW ALL
SAFETY INSTRUCTIONS IN THIS MANUAL AND THE PRIME MOVER'S
MANUAL(S).
1. Place this product on a firm, level surface that is large enough to safely accommodate this
product, your prime mover and all workers involved in the mounting process.
2. Refer to the operator’s manual(s) for your prime mover, loader, and quick-attach and follow the
mounting instructions contained therein.
3. Carefully raise the loader and cycle the tilt cylinders to check clearances and to verify that all
mounting procedures have been successfully completed.
NOTICE! Lubricate all grease fittings before connecting this product to your prime
mover's hydraulic system. Refer to COLD PLANER MAINTENANCE page and
follow the instructions.
ELECTRIC HARNESS AND ACTUATOR INSTALLATION
MATERIALS NEEDED: Nylon cable ties.
1. Attach the control box to a location convenient for the operator to control the planer without
hindering operation of the prime mover. Use the magnet on the back of the control box to
secure the control box with the toggle switches on top.
CAUTION! Failure to obey the following procedures may result in personal injury.
To avoid electric shock during the wiring harness installation, remove the
ground cable from the battery of your prime mover.
2. Remove the ground cable from the negative (-) post of your prime mover’s battery.
3. Remove the nut from the POSITIVE (+) cable clamp on the battery and slide the RED wire
ring terminal from the 9’ wiring harness cable over the positive (+) cable clamp bolt. Secure the
ring terminal with the nut.
4. Remove the nut from the NEGATIVE (-) cable clamp on the ground cable and slide the BLACK
wire ring terminal from the 6’ wiring harness cable over the negative (-) cable clamp bolt.
5. Reinstall the ground cable on the negative (-) post of the battery and secure the ring terminal
and the ground cable with the nut removed in the previous step.
6. Secure the 9’ wiring harness cable from the battery to the control box with your nylon cable ties.
7. Feed the 16’ wiring harness cable:
a) back to the left-rear area of your prime mover,
b) past the loader arm’s rear hinge point by following the hydraulic hoses where possible, and
c) down the loader arm following the hydraulic lines.
8. Use your nylon cable ties to secure the 16’ cable’s female connector to the hydraulic lines next
to the auxiliary hydraulic quick couplers.
9. Straighten the 16’ cable and use your nylon cable ties to secure the cable to the hydraulic lines
back to the loader arm hinge point.
10. Allow sufficient slack in the cable at the hinge point to provide for a full range of motion of the
loader arms. Use your nylon cable ties to secure the cable to the loader frame below the hinge
point and back to the control box.
11. Connect the male connector on the actuator cable to the female connector on the loader arm.

MR25664
10
INSTALLATION & SET-UP
READ AND UNDERSTAND ALL SAFETY STATEMENTS
Read all safety decals and safety statements in all manuals before beginning any
Cold Planer hydraulic connection. Know and obey all OSHA regulations, local laws, and
other professional guidelines for your operation. Know and follow good work practices
when assembling, maintaining, repairing, mounting, removing, or operating this
equipment.
1. Relieve any pressure from the auxiliary hydraulic system. After making sure that there is not any
foreign matter on the hydraulic couplers connect the case drain coupler to the case drain on your
skid steer loader. NOTE: The case drain line must be connected first, then the power and return
hoses. When disconnecting the hoses, it is recommended to disconnect the case drain line last.
2. Connect the power and return couplers to the high flow auxiliary hydraulic system of your skid
steer loader. Route the hose in such a fashion as to avoid pinching or chafing.
CAUTION! BE SURE CASE DRAIN COUPLER IS COMPLETELY ENGAGED. Immediate
hydraulic motor seal failure and planetary damage will occur if case drain is not
successfully connected.
3. Carefully raise the loader and cycle the tilt cylinders to check hose clearances and to check for
any interference.
4. Cycle the hydraulic cylinder(s) on this product several times from fully retracted to fully extended
until all air has been completely removed from the cylinder(s).
WARNING! Do not lock the auxiliary hydraulics of your prime mover in the "ON" position.
Failure to obey this warning could result in death or serious injury.

MR25664 11
INSTALLATION & SET-UP
SAFETY FIRST! READ AND UNDERSTAND THE SAFETY INSTRUCTIONS
BEFORE BEGINNING ANY COLD PLANER SETUP!

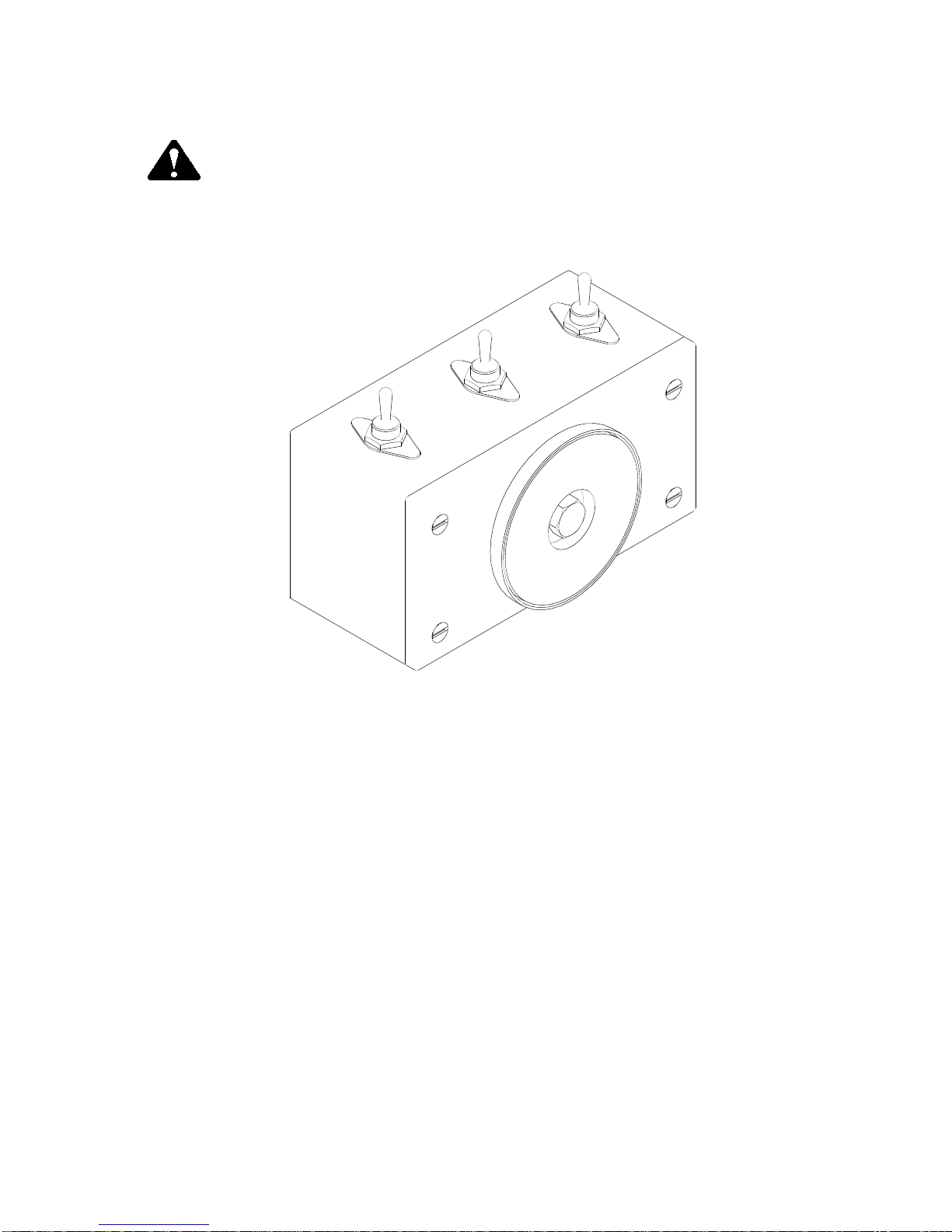

From the operator’s position:
• The left switch controls the Planer Tilt.
• The middle switch controls the Planer Sideshift.
• The right switch controls the Planer Depth.

MR25664
12
OPERATION

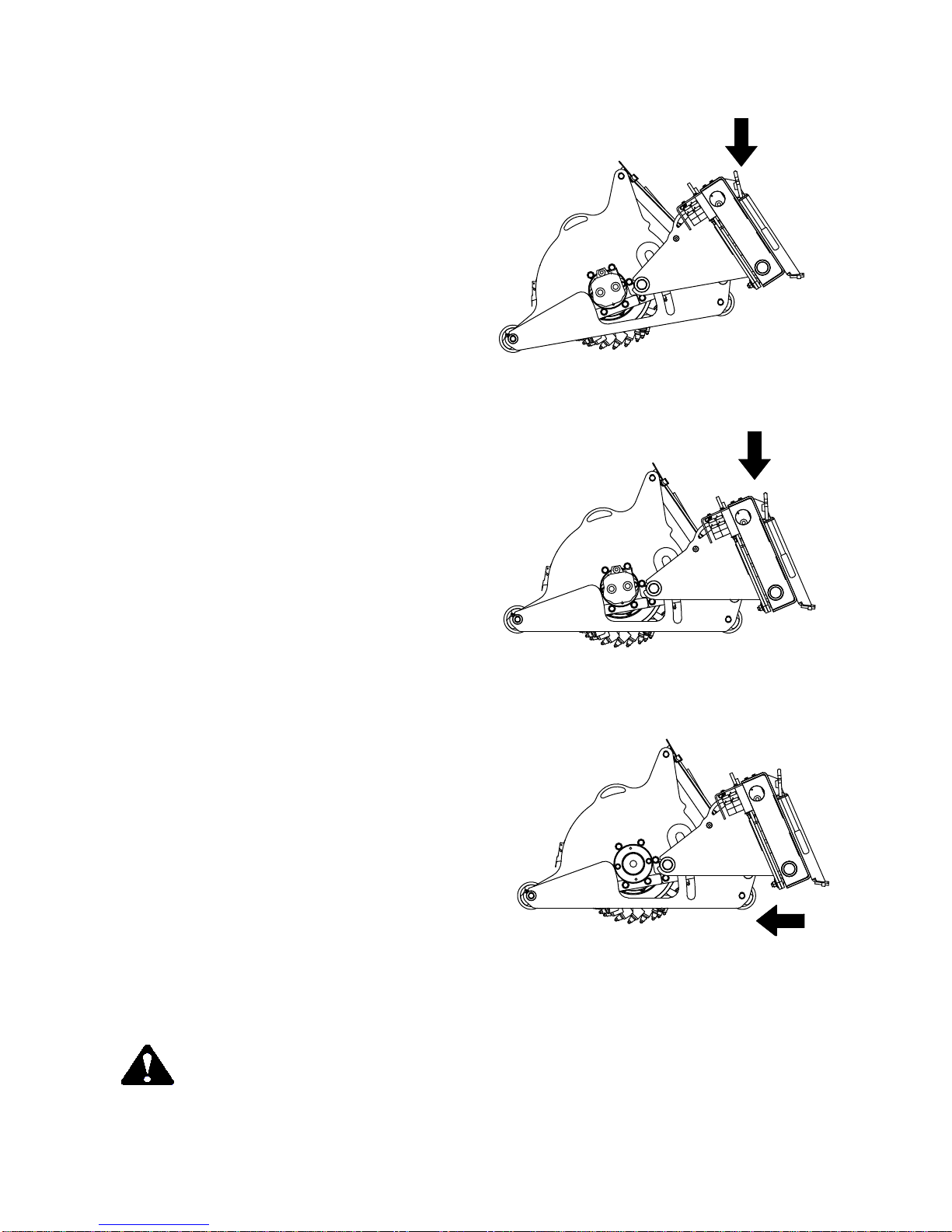

Starting a Cut:
1. To begin a cut, adjust the depth cylinders to
the desired depth with the planer slightly
above the ground. Engage the hydraulic
system to start the drum. Lower the planer
bringing the front wheels onto the ground.
2. Continue lowering the planer until the rear
wheels are on the ground and the drum is
milling the material.
3. Slightly lift the front loader wheels to create
a downward force on the planer. Slowly
move forward, planing in a straight line.
NOTE: Materials can vary greatly: it is recommended that cutting depth be limited to 1 inch when
roughing concrete. Deeper cuts in concrete should be made in multiple passes.
WARNING! Failure to obey the following procedures could result in death or serious
injury.
• Never lift this product above (a) the operator’s eye level or (b) to a height
where visibility is obstructed, whichever is lower.
• Never operate your Planer with the cover open.

MR25664 13
MAINTENANCE
GENERAL INFORMATION
Regular maintenance is the key to long equipment life and safe operation. Maintenance
requirements have been reduced to the absolute minimum. However, it is very important that these
maintenance functions be performed as described below.
WARNING! Failure to obey the following procedures could result in death or serious injury.
•Never walk under or climb on raised liftarms or a raised attachment.
•Do not use blocking made of concrete blocks, logs, buckets, barrels or
any other material that cold suddenly collapse or shift positions. Do not
use wood or steel blocking that shows any signs of material decay. Do
not use blocking that is warped, twisted, or tapered.
• If the attachment must be raised, block the machine with blocks or
jackstands, NOT lift jacks or hoists. Always block the rear wheels of the
Planer in a manner that stabilizes the chassis.
• Always wear protective equipment including a HARD HAT and EYE
PROTECTION when operating, performing maintenance, or working near
this product.
• The Attachment Part group and the Chassis Part group pivot freely. Do
not place any part of your body between these areas or under this
product without stabilizing this pivot point.
MAINTENANCE SCHEDULE
Procedure Before Each
Use After Each Use Prime Mover
Cylinders - Retract Rods
- Grease threaded & ball ends to prevent rust
Filter, Air, Prime Mover - Clean
Fittings/Hoses, Hydraulic - Check for leaks, Damage
Fittings, Zerk - Grease (See Lubrication Points)
Oil, Hydraulic - Check Level
Hardware - Check for Tightness
Picks - Check for rotation, at spots & wear
Safety/Warning Decals - Check for missing or illegible

MR25664
14
MAINTENANCE
Lubrication Points
NOTE: Lubricate all grease fittings with a NLGI #1 or 2 multipurpose grease or equivalent.
Grease Fittings:
1. Weld Pivot, 3 Total
2. Caster, 1 each, 4 Total
3. Mounting, 4 Total ( 2 hidden behind mounting plate)
4. Depth Guide, 2 Total
NOTICE! Avoid excessive greasing. Dirt collects on exposed grease and greatly increases
wear. After greasing, wipe off excessive grease from fittings.
1
1
1
4
4
2
23

MR25664 15
MAINTENANCE
GENERAL INFORMATION
Regular maintenance is the key to long equipment life and safe operation. Maintenance requirements
have been reduced to the absolute minimum. However, it is very important that these maintenance
functions be performed as described below.
WARNING! Failure to obey the following procedures could result in death or serious injury.
•Never walk under or climb on raised liftarms or a raised attachment.
•Do not use blocking made of concrete blocks, logs, buckets, barrels or
any other material that cold suddenly collapse or shift positions. Do not
use wood or steel blocking that shows any signs of material decay. Do
not use blocking that is warped, twisted, or tapered.
• If the attachment must be raised, block the machine with blocks or
jackstands, NOT lift jacks or hoists. Always block the rear wheels of the
Planer in a manner that stabilizes the chassis.
• Always wear protective equipment including a HARD HAT and EYE
PROTECTION when operating, performing maintenance, or working near
this product.
• The Attachment Part group and the Chassis Part group pivot freely. Do
not place any part of your body between these areas or under this
product without stabilizing this pivot point.
ANNUALLY
NOTE: Initial oil change should be after 50 hours of operation. Subsequent oil change should be
every 1000 hours of operation or annually, whichever comes first.
Planetary gearbox is to be half full of oil when the unit is mounted level and horizontal. Use
mild extreme pressure lubricant API-GL-5, No. 80 or 90. The capacity of the gearbox is 30
oz. Refer to Parts Illustrations to disassemble and reassemble your Planer.
To change the oil in the Planetary Gearbox:
1. Remove motor. NOTE: motor shaft adapter is loose and can fall from planetary.
2. Remove pivot weldment with attach weldment. Keep attach weldment close and do not stretch
hoses.
3. Remove depth cylinders. Hydraulic lines can be left attached.
4. Remove two depth skids.
5. Remove the right and left support plates from the chassis.
6. Using the lift point on the chassis, raise the chassis off of the drum.
7. Remove the planetary.
8. Remove drain plug from the planetary.
9. Drain oil from planetary.
10. Fill planetary with oil. The oil level must be at the bottom of the threads with the hole level. Do
not tip the planetary, as the oil can run out of the planetary before the motor is installed.
11. Clean any debris from the drain plug and apply pipe thread sealant to the threads.
12. Install the planetary in the drum.
13. Install the drum in the chassis. Install the depth skids, pivot weldment, and depth cylinders.
14. Complete the reassembly of your Planer. (See Parts Illustrations & Parts Lists and Torque
Specifications for reference during reassembly.)

MR25664
16
MAINTENANCE
MAINTENANCE RECORD
Use this log to record maintenance performed on the attachment.
Date Maintenance Procedure
Performed Performed by Comments

MR25664 17
MAINTENANCE
NOTICE! When replacing parts use only factory approved replacement parts.
Manufacturer will not claim responsibility for use of unapproved parts or
accessories and/or other damages as a result of their use.
1. Park your prime mover on a level surface with this product properly attached.
2. Place your prime mover’s transmission in “Park” and engage the parking brake.
3. Lower this product onto preplaced blocking.
WARNING! Do not use blocking made of concrete blocks, logs, buckets, barrels or any other
material that could suddenly collapse or shift positions. Do not use wood or steel
blocking that is warped, twisted, or tapered. Failure to obey this warning could
result in death or serious injury.
4. Shut off your prime mover’s engine, remove the starter key, wait for all moving parts to come to
a stop, and relieve all pressure in the hydraulic lines.
CAUTION! Picks become hot during operation: Wait for picks to cool before replacing.
Do not hammer on carbide point when replacing picks. The carbide can break and cause
injury.
Pick Removal/Replacement:
• Proper pick maintenance is essential to the productive use of your Planer. Failure to perform
regular pick maintenance can result in severely decreased performance and expensive repairs
to your Planer drum.
• A missing pick must be replaced immediately, as a missing pick will cause the surrounding picks
to wear faster.
• Picks must be replaced when their carbide tips become excessively blunt. NOTE: the edge
picks wear faster and require more frequent replacement.
• Picks must rotate freely in their holders. If picks do not rotate freely, they will develop flat spots.
Picks should be removed and retaining rings cleaned as necessary.
• Remove and replace picks using the pick removal tool (LAF9326) and a hammer as shown
below.

MR25664
18
3-LINE ASSEMBLY
30
46
38
10
17
12
16
29
28
11
31
2
1
22
8
8
7
7
13
9
9
13
20
15
15
4
5
14
12
45
50
41
51
35
13
45
41
50
348
47
25
39
36
24
45
27
21
19
43
18
32
33
49
40
26
53
52
34
45
37
44
42
13 6
23
16 to 24 inch unit shown
Item Part Qty Description
1. 03-10013 1 Hose, .5 x 56, 8FF45-12FF, 100R2
2. 03-10014 1 Hose, .75 x 52, 12FF-12FF45
3. 03-10015 1 Manifold, 3-Line
4. 03-10029 1 Hose, .25 x 42.5, 4FF-4FF45, 100R2 (16-24 in)
5. 03-10030 1 Hose, .25 x 47, 4FF-4FF45, 100R2 (16-24 in)
