FILTRINOV FB User manual

EN
FB RANGE
Installation and operating instructions.
Please read carefully and retain for future reference.
SELF-CONTAINED SINGLE-PIECE
FILTRATION UNIT

16
CONTENTS
Recommendations
Technical description of the filtration unit
Installing the filtration unit
Filtration unit power supply
LED Light
Setting the timer
Starting the filtration unit
Pool-Earth
Filtration : Operating principle
Vacuum point for manual suction cleaner
Optional By-pass
Winterising and pump disassembly
FAQ / Trouble shooting
1
2
3
4
5
6
7
8
9
10
....................................................................... P.3
........................ P.4
........................................................ P.5
....................................................... P.6
........................................................................................... P.7
............................................................................. P.7
.......................................................... P.8
.......................................................................................... P.8
................................................. P.9
....................... P.10
.......................................................................... P.10
..................................... P.11
............................................................. P.13
11
12
13

EN
- These installation instructions are an integral part of the product and must be given
to the user. This booklet should be retained for reference.
- Check the condition of the contents after unpacking the filtration unit.
- Before wiring up the unit, make sure the manufacturer’s data is compatible with the
planned system and does not exceed the maximum permitted limits of the particular
item.
- Always cut the electrical power from the main consumer unit before carrying out any
maintenance, handling or repair work.
Any repair work must be carried out by an authorised technical support service using
only OEM spare parts. Failure to comply with the above requirements may cause un-
safe operation of the filtration unit and will void the manufacturer’s warranty.
A high-sensitivity, 30 mA cut-off device must be fitted at the head end.
TERMS AND CONDITIONS OF DELIVERY :
All items, including when sold postage and packing paid, are transported at the
consignee’s risk. The consignee must record any reservations regarding damage in
transit in writing on the CARRIER’S delivery note and provide confirmation thereof
within 48 hours by registered letter sent to the CARRIER.
VOLTAGE: before operating, check that the appliance voltage indicated on the data
plate is the same as the mains voltage (usually 230 Volts AC).
FOREWORD :
Thank you for purchasing this FB 12 filtration unit and for your trust in our company.
You can rest assured that every effort has been, and will continue to be made to bring
you complete satisfaction. This product has been carefully designed with your safety in
mind. Your new filtration unit comes with the same features as a traditional filtration
system.
Reminder : a residual current device (maximum 30 mA) must be fitted upstream, and
manually tested, as a safety measure to cut the low-voltage power to pool appliances.
RECOMMENDATIONS
TO PREVENT WATER INGRESS INTO THE NON-WATERTIGHT TANK OF THE FB UNIT
WE ADVISE YOU TO INSTALL A DRAIN ALL AROUND THE POOL THAT RUNS INTO A
RELIEF WELL CONTAINING A BASEMENT SUMP PUMP.
1
• CLEAN BOTH CARTRIDGES AT REGULAR INTERVALS
• ALWAYS LOCK THE LID SHUT AFTER COMPLETING MAINTENANCE
WORK IN THE TANK
• DO NOT USE FLOCCULANTS OR «MULTIFUNCTIONAL» CHLORINE

18
TECHNICAL DESCRIPTION OF THE FILTRATION UNIT
2
3
6
2
5
7
1
4
Filter access lid.
Multi-directional, high-flow nozzle.
LED light (optional)
Dual filter cartridge housing incl. 2 leaf baskets.
Two suction skimmers.
In-ground section containing:
• Pumps
• Control panel (if light fitted)
Removable, lockable lid.
3
4
3
2
2
1
1
Filter pump
Control panel (optional)
Pool light transformer (optional)
Remote control unit
3
2
12 Leaf baskets
2 Filter cartridges
2 Skimmers
IN-GROUND SECTION SUBMERGED SECTION
4
1
2
3
6
7
2
5
1
4
3

EN
INSTALLING THE FILTRATION UNIT
3
• Dig a pit into which the filtration unit tank will be placed.
• Remove the filtration unit from its packaging and place it carefully
in position straddling and resting on the pool structure.
• Make sure the front, pool-side of the unit is positioned fully
perpendicular to the pool wall.
• Feed in the electrical wiring and then fill in the pit with gravel all
around the filtration unit tank.

20
FILTRATION UNIT POWER SUPPLY
4
The filtration unit should be connected to an insulated electricity
supply running directly from the main consumer unit with a 16A fuse
or circuit-breaker, protected by a 30mA RCD (not included).
Use a 3-wire cord, earth-live-neutral, with a 1.5 or 2.5 mm² section if less
than 30 linear metres.
• FB without light
• FB with light
Date
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
Objet Visa Vérifié par Ce document est la propriété de la société SOLU-WATT, il vous est remis à titre confidentiel
Référence
FILTR.FB.LED
Notice client
4
Folios :
EPLAN Software &
Service
19/10/2022
et ne dois pas être reproduit ni communiqué à des tiers sans notre autorisation écrite.
19/10/2022 TN
APlan de base
Date de vérification
TN
Créateur
Indus.
Indice
Version
B
Q1
C 2A
3kA
KM1
78 1 2 3
L N
0
I
Auto
KATS11B
1
2
3
4
5
6
7
8
9
10
11
12 13 14
15
16
17
18
19
20
21
22
23
24
V1
PGR07
Filtration pump
0.75kW 5A max
Lighting
transformer
Earth connection
Front-mounted filtration
and lighting controls
LN
PE
PE
N L
N L
WP2/M
2 P Flush-mounted
male connector
WP3/M
3 P Flush-mounted
male connector
WP3/HEM
3 P Flush-mounted
socket connector
Power supply 230V 50-60Hz
Use a 30mA + differential
protection system
A C16 thermal magnetic circuit
breaker


EN
LED LIGHT
5
VYour filtration unit may include
a white LED light as standard.
A MULTICOLOUR LED light op-
tion is also available in 11 non-ani-
mated colours incl. white and
with 5 sequence programmes
(remote control included)
(Manufacturer’s guide included)
Standard
Optional
SETTING THE TIMER
6
Date
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19
Objet Visa Vérifié par Ce document est la propriété de la société SOLU-WATT, il vous est remis à titre confidentiel
Référence
FILTR.FB.LED
Notice client
4
Folios :
EPLAN Software &
Service
19/10/2022
et ne dois pas être reproduit ni communiqué à des tiers sans notre autorisation écrite.
19/10/2022 TN
APlan de base
Date de vérification
TN
Créateur
Indus.
Indice
Version
B
Q1
C 2A
3kA
KM1
78 1 2 3
L N
0
I
Auto
KATS11B
1
2
3
4
5
6
7
8
9
10
11
12 13 14
15
16
17
18
19
20
21
22
23
24
V1
PGR07
Filtration pump
0.75kW 5A max
Lighting
transformer
Earth connection
Front-mounted filtration
and lighting controls
LN
PE
PE
N L
N L
WP2/M
2 P Flush-mounted
male connector
WP3/M
3 P Flush-mounted
male connector
WP3/HEM
3 P Flush-mounted
socket connector
Power supply 230V 50-60Hz
Use a 30mA + differential
protection system
A C16 thermal magnetic circuit
breaker
• Continuous mode ( 24-hour filtration)
Move the filter switch on the outside of the electrical panel to
«Manual».
• Auto mode (timed filter operation)
Move the filter switch on the outside of the electrical panel to
«Automatic».
Turn the clock hands to set the exact time relative to the pointer
(triangle) on the right of the clock.
Push the segments outwards to set the scheduled «On» times.
Sequencing principle:
Minimum 1 h of downtime after 4 h of operation.
> See the instructions attached to the panel

22
POOLEARTH  FUNCTIONAL EARTH
8

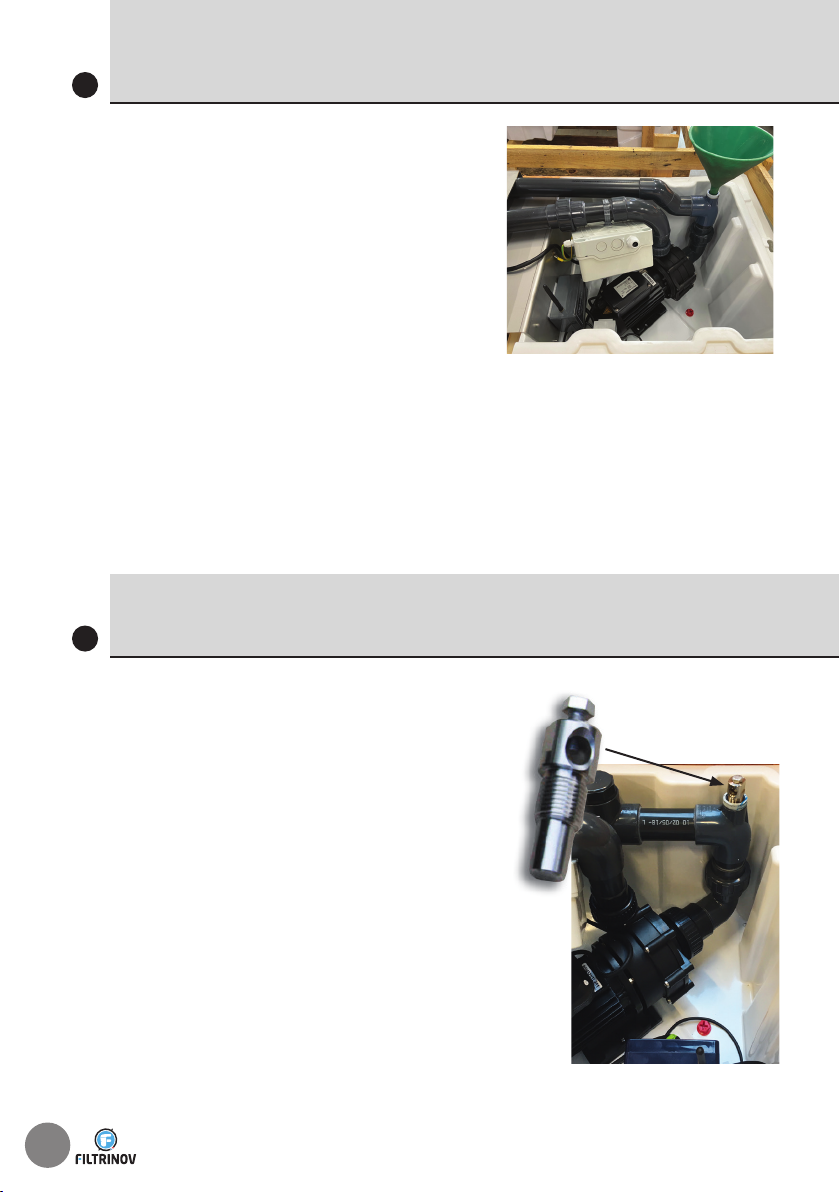

STARTING THE FILTRATION UNIT
7
When the water in your pool is at
of the level of the skimmers, operate the
filtration unit for the first time as follows :
1. Prime the pump by filling it with water
through the hole provided
2. Screw in the Pool earth
3. Put the filtration unit in manual mode to start
the pump
You are strongly advised to unscrew and remove the drain plug from
the tank when you have finished installing the filtration unit.
Repeat the above steps if the priming procedure is not working
after 2 minutes.
It is vital that the pool be earthed in order to
remove stray currents from the water.
Stray currents are not dangerous to people,
but they do electrolyse the metal components
in the pool, which increases corrosion. They
can also disrupt the treatment probes,
resulting in incorrect amounts of product
being injected.
This is why FILTRINOV has included a pool
earth with these products. Screw it into the
threaded attachment point provided and
connect it to the earth rod with a Ø 6 mm
copper braid earth strap (parts not included).
A hole will have to be drilled in the tank to route
the braid through the packing gland provided.

EN
FILTRATION : OPERATING PRINCIPLE
9
Water from the surface of the pool is drawn in by the skimmers and
sent through the filter cartridges, where it is cleaned. It then travels
on to the pump, which discharges it through the return nozzle back
into the pool.
The filter cartridges must be washed every few complete filtration
cycles.
The cartridge should be cleaned at least once a week and whenever the
suction cleaner has been used. To clean the cartridge, remove the basket,
lift out the cartridge and gently hose it down. Refit the cartridge once it is
clean.
Your FB includes a cartridge housing at the bottom of the filter holder to
fit the cartridge. Turn the cartridge a quarter turn downwards to slot it into
place in the filter holder. Remember to fit the basket and its pre-filter.
All FILTRINOV filtration units are checked and tested with the utmost care
and subject to FILTRINOV’S stringent quality controls.
The use of non FILTRINOV-approved parts and consumable items shall
render the pump and hydraulic system warranty void.
EASYFILTER bags and cartridges are not approved by FILTRINOV.
Persistent clogging and risk of permanent damage to the pump.
The filtration time should be increased as the water temperature rises :
12° to 16° = 6 hours
16° to 24° = 8 hours
24° to 27° = 10 hours
27° to 30° = 12 to 14 hours or more
Sequencing principle : Minimum 1 h of downtime after 4h of operation.

24
The cartridges should be cleaned at
least once a week and whenever the
suction cleaner has been used. To
clean the cartridges, remove the bas-
kets, lift out the cartridges and gently
hose them down. Refit the clean car-
tridges and the baskets.
OPTIONAL BY-PASS (3-way valve)
11
The by-pass consists of a 3-way valve and a branch Tee. You are
advised to seal the pipe entries in order to prevent water getting into
the tank.
Your heat pump is
connected to the filtration
unit by a Ø 50 PVC pipe.
• Place the 2 shutoff valves
at the inlet and outlet of the
heat pump so that it can
be isolated during winter
storage.
TO POOL
RETURN TO HEAT PUMP
VACUUM POINT FOR MANUAL SUCTION CLEANER OR
HYDRAULIC AUTOMATIC CLEANER
10
• Connect one end of the hose to the suction cleaner
• Hold the suction cleaner by the handle and insert it into the pool,
• Gradually insert the hose into the water until the water pushes out
the air (tip : you can fill the hose with water by placing its tip in front
of the return nozzle with the unit running) ;
• Feed the other end of the hose into the skimmer mouth and attach
it to the skim vac plate that seals off the basket ;
• Place the other (plugged) skim vac over the other basket in order to
block suction from the second skimmer and maintain best cleaning
performance ;
• Only use when using the suction cleaner

25
FR
WINTERISING & PUMP DISASSEMBLY
12
An actively winterised pool continues to operate at a slower than
normal rate throughout wintertime. This is the recommended
winterising procedure in less cold regions. If you live in a harsher
winter climate, you should choose to passively winterise your pool
instead.
• First clean the pool structure, the water line, baskets and cartridges.
• Next, shock the pool with chlorine.
• Run the filtration system non-stop for at least 12 hours.
• Then reset your timer to run the filtration system for 30 minutes
every 3 hours (do not be afraid to increase the running time if the
temperature is significantly below zero).
• Your pool will not require any more product treatments for the
whole winter. Just monitor the water’s pH level and adjust if
necessary.
• Check and clean the baskets and cartridges at regular intervals.
• We also recommend that you use winter floats in your pool.
• You can also cover your pool with a winter cover or tarp, although
this is not mandatory.
• Active Winterising :
Passive winterising involves shutting down the filtration unit entirely.
• First clean the whole of the pool and its equipment (floor and walls,
water line, baskets, cartridges, etc).
• Check the water’s pH level and adjust if necessary.
• Shock the pool with a chlorine treatment.
• Run the filtration system non-stop for at least 12 hours.
• Protect the filtration system from frost.
• Passive winterising and pump disassembly

26
TROUBLE SHOOTING
12
CAUSE SOLUTION
Cartridges
• SITUATION 1: The cartridges are dirty but not clogged. Clean the cartridges at more regular intervals (once every fortnight)
•SITUATION 2: Renew the cartridges if they are clogged
•SITUATION 3: If you are using a flocculent or anti-algae treatment, lower the water level by 20 cm and renew the cartridges
Leaf baskets Clean the debris from the baskets at regular intervals and clean or renew the Netskims (skimmer socks/nets)
Pump Clean the pump housing to remove any foreign matter and unblock the turbine
Water level Check the water height, making sure it is ¾ of the way up to the skimmer niches
Priming
•Check that the pump has been primed properly
•If it hasn’t, remove the delivery system at the pump outlet, fill the pump with water and jolt-start the unit again on and off in
quick spurts (5 seconds on, 1 to 2 seconds off); 3 or 4 times should be enough
Position of the unit
•The 4 contact points on the rear of the side that is submerged in the pool should be hard against the pool wall
•This is only possible if you ensure that the tank section is perfectly horizontal and supported sufficiently high up to avoid strain that
would pull the contact points away from the pool (see the installation guide)
CAUSE SOLUTION
Power supply
•Check the wiring from the pump to the unit’s electrical enclosure
•Check the wiring from the electrical enclosure to the mains power supply
•Check the 30 mA circuit breaker at the line end
Pump switch •Check the wiring to the pump switch
•eplace the switch if it is not working
Front-mounted 3-position
switch (Auto/0/Manual) on
the electrical enclosure
•Put the switch in Manual mode
•If the pump still does not work, check the connections at the wire terminals behind the switch inside the enclosure
•If the problem is still not resolved, contact your retailer to have the switch replaced
Timer
•Check the timer wiring inside the electrical enclosure
•Check that the 3-position switch (Auto/0/Manual) is turned to Auto mode
•Also turn the switch in the bottom left corner of the timer dial face to Auto
•Use the timer segments to set the filtration to start and stop at different periods
•If the filtration does not start, the timer is faulty and will have to be replaced
CAUSE SOLUTION
Turbine Use a large flat-blade screwdriver at the rear and in the centre of the pump to try and release the turbine and get it turning
Condenser Replace the condenser
PROBLEM: Low pressure flow and/or air bubbles in the pumped water flow
PROBLEM: The pump does not start
• If there is no noise:
• If the power unit is making a noise:
FILTERS/PUMPS/CCS

EN
PROBLEM: The pool light does not come on.
TROUBLE SHOOTING
12
LIGHTING
CAUSE SOLUTION
Crystal tube
The crystal tube along the inside the tank has come loose from its pneumatic switch after the side-mounted pneumatic button was
used to start the CCS.
Re-attach the tube.
Timer
• Make sure that not all the timer segments are pushed out, causing the filtration system to run non-stop. If they are, push some
back in to set OFF periods and then try to turn the dial forward in time by hand to an off period in order to stop the filter running.
•If the above step fails to switch the pump off, turn the front-mounted 3-position switch (Auto/0/Man) on the enclosure to 0. The
pump will stop, but the timer is not working and will have to be replaced.
Front-mounted 3-position
switch (Auto/0/Man)
on the electrical enclosure
•Turn the switch to 0
•If the pump is still running, check the connections at the wire terminals behind the switch inside the enclosure.
•If this still fails to switch the pump off, contact your retailer to have the switch replaced, and cut the mains electrical power to the
filter unit.
CAUSE SOLUTION
Overheating power unit
• To prevent the pump and its thermal circuit breaker from overheating, we advise you to programme your filter system to run for no
more than 3 or 4 hours at a time with a 1-hour break between operating periods.
Example : Water temperature: 24°C; required filtration time: 12 hours. We recommend that you programme the filtration unit to work
in stages from 7 am to 10 am then 11 am to 2 pm, 3 pm to 6 pm, and finally from 7 pm to 10 pm.
•We also recommend that you clean the cartridges.
Excessively dirty cartridges significantly reduce the flow of water into the pump, causing it to overwork and overheat.
PROBLEM: The pump does not switch off
PROBLEM: The pump cuts out and starts up again later
CAUSE
(carry out the checks in the
order shown) SOLUTION
Lighting circuit breaker •Check whether the circuit breaker has been tripped and is still open
•If the circuit breaker has not stayed open, it is not working and will have to be replaced
Front-mounted 2-position (I/0)
switch on the enclosure
•Check that the switch is turned to I
•Check the connections at the terminals behind the switch inside the enclosure.
Transformerr (220V/12V) •Check the transformer’s output voltage (12V)
•If the transformer’s output voltage is zero, it is not working and will have to be replaced.
Remote control system unit
(blue enclosure with a black
antenna, inside the tank)
•Open the housing
•Press the small black button inside the housing; a small red LED next to it should come on
•If nothing happens, the remote control system unit is not working and will have to be replaced
•If the red LED comes on, configure the remote control (see paragraph 6 of the remote control unit instructions)
Remote control
•Open the remote control battery compartment and check for oxidation, etc, the condition of the battery and that it is fitted the
correct way round.
•Configure the remote control (see paragraph 6 of the remote control unit instructions).
•Look at the top of the remote to see whether it comes on when you press the button on the left.
•If nothing comes on, the remote control is not working and will have to be replaced.
Light •If none of the above items are found to be at fault, it is the light that does not work.
•It will have to be replaced using a niche (feed-through) system.
CAUSE SOLUTION
Light The light is reaching the end of its service life or is not/no longer watertight. Replace the light using a niche (feed-through) system.
PROBLEM: The light is blinking.
