Coway P-07QR User manual

1206605
Made in Korea www.coway.com
P-07QR/L/U
WATER
FILTRATION
DEVICE

1
1
FEATURES
DPOUJOVPVT
FYUSBDUJPO
DPOUJOVPVT
FYUSBDUJPO
DFSBNJDGJMUFS
DFSBNJDGJMUFS
TFDPOEQPMMVUJPO
QSFWFOUJPO
TFDPOEQPMMVUJPO
QSFWFOUJPO
%RRVWHU3XPS%RRVWHU3XPS
DPOUJOVPVT
FYUSBDUJPO
DPOUJOVPVT
FYUSBDUJPO
DFSBNJDGJMUFS
DFSBNJDGJMUFS
TFDPOEQPMMVUJPO
QSFWFOUJPO
TFDPOEQPMMVUJPO
QSFWFOUJPO
%RRVWHU3XPS%RRVWHU3XPS
DPOUJOVPVT
FYUSBDUJPO
DPOUJOVPVT
FYUSBDUJPO
DFSBNJDGJMUFS
DFSBNJDGJMUFS
TFDPOEQPMMVUJPO
QSFWFOUJPO
TFDPOEQPMMVUJPO
QSFWFOUJPO
%RRVWHU3XPS%RRVWHU3XPS
DPOUJOVPVT
FYUSBDUJPO
DPOUJOVPVT
FYUSBDUJPO
DFSBNJDGJMUFS
DFSBNJDGJMUFS
TFDPOEQPMMVUJPO
QSFWFOUJPO
TFDPOEQPMMVUJPO
QSFWFOUJPO
%RRVWHU3XPS%RRVWHU3XPS
Uniform water pressure keeping function
It supplies the main water with the uniform water pressure from the
region with the high water pressure and protects the inside of the
product from the high water pressure.
Sliding Lever
If you push the cup-touch lever and let down the sliding lever, the cup-
touch lever is fixed and the continuous extraction can be performed.
Sealed water tank for the second pollution prevention
To prevent the second pollution due to the penetration of the dust, bug,
and other foreign body, improve the sanitary by applying the extra sealed
structure to the inner water tank
Antibacterial system inside of the water tank
It suppressed the microbe growths using the ceramic filter.
FEATURES …………………………… 01
CONTENTS …………………………… 01
SAFETY INFORMATION …………… 02
PARTS NAME ………………………… 04
- Front / Rear…………………………… 04
WATER FILTRATION PROCESS … … 04
- P-07QR/L …………………………… 04
- P-07QU ……………………………… 05
INSTALLATION ……………………… 05
HOW TO USE ………………………… 06
- To Drink Room Water ……………… 06
- To Perform the Continuous Extraction 06
FILTER REPLACEMENT …………… 07
- Filter Replacement Cycle …………… 07
- Filter Replacement Method ………… 07
SPECIFICATION ……………………… 09
CONTENTS

2
English
SAFETY INFORMATION
Danger: If not observed, serious injury or even death may occur as a result.
Do not use a damaged power plug or a loose electric outlet. (P-07QR only)
Electric shock or fire may occur as a result.
Do not pull the power cord or touch the power plug with a wet hand. (P-07QR only)
Electric shock or fire may occur as a result.
Do not forcefully bend the power cord or put it under a heavy object to prevent it from being
damaged or deformed. (P-07QR only)
Otherwise electric shock or fire may occur as a result.
If the power cord is wet, unplug the unit and let it completely dry before subsequent use.
Otherwise, electric shock or fire may occur as a result.
Unplug the product before repair, inspection, or parts replacement. (P-07QR only)
Otherwise, electric shock may occur as a result.
Do not plug into an outlet that is being used by several other appliances. Use an electrical outlet
dedicated. (P-07QR only)
Otherwise, fire may occur as a result.
When you don’t use for a long time, close the main water supply valve and unplug. (P-07QR only)
Otherwise, electric shock or fire may occur as a result.
Do not attempt to repair the power cord.
Do not connect and pull out the power plug repeatedly. (P-07QR only)
Otherwise, electric shock or fire may occur as a result.
Remove any dust or water off in the pin and contacts of the power plug. (P-07QR only)
An electric shock or fire may occur as a result.
In the case the power cord is damaged, do not replace the cord yourself. Call Coway Service
Center to have it replaced. (P-07QR only)
Otherwise, electric shock or fire may occur as a result.
Do not install near a heating device.
Otherwise, fire may occur as a result.
When the water is coming inside of the product or there is a puddle on the product, call Service
Center after closing the supplying valve and unplugging. (P-07QR only)
Otherwise, electric shock may occur as a result.
Do not put the candle, a light for cigarette on the products.
Otherwise, fire may occur as a result.
If our product produces a strange noise or odd smell, immediately unplug from the electrical outlet
and call our Service Center. (P-07QR only)
Otherwise, electric shock may occur as a result.
Do not place any containers with water, medicine, food, small metallic objects, or any flammable
material on the top of the product.
In the case foreign material gets inside the product, electric shock, fire, product damage may
occur as a result.
Clean after unplugging, and don’t clean by spraying the water directly or don’t wipe the product
using the benzene and thinner.
Otherwise, electric shock or fire may occur as a result.
Do not move the product by pulling the power cord. (P-07QR only)
Otherwise, electric shock or fire may occur as a result.

3
3
SAFETY INFORMATION
Warning: If not observed, serious physical injury or property damage may
occur as a result.
Caution: If not observed, minor physical injury or property damage may
occur as a result.
Do not install the product on a sloped floor.
Do not press the product by constraint or impact.
Injury to the user or damage to the unit may result.
Do not open, repair, or modify the unit. (P-07QR only)
Otherwise, electric shock or product damage may occur as a result.
Use after closing the water tank cover completely inside of the product.
The buck or the foreign body can be entered.
To drink the clean water, change the filter according to the filter replacement cycle.
If you use the expired filter, the filter performance is lowered.
The black particle can be survived on the bottom of the inner water tank after moving the
product or replacing the post carbon block filter.
As the powder of the active carbon used in the Post carbon block filter was flowed out for
making the purified water taste better, it is harmless to the body.
When you don’t use for a long time, use after draining the saved water completely and
emptying the newly purified water once again.
The saved water can be polluted.
Do not use the purified water for changing the water in the fish ball, aquarium.
Do not turn by gripping the purified water extraction faucet or do not lift the product using the
faucet.
Otherwise, leakage or product damage may occur as a result.

4
English

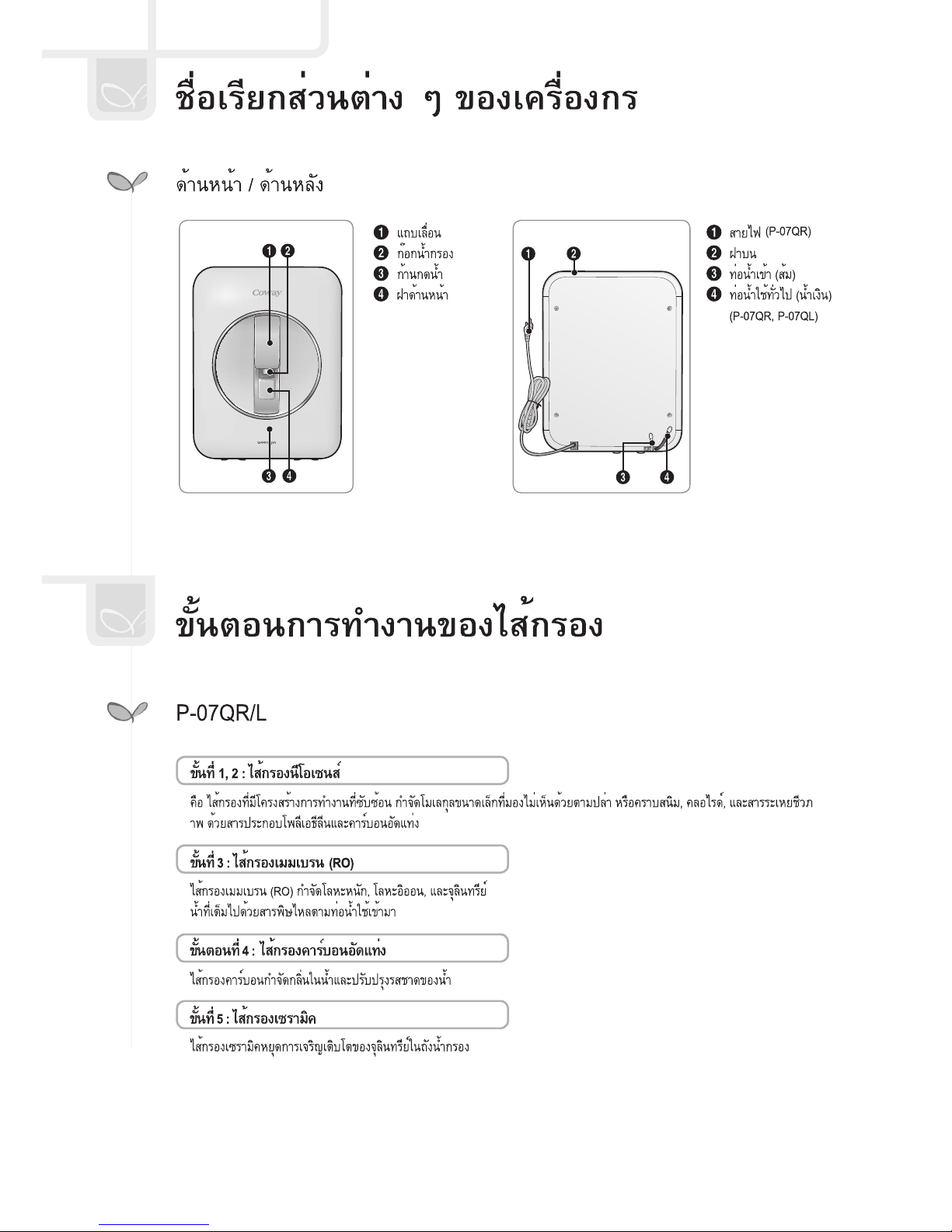

PARTS NAME
Front / Rear
1 Sliding lever
2 Extraction faucet
3 Cup-touch lever
4 Front cover
1 Power cord (P-07QR)
2 Top cover
3 Main water Inlet hose
(Orange)
4 Daily life water outlet
hose (Blue)(P-07QR,
P-07QL)
P-07QR/L
121
3 4
2
4 3
Step 1, 2 : Neo-sense filter
This Neo-Sense filter has the functions to remove particulates, dissolved organic and inorganic
impurities. It also has the function to remove chlorine, volatile organic compounds(VOC’s).
Step 3 : Membrane filter (RO)
RO membrane filter has the function to remove water contaminants such as heavy metals,
waterborne microorganisms and harmful organic chemicals etc.
The water concentrated the harmful material is flowed out through the daily life water hose as the
daily life water.
Step 4 : Post-carbon block filter
This post-carbon block filter has the functions to remove smell induction material and fine
particles or dust and to improve taste of water.
Step 5 : Ceramic filter
This ceramic filter has the function to control microorganism propagation in water.
WATER FILTRATION PROCESS

5
5
INSTALLATION
WATER FILTRATION PROCESS
1. Close main water supply valve to separate the faucet.
2. Wind the Teflon tape on the adaptor and fit it to the pipe.
This Neo-Sense filter has the functions to remove particulates, dissolved organic and inorganic
impurities. It also has the function to remove chlorine, volatile organic compounds(VOC’s).
Step 3 : Post-carbon block filter
This post-carbon block filter has the functions to remove smell induction material and fine
particles or dust and to improve taste of water.
Step 4 : Membrane filter (UF)
UF membrane filter has the functions to remove water conataminants such as waterborne
microorganisms and harmful macromolecular organic chemicals etc.
Step 5 : Ceramic filter
This ceramic filter has the function to control microorganism propagation in water.
P-07QU
- The daily life water should be used only for cleaning the house, cloths, or
purposes other than drinking.
- Never use the daily life water for the drinking or as the food cooking.
Tips
Uses of the daily life water
▶
Do not turn the water pipe.
Step 1, 2 : Neo-sense filter

6
English
To Drink Room Water
If you push the cup-touch lever, you can drink the purified water.
If you push the cup-touch lever and let down the sliding lever,
the cup-touch lever is fixed and the continuous extraction can be
performed.
To Perform the Continuous Extraction
3. Connect the faucet with the adaptor.
4. Connect 1/4 inch orange tubing with the connector on the
adaptor.
5. Connect the voltage rating that matches it on the rating plate.
Then, open the feed valve to supply water to the filtration
system.
Shall install the adaptor with connector on the cold water pipe.
Flush water through each filter at least 5 minutes before
Connection.
HOW TO USE

7
7
FILTER REPLACEMENT
- Don’t push the cup-touch lever with the excessive force.
- Product damage may occur as a result.
Tips
The filter replacement cycle described above is not the filter quality warranty period but the
expected cycle (life) that the filter shows its original performance.
(Based on the tap water) Therefore, the filter change cycle may be reduced for the area with
poor water quality or more applications.
Filter Replacement Cycle
Filter Replacement Method
2. Please separate the top cover and
the front cover. (After blocking the
main water extraction hole using the
faucet stopper in the top of the inner
water tank and loosing a screw with
a driver, separate it.)
▶
▶ ▶
1. After pulling the power cord
necessarily (P-07QR only), close
the main water supply valve and
drain the water inside of the water
purifier completely.
▶
P-07QR, P-07QL
▶
P-07QU
▶
Filter name
Usable Period
Neo-sense filter 6 months
Membrane filter (RO) 24 months
Post-Carbon block filter 18 months
Ceramic filter 12 months
Filter name
Usable Period
Neo-sense filter 6 months
Post-Carbon block filter 18 months
Membrane filter (UF) 12 months
Ceramic filter 12 months
1
5
2
3
4

8
English
3. Separate the fitting connected
to the filter to replace and then
replace the filter. (Separate the
fitting using an appropriate tool.)
▶
4. After closing with fitting the groove
in the front cover well, drop the
cup-touch lever and the sliding front
deco. Plug in the faucet stopper
blocked the faucet again in place
and close the top cover.
▶
- By changing the filter and connecting the fitting and the hose precisely, check
that there is no leakage and drain the first purified water necessarily.
Tips
Use the new filter after cleaning.
- Neo sense filter: Install after cleaning with the main water for about 3 minutes.
- Post-Carbon block filter: Install after cleaning with the water passed the Neo
sense filer for about 3 minutes.
- Membrane filter: Install after cleaning with the water passed the Neo sense filer
for about 3 minutes.
Tips

9
9
SPECIFICATION
Product Name Water Filtration Device
Model
P-07QR P-07QL P-07QU
Purified Method
Reverse Osmosis UF
Rated Voltage
`
USA : 120 V~ 60 Hz
CHINA THAILAND MALAYSIA :
220 V - 240 V~ 50 Hz/60 Hz
-
Power Consumption
16 W -
Tank Capacity
7.1 L
Dimension
304 mm (Width) × 409 mm (Depth) × 404 mm (Height)
Net Weight
7.5 kg 5.7 kg
Working Pressure
69 kPa – 827 kPa 138 kPa – 827 kPa 69 kPa – 827 kPa
Working Temperature
5 ℃ - 35 ℃ (41 ℉ - 95 ℉ )
\
▶ Without any prior notice, all or parts of the product are subject to change for the purpose of
improving the performance of the product.

1
DPOUJOVPVT
FYUSBDUJPO
DPOUJOVPVT
FYUSBDUJPO
DFSBNJDGJMUFS
DFSBNJDGJMUFS
TFDPOEQPMMVUJPO
QSFWFOUJPO
TFDPOEQPMMVUJPO
QSFWFOUJPO
%RRVWHU3XPS%RRVWHU3XPS
DPOUJOVPVT
FYUSBDUJPO
DPOUJOVPVT
FYUSBDUJPO
DFSBNJDGJMUFS
DFSBNJDGJMUFS
TFDPOEQPMMVUJPO
QSFWFOUJPO
TFDPOEQPMMVUJPO
QSFWFOUJPO
%RRVWHU3XPS%RRVWHU3XPS
DPOUJOVPVT
FYUSBDUJPO
DPOUJOVPVT
FYUSBDUJPO
DFSBNJDGJMUFS
DFSBNJDGJMUFS
TFDPOEQPMMVUJPO
QSFWFOUJPO
TFDPOEQPMMVUJPO
QSFWFOUJPO
%RRVWHU3XPS%RRVWHU3XPS
DPOUJOVPVT
FYUSBDUJPO
DPOUJOVPVT
FYUSBDUJPO
DFSBNJDGJMUFS
DFSBNJDGJMUFS
TFDPOEQPMMVUJPO
QSFWFOUJPO
TFDPOEQPMMVUJPO
QSFWFOUJPO
%RRVWHU3XPS%RRVWHU3XPS

2
2

3

4
4

5

6
6

7

8
8

9
USA : 120 V~ 60 Hz
CHINA THAILAND MALAYSIA
: 220 V - 240 V~ 50 Hz/60 Hz
\
7.1 L

1
1
DPOUJOVPVT
FYUSBDUJPO
DPOUJOVPVT
FYUSBDUJPO
DFSBNJDGJMUFS
DFSBNJDGJMUFS
TFDPOEQPMMVUJPO
QSFWFOUJPO
TFDPOEQPMMVUJPO
QSFWFOUJPO
%RRVWHU3XPS%RRVWHU3XPS
DPOUJOVPVT
FYUSBDUJPO
DPOUJOVPVT
FYUSBDUJPO
DFSBNJDGJMUFS
DFSBNJDGJMUFS
TFDPOEQPMMVUJPO
QSFWFOUJPO
TFDPOEQPMMVUJPO
QSFWFOUJPO
%RRVWHU3XPS%RRVWHU3XPS
DPOUJOVPVT
FYUSBDUJPO
DPOUJOVPVT
FYUSBDUJPO
DFSBNJDGJMUFS
DFSBNJDGJMUFS
TFDPOEQPMMVUJPO
QSFWFOUJPO
TFDPOEQPMMVUJPO
QSFWFOUJPO
%RRVWHU3XPS%RRVWHU3XPS
