Fimco ATVBK-200-QR User manual

Page 1
Model: ATVBK-200-QR (5302339)
(2-Nozzle Boom Assembly w/Connecting Fittings)
Technical Specifications
 2-Nozzle Boom Assembly (80” Spray Coverage)
 Corrosion-Resistant Nylon Nozzles
 Nozzle design incorporates a pre-orifice to produce
larger droplets for less drift
 Large round orifice reduces clogging
 Excellent distribution for uniform coverage along the
boom
 Check Valve Strainers, 50 Mesh, 5 PSI
Assembly Instructions
 Make sure the contents of the sprayer’s carton match the
items shown on page 2 of the manual. Refer to the parts
list and exploded view drawing to help identify all the
components
 Follow the steps on pages 3 & 4 to properly assemble
the sprayer.
(Tank NOT Included
with Boom Kit)
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: [phone] : Toll Free Fax: [phone]
[5008420 (02/21)]
OWNER’S MANUAL
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-800-831-0027
MONDAY-FRIDAY, 8:00 AM TO 5:00 PM CST
If you should have a question or experience a problem with
your Fimco Industries Product: Visit our website @
www.fimcoindustries.com or call the Toll free number above. Our
technical support representatives will be happy to help you.
In most cases a customer service rep. can resolve
the problem over the phone.
To obtain prompt, efficient service, always remember to give the
following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
Boom Kit.
Retain a copy of your receipt for your unit, as it will be required
to validate any warranty service.
Warranted against manufacturer or workmanship defects from
date of purchase with copy of receipt:
Homeowner Usage: One Year.
Commercial Usage: 90 Days.

Page 2
Contents of your sprayer’s carton (ATVBK-200-QR):
2-Nozzle Boom QJ (#5278237)
Contents of
Bracket Kit #5278140
Manifold Detail
#5281538
See Page 6
for Parts List
Contents of Parts Bag #5278223

Page 3
Assembly Procedure (ATVBK-200-QR)
Step 1
Step 3
After your tank brackets are securely attached, turn the
tank assembly over and position it so that the cam han-
dles which extend beyond the back of the tank are fac-
ing you and just hanging over the edge of the table or
flat surface you are assembling this on.
Secure the boom mounting brackets to the tank
mounting brackets with Cam handles as shown in
Detail A. You can position them as needed within the
slot on the bracket. Just be sure that the surfaces of
both brackets are even with each other.
You are now ready to mount this unit to an ATV, using
ratchet straps (NOT INCLUDED)
Step 2
Normally, the sprayer will be mounted on an ATV with
the pump assembly at the operator’s back and the
spray wand will be at the rear of the unit. Right Hand
(RH) and Left Hand (LH) sides of the sprayer are
determined as if you are standing behind the sprayer,
looking at it (facing forward)
Start the assembly procedure by turning the tank up-
side down on a stable, flat surface.
A phillips head screwdriver is required for this
step.
(**) Mount tank brackets to the underside of the tank as
shown in Step 1. Use (4) flat head screws to secure it
to the tank. The tank will rest on the surface of the
brackets. Make sure the brackets are parallel with each
other before tightening down the bolts. Do not over-
tighten.
DETAIL A
After your boom mounting brackets are secured in
place and the unit secured on your ATV, attach the
2-nozzle boom in place with (2) screws and whiz nuts.
A 1/2” socket or wrench and Phillips Head
Screwdriver are required for this step.

Page 4
DETAIL A
Step 4
After your nozzle harness is attached to the boom, lo-
cate the 43” hose and the (2) hose clamps from the
parts bag.
Place the hose clamps over each end of the hose
loosely. Slip the ends of the hose over the hose barbs
on both the manifold and the poly tee fitting on the
nozzle harness. Use a twisting motion, if necessary, to
get the hose fully onto each barb. Bring the hose
clamps to the connection point and tighten securely.
NOTE:
Make sure this boom feeder hose does not end up on
the ‘outside’ of your spray wand hose, otherwise un-
wrapping the spray wand hose from around the tank
may be difficult.
An additional set of plumbing fittings may be included with your
boom kit. These may or may not be used.
DETAIL A: shows the configuration of these fittings as they will
attach to your sprayer when hooking up to a 1.0 gpm pump.
For the ‘old style’ tank, where the pump mounts on top, a hole
must be drilled through the top of the tank for the bypass return
hose. After threading the fittings together, locate the place on
your tank for the place on your tank for the hole, so that the
hose can be inserted without causing kinks.
If your sprayer has the manifold assembly off the outlet side of
your pump (DETAIL B), you probably will not need to utilize
these fittings.
Assembly Procedure (ATVBK-200-QR)
DETAIL B

Page 5
Manifold Valves CLOSED
Testing the Sprayer
NOTE:
It is VERY important for you to test your sprayer with plain water before actual
spraying is attempted. This will enable you to check the sprayer for leaks without
the possibility of losing any expensive chemicals.
Fill the tank about 1/2 full with plain water and drive to the starting place for spraying.
When you are ready to spray, turn the boom valve to the “on” position (Detail A). This will start
solution spraying from the tips of the boom. The pressure will decrease slightly when the
boom is spraying.
Adjust the pressure by turning the “ON/OFF” valve lever on the bypass line valve (Detail B).
Make sure your pattern is sufficient. You may down-pressure the system by ‘bypassing’ solu-
tion back into the tank. This is achieved by opening the bypass valve. Regulating pressure is
done in this manner.
Read the operating instructions and initially begin spraying by closing the ‘Pressure Adjust’
valve and opening the boom line valve (Detail A). This will enable the air in the line to be elimi-
nated (purged) through all the tips, while building pressure. When everything tests all right (no
leaks and good pressure), add the desired chemicals to the mixture and water combination
and start your spraying operation. Adjust the pressure and spray as you did in the testing
procedure.
Conditions of weather and terrain must be considered when setting the sprayer. Do not spray
on windy days. Protective clothing must be worn in some cases.
Be sure to read the chemical label(s) before application!
Operation
Fill the tank part way with water and then add the desired amount of chemical to be sprayed.
Finish filling tank to proper level. Turn the pump on and by depressing the “-” side of the rock-
er switch. The pump is equipped with a pressure switch that is pre-set at the factory to shut
the pump off when all discharges are closed.
The pump will turn back on when one of the following actions occurs:
 Boom valve is opened to broadcast spray with the boom.
 Bypass valve is opened to re-circulate solution back into the tank.
When spraying with either the boom, pressure may be reduced by slowly opening the bypass
valve until desired pressure is achieved. Opening the valve decreases pressure, closing the
valve increases pressure. When spraying with the boom, the proper method to set the pres-
sure is to open the boom valve completely and if a lower pressure is desired, then slowly open
the bypass valve until that pressure is obtained.
For the safest and most efficient chemical application, you will need to calibrate your sprayer
using the tip and speed charts. Once you have determined the proper speed and pressure
settings, you will need to consult your chemical label for the amount of chemical to be added
to the tank. Read the entire label. Use only according to label directions.
Calibration
Chemical labels may show application rates in gallons per acre, gallons per 1000 square feet or gallons per 100 square feet. You will note that the tip
chart shows per acre. Once you know how much you are going to spray, then determine (from the tip chart) the spraying pressure (PSI), and the
spraying speed (MPH).
Determining the proper speed of the pulling vehicle can be done by marking off 100, 200 & 300 feet. The speed chart indicates the number of seconds
it takes to travel the distances. Set the throttle and with a running start, travel the distances. Adjust the throttle until you travel the distances in the
number of seconds indicated by the speed chart. Once you have reached the throttle setting needed, mark the throttle location so you can stop and go
again, returning to the same speed.
Add water and proper amount of chemical to the tank and drive to the starting place for spraying.
Detail A
Detail B

Page 6
Using the Boom Nozzles
Four things must be considered before spraying with the boom.
 How much chemical must be mixed in the tank.
 Rate of spray (gallons per acre to be sprayed).
 What pressure (p.s.i.) will be used.
 Speed traveled (mph) while spraying.
 Refer to the chemical label to determine your chemical mixture
 See the tip chart to determine the pressure to be used. The chart will also show the speed used when spraying.
 Start the pump and open the valve to the boom nozzles.
 Check the spray pattern. Usually you can see the coverage better on a solid concrete surface, such as a driveway.
 Raise or lower the nozzles so that you will have a good coverage pattern. Generally the proper height will be about 18 inches from the object(s)
being sprayed.
Maintenance During/After Spraying
Periodically check the strainer and clean the screen on your intake line.
Proper care and maintenance will prolong the life of your sprayer.
After use, drain the tank and store or dispose of chemical properly. Fill the sprayer half way with clean water. Start the pump and allow the water to
pump through the entire plumbing system and nozzles. Drain and then refill half full, add the recommended amount of a good quality tank cleaner,
such as FIMCO Tank Neutralizer and Cleaner. (If no tank cleaner is available, you may substitute dish soap for this step, about 1-2 oz. per gallon).
Turn pump on and circulate through system for 15 minutes and then spray out through boom and handgun nozzles. Refill sprayer half way with clean
water and repeat. Follow the chemical manufacturer’s disposal instructions of all wash or rinsing water.
If boom or handgun nozzles need cleaning, remove them from the sprayer and soak in warm soapy water. Clean with a soft bristled brush or toothpick
if necessary. Never use a metal object. Even the slightest damage can change the flow rate and spray distribution. Water rinse and dry the tips before
storing.
Storing Sprayer
When sprayer is not in use, release Cam Lock Handles. This is to prevent deforming of Cam Lock Mechanism. Do not use QR bracket Cams to hold
and store boom in vertical position.
Winter Storage
Prepare the sprayer for end-of-season storage by running RV antifreeze through the system. This will keep internal parts lubricated, protect against
corrosion and keep the unit from freezing. Note: RV antifreeze is non-toxic and biodegradable and generally safer for the environment than automotive
antifreeze.
Before storing your sprayer for winter or long term storage, thoroughly clean and drain it as much as possible. Then pour enough pink RV antifreeze
into the tank so that when the pump is turned on you can pump the antifreeze throughout the entire plumbing system, including the bypass. Make sure
to operate the boom and handgun until you see pink fluid spraying from the nozzles. Leave any remaining antifreeze in the tank. Before your next us-
age, rinse the antifreeze from the sprayer with clean water.
It is nearly impossible to drain all of the water from the sprayer and any trapped water can freeze in cold weather and damage parts of the sprayer.
Pumping the antifreeze through the system will displace the water and help prevent this damage.
Removing from storage: drain the antifreeze. Fill the tank with fresh water and run through the system. Dispose of antifreeze and flush water properly.
Speed Chart
Time Required in seconds to travel a distance of
Speed in M.P.H.
(Miles Per Hour) 100 Ft. 200 Ft. 300 Ft.
1.0 68 sec. 136 sec. 205 sec.
2.0 34 68 102
3.0 23 45 68
4.0 17 34 51
5.0 14 27 41
6.0 11 23 34
7.0 9.7 19 29
8.0 8.5 17 26
9.0 7.6 15 23
10.0 6.8 14 20
Tip Chart - 40" Spacing
Tip
Color
Tip
No.
(Color)
Pressure
(psi)
Capacity
(GPM)
Gallons Per Acre - Base on Water
5
MPH
6
MPH
7
MPH
8
MPH
RED TF-VS2
(50 Mesh)
10 .20 5.9 5.0 4.2 3.7
20 .28 8.4 76.0 5.3
30 .35 10.5 8.6 7.3 6.4
40 .40 11.9 9.9 8.5 7.4
Tip
Color
Tip
No.
(Color)
Pressure
(psi)
Capacity
(GPM)
Gallons Per Acre - Base on Water
5
MPH
6
MPH
7
MPH
8
MPH
GRAY TF-VS3
(50Mesh)
10 .30 8.9 7.4 6.4 5.6
20 .42 12.6 10.5 9.0 7.9
30 .52 15.4 12.9 11.0 9.7
40 .60 17.8 14.9 12.7 11.1

Page 7
2-Nozzle Boom QJ (#5278237)
See Boom Assembly
below

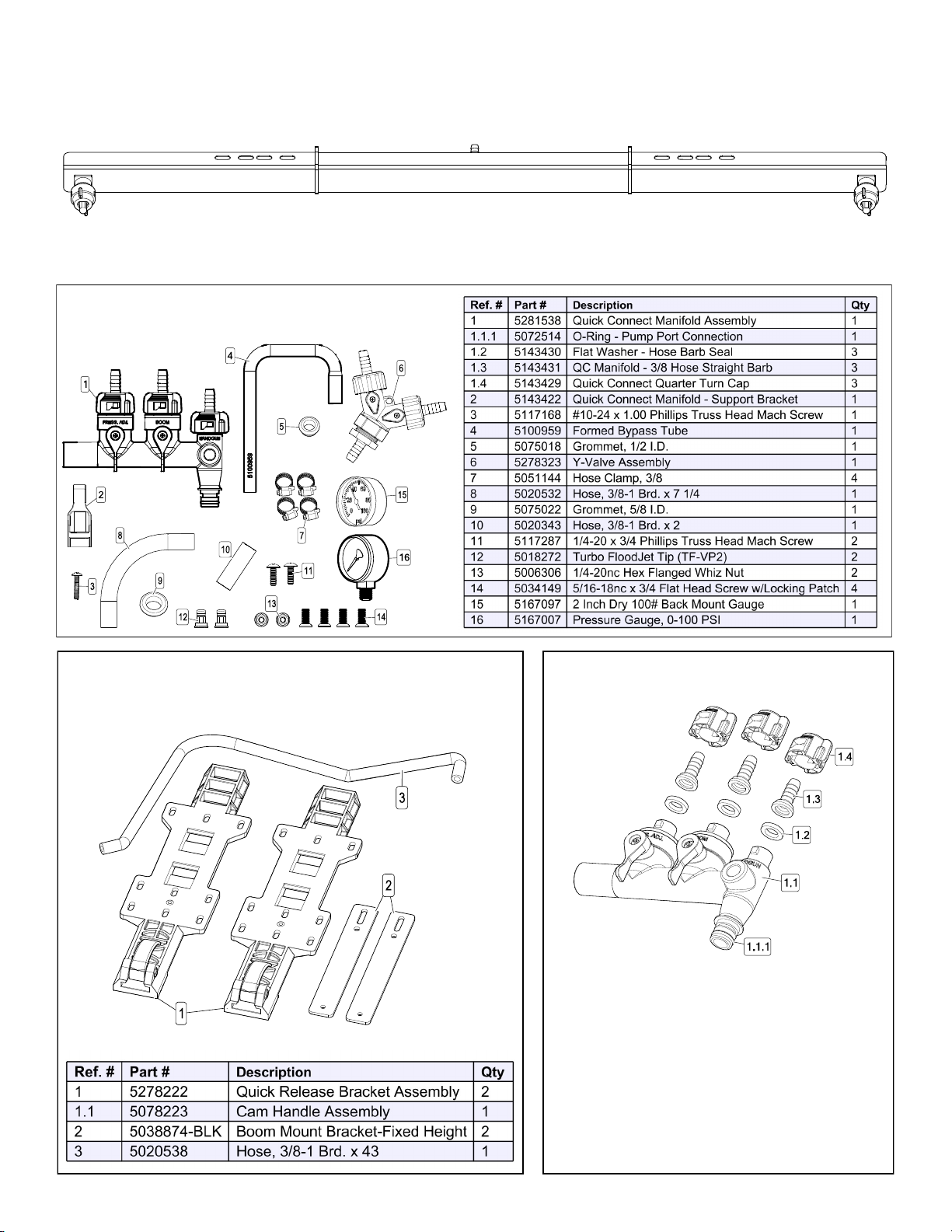

Exploded View/Parts List:
ATVBK-200-QR
(5302339)
(2) ‘Spare’ TF-VP2 Tips
Based on the minimum overlap required to obtain uniform
distribuon with 120° ps and 40” spacing.
Suggested Minimum Spray Height: 18”-20” above what is
being sprayed (to plant, not ground).
Opmum Spray Height: 39”
Wide angle spray nozzle height is inuenced by nozzle orien-
taon. The crical factor is to achieve a minimum 30% over-
lap.
Nozzle
Detail

Page 8
LIMITED WARRANTY FOR NEW FIMCO, IND. EQUIPMENT
WHO MAY USE THIS LIMITED WARRANTY. This limited warranty (the “Limited Warranty”) is provided by Fimco, Ind. to the original purchaser
(“you”) of the Equipment (as dened below) from Fimco, Ind. or one of Fimco, Ind.’s authorized dealers. This Limited Warranty does not apply to
any subsequent owner or other transferee of the Equipment. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO
HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.
WHAT THIS LIMITED WARRANTY COVERS AND FOR HOW LONG. Fimco, Inc. warrants that any registered new Equipment will be free from defects
in material and workmanship for a period of one (1) year (homeowner), 90 days (commercial user), aer delivery of the Equipment to you (the
“Warranty Period”). The Warranty Period is not extended if Fimco, Inc. repairs or replaces the Equipment.
WHAT IS NOT COVERED BY THIS LIMITED WARRANTY. This Limited Warranty does not apply to: (1) used Equipment; (2) any Equipment that has
been altered, changed, repaired or treated since its delivery to you, other than by Fimco, Ind. or its authorized dealers; (3) damage or deprecia-
on due to normal wear and tear; (4) defects or damage due to failure to follow Fimco, Ind.’s operator’s manual, specicaons or other wrien
instrucons, or improper storage, operaon, maintenance, applicaon or installaon of parts; (5) defects or damage due to misuse, accident or
neglect, “acts of God” or other events beyond Fimco, Ind.’s reasonable control; (6) accessories, aachments, tools or parts that were not manu-
factured by Fimco, Ind., whether or not sold or operated with the Equipment; or (7) rubber parts, such as res, hoses and grommets.
HOW TO OBTAIN WARRANTY SERVICE. To obtain warranty service under this Limited Warranty, you must (1) provide wrien noce to Fimco,
Ind. of the defect during the Warranty Period and within thirty (30) days aer the defect becomes apparent or the repair becomes necessary, at
the following address: Fimco, Ind., 1000 Fimco Lane, North Sioux City, SD 57049; and (2) make the Equipment available to Fimco, Ind. or an
authorized dealer within a reasonable period of me. For more informaon about this Limited Warranty, please call: 800-831-0027.
.
WHAT REMEDIES ARE AVAILABLE UNDER THIS LIMITED WARRANTY. If the condions set forth above are fullled and the Equipment or any part
thereof is found to be defecve, Fimco, Ind. shall, at its own cost, and at its opon, either repair or replace the defecve Equipment or part.
Fimco, Ind. will pay for shipping and handling fees to return the repaired or replacement Equipment or part to you.
LIMITATION OF IMPLIED WARRANTIES AND OTHER REMEDIES. THE REMEDIES DESCRIBED ABOVE ARE YOUR SOLE AND EXCLUSIVE REMEDIES,
AND FIMCO, IND.’S SOLE LIABILITY, FOR ANY BREACH OF THIS LIMITED WARRANTY. TO THE EXTENT APPLICABLE, ANY IMPLIED WARRANTIES,
INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIM-
ITED IN DURATION TO THE WARRANTY PERIOD, AND THE REMEDIES AVAILABLE FOR BREACH THEREOF SHALL BE LIMITED TO THE REMEDIES
AVAILABLE UNDER THIS EXPRESS LIMITED WARRANTY. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY
LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. IN NO EVENT SHALL FIMCO, IND.’S LIABILITY UNDER THIS LIMITED WARRANTY EX-
CEED THE ACTUAL AMOUNT PAID BY YOU FOR THE DEFECTIVE EQUIPMENT, NOR SHALL FIMCO, IND. BE LIABLE, UNDER ANY CIRCUMSTANCES,
FOR ANY CONSEQUENTIAL, INCIDENTAL, SPECIAL OR PUNITIVE DAMAGES OR LOSSES, WHETHER DIRECT OR INDIRECT. SOME STATES DO NOT
ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT
APPLY TO YOU.
Warranty
