5301302

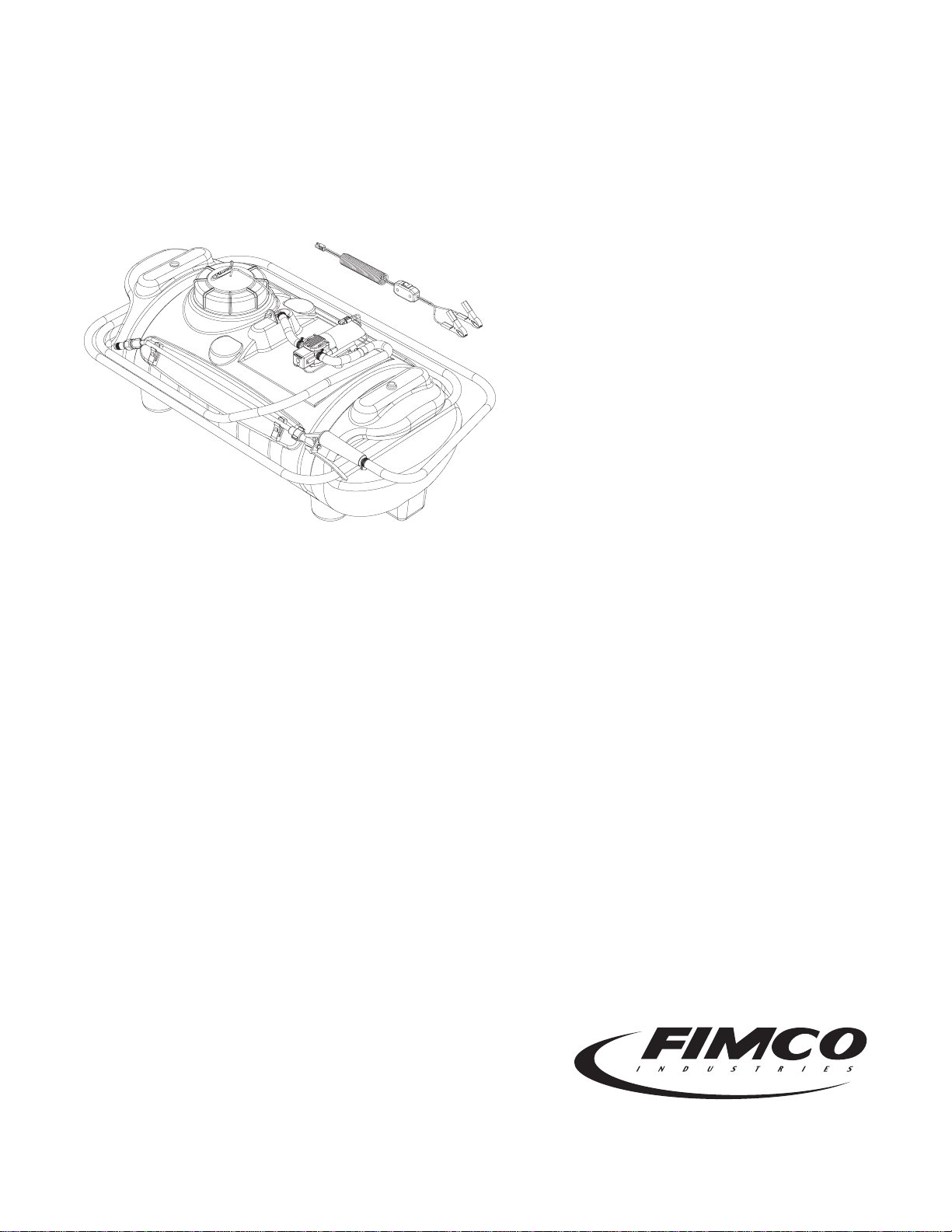

MODEL LG-15-EC
15 Gallon Lawn & Garden Spot Sprayer
Assembly / Operation Instructions / Parts
ASSEMBLY
The sprayer is partially assembled at the factory. The only
assembly necessary is to hook up the wiring to an existing
12 volt power source. The red wire of the two wire set must
be connected to the positive post on the battery or the “Hot”
connection on a switch or to the ammeter. The brown wire
may be grounded or connected to the negative battery post.
It is important to test the sprayer with plain water before ac-
tual spraying is attempted. This will enable you to check the
sprayer for leaks in the plumbing system.
OPERATION
In addition to an on/off switch, the pump on the sprayer is
equipped with a pressure switch that is factory set at a maxi-
mum of 35 PSI. The handgun may be shut off at anytime
whenthepumpsystemis running andthe pump willbe elec-
trically turned off by the pressure switch. When the handgun
triggeris squeezed thepump will startagain. Use care when
hooking up the battery wires to the battery. Be sure the solu-
tion has been added to the tank because the pump may
start running as soon as the wires are attached.
Thehandgunhasan adjustablenozzlewhichallowsthe spray
to be adjusted from a cone shaped fine mist to a straight
stream.
Note: The nut on the nozzle which has finger tabs must
be tight in order for the spray pattern adjustment to vary
when turning the nozzle end.
When it becomes necessary to clean the screen in the
suction line, the screen can be removed from the bottom of
the suction tube. Reach into the tank through the fill open-
ing, slide the tube to one side and slip the screen from the
bottomof the tube.Thescreenmaynow betapped orflushed
with clear water for cleaning.
WARNING: Some chemicals will damage the pump valves
ifallowed to soakuntreated for alength of time.Alwaysflush
the pump with water after use. Do not allow chemicals to sit
in the pump for extended times of idleness. Flushing may be
doneby adding 5 gallonsof water tothe tank andthen pump
the solution through the entire system.
GENERAL INFORMATION
The purpose of this manual is to assist you in operating and
maintaining your lawn and garden sprayer. Please read it
carefully as it furnishes information which will help you
achieve years of dependable trouble free operation.
WARRANTY / PARTS / SERVICE
Products are warranted for one year from date of purchase
against manufacturer or workmanship defects.
Your authorized dealer is the best source of replacement
partsand service.Toobtain prompt, efficientservice,always
remember to give the following information:
1. Correct part description and part number.
2. Model Number of your sprayer.
3. Serial Number of your sprayer.
Part description and part numbers can be obtained from the
illustrated parts list section of this manual.
Whenever you need parts or repair service, contact your
distributor / dealer first. For warranty work always take your
original sales slip, or other evidence of purchase date, to
your distributor / dealer.
TECHNICAL SPECIFICATIONS
• Corrosion Resistant Polyethylene Tank
• 12 Volt Diaphragm Pump, Demand Switch
• 1.0 G.P.M.
• 15 Foot Handgun Hose 1000 FIMCO LANE • P.O. BOX 1700 • NO. SIOUX CITY, SD 57049
