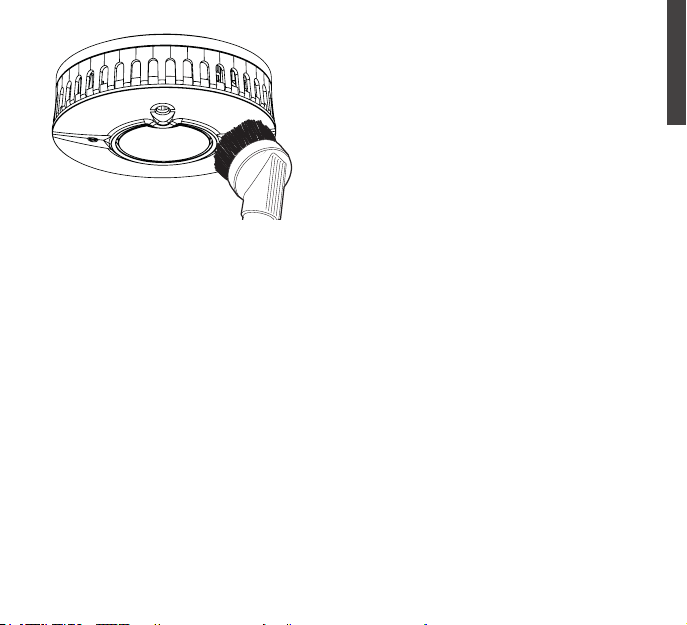

FireAngel Thermoptek ST-625 User manual

User Manual / Brugsvejledning / Käyttäjän ohjekirja /
Brukerhåndbok / Användarhandbok
Smoke Alarm
Røgalarm/Palovaroitin/Røykvarsler/Brandvarnare
ST-625

E-mail/Sähköposti/E-post/: support@reangel.eu
Web/hjemmeside/WWW/Nett/Webb:www.reangel.eu
DK: 0800 711 151 / FI: 0880 055 2130 / NO: 0800 69 127 / SE: 0200 123 598
ST-625
GN4391R1/ST-625-NEU
15
Sprue Safety Products Ltd.
Vanguard Centre, Sir William Lyons Road, Coventry CV4 7EZ UK
A Sprue Brand
0333
EN 14604:2005 + AC:2008
Smoke alarm devices/
Røgalarmapparater/
Palovaroitinlaitteet/
Røykvarsler-enheter/
Brandvarnare
DOP: SADOPST-625-01

EN
3
Introduction . . . . . . . . . . . . 4
Sensor technology . . . . . . . . .4
Application . . . . . . . . . . . . .5
How to install your smoke alarm. .6
Operation. . . . . . . . . . . . . . 8
Battery replacement . . . . . . . . 8
Alarm test . . . . . . . . . . . . 10
Note: This user manual is also available in large text and other formats.
Please email: support@reangel.eu for further information.
Alarm Smart Silence™ . . . . . . 10
Sleep Easy™ . . . . . . . . . . . 12
Maintenance . . . . . . . . . . . 12
Troubleshooting . . . . . . . . . 14
Disposal . . . . . . . . . . . . . 16
Warranty . . . . . . . . . . . . . 16
CONTENTS
The original English version of the manual, from which this translation was taken,
has been independently approved. In case of discrepancy with translated parts,
Sprue Safety Products Ltd conrms that the English guide is true and correct.

EN
4
INTRODUCTION
Congratulations! You’ve made a wise
investment in protecting your family
and home. The ST-625 multi-criteria
high performance detector is the
ultimate alternative to traditional alarms.
Groundbreaking Thermoptek technology
combines the very latest in optical sensing
with thermal enhancement, providing a faster
response to both re types eliminating the
need for ionisation sources which can be
harmful to the environment. In addition, this
smoke alarm allows the low battery warning
chirp to be silenced until it is convenient to
replace the batteries (recommended within
30 days). The Sprue Safety Products range
is constantly being improved and expanded.
Please visit www.reangel.eu to nd out
about the latest additions to our range of
innovative products.
IMPORTANT: This user manual contains
important information regarding the operation
of your FireAngel smoke alarm. Ensure you
read this user manual fully before installing
and operating the alarm. If you are installing
this smoke alarm for use by others, you must
leave this manual (or a copy of it) with the end
user.
SENSOR TECHNOLOGY
The ST-625 combines an optical sensing
chamber with thermal enhancement. The
alarm is effective at detecting slow burning
res, and constant monitoring of temperature
changes enables the sensitivity of the alarm
to be instantly increased thereby quickening
the typical response time to fast aming res
signicantly.
Thermoptek alarms are “toast-proof” meaning
they can be positioned in areas close to
kitchens that may be affected by cooking
fumes. Heat alarms should be used in
kitchens where required.
The state of the art thermally-enhanced
optical sensing chamber provides a fast
reaction to both slow smouldering and
fast aming res in a single alarm. The
Thermoptek technology constantly monitors
temperature changes and if a rate of
temperature rise is detected the sensitivity of
the alarm is increased meaning it has a fast
response time to fast aming res as well as
slow smouldering res.

EN
5
APPLICATION
WARNING: Your FireAngel smoke alarm
can be installed into a new build property as
additional protection to an existing smoke
detection system only. It cannot be used
as a substitute for a hard wired system as
required in new build properties. In this type
of property the building regulations require
alarms to be interlinked. You can obtain
further information from your local re service
or building control department at your local
council ofces. These sources generally
provide advice on new builds or projects
that require planning permission. Your
smoke alarm typically meets the minimum
requirements for family living units in existing
buildings, as long as at least one unit is
installed on each oor/level of your property.
In order to achieve the earliest re warning,
we recommend that a smoke alarm is tted in
all rooms where the temperature is normally
between 4°C (40°F) and 38°C (100°F).
WARNING: The alarm positions shown are
based on typical homes. Construction and
layout of individual dwellings will vary, so
this should be regarded only as a guide.
Check with your local re station for further
guidance.
LOUNGE
CELLAR
BEDROOMBEDROOM HALL
DINING ROOM
MINIMUM RECOMMENDATIONS
EXISTING HOMES
NOTE: Kitchens should be covered by a
self contained heat detector.
RECOMMENDED FOR ADDITIONAL
PROTECTION
Multi-family or mixed occupant residence
(Tenancy building, student accommodation)
Your FireAngel smoke alarm can also be used
in individual ats and bedsits, providing the
same conditions are met as for a single-family
residence. However, there must already be
a primary re detection system that meets
regulatory requirements for common areas
such as lobbies and hallways.

EN
6
Institutions and Hotels
This includes motels, hospitals, day care
facilities, long-term health care facilities,
boarding houses and dormitories. Your
ST-625 smoke alarm can be used in individual
sleeping/resident rooms, providing the same
conditions are met as for a single-family
residence. However, there must already be
a primary re detection system that meets
regulatory requirements for common areas
such as lobbies and hallways. Use of the
ST-625 smoke alarm in common areas may
not provide sufcient re warning to residents
or meet regulatory requirements.
Mobile Homes and Caravans
This smoke alarm is suitable for use in mobile
homes and caravans.
Commercial and Industrial Premises
This smoke alarm is not intended for any
non-residential, commercial or industrial
application, nor for any other purpose than
described above.
HOW TO INSTALL YOUR
SMOKE ALARM
IMPORTANT: Make sure you have read and
understood this manual before installing your
smoke alarm.
1. Install Batteries
IMPORTANT: Before tting your smoke
alarm, the batteries must be installed.
Remove the protective wrapper from the
batteries.
Insert the batteries provided into the battery
aperture at the back of the smoke alarm
as shown, making sure that the positive
and negative connections are in the correct
position.
The red LED on the front of the alarm will
soon start ashing once every 45 seconds to
show that the alarm is activated.

EN
7
Caution: The horn is designed to be very
loud in order to wake you. Once the batteries
are installed, the test button on the front of
the alarm will be active. Avoid placing the
alarm close to your ear when installing the
batteries incase you press the test button.
2. Fitting the Base Plate
Prior to tting the base plate, ensure you refer
to ‘Application’ to ensure that the smoke
alarm is installed in the correct location in
your home.
The base plate should be attached to the
ceiling or wall using the screws and xings
provided. Use the xing holes on the base
plate as a guide when marking the position
of the drill holes. With an appropriately sized
drill, drill the holes and insert the plastic xing
anchors supplied (if needed).
Fit the base plate to the ceiling or wall using
the screws provided.
3. Fit Your FireAngel Smoke Alarm
Hold the alarm up to the base plate and push
and rotate the alarm clockwise into position
as shown. Make sure that the unit is securely
tted.
Base Plate Holes

EN
8
4. Test Your FireAngel Smoke Alarm
After tting your alarm to the base plate, wait
for 5 seconds for the alarm to settle then test
the alarm. See ‘Alarm Test’.
OPERATION
Normal condition
The red LED on the front should ash every
45 seconds to show that the alarm is active.
Low Battery Condition
Should your FireAngel smoke alarm enter a
low battery condition, the unit will emit an
audible ‘chirp’ once every 40 seconds. When
this occurs, we recommend you replace the
batteries immediately. Your FireAngel smoke
alarm will continue to warn of this low battery
condition for at least 30 days, however, failure
to change the batteries after this time will
mean your smoke alarm may have insufcient
power to alert you in a real re situation.
When the batteries are removed the battery
warning chirp should stop.
Sleep Easy™ - Low Battery Warning Silence
This feature can temporarily silence the low
battery chirp for 8 hours which is particularly
useful if the warning begins during the night.
This feature may be repeated up to 10 times,
but is not a substitute for replacing the smoke
alarm batteries.
BATTERY REPLACEMENT
IMPORTANT: Only the following batteries
can be used for replacement. Use of a battery
other than those recommended below may
have a detrimental effect on the alarm’s
operation.
Alkaline type:
Energizer E91
Duracell MN1500bB
Panasonic ProPower LR6
Remove the alarm from its base plate by
turning anti-clockwise and pulling gently.

EN
9
Remove the existing batteries and
replace with new batteries from the list of
recommended batteries making sure that the
positive and negative connections are in the
correct position.
Hold the alarm up to the base plate and push
and rotate the alarm clockwise into position
as shown. Make sure that the unit is securely
tted.
After tting your alarm to the base plate, wait
for 5 seconds for the alarm to settle then test
the alarm.

EN
10
ALARM TEST
The alarm should be attached to the base
plate and tested in its installed position.
Firmly press the test button in the centre and
release.
The unit will give an audible alarm consisting
of 2 cycles of 3 loud beeps, then stop
automatically.
The red LED on your alarm will ash rapidly
during the audible signal.
NOTE: The test button accurately tests
the alarm’s smoke sensing circuit, there is
no need to test your alarm with smoke. If
your smoke alarm fails to give an audible
test signal, please refer immediately to the
‘Troubleshooting’ section.
WARNING: You should test your smoke alarm
every week.
ALARM SMART
SILENCE™
DANGER: If your FireAngel smoke alarm emits
the full alarm signal and you are not testing
the unit, the smoke alarm is warning you of a
potentially dangerous situation that requires
your immediate attention. Only use the alarm
silence function after making sure that there
is no re. Do not block the vents on the alarm
or disable the smoke alarm in any way, as this
