Firefly DE1200 User manual

1
Firefly DE1200 User Manual Version: 2.1
DE1200
VETERINARY ENDO-CAMERA
THANK YOU FOR SELECTING A FIREFLY ENDO-CAMERA
To take full advantage of this product’s advanced capabilities, and to properly and
safely use this product, please read the manual carefully.

2
Firefly DE1200 User Manual Version: 2.1
Copyright 2012 by Firefly Global. All rights are reserved. No one is permitted to reproduce or duplicate, in
any form, this manual or any part thereof without permission from Firefly Global (www.Fireflyglobal.com).
Firefly Global assumes no responsibility for any injury, or for any illegal or improper use of the product,
that may result from failure to use this product in accordance with the instructions, cautions, warnings, or
indications for use published in this manual.
Software in this product is copyright of Firefly Global and its vendors. All rights are reserved. The
software is protected by U.S. and international copyright laws and international treaty provisions
applicable worldwide. Under such laws, the licensee is entitled to use the copy of the software
incorporated with this instrument as intended in the operation of the product in which it is embedded.
The software may not be copied, decompiled, reverse-engineered, disassembled or otherwise reduced to
human-perceivable form. This is not a sale of the software or any copy of the software; all rights, title,
and ownership of the software remain with Firefly and/or its vendors.
Caution: Changes or modifications not expressly approved by Firefly Global will void the purchaser’s
authority to operate the equipment and its warranty.
THIS PRODUCT IS NOT APPROVED FOR HUMAN MEDICAL USE

3
Firefly DE1200 User Manual Version: 2.1
Table of Contents
Introduction................................................................................................................4
Warnings & Cautions ..................................................................................................5
Warning .................................................................................................................................. 5
Caution ................................................................................................................................... 5
Check List....................................................................................................................7
Nomenclature .............................................................................................................8
Setting up the software application：........................................................................................ 9
Connect to PC：...................................................................................................................... 9
Power the Device On：............................................................................................................. 9
Using the image capture control:............................................................................................. 10
Using Focus:.......................................................................................................................... 11
Standby and Remove device: .................................................................................................. 11
Launch the Software Application: ............................................................................................ 12
Viewing the Images: .............................................................................................................. 12
Maintenance and service ..........................................................................................15
Cleaning recommendation....................................................................................................... 15
Recycling the system components ........................................................................................... 15
Service Policy......................................................................................................................... 16
Specifications............................................................................................................17
Limited Warranty ......................................................................................................18
Troubleshooting........................................................................................................21
Frequently Asked Questions (FAQs):........................................................................................ 21

4
Firefly DE1200 User Manual Version: 2.1
INTRODUCTION
The Firefly endoscope camera consists of a digital endoscope camera, software application and a USB
cable. Only a computer equipped with a free USB port is needed to use the system.
The Firefly endoscope camera is designed for effective operation under a variety of conditions and typical
video parameters are set at the factory. The software allows users to adjust most parameters including
Saturation, Hue, Brightness, Contrast and Sharpness for desired applications.
System Requirements
The Firefly endoscope camera System requires a user PC system running Windows XP Service Pack 2 or
later operating system, a viewing screen, and a PC with an available USB 2.0 port.
Intended use
The Firefly endoscope camera is intended to aid in endoscopy applications.
User Profile
The Firefly endoscope camera intended for applications such as:
Veterinary
Medical Schools
Industrial Borescopes

NOT APPROVED FOR HUMAN MEDICAL USE
Warranty Registration
Register your Firefly device at http://www.fireflyglobal.com/warranty-registration/ within two weeks of
your purchase and maintain your original receipt.

5
Firefly DE1200 User Manual Version: 2.1
WARNINGS &CAUTIONS
Please familiarize all operating personnel with the general safety information in this summary.
Specific warnings and cautions are also found throughout this manual.
Warning
A warning statement in this manual identifies a condition or practice which if
not corrected or discontinued immediately, could lead to injury, illness, or death.
Do not use in the presence of flammable anesthetics.
This product has no user serviceable/replaceable parts. Please refer all
service to authorized service personnel.
This instrument is not intended to be used in the eye.
This product generates and records reference images from inputs obtained
from the software application FireflyPro. These reference images are not
intended for medical or other diagnostic purposes.
Caution
A caution statement in this manual identifies condition or practice, which if not
corrected or discontinued immediately, could lead to equipment failure,
equipment damage, or data loss.
In order to obtain optimum performance and ensure patient safety,
thoroughly read this manual.
Do not use the Firefly endoscope camera if you notice any signs of damage
to the components of the system. Contact customer service for immediate
assistance.
Do not attempt to disinfect the Firefly endoscope camera using
glutaraldehyde products, ethylene oxide gas, steam or any other liquid or gas
disinfectant.
The signal output (USB Port) connector is intended for connection of only
devices complying with IEC 60601-1, or other IEC standards (for example,
IEC 60950), as appropriate to the device. Connecting additional devices to
the Firefly endoscope camera is not allowed. You are responsible for
verifying that the system complies with the requirements of the system
standard IEC 60601-1-1.

6
Firefly DE1200 User Manual Version: 2.1
This product complies with current required standards for electromagnetic
interference and should not present problems to other equipment or be
affected by other devices. As a precaution, avoid using this device in close
proximity to other equipment.
Do not apply alcohol, chemicals, or water to the lens. Any liquids entering the
optical assembly will damage internal components.

7
Firefly DE1200 User Manual Version: 2.1
CHECK LIST
Before starting, check that all the following items have been included with your product. If anything is
missing, contact your dealer.

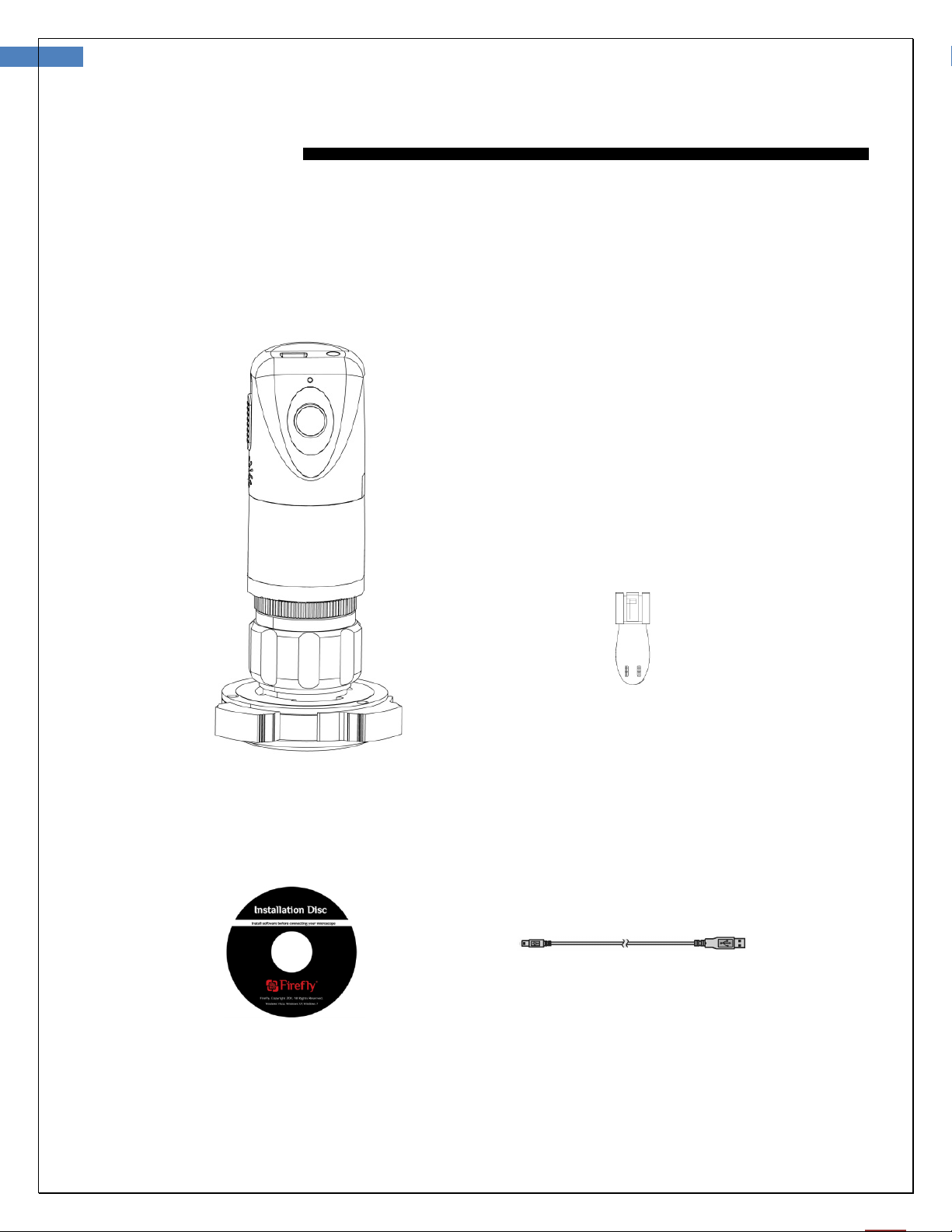

Endoscope Camera x 1pc Clip (attached to Endoscope Camera) x 1 pc
Software Application CD USB cable x 1 pc

8
Firefly DE1200 User Manual Version: 2.1

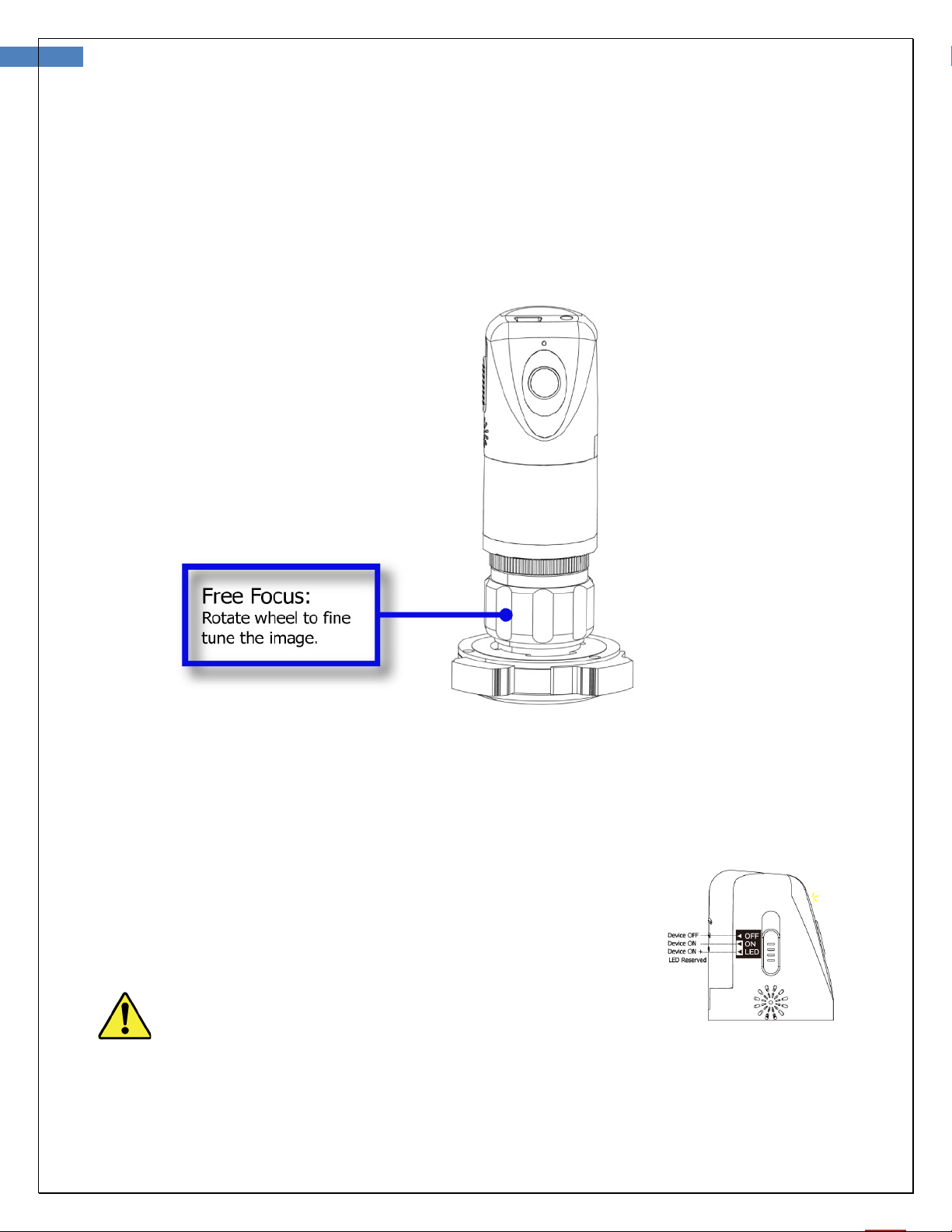

NOMENCLATURE

9
Firefly DE1200 User Manual Version: 2.1
OPERATION
Setting up the software application ：
Prior to using the Firefly endoscope camera for the first time, install the FireflyPro software application
following the instructions provided with the installation CD.
Connect to PC ：
Connect the Firefly endoscope camera to the PC’s USB port
Power the Device On ：
Towards the rear of the device, a switch allows the user to power the
device ON and to activate the LEDs.
OFF: Switch off the device
ON: Switch the device ON
LED: Switch the device ON and reserved for control like LED

10
Firefly DE1200 User Manual Version: 2.1
Using the Firefly Endoscope Camera:
Using the image capture control:
Press and release the Capture button to capture image frames. The system will generate a shutter sound
from the PC speaker as confirmation.

11
Firefly DE1200 User Manual Version: 2.1
Using Focus:
Based on the relative distance of the observed object, the focus wheel can be turned for a clear image.
When a higher magnification is required, the focus wheel can be turned to the left (see below). If a
larger field of view is required, the endoscope camera can be moved farther away and the wheel turned
to the right.
Standby and Remove device:
To temporarily turn off or remove the device, slide the power button to the “OFF” position. The
device must also be turned off through the Windows operating system:
On your Microsoft Windows Desktop, click My Computer in the left
pane and open the device manager. Double-click the USB Video
Device (Digital microscope in Windows Vista and Windows 7).
After turning off the device through Windows above, the USB
cable can be unplugged from the PC’s USB port. Using this
sequence will avoid transient voltages from potentially causing
hardware damage.

12
Firefly DE1200 User Manual Version: 2.1
Launch the Software Application:
Double-click the FireflyPro.exe icon on your computer desktop:
Viewing the Images:
FireflyPro software controls your Firefly endoscope camera. The endoscope camera
communicates with the PC through the USB compact receiver. The user can configure the
video properties, review live images, capture images, record video clips and perform a
variety of powerful measurement and documentation functions.
The main features of FireflyPro are shown below:

13
Firefly DE1200 User Manual Version: 2.1
Tool bars
The Tools bars enable quick access to the functions of FireflyPro software. The tool bars can be grouped
into Control, Images and Device tool bar sets.
Control Tool bar:
Icon Icon Name Function Description
Play Start the video stream preview
Pause Freeze live video image frame
Video Setting Configure video properities
Video Recording Video recording and settings (frame, period, quality, codec etc...)
Undo Undo the previous Rotation, Text Comment and Zoom
Redo Redo the previous Rotation, Text Comment and Zoom
ROI Select region of interest (ROI) on live video stream
Undo ROI Revoke ROI selection
Rotation Rotate live video 0°, 90°, 180°, 270°
Mirror Mirror live video horizontally
Flip Flip live video vertically
Text Comment Add text layer on image
Image Measure Launch image measurement application
Zoom + Zoom-in live video up to 300%
Zoom - Zoom-out live video down to 10%
Zoom Ratio Set Zoom ratio from 10-300

14
Firefly DE1200 User Manual Version: 2.1
Image tool bar:
Icon Icon Name Function Description
Save Image Store frozen image
Image Capture Capture and store instant image from live video
Image Browsing Browse images in working directory
Working
Directory
Pop-up to select working directory path
Working directory path
Device Tool bar:
Icon Icon Name Function Description
Device Connect Refresh image device connection
Select a video format (default 640x480 YUY2)

15
Firefly DE1200 User Manual Version: 2.1
MAINTENANCE AND SERVICE
Cleaning recommendation
CAUTION Do not apply alcohol, chemicals, or water to the lens. Any liquids
entering the optical assembly will damage internal components.
Use a dry cloth to clean the Digital Firefly endoscope camera on a weekly basis.
Recycling the system components
Within the EU
Do not dispose of this product as unsorted municipal refuse. Submit for separate
collection as specified by Directive 2002/96/EC of the European Parliament and the
Council of the European Union on Waste Electronic and Electrical Equipment
(WEEE).
If this product is contaminated, this directive does not apply. For more
specific disposal information contact Customer Service.
Outside the EU
When the product and its components reach end of life, recycle the product according
to national, state, and local regulations.

16
Firefly DE1200 User Manual Version: 2.1
Service Policy
All repairs on products under warranty must be performed or approved by Firefly or its authorized
resellers. Unauthorized repairs will void the warranty. In addition, whether or not covered under
warranty, any product repair shall exclusively be performed by Firefly-certified service personnel.
If the product fails to function properly — or if you need assistance, service, or spare parts —
contact your Firefly reseller.
Before contacting your reseller, try to duplicate the problem and check all accessories to ensure that
they are not causing the problem. When calling, please be prepared to provide:
•Product name and model number and complete description of the problem.
•Serial number of your product (if applicable).
•Complete name, address and phone number of your facility.
•For out-of-warranty repairs or parts orders, a purchase order or credit card number.
•For parts orders, the required spare or replacement part numbers.
If your product requires warranty, extended warranty, or non-warranty repair service, please
contact your Firefly reseller. A customer service representative will assist you in troubleshooting the
problem and will make every effort to solve it over the phone, avoiding potential unnecessary
returns. In case a return cannot be avoided, the representative will record all necessary information
and will provide a Return Authorization number, as well as the appropriate shipping address. The
Return Authorization number must be obtained prior to any return.
If you have to return your product for service, follow these recommended packing instructions:
•Disconnect all hoses, cables, sensors, power cords, and ancillary products (as appropriate)
before packing, unless you suspect they are associated with the problem.
•Wherever possible use the original shipping carton and packing materials.
•Include a packing list and the Return Authorization number.
It is recommended that all returned goods be insured. Claims for loss or damage to the product are
the responsibility of the sender.

17
Firefly DE1200 User Manual Version: 2.1
SPECIFICATIONS
Item Specification
Weight Approximately 140 g (0.31 lb)
Dimensions (approximate)
Length: 11.8 cm (4.6 inches)
Height: 5.7 cm (2.2 inches)
Width: 5.7 cm (2.2 inches)
Power USB 5VDC, 150mA
Protection against ingress of water IPXØ
Operating conditions
Temperature
+10°C to +40° C (+50°F to +104°F)
Relative humidity
30% to 75% noncondensing
Altitude
700 to 1060 hPa
Shipping and storage conditions
Temperature -20°C to +49°C (-4°F to +120°F)
Relative humidity 95% noncondensing max.
Safety Compliance FCC, CE and RoHS compliant (non-medical)
Patent Patent Pending

18
Firefly DE1200 User Manual Version: 2.1
LIMITED WARRANTY
Limited Hardware Warranty (through distributors & resellers)
Firefly Global hardware products come with a 1-year limited hardware warranty. The warranty is
extended through Firefly Global authorized representatives and resellers. If you have a warranty claim,
please contact the store, distributor, or website through which the product was purchased.
Register your Firefly device at http://www.fireflyglobal.com/warranty-registration/ within two weeks of
your purchase and maintain your original receipt.
What is covered by this limited hardware warranty?
This limited hardware warranty covers defects in materials and workmanship in your Firefly Global
hardware products.
What is not covered by this limited hardware warranty?
This limited hardware warranty does not cover:

Software, including the operating system and software added to or bundled with the Firefly
Global hardware products
Problems that result from:
•External causes such as accident, abuse, misuse, or problems with electrical power
•Servicing not authorized by Firefly Global
•Usage that is not in accordance with product instructions
•Failure to follow the product instructions
•Problems caused by using accessories, parts, or components not supplied by Firefly
Global
Products with missing or altered serial numbers
Products for which Firefly Global or its distributors have not received payment
Normal wear and tear
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS
WHICH VARY FROM STATE TO STATE (OR JURISDICTION TO JURISDICTION). FIREFLY GLOBAL'S
RESPONSIBILITY FOR MALFUNCTIONS AND DEFECTS IN HARDWARE IS LIMITED TO REPAIR AND
REPLACEMENT AS SET FORTH IN THIS WARRANTY STATEMENT. ALL EXPRESS AND IMPLIED
WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES AND
CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN

19
Firefly DE1200 User Manual Version: 2.1
TIME TO THE TERM OF THE LIMITED WARRANTY PERIOD REFLECTED ON YOUR PACKING SLIP OR
INVOICE. NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE LIMITED
WARRANTY PERIOD HAS EXPIRED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS, SO THIS LIMITATION MAY NOT APPLY TO YOU.
WE DO NOT ACCEPT LIABILITY BEYOND THE REMEDIES PROVIDED FOR IN THIS LIMITED
HARDWARE WARRANTY OR FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT
LIMITATION, ANY LIABILITY FOR THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES, FOR
PRODUCTS NOT BEING AVAILABLE FOR USE, OR FOR LOST DATA OR LOST SOFTWARE. OUR
LIABILITY WILL BE NO MORE THAN THE AMOUNT YOU PAID FOR THE PRODUCT THAT IS THE
SUBJECT OF A CLAIM. THIS IS THE MAXIMUM AMOUNT FOR WHICH WE ARE RESPONSIBLE.
How long does this limited hardware warranty last?
The limited hardware warranty on all Firefly Global products begins on the date of the packing slip,
invoice, or receipt. The warranty period is not extended if a warranted product or any parts are
repaired or replaced. Firefly Global may change the availability of limited hardware warranties, at its
discretion, but any changes will not be retroactive.
What do I do if I need warranty service?
Before the warranty expires, please contact the store, distributor, or website through which the product
was purchased.
What will Firefly Global do?
Firefly Global or its authorized representative or reseller will repair any Firefly Global hardware products
returned that prove to be defective in materials or workmanship. If Firefly Global or its authorized
representatives are not able to repair the product, we will replace it with a comparable product that is
new or refurbished.
When you contact our authorized representatives or resellers via phone or email, they will issue a
Return Material Authorization Number for you to include with your return. You must return the products
in their original or equivalent packaging, prepay shipping charges, and insure the shipment or accept
the risk if the product is lost or damaged in shipment. The repaired or replacement products will be
returned to you. The reseller or authorized representative will pay to ship the repaired or replaced
products to you if you use a delivery address in the country where the reseller is located. Otherwise,
the product will be shipped to you freight collect.
If it is determined that the problem is not covered under this warranty, you will be notified and
informed of service alternatives that are available to you on a fee basis.

20
Firefly DE1200 User Manual Version: 2.1
How will you fix my product?
We use new and refurbished parts made by various manufacturers in performing warranty repairs and
in building replacement parts and systems. Refurbished parts and systems are parts or systems that
have been returned to Firefly Global, some of which were never used by a customer. All parts and
systems are inspected and tested for quality. Replacement parts and systems are covered for the
remaining period of the limited hardware warranty for the product you bought. Firefly Global owns all
parts removed from repaired products.
May I transfer the limited hardware warranty?
Limited hardware warranties are not transferable.
