User Manual Wireless Dermatoscope Version: 2.1
1
WIRELESS DERMATOSCOPE
THANK YOU FOR SELECTING A WIRELESS FIREFLY DERMATOSCOPE
To take full advantage of this product’s advanced capabilities,
and to properly and safely use this product, please read the manual carefully.
DE370
User Manual

2
User Manual Wireless Dermatoscope Version: 2.1
2
Manufactured by FIREFLY GLOBAL –464 COMMON ST, #281, BELMONT, MA 02478, USA
Copyright 2020 by Firefly Global. All rights are reserved. No one is permitted to reproduce or duplicate,
in any form, this manual or any part thereof without permission from Firefly Global
(www.fireflyglobal.com).
Firefly Global assumes no responsibility for any injury, or for any illegal or improper use of the product,
that may result from failure to use this product in accordance with the instructions, cautions, warnings,
or indications for use published in this manual.
Software in this product is copyright of Firefly Global and its vendors. All rights are reserved. The
software is protected by U.S. and international copyright laws and international treaty provisions
applicable worldwide. Under such laws, the licensee is entitled to use the copy of the software
incorporated with this instrument as intended in the operation of the product in which it is embedded.
The software may not be copied, decompiled, reverse-engineered, disassembled or otherwise reduced
to human-perceivable form. This is not a sale of the software or any copy of the software; all rights,
title, and ownership of the software remain with Firefly and/or its vendors.
Caution: Changes or modifications not expressly approved by Firefly Global will void the purchaser’s
authority to operate the equipment and its warranty.

3
User Manual Wireless Dermatoscope Version: 2.1
3
TABLE OF CONTENTS
Introduction................................................................................................................ 4
WARNINGS &CAUTIONS ..................................................................................................5
Warning .................................................................................................................................. 5
Caution ................................................................................................................................... 5
Check List.................................................................................................................... 6
Nomenclature ............................................................................................................. 7
Operation .................................................................................................................... 8
Downloading the iOS/Android Application:.................................................................................. 8
Launching the Software Application: .......................................................................................... 8
Powering the Device On: .......................................................................................................... 8
Charging Battery:..................................................................................................................... 9
Establishing a Wi-Fi Connection:.............................................................................................. 10
Recommended Holding Position: ............................................................................................. 11
High Magnification Use: .......................................................................................................... 12
Using the Image and Video Capture Controls: .......................................................................... 12
Obtaining a Clear Image:........................................................................................................ 13
Using the Polarizer: ................................................................................................................ 13
Maintenance and Service.......................................................................................... 14
Cleaning and Care Recommendations ....................................................................................... 14
Recycling the System Components ........................................................................................... 15
Service policy ............................................................................................................16
Specifications............................................................................................................17
Limited Warranty ......................................................................................................18
Troubleshooting........................................................................................................ 21

4
User Manual Wireless Dermatoscope Version: 2.1
4
INTRODUCTION
The Firefly Wireless Dermatoscope System consists of a wireless digital Dermatoscope, software application,
and a battery charger.
The Wireless Firefly Dermatoscope System is designed for effective operation under a variety of conditions
and typical video parameters are set at the factory.
The System is equipped with an integrated polarizer ring. Rotating the ring enables multiple degrees of
polarization for dermascopy applications. The System is also equipped with a fine focus wheel which
enables crystal clear images at very high degrees of magnification.
System Requirements
The Firefly Dermatoscope System requires a smart device with iOS version 9.3 or higher. For Android
phones the system requires Android 4.4 and higher and for Android tablets 6.0 and higher.
Intended use
The Wireless Dermatoscope System is intended to allow inspection of the skin and hair under magnification.
User Profile
The Wireless Dermatoscope System is intended for applications such as:
◼Medical examinations
◼Veterinary examinations
◼Medical and Science Education
◼Telemedicine
Warranty Registration
Register your Firefly device at http://www.fireflyglobal.com/warranty-registration/ within two weeks of
your purchase and maintain your original receipt.
Product Support
Please visit the FAQ section of our website at http://www.fireflyglobal.com for the latest troubleshooting
information and additional support. You can also contact us at [e-mail] Monday through
Friday 9:30 AM to 5:30 PM Eastern Time.

5
User Manual Wireless Dermatoscope Version: 2.1
5
WARNINGS &CAUTIONS
Please familiarize all operating personnel with the general saf et y information in this
summary. Specific warnings and cautions a r e also found throughout this manual.
Warning
A warning statement in this manual identifies a condition or practice which if not
corrected or discontinued immediately, could lead to injury, illness, or death.
◼Do not use in the presence of flammable anesthetics.
◼This product has no user se rv iceable / replaceable parts. Please refer all
service to authorized service personnel.
◼This instrument is not intended to be used in the eye.
Caution
A caution statement in this manual identifies condition or practice, which if not
corrected or discontinued immediate l y , could lead to equipment failure,
e quipment damage, or data loss.
◼ In order to obtain optimum performance and ensure patient safety,
thoroughly read this manual .
◼Do not use the Firefly Otoscope if y ou notice any signs of damage to the
components of th e system. Contact customer service f o r immediate
assistance .
◼Do not attempt to disinfect the Firefly Otoscope System using
glutaraldehyde pro duc t s , ethylene oxide gas, steam or any other liquid or
gas disinfectant.
◼This product complies w i th current re qu ire d standards for
electromagnetic interference and should not present p r oblems to other
equipment or be affected by other devices. As a precaution, avoid using
th is device in close proximity to other e quip ment.
◼Do not apply alcohol, ch e m icals, or water to the lens. Any liquids entering the
optical assembly will damage internal components.

6
User Manual Wireless Dermatoscope Version: 2.1
6
CHECK LIST
Before starting, check that all the following items have been included with your product. If anything is
missing, contact your dealer.
USB DC power cord x 1 pc
Power Adapter x 1pc
100-240V AC to 5V USB DC
Notice: Actual Shape may vary.
Clip x 1 pc
Wireless Dermatoscope X 1 pc
Scope Spacer

7
User Manual Wireless Dermatoscope Version: 2.1
7
NOMENCLATURE
USB Charging Port
Power Indicator
Snapshot Button
Power Button
Video Recording Button
Wi-Fi Indicator
Battery Charging Indicator
Focusing Wheel
Polarizing Ring
Scope Spacer
Brightness Control

8
User Manual Wireless Dermatoscope Version: 2.1
8
OPERATION
Downloading the iOS/Android Application:
To download the application for iOS, please visit the Apple App Store.
To download the application for Android, please visit the Google Play Store.
Launching the Software Application:
After Firefly Pro has been installed, simply open the application by tapping on the Firefly Pro icon once and
follow the set-up instructions. The application has the capabilities to take photos and record videos, and is
designed to be user friendly and self-explanatory.
Powering the Device On:
Push the ‘Power Button’ at the rear of the dermatoscope to activate the device. An indicator light will turn
on to confirm the power status.

9
User Manual Wireless Dermatoscope Version: 2.1
9
Power Indicator
When the device is off, this LED is off.
When the device is on, this Green LED is on. It comes-on immediately when the power on/off button is pressed.
When the battery power is low, this LED displays Yellow.
Battery Charging Indicator
During normal battery operation, this LED is off.
When the charger is connected, this LED will be red.
When the charging is completed, this LED will turn green.
Charging Battery:
◼Duration:
The Wireless Firefly Dermatoscope has a built-in high efficiency lithium battery that enables more than 1.5
hours continuous operation.
◼Charging the Battery:
Through the micro-USB port at the rear of the dermatoscope, the embedded battery can be charged with
the provided USB DC cable. The cable must be connected to the USB port of a PC or to the “USB Power
Adapter”, which can charge directly from a wall outlet.
◼Overload Protection:
The overload protection circuit will prevent overcharging when the battery is full and the “Indicator” will
turn green.
◼Power Indication:
The power indicator light is normally green during operation, but will turn yellow when the device needs to
be recharged.
The lithium battery is a delicate and consumable item. It is expected to last through years of use
and is guaranteed for twelve months from its purchase against defects. If there is any battery
related issue, please contact customer service immediately. Battery replacement by
unauthorized personnel or replacement with unauthorized batteries may damage the system and voids the
overall warranty.

10
User Manual Wireless Dermatoscope Version: 2.1
10
Establishing a Wi-Fi Connection:

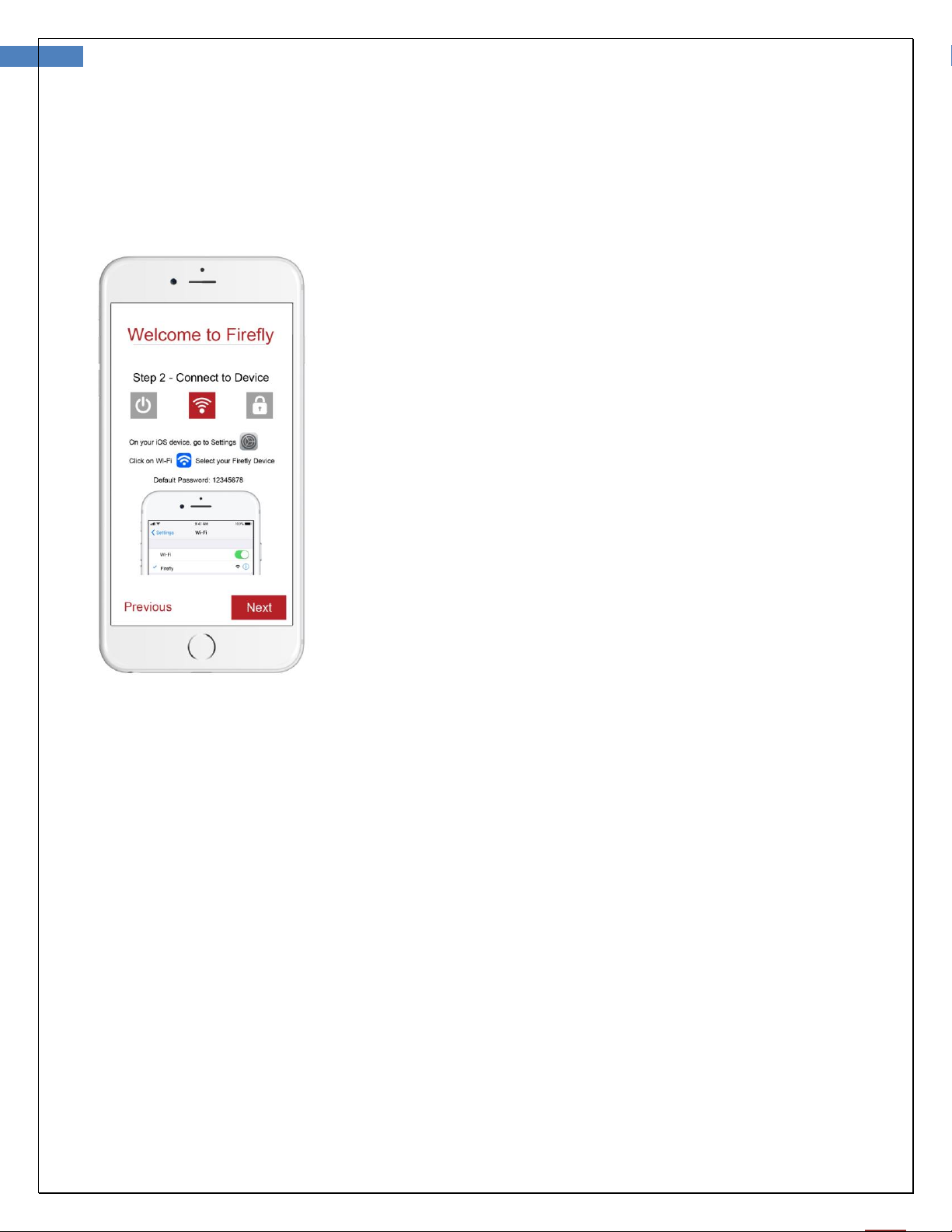

On your iOS/Android device, go to Settings. Click on Wi-Fi. Select the Firefly Device and input the default
password: 12345678
Wi-Fi Indicator
When the device is off, this LED is off.
After device is turned on, this LED comes on after a few seconds when Wi-Fi is ready.

11
User Manual Wireless Dermatoscope Version: 2.1
11
Recommended Holding Position:
It is suggested to hold the dermatoscope, transparent cover down, with the thumb held on
the equipment. This holding position offers relative stability and allows lens control. The index finger is
still free to rotate and adjust the focus wheel (as shown).
Focusing:
Based on the relative height of the observed object, the focus wheel can be turned for a clear image.
When a higher magnification is required, the focus wheel can be turned to the left (see below). If a larger
field of view is required, the Microscope can be moved farther away and the focus wheel turned to the
right.
Object
Bigger
View
Wider

12
User Manual Wireless Dermatoscope Version: 2.1
12
High Magnification Use:
When there is a need for a higher magnification, maintaining body stability becomes more paramount. In
such instances, it is suggested that the digital Microscope focus wheel opening should be placed towards
the user, and the transparent cover vertically downward. This enables easy access to the focus wheel and a
very stable position. A smooth desktop may be used as an observation platform. (Shown below)
Using the Image and Video Capture Controls:
Press and release the Snapshot button to capture image frames. The system will generate a shutter sound
from the speaker as confirmation. Press and release the Video Recording button to record video. The
system will not generate any sound when the video recording button is pressed.
Snapshot Button
Video Recording Button

13
User Manual Wireless Dermatoscope Version: 2.1
13
Obtaining a Clear Image:
To obtain a clear image, please grip the Firefly Dermatoscope; remain still and avoid vibration as much
as possible during observation.
Using the Polarizer:
The Wireless Dermatoscope is equipped with an integrated polarizer feature. To activate polarization, turn
the black ring behind the nose extender. Multiple degrees of polarization may be achieved by gradually
turning the polarizer ring from 0 degrees to 360 degrees.
Polarizing Ring

14
User Manual Wireless Dermatoscope Version: 2.1
14
MAINTENANCE AND SERVICE
Cleaning and Care Recommendations
The Firefly digital dermatoscope is designed to provide years of service if it is maintained properly. Proper
cleaning and gentle usage are critical to ensure that the device will continue to work reliably.
The dermatoscope cannot be sterilized and should not be submerged in liquids or subjected to steam
sterilization or other sterilization methods.
The exterior of the device and its clear plastic nose cone may be cleaned with a lint-free cloth soaked in an
alcohol solution. Alternatively, CaviWipes or similar disinfectant wipes can also be used. Please refer to the
directions provided by the manufacturer of the wipes for appropriate instructions for use.
Wipe down the exterior of the device, cleaning all external surface areas. Care should be taken to prevent
excess liquid from seeping into the internal components.
Remove the clear plastic nose cone and wipe as described above. Additionally, the nose cone can be soaked
in alcohol or other disinfectant solutions while not attached to the device.
Do not apply alcohol, chemicals, or water to the lenses. Solutions entering the optical assembly could
damage internal components.
The dermatoscope should be stored in a safe location where it will not be subject to sudden impacts. Care
should also be taken not to drop the device on a hard surface as this may damage the optical assembly as
well as other internal components.

15
User Manual Wireless Dermatoscope Version: 2.1
15
Recycling the System Components
Within the EU
Do not dispose of this product as unsorted municipal refuse. Submit for separate collection
as specified by Directive 2002/96/EC of the European Parliament and the Council of the
European Union on Waste Electronic and Electrical Equipment (WEEE).
If this product is contaminated, this directive does not apply. For more
specific disposal information contact Customer Service.
Outside the EU
When the product and its components reach end of life, recycle the product according to
national, state, and local regulations.

16
User Manual Wireless Dermatoscope Version: 2.1
16
SERVICE POLICY
All repairs on products under warranty must be performed or approved by Firefly or its authorized
resellers. Unauthorized repairs will void the warranty. In addition, whether or not covered under
warranty, any product repair shall exclusively be performed by Firefly-certified service personnel.
If the product fails to function properly —or if you need assistance, service, or spare parts —contact
your Firefly reseller.
Before contacting your reseller, try to duplicate the problem and check all accessories to ensure that
they are not causing the problem. When calling, please be prepared to provide:
•Product name and model number and complete description of the problem.
•Serial number of your product (if applicable).
•Complete name, address and phone number of your facility.
•For out-of-warranty repairs or spare parts orders, a purchase order (or credit card) number.
•For parts orders, the required spare or replacement part numbers.
If your product requires warranty, extended warranty, or non-warranty repair service, please contact
your Firefly reseller. A customer service representative will assist you in troubleshooting the problem
and will make every effort to solve it over the phone, avoiding potential unnecessary returns. In case
a return cannot be avoided, the representative will record all necessary information and will provide a
Return Authorization number, as well as the appropriate shipping address. The Return Authorization
number must be obtained prior to any return.
If you have to return your product for service, follow these recommended packing instructions:
•Disconnect all hoses, cables, sensors, power cords, and ancillary products (as appropriate) before
packing, unless you suspect they are associated with the problem.
•Wherever possible use the original shipping carton and packing materials.
•Include a packing list and the Return Authorization number.
It is recommended that all returned goods be insured. Claims for loss or damage to the product are
the responsibility of the sender.

17
User Manual Wireless Dermatoscope Version: 2.1
17
SPECIFICATIONS
Item
Specification
Weight
Approximately 113 g (0.25lb)
Dimensions (approximate)
Length: 13.1 cm (5.25 inches)
Height: 3.5 cm (1.4 inches)
Width: 3.5 cm (1.4 inches)
Power
3.7V @ 550mA
Protection against ingress of water
IPXØ
Operating conditions
Temperature
+10°C to +40° C (+50°F to +104°F)
Relative humidity
30% to 75% noncondensing
Altitude
700 to 1060 hPa
Shipping and storage conditions
Temperature
-20°C to +49°C (-4°F to +120°F)
Relative humidity
95% noncondensing max.
Modulation
WiFi 802.11a/b/g/n/ac
Output Power
10dBm to 14 dBm ± 1.5 dB
Sensitivity
PER @ -59dBm to -91bBm
Max Input Level
-20dBm to -30dBm
Coverage
Over 5 meters (15ft) on open field
Battery
More than 1.5 hours continuous usage
Capacity
1000mAh (Lithium battery)
Service
Authorized personnel only
Safety Compliance
FCC, CE and RoHS compliant

18
User Manual Wireless Dermatoscope Version: 2.1
18
LIMITED WARRANTY
Limited Hardware Warranty (through distributors & resellers)
Firefly Global hardware products come with a 1-year limited hardware warranty. The warranty is extended
through Firefly Global authorized representatives and resellers. If you have a warranty claim, please
contact the store, distributor, or website through which the product was purchased.
Register your Firefly device at http://www.fireflyglobal.com/warranty-registration/ within two weeks of
your purchase and maintain your original receipt.
What is covered by this limited hardware warranty?
This limited hardware warranty covers defects in materials and workmanship in your Firefly Global
hardware products.
What is not covered by this limited hardware warranty?
This limited hardware warranty does not cover:
◼Software, including the operating system and software added to or bundled with the Firefly Global
hardware products
◼Problems that result from:
•External causes such as accident, abuse, misuse, or problems with electrical power
•Servicing not authorized by Firefly Global
•Usage that is not in accordance with product instructions
•Failure to follow the product instructions
•Problems caused by using accessories, parts, or components not supplied by Firefly Global
◼Products with missing or altered serial numbers
◼Products for which Firefly Global or its distributors have not received payment
◼Normal wear and tear
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS
WHICH VARY FROM STATE TO STATE (OR JURISDICTION TO JURISDICTION). FIREFLY GLOBAL'S
RESPONSIBILITY FOR MALFUNCTIONS AND DEFECTS IN HARDWARE IS LIMITED TO REPAIR AND
REPLACEMENT AS SET FORTH IN THIS WARRANTY STATEMENT. ALL EXPRESS AND IMPLIED
WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES AND
CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN

19
User Manual Wireless Dermatoscope Version: 2.1
19
TIME TO THE TERM OF THE LIMITED WARRANTY PERIOD REFLECTED ON YOUR PACKING SLIP OR
INVOICE. NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE LIMITED
WARRANTY PERIOD HAS EXPIRED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS, SO THIS LIMITATION MAY NOT APPLY TO YOU.
WE DO NOT ACCEPT LIABILITY BEYOND THE REMEDIES PROVIDED FOR IN THIS LIMITED HARDWARE
WARRANTY OR FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT LIMITATION,
ANY LIABILITY FOR THIRD-PARTY CLAIMS AGAINST YOU FOR DAMAGES, FOR PRODUCTS NOT BEING
AVAILABLE FOR USE, OR FOR LOST DATA OR LOST SOFTWARE. OUR LIABILITY WILL BE NO MORE
THAN THE AMOUNT YOU PAID FOR THE PRODUCT THAT IS THE SUBJECT OF A CLAIM. THIS IS THE
MAXIMUM AMOUNT FOR WHICH WE ARE RESPONSIBLE.
How long does this limited hardware warranty last?
The limited hardware warranty on all Firefly Global products begins on the date of the packing slip, invoice,
or receipt. The warranty period is not extended if a warranted product or any parts are repaired or
replaced. Firefly Global may change the availability of limited hardware warranties, at its discretion, but
any changes will not be retroactive.
What do I do if I need warranty service?
Before the warranty expires, please contact the store, distributor, or website through which the product
was purchased.
What will Firefly Global do?
Firefly Global or its authorized representative or reseller will repair any Firefly Global hardware products
returned that prove to be defective in materials or workmanship. If Firefly Global or its authorized
representatives are not able to repair the product, we will replace it with a comparable product that is new
or refurbished.
When you contact our authorized representatives or resellers via phone or email, they will issue a Return
Material Authorization Number for you to include with your return. You must return the products in their
original or equivalent packaging, prepay shipping charges, and insure the shipment or accept the risk if
the product is lost or damaged in shipment. The repaired or replacement products will be returned to you.
The reseller or authorized representative will pay to ship the repaired or replaced products to you if you
use a delivery address in the country where the reseller is located. Otherwise, the product will be shipped
to you freight collect.
If it is determined that the problem is not covered under this warranty, you will be notified and informed
of service alternatives that are available to you on a fee basis.

20
User Manual Wireless Dermatoscope Version: 2.1
20
How will you fix my product?
We use new and refurbished parts made by various manufacturers in performing warranty repairs and in
building replacement parts and systems. Refurbished parts and systems are parts or systems that have
been returned to Firefly Global, some of which were never used by a customer. All parts and systems are
inspected and tested for quality. Replacement parts and systems are covered for the remaining period of
the limited hardware warranty for the product you bought. Firefly Global owns all parts removed from
repaired products.
May I transfer the limited hardware warranty?
Limited hardware warranties are not transferable.
