FireplaceXtrordinair 21 DV RV User manual

TM
Featuring the
Burner
Tested and Listed by
OMNI-Test Laboratories, Inc.
Beaverton, Oregon
Report # 28-S-56-5
ANSI Z21.88
• Built-In Direct Vent Fireplace
• Natural Gas or Propane
• Residential or Mobile Home
WARNING: I the in ormation in these instructions is not ollowed exactly, a ire or
explosion may result causing property damage, personal injury or loss o li e.
- Do not store or use gasoline or other lammable vapors and liquids in the vicinity o this or
any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call gas supplier rom a neighbor's phone. Follow the gas supplier's
instructions.
• I you cannot reach your gas supplier, call the ire department.
- Installation and service must be per ormed by a quali ied installer, service agency or the
gas supplier.
This appliance may be installed as an OEM installation in a manu actured (mobile) home and must be
installed in accordance with the manu acturer’s instructions and the manu actured home construction
and sa ety standard, Title 24 CFR, Part 3280.
This appliance is only or use with the type(s) o gas indicated on the rating plate. A conversion kit is
supplied with the appliance.
21 DV RV Fireplace Manual
Installer: After installation give this manual to the home-owner and
explain operation of this heater.
 Copyright 2 4, T.I. $1 . 1 - 1158 4 4 927 48 Harbour Pointe Blvd. SW
Mukilteo, WA 98275

2Introduction
© Travis Industries 4040830 1 - 1158
Introduction
We welcome you as a new owner of a 21 DV RV gas fireplace. In purchasing this fireplace you
have joined the growing ranks of concerned individuals whose selection of an energy system
reflects both a concern for the environment and aesthetics. It is one of the finest home heaters the
world over. This manual will explain the installation, operation, and maintenance of this fireplace.
Please familiarize yourself with the Owner's Manual before operating your heater and save the
manual for future reference. Included are helpful hints and suggestions that will make the
operation and maintenance of your new fireplace an easier and more enjoyable experience. We
offer our continual support and guidance to help you achieve the maximum benefit and enjoyment
from your heater.
Important Information
No other 21 DV gas fireplace has the same serial
number as yours. The serial number is below and to
the left of the gas control valve.
This serial number will be needed in case you
require service of any type.
Model: 21 DV RV Fireplace
Serial Number:
Purchase Date:
Purchased From:
Mail your Warranty Card Today, and
Save Your Bill o Sale.
To receive full warranty coverage, you will
need to show evidence of the date you
purchased your heater. Do not mail your
Bill of Sale to us.
We suggest that you attach your Bill of
Sale to this page so that you will have all
the information you need in one place
should the need for service or information
occur.

Table of Contents 3
© Travis Industries 4040927 100-01158
Introduction and Important Information
Introduction......................................................2
Safety Precautions
Safety Precautions............................................4
Features & Specifications
Features..........................................................6
Installation ptions............................................6
Heating Specifications .......................................6
Dimensions......................................................6
Installation
Installation Warnings .........................................7
Packing List......................................................7
Additional Items Required...................................7
Installation verview..........................................8
Recommended Installation Procedure ..................8
Fireplace Placement Requirements......................9
Minimum Framing Dimensions ..........................9
Clearances ..................................................9
Nailing Brackets............................................10
Corner Installations .......................................11
Raised Fireplaces..........................................11
Gas Line Requirements......................................12
Gas Line Location .........................................12
Fuel............................................................12
Gas Line Connection......................................12
Gas Inlet Pressure ........................................12
Optional Gas Line Location .............................13
Electrical Connection.........................................13
Electrical Line Location ..................................13
Optional Electrical Line Location ......................13
Electrical Line Connection...............................14
Vent Requirements............................................15
Altitude Considerations ..................................15
Vent Clearances ...........................................15
Vent Installation............................................16
Approved Vent Configurations.............................17
Restrictor Position.........................................17
Diffuser Plate Removal...................................17
Vent Configurations with Vertical Termination......18
Horizontal Termination - LP (Propane)................19
Horizontal Termination - NG (Natural Gas) ..........20
Horizontal Termination with 45° Elbow................21
Termination Requirements...............................22
Hearth Requirements.........................................23
Facing Requirements.........................................24
Facing - Fireplace Details...................................25
Facing Detail – Drywall Facing ............................26
Facing Detail – Tile Facing .................................27
Facing Detail –Facing ver 1” Thick (Brick) ...........28
Mantel Requirements.........................................29
Installation Example - Build- ut (Dog-House) ........30
Installation Example - Build-In .............................31
Finali ing the Installation
Glass Frame Removal and Installation .................32
Log Set Installation............................................34
Steps for Finalizing the Installation.......................36
Pilot Flame Inspection .......................................36
Air Shutter Adjustment.......................................36
Face Installation and Removal............................38
Operation
Before You Begin..............................................39
Location of Controls ..........................................39
Starting The Pilot Flame.....................................40
Starting the Fireplace for the First Time................41
Turning the Fireplace n and ff.........................41
Adjusting the Flame Height.................................41
Adjusting the Blower Speed .................................42
Normal perating Sounds...................................42
Normal perating dors.....................................42
Maintenance
Maintaining Your Fireplace's Appearance..............43
Yearly Service Procedure ...................................43
Troubleshooting Table ........................................44
How this Fireplace Works ...................................45
Wiring Diagram.................................................46
Replacement Parts List......................................46
Safety Label
Listing Label.....................................................47
Warranty
Warranty .........................................................48
Optional Equipment
LP Conversion Instructions.................................49
Firebox Liner.....................................................52
Index
Index...............................................................54

4Safety Precautions
© Travis Industries 4040927 100-01158
IF YOU SMELL GAS:
D
o not light any appliance
E
xtinguish any open flame
D
o not touch any electrical switch or plug or unplug anything
O
pen windows and vacate building
C
all gas supplier from neighbor's house, if not reached, call fire department
This unit must be installed b
y
a qualified installer to prevent the possibilit
y
of an
explosion. Your dealer will know the requirements in your area and can inform you
of those people considered qualified. The room heater should be inspected and
cleaned before use and at least annually by a qualified service person. More
frequent cleaning may be required due to excessive lint from carpeting, bedding
material, etc.
The instructions in this manual must be strictl
y
adhered to. Do not use makeshift
methods or compromise in the installation. Improper installation will void the
warrant
y
and safet
y
listin
g
.
For LPG only | Pout 11” W.C.
Look for this label:
If the label is present, the
heater is equipped for LP
(propane). If the label is
absent, the heater is equipped
for NG (natural gas).
This heater is either approved for natural
gas (NG) or for propane (LP). Burning the
incorrect fuel will void the warranty and
safety listing and may cause an extreme
safety hazard. Direct questions about the
type of fuel used to your dealer. Check the
label and flame adjust knob on the gas
control valve.
Ok
Contact
y
our local buildin
g
officials to obtain a permit and
information on any installation
restrictions or inspection
requirements in your area.
Notify your insurance
company of this heater as
well.
If the flame becomes soot
y
,
dark orange in color, or
extremely tall, do not operate
the heater. Call your dealer
and arrange for proper
servicing.
AAA
AA
AA
It is imperative that control
compartments, screens, or
circulating air passageways of
the heater be kept clean and
free of obstructions. These
areas provide the air necessary
for safe operation. ?Do not operate the heater if it is
not operating properly in any
fashion or if you are uncertain.
Call your dealer for a full
explanation of your heater and
what to expect.
Gas
Do not store or use
g
asoline or
other flammable liquids in the
vicinity of this heater.
AAA
AA
AA
AAAA
AAAA
AAAA
AAAA
AAAA
AAAA
A
A
Do not operate if an
y
portion of
the heater was submerged in
water or if an
y
corrosion occurs.
Immediately call a qualified
service technician to inspect
the appliance and to replace
any part of the control system
and any gas control that has
been under water.

Safety Precautions 5
© Travis Industries 4040927 100-01158
AAA
AA
AA
Do not place clothin
g
or other
flammable items on or near
the heater. Because this
heater can be controlled b a
thermostat there is a possibilit
of the heater turning on and
igniting an items placed on
or near it.
AA
AA
AA
AA
A
Li
g
ht the heater usin
g
the built-
in piezo igniter. Do not use
matches or an other external
device to light our heater.
Allow the heater to cool before
carr ing out an maintenance
or cleaning.
AAA
AA
AA
AA
AA
The viewin
g
g
lass should be
opened onl for lighting the
pilot or conducting service. Do
not operate with cracked,
broken, or removed glass.
An safet screen or
g
uard
removed for servicing must be
replaced prior to operating the
heater.
Never remove, replace, modif
or substitute an part of the
heater unless instructions are
given in this manual. All other
work must be done b a trained
technician. Don't modif or
replace orifices.
Operate the heater accordin
g
to the instructions included in
this manual.
If the main burners do not start
correctl turn the gas off at the
gas control valve and call our
dealer for service.
The pilot flame must contact
the thermopile and
thermocouple (see the
illustration to the left). If it does
not, turn the gas control valve
to "OFF" and call our dealer.
AAA
AA
AA
A
A
A
A
This unit is not for use with
solid fuel
Do not place an thin
g
inside
the firebox (except the
included fiber logs).
If the fiber lo
g
s become
damaged, replace with Travis
Industries log set.
This
Manual
Do not throw this manual awa .
This manual has important
operating and maintenance
instructions that ou will need
at a later time. Alwa s follow
the instructions in this manual.
AAA
AA
AA
Do not touch the hot surfaces
of the heater. Educate all
children of the danger of a
high-temperature heater.
Young children should be
supervised when the are in
the same room as the heater.
Travis Industries, Inc.
g
rants
no warranty, imp ied or stated,
for the insta ation or
maintenance of your heater,
and assumes no
responsibi ity of any
consequentia damage(s).
Instruct ever one in the house
how to shut gas off to the
appliance and at the gas main
shutoff valve. The gas main
shutoff valve is usuall next to
the gas meter or propane tank
and requires a wrench to shut
off.

6Features and Specifications
© Travis Industries 4040927 100-01158
Features
• Works During Power utages (millivolt system)
• High Efficiency
• ptional Thermostat or Remote Control
• Realistic "Wood Fire" Look
• Quiet Blower for Effective Heat Distribution
• Convenient perating Controls
• Variable-Rate Heat utput
• Low Maintenance
Installation Options
• Residential or Mobile Home
• Straight or Corner Placement
• Flush or Recessed Face
• Raised or Floor Placement
• Internal or External Chase
• Horizontal or Vertical Vent
• Bedroom Approved
Heating Specifications
Natural Gas Propane
Approximate Heating Capacity (in square feet)* Up to 650 Up to 650
Maximum BTU Input Per Hour 16,500 16,500
Minimum BTU utput on Low 10,500 9,380
Steady State Efficiency** (with blowers on) Up to 77.2% Up to 74.5%
AFUE (Annual Fuel Utilization Efficiency) 63% 60.7%
* Heating capacity will vary with floor plan, insulation, and outside temperature.
** Efficiency rating is a product thermal efficiency rating determined under continuous
operation independent of installed system.

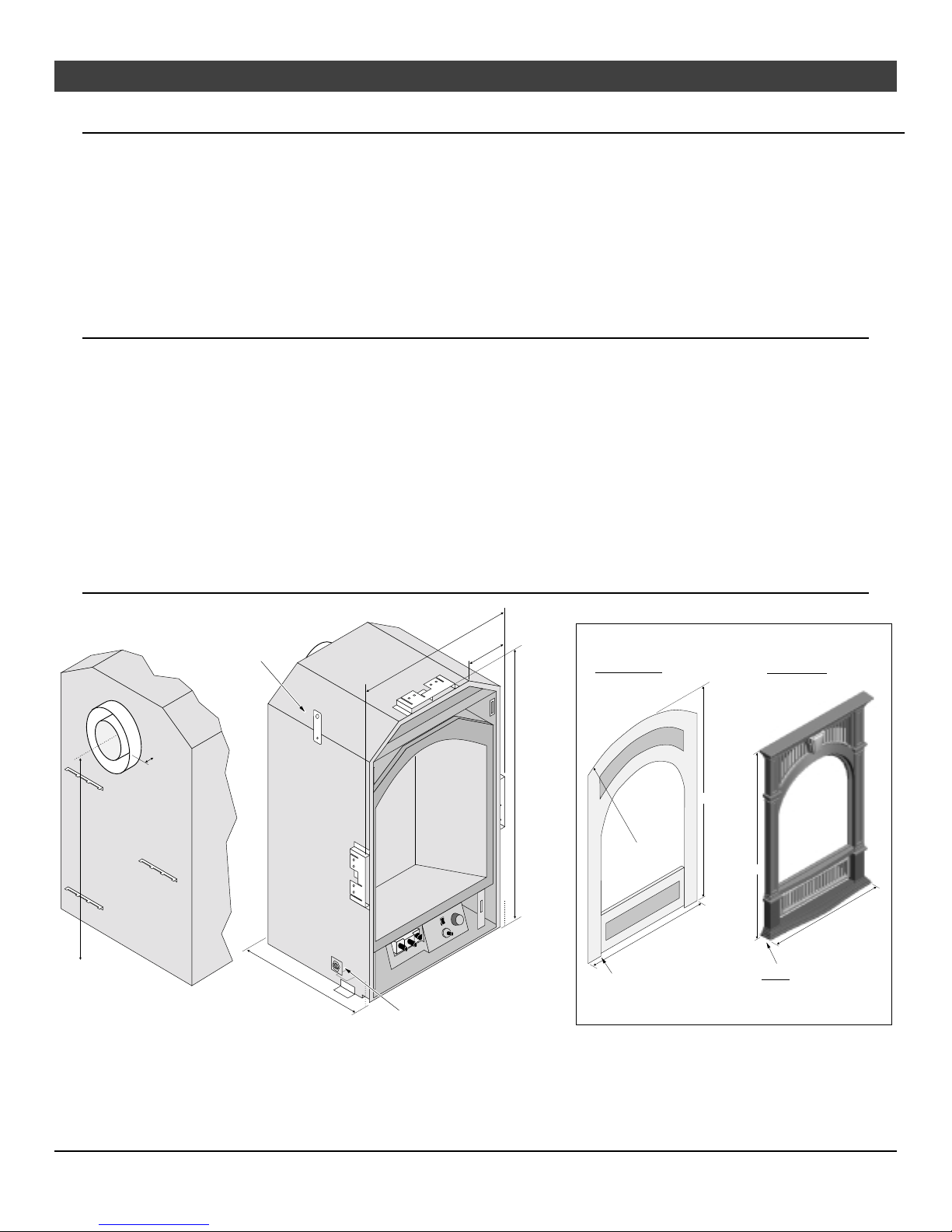

Dimensions
34-1/8”
12-5/8”(Includes
Stand-Offs)
4-7/8”
20-1/8”
See “Gas Line
Requirements”for details
on the gas inlet.
The lifting handles
may be rotated down.
27-1/4”
1-3/4”
35-1/2”
21-1/8”
Arch Radius =
15-3/4”
Bed & Breakfast
The bottom of the face is
flush with the base of the
fireplace when installed.
36-3/4”
23-1/2”
NOTE: The bottom of the face
is 1-1/4”below the base of the
fireplace when installed.
Looking Glass
FACE DIMENSIONS

Installation ( or quali ied installers only) 7
© Travis Industries 4040927 1 - 1158
Installation Warnings
• Failure to ollow all o the requirements may result in property damage, bodily
injury, or even death.
• This heater must be installed by a quali ied installer who has gone through a
training program or the installation o direct vent gas appliances.
• This appliance must be installed in accordance with all local codes, i any; i not,
ollow ANSI Z223.1 and NFPA 54(88).
• In Manu actured or Mobile Homes must con orm with Manu actured Home
Construction and Sa ety Standard, Title 24 CFR, Part 3280, or, when such a
standard is not applicable, the Standard or Manu actured Home Installations,
ANSI/NCSBCS A225.1. This appliance may be installed in Manu actured Housing
only a ter the home is site located.
• The ireplace is designed to operate on natural gas, or propane (LP).
• All exhaust gases must be vented outside the structure o the living-area.
Combustion air is drawn rom outside the living-area structure.
• Noti y your insurance company be ore hooking up this ireplace.
• The requirements listed below are divided into sections. All requirements must
be met simultaneously. The order o installation is not rigid – the quali ied
installer should ollow the procedure best suited or the installation.
Packing List
• Propane Conversion Kit
• Log Set
• Glass Latch Key (to un-latch glass frame)
Additional Items Required
• Faceplate
• Direct Vent (Simpson Dura-Vent Ph. # 8 835-4429)
• Gas Line Equipment (shutoff valve, pipe, etc.)
• Electrical Equipment (min. 14 gauge, grounded line)

8Installation ( or quali ied installers only)
© Travis Industries 4040927 1 - 1158
Installation Overvie
• All requirements below must be met.
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
See the section "Acceptable
Vent Lengths"
See the section
"Gas Line Installation"
See the section
"Electrical
Connection"
See the section
"Mantel Requirements"
1" Min.
(from face)
See the section
"Vent Requirements"
See the section "Minimum
Framing Dimensions"
See the section
"Hearth Requirements"
Drywall
See the section
"Termination Requirements"
Insulation or drywall must not
fill the 1/2" gap around the
sides of the fireplace.
Recommended Installation Procedure
1. Frame the opening for the fireplace. Make sure to allow for vent installation.
2. If the facing is 1/2" or 7/8" thick (most common), secure the fireplace to the framing with
the nailing brackets (see "Nailing Brackets" for details).
NOTE: If the facing is not 1/2" or 7/8" thick, follow the directions below:
Place a strip of facing material to both sides of the fireplace opening (NOTE: the strips will
be removed after the fireplace is secured). The facing thickness must represent the total
thickness of the finished facing (e.g.: If tile is to be used, include the thickness of the
backboard, tile, and tile adhesive). Insert the fireplace into the framing. Slide it back until
the front edge of the nailing brackets are flush with the facing material. Secure the
fireplace using the plates located along the base of the fireplace.
3. Complete the gas line installation.
4. Complete the electrical hook-up.
5. Complete the vent installation.
6. Install the hearth (if applicable).
7. Install the facing.
8. Install the mantel (if applicable).

Installation ( or quali ied installers only) 9
© Travis Industries 4040927 1 - 1158
Fireplace Placement Requirements
Minimum Framing Dimensions

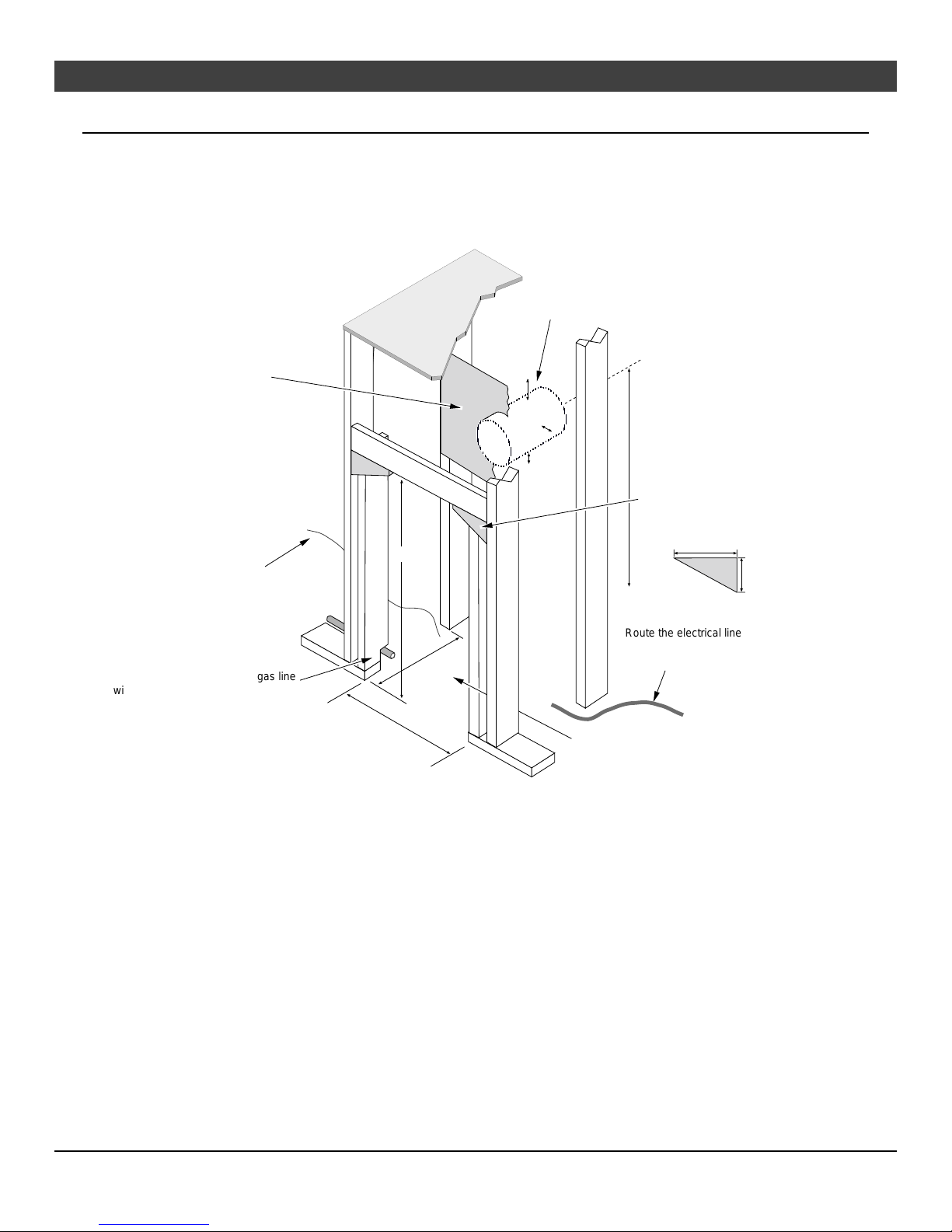

The fireplace requires a 1/2" space between the fireplace and the framing members (or other
materials) along the sides and back of the fireplace. The stand-offs (and nailing brackets) may
contact the framing members but no material may be placed into the 1/2" space.
AAAA
AAAA
AA
AA
AAA
AAA
AAA
AA
A
A
A
Route the electrical line to a position
to the right rear of the fireplace.
Thermostat or Remote
Control Wire (either side)
27-1/4"
Vent Clearances:
1" to the sides, 1" below, and 3" above
the vent to combustibles.
20-1/4"
34-1/4"
12-3/4"
Firestop
(required)
HINT: we recommend reinforcing the
upper corners of the fireplace opening.
4-3/4"
3-5/8"
NOTE: The rear vent may require extra
clearance - make sure to accommodate the
vent when determining the framing.
Center of Rear Vent
AA
AA
AA
A
AA
A
A
A
WARNING: A cut-out for the gas line
will be required on the framing. See
the dimensions on page 6 and "Gas
Line Connection" for details.
• Fireplace must be installed on a level surface capable of supporting the fireplace and vent
• Fireplace must be placed directly on wood or non-combustible surface (not on linoleum or
carpet)
• This heater may be placed in a bedroom. Please be aware of the large amount of heat this
appliance produces when determining a location.
Clearances
• When installed, walls in front of the fireplace must be a minimum 1" to the side of the
faceplate.
• Due to the high temperature, the heater should be located out of traffic and away from furniture
and draperies.
• Fireplace must be placed so the vents below and above the glass do not become blocked

10 Installation ( or quali ied installers only)
© Travis Industries 4040927 1 - 1158

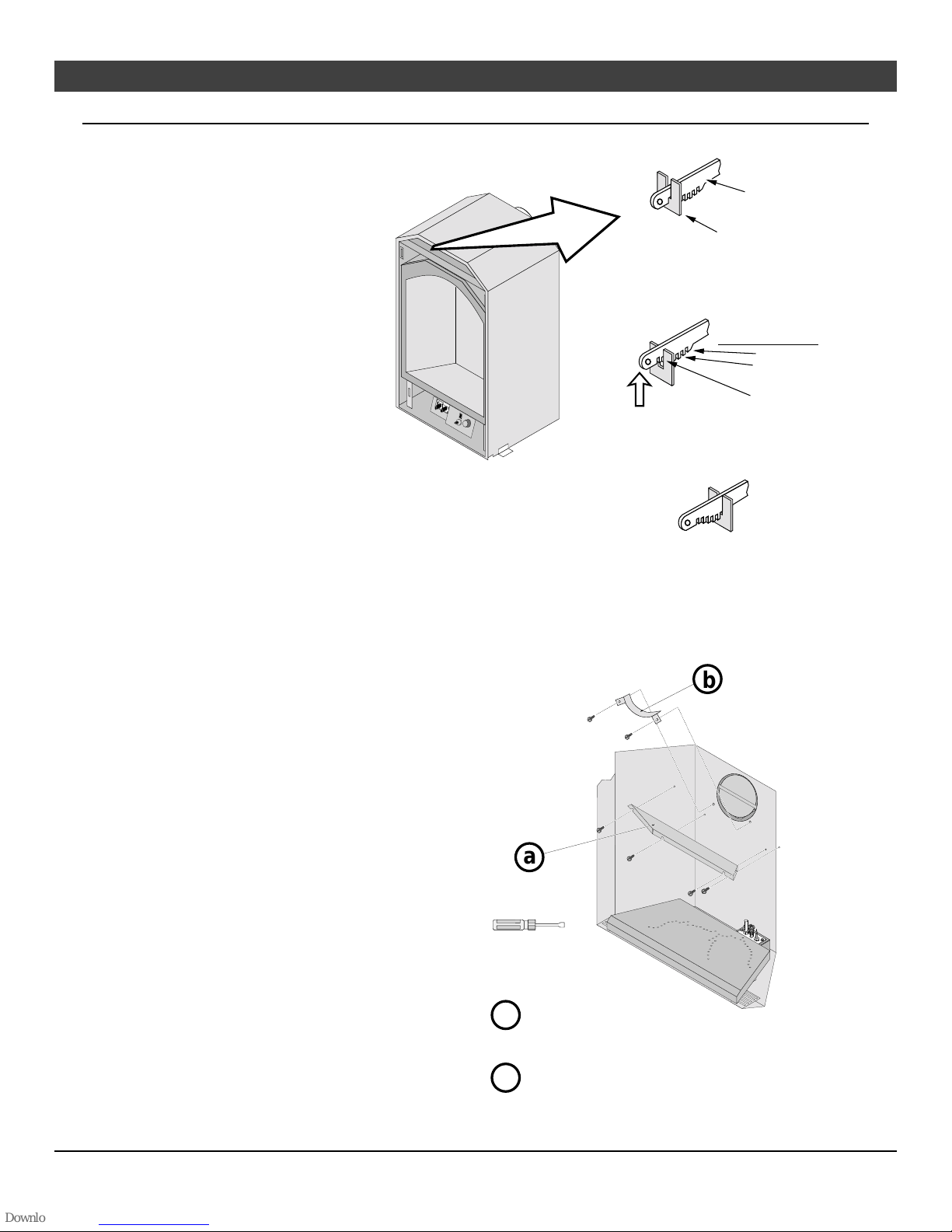

Nailing Brackets
For installations using 1”
facing (1/2”drywall with
3/8”tile, 7/8”tile, etc.)
fold the shorter tab out
90°.
For installations using
1/2”facing (1/2”drywall
or other facing) fold the
larger tab out 90°.
AA
AAAAAAAAA
AAAAAAAAA
Fireplace
Drywall
Framing
1/8"
NOTE:When installed, there must be a minimum
1/8”gap between the face and facing.
Nailing Bracket
TOP VIEW
Tile
AA
AA
AAAAAAAAA
AAAAAAAAA
Fireplace
Drywall
AAAAAAA
Framing
1/8"
NOTE:When installed, there must be a minimum
1/8”gap between the face and facing.
Nailing Bracket
TOP VIEW
1/2” Facing
7/8” to 1” Facing
There are three nailing brackets on the
fireplace. Follow the directions below
to prepare the nailing brackets. Once
in place, nail or screw the nailing
brackets to the framing.

Installation ( or quali ied installers only) 11
© Travis Industries 4040927 1 - 1158
Corner Installations
A typical 45° installation
uses the framing
dimensions shown in the
illustration to the right
(NOTE: all clearances still
apply).
NOTE: When using a 45°
elbow and venting directly
to the rear, use the
venting configuration
outlined in "Horizontal
Termination with 45°
Elbow - (NG or LP)" on
page 21.
The recommended
dimensions shown to the
right allow additional
space, easing gas line
and electrical
connections.
1/2" Nailing Brackets
A
A
A
A
A
A
A
A
A
A
A
A
6" Typical
6-1/2" Recommended
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
A
A
A
A
A
A
A
A
A
A
A
A
A
AAAAAAAAAAAAA
37" Min.
37-1/2" Recommended
Minimum 1" Clearance
NOTE: Max, 12"
Section.
Raised Fireplaces
NOTE: The Looking Glass
Face requires a raised
fireplace - see
"Dimensions" for
details.
• The fireplace (and hearth,
if desired) may be placed
on a platform designed to
support the fireplace (125
Lbs.) and vent.
• The fireplace may not be
raised so as to place the
ceiling in front of the
fireplace within 57" of the
base of the fireplace.
Raised
Platform
Optional Hearth
Minimum 57"
Fireplace Enclosure
(min. 34-1/4")
Ceiling

12 Installation ( or quali ied installers only)
© Travis Industries 4040927 1 - 1158
Gas Line Requirements
MASSACHUSETTS INSTALLATIONS - WARNING:
THIS PRODUCT MUST BE INSTALLED BY A LICENSED PLUMBER OR GAS FITTER WHEN INSTALLED WITHIN
THE COMMONWEALTH OF MASSACHUSETTS.
OTHER MASSACHUSETTS CODE REQUIREMENTS:
• Flexible connector must not be longer than 36 inches.
• Shutoff valve must be a “T” handle gas cock.
• Only direct vent sealed combustion products are approved for bedrooms or bathrooms.
• Fireplace dampers must be removed or welded in the open position prior to the installation of a fireplace insert or gas
log.
• The gas line must be installed in accordance with all local codes, if any; if not, follow ANSI
223.1 and the requirements listed below.
• The fireplace and gas control valve must be disconnected from the gas supply piping during
any pressure testing of that system at test pressures in excess of 1/2 psig. For pressures under 1/2
psig, isolate the gas supply piping by closing the manual shutoff valve.
• Leak test all gas line joints and the gas control valve prior to and after starting the fireplace.
Gas Line Location
• The gas inlet is located on the left side. It may be re-located to the base of the fireplace (see “Optional Gas
Line Location” on the following page).
The left side gas inlet is
located 2-7/8" above the
base of the fireplace.
7-1/8"
1/2" F.P.T.
Gas Line (1/2" M.P.T.)
The base mounted gas
inlet is flush with the
base of the fireplace.
NOTE: a 3" diameter hole is
required to provide clearance for
the gas inlet screws.
4-3/8"
8-1/4"
Left Side Inlet Base Mounted Gas Inlet
Fuel
• This fireplace is designed either for natural gas or for propane (but not for both). Check the sticker on the top of
the gas control valve to make sure the correct fuel is used (see illustration on page 4).
Gas Line Connection
• Installation must be performed by a qualified installer, service agency or the gas supplier (In Massachusetts
a licensed plumber/gasfitter).
Gas Inlet Pressure Standard Input Pressure
Natural Gas 7" W.C. (1.74 kPA)
Propane 13" W.C. (2.73 kPA)
• If the pressure is not sufficient, make sure the piping used is large enough, the supply regulator is
adequately adjusted, and the total gas load for the residence does not exceed the amount supplied.
• The supply regulator (the regulator that attaches directly to the residence inlet or to the propane tank) should
supply gas at the suggested input pressure listed above. Contact the local gas supplier if the regulator is at
an improper pressure.

Installation ( or quali ied installers only) 13
© Travis Industries 4040927 1 - 1158

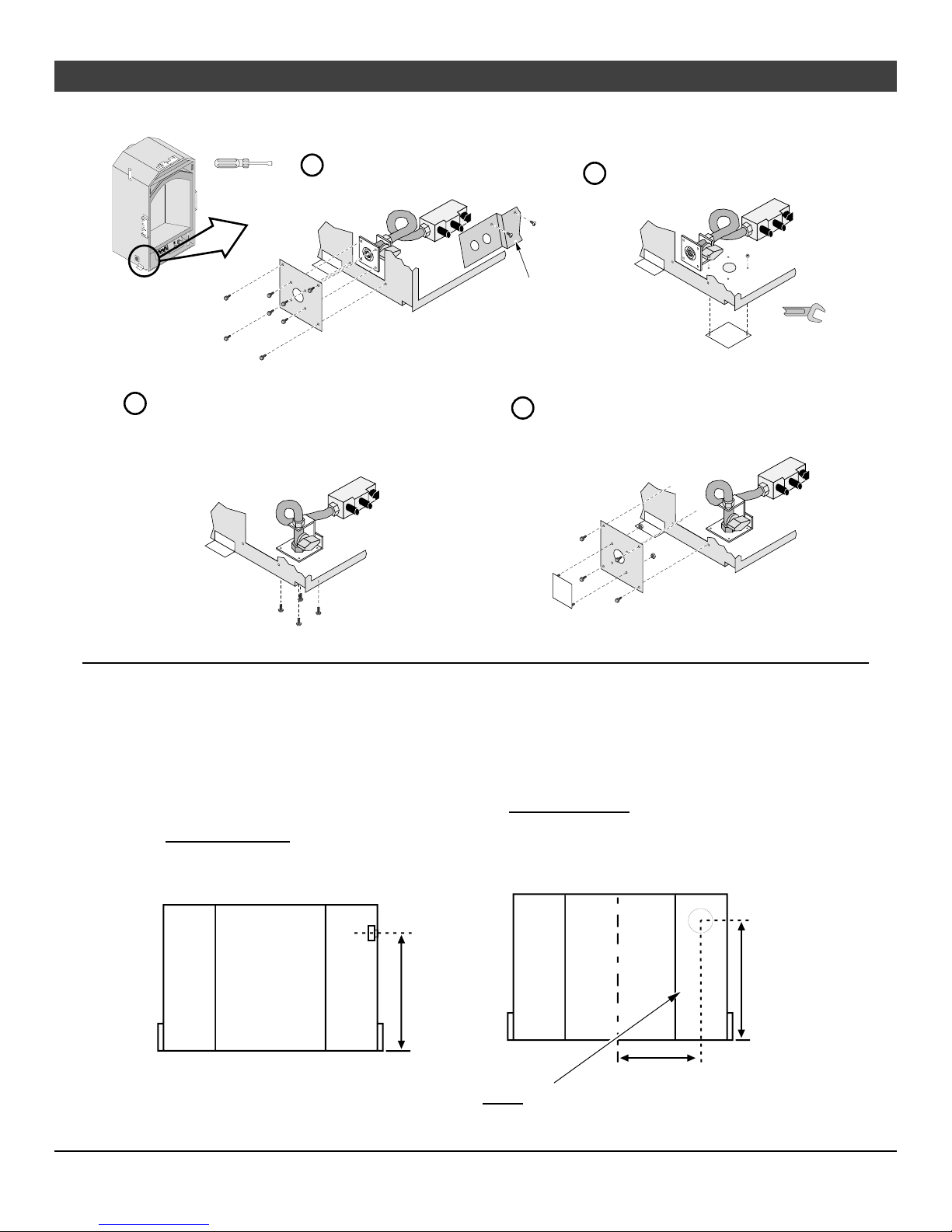

Optional Gas Line Location
Secure the cover plate to the access cover with the
nuts removed in step “b”. Secure the access cover to
the fireplace with the screws removed in step “a”.
d
1/4" Nutdriver
Remove the access cover on the
side of the fireplace.
a
HINT: remove the
control cover for
easier access.
5/16" Wrench
Remove the cover plate on the bottom
of the fireplace (save these nuts).
b
c
Position the gas inlet assembly over the hole in the
baseplate and secure using the screws removed in
step “a”(NOTE: bend the flex tube as shown below -
this will ease in positioning of the gas inlet assembly).
Electrical Connection
• Make sure the household breaker is shut off prior to working on any electrical lines.
• The fireplace must be properly grounded in accordance with local codes (or ANSI/NFPA 7 -1987)
• The electrical line must be 14 gauge, and supply 12 Volts at 6 Hz (2 Amps)
Electrical Line Location
Optional Location
The optional electrical inlet is flush
with the base of the fireplace.
NOTE: a 3-1/2" diameter hole is required to
provide clearance for the electrical inlet screws.
10-1/2"
8"
Standard Location
10-1/2"
Front of Fireplace

14 Installation ( or quali ied installers only)
© Travis Industries 4040927 1 - 1158
Electrical Line Connection
ab
Insert the sheathed cable from the power source through
this cable clamp. Once the wires are attached, tighten
the clamp to secure the cable.
Replace the
cover removed
in step "a".
Attach the common (white), ground (exposed or green)
wires, and hot (black) wires from the power source to the
electrical connector (attached to the fireplace).
cd
Standard
Screwdriver
Remove the cover
from the fireplace
junction box.
1/4" Nutdriver
WARNING: Make sure power is
off from the power lead before
conducting any wiring.
Electrical
Connector
Optional Electrical Line Location
c
Remove the eight screws securing the
access plate and electrical inlet
assembly (save these screws).
a
1/4" Nutdriver
bRemove the cover plate on the bottom
of the fireplace (save the nuts).
Position the electrical inlet assembly over the hole in
the baseplate of the fireplace and secure using the
screws removed in step “a”.
1/4" Nutdriver
d
5/16" Wrench
Attach the cover plate to the access plate using
the two nuts removed in step “b”. Attach the
access plate to the fireplace using the screws
removed in step “a”.
1/4" Nutdriver
Electrical Inlet
Assembly
Access Plate
5/16" Wrench
Cover Plate

Installation ( or quali ied installers only) 15
© Travis Industries 4040927 1 - 1158
Vent Requirements
• The gas appliance and vent system must be vented directly to the outside of the building, and
never be attached to a chimney serving a separate solid fuel or gas-burning appliance. Each
direct vent gas appliance must use it's own separate vent system.
Vent Clearances
• The vent must maintain the required clearance to combustible materials to prevent a fire. Do
not fill air spaces with insulation.
Sides 1"
Above 3"
Below Horizontal or 45° Section 1"
Use a firestop when
passing through any
wall (WARNING: some
firestops provide a 1"
clearance above the
vent -- 3" is required for
this heater).
Min. 3" Clearance
Above the Vent
AA
AA
AA
AA
Min. 1" Clearance to
the side of vent
AAAAA
1" Clearance to the sides
after the first firestop.
AA
AA
Use a firestop whenever
passing through a
ceiling, enclosure or
floor penetration.
Altitude Considerations
• This heater has been tested at altitudes ranging from sea level to 8, feet (2,4 M). In this testing we
have found that the heater, with its standard orifice, burns correctly with just an air shutter adjustment.
• Failure to adjust the air shutter properly may lead to improper combustion which can create a safety hazard.
Consult your dealer or installer if you suspect an improperly adjusted air shutter.
Approved Vent
• Use 8" diameter Model GS Direct Vent manufactured by Simpson Dura-Vent only. Follow the
installation instructions included with the vent. For the nearest Simpson Dura-Vent supplier,
call (8 ) 835-4429.
• Always use the high-wind termination (if applicable).

16 Installation ( or quali ied installers only)
© Travis Industries 4040927 1 - 1158
Vent Installation
• Slide the vent sections together and turn 1/4 turn until the sections lock
in place.
• Screws are not required to secure the vent. However, three screws may
be used to secure vent sections together if desired.
• High temperature sealant is recommended at the appliance starter
section connection (use high-temperature silicone or Mill-Pac®).
• If disassembly is required, at time of re-assembly check to see if the vent
creates a tight fit. If it does not, apply high temperature sealant to the
joints of the affected sections.
• Horizontal sections require a 1/4" rise every 12" of travel
• Horizontal sections require non-combustible support every three feet (e.g.: plumbing tape)
• In addition to the requirements below, follow the requirements provided with the vent.
Vertical Termination
(use the "High Wind Terminatin"
Use a roof flashing and
storm collar whenever
passing through the roof
Vertical Vent
Requirements
1" Clearance on vertical
Sections to combustible
surfaces (after the first
firestop).
Use a ceiling firestop whenever
passing through a ceiling (or
enclosure and at every floor
penetration.
Combustible
Framing
Use a firestop when passing through a wall. Make
sure there is a 3" clearance above the vent.
3" Clearance
1" Clearance
Combustible
Surfaces
Horizontal Vent
Requirements
1" Clearance

Installation (for qualified installers only) 17
© Travis Industries 4040927 100-01158
Approved Vent Configurations
Restrictor Position
• A vent restrictor is built
into the appliance to
adjust the flow rate of
exhaust gases This
ensures proper
combustion for all vent
configurations
Depending upon the
vent configuration, you
may be required to
adjust the restrictor
position The charts for
acceptable vent
configurations detail the
correct vent restrictor
position
To Access the Restrictor:
Remove the face (with the stove
cool).
1
2
Determine the correct restrictor position (see the charts under "Approved
Vent Configurations" - the factory position is #1).
Lift up the adjustment plate and move it so the correct notch falls into the
slot on the adjustment bracket.
This restrictor is in position 1
(factory setting).
Adjustment Bracket
Adjustment
Plate
To adjust, lift the adjustment plate and
pull it forward
Restrictor Position
# 7
# 6
etc...
# 2
This restrictor is in position 6.
To Adjust the Restrictor:
Diffuser Plate
•Certain vent configurations require
the diffuser plate to be removed. It
is located in the firebox, behind a
baffle above the burner (remove the
firebox liner first - see page 52).
Refer to the charts for approved vent
configurations to determine if the
diffuser plate requires removal.
c
d
Remove the
baffle.
Remove the
diffuser plate.
Replace the screws for the diffuser
plate to seal the holes in the firebox.
Replace the baffle.
1/4" Nutdriver
AA
AA
AA
A
A
a
b

18 Installation ( or quali ied installers only)
© Travis Industries 4040927 1 - 1158

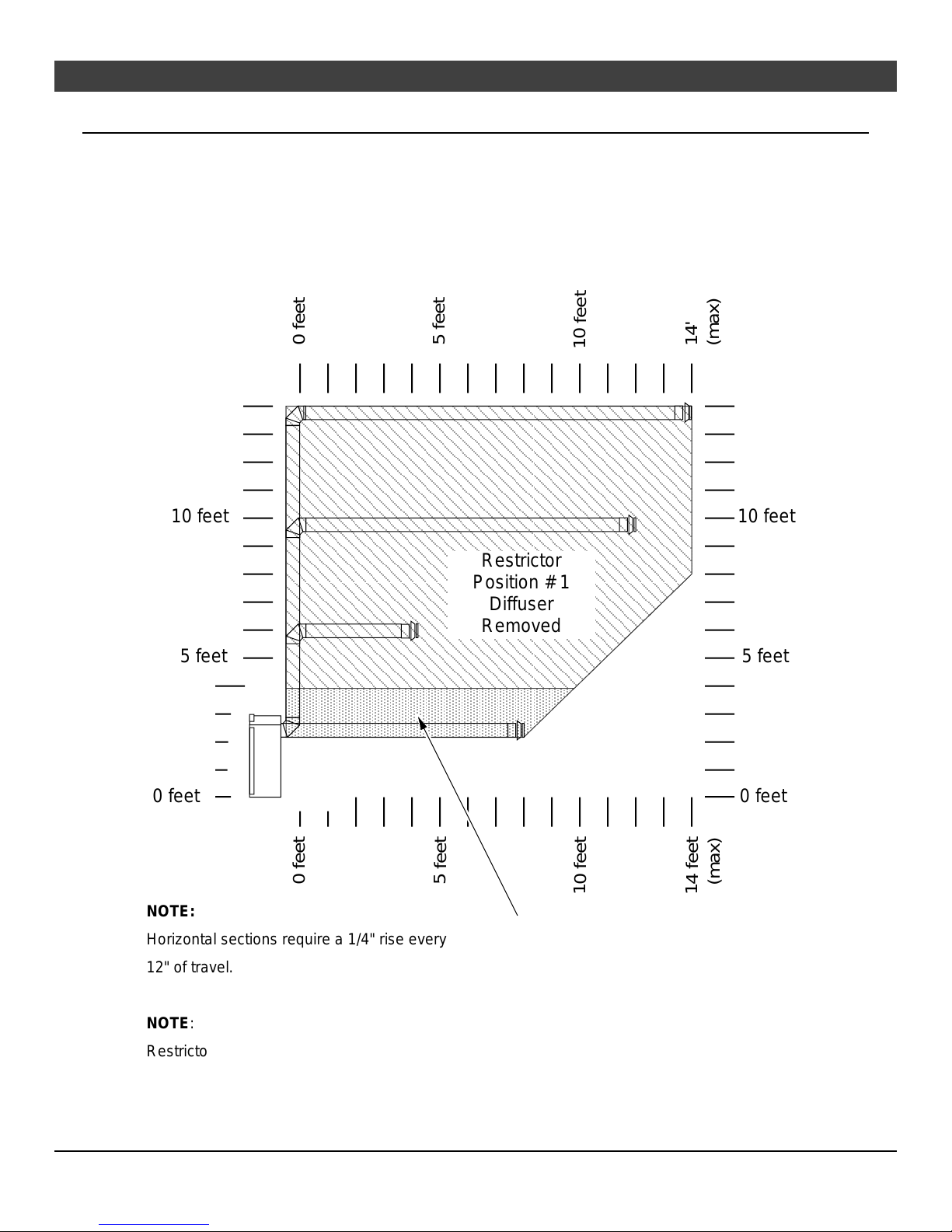

Vent Configurations ith Vertical Termination
• The diffuser must be removed.
• The termination must fall within the shaded area shown in the chart. Use the indicated restrictor
position.
• One 45° or 9 ° elbow may be used between horizontal sections (the maximum number of elbows is
three).
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AA
AA
AA
AA
AA
AA
AA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
AAAAAAAAAAAAA
5 feet
10 feet
15 feet
20 feet
25 feet
30 feet
0 feet
40' (max)
5 feet
10 feet
0 feet
5 feet
10 feet
14' (max)
15 feet
20 feet
25 feet
30 feet
0 feet
0 feet
NOTE:
Horizontal sections require a
1/4" rise every 12" of travel.
10 feet
40' (max)
14' (max)
NOTE:
Restrictor positions are
based upon lab tests.
The ideal restrictor
position may vary
slightly, especially when
the termination is near a
demarkation line.
5 feet
NOTE:
One 45°or 90°elbow may
be used between horizontal
sections. Horizontal length
is caculated by adding each
horizontal run together.
35 feet35 feet
Restrictor
Position # 1
Restrictor
Position # 6
Restrictor
Position # 7
6' (min) 6' (min)
NOTE:
Two 45°elbows
may be used.

Installation ( or quali ied installers only) 19
© Travis Industries 4040927 1 - 1158
Horizontal Termination - LP (Propane)
• The diffuser must be removed.
• or 2 9 ° Elbows may be used. See "Horizontal Termination with 45° Elbow" if installing into
a corner application.
• If using a Snorkel Termination (14” or 36”) add the snorkel height to the vertical height (snorkel
terminations are used primarily for basement installations).
• The termination must fall within the shaded area shown in the chart. Use the indicated
restrictor position.
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
AAAAAAAAAAA
5 feet
10 feet
0 feet
0 feet
5 feet
5 feet
0 feet
0 feet
10 feet
5 feet
10 feet
14'
(max)
10 feet
Restrictor
Position # 1
14 feet
(max)
NOTE:
Horizontal sections require a 1/4" rise
every 12" of travel.
14 feet
(max) 14 feet (max)
NOTE:
Restrictor positions are based upon lab tests.
The ideal restrictor position may vary slightly.

20 Installation ( or quali ied installers only)
© Travis Industries 4040927 1 - 1158
Horizontal Termination - NG (Natural Gas)
• or 2 9 ° Elbows may be used. See "Horizontal Termination with 45° Elbow" if installing into
a corner application.
• If using a Snorkel Termination (14” or 36”) add the snorkel height to the vertical height (snorkel
terminations are used primarily for basement installations).
• The termination must fall within the shaded area shown in the chart. Use the indicated
restrictor position.
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
AAAAAAAAAAAA
5 feet
10 feet
0 feet
0 feet 5 feet
5 feet
0 feet
0 feet
10 feet
5 feet
10 feet
14'
(max)
10 feet
Restrictor
Position # 1
Diffuser
Removed
14 feet
(max)
NOTE:
Horizontal sections require a 1/4" rise every
12" of travel.
NOTE:
Restrictor positions are based upon lab tests.
14 feet
(max) 14 feet (max)
Restrictor Position # 1
Diffuser Installed
