44 Elite Installation Manual
4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275
www.travi product .com
Wood-Burning
Zero-Clearance
Fireplace
© 2010, Travis Industries
$10.00 93508093
Te ted and Li ted by
OMNI-Te t Laboratorie , Inc.
Beaverton, Oregon
Report # 028-F-61-4
U.L. 127 & portion of 1482 & 907

2 Introduction
© Travi Indu trie 4090921 93508093
Overview
Thi manual detail the in tallation requirement for the 44 ELITE wood-burning fireplace. For
operating and maintenance in truction , refer to the 44 ELITE Owner' Manual (part # 93508094).
Listing Details
Thi appliance wa li ted by OMNI Te t Lab to U.L. 127 and portion of U.L. 1482 and 907 –
report number 028-F-61-4. The li ting label i attached to the ba e of the fireplace and can be
viewed by removing the faceplate ( ee Figure 1 below).
U.S. ENVIRONMENTAL PROTECTION AGENCY
Certified to comply with July, 1990 particulate emission standards.
This wood heater contains a catalytic combustor which needs periodic inspection and replacement for
proper operation. Consult the owner’s manual for further information. It is against the law to operate
this wood heater in a manner inconsistent with operating instructions in the owner’s manual or if the
catalytic element is deactivated or removed.
Do not use a fireplace insert or other products not specified for use with this product. This fireplace
has not been tested with an unvented gas log set. To reduce risk of fire or injury, do not install an
unvented gas log set into fireplace.
DO NOT REMOVE THIS LABEL
Fireplace Xtrordinair
LISTED FACTORY BUILT FIREPLACE MODEL NO. 44 ELITE
TESTED TO: UL-127 REPORT NO. 028-F-61-4
MANUFACTURE DATE:
2006 Jan. Apr. Jul. Oct.
2007 Feb. May Aug. Nov.
2008 Mar. Jun. Sep. Dec.
WARNING: • Operate with feed doors closed. Open to feed fire only. • For use with solid fuel only.
0316 (IGN)
SERIAL NO.
Manufactured by:
TRAVIS INDUSTRIES, INC.
4800 Harbour Pointe Blvd. SW
Mukilteo, WA 98275
Figure 1
IAS (IC O) Approval
Thi appliance wa li ted by OMNI Te t Lab – IAS (ICBO) # TL-130.
EPA Approval
Thi appliance ha been EPA Pha e 2 certified (2.5 gram per hour).
National Fireplace Institute

Table of Contents 3
© Travi Indu trie 4090921 93508093
Introduction
Overview.................................................................2
Li ting Detail ..........................................................2
Safety Precautions
In tallation Warning ................................................4
Operating Warning ..................................................4
Features and Specifications
In tallation Option ...................................................6
Heating Specification .............................................. 6
Dimen ion .............................................................6
Installation
Packing Li t.............................................................6
Item Shipped with the Faceplate ...............................6
Item Shipped with the Door( )...................................6
In tallation Overview ................................................. 7
Recommended Order of In tallation............................ 7
In tallation Requirement for Cold Environment ..........8
Negative Pre ure Warning .......................................9
Fireplace Placement Requirement .............................10
Minimum Framing Dimen ion ................................10
Framing Dimen ion at 45°....................................10
Fireplace Placement..............................................11
Clearance ...........................................................12
Rai ed Fireplace .................................................12
Cooling Vent Requirement .......................................13
Blower Requirement ................................................14
Blower Duct Routing ..............................................14
Blower Duct Connection .........................................15
Blower Electrical Connection ...................................15
Chimney Requirement .............................................16
Approved Chimney................................................16
Simp on Duravent Part Number (available through
Travi Ind.)...........................................................16
Chimney In tallation – Simp on Duravent (preferred) .16
Chimney In tallation – Non- Simp on Duravent.........17
Chimney Clearance to Combu tible ......................18
Chimney Height ....................................................19
Off et Requirement (30° Elbow ) ...........................20
Fire top .............................................................20
Chimney Termination Requirement .........................21
Facing Requirement ................................................22
Mantel Requirement ................................................ 24
Hearth Requirement ................................................25
Finalizing the Installation
Remove Set-Up Face............................................... 26
Prepare the Firebox.................................................. 27
In tall the Faceplate In ulation .................................. 28
Faceplate In tallation ............................................... 29
Switchplate In tallation and Blower Check .................... 30
Door In tallation ...................................................... 31
Door In tallation ...................................................31
Door Latch Adju tment..........................................31
Index
Index...................................................................... 32

4 Safety Precautions
© Travi Indu trie 4090921 93508093
Installation Warnings
• Read thi entire manual before in talling the fireplace.
• Failure to in tall thi fireplace in accordance with all local code and the requirement li ted in
thi manual may re ult in property damage, bodily injury, or even death.
• Notify your in urance company before in talling thi fireplace.
• The requirement li ted below are divided into ection . All requirement mu t be met
imultaneou ly. The order of in tallation i not rigid – the qualified in taller hould follow the
procedure be t uited for the in tallation.
• Modification of the fireplace (door , blower, air inlet y tem , damper control, or any other
component upplied by Travi Indu trie ) or u e of any component part not approved by Travi
Indu trie in combination with thi fireplace y tem will void the li ting and warranty.
• Thi fireplace i not approved for u e in a mobile home.
• Travis Industries, Inc. grants no warranty, implied or stated, for the installation or
maintenance of your heater, and assumes no responsibility of any consequential
damage(s).
Operating Warnings
• WARNING: FIREPLACE SHOULD BE OPERATED ONLY WITH DOORS FULLY OPEN OR
DOORS FULLY CLOSED. IF DOORS ARE LEFT PARTLY OPEN, GAS AND FLAME MAY BE
DRAWN OUT OF THE FIREPLACE OPENING, CREATING RISKS OF BOTH FIRE AND SMOKE.
• Creo ote – Formation and Need for Removal
When wood i burned lowly it produce tar and other organic vapor which combine with
expelled moi ture to form creo ote. The creo ote vapor conden e in the relatively cool
chimney flue of a low-burning fire. A a re ult, creo ote re idue accumulate on the flue
lining. When ignited thi creo ote make an extremely hot fire.
The chimney hall be in pected at lea t twice a year during the heating ea on to determine
when a creo ote buildup ha occurred.
When creo ote ha accumulated it hall be removed to reduce the ri k of a chimney fire.
• Never u e ga oline, ga oline-type lantern fuel, kero ene, charcoal lighter fluid, or imilar liquid
to tart or ‘fre hen up’ a fire in thi fireplace. Keep all uch liquid well away from the fireplace
while it i in u e.
• Di po al of A he
A he hould be placed in a metal container with a tight-fitting lid. The e clo ed container of
a he hould be placed on a noncombu tible floor or on the ground, well away from all
combu tible material , pending final di po al. If the a he are di po ed of by burial in oil or
otherwi e locally di per ed, they hould be retained in the clo ed container until all cinder
have thoroughly cooled.
• Do not u e a fireplace in ert or other product not pecified for u e with thi fireplace.
• Do not poke or tir the log while they are burning. U e only firelog that have been evaluated
for the application in fireplace and refer to firelog warning and caution marking on packaging
prior to u e. Do not u e firelog that contain anything other than wood.

Features and Specifications 5
© Travi Indu trie 4090921 93508093
Installation Options
• Re idential (not approved for HUD Mobile Home )
• Straight or Corner Placement
• Flu h or Rece ed Face
• Rai ed or Floor Placement
• Rai ed or Floor Hearth
• Internal or External Cha e
• 3 Blower Duct Location
• 2 Electrical Connection Location
Heating Specifications
Approximate Heating Capacity (in quare feet)*............. Up to 3,000
Maximum Burning Time ................................................ Up to 12 Hour
BTU Output per Hour (Cord Wood Method ..................... 10,700 to 76,700
* Heating capacity will vary with floor plan, in ulation, and out ide temperature.
Dimensions
8' Blower Lead
8' Electrical
Input Lead
6-1/2"
46"
26-1/8"*
49"*
24"
31-1/2"
* Includes the
1/2" stand-offs
44"
The set-up face shipped on the
fireplace is 44-1/8" wide and
31-9/16" tall (dimensions
shown are for the finished face)
Cooling vents
have an external
diameter of 7"
Weight: 680 Lbs.
1-1/2" Wide Nail
Down Flange
3-7/8"
11-5/8"*
1/2"
Stand-offs
1"
26-5/8"*
4-1/2"*
24-1/2"*
See "Chimney
Requirements"
6" Blower hook-ups are on both sides and on the bottom
(centered 7" from the rear edge). Remove the cover plate
to access the blower hook-up.
Optional Electrical
Conduit Exit Location
5"*
8-1/8"*
3-1/4"
Center
Line
Figure 2

6 Installation (for qualified installers only)
© Travis Industries 4090921 93508093
Packing List
• Grate
• Baffle
• Blower Assembly
• Ember Stri
• Log Retainer (includes hex wrench & instructions)
• Flex Duct w/ start collar – 3' Length, 6" Diameter (For Blower)
• Two 10' Flex Ducts, 7" Diameter (For Cooling Vents)
• Two Vent Hoods (For Cooling Vents)
• Two Vent Hood Storm Collars (For Cooling Vents)
• Face late Gasket
Items Shipped with the Faceplate
• Face late (two switch late screws are attached)
• Switch Plate (includes blower rheostat)
• 10 Face late Screws
Items Shipped with the Door(s)
• Owner's Manual
• Installation Hardware Pack
• Pair of Gloves
• Efficiency and Registration Cards
• Touch-u Paint

Installation (for qualified installers only) 7
© Travis Industries 4090921 93508093
Installation Overview
• All requirements below must be met.
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AAA

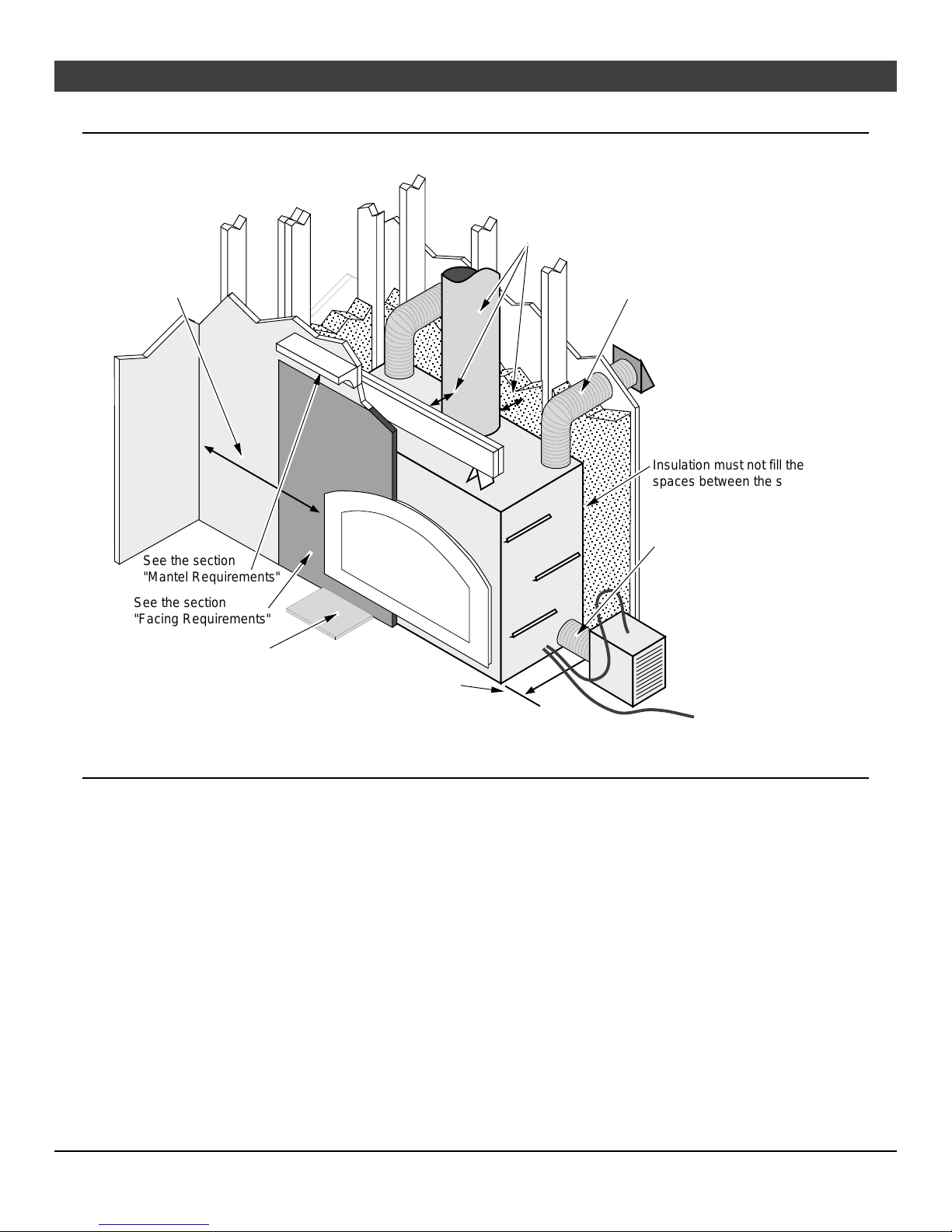

See the section
"Facing Requirements"
See the section
"Mantel Requirements"
Insulation must not fill the
spaces between the stand-offs
See the section
"Minimum
Clearances"
See the section
"Chimney Requirements"
See the section
"Hearth Requirements"
See the section
"Blower Requirements"
See the section
"Cooling Vent Requirements"
See the section
"Minimum Framing
Dimensions"
18" Min.
Figure 3
Recommended Order of Installation
• Frame the o ening for the fire lace. Make sure to allow for vent, blower, and cooling vent
installation.
• Secure the fire lace to the floor.
• Install the vent, blower, cooling vents, and electrical hook-u .
• Com lete the framing above the fire lace.
• Install the hearth.
• Install the facing.
• Install the mantel.
• Finalize the installation (see the instructions starting on age 26).

8 Installation (for qualified installers only)
© Travis Industries 4090921 93508093
Installation Req irements for Cold Environments
If you live in the area depicted in black (see Figure 4),
you must Install a cooling air “P” trap as detailed below
and install the blower on an internal wall. In addition,
make sure the homeowner follows the requirements
shown below to help minimize cold air being pulled into
the fireplace when it is not in use.
Figure 4
Install the Blo er in an Internal Location
In cold environments the blower must be positioned
on an internal wall (see Figure 5). This eliminates
any chance of any outside air being drawn into the
convection chamber from the blower location.
NOTE: Do not place the blower inside a garage or
other area that may circulate fumes.
AAAAAAAAAAAAAAAAAA
AA
A
A
A
A
A
AAAAAAAAAAAAAAAAAA
AAAAA
AA
AA
AA
AA
AA
Fireplace
Interior of Home
Internal Blower
Exterior Wall
Exterior
Figure 5
Cooling Air “P” Trap
When installing the cold air ducts, make
sure to include a “P” tra in the design
(see the illustration to the right). This
hel s slow cold air from circulating
through the cooling air chamber.
Daily Requirements for Homeo ners
Humidity
AAAAAAAAAA
AAAAAAAAAA
Min. 24"
Max. 48"
Fireplace
Xtrordinair
Min. 24"
Max. 48"
Figure 6
Make sure the humidistat is set correctly. The chart below details the correct setting for the
tem erature you are ex eriencing outdoors.
Outdoor Tem erature
°F°C
Recommended Humidity
Controller Setting
-20 -29 15
-10 -23 20
0 -18 25
+10 -12 30
+20 -7 35
>+20 >-7 40
Note: If using a humidifier, let the homeowner know that it should be shut off or turned to a lower setting
to eliminate condensation.
Other Items
• Make sure the bypass is shut when the fireplace is not in use.
• Minimize the use of exhaust fans in the home when the fireplace is not in use.

Installation (for qualified installers only) 9
© Travis Industries 4090921 93508093
Negative Press re Warning
The Fireplace Xtrordinair wood fireplace relies upon natural convection to supply cooling air to the
fireplace. If installed into a house experiencing negative pressure, air may be pulled into the fireplace.
This leads to the face becoming cold while the fireplace is not in use, and in severe cases, air being pulled
into the room.
What Causes Negative Pressure
Today’s air-tight homes are not 100% air tight. If air leaks are found at the top of the home enclosure, air
may be pulled through the home due to convection (the warmer air moves upwards, leaving the home,
causing air to be pulled into the home from different location). See Figure 7 below.
Heated air, leaving the house in cracks
near the ceiling contribute to negative
pressure.
AA
AA
Driers or range fans
contribute to negative
pressure.
Cracks near doors or
windows can contribute to
negative pressure.
Air can be pulled down the
chimney, into the firebox.
The cooling air* can be heated by the
house, causing syphoning. This pulls
cool air through the cooling channel,
leading to fireplace cooling.
*Cooling air is required by the fireplace
to prevent overheating.
Negative pressure can cause air
to be pulled through the blower,
through the duct, through the
fireplace convection channel and
into the house.
Recessed lighting in ceilings may allow air to infiltrate
into the attic, leading to negative pressure.
Figure 7
Ho to Measure Negative Pressure
Digital pascal meters (also called “pressure meters”, digital “manometers”) can measure negative pressure
readings inside a home. They typically cost around $600. They measure pascals (1 pascal is equal to
.004”Water Column). Typical homes have 0 to -1 pascals. Homes with negative pressure have -2 or more
(we have measured homes with upwards of -8 pascals). We strongly recommend measuring the pressure
in homes suspected of encountering negative pressure. This allows the homeowner, and fireplace
installer, to view an objective measurement.
Ho to Remedy Negative Pressure
The only proven method to reduce negative pressure is to install an “air exchanger”. This device allows
outside air to enter the home after going through a “heat exchanger”to minimize cold infiltration.

10 Installation (for qualified installers only)
© Travis Industries 4090921 93508093
Fireplace Placement Req irements
Minimum Framing Dimensions
We recommend installing the
shaded framing members
after installing the chimney.
Arrange the framing
members so there is not a
vertical member directly in
the center of the opening
where it would interfere with
pipe clearances.
26"
Header
(install veritcally to
ensure proper pipe to
header clearance)
A firestop is required at the top of
the fireplace enclosure or ceiling
level (whichever is lower).
Min. 4-1/2"
NOTE: make sure the
enclosure is wide enough to
accommodate the blower
(see the section"Blower" for
details).
The fireplace enclosure must not be
less than 81" above the base of the
fireplace.
•If the fireplace is raised, the
enclosure height must be raised to
maintain the 81".
•Do not build into this area.
•Do not slope the walls inward.
50"
50-1/2"
Figure 8
Framing Dimensions at 45°
AAA
AAA
AAA
AAA
AAA
AAA
A
A
A
A
A
A
A
A
A
A
AAAAAAAAAA
27"
72" 49"
26"
Fireplace
(includes
1/2"
standoffs)
25" 25"
Figure 9

Installation (for qualified installers only) 11
© Travis Industries 4090921 93508093
Fireplace Placement
• The fire lace must be secured to the floor (use the lifting handle brackets - see Figure 10).
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AA
AAA
AAA
AAA
AAA
AAA
AAA
AAA
AA
AA
AA
AA
AA
AA

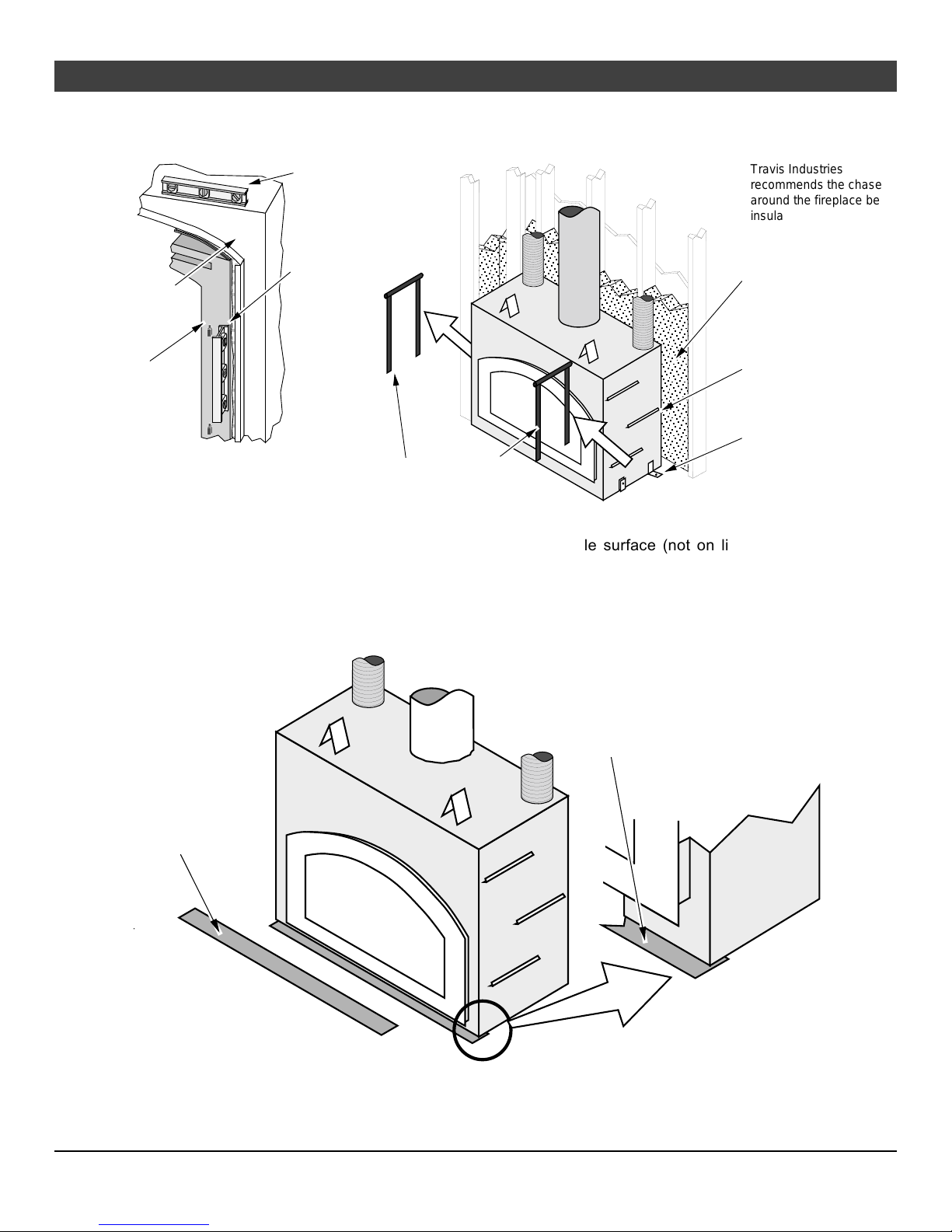

Travis Industries
recommends the chase
around the fireplace be
insulated. This insulation
should only be placed
between the framing
members and secured so
it does not fill the space
between the fireplace and
standoffs.
Bend this bracket down
on each side and nail it
to the floor, securing the
fireplace in position.
Lifting handles are available
separately (98500711). They
attach to the nail down brackets.
Standoffs (also
located on back)
The fireplace (and
firebox) must be made
level and plumb during
installation. Use shims
under the fireplace to
properly level the
fireplace.
Zero
Clearance
Can
Firebox
WARNING:
Failure to correctly level and plumb
this fireplace will lead to doors that
swing open or closed.
AAA
AAA
AAA
AAA
AAA
AAA
AAA
Figure 10
• Fire lace must be laced directly on wood or non-combustible surface (not on linoleum or
car et)
• Fire lace must be installed on a level surface ca able of su orting the fire lace and chimney
• Place the ember stri included with the fire lace below the front edge of the fire lace (see
Figure 11).
Place this ember
strip under the front
of the fireplace and
the back edge of the
hearth.
NOTE: On the 36 Elite,
the ember strip will
need to be shortened.
The ember strip
insures no ember falls
between the fireplace
and hearth onto the
combustible floor.
EMBER STRIP
INSTRUCTIONS
Figure 11

12 Installation (for qualified installers only)
© Travis Industries 4090921 93508093
Clearances
• The fire lace uses 1/2" standoffs on the back and sides and 4" stand-offs on the to to s ace
the fire lace away from framing members or walls. These stand-offs may contact the framing
members or walls but do not lace insulation or other material in the s ace between the stand-
offs and fire lace.
• When installed, walls in front of the fire lace must be a minimum 18" to the side of the
face late (15-1/2” from the side of the fire lace). See Figure 3 on age 7.
• Fire lace should be located such that no doors, dra es, furniture or other combustibles can be
laced close or swing closer than the minimum 36" clearance. Due to the high heat out ut of
this fire lace, choose a location away from high traffic areas.
• Fire lace must be laced so the vents below and above the glass do not become blocked.
Raised Fireplaces
• If the fire lace is raised, the fire lace enclosure must be raised as well (minimum 81” enclosure
height from base of fire lace see Figure 8).
• The fire lace (and hearth, if desired) may be laced on a latform designed to su ort the
fire lace and vent (a roximately 600 lbs.). See Figure 12.
AAAAAAA
AAAAAAA
AA
AA
AA
AAAAAAAAA
A
A
A
A
A
AAAAAAAAA
AAAAAAAAA
AA
AA
AA
AA
Minimum 1" cement board
Fireplace
Ember
Strip
2 x 4 Framing
No combustible material
permitted above this point
15"
Raised
hearth 3/4"
Plywood
AAAAAAAAA
A
A
A
A
Fireplace
2 x 8 Framing
Faceplate
Ember
Strip
15"
Raised
hearth
Elevated hearths must be
constructed of non-combustible
materials such as cement blocks
(6-1/2”Max.).
Header height needs to be
increased this dimension.
Header height will
need to be increased
this dimension.
Tile or
marble
3/4"
Plywood
Tile or
marble
Figure 12

Installation (for qualified installers only) 13
© Travis Industries 4090921 93508093
Cooling Vent Req irements
WARNING: The cooling vents provide cooling air for the fireplace and chimney system. Failure
to correctly install the cooling vents ill lead to an extremely dangerous installation and
possibly a fire.
• The two cooling vents must be installed so as to route air from the outside to the two starter
collars on the to rear corners of the fire lace. Secure the vents to the collars using high-
tem erature aluminum ta e and/or sheet metal screws.
• A maximum of two 90° bends may be used on each vent. However, if a 180° bend is laced
directly above the starter collar, one additional 90° bend may be used (see Figure 13).
• The maximum distance for the cooling ducts is listed below:
When the vertical rise is between: The maximum horizontal run may be:
6' and 10' (max) 5'
3' and 6' 15'
1' and 3' 20'
0' and 1' 25'
• Included with the fire lace are two 10' lengths of vent, use a connector and seal if adding more
length
• The duct terminations must be located so they can not be blocked (e.g. snow drifts)
• Included with the
fire lace is a set of
storm collars and vent
hoods. Place the
collars around the vent
on the exterior and
attach with screws or
caulking to seal the
wall from the vent
enetration. Place the
hood, with o en
ortion facing down,
over the cooling vents
and secure.
• The cooling air duct
terminations may be
installed to draw air
from a ventilated crawl
s ace or attic if
a roved by local
building codes. NOTE:
certain codes require a
fire curtain dam er in
these cases.
AAAAAAAAAA
Fireplace
Xtrordinair
Vertical
Rise
Vertical
Rise
Horizontal
Run
Horizontal
Run
Horizontal
Run
Horizontal
Run
Vertical
Rise
Vertical
Rise
Cooling vent
terminations must
terminate a
minimum of 10'
away from the
chimney
termination.
Crawl Space –
See information to the left on
crawl spaces or attics.

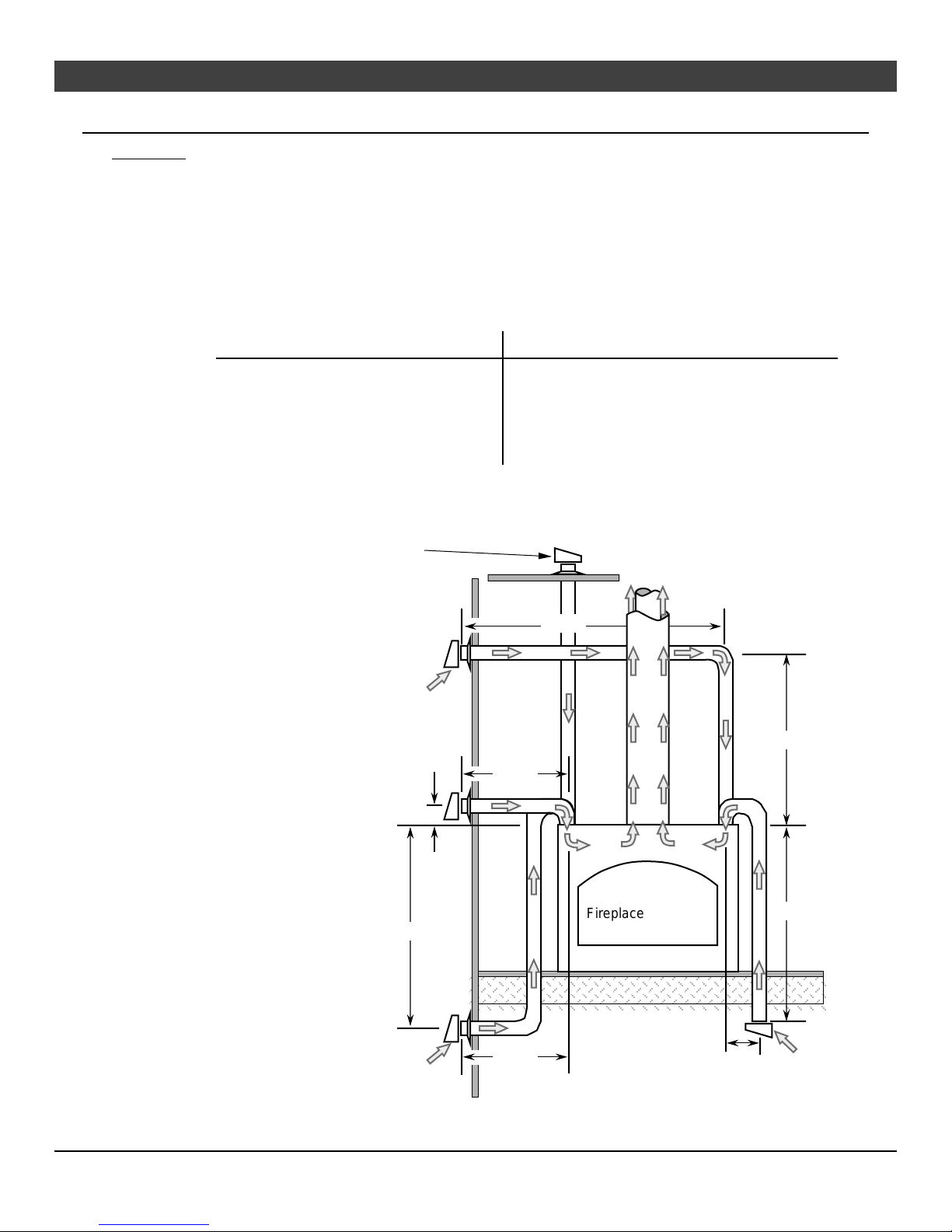

Cooling
Air
Air exits out of the outer
liner of the chimney.
Cooling
Air
Cooling
Air
Figure 13

14 Installation (for qualified installers only)
© Travis Industries 4090921 93508093
Blower Req irements
The required blower ushes air through blower duct to the fire lace, where it is heated and
distributed into the room.
Blo er Duct Routing
• The blower may be located to draw air from the interior or exterior of the home (see Figure 14).
NOTE: For cold environments, it must be located on the interior (see age 8).
AAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAAAAAAAAAAAAAAA
AAAA
AAAA
AAAAAAAAAAA
A
A
A
A
A
AAAA
A
A
A
A
A
AAAA
Exterior
Fireplace
Interior of Home
Exterior Wall
External Blower
Internal Blower
AAAAAAAAAAAAAAAAA
AA
A
A
A
A
A
AAAAAAAAAAAAAAAAA
AAAA
A
A
A
A
A
Exterior
Fireplace
Interior of Home
Exterior Wall
Figure 14
• The maximum length for 6" diameter blower duct is 15' (use the included duct & start collar).
• The maximum length for 8" diameter blower duct is 25' (use two 6" to 8" ada ters).
NOTE: The shorter the blower duct, the greater
the air flow.
• A maximum of two 90° bends may be used.
• The blower, if located on an external wall,
must be weather roofed (see Figure 15).
Remove the blower cover and install the
blower. A ly caulk around the erimeter of
the blower housing where it contacts the
external wall and va or barrier (a ly
s aringly). Re lace the blower cover.
AAAA
AAAA
Blower
Housing
Blower
Cover
Caulk around all
four sides of the
blower housing
External Wall (&
vapor barrier)
Figure 15
• The blower may be installed to draw air from
a crawl s ace or attic if a roved by local
building codes (see Figure 16). NOTE:
certain codes require a fire curtain in these
cases.
• Do not draw air from confined areas or from
a garage or area containing fumes or
emissions. The blower inlet must be a
minimum 36" below any exhaust vent.
The blower may be placed
in a ventilated crawl space
(if approved by the local
building department).
AAAAAAAAAA
AAAAAAAAAA
Figure 16

Installation (for qualified installers only) 15
© Travis Industries 4090921 93508093
Blower Duct Connection
•Connect the blower duct to the right, left, or bottom of the fireplace. See Figure 17 for an overview.
- Using the Right or Left Side Blower Duct Connection
Remove the side cover plate. Insert the starter section into the blower hook-up hole and bend the locking
tabs outwards, locking the starter section in place (see Figure 17).
- Using the Bottom Blower Duct Connection
Remove the cover plate and pass-through plate on the bottom of the fireplace (both are held in place with
the same 4 screws). Remove the 8-1/2" by 6-1/4" air deflector (flapper) above the cover plate and secure
the starter section to the 6” diameter hole above the air deflector (bend the locking tabs outwards, locking
the starter section in place - see Figure 17). Replace the pass-through plate with the 4 screws removed
earlier (the pass-through plate has a 6-1/2” diameter hole for the duct).
Blower
Housing
Intake grill
must be
accessible.
Snap conduit
connector into the
hole in the top of
the blower housing.
Start Collar
Power Source
(120 Volt A.C.)
13"
6"
11-3/8"
1-1/2”
TOP
VIEW
Ring for
duct
Hole for
Conduit
FRAMING
DIMENSIONS:
Height: 13"
Width: 11-3/8"
Depth: 11-1/2”
6" Blower
Hook-Up
Locking Tabs
Conduit Cover Plate
(On both sides)
Fireplace
Xtrordinair
11 1/2"
Flex Duct
Min. 4"
Wire
Plugs
Figure 17
•Use duct tape and/or screws to attach the flex duct to the starter collar and blower box.
•The blower utilizes a filter that requires periodic cleaning (see Figure 18). Show the homeowner the blower
location and inform them of the need to clean periodically.
Remove the four
screws that go into
these holes.
Shake the filter to remove any
dirt that may have accumulated.
Intake Grill
Blower
Housing
Filter Screen Filter












1/4" Nutdriver
Figure 18
Blower Electrical Connection
•Connect the electrical supply lead conduit to a 120 Volt, 60 Hz (2 Amp) electrical supply. Use a junction box to
protect the electrical connection (see Figure 17).
•Connect the blower conduit to the blower box by attaching the two molex connectors together. Insert the molex
connectors into the blower box. Then attach the conduit to the blower box by inserting it into the top until it snaps
in place (see Figure 17).
•Do not run either conduit over the top of the fireplace or within 2" of the chimney
•If the blower or power supply is located to the left, the electrical conduit(s) may be directed to the left side of the
fireplace. To do this, remove the conduit cover plate on both sides of the fireplace. Feed the conduit(s) through
the hole on the right side and out the left side (removing the cover allows the conduit to be fed through without
kinking). Switch the cover plates by attaching the right cover plate to the left side and vice-versa.

16 Installation (for qualified installers only)
© Travis Industries 4090921 93508093
Chimney Req irements
Approved Chimney
• Use one of the following brands and series of chimney:
- Sim son Duravent 8” x 12” (preferred – sold through Travis Ind. – see art numbers below)
- Temco 82 - Firecraft FTF8 (Su erior TF8) - FMI 8DM - Marco 8D
• The entire chimney system must be installed to meet all local requiments as well as those
requirements listed by the chimney manufacturer. De ending on the manufacturer and where
the chimney is to be installed, chimney su orts, roof braces, radiation shields, attic insulation
shields, attic enclosures, s ark arrestors, locking bands, etc... may be required as art of the
chimney system. The manufacturer's installation instructions, which are reviewed by the listing
agency, s ecifies when and where each of these com onents must be used. Follow the
manufacturer's instructions for the use of flashing and an adjustable storm collar at the roof line
to revent water from entering the house. Manufacturers require that chimneys extending
beyond a certain height above the roof (frequently above 5') must be braced.
Simpson Duravent Part Numbers (available through Travis Ind.)
Chimney Com onents Part #
Starter Collar (REQUIRED) 98900013
48” Chimney Section 98900001
36" Chimney Section 98900002
24" Chimney Section 98900003
18" Chimney Section 98900004
12" Chimney Section 98900005
30° Offsets / Elbows (Qty 2) 98900006
Firesto (90°) 98900007
Firesto (30° - for angled sections) 98900008
Storm Collar 98900009
Round Termination Ca 98900010
Flashing 0-6/12 (for flat roofs u to 6/12 itch - 26.5°) 98900011
Flashing 7-12/12 (for roofs 6/12 itch to 12/12 – 26.5° to 45°) 98900012
Chimney Installation – Simpson Duravent (preferred)
• Sim son Duravent chimney requires a starter collar. Attach the starter collar to the to of the
fire lace with four sheet-metal screws (see Figure 19). If the inner i e is too tight, use a
crim ing tool to adjust i e diameter (see Figure 20). Seal the outer sections of i e with high-
tem erature silicone.
NOTE: If the inner liner is too tight, use a
crimping tool to reduce the diameter.
Simpson Duravent Starter Collar
SKU 98900013 (required)
High-Temperature
Silicone
U
se high-temperature silicone to
s
eal the liner opening.
Figure 19
Figure 20

Installation (for qualified installers only) 17
© Travis Industries 4090921 93508093

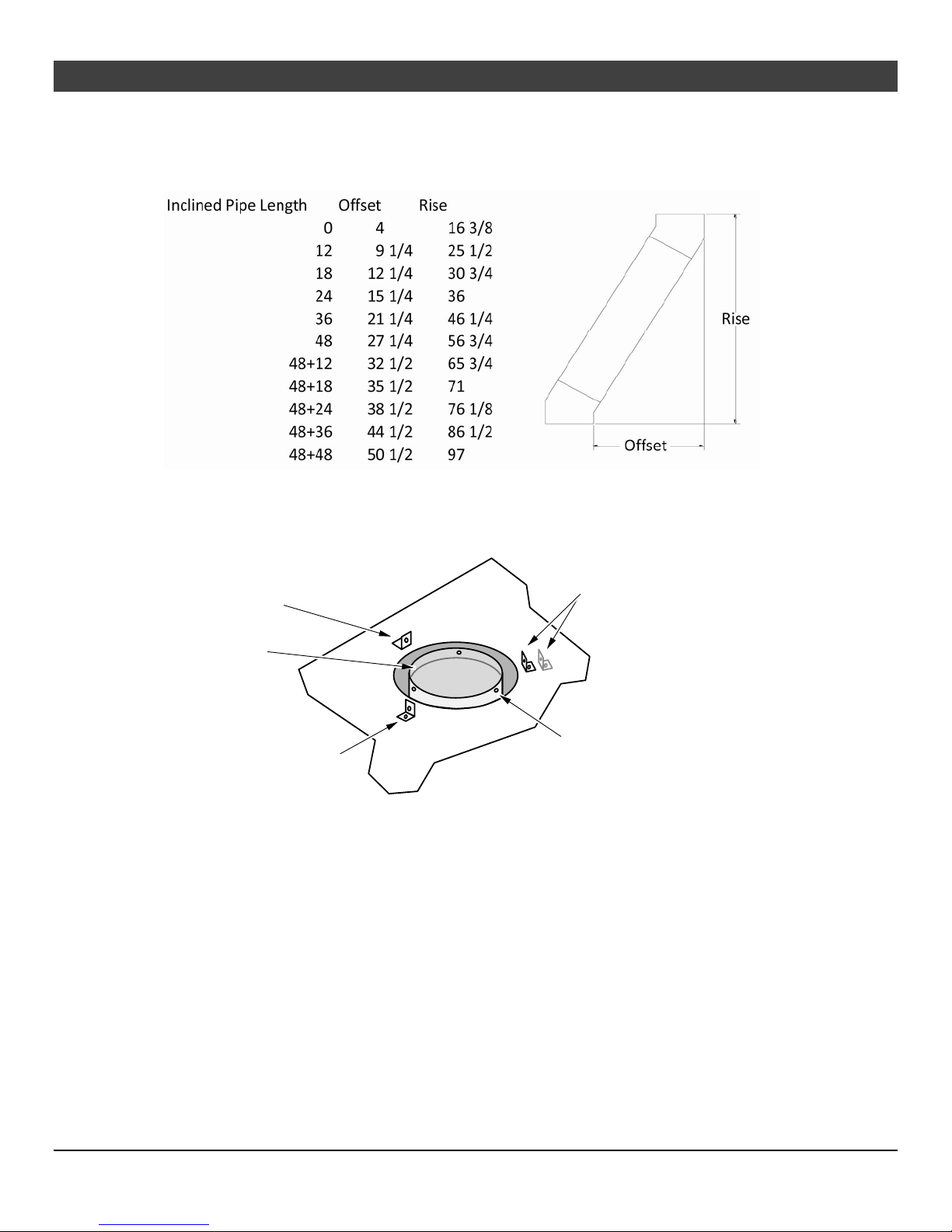

Chimney Offset Chart (Simpson Duravent)
•Use the chart below to determine offset dimensions (measured in inches).
Chimney Installation – Non- Simpson Duravent
•Secure the inner and outer chimney liner to the fireplace (see Figure 21).
Outer Pipe Brackets
Use sheet metal screws to attach
the brackets to the fireplace and
chimney liner.
Inner Liner
(ledge along inside accepts
various chimney pipe sizes)
The three brackets secure the outer
chimney liner to the top of the fireplace.
Position the brackets to the appropriate
position before securing.
Connect the inner chimney liner to
fireplace flue with three sheet metal
screws.
Figure 21
•When attaching the chimney to the fireplace, first slide down the inner liner of the chimney pipe into
the inner liner of the fireplace. Certain brands of chimney pipe will stop at the ledge, while others will
insert beyond the ledge. When the chimney pipe is fully seated and aligned, secure the fireplace to
the chimney pipe with three sheet metal screws. Install the outer chimney liner. Once it is properly
aligned, secure using three sheet metal screws. Seal the outer chimney liner with high-temperature
silicone.

18 Installation (for qualified installers only)
© Travis Industries 4090921 93508093
Chimney Clearances to Combustibles
WARNING: Follow the clearances listed below - do not follow the clearances listed in the
chimney instructions
• Maintain a 2" clearance from the chimney to combustibles (measured horizontally). See
Figure 22.
• Use offsets, if necessary, to maintain clearances
• In the area above the fire lace before the chimney enetrates the ceiling (use a firesto ), the
chimney must maintain the clearances listed below:
-- 5" to the rear of the chimney
-- 4-1/2" to the front of the chimney
Min. Clearance 2" (from this
point upwards)
Min. 4-1/2" clearance
to the front.
Min. 2" clearance to
the sides with offsets
Min. 5" clearance
to the rear.
Firestop
The fireplace enclosure must not be
less than 81" above the base of the
fireplace.
•If the fireplace is raised, the
enclosure height must be raised to
maintain the 81".
•Do not build into this area.
•Do not slope the walls inward.
Figure 22

Installation (for qualified installers only) 19
© Travis Industries 4090921 93508093

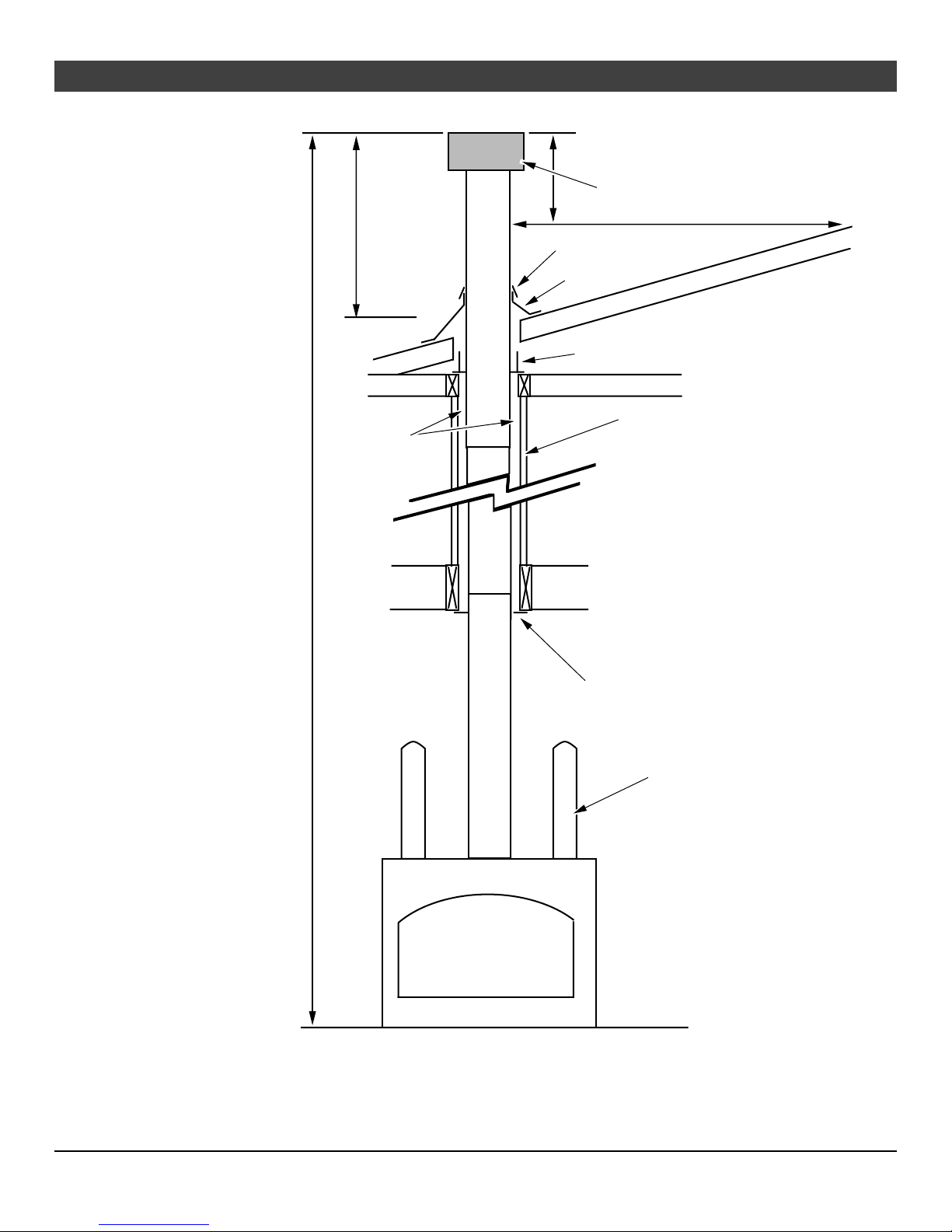

Chimney Height
• Minimum 15'
system height
(measured from the
base of the
fire lace)
• Maximum 35'
system height
(measured from the
base of the
fire lace)
NOTE: In some
roblematic situations,
additional chimney
height above the
s ecified minimum
may be necessary to
reduce wind-induced
down drafting and back
uffing, or to increase
draft, thereby im roving
fire lace o erating
characteristics.
Chimney must be totally
enclosed when passing
through living space with a
minimum 2" clearance to
combustibles.
3' Min.
2' Min.
10'
System Height
35' Max.
15' Min.
2" Min. Air
Space to
Combustibles
Rain Cap
Storm Collar
Flashing
Firestop Between Floor Levels
Attic Firestop (with insulation shield)
Cooling
Vent
Figure 23

20 Installation (for qualified installers only)
© Travis Industries 4090921 93508093
Offset Requirements (30° Elbo s)
• Offsets (using a air of 30° elbows) may be used to
redirect the chimney. Ty ically this is done to avoid
structures, align the i e with framing, or to gain
clearance to combustibles (see Figure 25).
• A maximum four 30° elbows may be used.
• Each elbow must be used in conjunction with a
return elbow (so the chimney returns to a vertical
direction)
• If using a single offset (two 30° elbows) a maximum
of 8' of inclined chimney may be used between
elbows.
• If using two offsets (four 30° elbows) a maximum of 4'
of inclined chimney may be used between each set
of elbows.
• For every 6' of inclined chimney a flue su ort is
required
• Elbows may be used directly off the to of the
fire lace (maintain a 5" clearance to combustibles
on the back wall, 4 1/2" minimum on the front wall
and header, and 2" minimum to the side walls)
Firestops
WARNING: Many firesto s are designed for a 1"
clearance, this fire lace requires a 2"
clearance.
• Whenever the chimney enetrates a floor or ceiling
a firesto is required on the bottom side of the floor
joists (see Figure 24).
• When assing through an attic the firesto must be
laced on the attic side of the joists
• When the chimney asses through a living s ace it
must be totally enclosed (maintain the minimum 2"
clearance to combustibles)
• The s ace between frames that hold the firesto in
lace should be measured as follows:
-- Sim son Duravent – 16”
-- Temco 16"
-- Firecraft 16 1/2"
-- FMI 16 1/2"
-- Marco 16 1/2"
Space
between
frames Firestop
AAA
AAA
Figure 24
Max. of 30
degrees
4' Max.
Chimney must be totally
enclosed when passing
through living space with a
minimum 2" clearance to
combustibles.
Firestop
Firestop
2"
Min.
Cooling Vents
Figure
