FireplaceXtrordinair 36A-ZC User manual

1
TABLE OF CONTENTS Page
IMPORTANT INFORMATION
FEATURES AND SPECIFICATIONS..........................................................................................2
PREPARATION FOR ZERO CLEARANCE INSTALLATION....................................................3
ZERO CLEARANCE INSTALLATION
ZERO CLEARANCE INSTALLATION - SPECIFICATIONS.....................................................4
Fireplace Placement ................................................................................................................6
Chase Framing..........................................................................................................................9
Facing .........................................................................................................................................10
Hearth .........................................................................................................................................12
Cooling Vents............................................................................................................................13
Blower.........................................................................................................................................14
Factory-Built Chimney..............................................................................................................17
ZERO CLEARANCE INSTALLATION..........................................................................................24
Chase Installation.....................................................................................................................24
Factory-Built Chimney Installation.........................................................................................24
Fireplace Installation................................................................................................................24
Cooling Vent Installation .........................................................................................................24
Blower Installation ....................................................................................................................24
Facing and Hearth Installation ...............................................................................................25
ADDITIONAL INFORMATION
DETAILING THE FIREPLACE.......................................................................................................27
Acid Wash And The Fireplace Xtrordinair............................................................................27
Installing the Faceplate and Doors........................................................................................28
Door Latch Adjustment ............................................................................................................30
Installing the Baffle ...................................................................................................................31
INSTALLING A NATURAL GAS LINE.........................................................................................32
SAFETY LABEL ..............................................................................................................................33

2
FEATURES AND SPECIFICATIONS
¥ EPA Phase II approved.
¥ Heavy duty steel construction.
¥ Large firebox capacity - 3 cu. ft.
¥ Long burn time - 10 Hours.
¥ Large glass doors for maximum
visibility.
¥ Firebrick lining for firebox
protection.
¥ 388 CFM blower for convection
heat and outside combustion air.
¥ Thermostat for automatic control of
the blower.
¥ Gas line sleeve through the left
side of the firebox for easy
installation of gas log lighter or
gas log set.
¥ 8' leads for the power source and
the blower. (110 Volts A.C.)
¥ Set-up face that is on fireplace
during installation to prevent
damage to the decorative
faceplate. It is also slightly larger
than the decorative faceplate to
provide for heat expansion.
¥ 3 blower duct locations for a wide
selection of blower installation
options.
Heating Capacity ............................................................................up to 2500 sq. ft. maximum
Overall Efficiency ............................................................................73 % (DEQ Method)
Emissions grams/hr........................................................................4.1 (EPA Method)
Maximum Burning Time.................................................................10 Hours
Flue Opening Diameter ................................................................8 in.
Overall Width (Not Including Flange)..........................................42 in.
Overall Depth...................................................................................27 in.
Fuel....................................................................................................Solid Wood or Natural Gas
BTU Output/hr..................................................................................10,300 to 54,700
Emissions, Efficiency, Heating Capacity and Burn Times may vary depending
on actual home floor plan, type of fuel used, and moisture content. Emissions
and efficiency numbers are those that have been certified by the U.S. E.P.A.
and the Oregon Department of Environmental Quality.

3
PREPARATION FOR ZERO CLEARANCE INSTALLATION
READ THIS ENTIRE MANUAL BEFORE INSTALLING THE NEW FIREPLACE. FAILURE TO
FOLLOW INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY, OR
EVEN DEATH.
PACKING LIST:
Your Fireplace Xtrordinair 36A-ZC is packaged with the following items included:
¥ 36A-ZC Fireplace
¥ Side Firebrick
¥ Grate
¥ Blower Assembly
¥ Flex Duct Ð 3' Length, 6" Diameter (For Blower System)
¥ Start Collar (For Blower System)
¥ Two (2) 12' Flex Ducts, 6" Diameter (For Cooling Vents)
¥ Two (2) Vent Hoods (For Cooling Vents)
¥ Two (2) Vent Hood Storm Collars (For Cooling Vents)
PREPARATION:
1. Remove all tape and packaging.
2. Remove the wood shipping frame from around and under the fireplace.
3. Check that no parts have become loose and the fireplace has not been damaged during
shipping.
4. Remove the hardware pack from the fireplace.
5. READ THIS INSTALLATION MANUAL BEFORE PROCEEDING.
¥ Fireplace should be located such that no doors, drapes, furniture or other
combustibles can be placed close or swing closer than the minimum 36"
clearance.
¥ The fireplace must be installed in a level, secure position.
REQUIRED HEARTH:
The hearth must have a minimum size of 52" width by 20" depth of non-combustible material.
Certain other restrictions and exceptions apply. See the hearth section in the specifications
portion of the zero clearance installation instructions.
Chimney Height Maximum Minimum
Vertical 35 Feet 15 Feet
Before lifting the fireplace, consider removing some of the interior components to make it
lighter. Refer to the section "REPLACEMENT PARTS AND REMOVAL INSTRUCTIONS" in
the owner's manual for the proper sequence of removal and replacement of internal
components.

4
ZERO CLEARANCE INSTALLATION - SPECIFICATIONS
READ THIS ENTIRE MANUAL THROUGH BEFORE STARTING TO INSTALL A ZERO
CLEARANCE FIREPLACE. THERE ARE CERTAIN SPECIFICATIONS AND
MEASUREMENTS THAT MUST BE MET TO ENSURE A PROPER INSTALLATION.
FAILURE TO FOLLOW THESE SPECIFICATIONS MAY PRESENT A FIRE HAZARD.
¥ This fireplace system is safe when installed according to this installation manual. Unless
you use components which have been designed and tested for this fireplace system, you
may cause a fire hazard.
¥ The Fireplace Xtrordinair warranty will be voided by, and Travis Industries disclaims any
responsibility for, the following actions:
a) Modifications of the fireplace components: doors, blower, air inlet systems, damper
control, or any other component supplied by Travis Industries.
b ) Use of any component part not manufactured or approved by Travis Industries in
combination with this fireplace system.
IMPORTANT NOTE:
The specifications listed in this section are addressed in separate sections detailing each
portion of construction of a zero clearance fireplace (i.e. "Hearth", "Chase Framing", etc...). It
is very important to detail the building plans before starting to build. Certain portions of
construction, for example the facing, can affect other portions. Read through the entire list of
specifications before beginning to detail the building plans. Failure to totally understand this
type of construction may result in construction that will have to be torn down and re-built.
Travis Industries, Inc. recommends that the installer first read through the specifications and
installation instructions thoroughly. Then make a detailed floorplan that includes all
measurements of each portion of construction. After completing the detailed floorplan, go
through the detailed measurements and make sure they follow the items listed in the
specifications listed in this section.
Each portion of construction is listed in its own section that lists its specifications. Below is a
chart detailing each portion of construction along with a description that will help give a
complete picture of installing a zero clearance fireplace.
PORTION OF
CONSTRUCTION
DESCRIPTION
Fireplace Placement Outlines minimum clearances that the fireplace must have and how
to select an ideal location
Chase Framing Outlines minimum size for the chase that surrounds the fireplace
Facing Details the types of facing that can be used and how it affects the
other portions of construction
Hearth Outlines the minimum clearances and other considerations that
must be met when making the hearth
Cooling Vents Outlines the specifications for the zero clearance cooling vents
Blower Addresses the various options for installation of the fireplace blower
Factory-Built Chimney Outlines the types of factory-built chimneys that can be used and the
use of offsets to ensure proper minimum clearance
Ð SEE THE FOLLOWING PAGE FOR AN ILLUSTRATION Ð

5
ZERO CLEARANCE INSTALLATION - SPECIFICATIONS (Cont.)
Each of the following items listed in this illustration have important specifications that must be
followed.
Factory-Built
Chimney
Chase
Framing
Chase
Framing
Blower
Cooling
Vents
Cooling
Vents
Fa c i ng
Fireplace
Placement
He a r th

6
ZERO CLEARANCE INSTALLATION - SPECIFICATIONS (Cont.)
Fireplace Placement
To determine the most efficient location for the fireplace, consider such factors as room traffic,
location of doors and windows, and construction above and below the installation area. A
location that requires cutting the least number of joists or roof rafters will make the installation
easier and reduce the cost. This may mean moving only one or two inches from the selected
ideal location.
Dimensions:
41"
7"
6" I.D. Blower Duct Hook-Up Ð
Remove Cover Plate to Access
(On Both Sides & Bottom)
3"
41"
4"
1 1/2"
Flange
to Nail
Framing
42"
11"
12" O.D., 8" I.D.
4 1/2"
20 1/2"
6" Cooling Vents
Flange Located 1/2"
Back from the front
SPACER
1/2" Spacers On
Sides and Back
1"
26"
Spacers on back
extend 1/2"
6
1/2"
Conduit Cover Plate
(On both sides )
Electrical Conduit
Nail-Down Bracket
4 1/2"
1"
1"
Arched set-up face
Loosen these screws on each
side to remove the square
set-up face extensions.
Top square set-up face extension.
28"

7
ZERO CLEARANCE INSTALLATION - SPECIFICATIONS (Cont.)
Fireplace Placement (Continued)
Determining the exact placement of the fireplace is crucial for construction and safety
purposes. Such factors as facing material depth and chimney location factor in to the final
location of the fireplace.
The fireplace is shipped with a lifting handle attached to each side. These handles should be
used to lift the fireplace into its final position and then removed with a 7/16" wrench.
Nail-Down Bracket
The Fireplace Xtrordinair is equipped with a nail-down bracket located near the rear of the
unit on each side. The lifting handle that comes attached to the fireplace is attached in the
rear to the nail-down bracket. After removing the lifting handle, bend this bracket down 90
degrees so that is flush with the flooring and nail it in place once the location of the fireplace
is determined.

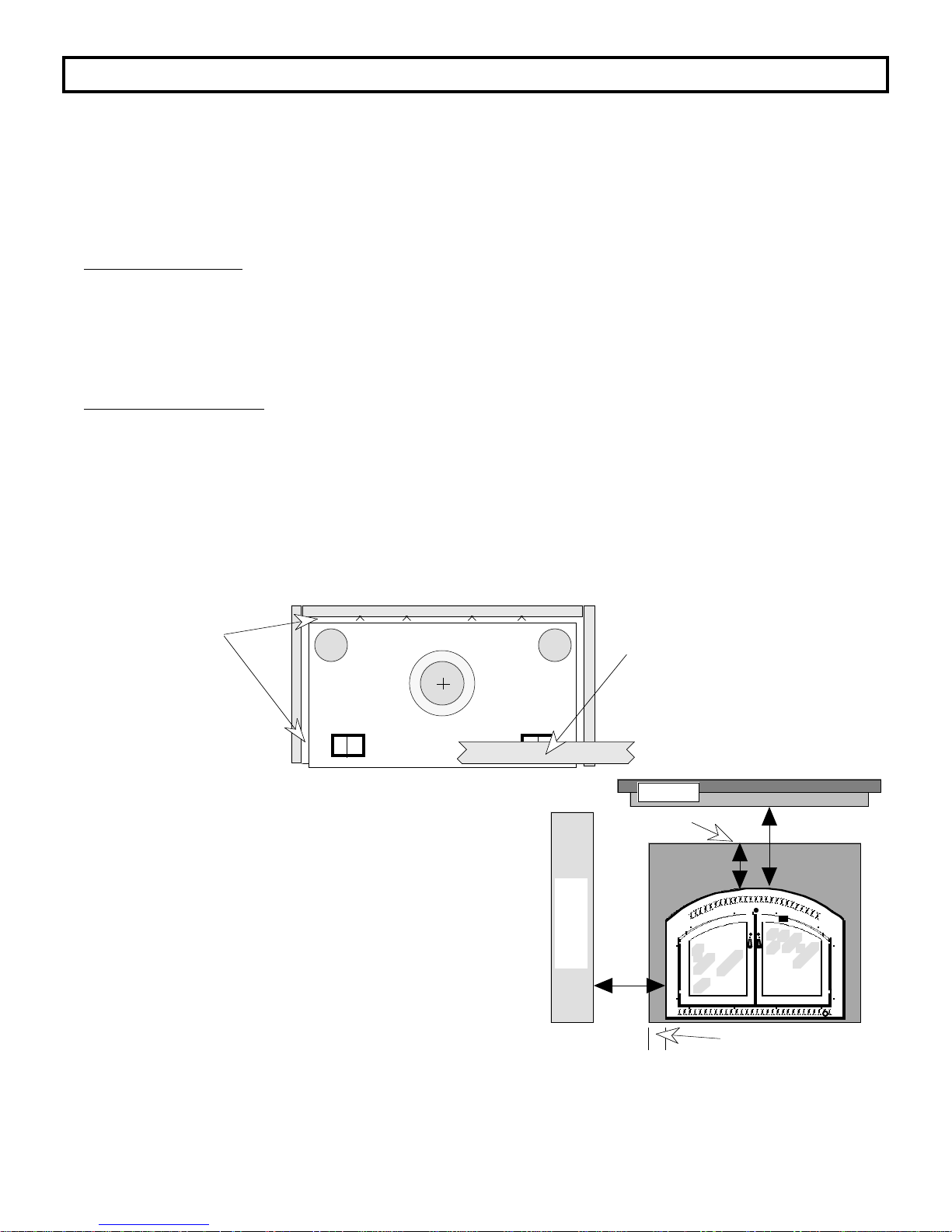

Minimum Clearances
When determining the placement of the fireplace it is also important to calculate the minimum
clearance to combustibles. Minimum clearance to combustibles measured from the faceplate
of the Fireplace Xtrordinair should meet or exceed:
Sides and Back
Header
Chimney
0"
0"
2"
To Space Stand Offs
To Stand Off
At First Floor Ceiling and Above. In Area Above Fireplace,
Maintain 5" to Back, 4 1/2" to Front Ð See Chimney Specifications.
Sides and Back
0" Clearance
from Spacers Header (Above the Fireplace)
0" Clearance from Stand Offs
Mantle
Top Facing
Side Facing
Adjacent Sidewall
23"
12"
2 1/2"
18"
To Edge of Faceplate
To Edge of Faceplate
To Edge of Faceplate
To Edge of Faceplate
SIDEWALL
23" Min.
18" Min.
12" Min.
2 1/2" Min.
MANTLE
The chase framing may safely make direct contact with the spacers on the top of the fireplace.
The fireplace may sit directly on a combustible sub-floor. The fireplace faceplate must not be
less than 18" from a combustible, perpendicular side wall. A 2" minimum air space clearance
between combustible materials and the chimney must be absolutely maintained.

8
ZERO CLEARANCE INSTALLATION - SPECIFICATIONS (Cont.)
Fireplace Placement (Continued)
Corner Placement
If installing the fireplace into a corner, follow all of the specifications listed in this manual
along with the additional specifications listed in the illustration below. These minimum
clearances are:
¥ 26" from edge of zero clearance fireplace to sidewall (Face Wall Total Width = 102")
¥ 22 1/4" from sidewall to center of chimney pipe
¥ 46 1/2" from front of faceplate to corner
¥ 76 1/2" from wall touching faceplate to corner
ADDITIONAL SPECIFICATIONS FOR CORNER PLACEMENT
46 1/2"
22 1/4"
66 1/2"
93"
26"

9
ZERO CLEARANCE INSTALLATION - SPECIFICATIONS (Cont.)
Chase Framing
The next consideration is the chase framing that surrounds the fireplace. The opening must
be framed to the dimensions shown in the illustration below for the size of the fireplace being
installed. Fireplace Xtrordinair suggests that the framing that is above the fireplace be
installed after the fireplace is installed to make the chimney installation easier. Consider
installing the fireplace in the desired location and then constructing the framing around it to
the proper clearances.
26"
45 1/2"
43"
When determining the depth, make sure to adhere to all of the minimum clearances outlined
in this manual. Make sure to carefully check all of the specifications and make a detailed
sketch outlining all the distances for this construction before beginning. If the chase does not
work out to be the desired depth based on the facing material, additional framing may be
added to the front of the existing framing to shim the facing to the needed location.
The chase may safely make direct contact with the spacers on the top, rear, and sides of the
fireplace.
WARNING: DO NOT PACK THE REQUIRED AIR SPACES AROUND THE
FIREPLACE OR BETWEEN THE SPACERS WITH INSULATION OR OTHER
MATERIALS.

10
ZERO CLEARANCE INSTALLATION - SPECIFICATIONS (Cont.)
Facing
Constructing a quality facing can
add extra beauty to the fireplace. It
must be made of a non-combustible
material such as stone, brick,
marble or tile. For thin facing such
as marble or tile a cement fiber
board can be used as a backing to
attach the facing material to.
TILE OR MARBLE FACING - TOP VIEW
Cement Fiberboard
Tile Or Marble Facing
Flange Ð Nailed to the
2 x 4 chase framing
Fireplace
Faceplate
2 x 4 Studs (Part of the chase framing)
Ð Can make contact with 1/2" spacers
on side of fireplace.
Fi r ep lac e
1"
Finished Wall Ð Can make
contact with fireplace
This fireplace has been designed to
accommodate many different types
of facing. The illustration above
shows a tile facing. A stone or brick
facing is constructed in much the
same way, with the stone or brick
replacing the tile and cement
fiberboard.
BRICK FACING - TOP VIEW
Flange Ð Nailed to the
2 x 4 chase framing
Fireplace
Faceplate
2 x 4 Studs (Part of the chase framing)
Ð Can make contact with 1/2" spacers
on side of fireplace.
Fi r ep lac e
1"
Finished Wall Ð Can make
contact with fireplace
Brick Facing
The non-combustible construction
facing must extend a minimum of 12"
above the faceplate of the fireplace, 2
1/2" to each side, and be at least 1" of
total thickness.
Any combustible material (e.g.
molding, finished wall, etc.) that
surrounds the facing must not extend
more than 3/4" in front of the surface of
the facing.
12" Min.
2 1/2" Min.
6 1/2"
28"
NOTE: The set-up face is identical to the finished face except that it is 1/4" larger on each
dimension. Use it as a guide while installing the facing. Do not install facing material over
the front of the set-up face. Doing so will prevent the installation of the finished faceplate.

11
ZERO CLEARANCE INSTALLATION - SPECIFICATIONS (Cont.)
Facing (Continued)
Square or Arched Faceplate
The set-up face shipped with the fireplace is for a square faceplate. To use the arched set-up
face, the top and two side pieces of the square set-up face will need to be removed. Loosen
the six set-up face screws and pull the three pieces from behind the arched set-up face, then
re-tighten the set-up face screws (see the illustration below).
Arched set-up face
Loosen these screws on each
side to remove the square
set-up face extensions.
Top square set-up face extension
Side square
set-up face
extension
Slide the square
set-up face
extensions from
behind the arched
set-up face.

12
ZERO CLEARANCE INSTALLATION - SPECIFICATIONS (Cont.)
Hearth
If the fireplace is set on a combustible floor, a hearth extension is required to protect it. It must
have a minimum of 1/2" of non-combustible material (1/2" cement fiberboard or equivalent)
between the combustible floor and the non-combustible hearth material (tile, marble, etc.). It
must extend a minimum of 20" in front of the fireplace and be a minimum of 52" wide. Raised
hearth extensions 6 1/2" and greater must have a minimum 18" depth. For raised hearth
extensions that go above the bottom of the fireplace to the bottom of the decorative faceplate,
non-combustible materials such as brick must be used. See the illustrations below for
additional specifications.
FLOOR LEVEL HEARTH
20" Min.
(Check Local Building Codes)
Minimum of 1/2" Cement
fiberboard or equivalent
non-combustible material
Tile or
marble
Fireplace
2" wide
sheet metal
ember
protector
Faceplate
Combustible Floor

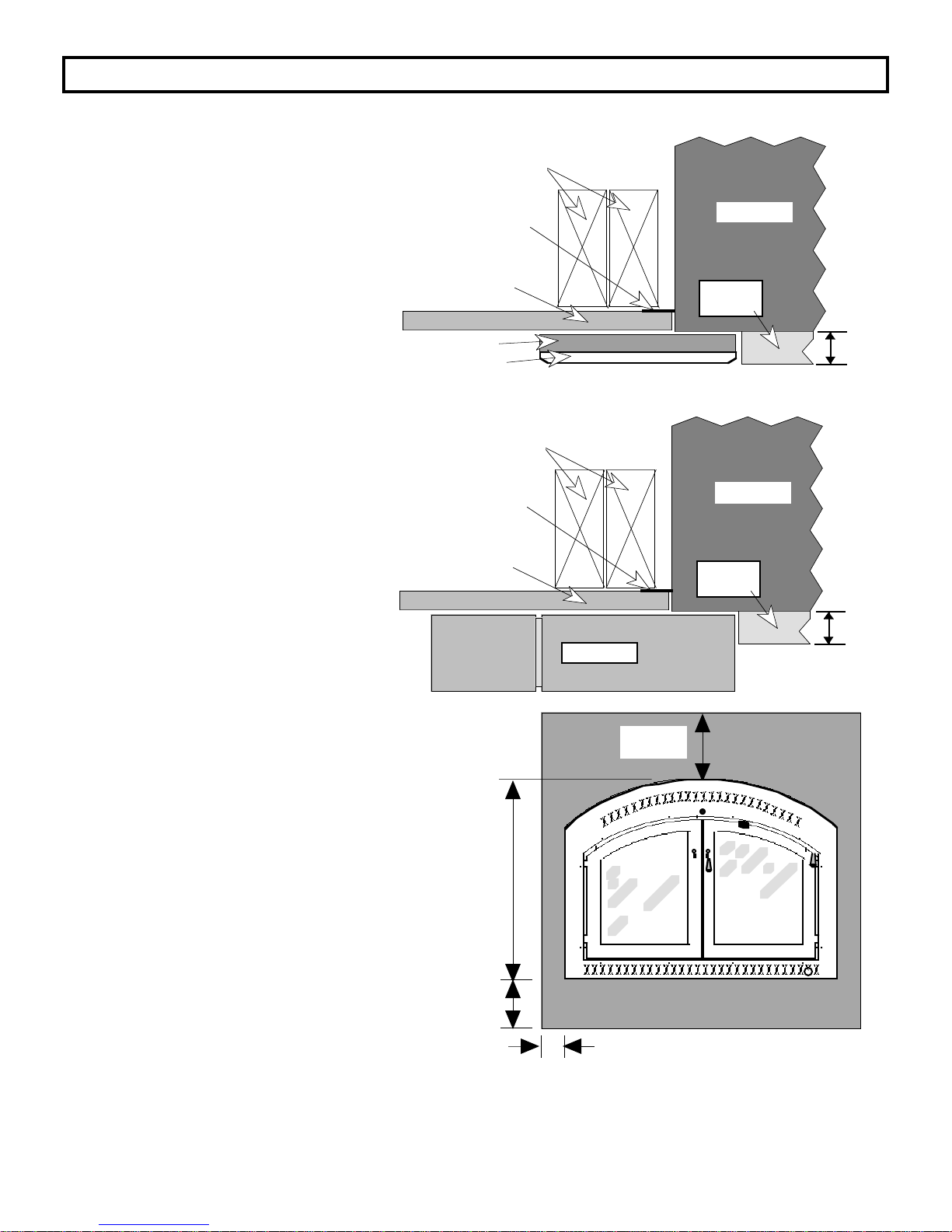

RAISED HEARTH WITH
STANDARD BRICK
This raised hearth doesn't require
any additional header height. 6 1/2"
Max.
Combustible Floor
18" Min.
(Check Local Building Codes)
No hearth material can
go above this point
Fireplace
Faceplate
2" wide sheet metal
ember protector
RAISED HEARTH RAISED HEARTH EXTENDING TO
FACEPLATE
3/4"
Plywood
Minimum 1/2" of cement fiberboard with
non-combustible tile or marble finish
15"
Raised
hearth
Fireplace
2" wide
sheet metal
ember
protector
2 x 4 Framing
Header height will
need to be increased
this dimension.
No combustible
material permitted
above this point
15"
Raised
hearth
3/4"
Plywood
This 6 1/2" must be constructed of
non-combustible materials such as 6
x 8 x 16 nominal size (5 1/2" x 7 1/2"
x 15 1/2" actual size) cement blocks.
Fireplace
2 x 8
Framing
Faceplate
2" wide
sheet
metal
ember
protector
Header height
will need to be
increased this
dimension.

13
ZERO CLEARANCE INSTALLATION - SPECIFICATIONS (Cont.)

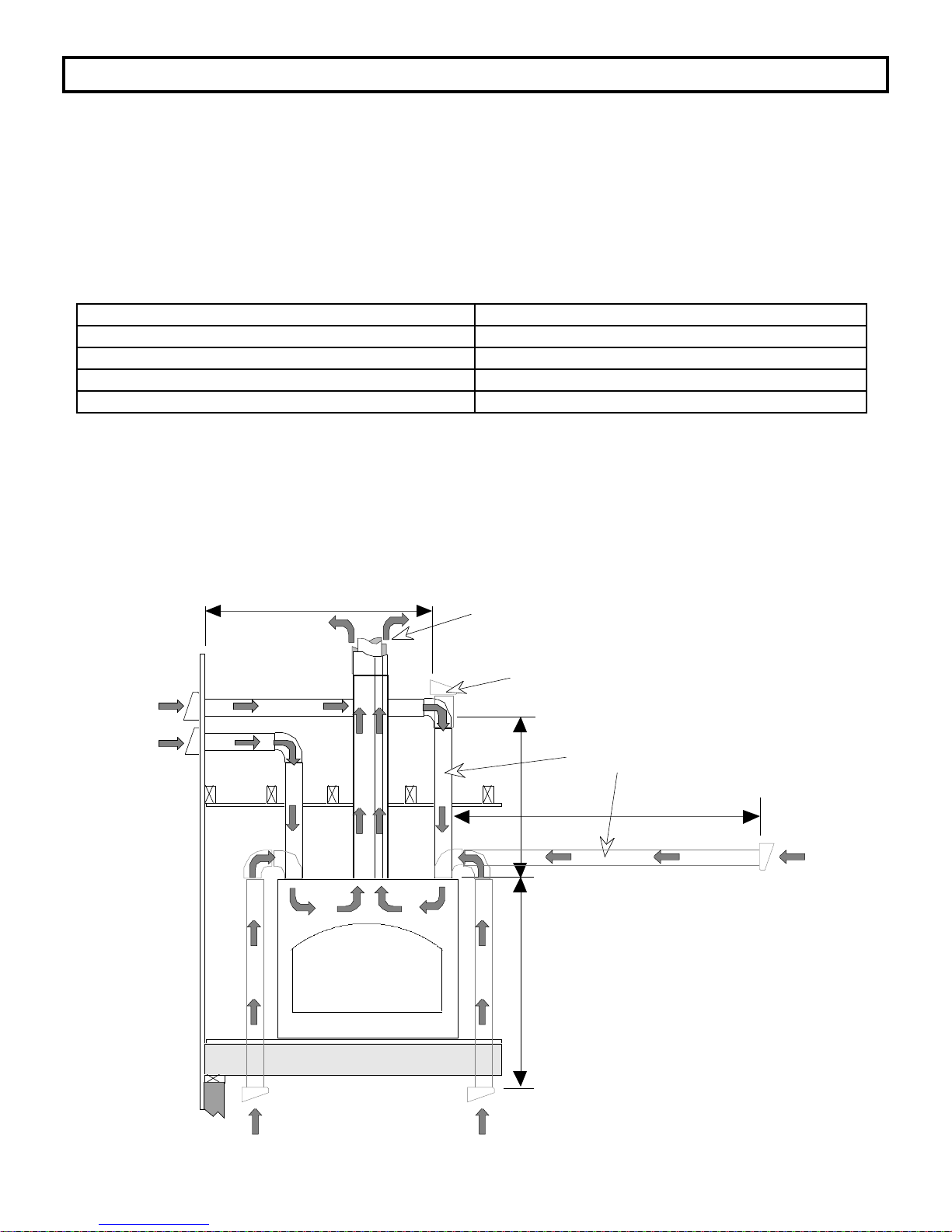

Cooling Vents
Located on the top rear corners of the fireplace are two 6" diameter air duct collars that must
be connected to 6" diameter air ducts that terminate outside. The purpose of the these air
ducts is to provide cooling air for the zero clearance fireplace and the air cooled chimney
system. Air is drawn into the ducts and circulated around the zero clearance fireplace. It then
exits through the outer liner of the chimney system, keeping the zero clearance fireplace and
chimney enclosure cool. The duct terminations must be located so they can not be
accidentally blocked in any manner (i.e. snow drifts). The table below details the maximum
horizontal run the duct may travel in relation to its vertical rise (see the illustration below):
When the vertical rise is between: The maximum horizontal run can be:
6' and 10' 5'
3' and 6' 15'
1' and 3' 20'
0' and 1' 25'
NOTE 1: As an option to drawing air from outside, the cooling air duct terminations can be
installed to draw air from a crawl space, attic, or garage. Check with your local building
inspections department to determine if this is acceptable in your area. In certain areas this
type of installation requires a certain type of duct termination like one with a fire curtain.
NOTE 2: The maximum number of elbows that can be used in the system are two.
WARNING: FAILURE TO VENT SYSTEM PROPERLY COULD CAUSE AN
EXTREME FIRE HAZARD.
Vertical cooling vent
terminations must terminate a
minimum of 10' away from the
chimney termination.
Fireplace Xtrordinair
6' Max.
15' Max.
Crawl Space Ð
See Note 1 above for
information on crawl
space, attic, or garage
terminations.
Cooling Air Ducts
6' Max.
25' Max.
Cooling Air
Cooling Air
Cooling
Air
Air exits out of the outer liner of the chimney.

14
ZERO CLEARANCE INSTALLATION - SPECIFICATIONS (Cont.)
Blower
The blower system on the Fireplace Xtrordinair is located away from the fireplace on an
outside wall. It draws air in from outside, circulating it around the fireplace, and delivering it
as heated air to the home. This type of blower system will create positive pressure inside the
home, reducing cold air infiltration.
Connecting the Blower Duct:
After a location for the fireplace has been determined, the location for the blower housing
must be considered. The best location for the blower housing is on an outside wall as close
as possible to the fireplace so the 6" blower duct can be easily connected. The maximum
length for 6" diameter duct is 15'. If a blower duct run of more than 15' is desired, 8" diameter
duct can be used. It can have a maximum distance of 25'. If 8" duct is used there will need to
be two 8" to 6" reducers to make the connections to the fireplace and the blower housing. Do
not put more than two elbows in the system (regardless of whether 6" or 8" diameter duct is
used).
NOTE 1: If the blower is to take air from a crawlspace or attic you must first check with your
local building inspections department to confirm that this type of installation is permitted. In
some areas this type of installation may require a special type of duct termination like one
with a fire curtain.
Blower Housing
Intake grill
must be
accessible.
Snap conduit
connector into the
hole in the top of
the blower housing.
Wire Plugs
Start Collar
Flex Duct
6" Blower
Hook-Up
Power Source
(110 Volt A.C.)
Locking Tabs
13"
11 1/2"
6"
11"
1 1/2"
TOP
VIEW
Ring for duct
Hole for
Conduit
FRAMING DIMENSIONS: Height: 13"
Width: 11"
Depth: 11 1/2"
Conduit Cover
Plate (On both
sides)
Fireplace
Xtrordinair
Min. 4"

15
ZERO CLEARANCE INSTALLATION - SPECIFICATIONS (Cont.)
Blower Duct (Continued)
Provided with the fireplace is a start collar with a section of 6" flex duct that can be used as
the blower duct. The flex duct connects to the blower housing and the start collar connects to
one of the three blower duct hook-ups on the fireplace (right side, left side, and bottom). To
connect the blower duct to either of the side hook-ups, remove the cover plate on the side
being used, insert the start collar, and bend the locking tabs on the start collar outwards to
hold it in place. If the bottom hook-up is chosen, a hole needs to be cut through the floor for
the duct to pass through and the damper that directs the air flow inside the fireplace housing
needs to be removed before the fireplace is set in place. To remove the damper, first remove
the cover plate on the bottom of the fireplace. The damper is directly above this cover plate
and can be removed by bending it with pliers until it clears the hole. To attach the blower
duct to the bottom hook-up, insert the start collar past the location where the damper was until
it reaches the circular hole approximately 6" above the bottom of the fireplace. Insert the start
collar into this hole and bend the tabs on the start collar outwards to hold it in place.
If the blower is to be located directly to the side of the fireplace, make sure to allow at least 4"
seperation. A minimum 36" distance from the center of the fireplace to the face of the blower
housing is required. See the illustration below.
36" Minimum From Center of
Fireplace For Flush Blower Housing
Bottom plate of framing will have to
be notched for blower housing
except when raised platform is used
for a raised hearth extension.
Blower Housing
Hook-up For
Blower Conduit
Power Conduit
4" Minimum
Weatherproofing the Blower:
The blower should be weatherproofed if it
is located on an external wall. To
weatherproof the blower, apply caulk
around the perimeter of the blower housing
where it contacts the external wall. The
blower cover must be removed prior to
applying the caulk. Because the blower
cover will overlap the caulk, apply the caulk
sparingly. See the illustration to the right.
Blower
Housing
External Wall
Caulk (Around
All Four Sides)
Blower Cover
Top
V i e w

16
ZERO CLEARANCE INSTALLATION - SPECIFICATIONS (Cont.)
Blower (Continued)
Routing the Conduit:
CAUTION: DO NOT RUN THE CONDUIT OVER THE TOP OF THE FIREPLACE.
During assembly match the plug on the end of the wires coming from the blower conduit with
the plug coming from the top of the blower housing (See the drawing below). Then snap the
conduit connector into the hole on top of the blower housing. A metal junction box is required
between the conduit providing power to the fireplace and the 110 Volt A.C. power source. If
the blower is located to the left, or if the power supply is located to the left, the electrical
conduit(s) can be run behind the fireplace or fed through the fireplace housing. If the conduit
is run behind the fireplace, the framing or chase construction may need to be notched or
modified to allow for the extra space needed to run the conduit behind the fireplace. To feed
the conduit through the fireplace housing, remove the conduit cover plate on both sides of the
fireplace. The right side cover plate provides the additional room needed to feed the conduit
through the fireplace housing without kinking the conduit. Take the conduit and feed it
through the hole on the right side and out the left side. Make sure to take up all of the slack
after pulling it out the left side. Switch the cover plates by attaching the right cover plate to
the left side and vice-versa.
Blower
Conduit
Snap this piece
into the top of the
blower housing
White (Common)
Junction
Box
Exposed (Ground) Black (Hot)
Screw this piece into
the junction box
Use wire nuts or other approved method to connect
the power conduit wires to a power source
Power Conduit

17
ZERO CLEARANCE INSTALLATION - SPECIFICATIONS (Cont.)
Factory-Built Chimney
The zero clearance installation is designed to be used with a factory-built double-wall
chimney. Use only the brands of chimney listed in this section. It is very important to follow
the clearance specifications listed in this section. The chimney can be installed at any point
after the fireplace position is precisely determined. It is easier to install the chimney in the
chase prior to setting the fireplace in position. It can be held up out of the way with a 2 x 4
nailed across the chase.
Connecting the Chimney to the Fireplace
This fireplace is designed to accommodate all of the brands of double-wall chimney listed in
this section of the installation manual. To attach the chimney to the fireplace, the fireplace
must be in its final position and the chimney connector that attaches to the fireplace must also
be ready to be installed.
The fireplace has outer liner connectors and an inner liner that has a ledge along the inside.
When attaching the chimney to the fireplace, first slide down the inner liner of the chimney
pipe into the inner liner of the fireplace. Certain brands of chimney pipe will stop at the ledge,
while others will insert beyond the ledge. When the chimney pipe is fully seated and aligned,
drill three holes in the chimney pipe where it lines up with the holes in the fireplace inner
liner. Secure the fireplace to the chimney pipe with three sheet metal screws. If there are
any large gaps between the chimney pipe and fireplace, use furnace cement to seal (allow
24 hours to dry before burning the fireplace). The outer liner of the chimney pipe attaches to
the outer liner connectors. Depending on the chimney pipe diameter, the position of the
outer liner connectors may need to be adjusted. Drill holes into the outer liner of the chimney
pipe where it lines up with the holes in the connectors. Secure with sheet metal screws.
Then secure the outer liner connectors to the top of the fireplace with sheet metal screws if
their position has been changed. See the illustration below.
Inner Liner (Ledge Along
Inside Accepts Different
Sized Chimney Pipes)
Use Sheet Metal Screws
to Attach the Outer Liner
Connectors to the
Chimney Outer Liner.
Outer Liner Connectors
Connect Inner Liner
to the Chimney Pipe
with Three Sheet
Metal Screws in the
Holes Provided
Remove the
Outer Liner
Connectors and
re-attach with
sheet metal
screws if their
location does
not accomodate
the diameter of
the Chimney
Outer Liner.

18
ZERO CLEARANCE INSTALLATION - SPECIFICATIONS (Cont.)
Factory-Built Chimney (Continued)
Chimney Height
The system height,
measured from the
floor the fireplace
sets on to the top of
the chimney cap,
must not exceed 35'
or be below 15'.
(See the illustration
to the right). Chimney must be totally
enclosed when passing
through living space with
a minimum 2" clearance to
combustibles.
3'
Min.
2' Min.
10'
System Height
35' Max.
15' Min.
2" Min. Air
Space to
Combustibles
Rain Cap
Storm Collar
Flashing
Roof Framing (See Roof Opening
Table)
Firestop Between Floor Levels
Attic Firestop
Cooling Vents

19
ZERO CLEARANCE INSTALLATION - SPECIFICATIONS (Cont.)
Factory-Built Chimney (Continued)

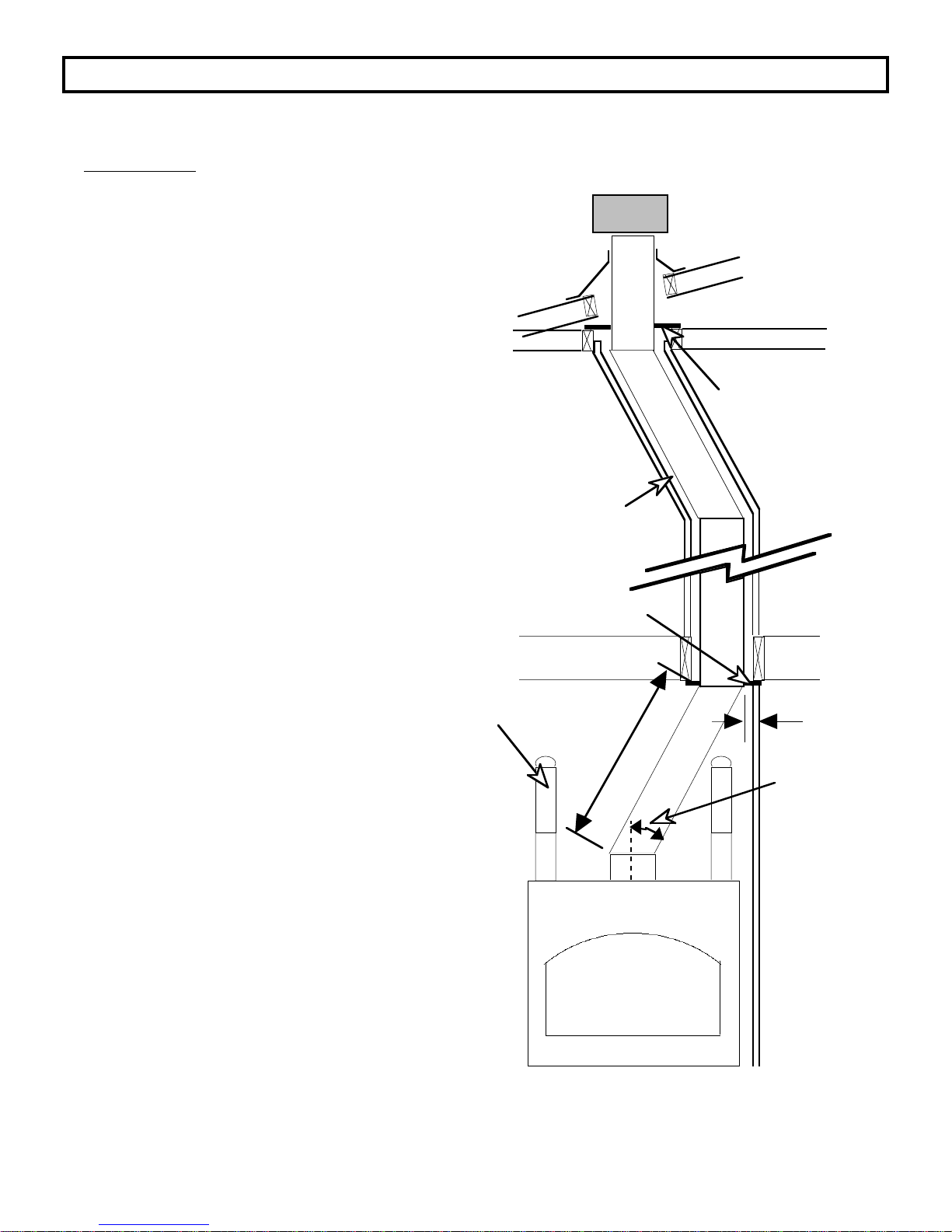

Using Offsets
Offsets can be used to align the
chimney and to gain clearance
to combustibles. When using
offsets, make sure to follow all of
the specifications below.
A system can have no more
than a total of 2 offsets (Four 30
degree elbows). Each offset
elbow must be used with a
return elbow. A system using
one offset is allowed to have a
maximum of 8' of inclined
chimney between the elbows.
For every 6' of inclined chimney
a flue support is needed (See
parts list). For systems
incorporating two offsets there is
a maximum of 4' allowed
between each set of offsets
(See the illustration to the right).
Max. of 30
degrees
4' Max.
Chimney must be totally
enclosed when passing
through living space with a
minimum 2" clearance to
combustibles.
Firestop
Firestop
2"
Min.
Cooling Vents
